基于大数据的老年人生活圈及设施配置特征分析——以北京市为例

doi:10.13249/j.cnki.sgs.2022.07.005

地理科学 ›› 2022, Vol. 42 ›› Issue (7): 1176-1186.doi: 10.13249/j.cnki.sgs.2022.07.005

基于大数据的老年人生活圈及设施配置特征分析——以北京市为例

赵鹏军¹^,²(), 罗佳¹^,³, 胡昊宇²

1.北京大学深圳研究生院城市规划与设计学院，广东深圳 518055
2.北京大学城市与环境学院，北京 100871
3.中规院（北京）规划设计有限公司，北京 100044

收稿日期:2021-02-26 修回日期:2021-10-01 出版日期:2022-07-10 发布日期:2022-09-07
作者简介:赵鹏军（1975−），男，陕西延安人，教授，博导，主要从事空间与交通规划研究。E-mail: pengjun.zhao@pku.edu.cn
基金资助:
国家自然科学基金项目(41925003);国家自然科学基金项目(42130402);北京市社会科学基金重点项目(20JCB073)

Character of the Elderly’s Life Circle and Public Service Facilities Configuration by Using Big Data: A Case of Beijing

Zhao Pengjun¹^,²(), Luo Jia¹^,³, Hu Haoyu²

1. School of Urban Planning and Design, Peking University Shenzhen Graduate School, Shenzhen 518055, Guangdong, China
2. College of Urban and Environmental Sciences, Peking University, Beijing 100871, China
3. CAUPD Beijing Planning and Design Consultants Ltd., Beijing 100044, China

Received:2021-02-26 Revised:2021-10-01 Online:2022-07-10 Published:2022-09-07
Supported by:
National Natural Science Foundation of China(41925003);National Natural Science Foundation of China(42130402);Key Program of Beijing Municipal Social Science Foundation(20JCB073)

摘要/Abstract

摘要：

老年人生活圈是社会地理学和交通地理学的重要问题之一，也是国土空间规划的重要内容之一。尽管该领域已有一定研究，但在数据类型及其覆盖范围、空间尺度效应、空间分异特征等方面仍需进完善。采用手机信令数据和POI数据等大数据分析方法，以北京为样例，探讨老年人生活圈范围及其同设施配置之间的关系。分析结果表明：① 老年人生活圈存在空间分层特征，包括邻里生活圈、居住区生活圈、都市生活圈等多层次生活圈；② 生活圈同设施配套之间的关系存在尺度效应，居住区生活圈层面公共服务设施可达性对生活圈的影响强度要显著高于邻里生活圈层面；③ 不同设施之间存在差异，购物、休闲娱乐、医疗服务设施等老年人的刚性需求类设施的可达性水平与生活圈半径呈现出负相关，而餐饮、文化教育设施等消遣娱乐设施的可达性则反之；④ 不同的地理区位也存在显著差异，设施可达性水平对生活圈范围的影响在市中心较弱，反而在郊区较强。结论将为国土空间规划和宜老化城市建设实践提供依据。

关键词: 老年人, 生活圈, 可达性, 手机信令, 兴趣点数据, 公共服务设施

Abstract:

This study uses mobile phone data and point of interest data to discover the relationship between the scope of elderly’s life circle and various public service facilities configuration by looking at Beijing as a case. The results of analysis show that, firstly, the elderly’s life circle has a feature of spatial stratification, which including the neighborhood life circle, residential life circle, urban life circle. Secondly, there is a scale effect on the relationship between the radius of life circle and accessibility of public service facilities, and the intensity of the matching relationship between the spatial radius of residential life circles and the accessibility of public service facilities is significantly higher than that of neighborhood life circles. Thirdly, there are differences among different facilities. The accessibility level of rigid demand facilities such as shopping, leisure and entertainment, and medical service facilities for the elderly is negatively correlated with the radius of the life circle, while the accessibility of recreational and entertainment facilities such as catering, cultural and educational facilities is vice versa. Fourthly, there are also significant differences among different geographical locations. The impact of facility accessibility on the radius of life circle is much weaker in the downtown area than in other areas, but the influence is stronger in the suburbs. The findings and conclusions would provide new evidence for the practice of national spatial planning and elderly-livable urban construction.

Key words: the elderly, life circle, accessibility, mobile phone data, point of interest data, public service facilities

中图分类号:

F129.9

赵鹏军, 罗佳, 胡昊宇. 基于大数据的老年人生活圈及设施配置特征分析——以北京市为例[J]. 地理科学, 2022, 42(7): 1176-1186.

Zhao Pengjun, Luo Jia, Hu Haoyu. Character of the Elderly’s Life Circle and Public Service Facilities Configuration by Using Big Data: A Case of Beijing[J]. SCIENTIA GEOGRAPHICA SINICA, 2022, 42(7): 1176-1186.

图/表 14

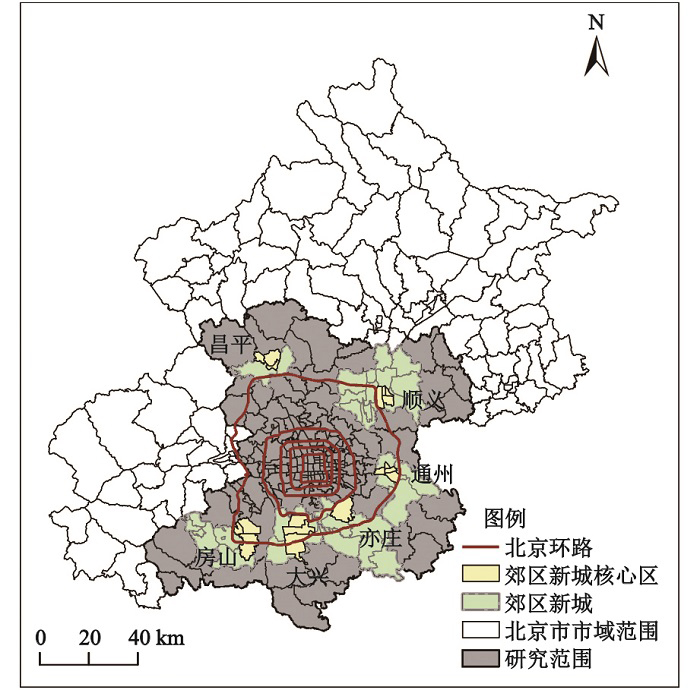

图1

表1

图2

图3

表2

图4

图5

图6

表3

图7

图8

表4

图9

图10

参考文献 35

[1]	柴彦威, 李春江, 夏万渠, 等. 城市社区生活圈划定模型——以北京市清河街道为例[J]. 城市发展研究, 2019, 26(9): 1-8+68.
	Chai Yanwei, Li Chunjiang, Xia Wanqu et al. Study on the delineation model of urban community life circle: Based on Qinghe District in Haidian District, Beijing. Urban Studies, 2019, 26(9): 1-8+68.
[2]	申悦, 柴彦威. 基于GPS数据的北京市郊区巨型社区居民日常活动空间[J]. 地理学报, 2013, 68(4): 506-516.
	Shen Yue, Chai Yanwei. Daily activity space of suburban mega-community residents in Beijing based on GPS data. Acta Geographica Sinica, 2013, 68(4): 506-516.
[3]	Yin L, Raja S, Li X et al. Neighbourhood for playing: Using GPS, GIS and accelerometry to delineate areas within which youth are physically active[J]. Urban Studies, 2013, 50(14): 2922-2939. doi: 10.1177/0042098013482510
[4]	季珏, 高晓路. 基于居民日常出行的生活空间单元的划分[J]. 地理科学进展, 2012, 31(2): 248-254.
	Ji Yu, Gao Xiaolu. Identifying the scope of daily life in urban areas based on residents’ travel behaviors. Progress in Geography, 2012, 31(2): 248-254.
[5]	孙道胜, 柴彦威, 张艳. 社区生活圈的界定与测度: 以北京清河地区为例[J]. 城市发展研究, 2016, 23(9): 1-9.
	Sun Daosheng, Chai Yanwei, Zhang Yan. The definition and measurement of community life circle: A case study of Qinghe area in Beijing. Urban Studies, 2016, 23(9): 1-9.
[6]	刘嫱. 基于手机数据的居民生活圈识别及与建成环境关系研究[D]. 深圳: 哈尔滨工业大学, 2018.
	Liu Qiang. Mobile phone data identification of residents’life circle and its condition with the built environment. Shenzhen: Harbin Institute of Technology, 2018.
[7]	孙德芳, 沈山, 武廷海. 生活圈理论视角下的县域公共服务设施配置研究——以江苏省邳州市为例[J]. 规划师, 2012, 28(8): 68-72.
	Sun Defang, Shen Shan, Wu Tinghai. Life circle theory based county public service distribution: Jiangsu Pizhou case. Planners, 2012, 28(8): 68-72.
[8]	朱查松, 王德, 马力. 基于生活圈的城乡公共服务设施配置研究——以仙桃为例[M]//中国城市规划学会, 重庆市人民政府. 规划创新: 2010中国城市规划年会论文集. 重庆: 重庆出版社, 2010: 2813-2822.
	Zhu Chasong, Wang Dei, Ma Li. Research on the allocation of urban and rural public service facilities based on life circle: A case study of Xiantao//Urban Planning Society of China, Chongqing Municipal Government. Planning innovation: Proceedings of the China urban planning annual conference in 2010. Chongqing: Chongqing Press, 2010: 2813-2822.
[9]	张艺. 基于生活圈结构的小城镇公共服务设施层级配置优化策略研究[D]. 武汉: 华中科技大学, 2013.
	Zhang Yi. The research on the infrastructural hierarchy construction of small towns based on the life circle. Wuhan: Huazhong University of Science and Technology, 2013.
[10]	魏伟, 洪梦谣, 谢波. 基于供需匹配的武汉市15分钟生活圈划定与空间优化[J]. 规划师, 2019, 35(4): 11-17.
	Wei Wei, Hong Mengyao, Xie Bo. Demand-supply matching oriented 15-minute community life circle demarcation and spatial optimization, Wuhan. Planners, 2019, 35(4): 11-17.
[11]	孙道胜, 柴彦威. 城市社区生活圈体系及公共服务设施空间优化——以北京市清河街道为例[J]. 城市发展研究, 2017, 24(9): 7-14+25+12.
	Sun Daosheng, Chai Yanwei. Study on the urban community life sphere system and the optimization of public service facilities: A case study of Qinghe area in Beijing. Urban Studies, 2017, 24(9): 7-14+25+12.
[12]	黄建中, 张芮琪, 胡刚钰. 基于时空间行为的老年人日常生活圈研究——空间识别与特征分析[J]. 城市规划学刊, 2019(3): 87-95.
	Huang Jianzhong, Zhang Ruiqi, Hu Gangyu. A research of the elderly’s daily life based on spatial-temporal behaviors-analysis of place recognition and spatial features. Urban Planning Forum, 2019(3): 87-95.
[13]	Weng M, Ding N, Li J et al. The 15-minute walkable neighborhoods: Measurement, social inequalities and implications for building healthy communities in urban China[J]. Journal of Transport & Health, 2019, 13: 259-273.
[14]	许君正. 基于手机信令的生活圈养老服务设施公平绩效研究[D]. 广州: 华南理工大学, 2019.
	Xu Junzheng. Study on equity performance of old-age service facilities in life circle based on mobile phone signaling data. Guangzhou: South China University of Technology, 2019.
[15]	陈玉玲. 城市社区老年人生活圈医养设施配置策略研究[D]. 哈尔滨: 哈尔滨工业大学, 2019.
	Chen Yuling. Research on the allocation strategy of medical and nursing facilities for the elderly in urban communities. Harbin: Harbin Institute of Technology, 2019.
[16]	赵立志, 田婕, 李昕阳. 基于促进交往的城市老年人第三场所探析——以北京市海淀区和朝阳区为例[J]. 城市发展研究, 2018, 25(6): 171-174.
	Zhao Lizhi, Tian Jie, Li Xinyang. Analysis on the third place of urban elderly based on promoting communication: Taking Haidian district and Chaoyang district in Beijing as an example. Urban Studies, 2018, 25(6): 171-174.
[17]	吴梦萦. 老年人日常生活圈公共服务设施配置研究[D]. 北京: 北方工业大学, 2019.
	Wu Mengying. Study on the configuration of public service facilities in the daily life circle of the elderly. Beijing: North China University of Technology, 2019.
[18]	张可. 日常生活圈构建视角下的社区养老服务设施规划研究[D]. 合肥: 合肥工业大学, 2019.
	Zhang Ke. Study on the planning of community aging care service facilities from the perspective of daily life circle construction. Hefei: Hefei University of Technology, 2019.
[19]	吴梦萦, 王雷. 老年人日常生活圈公共服务设施使用情况研究[C]//中国城市规划学会, 杭州市人民政府. 共享与品质: 2018中国城市规划年会论文集(15控制性详细规划). 北京: 中国建筑工业出版社, 2018: 74-84.
	Wu Mengying, Wang Lei. Study on the use of public service facilities in the elderly’ s daily life circle// Urban Planning Society of China, Hangzhou Municipal Government. Sharing and quality: Proceedings of the China urban planning annual conference in 2018 (15th Regulatory plan). Beijing: China Architecture & Building Press, 2018: 74-84.
[20]	刘晨. 生活圈视角下社区老年人公共服务设施空间布局与社会绩效研究[D]. 深圳: 深圳大学, 2018.
	Liu Chen. The community public service facility research about spatial distribution and social performance based on the perspective of life circle in the elderly. Shenzhen: Shenzhen University, 2018.
[21]	Reilly M, Landis J. The influence of built-form and land use on mode choice[R]. University of California Transportation Center, Working Papers, 2003.
[22]	Chudyk A M, Winters M, Moniruzzaman M D et al. Destinations matter: The association between where older adults live and their travel behavior[J]. Journal of Transport & Health, 2015, 2(1): 50-57.
[23]	Kim S. Assessing mobility in an aging society: Personal and built environment factors associated with older people’s subjective transportation deficiency in the US[J]. Transportation Research Part F:Traffic Psychology and Behaviour, 2011, 14(5): 422-429. doi: 10.1016/j.trf.2011.04.011
[24]	黄建中, 胡刚钰, 李敏. 老年视角下社区服务设施布局适宜性研究——基于步行指数的方法[J]. 城市规划学刊, 2016(6): 45-53.
	Huang Jianzhong, Hu Gangyu, Li Min. The allocative suitability of community facilities from the perspective of the elderly-based on walk score method. Urban Planning Forum, 2016(6): 45-53.
[25]	黄建中, 吴萌. 特大城市老年人出行特征及相关因素分析——以上海市中心城为例[J]. 城市规划学刊, 2015(2): 93-101.
	Huang Jianzhong, Wu Meng. An investigation and analysis of travel characteristics and related factors of the elderly population in megacities-the case of the central area in Shanghai. Urban Planning Forum, 2015(2): 93-101.
[26]	许晓霞, 柴彦威. 北京居民日常休闲行为的性别差异[J]. 人文地理, 2012, 27(1): 22-28.
	Xu Xiaoxia, Chai Yanwei. Gender Difference in daily leisure behavior of Beijing residents. Human Geography, 2012, 27(1): 22-28.
[27]	赵鹏军, 罗佳, 胡昊宇. 基于大数据的生活圈范围与服务设施空间匹配研究——以北京为例[J]. 地理科学进展, 2021, 40(4): 541-553. doi: 10.18306/dlkxjz.2021.04.001
	Zhao Pengjun, Luo Jia, Hu Haoyu. Spatial match between residents’daily life circle and public service facilities using big data analytics: A case of Beijing. Progress in Geography, 2021, 40(4): 541-553. doi: 10.18306/dlkxjz.2021.04.001
[28]	Wang F. Modeling commuting patterns in Chicago in a GIS environment: A job accessibility perspective[J]. The Professional Geographer, 2000, 52(1): 120-133. doi: 10.1111/0033-0124.00210
[29]	Cardozo O D, García-Palomares J C, Gutiérrez J. Application of geographically weighted regression to the direct forecasting of transit ridership at station-level[J]. Applied Geography, 2012, 34: 548-558. doi: 10.1016/j.apgeog.2012.01.005
[30]	Feng J. The influence of built environment on travel behavior of the elderly in urban China[J]. Transportation Research Part D: Transport and Environment, 2017, 52: 619-633. doi: 10.1016/j.trd.2016.11.003
[31]	孙樱. 城市老年休闲绿地系统需求分析与建设对策[J]. 资源科学, 2003, 25(3): 69-76.
	Sun Ying. Demand-analysis and suggestion on urban green-lands for leisure activities of the aged. Resources Science, 2003, 25(3): 69-76.
[32]	周洁, 柴彦威. 中国老年人空间行为研究进展[J]. 地理科学进展, 2013, 32(5): 722-732. doi: 10.11820/dlkxjz.2013.05.004
	Zhou Jie, Chai Yanwei. Research progress on spatial behaviors of the elderly in China. Progress in Geography, 2013, 32(5): 722-732. doi: 10.11820/dlkxjz.2013.05.004
[33]	冯建喜, 杨振山. 南京市城市老年人出行行为的影响因素[J]. 地理科学进展, 2010, 29(10): 1217-1224.
	Feng Jianxi, Yang Zhenshan. Factors influencing travel behavior of urban elderly people in Nanjing. Progress in Geography, 2010, 29(10): 1217-1224.
[34]	Paez A, Scott D, Potoglou D et al. Elderly mobility: Demographic and spatial analysis of trip making in the Hamilton CMA, Canada[J]. Urban Studies, 2007, 44(1): 123-146. doi: 10.1080/00420980601023885
[35]	Siren A, Hjorthol R, Levin L. Different types of out-of-home activities and well-being amongst urban residing old persons with mobility impediments[J]. Journal of Transport & Health, 2015, 2(1): 14-21.

设施分类	包含POI
医疗服务设施	老年医院、老年病及慢性病医院、老年门诊、康复医院、诊所、综合医院等
文化教育设施	老年大学、老年学校、图书馆、文化馆、展览馆、博物馆等
休闲娱乐设施	老年活动中心、老年活动室、老年棋牌室、社区活动中心、体育健身中心、广场、公园等
餐饮设施	老年食堂（餐厅）、中餐、西餐、快餐、咖啡厅、甜品店等
购物设施	菜市场、便利店、超市、商场等

类别	变量	测度	邻里生活圈层面		居住区生活圈层面
类别	变量	测度	均值	标准差	均值	标准差
因变量	${y}$ （生活圈范围）	街道老年人生活圈半径均值/km	2.14	1.67	6.18	3.68
自变量	${{x} }_{1}$ （餐饮设施可达性）	街道餐饮设施可达性评分均值	597.05	644.55	1325.98	1310.46
	${{x} }_{2}$ （文化教育设施可达性）	街道文化教育设施可达性评分均值	19.09	23.19	41.10	46.03
	${{x} }_{3}$ （休闲娱乐设施可达性）	街道休闲娱乐设施可达性评分均值	22.50	23.33	49.44	48.45
	${{x} }_{4}$ （医疗服务设施可达性）	街道医疗服务设施可达性评分均值	31.81	30.71	70.06	63.05
	${{x} }_{5}$ （购物设施可达性）	街道购物设施可达性评分均值	136.80	122.06	307.05	257.92

		餐饮设施	文化教育设施	休闲娱乐设施	医疗服务设施	购物设施
邻里生活圈层面	分街道均值	597.05	19.09	22.50	31.81	136.80
邻里生活圈层面	分街道标准差	644.55	23.19	23.33	30.71	122.06
居住区生活圈层面	分街道均值	1325.98	41.10	49.44	70.06	307.05
居住区生活圈层面	分街道标准差	1310.46	46.03	48.45	63.05	257.92

变量	邻里生活圈层面回归			居住区生活圈层面回归
变量	标准化回归系数	t值	P值	标准化回归系数	t值	P 值
注：^表示0.05的显著水平；^表示0.01的显著水平；^**表示0.001的显著水平；t值、P值分别是针对回归模型中各个变量系数的t检验结果和显著性程度；邻里生活圈层面回归方程调整R²为0.362，居住区生活圈层面回归方程调整 R²为0.399。
餐饮设施可达性	0.447^*	2.407	0.017	0.909^***	3.264	0.001
文化教育设施可达性	0.333^*	2.467	0.014	0.942^***	4.169	0.000
休闲娱乐设施可达性	–0.349	–1.738	0.084	–0.716^*	–2.333	0.021
医疗服务设施可达性	–0.317	–1.532	0.127	–0.645^*	–2.115	0.036
购物设施可达性	–0.678^***	–3.421	0.001	–1.040^***	–4.039	0.000
