基于土壤理化性质估计土壤水分特征曲线Van Genuchten模型参数

doi:10.13249/j.cnki.sgs.2018.07.021

Abstract

Abstract:

The soil water retention curve (SWRC) is the basic parameter of soil hydraulics to study soil water movement and soil water balance, which is closely related to soil physical and chemical properties. But the parameters of model is difficult to estimate. In this study, black soil samples with different erosion intensity were collected in the black soil region of Northeast China, and soil moisture under 7 soil water suction, mechanical composition, organic matter and bulk density were measured. We used Rosetta model to estimate the parameters of Van Genuchten (VG) model and compared the estimated soil moisture with the measured soil moisture. And then the simulation accuracy of different soil physical and chemical indexes and the suitability of the method to the black soil in Northeast China were evaluated. The results showed that there had little effect for the residual water content (θ_r) and saturated water content (θ_s) between 4 or 6 soil properties index, but had large difference for the scale parameter (α) and shape parameter (n). When the 6 indexes were used, shape parameter n decreased with the increased of scale parameter α. The relationship between the shape parameters m and n of the VG model was further modified, which improved the accuracy of model fitting obviously. The results of the 6 indexes were better than the 4 indexes. But the estimated values were different from the measured values and the estimated values were larger than the measured, which means soil moisture estimation need to be corrected according to the estimated value of relatively large degree. The fitting precision of Rosetta model for lightly and moderately erosion black soil was higher, and the precision of severely erosion black soil was lower. The model was suitable for sand content less than 46%, the clay content more than 28% of black soil in Northeast China.

Key words: soil water retention curve, soil physical and chemical properties, black soil, Rosetta model, Van Genuchten model

CLC Number:

S152.7

Shuang Li, Xiangjie Zhao, Yun Xie, Junrui Zhai, Gang Liu, Xiaofei Gao, Jing Li, Yan Gao. Parameter Estimation of Soil Water Retention Curve Based on Soil Physical and Chemical Properties of Van Genuchten Model[J].SCIENTIA GEOGRAPHICA SINICA, 2018, 38(7): 1189-1197.

Figures/Tables 9

Table 1

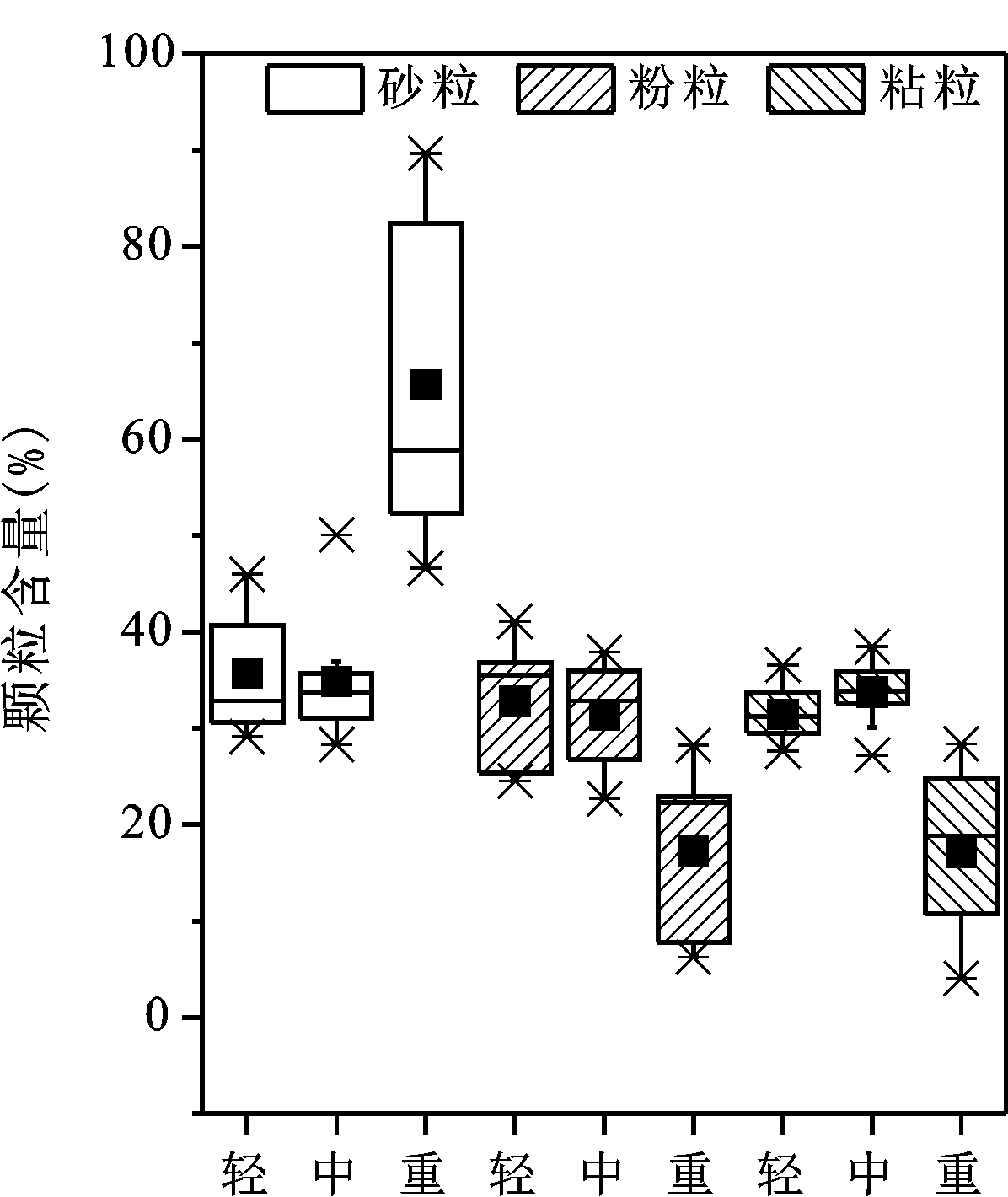

Fig.1

Table 2

Table 3

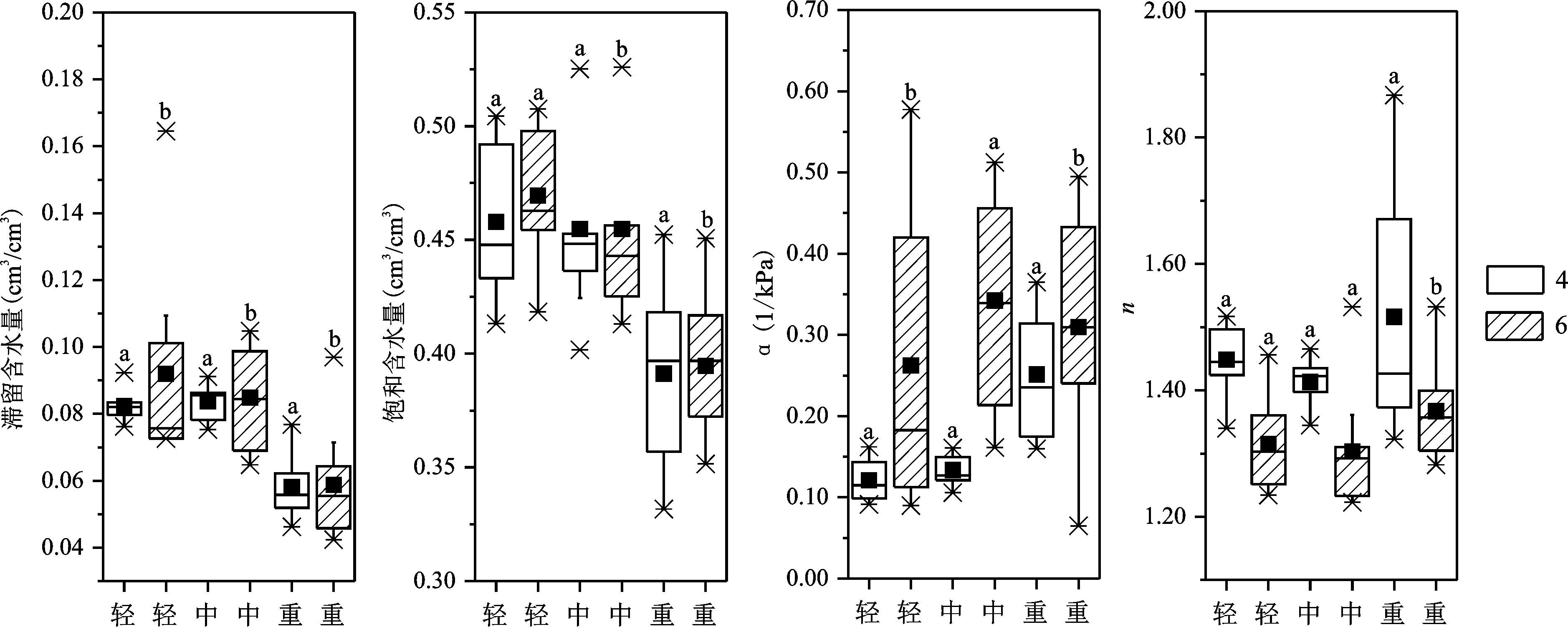

Fig.2

Table 4

Table 5

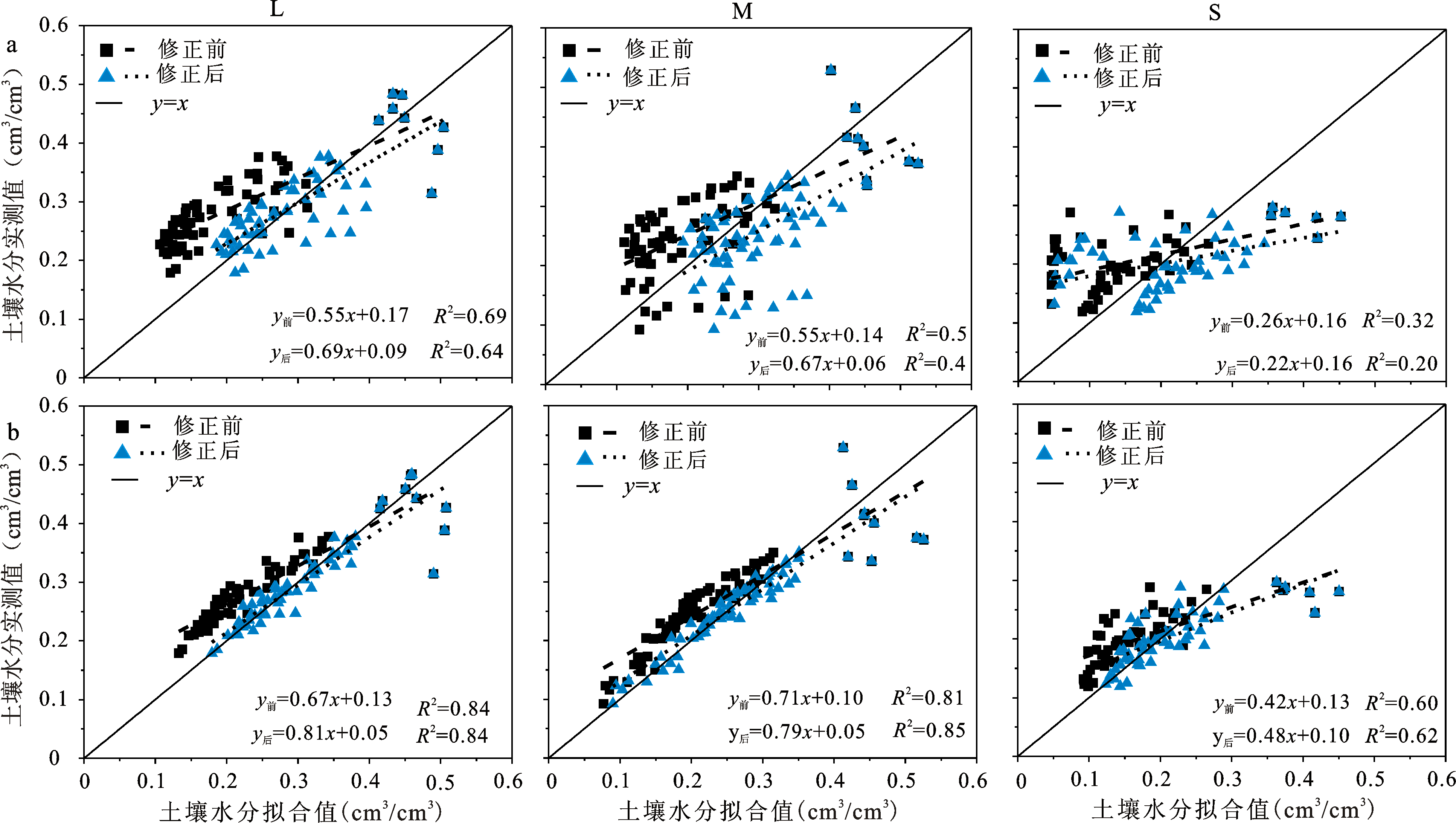

Fig.3

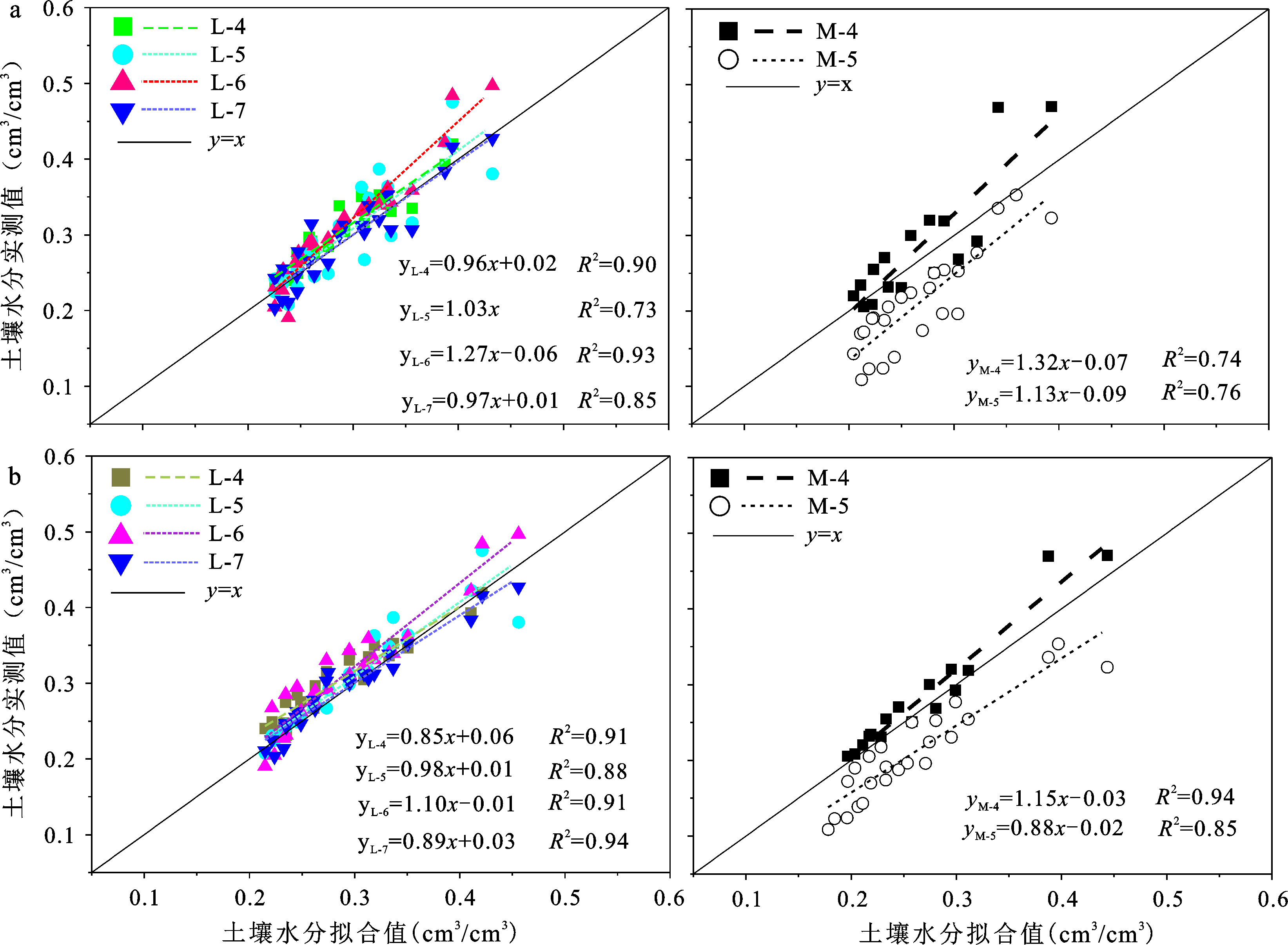

Fig.4

References 20

[1]	雷志栋, 杨诗秀, 谢森传.土壤水动力学[M].北京:清华大学出版社,1988.18-24.
	[Lei Zhidong, Yang Shixiu, Xie Senchuan.The dynamics of soil water. Beijing: Tsinghua University Press, 1988. 18-24.]
[2]	Sillers W S, Fredlund D G, Zakerzadeh N.Mathematical attributes of some soil-water characteristic curve models[J]. Geotechnical and Geological Engineering, 2001,19: 243-283. doi: 10.1007/978-94-015-9775-3_3
[3]	翟俊瑞, 谢云, 李晶, 等.不同侵蚀强度黑土的土壤水分特征曲线模拟[J].水土保持学报,2016,30(4):116-122.
	[Zhai Junrui, Xie Yun, Li Jing et al. Simulation of soil-water characteristic curve for black soils with different erosion intensity. Journal of Soil and Water Conservation, 2016, 30(4): 116-122.]
[4]	Schapp M G, Leij F J, Van Genuchten M Th. Neural network analysis for hierarchical prediction of soil water retention and saturated hydraulic conductivity[J]. Soil Science Society of America Journal, 1998, 62: 847-855. doi: 10.2136/sssaj1998.03615995006200040001x
[5]	Schaap M G, Leij F J, Van Genuchten M Th. Rosetta: a computer program for estimating soil hydraulic parameters with hierarchical pedotransfer functions[J]. Journal of Hydrology, 2001, 251(3-4): 163-176. doi: 10.1016/S0022-1694(01)00466-8
[6]	Leila Esmaeelnejad, Hassan Ramezanpour, Javad Seyedmohammadi.Selection of a suitable model for the prediction of soil water content in north of Iran[J]. Spanish Journal of Agricultural Research, 2015, 13(1): 2-11. doi: 10.5424/sjar/2015131-6111
[7]	王欢元, 韩霁昌, 罗林涛, 等.两种土壤传递函数在预测砒砂岩与沙复配土的水力学参数中的应用[J].土壤通报,2013,(6):1351-1355.
	[Wang Huanyuan, Han Jichang, Luo Lintao et al. The application of two soil pedo-transfer function to predict hydraulic parameters of soft rock and sand compound soil. Chinese Journal of Soil Science, 2013 (6): 1351-1355.]
[8]	Carles M.Rubio. Applicability of site-specific pedotransfer functions and Rosetta Model for the estimation of dynamic soil hydraulic properties under different vegetation covers[J]. Journal of Soils and Sediments, 2008, 8(2): 137-145. doi: 10.1065/jss2008.03.281
[9]	Marcel G. Schaap, Willem Bouten.Modeling water retention curves of sandy soils using neural networks[J]. Water Resources Research,1996, 32(10): 3033-3040. doi: 10.1029/96WR02278
[10]	Pachepsky Y A, Timlin D, Varallyay G.Artificial neural networks to estimate soil water retention from easily measurable data[J]. Soil Science Society of America Journal, 1996, 60(3): 727-733. doi: 10.2136/sssaj1996.03615995006000030007x
[11]	白建宏, 王玉玺, 刘凤飞, 等.黑龙江省典型黑土区土壤侵蚀潜在危险度调查研究[J].中国水土保持,2003(11):16-17.
	[Bai Jianhong, Wang Yuxi, Liu Fengfei et al. Survey and study on degrees of potential danger of soil erosion of typical chernozem in Heilongjiang Province. Soil and Water Conservation in China, 2003 (11): 16-17.]
[12]	王志强, 刘宝元, 王旭艳, 等.东北黑土区土壤侵蚀对土地生产力影响试验研究[J].中国科学,D辑:地球科学,2009,39(10):1397-1412.
	[Wang Zhiqiang, Liu Baoyuan, Wang Xuyan et al. Erosion effect on the productivity of black soil in Northeast China[J]. Science in China(Series D:Earth Sciences) , 2009, 39(10): 1397-1412.]
[13]	Wu Y Q, Zheng Q H, Zhang Y G et al. Development of gullies and sediment production in the black soil region of northeastern China[J]. Geomorphology. 2008, 101: 683-691. doi: 10.1016/j.geomorph.2008.03.008
[14]	郭鸿俊,谢宇平.关于东北的地貌分区[J].中国第四纪研究,1958,1:144-145.
	[Guo Hongjun, Xie Yuping.The northeast partition on landform. The Chinese Quaternary Research, 1958, 1: 144-145.]
[15]	彭建平, 邵爱军. 用MatLab确定土壤水分特征曲线参数[J].土壤, 2007,39(3):433-438.
	[Peng Jianping, Shao Aijun.Determination of parameters of soil water characteristic carve by MatLab. Soils, 2007, 39(3): 433-438.]
[16]	郑荣伟, 冯绍元, 郑艳侠. 北京通州区典型农田土壤水分特征曲线测定及影响因素分析[J].灌溉排水学报, 2011, 30(3):77-81.
	[Zheng Rongwei, Feng Shaoyuan, Zheng Yanxia.Discussion on the soil water characteristic curve of the agricultural soil in the new city of Tongzhou.Journal of Irrigation and Drainage, 2011, 30(3):77-81.]
[17]	何修道, 党宏忠, 王立, 等. 北方地区植物篱系统土壤水分特征曲线模拟与分析[J].草业学报,2016,25(7):42-51. doi: 10.11686/cyxb2015299
	[He Xiudao, Dang Hongzhong, Wang Li et al. Simulation and analysis of soil water retention curves within and between hedgerows in Northern China farm systems. Acta prataculturae sinica, 2016, 25(7):42-51.] doi: 10.11686/cyxb2015299
[18]	姚姣转, 刘廷玺, 王天帅, 等.科尔沁沙地土壤水分特征曲线传递函数的构建与评估[J].农业工程学报,2014,20(30):98-108.
	[Yao Jiaozhuan, Liu Tingxi, Wang Tianshuai et al. Development and evaluation of pedo-transfer functions of soil water characteristic curves in Horqin sandy land. Transactions of the Chinese Society of Agricultural Engineering, 2014, 30(20):98-108.]
[19]	来剑斌, 王全九. 土壤水分特征曲线模型比较分析[J].水土保持学报,2003,17(1):137-140. doi: 10.3321/j.issn:1009-2242.2003.01.035
	[Lai Jianbin, Wang Quanjiu.Comparison of soil water retention curve model. Journal of Soil and Water Conservation, 2003, 17(1):137-140.] doi: 10.3321/j.issn:1009-2242.2003.01.035
[20]	刘洪波, 张江辉, 虎胆, 等.土壤水分特征曲线VG模型参数求解对比分析[J].新疆农业大学学报, 2011, 34(5):437-441. doi: 10.3969/j.issn.1007-8614.2011.05.015
	[Liu Hongbo, Zhang Jianghui, Hu Dan et al. Contrast analysis on soil water characteristic curve of VG model parameters. Journal of Xinjiang Agricultural University, 2011, 34(5):437-441.] doi: 10.3969/j.issn.1007-8614.2011.05.015

侵蚀强度	模型处理	样点编号	黑土层(cm)	砂粒（%）
轻度	拟合	L-1	30	31.93	34.06	34.01
	拟合	L-2	40	31.74	39.50	28.76
	拟合	L-3	40	43.47	24.97	31.56
	验证	L-4	70	32.95	34.60	32.45
	验证	L-5	30	35.27	37.01	27.72
	验证	L-6	55	30.61	36.59	32.80
	验证	L-7	70	26.86	39.22	33.91
中度	拟合	M-1	30	31.30	35.56	33.14
	拟合	M-2	25	32.43	33.48	34.08
	拟合	M-3	20	40.89	25.12	33.99
	验证	M-4	25	33.89	36.72	29.39
	验证	M-5	30	55.81	22.02	22.16
重度	拟合	S-1	0	68.28	13.88	17.84
	拟合	S-2	0	75.31	12.32	12.37
	拟合	S-3	28	53.33	25.50	21.17

侵蚀强度	4指标				6指标
侵蚀强度	θ_r（cm³/cm³）	θ_s（cm³/cm³）	α（1/kPa）	n	θ_r（cm³/cm³）	θ_s（cm³/cm³）	α（1/kPa）	n
轻	0.08^a	0.46^a	0.12^a	1.45^a	0.09^a	0.47^a	0.26^a	1.31^a
中	0.08^a	0.45^a	0.13^a	1.41^a	0.08^a	0.45^a	0.34^a	1.30^a
重	0.06^b	0.39^b	0.25^a	1.52^a	0.06^b	0.39^b	0.31^b	1.37^a

侵蚀强度	指标个数	相对误差（%）			RMSE（cm³/cm³）			1:1线差异性
侵蚀强度	指标个数	前	后		前	后		前	后
轻	4	33.15	13.13		0.11	0.05		显著	显著
轻	6	19.72	5.77		0.06	0.03		显著	显著
中	4	29.69	30.34		0.08	0.08		显著	显著
中	6	18.70	7.76		0.06			0.04	显著	显著
重	4	37.00	37.66	0.10	0.09	显著	显著
重	6	25.42	15.26	0.06		0.05	显著		显著

侵蚀强度	修正后方程⁴	⁴R²	修正后方程⁶	⁶R²	与原关系差异性
轻	m^*=0.39(1.07-1/n)	0.54	m^*=0.53(1.05-1/n)	0.49	显著
中	m^*=0.73(0.89-1/n)	0.76	m^*=0.87(0.96-1/n)	0.75	显著
重	m^*=0.44(1.04-1/n)	0.70	m^*=0.97(0.93-1/n)	0.21	显著

侵蚀强度	样点	相对误差（%）		RMSE（cm³/cm³）		1:1线差异性
侵蚀强度	样点	4	6	4	6	4	6
轻	L-4	6.01	7.02	0.02	0.02	不显著	显著
	L-5	9.35	4.14	0.04	0.02	不显著	不显著
	L-6	8.36	8.10	0.03	0.03	显著	不显著
	L-7	6.78	4.37	0.02	0.02	不显著	显著
中	M-4	11.22	5.91	0.05	0.02	不显著	显著
	M-5	33.11	26.25	0.06	0.05	显著	不显著
