水利工程对长江荆南三口水系结构变化的影响

doi:10.13249/j.cnki.sgs.2019.06.018

Abstract

Abstract:

To study the effect of hydrological projects on the river network structure in the three outlets of Southern Jingjiang River, this article interpreted maps of river network of the year 1954, 1975, 1990, 2008 and 2016, and quantitatively evaluated the effect of projects on variation in river network with the help of grey correlation model. Results show that: 1) In the last 60 years, in terms of the general features, the number and length of river decreased from 264 to 132 and 2 183.6 to 1 560.6 km respectively; River density and water surface ratio reduced from 0.084 per km ² to 0.042 per km ² and 17.45% to 14.33%. In terms of growing features, drainage density, ratio of area to length, and growth index were decreased from 0.687 km/km ², 3.96 km/km ², and 6.902 in 1954 to 0.475 km/km ², 3.17 km/km ², and 4.165 in 2016; fractal dimension of the four rivers in the three outlets, though ranged between 1.5 and 2.0, all demonstrated a declining trend. These indicate that natural evolution of river network in the three outlets of Southern Jingjiang River has been significantly disturbed by construction of hydrological projects. 2) The first important factor responsible for the change of river network is the total capacity of reservoirs, followed by inside projects and outside projects. Factors’ grey coefficients were all above 0.5. The coefficient of outside projects to river density, water surface ratio, drainage density, ratio of area to length, and growth index was 0.571 8, 0.592 2, 0.5858, 0.577 1, and 0.634 0, respectively, while the value of inside projects and total capacity of reservoirs to these indicators were 0.6325, 0.652 7, 0.6465, 0.6306, and 0.693 7, 0.707 0, 0.729 4, 0.722 6, 0.712 7, and 0.7284. 3) The effects of hydrological projects on river network structure were of different characteristics in different periods. Because of the superimposed effect induced by successive operating projects, the influence of hydrological projects on river network has been enlarged, causing simplified structure of river network. Results of this research will play a significant role in the distribution of hydrological projects, channel improvement, and river-lake connectivity projects in both the upper reaches of Yangtze River and the three outlets of Southern Jingjiang River.

Key words: hydrological projects, river network structure, the three outlets of Southern Jingjiang Rive, the Yangtze River

CLC Number:

P333.4

Jingbao Li,Meng He,Dandan Yu,Bo Yang. Effect of Hydrological Projects on River Network Structure in the Three Outlets of Southern Jingjiang River[J].SCIENTIA GEOGRAPHICA SINICA, 2019, 39(6): 1025-1035.

Figures/Tables 13

Fig.1

Table 1

The parameter system of features of river network structure[2]"

分类	参数	公式	编号	注释
一般特征	数量	N		区域内河流的数量
	长度	L		区域内河流的长度
	河频率	$R f = N / F$	(1)	N为区域内河流的数量 F为区域总面积
	水面率	$W P = (F w / F) × 100 %$	(2)	F_w为河道多年平均水位下河道水体所占有的实际水面积 F为区域总面积
发育特征	河网密度	$R d = L r / F$	(3)	L_r为区域内河流的总长度;F为区域总面积
	面积长度比	$R AL = L / S$	(4)	L为河流长度; S为河流面积
	河网发育系数	$K w = L w / L 0$	(5)	L_w为w级支流长度; L₀为主干河流长度
分形特征	分形维数	$D = L g R b / L g R l$	(6)	R_b为水系分枝比—— 各级水道数目 R_l为水系长度比—— 各级河流的长度

Table 1

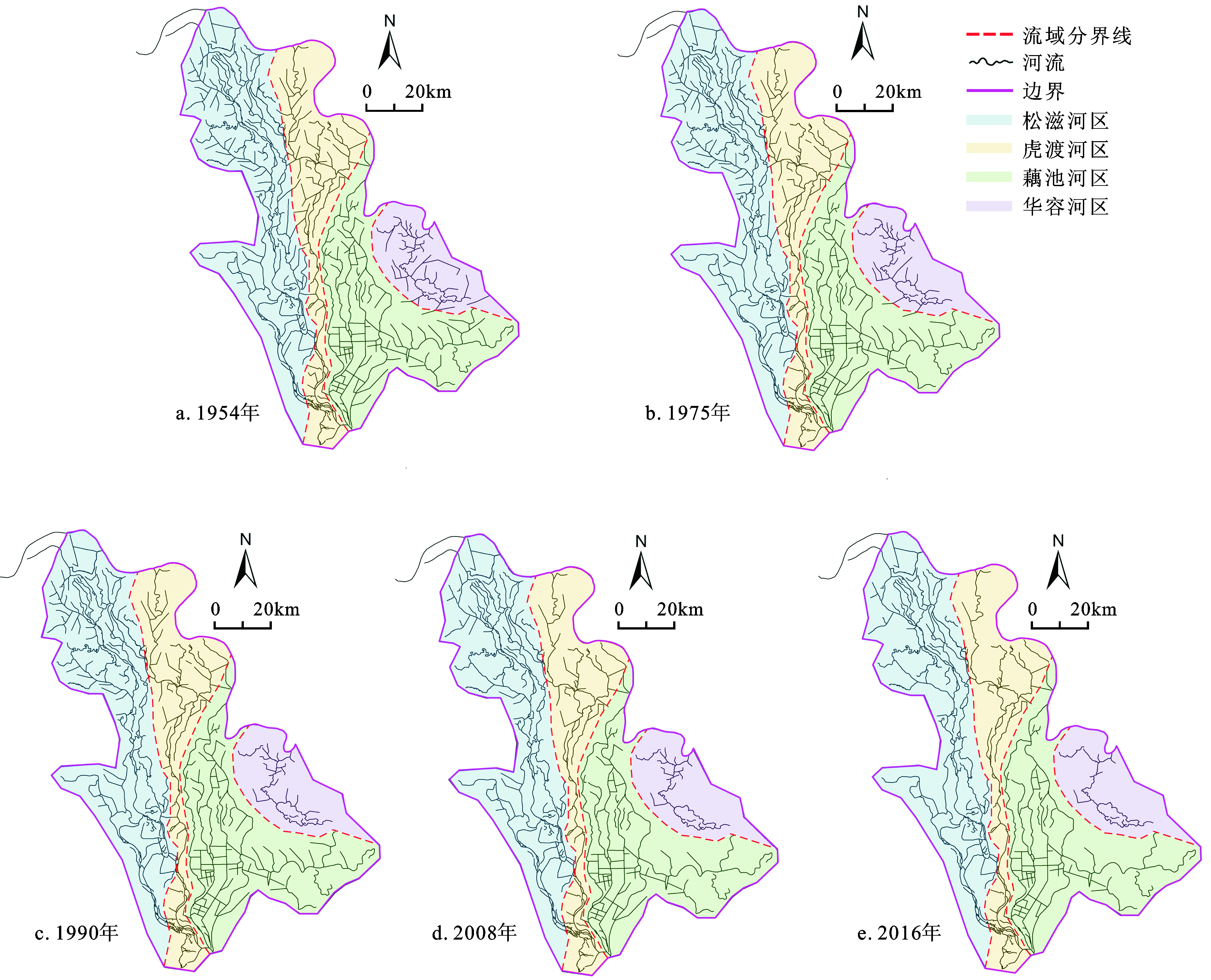

Fig.2

Table 2

Table 3

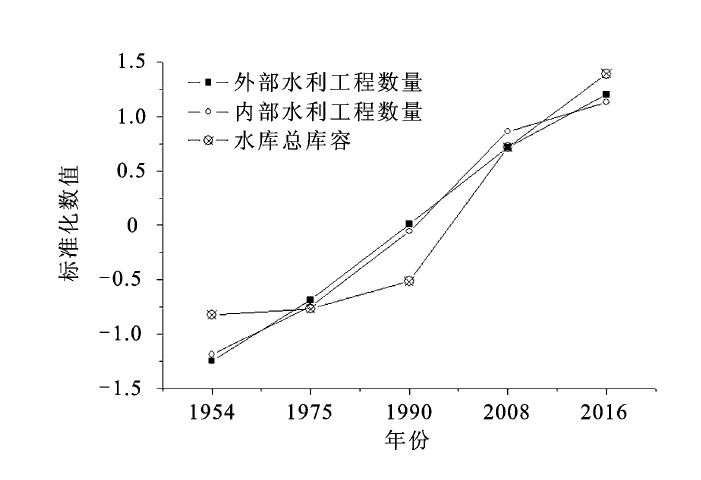

Fig.3

Table 4

Table 5

Table 6

Table 7

Table 8

Table 9

Table 1

References 22

[1]	李原园, 郦建强, 李宗礼 , 等. 河湖水系连通研究的若干问题与挑战[J]. 资源科学, 2011,33(3):386-391.
	[ Li Yuanyuan, Li Jianqiang Li Zongli , et al. Issues and challenges for the study of the interconnected river system network. Resources Science, 2011,33(3):386-391.]
[2]	王世涛 . 城市化发展对南昌市水系结构与河网连通性变化及其调蓄能力的影响研究[D]. 南昌:南昌大学, 2016.
	[ Wang Shitao . Study on the impact of urbanization on stream structure, river network connectivity and storage capacity in Nanchang. Nanchang: Nanchang University, 2016.]
[3]	尚淑丽, 顾正华, 曹晓萌 . 水利工程生态环境效应研究综述[J]. 水利水电科技进展, 2014,34(1):14-19,48.
	[ Shang Shuli, Gu Zhenghua, Cao Xiaomeng . Review of research ecological and environmental effect of water conservancy project. Adances in Science and Technology of Water Reasources, 2014,34(1):14-19,48.]
[4]	许继军, 陈进, 常福宣 . 控制性水利工程对长江中下游水资源影响与对策[J]. 人民长江, 2014,45(7):11-17,76.
	[ Xu Jijun, Chen Jin, Chang Fuxuan . Application of in-situ observation technology in monitoring of landslide stability. Yangtze River, 2014,45(7):11-17,76.]
[5]	马建华 . 长江流域水资源面临的形势与可持续利用对策[J]. 人民长江, 2010,41(12):1-6,19.
	[ Ma Jianghua . Attribute recongnition model for comprehensive evaluation of flood grades based on entropymethod. Yangtze River, 2010,41(12):1-6,19.]
[6]	WHOL E . Identifying and mitigating dam-induced declines in river health:three case studies from the western United Stated[J]. International Journal of Sediment. Research, 2012,27(3):271-287.
[7]	王中根, 李宗礼, 刘昌明 , 等. 河湖水系连通的理论探讨[J]. 自然资源学报, 2011,26(3):523-529. doi: 10.11849/zrzyxb.2011.03.019
	[ Wang Zhonggen, Li Zongli Liu Changming , et al. Discussion on water cycle mechanism of interconnected river system network. Journal of Nature Resources, 2011,26(3):523-529.] doi: 10.11849/zrzyxb.2011.03.019
[8]	范林峰, 胡瑞林, 张小艳 , 等. 基于GIS和DEM的水系三维分形计盒维数的计算[J]. 地理与地理信息科学, 2012,28(6):28-30.
	[ Fan Linfeng, Hu Ruilin ,Zhang Xiaoyan , et al. Calculation of 3D box dimension of river system based on GIS and DEM. Geography and Geo-Information Science, 2012,28(6):28-30.]
[9]	陈菁, 刘昭辰, 陈丹 , 等. 基于数字图像处理的平原城镇河网分形特征研究[J]. 水资源与水工程学报, 2016,27(6):31-38.
	[ Chen Jing, Liu Zhaochen Chen Dan , et al. Research on the fractal characteristics of town river networks based on the didital image processes. Journal of Water Resources and Water Engineering, 2016,27(6):31-38.]
[10]	李景保, 钟一苇, 周永强 , 等. 三峡水库运行对洞庭湖北部地区水资源开发利用的影响[J]. 自然资源学报, 2013,28(9):1583-1593. doi: 10.11849/zrzyxb.2013.09.013
	[ Li Jingbao, Zhong Yiwei Zhou Yongqiang , et al. Impacts of operation of Three Gorges Reservoir on the development and utilization of water reasouces of northern Dongting Lake Area. Journal of Nature Resources, 2013,28(9):1583-1593.] doi: 10.11849/zrzyxb.2013.09.013
[11]	段凯, 肖伟华, 梅亚东 , 等. 大型水利工程对洞庭湖区水资源开发利用的影响[J]. 长江流域资源与环境, 2012,21(11):1389-1394.
	[ Duan Kai, Xiao Weihua Mei Yadong , et al. An analysis of the impacts of large water projects on water resources utilization in the Dongting Lake region. Resources and Environment in the Yangtze Basin, 2012,21(11):1389-1394.]
[12]	李景保, 罗中海, 叶亚亚 , 等. 三峡水库运行对长江荆南三口水文和生态的影响[J]. 应用生态学报, 2016,27(4):1285-1293.
	[ Li Jingbao, Luo Zhonghai Ye Yaya , et al. Eco-hydrological impacts of Three Gorges Reservoir’s operation on three outfalls of Chingjiang River. Chinese Journal of Applied Ecology, 2016,27(4):1285-1293.]
[13]	帅红, 李景保, 何霞 , 等. 环境变化下长江荆南三口径流变化特征检测与归因分析[J]. 水土保持学报, 2016,30(1):83-88.
	[ Shuai Hong, Li Jingbao He Xia , et al. Feature detection an attirbution analysis of runoff variation in the Three Outlets of Southern Jingjiang River under environmental changes. Journal of Soil and Water Conservation, 2016,30(1):83-88.]
[14]	Strahler A . Hypsometric analys is of erosional topography[J]. Geological Society of America Bulletin, 1952,63(11):1117-1142.
[15]	邓晓军, 许有鹏, 韩龙飞 , 等. 城市化背景下嘉兴市河流水系的时空变化[J]. 地理学报, 2016,71(1):75-85.
	[ Deng Xiaojun, Xu Youpeng Han Longfei , et al. Spatial-temporal changes of river systems in Jiaxing under the background of urbanization. Acta Geographica Sinica, 2016,71(1):75-85.]
[16]	曹明霞 . 灰色关联分析模型及其应用的研究[C]. 南京: 南京航空航天大学, 2007.
	[ Cao Mingxia . Research on grey relational analysis model and its application. Nanjing: Nanjing University of Aeronautics and Astronautics, 2007.]
[17]	刘思峰, 蔡华, 杨英杰 . 灰色关联分析模型研究进展[J]. 系统工程理论与实践, 2013,33(8):2041-2046.
	[ Liu Sifeng, Cai Hua, Yang Yingjie . Advance in grey incidence analysis modelling. Systems Engineering-Theory ＆ Practice, 2013,33(8):2041-2046.]
[18]	何隆华, 赵宏 . 水系的分形维数及其含义[J]. 地理科学, 1996,16(2):124-128.
	[ He Longhua, Zhao Hong . The fractal dimension of river networks and its interrpretation. Acta Geographica Sinica, 1996,16(2):124-128.]
[19]	Cheng Jicheng, Jiang Meiqiu. Mathematical models for drainage geomorphology[M]. Beijing: Science Press, 1986.
[20]	李后强, 艾南山 . 分形地貌学及地貌发育的分形模型[J]. 自然杂志, 1992,15(7):516-519.
	[ Li Houqiang, Ai Nanshan . Fractal model of fractal geomorphology and geomorphological development. Chinese Journal of Nature, 1992,15(7):516-519.]
[21]	凌红波, 徐海量, 乔木 . 1958~2006年玛纳斯河流域水系结构时空演变及驱动机制分析[J]. 地理科学进展, 2010,29(2):1129-1136.
	[ Ling Hongbo, Xu Hailiang, Qiao Mu . Temproal-spatial evolution of stream construction and its driving forces in Manas River Basin during 1958-2006. Progress in Geography, 2010,29(2):1129-1136.
[22]	李景保, 何霞, 杨波 , 等. 长江中游荆南三口断流时间演变特征及其影响机制[J]. 自然资源学报, 2016,31(10):1713-1725.
	[ Li Jingbao, He Xia Yang Bo , et al. Temporal evoluation of dired up days and the influencing mechanisms at Three Outlets along Jingjiang in the middle reach of Yangtze River. Journal of Natural Resources, 2016,31(10):1713-1725.]

类别	指标	计算方法
水利工程建设水平	区外水利工程数量（X_n）	--
	区内水利工程数量（Y_m）	--
	水库总库容（V_n）	--
水系结构特征	河频率（R_f）	河流数量与区域总面积的比值
	水面率（W_p）	河网水体面积与区域面积的比值
	河网密度（R_d）	河流长度与区域总面积的比值
	河网发育系数（K）	各级支流长度与主干河流长度的比值
	分形维数（D）	分枝比率与长度比率之差的常用对数

流域	1954年	1975年	1990年	2008年	2016年	总变化率（%）
松滋河	680.8	616.9	580.8	556.1	519.2	18
虎渡河	481.3	445.7	410.5	385.4	366.6	16
藕池河	670.7	593.8	523.6	505.7	463.5	22
华容河	350.8	294.75	251.36	225.5	221.26	25
合计/平均	2183.6	1951.2	1766.3	1672.7	1560.6	20.3

河流/年份	1954年		1975年		1990年		2008年		2016年
河流/年份	R_f	W_p	R_f	W_p	R_f	W_p	R_f	W_p	R_f	W_p
松滋河	0.098	18.19	0.085	17.06	0.070	16.22	0.060	15.46	0.059	15.43
虎渡河	0.070	15.54	0.055	14.98	0.052	13.43	0.045	12.98	0.039	12.67
藕池河	0.076	20.38	0.060	19.67	0.051	18.54	0.038	17.57	0.034	17.35
华容河	0.088	13.66	0.056	10.97	0.047	9.54	0.036	9.51	0.029	9.45
荆南三口	0.084	17.45	0.065	16.30	0.056	15.11	0.046	14.49	0.042	14.33

河流	1954年		1975年		1990年		2008年		2016年
河流	R_d	R_AL	R_d	R_AL	R_d	R_AL	R_d	R_AL	R_d	R_AL
松滋河	0.72	3.96	0.65	3.83	0.61	3.79	0.58	3.81	0.54	3.56
虎渡河	0.67	4.36	0.62	4.19	0.57	4.31	0.54	4.18	0.51	4.08
藕池河	0.70	3.47	0.62	3.18	0.55	2.98	0.53	3.04	0.48	2.82
华容河	0.62	4.60	0.52	4.82	0.45	4.72	0.4	4.25	0.37	4.20
荆南三口	0.678	3.96	0.603	3.79	0.545	3.69	0.513	3.65	0.475	3.17

年份	河网发育系数					水系分形维数
年份	松滋河	虎渡河	藕池河	华容河	荆南三口	松滋河	虎渡河	藕池河	华容河
1954	7.98	5.87	8.86	4.90	6.902	1.719	1.642	1.938	1.646
1975	6.48	4.64	7.23	4.13	5.620	1.606	1.629	1.907	1.587
1990	4.50	4.32	6.74	3.78	4.835	1.582	1.583	1.854	1.547
2008	3.95	4.05	6.45	3.54	4.497	1.561	1.563	1.757	1.453
2016	3.50	3.75	5.98	3.43	4.165	1.523	1.417	1.635	1.421
平均	5.282	4.526	7.052	3.956	5.203	1.598	1.567	1.818	1.531

Effect of Hydrological Projects on River Network Structure in the Three Outlets of Southern Jingjiang River

RichHTML

PDF (PC)

Like

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 13

References 22

Related Articles 15

Metrics

Comments

Recommended 0

指标	关联系数	1954年	1975年	1990年	2008年	2016年	关联度γ(x₀,x_i)
区外水利工程与河频率（V_n-R_f）	ξ₀₁	1	0.6609	0.4839	0.3808	0.3333	0.5718
区外水利工程与水面率（V_n-W_p）	ξ₀₂	1	0.6977	0.5084	0.4024	0.3523	0.5922
区外水利工程与河网密度（V_n-R_d）	ξ₀₃	1	0.6871	0.5005	0.3966	0.3449	0.5858
区外水利工程与河网发育系数（V_n-K）	ξ₀₄	1	0.6698	0.4879	0.3885	0.3392	0.5771
区外水利工程与分形维数（V_n-D）	ξ₀₅	1	0.7961	0.5644	0.4359	0.3736	0.6340

指标/年份	关联系数	1954年	1975年	1990年	2008年	2016年	关联度γ(x₀,x_i)
区内水利工程与河频率（Y_n-R_f）	ξ₁₁	1	0.7349	0.6357	0.4368	0.3552	0.6325
区内水利工程与水面率（Y_n-W_p）	ξ₁₂	1	0.7683	0.6668	0.4577	0.3707	0.6527
区内水利工程与河网密度（Y_n-R_d）	ξ₁₃	1	0.7587	0.6568	0.4521	0.3647	0.6465
区内水利工程与河网发育系数（Y_n-K）	ξ₁₄	1	0.7430	0.6407	0.4443	0.3600	0.6306
区内水利工程与分形维数（Y_n-D）	ξ₁₅	1	0.8538	0.7376	0.4892	0.3881	0.6937

指标	关联系数	1954年	1975年	1990年	2008年	2016年	关联度γ(x₀,x_i)
区内水利工程与河频率（V_n-R_f）	ξ₂₁	1	0.8980	0.7364	0.5673	0.3333	0.7070
区内水利工程与水面率（V_n-W_p）	ξ₂₂	1	0.9378	0.7696	0.5954	0.3442	0.7294
区内水利工程与河网密度（V_n-R_d）	ξ₂₃	1	0.9263	0.7589	0.5878	0.3400	0.7226
区内水利工程与河网发育系数（V_n-K）	ξ₂₄	1	0.9077	0.7418	0.5773	0.3368	0.7127
区内水利工程与分形维数（V_n-D）	ξ₂₅	1	0.9036	0.7743	0.6081	0.3559	0.7284

[1]	Huang Xinrong, Guan Weihua, Chen Mingxing, Hu Haoyu. Urbanization and Optimization of the Yangtze River Delta Urban Agglomeration [J]. SCIENTIA GEOGRAPHICA SINICA, 2021, 41(1): 64-73.
[2]	Yu Jiali, Yang Shangguang. Spatial-Temporal Evolution of Health Expenditure Efficiency in the Yangtze River Delta [J]. SCIENTIA GEOGRAPHICA SINICA, 2020, 40(9): 1429-1438.
[3]	Yan Dongsheng, Sun Wei, Sun Xiaolu. Spatial-temporal Pattern Evolution and Driving Factors of Population in the Yangtze River Delta [J]. SCIENTIA GEOGRAPHICA SINICA, 2020, 40(8): 1285-1292.
[4]	Tang Chengli, Chen Weiyang, Wu Jiamin, Zhou Guohua, Wang Meixia, Guo Xiashuang. Spatial Distribution and Industrial Agglomeration Characteristics of Development Zones in the Yangtze River Economic Belt [J]. SCIENTIA GEOGRAPHICA SINICA, 2020, 40(4): 657-664.
[5]	Jiang Ziran, Cao Weidong, Wang Chengjin, Zhu Huayou. Regional Potential Economic Relations Based on the Potential Energy Connection Model: Empirical Analysis of 26 Cities in Yangtze River Delta [J]. SCIENTIA GEOGRAPHICA SINICA, 2020, 40(12): 1967-1977.
[6]	Duan Xuejun, Wang Xiaolong, Zou Hui, Liang Shuangbo, Chen Weixiao. Investigation and Assessment of Waterfront Resources in the Yangtze River Economic Zone [J]. SCIENTIA GEOGRAPHICA SINICA, 2020, 40(1): 22-31.
[7]	Xu Liting,Yao Shimou,Chen Shuang,Xu Yu. Evaluation of Eco-city Under the Concept of High-quality Development: A Case Study of the Yangtze River Delta Urban Agglomeration [J]. SCIENTIA GEOGRAPHICA SINICA, 2019, 39(8): 1228-1237.
[8]	Renfeng Ma,Xiaojing Zhou,Qian Li. Regional Types of the Characteristic Towns and Its Adaptive Path in the Yangtze River Delta Region [J]. SCIENTIA GEOGRAPHICA SINICA, 2019, 39(6): 912-919.
[9]	Peng Gao, Dan He, Yuemin Ning, Fan Zhang. Community Structure and Proximity Mechanism of City Clusters in Middle Reach of the Yangtze River: Based on Producer Service Firms’ Network [J]. SCIENTIA GEOGRAPHICA SINICA, 2019, 39(4): 578-586.
[10]	Weichen Liu, Youhui Cao, Wei Wu, Yuqi Lu. Spatial Patterns and the Tertiary Industry Effects of Railway Passenger Accessibility in the Yangtze River Economic Belt [J]. SCIENTIA GEOGRAPHICA SINICA, 2019, 39(4): 626-635.
[11]	Wei Xu, Heqin Cheng, Shuwei Zheng, Shuping Wang, Gang Chen, Xiaoting Yuan. Evolution of Nanjing Channel in the Yangtze River and Its Response to Human Activities During the Last 20 Years [J]. SCIENTIA GEOGRAPHICA SINICA, 2019, 39(4): 663-670.
[12]	Zhiwei Wan, Yulian Jia, Yijun Hong, Guangxu Liu, Meixin Jiang. Evolution of Jingjiang Section of the Yangtze River Based on Historical Maps and Remote Sensing over the Past 100 Years [J]. SCIENTIA GEOGRAPHICA SINICA, 2019, 39(4): 696-704.
[13]	Cong Wang, Youhui Cao. The Evolution Mode and Mechanism of Urban Network from the Perspective of Producer Services Industry: A Case of the Yangtze River Delta [J]. SCIENTIA GEOGRAPHICA SINICA, 2019, 39(2): 285-293.
[14]	Li Zherui, Zhen Feng, Fu Xingxing. Mapping Urban Network Through Inter-firm Investment Relationship: A Case Study of Yangtze River Delta [J]. SCIENTIA GEOGRAPHICA SINICA, 2019, 39(11): 1763-1770.
[15]	Tangwei Teng, Liuting Qin, Senlin Hu. Spatial Distribution and Influencing Factors of National Mass Makerspaces in the Yangtze River Delta [J]. SCIENTIA GEOGRAPHICA SINICA, 2018, 38(8): 1266-1272.

年份	1级	2级	3级	4级	5级	总计
1954	158	57	24	21	4	264
1975	121	46	18	17	4	207
1990	107	37	16	14	4	178
2008	81	33	14	13	4	145
2016	70	30	16	12	4	132
