东北低山丘陵典型区侵蚀沟分布特征及其地形影响研究

doi:10.13249/j.cnki.sgs.2022.10.015

Abstract

Abstract:

The low mountain and hilly areas in Northeast China are important grain producing areas and commercial grain bases. High-intensity agricultural cultivation has caused serious soil erosion and increasing erosion ditch hazards. An area of 106.5 km² in the upper reaches of the East Liaohe River was selected as the study area, and the geometric parameters and latitude and longitude of erosion ditches with length ≥ 50 m and depth ≥ 0.5 m in the study area were verified and measured in the field based on the remote sensing images with 2 m resolution and manual prediction of erosion ditches by GIS. Based on DEM, the spatial information of slope gradient, slope aspect and elevation of erosion gullies was obtained; the basic characteristics and spatial and temporal evolution trends of erosion gullies in the study area were analyzed, and the influence of slope gradient and slope aspect on the development of erosion gullies was discussed. The results show that: 1) There are 322 erosion gullies in the study area, with a distribution density of 3.0 gullies /km², a gully density of 0.8 km/km², and a fragmentation degree of 1.4%. The development of erosion gullies is fast, and the intensity of gully erosion has reached an intense degree, which should be paid enough attention to. 2) Erosion gullies are mainly distributed on sloping arable land from 6° to 9°, the influence of slope gradient on gully erosion is obvious, and the high-intensity reclamation of sloping arable land is the main driving force for the increase of gully erosion. 3) There are more erosion gullies on the sunny slope (S, E, etc.), and least erosion gullies on the shady slope (N). Slope aspect also has a certain influence on gully erosion. The research results provide scientific data for understanding the occurrence and evolution of erosion gullies in low mountain and hilly areas of Northeast China.

Key words: low mountain and hilly regions of Northeast China, erosion gully, geometric parameters, slope gradient, slope aspect

CLC Number:

S157.1

Jiao Peng, Yan Baixing, Ou Yang, Li Mingtang, Ren Ming, Wen Leilei, Cui Hu, Tian Liping, Cheng Lei, Liu Huiping. Distribution Characteristics and Topographic Influence of Erosion Gully in Typical Hilly Region of Northeast China[J].SCIENTIA GEOGRAPHICA SINICA, 2022, 42(10): 1829-1837.

Figures/Tables 6

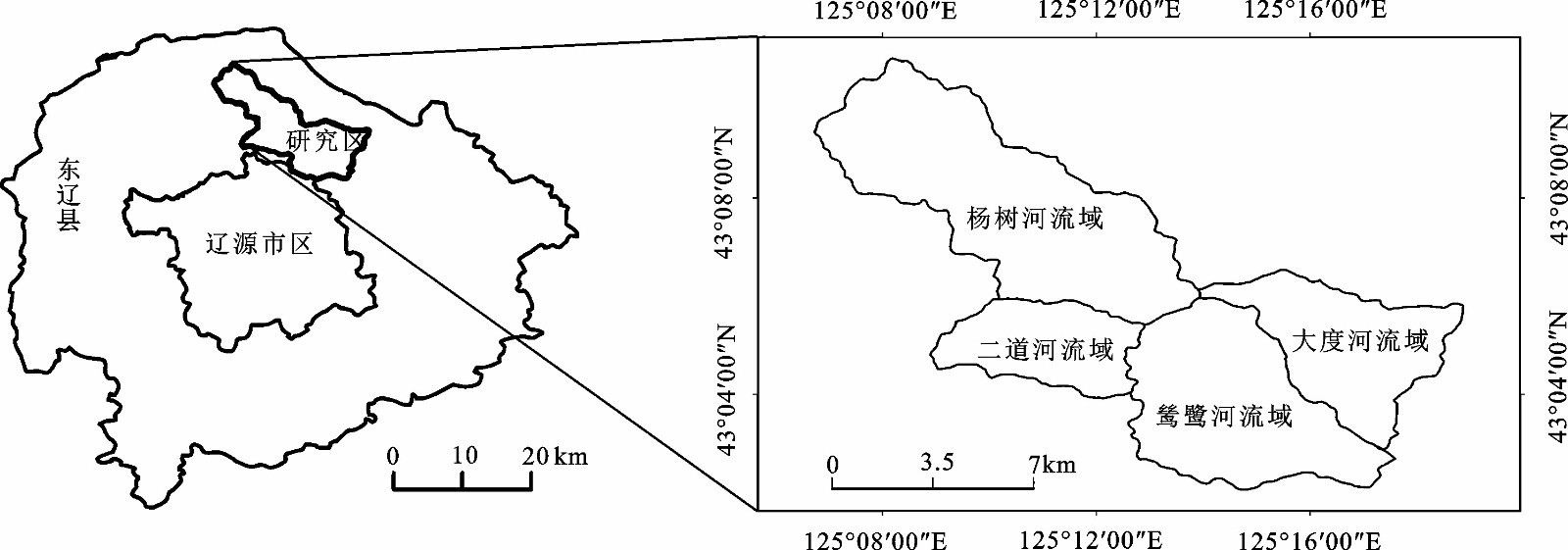

Fig. 1

Fig. 2

Table 1

Table 2

Fig. 3

Fig. 4

References 20

[1]	刘兴土, 阎百兴. 东北黑土区水土流失与粮食安全[J]. 中国水土保持, 2009, 30(1): 17-19. doi: 10.3969/j.issn.1000-0941.2009.01.006
	Liu Xingtu, Yan Baixing. Soil and water loss and food security in black soil region of Northeast China. Soil and Water Conservation in China, 2009, 30(1): 17-19. doi: 10.3969/j.issn.1000-0941.2009.01.006
[2]	刘宝元, 阎百兴, 沈波, 等. 东北黑土区农地水土流失现状与综合治理对策[J]. 中国水土保持科学, 2008, 6(1): 1-8. doi: 10.3969/j.issn.1672-3007.2008.01.001
	Liu Baoyuan, Yan Baixing, Shen Bo et al. Current status and comprehensive control strategies of soil erosion for cultivated land in the northeastern black soil area of China. Science of Soil and Water Conservation, 2008, 6(1): 1-8. doi: 10.3969/j.issn.1672-3007.2008.01.001
[3]	欧洋, 阎百兴, 白建宏, 等. 东北黑土区侵蚀沟危害面积识别研究[J]. 中国水土保持科学, 2018, 16(6): 24-30. doi: 10.16843/j.sswc.2018.06.004
	Ou Yang, Yan Baixing, Bai Jianhong et al. Identifying the damaged area of gully in black soil region of Northeast China. Science of Soil and Water Conservation, 2018, 16(6): 24-30. doi: 10.16843/j.sswc.2018.06.004
[4]	阎百兴, 杨育红, 刘兴土, 等. 东北黑土区土壤侵蚀现状与演变趋势[J]. 中国水土保持, 2008, 29(12): 26-30. doi: 10.3969/j.issn.1000-0941.2008.12.009
	Yan Baixing, Yang Yuhong, Liu Xingtu et al. Status and evolution trend of soil erosion in black soil area of Northeast China. Soil and Water Conservation in China, 2008, 29(12): 26-30. doi: 10.3969/j.issn.1000-0941.2008.12.009
[5]	郑粉莉, 徐锡蒙, 覃超. 沟蚀过程研究进展[J]. 农业机械学报, 2016, 47(8): 48-59+116. doi: 10.6041/j.issn.1000-1298.2016.08.008
	Zheng Fenli, Xu Ximeng, Qin Chao. A review of gully erosion process research. Transactions of the Chinese Society for Agricultural Machinery, 2016, 47(8): 48-59+116. doi: 10.6041/j.issn.1000-1298.2016.08.008
[6]	顾广贺, 王岩松, 钟云飞, 等. 东北漫川漫岗区侵蚀沟发育特征研究[J]. 水土保持研究, 2015, 22(2): 47-51+57. doi: 10.13869/j.cnki.rswc.2015.02.011
	Gu Guanghe, Wang Yansong, Zhong Yunfei et al. Development characteristics of gullies in rolling hilly regions in northeast of China. Research of Soil and Water Conservation, 2015, 22(2): 47-51+57. doi: 10.13869/j.cnki.rswc.2015.02.011
[7]	许晓鸿, 隋媛媛, 张瑜, 等. 东北丘陵区沟蚀发展现状及影响因素分析[J]. 土壤学报, 2014, 51(4): 699-708.
	Xu Xiaohong, Sui Yuanyuan, Zhang Yu et al. Development of gully erosion and its influencing factors in hilly regions of Northeast China. Acta Pedologica Sinica, 2014, 51(4): 699-708.
[8]	姜芸, 王军, 张莉. 东北典型黑土区侵蚀沟形态及分布特征[J]. 农业工程学报, 2020, 36(7): 157-165. doi: 10.11975/j.issn.1002-6819.2020.07.018
	Jiang Yun, Wang Jun, Zhang Li. Morphology and distribution characteristics of erosion gully in the typical black soil region of Northeast China. Transactions of the Chinese Society of Agricultural Engineering, 2020, 36(7): 157-165. doi: 10.11975/j.issn.1002-6819.2020.07.018
[9]	张瑜, 刘肃, 徐子棋, 等. 秸秆覆盖对黑土区侵蚀沟植被恢复和固土的作用[J]. 水土保持通报, 2020, 40(1): 157-161+169. doi: 10.13961/j.cnki.stbctb.2020.01.023
	Zhang Yu, Liu Su, Xu Ziqi et al. Effects of straw mulching on vegetation restoration and soil loss control on eroded gullies in black soil area. Bulletin of Soil and Water Conservation, 2020, 40(1): 157-161+169. doi: 10.13961/j.cnki.stbctb.2020.01.023
[10]	郑粉莉, 张加琼, 刘刚, 等. 东北黑土区坡耕地土壤侵蚀特征与多营力复合侵蚀的研究重点[J]. 水土保持通报, 2019, 39(4): 314-319. doi: 10.13961/j.cnki.stbctb.2019.04.049
	Zheng Fenli, Zhang Jiaqiong, Liu Gang et al. Characteristics of soil erosion on sloping farmlands and key fields for studying compound soil erosion caused by multi-forces in mollisol region of Northeast China. Bulletin of Soil and Water Conservation, 2019, 39(4): 314-319. doi: 10.13961/j.cnki.stbctb.2019.04.049
[11]	李智广, 王岩松, 刘宪春, 等. 中国东北黑土区侵蚀沟道的普查方法与成果[J]. 中国水土保持科学, 2013, 11(5): 9-13. doi: 10.3969/j.issn.1672-3007.2013.05.002
	Li Zhiguang, Wang Yansong, Liu Xianchun et al. Survey methods and results of erosion gullies in black soil areas of Northeastern China. Science of Soil and Water Conservation, 2013, 11(5): 9-13. doi: 10.3969/j.issn.1672-3007.2013.05.002
[12]	王文娟, 张树文, 邓荣鑫. 东北黑土区沟蚀现状及其与景观格局的关系[J]. 农业工程学报, 2011, 27(10): 192-198. doi: 10.3969/j.issn.1002-6819.2011.10.034
	Wang Wenjuan, Zhang Shuwen, Deng Rongxin. Gully status and relationship with landscape pattern in black soil area of Northeast China. Transactions of the Chinese Society of Agricultural Engineering, 2011, 27(10): 192-198. doi: 10.3969/j.issn.1002-6819.2011.10.034
[13]	王文娟, 邓荣鑫, 张树文. 东北典型黑土区沟蚀发生风险评价研究[J]. 自然资源学报, 2014, 29(12): 2058-2067. doi: 10.11849/zrzyxb.2014.12.007
	Wang Wenjuan, Deng Rongxin, Zhang Shuwen. Preliminary research on risk evaluation of gully erosion in typical black soil area of Northeast China. Journal of Natural Resources, 2014, 29(12): 2058-2067. doi: 10.11849/zrzyxb.2014.12.007
[14]	Zhang Shuwen, Li Fei, Li Tianqi et al. Remote sensing monitoring of gullies on a regional scale: A case study of Kebai region in Heilongjiang Province, China[J]. Chinese Geographical Science, 2015, 25(5): 602-611. doi: 10.1007/s11769-015-0780-z
[15]	李飞, 张树文, 李天奇. 东北典型黑土区南部侵蚀沟与地形要素之间的空间分布关系[J]. 土壤与作物, 2012, 1(3): 148-154.
	Li Fei, Zhang Shuwen, Li Tianqi. The spatial distribution relations between erosion gully and terrain factors in the south of typical black soil zone in Northeast China. Soils and Crops, 2012, 1(3): 148-154.
[16]	刘肃, 崔斌, 张瑜, 等. 吉林省低山丘陵区地形因素对坡耕地侵蚀沟分布的影响[J]. 水土保持通报, 2020, 40(1): 38-42.
	Liu Su, Cui Bin, Zhang Yu et al. Effects of topographical factors on erosion gully distribution of farmland in hilly areas of Jilin Province. Bulletin of Soil and Water Conservation 2020, 40(1): 38-42.
[17]	路中, 雷国平, 王居午, 等. 30年来东北典型黑土区水土流失敏感性时空分异特征研究[J]. 自然灾害学报, 2019, 28(4): 186-195. doi: 10.13577/j.jnd.2019.0420
	Lu Zhong, Lei Guoping, Wang Juwu et al. Spatial-temporal variation characteristics of soil and water loss sensitivity in typical black soil regions in Northeast China in the past 30 years. Journal of Natural Disasters, 2019, 28(4): 186-195. doi: 10.13577/j.jnd.2019.0420
[18]	李镇, 秦伟, 齐志国, 等. 东北漫川漫岗和山地丘陵黑土区侵蚀沟形态特征遥感分析[J]. 农业工程学报, 2019, 35(14): 133-140. doi: 10.11975/j.issn.1002-6819.2019.14.017
	Li Zhen, Qin Wei, Qi Zhiguo et al. Remote sensing analysis on gully morphology and spatial distribution in rolling hilly region and mountainous and hilly region of Northeast China. Transactions of the Chinese Society of Agricultural Engineering, 2019, 35(14): 133-140. doi: 10.11975/j.issn.1002-6819.2019.14.017
[19]	黄萌, 范昊明. 辽宁省侵蚀沟发育特性及地形分异特征[J]. 水土保持学报, 2017, 31(5): 93-98. doi: 10.13870/j.cnki.stbcxb.2017.05.015
	Huang Meng, Fan Haoming. Development characteristics and topographic differentiation features of erosion gully in Liaoning Province of China. Journal of Soil and Water Conservation, 2017, 31(5): 93-98. doi: 10.13870/j.cnki.stbcxb.2017.05.015
[20]	杜书立, 李浩, 陈强, 等. 典型黑土区侵蚀沟空间分布特征及主要影响因子分析——以黑龙江省引龙河农场为例[J]. 土壤与作物, 2013, 2(4): 177-182. doi: 10.11689/j.issn.2095-2961.2013.04.006
	Du Shuli, Li Hao, Chen Qiang et al. The spatial distribution and main impact factor of gully erosion in typical black soil region: A case study at Yinlonghe farm. Soils and Crops, 2013, 2(4): 177-182. doi: 10.11689/j.issn.2095-2961.2013.04.006

参数	2011年	2021年		可比条件下的增速
参数	2011年	≥50 m	≥106.7 m	可比条件下的增速
数量/条	143	322	284	98.6%
总长度/km	36.90	84.31	81.38	120.5%
分布密度/（条/km²）	1.34	3.02	2.67	98.6%
沟壑密度/（km/km²）	0.35	0.79	0.76	120.5%

参数	杨树河流域	二道河流域	鸶鹭河流域	大度河流域	研究区
流域面积/km²	43.0	13.6	29.6	20.3	106.5
平均长度/m	219.2	238.1	276.0	301.3	261.8
平均宽度/m	7.8	14.8	18.4	19.6	14.9
平均深度/m	2.5	2.8	3.1	3.9	3.1
平均面积/hm²	0.2	0.4	0.6	0.7	0.5
平均体积/m³	4485.5	9787.2	12598.8	21379.2	12351.1
分布密度（条/km²）	2.5	1.7	3.1	4.9	3.0
沟壑密度（km/km²）	0.6	0.4	0.9	1.5	0.8
割裂度/%	0.5	0.7	1.8	3.2	1.4
垦殖率/%	49.7	51.2	58.3	55.9	53.5
平均坡度/(°)	7.9	7.4	6.3	6.4	7.1
