长江经济带城市高铁站区节点和场所功能耦合协调分析

doi:10.13249/j.cnki.sgs.2023.08.001

Abstract

Abstract:

The development of station areas driven by the high-speed railway dividend is out of order. The coordinated development of nodes and places has become an important path to promote the orderly construction of high-speed railway station areas and to promote each other's development. Taking 37 urban high-speed railway stations in the Yangtze River Economic Belt as examples, this paper constructs a coupling coordination degree and relative development degree model to identify the types of coupling development and spatial differentiation characteristics of high-speed railway station areas. It is found that: 1) The high-speed railway station in the Yangtze River Economic Belt can be divided into three types of coupling coordination development stages, including the running-in stage, the antagonism stage and the low-level coupling stage, exhibiting the characteristic of node lagging, place lagging and node place synchronization. 2) The types of coupling and coordination of node and place functions in the high-speed railway stations can be classified as low-coupling-node lagging, low-coupling-place lagging, antagonistic-node lagging, antagonistic-place lagging, running-in-node lagging, friction-synchronous development, and running-in-place lagging, representing low-level development, unsustainable, and to be optimized and upgraded. The spatial distribution shows significant inter-group variation in urban clusters, while cities in urban clusters are characterized by "converging centers and scattered nodes". Through this research, we can understand the current situation of functional coupling and coordination between node and place in the high-speed railway station area of the Yangtze River Economic Belt scientifically, and improve the fitness between the hub construction and function development. Besides, it can provide valuable references for promoting reasonable construction and sustainable development of the areas around the high-speed railway station.

Key words: high-speed railway station area, node place function, types of coupling and coordination, the Yangtze River Economic Belt

CLC Number:

U291

Wang Degen, Tang Juan, Zhu Mei, Xu Yinfeng. Coupling and coordination analysis of node and place functions of urban high-speed railway stations in the Yangtze River Economic Belt[J].SCIENTIA GEOGRAPHICA SINICA, 2023, 43(8): 1317-1328.

Figures/Tables 7

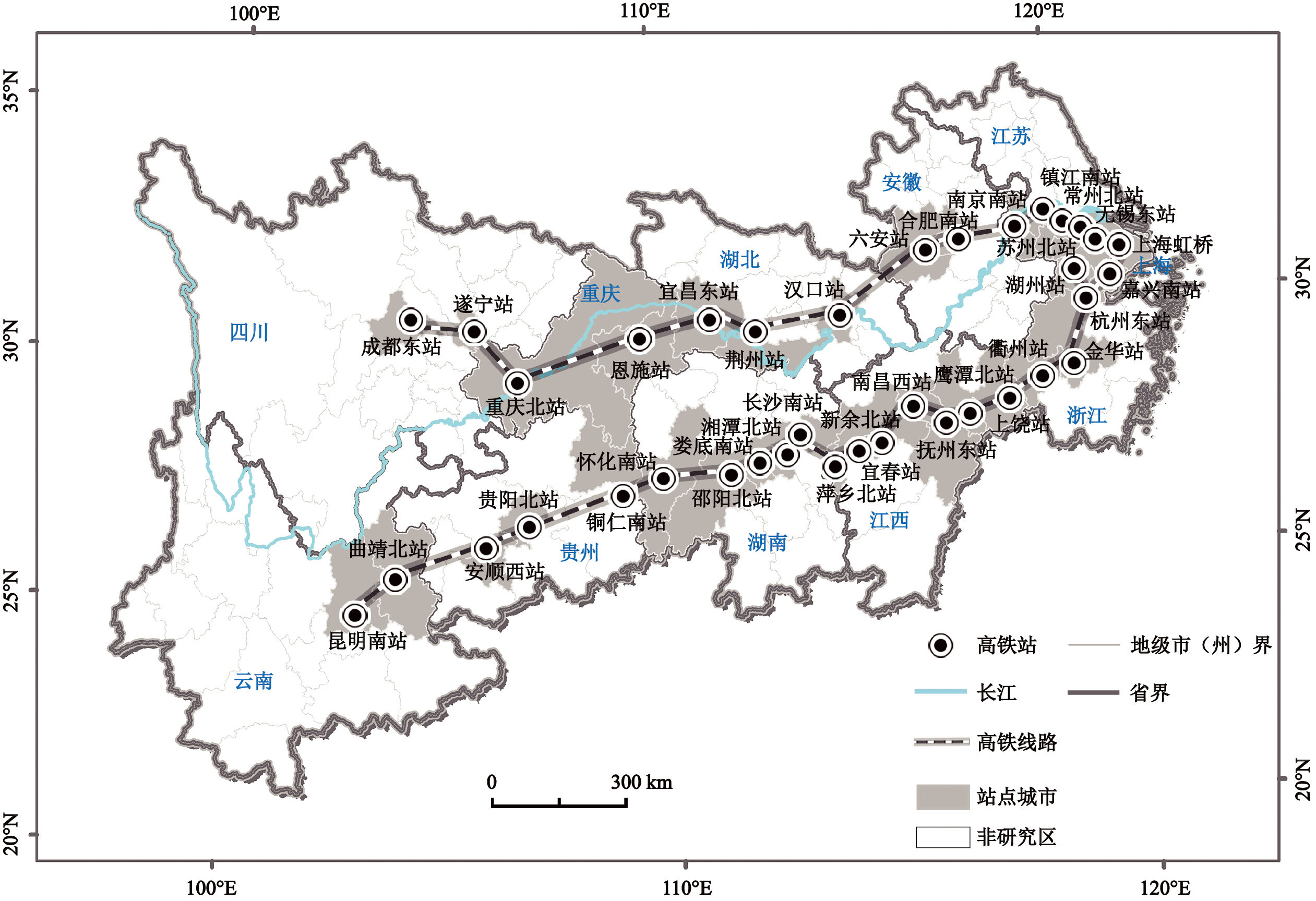

Fig. 1

Table 1

Measurement index system of node-place function in urban high-speed railway station area

目标层	系统层	指标层	指标诠释与计算方法	方向	权重
高铁站区节点功能价值	换乘度 (λ₁)	换乘平均步行距离 ( X₁)^[17]/m	$L = { {\displaystyle\sum {\mathop l\nolimits_i } } \mathord{\left/ {\vphantom { {\displaystyle\sum {\mathop l\nolimits_i } } { {n} } } } \right. } { {n} } }$ 式中， $l_i $ 表示乘客从高铁出站口到第i种类型接驳车站点乘车所需要步行距离，(i=1，2，3，…，n)^[18-19]，n为接驳交通类型数	-	0.0169
	换乘度 (λ₁)	换乘用时(X₂)^[17]/min	$ T = {{\left ( {{T_1} + {T_2}} \right)} \mathord{\left/ {\vphantom {{\left ( {{T_1} + {T_2}} \right)} 2}} \right. } 2} $ ， $ {T_1} = {{\displaystyle\sum {({a_i} + {b_i} + {c_i} + {d_i})} } \mathord{\left/ {\vphantom {{\displaystyle\sum {({a_i} + {b_i} + {c_i} + {d_i})} } n}} \right. } n} $ 式中，T₁为地铁平均换乘用时，T₂为公交(普通公交和快速公交)平均换乘用时； $a_i $ 为第i条地铁购票用时； $b_i $ 为第i条地铁安检用时； $c_i $ 为第i条地铁进闸用时； $d_i $ 为第i条地铁等待乘车用时^[18-19]	-	0.0042
	衔接度 (λ₂)	公共交通线数量（X₃）^[²⁰]/条	$A = \displaystyle\sum {({x_i} \times y')}$ 式中， $x_i $ 为第i种交通接驳方式的交通数量， $ {y}' $ 代表权重	+	0.0338
		接驳交通类型 ( X₄)/种	接驳方式全面性^[8]影响接驳功能，故选取长途汽车、轨道交通 (地铁和轻轨)、公交、出租车、社会车辆和非机动车6种类型^{[17, 21]}	+	0.0381
		公共交通运营时长 (X₅)/h	售票的运营时长^[22]影响站区交通接驳功能，主要取公共交通 (轨道交通和公交)的每天运营的时间长短，实地调研获取数据	+	0.0169
		发车时间间隔(X₆)/min	$F = \displaystyle\sum {\left ( {\dfrac{ {\displaystyle\sum { {f_{ij} } } } }{n} \times {z'} } \right)}$ 公共交通发车次数影响站区交通接驳功能^[23]，故利用发车间隔替代， $f_{ij} $ 为j种交通类型第i条线路的发车时间间隔，(i=1…n)； $z' $ 代表权重^[18]	-	0.0042
		载客量( X₇)/人	$ C = \displaystyle\sum {\left ( {{c_{ij}} \times {a_i} \times z'} \right)} $ 式中， ${c_{ij} }$ 为j种交通类型的第i条线路的载客量， $a_i $ 为第i种交通接驳方式的交通线数量， $z' $ 代表权重^[24]	+	0.0677
	通达度 (λ₃)	可达性 (X₈)	${I_i} = \dfrac{ {m\left\{ { {\rm{lo{g} }_2}\left [ {\left ( {\dfrac{ {m + 2} }{3} } \right) - 1} \right] + 1} \right\}} }{ {\left ( {m - 1} \right)\left\| {\bar {D} - 1} \right\|} }$ 空间句法的整合度值反映高铁站点与城市所有其他空间单元的集聚程度。整合度值越大，表明高铁站点与城市所有其他空间单元相距较近，彼此间很少有障碍物影响它们间联系，即交通越便捷、可达性越好^{[18, 21, 25]}。式中， $I_i $ 为整合度，m为城市系统中单元空间的个数； $ \bar {D} $ 为平均深度值	+	0.0466
	通达度 (λ₃)	拥堵指数^[26](X₉)	机动车出行旅行时间/机动车自由流(畅通)旅行时间^[27-28]	-	0.0211
高铁站区场所功能价值	土地利用程度 (λ₄)	用地建成率(X₁₀)	根据站区影响范围的相关研究^[29-31]，选取站区周边3 km作为边界，用地建成率为建成面积与3 km半径的高铁站区面积比^[26]	+	0.3464
	用地功能分布^[32] (λ₅)	用地均匀度(X₁₁)	$E = H/H_{\max} = - \displaystyle\sum\limits_{ { {k = 1} } }^{ {m} } {P_k} \ln P_k/\ln m$ 式中，E为用地均匀度指数，H为用地多样性指数； $P_k $ 表示第k类用地占总面积之比；m是用地类型总数，H_max=lnm表示在站点影响区内对于给定的m，当各类用地的面积比例相同时 (即 $ P_k$ =1/m)，用地多样性指数H的最大值^[33]	+	0.0594
	用地功能分布^[32] (λ₅)	用地优势度 (X₁₂)	$D = H{\rm{max } }- H =\ln (m) + \displaystyle\sum\limits_{k = 1}^m {P_k\ln P_k}$ 式中，D为用地优势度指数，其他字母含义同上^[34]	-	0.1168
	土地利用价值(λ₆)	房价指数 (X₁₃)	通过“安居客”分别获得站点城市和站区周边3 km内的房价均值，房价指数为站区房价均值与站点城市房价均值的比值	+	0.2037
	站区人口活力(λ₇)	人口密度^[22](X₁₄)	采集站区3 km范围内的百度热力数据，确定站区人口密度	+	0.2737

Table 1

Table 2

Fig. 2

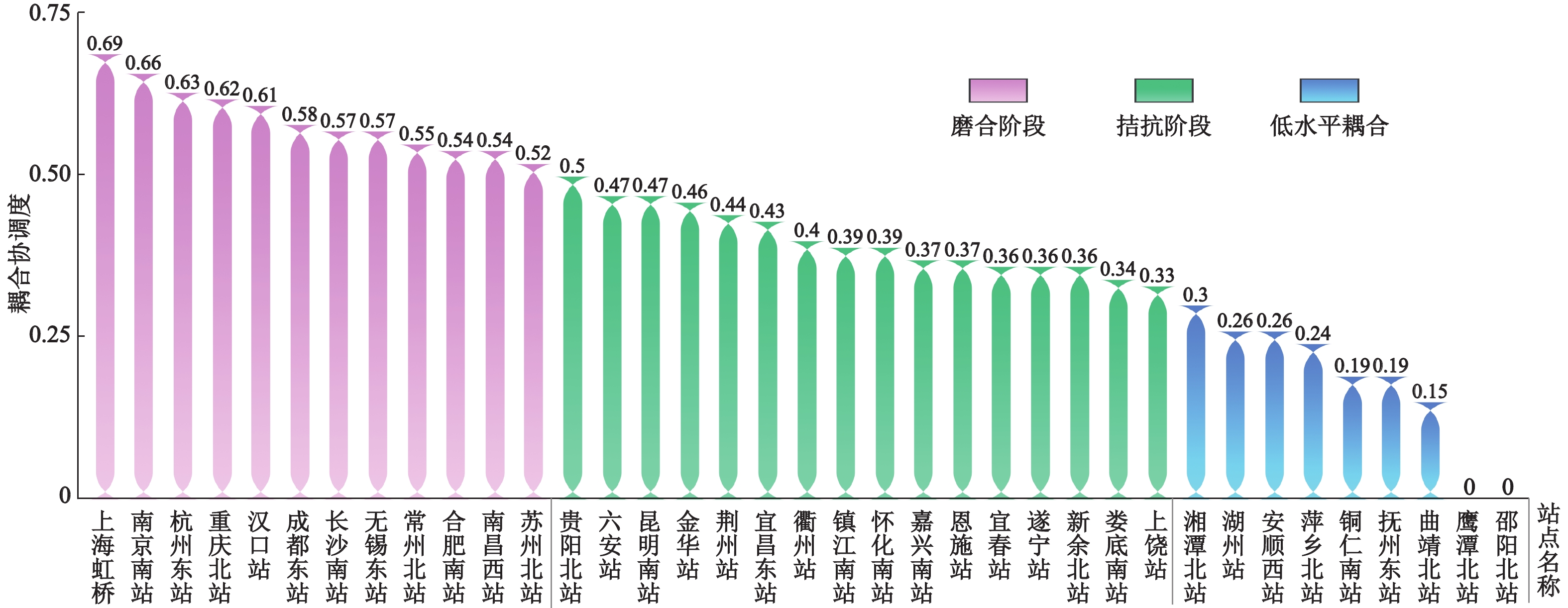

Fig. 3

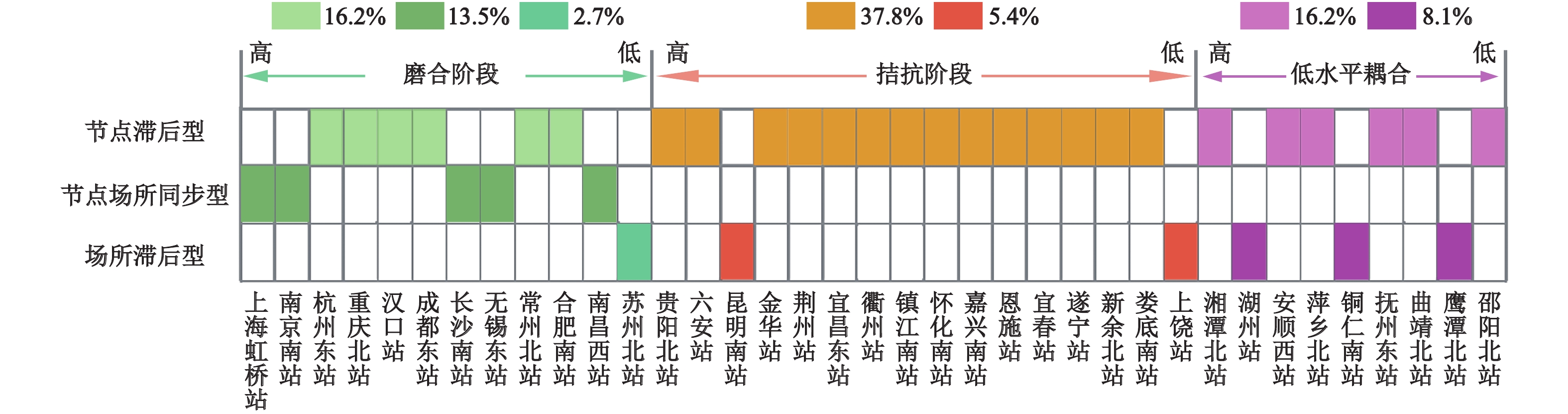

Fig. 4

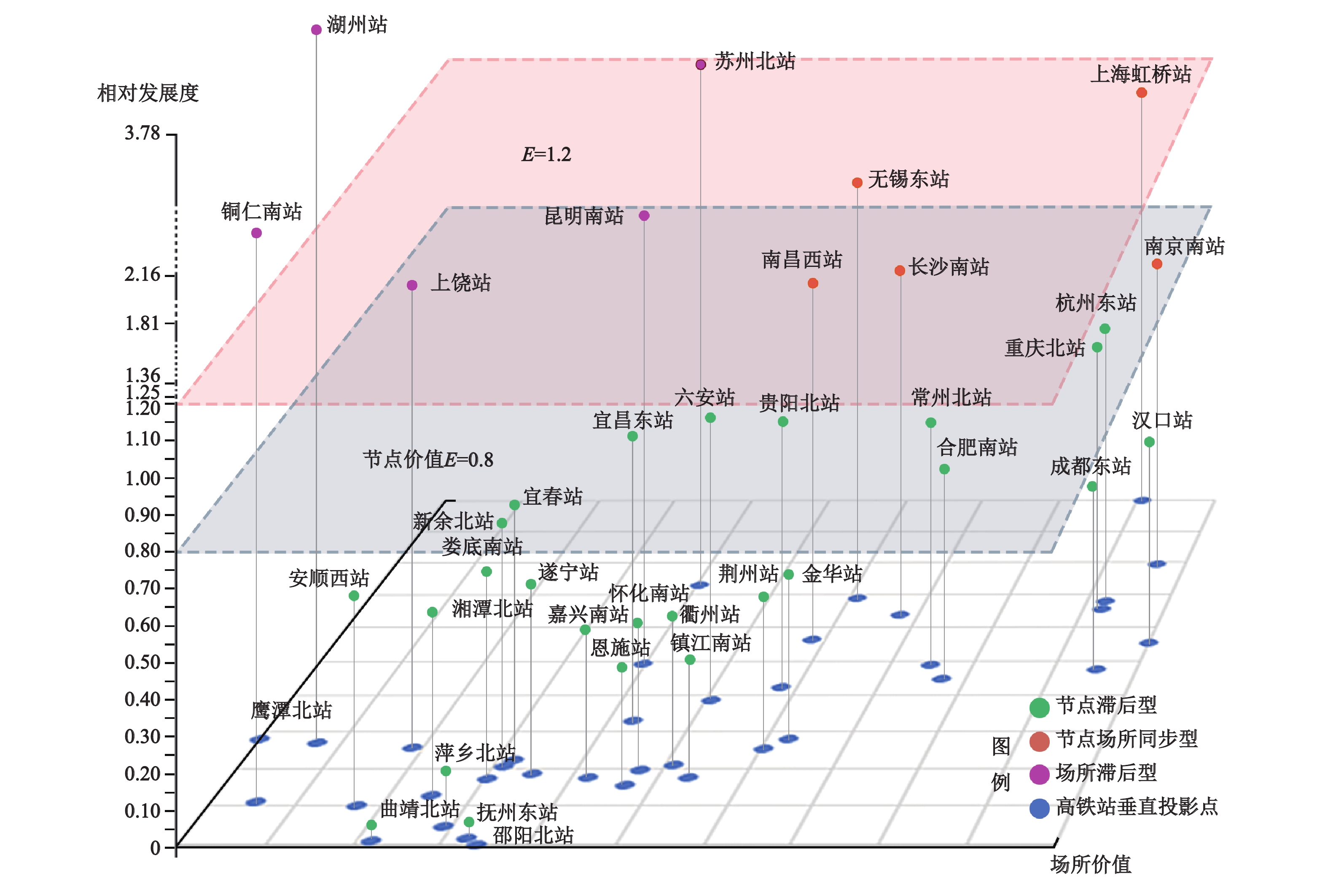

Fig. 5

References 37

[1]	Shao M, Tang X, Zhang Y et al. City clusters in China: Air and surface water pollution[J]. Frontiers in Ecology and the Environment, 2006, 4(7): 353-361. doi: 10.1890/1540-9295(2006)004[0353:CCICAA]2.0.CO;2
[2]	任利剑, 运迎霞, 权海源. 基于“节点-场所模型”的城市轨道站点类型及其特征研究——新加坡的实证分析与经验启示[J]. 国际城市规划, 2016, 31(1): 109-116.
	Ren Lijian, Yun Yingxia, Quan Haiyuan. Study on the classification and characteristics of urban rail transit stations based on node-place model: Empirical analysis and experience enlightenment of Singapore. Urban Planning International, 2016, 31(1): 109-116.
[3]	Bertolini L. Nodes and places: Complexities of railway station redevelopment[J]. European Planning Studies, 1996, 4(3): 331-345. doi: 10.1080/09654319608720349
[4]	殷铭, 汤晋, 段进. 站点地区开发与城市空间的协同发展[J]. 国际城市规划, 2013, 28(3): 70-77.
	Yin Ming, Tang Jin, Duan Jin. The synergy of high-speed railway station areas and urban space development. Urban Planning International, 2013, 28(3): 70-77.
[5]	胡晶, 黄珂, 王昊. 特大城市铁路客运枢纽与城市功能互动关系——基于节点-场所模型的扩展分析[J]. 城市交通, 2015, 13(5): 36-42.
	Hu Jing, Huang Ke, Wang Hao. Interaction between railway rerminals and urban functionalities in mega cities: An extended analysis based on the node-place model. Urban Transport of China, 2015, 13(5): 36-42.
[6]	郑德高, 杜宝东. 寻求节点交通价值与城市功能价值的平衡——探讨国内外高铁车站与机场等交通枢纽地区发展的理论与实践[J]. 国际城市规划, 2007, 22(1): 72-76.
	Zheng Degao, Du Baodong. Looking for the balance between transport value of node and functional value of city: Discussing theory and practice in the development of airport area and high-speed railway station area. Urban Planning International, 2007, 22(1): 72-76.
[7]	袁锦富. 高铁效应下我国城市总体规划的应对[J]. 城市规划, 2015, 39(7): 19-24. doi: 10.11819/cpr20150704a
	Yuan Jinfu. Response of China's urban master planning under high-speed railway effects. City Planning Review, 2015, 39(7): 19-24. doi: 10.11819/cpr20150704a
[8]	王晶, 陆化普, 曾坚. 基于绿色换乘的高铁枢纽接驳体系建构[J]. 城市规划, 2014, 38(11): 71-77.
	Wang Jing, Lu Huapu, Zeng Jian. Integrated transfer system of high-speed railway hub based on sustainable transfer. City Planning Review, 2014, 38(11): 71-77.
[9]	陆林, 邓洪波. 节点-场所模型及其应用的研究进展与展望[J]. 地理科学, 2019, 39(1): 12-21.
	Lu Lin, Deng Hongbo. Progress and prospect of the node-place model and its application. Scientia Geographica Sinica, 2019, 39(1): 12-21.
[10]	宋文杰, 史煜瑾, 朱青, 等. 基于节点-场所模型的高铁站点地区规划评价——以长三角地区为例[J]. 经济地理, 2016, 36(10): 18-25.
	Song Wenjie, Shi Yujin, Zhu Qing et al. Evaluation on planning of high-speed railway station area based on node-place model in Yangtze River Delta Area. Economic Geography, 2016, 36(10): 18-25.
[11]	王少剑, 莫惠敏, 吕慧妮, 等. 区位因素影响下高铁站区产业结构特征[J]. 地理学报, 2021, 76(8): 2016-2031.
	Wang Shaojian, Mo Huimin, Lyu Huini et al. Industrial structure of high-speed railway station areas under the influence of location. Acta Geographica Sinica, 2021, 76(8): 2016-2031.
[12]	于洪雁. 中国旅游供需耦合协调特征与影响机制研究[D]. 长春: 东北师范大学, 2018.
	Yu Hongyan. Study on the coupling coordination characteristics and influence mechanism of tourism supply and demand in China. Changchun: Northeast Normal University, 2018.
[13]	何小洲, 过秀成, 张小辉. 高铁枢纽集疏运模式及发展策略[J]. 城市交通, 2014, 12(1): 41-47.
	He Xiaozhou, Guo Xiucheng, Zhang Xiaohui. High-speed railway passenger distributing patterns and development strategies. Urban Transport of China, 2014, 12(1): 41-47.
[14]	Peek Gert-Joost, Bertolini Luca, Hans De-Jonge. Gaining insight in the development potential of station areas: A decade of node-place modeling in the Netherlands[J]. Urban Planning International, 2011, 26(6): 63-71.
[15]	姚涵, 戴一正, 张晨阳, 等. “性能”与“模式”——站城协同研究中圈层结构模型和节点场所模型的适应性分析[J]. 建筑与文化, 2019(9): 185-188.
	Yao Han, Dai Yizheng, Zhang Chenyang et al. 'Performance' and 'Pattern': Distinguishing the applicability analysis of ring spatial structure modelling and node-place modelling in station-city integration research[J]. Architecture & Culture, 2019(9): 185-188.
[16]	何小洲, 过秀成. 高铁枢纽公共交通集疏运网络规划方法[J]. 规划师, 2014, 30(2): 53-58. doi: 10.3969/j.issn.1006-0022.2014.02.009
	He Xiaozhou, Guo Xiucheng. Transport planning of high-speed railway hub. Planners, 2014, 30(2): 53-58. doi: 10.3969/j.issn.1006-0022.2014.02.009
[17]	段进, 殷铭. 高铁站点规划布局与空间换乘便捷度——长三角地区的实证研究[J]. 城市规划, 2014, 38(10): 44-50. doi: 10.11819/cpr20141007a
	[Duan Jin, Yin Min. Study on the relationship between planning layout of high-speed railway stations and transfer space convenient level: An empirical study of Yangtze River Delta region. City Planning Review, 2014, 38(10): 44-50. doi: 10.11819/cpr20141007a
[18]	王缉宪, 林辰辉. 高速铁路对城市空间演变的影响: 基于中国特征的分析思路[J]. 国际城市规划, 2011, 26(1): 16-23.
	Wang Jixian, Lin Chenhui. High-speed railway and its impacts on the urban spatial dynamics in China: The background and analytical framework. Urban Planning International, 2011, 26(1): 16-23.
[19]	牛玉, 汪德根. 出行者对城市交通与高铁站接驳的感知评价——以苏州市为例[J]. 人文地理, 2015, 30(6): 98-105.
	Niu Yu, Wang Degen. Perceptual evaluation of connection between urban transport and high-speed railway station by traveler: A case study of Suzhou. Human Geography, 2015, 30(6): 98-105.
[20]	Hyojin Kim, Selima Sultana, Joe Weber. A geographic assessment of the economic development impact of Korean high-speed railway stations[J]. Transport Policy, 2018, 66(2): 127-137.
[21]	刘韶曼. 城市轨道交通网络可达性研究[D]. 北京: 北京交通大学, 2014.
	Liu Shaoman. Research on accessibility of urban rail transit network. Beijing: Beijing Jiaotong University, 2014.
[22]	Stefan Zemp, Michael Stauffacher, Daniel J Lang et al. Classifying railway stations for strategic transport and land use planning: Context matters![J]. Journal of Transport Geography, 2011, 19(4): 670-379. doi: 10.1016/j.jtrangeo.2010.08.008
[23]	Dominik E Reusser, Peter Loukopoulos, Michael Stauffacher et al. Classifying railway stations for sustainable transitions: Balancing node and place functions[J]. Journal of Transport Geography, 2008, 16(3): 191-202. doi: 10.1016/j.jtrangeo.2007.05.004
[24]	赵政宇, 姚加林. 基于多级可拓评价法的高铁客运枢纽换乘评价[J]. 铁道科学与工程学报, 2016, 13(12): 2347-2354. doi: 10.3969/j.issn.1672-7029.2016.12.005
	Zhao Zhengyu, Yao Jialin. Evaluation of transfer at high-speed railway passenger terminal based on multi-level extensible method. Journal of Railway Science and Engineering, 2016, 13(12): 2347-2354. doi: 10.3969/j.issn.1672-7029.2016.12.005
[25]	刘洋, 宋瑞, 李志杰. 基于空间句法的轨道交通可达性评价[J]. 都市快轨交通, 2014, 27(6): 70-74.
	Liu Yang, Song Rui, Li Zhijie. Improvement of subway operation safety assessment method. Urban Rapid Rail Transit, 2014, 27(6): 70-74.
[26]	徐银凤. 长江经济带城市高铁枢纽接驳绩效分异与空间效应研究[D]. 苏州: 苏州大学, 2020.
	Xu Yinfeng. Research on performance differentiation and spatial effect of urban high-speed railway hub connection in Yangtze River Economic Belt. Suzhou: Soochow University, 2020.
[27]	郭建科, 邱煜焜, 王方雄, 等. 基于交通流量北京交通大学大数据的大连城市院前急救医疗服务可达性分析[J]. 经济地理, 2019, 39(1): 82-87.
	Guo Jianke, Qiu Yukun, Wang Fangxiong et al. Spatial-temporal differences in accessibility of pre-hospital emergency medical services in Dalian based on traffic flow. Economic Geography, 2019, 39(1): 82-87.
[28]	孙聪. 城市空间中交通对区位价值和环境的影响机制与效应研究[D]. 北京: 清华大学, 2015: 59.
	Sun Cong. Research on the impact mechanism and effect of transportation on location value and environment in urban space. Beijing: Tsinghua University, 2015: 59.
[29]	Peek G J, Hagen M V. Creating synergy in and around station: Three strategies for adding value[J]. Transportation Research Record Journal of the Transportation Research Board, 2002, 1793(1): 1-6. doi: 10.3141/1793-01
[30]	王丽, 曹有挥, 刘可文, 等. 高铁站区产业空间分布及集聚特征[J]. 地理科学, 2012, 32(3): 301-307.
	Wang Li, Cao Youhui, Liu Kewen et al. Spatial distribution and clusters of industry nearby high-speed railway station. Scientia Geographica Sinica, 2012, 32(3): 301-307.
[31]	周文竹, 阳建强. 交通导向的城际铁路站场地区空间发展机制[J]. 城市规划, 2010, 34(11): 88-92.
	Zhou Wenzhu, Yang Jianqiang. Space development mechanism of transit-oriented inter-city railway station area. City Planning Review, 2010, 34(11): 88-92.
[32]	Saeed Monajem, Farzan Ekram Nosratian. The evaluation of the spatial integration of station areas via the node place model: An application to subway station areas in Tehran[J]. Transportation Research Part D: Transport and Environment, 2015, 40(7): 14-27.
[33]	刘鸿雁, 雷磊. 中国智慧产业发展水平综合评价与时空特征[J]. 经济地理, 2017, 37(2): 106-113.
	Liu Hongyan, Lei Lei. Comprehensive evaluation on development level of regional smart industry in China. Economic Geography, 2017, 37(2): 106-113.
[34]	段德罡, 张凡. 土地利用优化视角下的城市轨道站点分类研究——以西安地铁2号线为例[J]. 城市规划, 2013, 37(9): 39-45.
	Duan Degang, Zhang Fan. Study on classification of urban rail transit stations from the perspective of land use optimization: A case study on Xi'an subway line 2. City Planning Review, 2013, 37(9): 39-45.
[35]	刘浩, 张毅, 郑文升. 城市土地集约利用与区域城市化的时空耦合协调发展评价例[J]. 地理研究, 2011, 30(10): 1805-1817.
	Liu Hao, Zhang Yi, Zheng Wensheng. Evaluation on spatial-temporal development and interaction of intensive urban land use and urbanization. Geographical Research, 2011, 30(10): 1805-1817.
[36]	范辉, 刘卫东, 吴泽斌, 等. 浙江省人口城市化与土地城市化的耦合协调关系评价[J]. 经济地理, 2014, 34(12): 21-28.
	Fan Hui, Liu Weidong, Wu Zebin et al. The coupling coordination evaluation between population urbanization and land urbanization in Zhejiang Province. Economic Geography, 2014, 34(12): 21-28.
[37]	刘倩. 基于大数据的多层级道路交通运行指数研究[D]. 重庆: 重庆交通大学, 2018.
	Liu Qian. Research on multi-level road traffic operation index based on big data. Chongqing: Chongqing Jiaotong University, 2018.

耦合协调度	耦合阶段	相对发展度	耦合协调类型
0≤D≤0.3	低水平耦合	0＜E≤0.8	低水平耦合–节点滞后型
		0.8＜E＜1.2	低水平耦合–节点场所同步型
		E≥1.2	低水平耦合–场所滞后型
0.3＜D≤0.5	拮抗阶段	0＜E≤0.8	拮抗阶段–节点滞后型
		0.8＜E＜1.2	拮抗阶段–节点场所同步型
		E≥1.2	拮抗阶段–场所滞后型
0.5＜D≤0.8	磨合阶段	0＜E≤0.8	磨合阶段–节点滞后型
		0.8＜E＜1.2	磨合阶段–节点场所同步型
		E≥1.2	磨合阶段–场所滞后型
0.8＜D≤1	高水平耦合	0＜E≤0.8	高水平耦合–节点滞后型
		0.8＜E＜1.2	高水平耦合–节点场所同步型
		E≥1.2	高水平耦合–场所滞后型
