多情景洪水灾害对城市道路拓扑特征影响研究——以武汉市中心城区为例

doi:10.13249/j.cnki.sgs.2023.08.016

Abstract

Abstract:

The article bases on the method of network topology to explore the impact of multi-scenario flood events on the road network from the perspective of commuting with the central urban area of Wuhan as the study area. Firstly, we used flood hydrological simulation to obtain the flood map and reconstructed the road network under different scenarios initially. Then, we obtained road traffic volumes by commuter travel simulation based on Baidu traffic big data. The traffic volume was supplemented as a road attribute to complete the road network reconstruction. Finally, three centrality indicators were calculated under multi-scenario flood events to show the impact of flooding hazards on the topological characteristics of the urban road network by statistical and spatial analyses. The results showed: 1) Flood events change the characteristics and patterns of urban road network. Under the 50-year-flood scenario, the number of network nodes and links decrease by 20.29% and 37.04%, respectively, and the centrality values of more than 80% of nodes or links have changed. 2) When the flood occurs, the maximum and 99% quantile value of betweenness centrality increase while the closeness centrality decrease, indicating that the occurrence of flood makes the impact of key nodes or edges in the road network more prominent but the connectivity between nodes or edges worse. The conclusion is also confirmed by the tail distribution of the centrality cumulative distribution function. 3) Key edges and nodes' locations shift with the occurrence of flood events and shrink towards the central city area with increasing flood intensity. Specifically, it is transferred from the Second Ring Road of Wuhan to the Yanjiang Avenue within the First Ring Road. The findings of the study are important references for identifying critical areas of urban traffic and for disaster emergency management. In flood disaster management, attention should be paid to the core areas to prevent congestion; And in urban planning, strengthening road construction in peripheral areas, improving road drainage performance and road network connectivity are the key to reduce the impact of flood disasters on urban road network.

Key words: network topological characterization, centrality indicators, flood simulation, commuter travel simulation, Wuhan Metropolitan Region

CLC Number:

U491

Zhang Hongxin, Chen Huiting, Lu Yanchi, Liu Xiaoyan, Chen Cuizhen, Liu Yaolin. Urban road network topological characterization of multi-scenario flooding impacts: A case study of Wuhan Metropolitan Region[J].SCIENTIA GEOGRAPHICA SINICA, 2023, 43(8): 1471-1483.

Figures/Tables 12

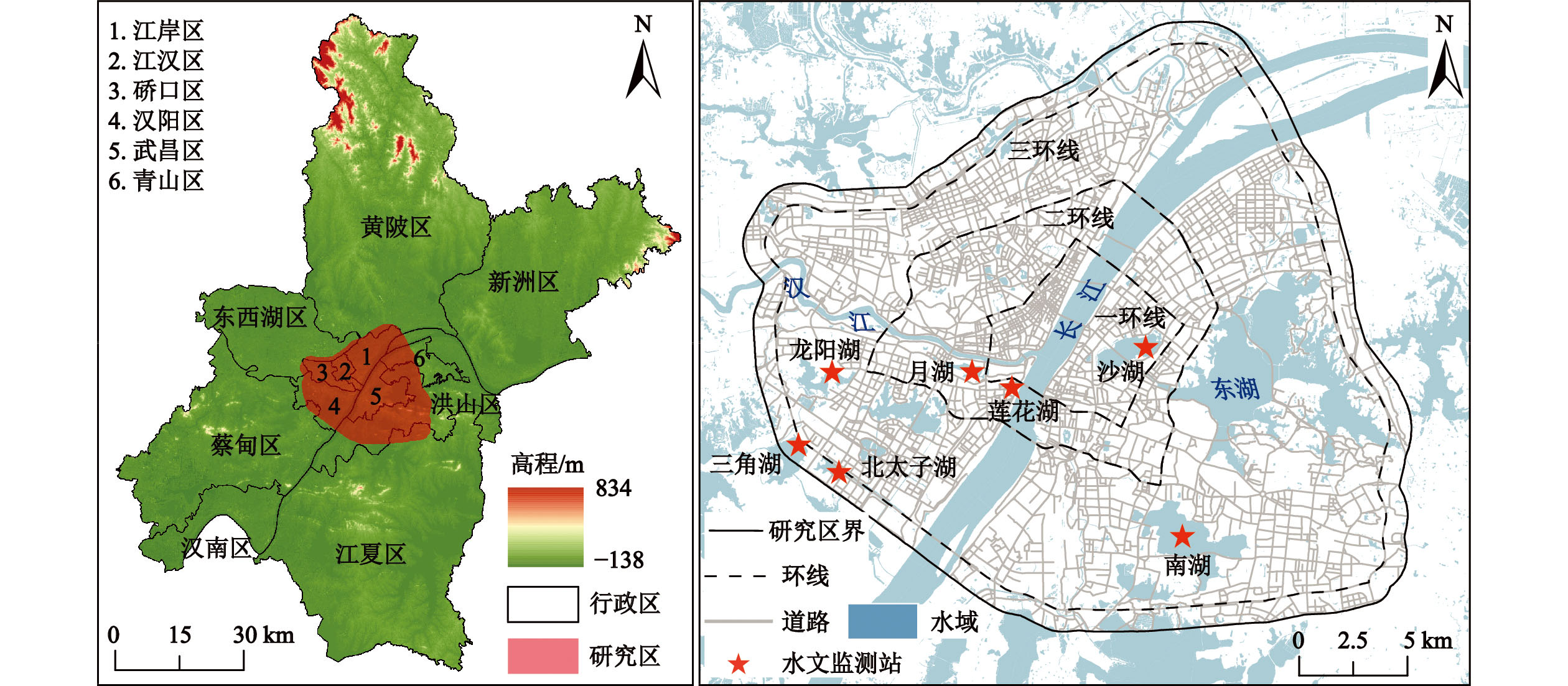

Fig. 1

Fig. 2

Table 1

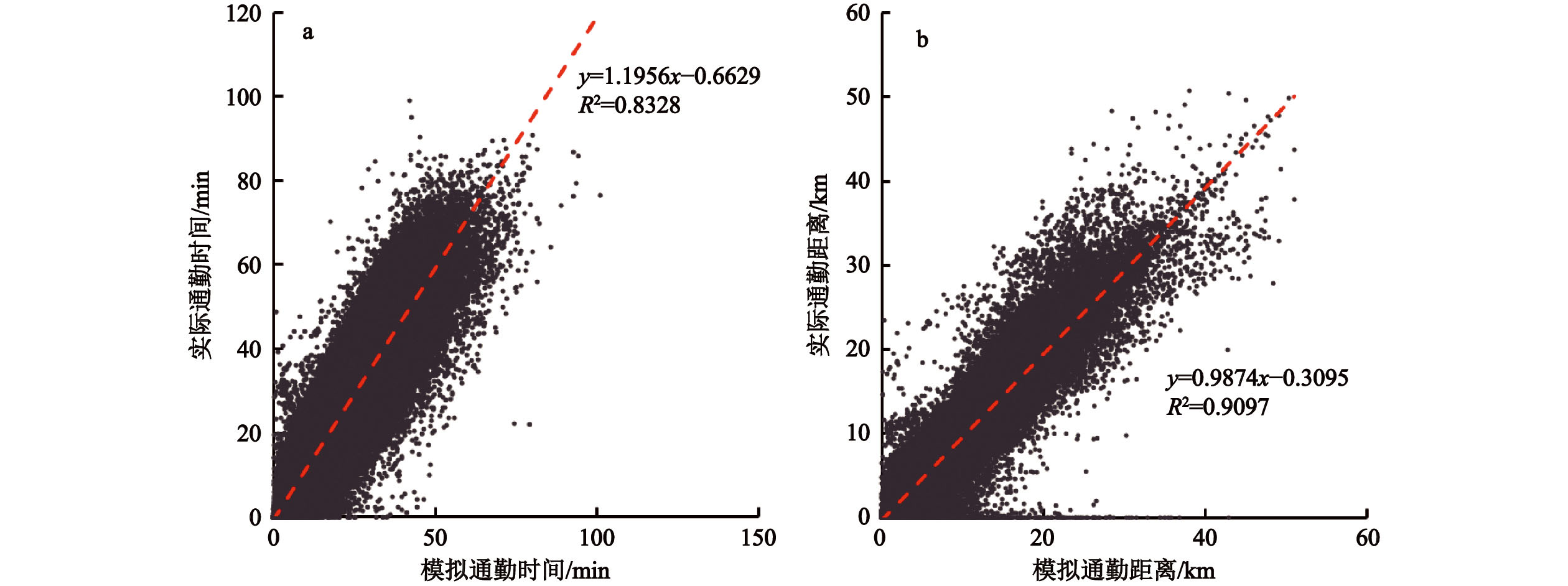

Fig. 3

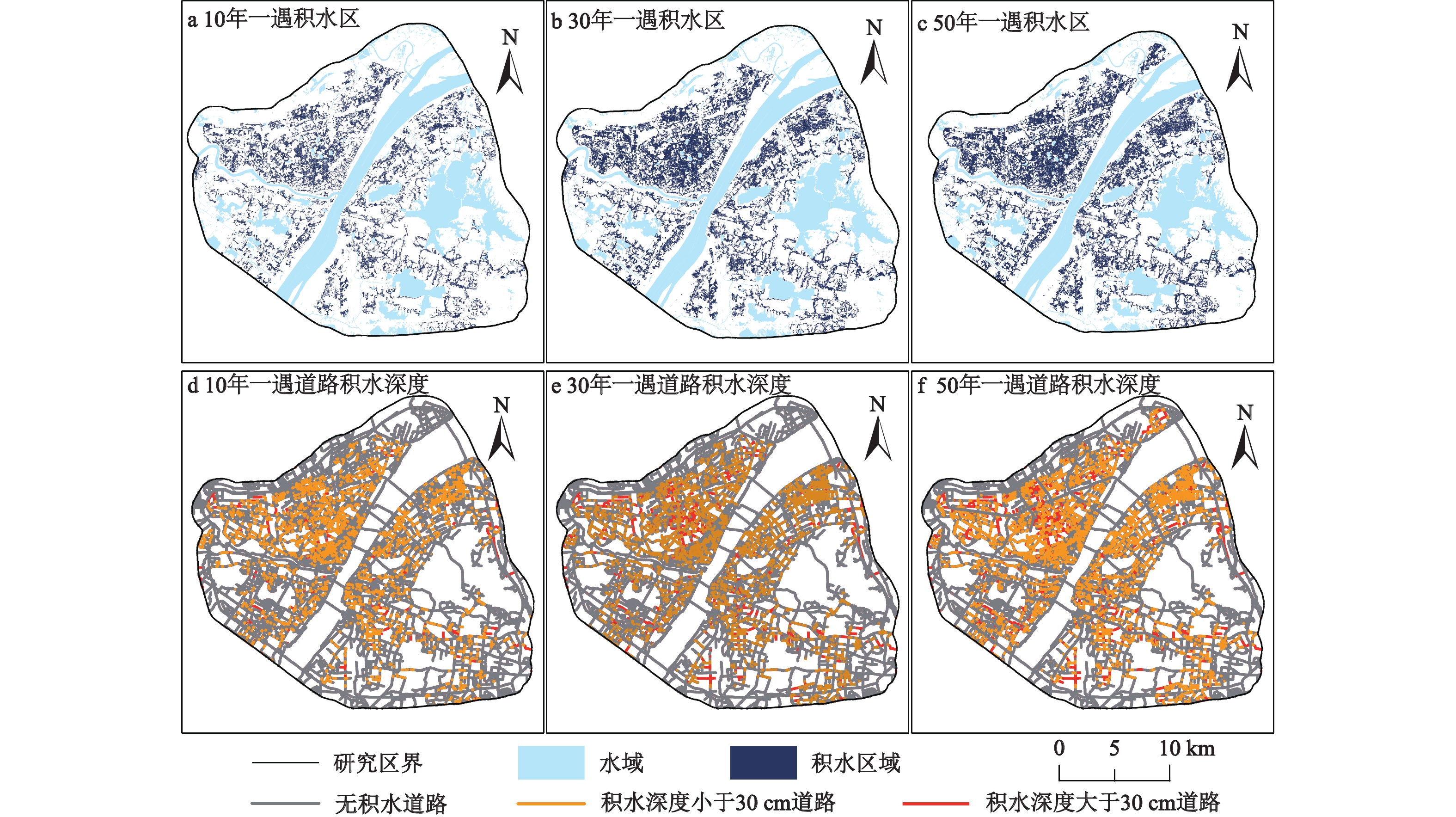

Fig. 4

Table 2

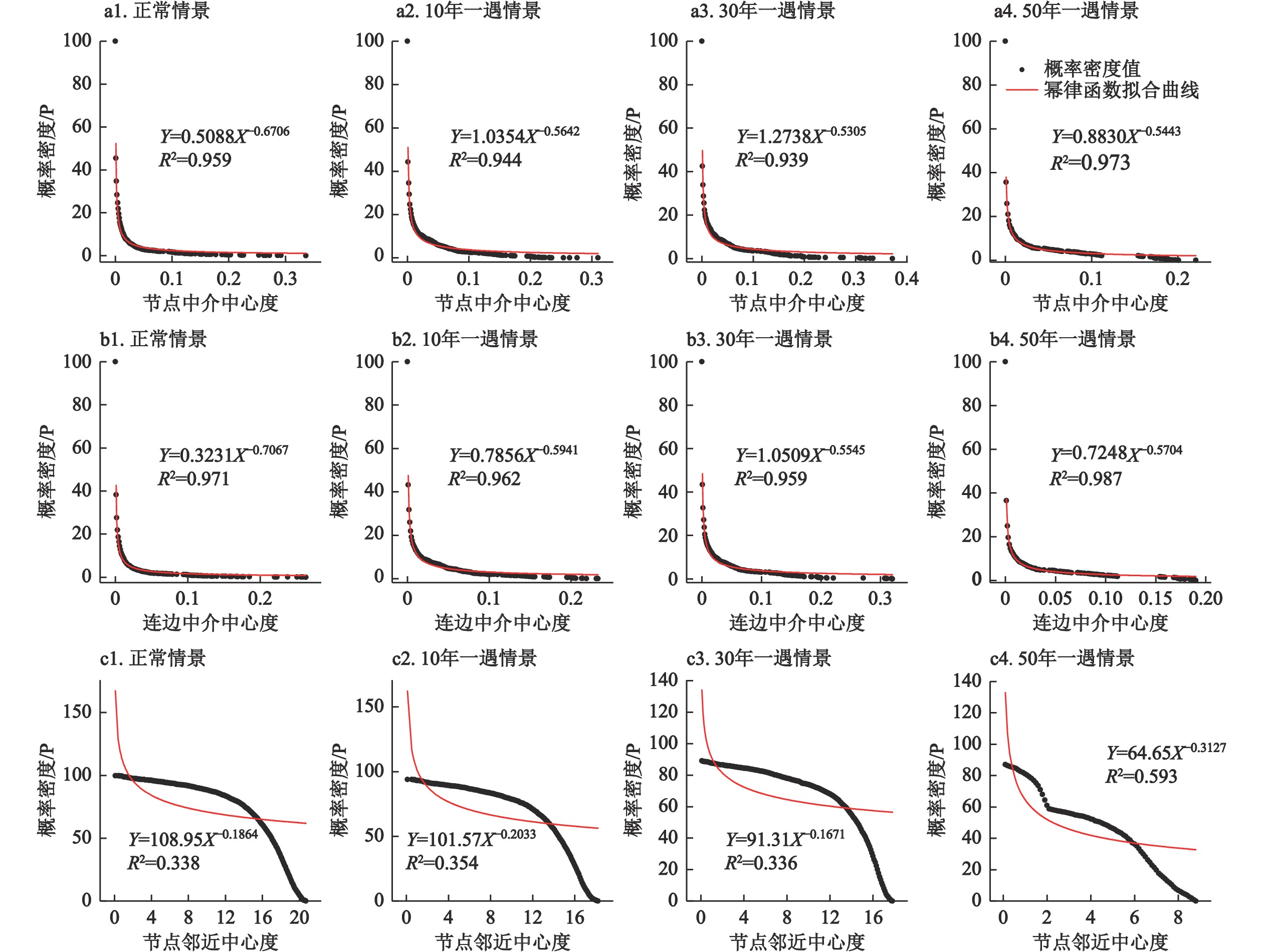

Fig. 5

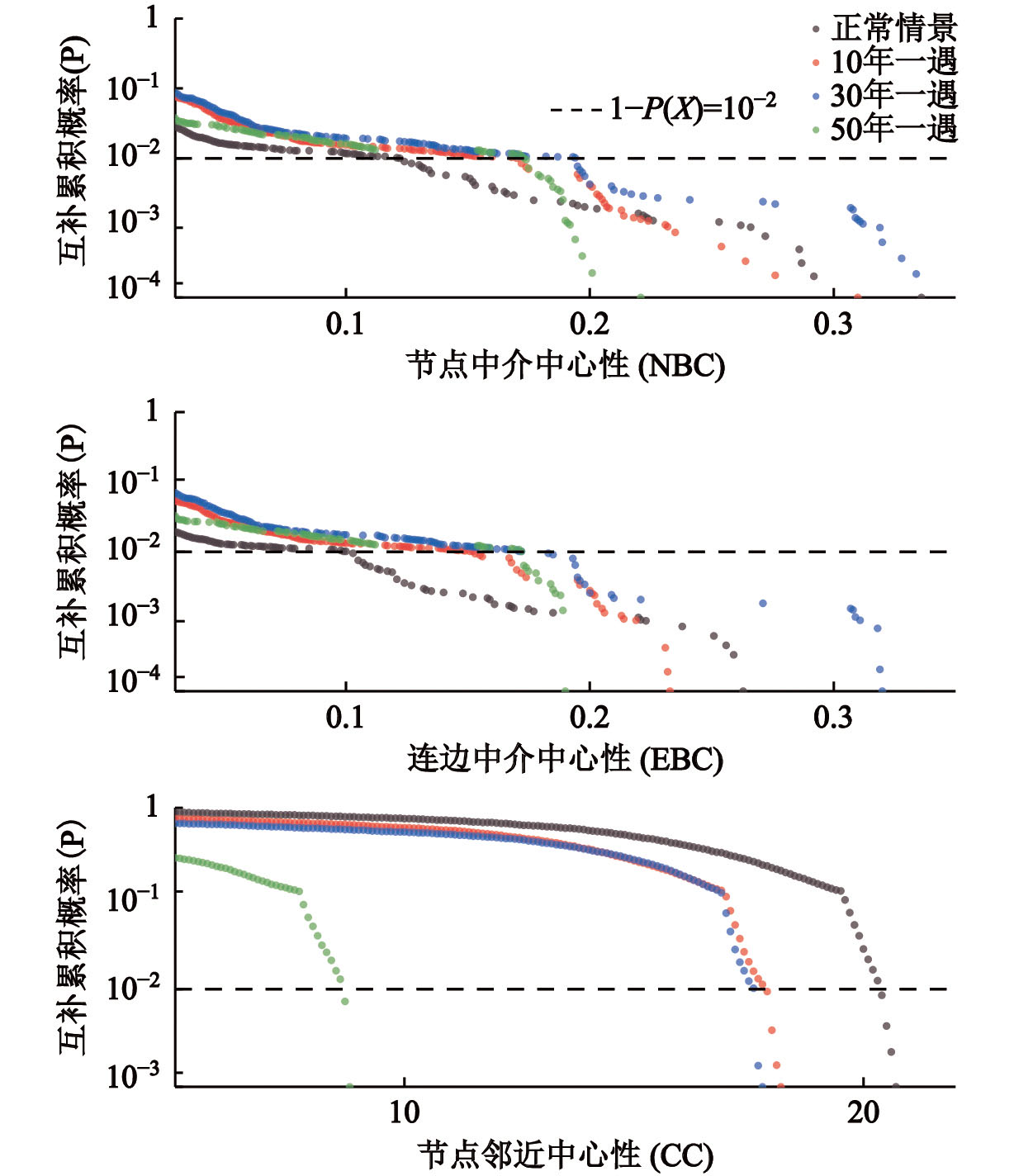

Fig. 6

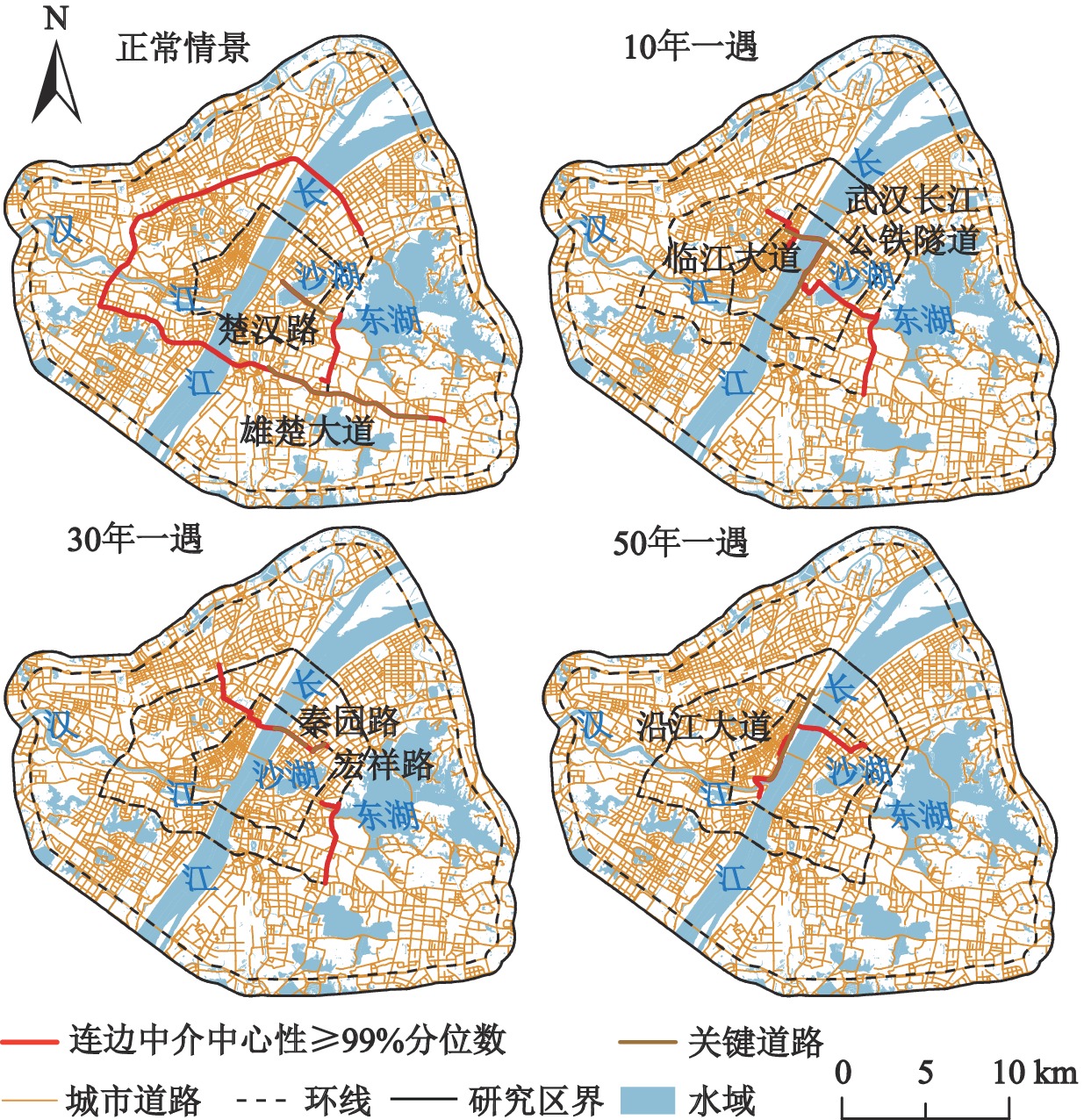

Fig. 7

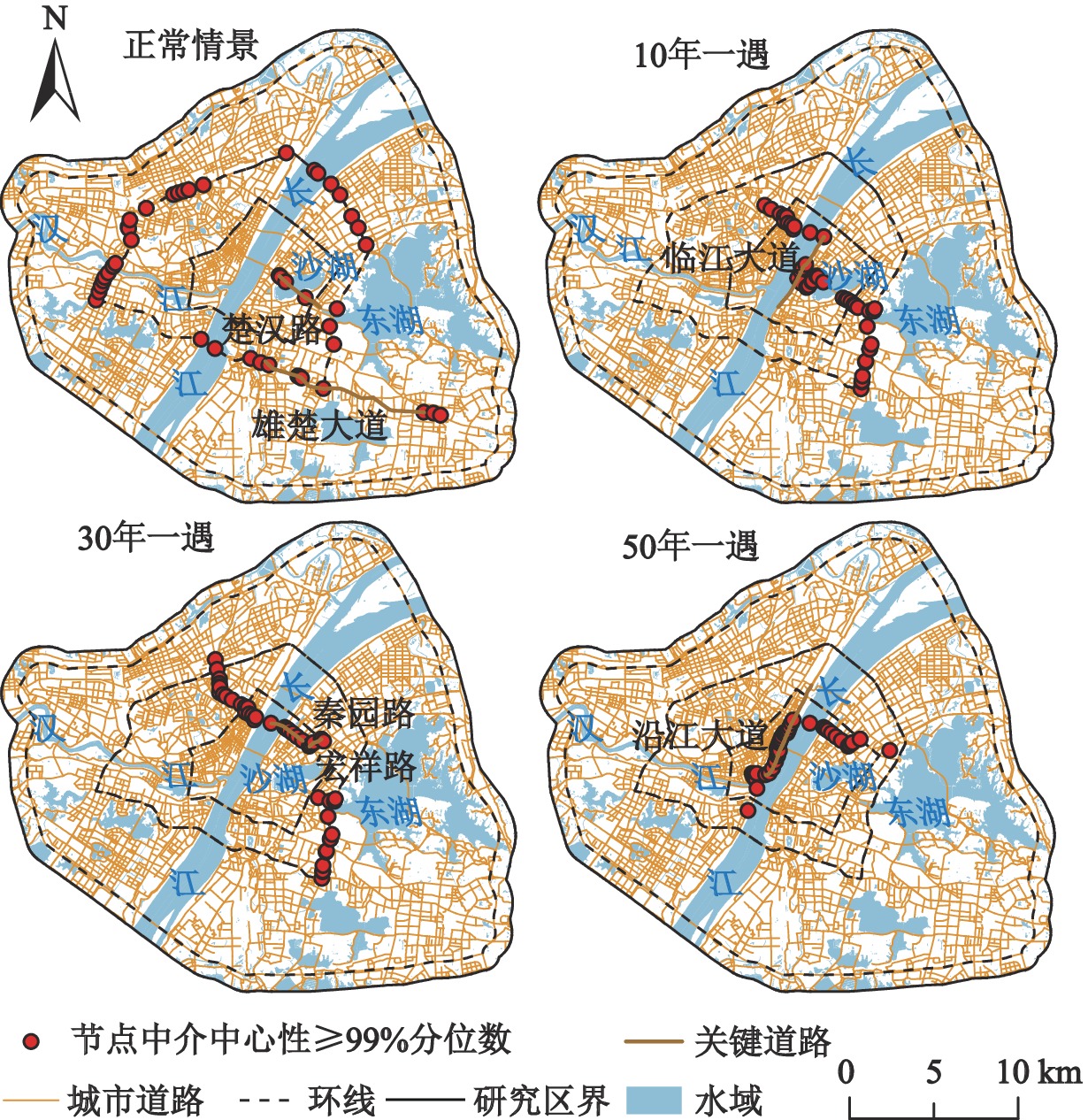

Fig. 8

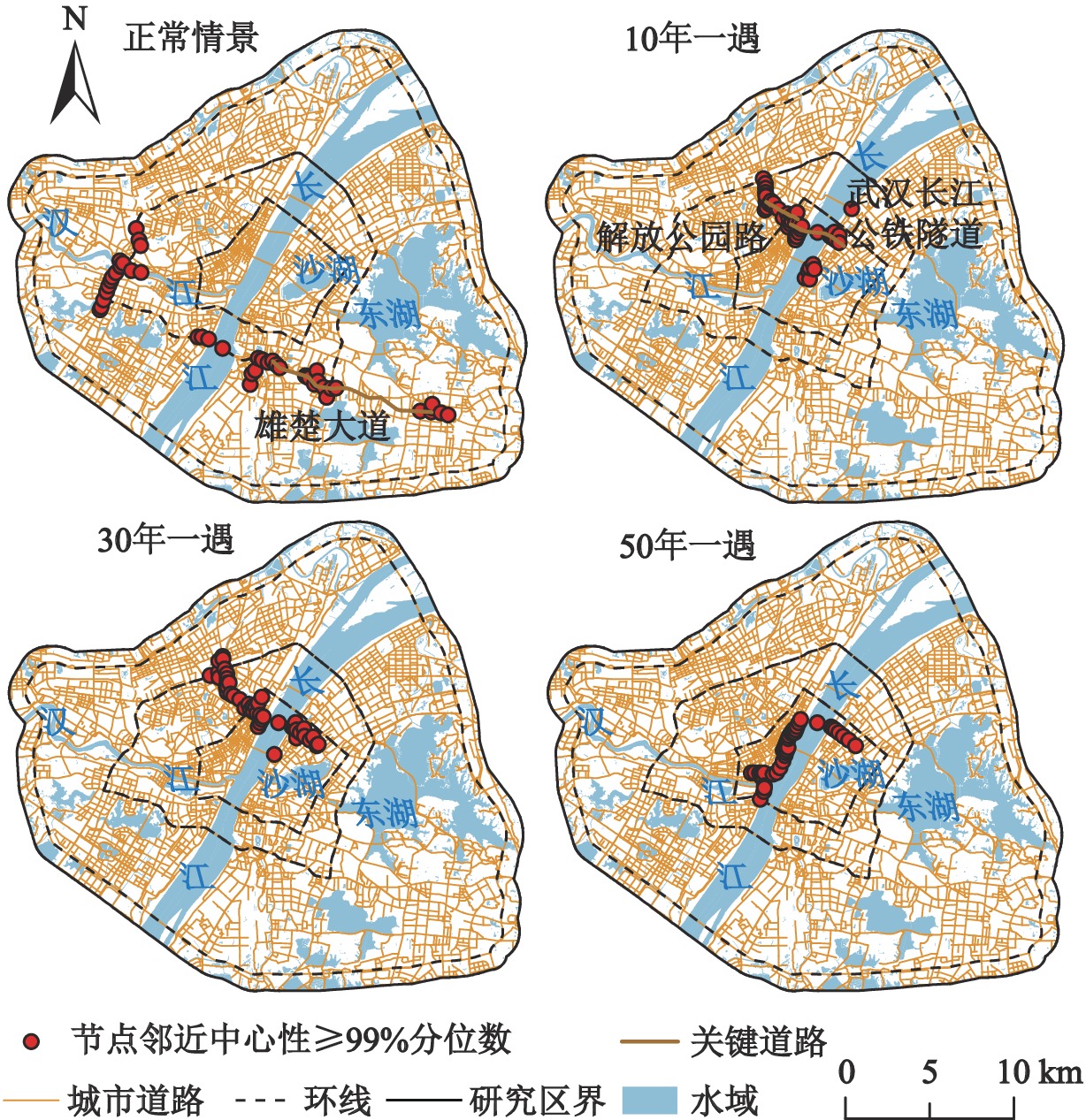

Fig. 9

Fig. 10

References 46

[1]	Huang G. Enhancing dialogue between flood risk management and road engineering sectors for flood risk reduction[J]. Sustainability, 2018, 10(6): 1773-1788.
[2]	王秀荣. 城市道路路面排水设计探讨[J]. 给水排水, 2014, 50(10): 35-38. doi: 10.13789/j.cnki.wwe1964.2014.0264
	Wang Xiurong. Discussion on drainage design of urban roads. Water & Wastewater Engineering, 2014, 50(10): 35-38. doi: 10.13789/j.cnki.wwe1964.2014.0264
[3]	董洁霜, 吴雨薇, 路庆昌. 降雨条件下城市道路网络拓扑结构脆弱性分析[J]. 交通运输系统工程与信息, 2015, 15(5): 109-113+122. doi: 10.3969/j.issn.1009-6744.2015.05.016
	Dong Jieshuang, Wu Yuwei, Lu Qingchang. Road network topology vulnerability identification considering the intensity of rainfall in urban areas. Journal of Transportation Systems Engineering and Information Technology, 2015, 15(5): 109-113+122. doi: 10.3969/j.issn.1009-6744.2015.05.016
[4]	曹娟, 张颖淳. 考虑级联效应的交通网络关键站点评估及其安全优化[J]. 微电子学与计算机, 2014, 31(6): 171-175. doi: 10.19304/j.cnki.issn1000-7180.2014.06.040
	Cao Juan, Zhang Yingchun. Key site evaluation considering cascading effect behaviors and security optimization on traffic network. Microelectronics & Computer, 2014, 31(6): 171-175. doi: 10.19304/j.cnki.issn1000-7180.2014.06.040
[5]	Wang W P, Yang S N, Stanley H E et al. Local floods induce large-scale abrupt failures of road networks[J]. Nature Communications, 2019, 10(1):1-11.
[6]	Gajanayake A, Guomin Zhang, Khan T et al. Postdisaster impact assessment of road infrastructure: State-of-the-art review[J]. Natural Hazards Review, 2020, 21(1): 3119002.1-3119002.14.
[7]	Zhang M L, Xu M H, Wang Z L et al. Assessment of the vulnerability of road networks to urban waterlogging based on a coupled hydrodynamic model[J]. Journal of Hydrology, 2021, 603:127105.
[8]	孙阿丽, 石纯, 石勇. 基于情景模拟的暴雨内涝危险性评价——以黄浦区为例[J]. 地理科学, 2010, 30(3): 465-468. doi: 10.13249/j.cnki.sgs.2010.03.003
	Sun Ali, Shi Chun, Shi Yong. Hazard assessment on rainstorm waterlogging disasters in Huangpu District, Shanghai based on scenario simulation. Scientia Geographica Sinica, 2010, 30(3): 465-468. doi: 10.13249/j.cnki.sgs.2010.03.003
[9]	Barthelemy M. Spatial networks[J]. Physics Reports-Review Section of Physics Letters, 2011, 499(1-3): 1-101.
[10]	Karduni A, Kermanshah A, Derrible S. A protocol to convert spatial polyline data to network formats and applications to world urban road networks[J]. Scientific Data, 2016,1:1-7.
[11]	Shiraki W, Takahashi K, Inomo H et al. A proposed restoration strategy for road networks after an earthquake disaster using resilience engineering[J]. Journal of Disaster Research, 2017, 12(4): 722-732. doi: 10.20965/jdr.2017.p0722
[12]	Zhang Weili, Wang Naiyu. Resilience-based risk mitigation for road networks[J]. Structural Safety, 2016, 62: 57-65. doi: 10.1016/j.strusafe.2016.06.003
[13]	He Yufeng, Ma Deying, Xiong Junnan et al. Flash flood vulnerability assessment of roads in China based on support vector machine[J]. Geocarto International, 2021: 1-28.
[14]	黄勇, 魏猛, 万丹, 等. 西南山地多灾区域道路网络可靠性规律分析[J]. 同济大学学报(自然科学版), 2020, 48(4): 526-535.
	Huang Yong, Wei Meng, Wan Dan et al. Analysis of reliability of road network in mountainous disaster-prone areas in Southwest China. Journal of Tongji University (Natural Science), 2020, 48(4): 526-535.
[15]	Hosseini S, Barker K, Ramirez-Marquez J. A review of definitions and measures of system resilience[J]. Reliability Engineering & System Safety, 2016, 145(Jan.): 47-61.
[16]	Tachaudomdach S, Upayokin A, Kronprasert N et al. Quantifying road-network robustness toward flood-resilient transportation systems[J]. Sustainability, 2021, 13(6): 3172 doi: 10.3390/su13063172
[17]	Kermanshah A, Derrible S. Robustness of road systems to extreme flooding: Using elements of GIS, travel demand, and network science[J]. Natural Hazards, 2017, 86: 151–164.
[18]	Sasabe M, Fujii K, Kasahara S. . Road network risk analysis considering people flow under ordinary and evacuation situations[J]. Environment and Planning B, Urban analytics and City Science, 2020, 47(5): 759-774.
[19]	Mattsson L G, Jenelius E. Vulnerability and resilience of transport systems—A discussion of recent research[J]. Transportation Research Part A, 2015, 81(NOV.): 16-34.
[20]	刘家福, 张柏. 暴雨洪灾风险评估研究进展[J]. 地理科学, 2015(3): 346-351. doi: 10.13249/j.cnki.sgs.2015.03.013
	Liu Jiafu, Zhang Bai. Progress of rainstorm flood risk assessment. Scientia Geographica Sinica, 2015(3): 346-351. doi: 10.13249/j.cnki.sgs.2015.03.013
[21]	Kendon E J, Roberts N M, Senior C A et al. Realism of rainfall in a very high-resolution regional climate model[J]. Journal of Climate, 2012, 25(17): 5791-5806. doi: 10.1175/JCLI-D-11-00562.1
[22]	Freiria S, Ribeiro B, Tavares A O. Understanding road network dynamics: Link-based topological patterns[J]. Journal of Transport Geography, 2015, 46(1): 55-66.
[23]	Casali Y, Heinimann H R. A topological characterization of flooding impacts on the Zurich road network[J]. PloS One, 2019, 14(7): e0220338 doi: 10.1371/journal.pone.0220338
[24]	Liu J, Shi Z, Tan X. Measuring the dynamic evolution of road network vulnerability to floods: A case study of Wuhan, China[J]. Travel Behaviour and Society, 2021, 23: 13-24. doi: 10.1016/j.tbs.2020.10.009
[25]	Jonkman S N, Kelman I. An analysis of the causes and circumstances of flood disaster deaths[J]. Disasters: The International Journal of Disaster Studies and Practice, 2005, 29(1): 75-97.
[26]	Li Y, Gong J H, Niu L et al. A physically based spatiotemporal method of analyzing flood impacts on urban road networks[J]. Natural Hazards, 2019, 97(1): 121-137. doi: 10.1007/s11069-019-03630-3
[27]	Kasmalkar I G, Serafin K A, Miao Y F et al. When floods hit the road: Resilience to flood-related traffic disruption in the San Francisco Bay Area and beyond[J]. Science Advances, 6(32).
[28]	Borowska-Stefanska M, Wisniewski S. Changes in transport accessibility as a result of flooding: A case study of the Mazovia Province (Eastern Poland)[J]. Environmental Hazards: Human and Policy Dimensions, 2018, 17(1): 56-83.
[29]	Pregnolato M, Ford A, Glenis V et al. Impact of climate change on disruption to urban transport networks from pluvial flooding[J]. Journal of Infrastructure Systems, 2018, 23(4).
[30]	陈翠珍, 蒋佳鑫, 李敏. 湖北武汉市中心城区内涝风险图编制及应用[J]. 中国防汛抗旱, 2018, 28(3): 12-15,27. doi: 10.16867/j.cnki.cfdm.20170720.004
	Chen Cuizhen, Jiang Jiaxin, Limin. Waterlogging risk mapping and application in urban center of Wuhan City, Hubei Province. China Flood & Drought Management, 2018, 28(3): 12-15,27. doi: 10.16867/j.cnki.cfdm.20170720.004
[31]	Xiong Y Y, Melching C S. Comparison of kinematic-wave and nonlinear reservoir routing of urban watershed runoff[J]. Journal of Hydrologic Engineering, 2005, 10(1): 39-49. doi: 10.1061/(ASCE)1084-0699(2005)10:1(39)
[32]	Moriasi D, Arnold J, Bingner R et al. Model evaluation guidelines for systematic quantification of accuracy in watershed simulations[J]. Transactions of the ASABE, 2007, 50(3): 885-900. doi: 10.13031/2013.23153
[33]	Pregnolato M, Ford A, Wilkinson S M et al.. The impact of flooding on road transport:A depth-disruption function[J]. Transportation Research, Part D Transport and Environment, 2017, 55D(8): 67-81.
[34]	Yin J, Yu D P, Yin Z et al. Evaluating the impact and risk of pluvial flash flood on intra-urban road network: A case study in the city center of Shanghai, China[J]. Journal of Hydrology, 2016, 537138-145.
[35]	Kramer M, Terheiden K, Wieprecht S. Safety criteria for the trafficability of inundated roads in urban floodings[J]. International Journal of Disaster Risk Reduction, 2016, 17: 77-84. doi: 10.1016/j.ijdrr.2016.04.003
[36]	李梦雅. 暴雨内涝情景下城市通勤出行的暴露度与交通特征研究[D]. 上海: 华东师范大学, 2019.
	Li Mengya. Research on commuters' exposure to pluvial flash flooding and its impacts on the peak traffic features: A case study in central Shanghai. Shanghai: East China Normal University, 2019.
[37]	Sen S S, Sinha K, Sub-r-pa C et al. Optimal distribution of traffic in Manhattan road networks for minimizing routing-time[J]. IEEE Transactions on Intelligent Transportation Systems, 2021, 22(11): 6799-6820. doi: 10.1109/TITS.2020.2994836
[38]	Sergio P, Vito L, Wang Fahui et al. Street centrality and the location of economic activities in Barcelona[J]. Urban Studies, 2012, 49(7): 1471-1488. doi: 10.1177/0042098011422570
[39]	田柳, 狄增如, 姚虹. 权重分布对加权网络效率的影响[J]. 物理学报, 2011, 60(2): 803-808.
	Tian Liu, Di Zengru, Yao Hong. Effect of distribution of weight on the efficiency of weighted networks. Acta Physica Sinica, 2011, 60(2): 803-808.
[40]	Murray A. An improved index of centrality[J]. Behavioral Science, 1965, 10(2): 161-163. doi: 10.1002/bs.3830100205
[41]	Freeman L C. A set of measures of centrality based on betweenness[J]. Sociometry, 1977, 40(1): 35-41. doi: 10.2307/3033543
[42]	Crucitti P, Latora V, Porta S. Centrality in networks of urban streets[J]. Chaos, 2006, 16(1): 15113-1-15113-9-0. doi: 10.1063/1.2150162
[43]	何树红, 吴迪, 王珊. 基于极值理论的洪水灾害损失模型研究[J]. 云南民族大学学报(自然科学版), 2014, 23(1): 62-65.
	He Shuhong, Wu Di, Wang Shan. A study of the flood-loss model based on the extreme value theory. Journal of Yunnan Minzu University (Natural Sciences Edition), 2014, 23(1): 62-65.
[44]	Strano E, Nicosia V, Latora Vito et al. Elementary processes governing the evolution of road networks[J]. Scientific Reports, 20122(296):1-8.
[45]	Kermanshah A, Derrible S. Robustness of road systems to extreme flooding: Using elements of GIS, travel demand, and network science[J]. Natural Hazards, 2017, 86(1): 151-164. doi: 10.1007/s11069-016-2678-1
[46]	Erath A, Loechl M, Axhausen K W. Graph-theoretical analysis of the Swiss road and railway networks over time[J]. Networks and Spatial Economics, 2009, 9(3): 459-483. doi: 10.1007/s11067-007-9036-5

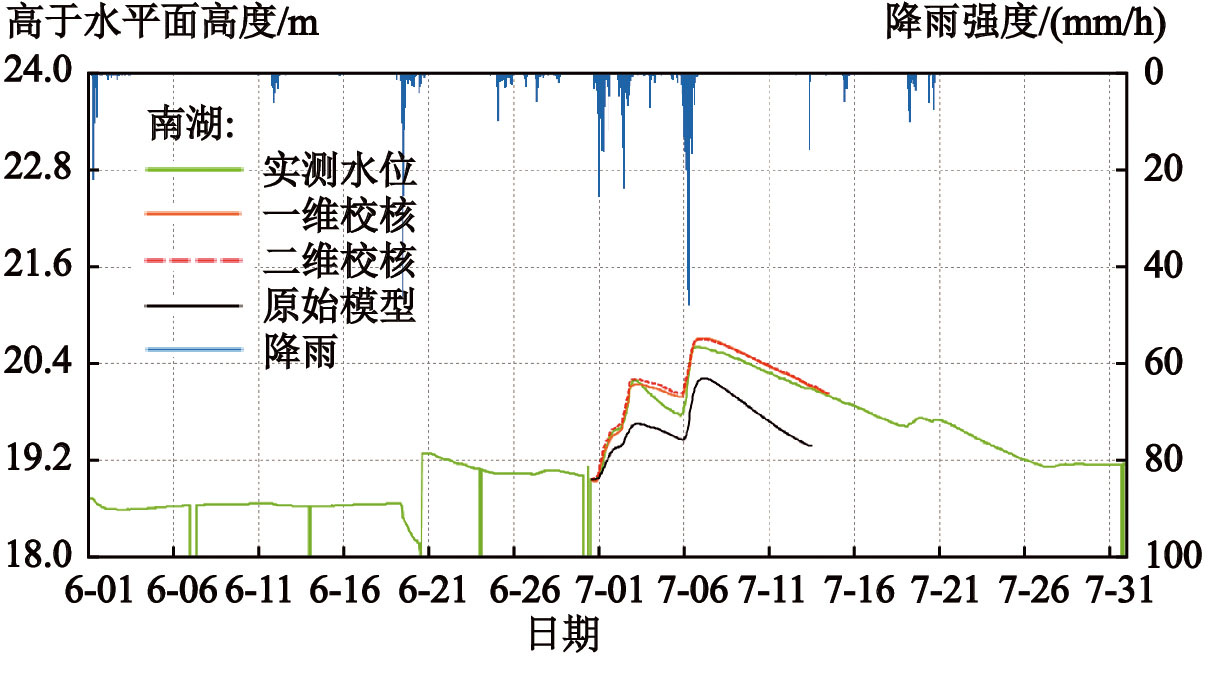

序号	名称	校准前	一维校准	二维校准
1	南湖	-0.31	0.93	0.91
2	三角湖	0.37	0.71	0.61
3	北太子湖	-5.95	0.24	0.31
4	龙阳湖	-5.51	0.43	0.59
5	沙湖	-14.24	0.81	0.79
6	月湖	-1.07	0.52	0.52
7	莲花湖	-13.35	0.88	0.88

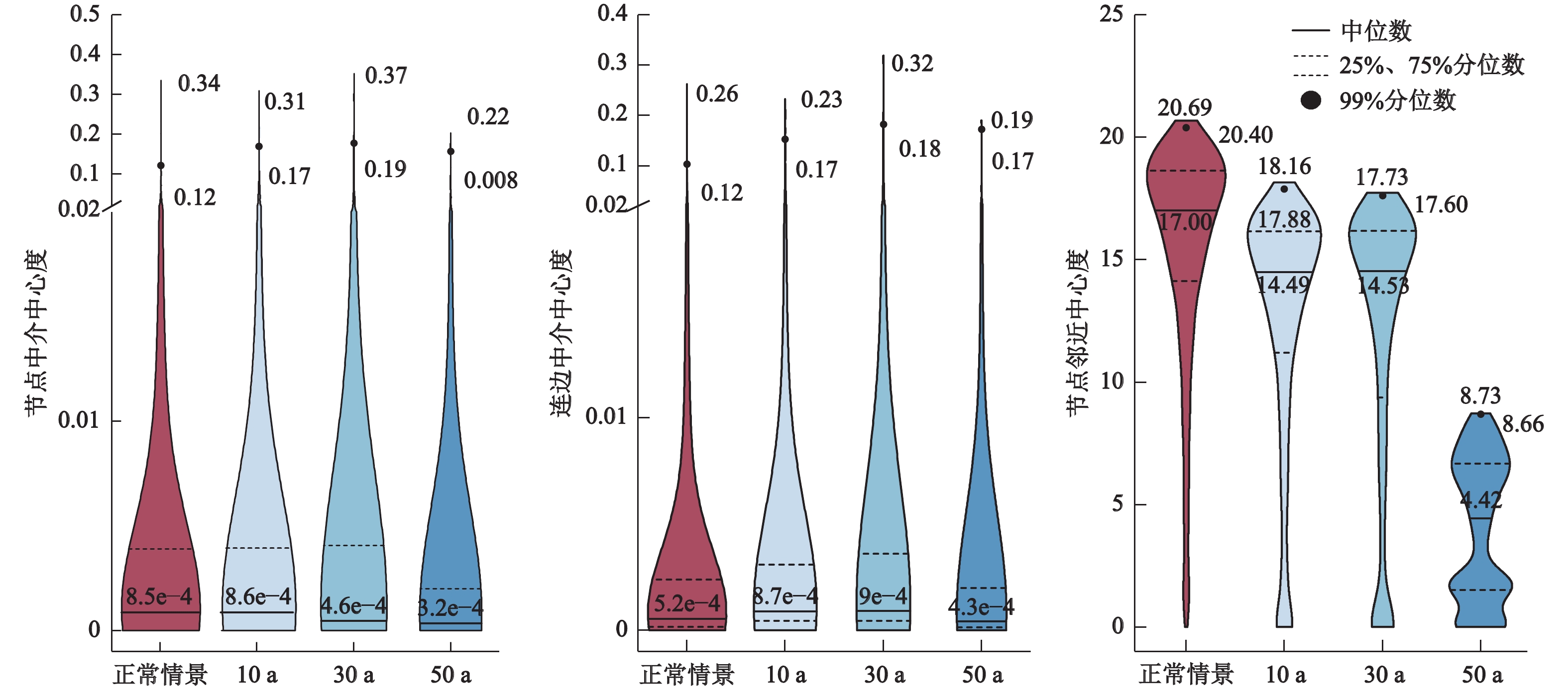

拓扑指标	重现期	增加（占比）	减少（占比）	不变（占比）	被淹没（占比）
节点中介中心性	10 a	1974（42.80%）	1498（32.48%）	815（17.67%）	325（7.05%）
	30 a	1747（37.88%）	1492（32.35%）	665（14.42%）	708（15.35%）
	50 a	1151（24.96%）	1939（42.04%）	586（12.71%）	936（20.29%）
连边中介中心性	10 a	3083（47.09%）	1693（25.86%）	436（6.66%）	1335（20.39%）
	30 a	2667（40.74%）	1506（23.00%）	299（4.57%）	2075（31.69%）
	50 a	1574（24.04%）	2304（35.19%）	244（3.73%）	2425（37.04%）
节点邻近中心性	10 a	417（9.04%）	3870（83.91%）	0（0.00%）	325（7.05%）
	30 a	587（12.73%）	3317（71.92%）	0（0.00%）	708（15.35%）
	50 a	37（0.80%）	3639（78.90%）	0（0.00%）	936（20.29%）
