Influence mechanism and spatial heterogeneity of urbanization process on carbon balance in coastal areas
Received date: 2024-07-09
Revised date: 2025-03-05
Online published: 2025-09-25
Supported by
National Key Research and Development Program of China(2023YFC3108103)
Jiangsu Province Marine Science and Technology Innovation Project(JSZRHYKJ202203)
Copyright
Coastal areas are now economic zones with strong comprehensive strength, high population density, and strategic significance due to rapid urbanization. Nevertheless, urbanization is also a major contributor to local ecological pressure overload, which has significantly altered the regional carbon cycle process. Developing strategies to attain carbon neutrality requires an understanding of how the urbanization process affects the carbon balance. In this study, we evaluated the effects of urbanization rate and nine urbanization process characterization elements on the carbon balance of 53 prefectural-level coastal cities between 2003 and 2022 using structural equation model and geographically and temporally weighted regression. The findings indicate that: 1) Over the past two decades, the carbon balance of coastal areas has exhibited distinct regional distribution characteristics. Northern coastal cities have mostly become net carbon emitters, while southern cities generally act as carbon sinks. 2) Urbanization has a net negative impact on carbon balance, indicated by a total effect of −0.178. The effect size of the characteristic elements of urbanization level was land use (−0.556), ecological quality (0.345), population size (−0.212), energy consumption (−0.277), environmental governance (−0.029), industrial structure (−0.102), technological innovation (−0.006), economic growth (−0.080), and foreign investment (−0.129). 3) The urbanization rate, land use, population size, and other factors have varying impacts across different coastal cities, contributing to the spatial heterogeneity of the carbon balance. Among them, according to the annual change trend, the regression coefficient of the urbanization rate has been increasing over the past two decades. Hence, to achieve a win-win situation between socio-economic development and ecological and environmental protection, it is imperative to strengthen the guidelines of green urbanization, implement the differentiated carbon balance reconstruction strategy, and promote the sustainable development of coastal areas.
Liu Zhenhang , Chi Yuan , Ouyang Lyuyin , Li Yanping , Liu Dahai . Influence mechanism and spatial heterogeneity of urbanization process on carbon balance in coastal areas[J]. GEOGRAPHICAL SCIENCE, 2025 , 45(9) : 2024 -2034 . DOI: 10.13249/j.cnki.sgs.20240716
表1 社会−经济−自然复合生态系统视角下城镇化进程影响碳平衡的表征要素Table 1 Impact element of urbanization process on carbon balance under socio-economic-natural complex ecosystem perspective |
目标层 | 准则层 | 要素层 | 指标层 | 单位 |
注:—为无量纲数据。 | ||||
城镇化 进程 | 城镇化水平 | 城镇化率(UR) | 非农业人口占比 | % |
自然子系统 | 土地利用(A11) | 土地利用程度指数[28] | — | |
生态质量(A12) | 地表温度(B11) | ℃ | ||
干度指数(B12) | — | |||
归一化植被指数(B13) | — | |||
社会子系统 | 人口规模(A21) | 人口密度 | 人/km2 | |
能源消费(A22) | 能源消费总量[29] | 2.93×1012 J | ||
环境治理(A23) | 建成区绿化覆盖率(B21) | % | ||
人均公园绿地面积(B22) | m2/人 | |||
经济子系统 | 产业结构(A31) | 二三产业产值比 | — | |
技术创新(A32) | 万人拥有专利数 | 件/万人 | ||
经济增长(A33) | 人均GDP | 元 | ||
外商投资(A34) | 外商直接投资 | 102万美元 |

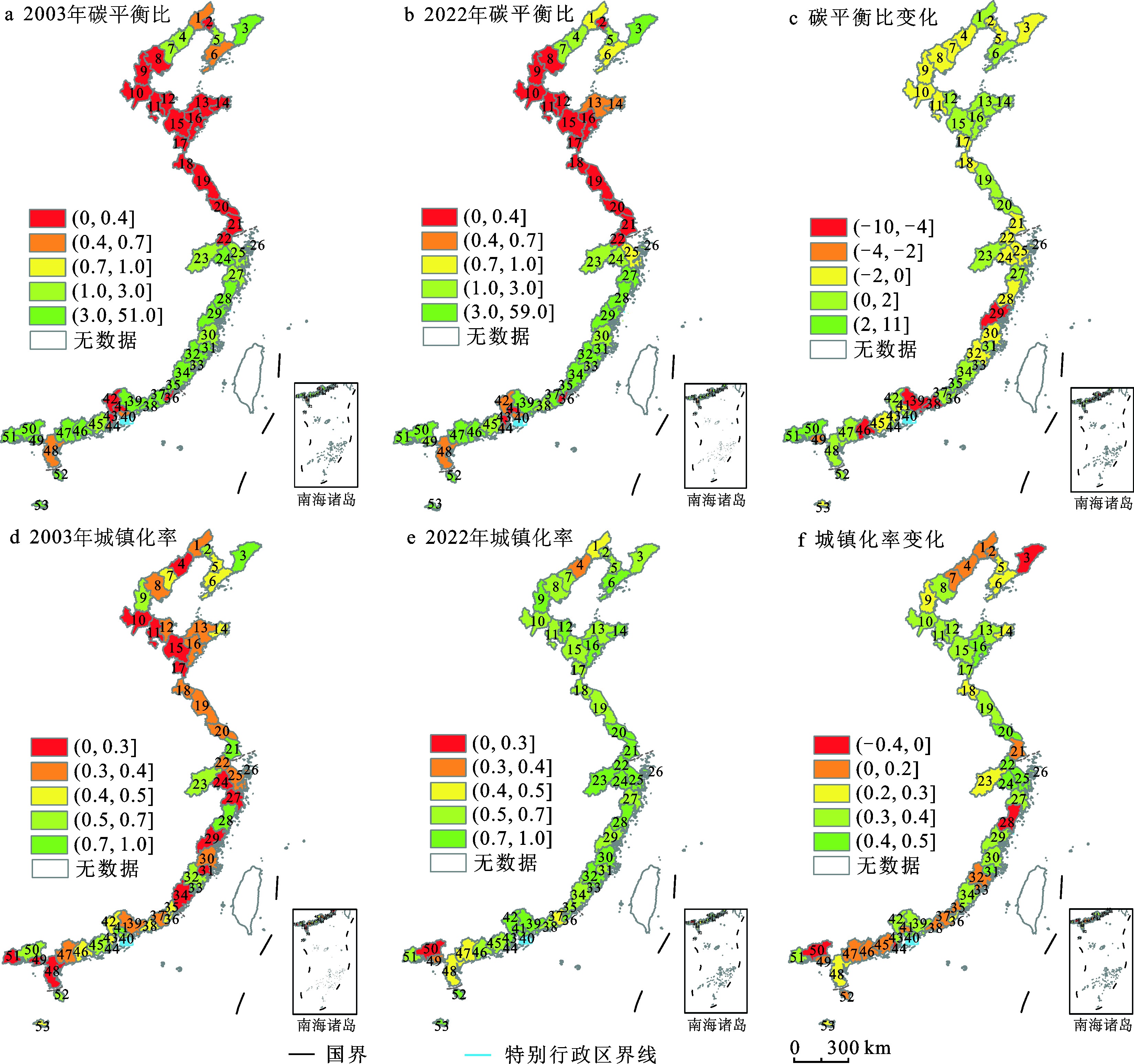

图2 2003年和2022年各沿海城市城镇化进程与碳平衡比值1.锦州;2.盘锦;3.丹东;4.葫芦岛;5.营口;6.大连;7.唐山;8.秦皇岛;9.天津;10.沧州;11.滨州;12.东营;13.烟台;14.威海;15.潍坊;16.青岛;17.日照;18.连云港;19.盐城;20.南通;21.上海;22.嘉兴;23.杭州;24.绍兴;25.宁波;26.舟山;27.台州;28温州;29.宁德;30.福州;31.莆田;32.泉州;33.厦门;34.漳州;35.潮州;36.汕头;37.揭阳;38.汕尾;39.惠州;40.深圳;41.东莞;42.广州;43.中山;44.珠海;45.江门;46.阳江;47.茂名;48.湛江;49.北海;50钦州;51.防城港;52.海口;53.三亚;不含儋州市、三沙市、港澳台数据 Fig. 2 Urbanization process, carbon balance ratio of coastal cities in 2003 and 2022 |
表2 模型拟合度评价Table 2 Model fitting degree evaluation |
模型 | CMIN/DF | RMSEA | AGFI | GFI | CFI | NFI | TLI |
注:CMIN为卡方值;DF为自由度;RMSEA为渐近残差平方和的平方根;AGFI为调整的拟合优度指数;GFI为拟合优度指数;CFI为比较拟合指数;NFI为规范拟合指数;TLI为逐步拟合指数;不含儋州市、三沙市、港澳台数据。 | |||||||
最优模型 | 2.803 | 0.041 | 0.961 | 0.986 | 0.990 | 0.984 | 0.976 |
标准模型 | < 3.000 | < 0.080 | > 0.900 | > 0.900 | > 0.900 | > 0.900 | > 0.900 |
表3 城镇化进程影响沿海地区碳平衡路径Table 3 Urbanization process affects carbon balance pathways in coastal areas |
影响路径 | 标准化系数 | 显著性 | 影响路径 | 标准化系数 | 显著性 | |
注:***、**、*分别代表在显著性水平0.1%,1%和5%的水平下显著;不含儋州市、三沙市、港澳台数据。 | ||||||
城镇化率→碳平衡比 | −0.084 | ** | 能源消费→碳平衡比 | −0.325 | *** | |
城镇化率→土地利用 | −0.099 | * | 能源消费→生态质量 | 0.122 | *** | |
城镇化率→人口规模 | 0.413 | *** | 能源消费→环境治理 | −0.192 | *** | |
城镇化率→环境治理 | 0.465 | *** | 环境治理→生态质量 | −0.085 | ** | |
城镇化率→产业结构 | −0.274 | *** | 产业结构→碳平衡比 | 0.090 | ** | |
城镇化率→技术创新 | 0.491 | *** | 产业结构→土地利用 | 0.211 | *** | |
城镇化率→经济增长 | 0.390 | *** | 产业结构→生态质量 | −0.247 | *** | |
城镇化率→外商投资 | 0.326 | *** | 产业结构→外商投资 | −0.079 | ** | |
土地利用→碳平衡比 | −0.239 | *** | 技术创新→环境治理 | 0.531 | *** | |
土地利用→生态质量 | −0.771 | *** | 技术创新→经济增长 | 0.369 | *** | |
土地利用→能源消费 | 0.164 | *** | 技术创新→能源消费 | −0.140 | *** | |
土地利用→环境治理 | 0.179 | *** | 经济增长→土地利用 | 0.227 | *** | |
生态质量→碳平衡比 | 0.345 | *** | 经济增长→能源消费 | 0.268 | *** | |
人口规模→碳平衡比 | −0.159 | *** | 经济增长→生态质量 | 0.350 | *** | |
人口规模→土地利用 | 0.165 | *** | 外商投资→碳平衡比 | 0.235 | *** | |
人口规模→生态质量 | 0.158 | *** | 外商投资→土地利用 | 0.219 | *** | |
人口规模→产业结构 | −0.096 | ** | 外商投资→生态质量 | −0.214 | *** | |
人口规模→技术创新 | 0.183 | *** | 外商投资→能源消费 | 0.540 | *** | |
人口规模→经济增长 | −0.149 | *** | 外商投资→经济增长 | 0.235 | *** | |
人口规模→外商投资 | 0.279 | *** |
表4 城镇化进程对沿海地区碳平衡的直接效应、间接效应和总效应Table 4 Direct, indirect and total effects of urbanization process on carbon balance in coastal areas |
UR | A11 | A12 | A21 | A22 | A23 | A31 | A32 | A33 | A34 | |
注:UR为城镇化率;A11、A12、A21、A22、A23、A31、A32、A33、A34分别为土地利用、生态质量、人口规模、能源消费、环境治理、产业结构、技术创新、经济增长、外商投资;不含儋州市、三沙市、港澳台数据。 | ||||||||||
直接效应 | −0.084 | −0.239 | 0.345 | −0.159 | −0.325 | 0 | 0.090 | 0 | 0 | 0.235 |
间接效应 | −0.094 | −0.317 | 0 | −0.053 | 0.048 | −0.029 | −0.192 | −0.006 | −0.080 | −0.364 |
总效应 | −0.178 | −0.556 | 0.345 | −0.212 | −0.277 | −0.029 | −0.102 | −0.006 | −0.080 | −0.129 |
[1] |
Bai X M, Shi P J, Liu Y S. Society: Realizing China’s urban dream[J]. Nature, 2014, 509(7499): 158-160.
|
[2] |
樊杰, 赵艳楠. 面向现代化的中国区域发展格局: 科学内涵与战略重点[J]. 济地理, 2021, 41(1): 1-9.
Fan Jie, Zhao Yannan. China’s regional development pattern oriented toward modernization: The scientific connotation and strategic priorities Economic Geography, 2021, 41(1): 1-9.
|
[3] |
Liang L W, Chen M X, Lu D D. Revisiting the relationship between urbanization and economic development in China since the reform and opening-up[J]. Chinese Geographical Science, 2022, 32(1): 1-15.
|
[4] |
陈明星, 先乐, 王朋岭, 等. 气候变化与多维度可持续城市化[J]. 理学报, 2021, 76(8): 1895-1909.
Chen Mingxing, Xian Yue, Wang Pengling et al. Climate change and multi-dimensional sustainable urbanization Acta Geographica Sinica, 2021, 76(8): 1895-1909.
|
[5] |
Houghton R A. Revised estimates of the annual net flux of carbon to the atmosphere from changes in land use and land management 1850—2000[J]. Tellus B, 2003, 55(2): 378-390.
|
[6] |
Sun R, Jin X B, Han B et al. Does scale matter?Analysis and measurement of ecosystem service supply and demand status based on ecological unit[J]. Environmental Impact Assessment Review, 2022, 95 106785
|
[7] |
Qian Y, Chakraborty T C, Li J F et al. Urbanization impact on regional climate and extreme weather: Current understanding, uncertainties, and future research directions[J]. Advances in Atmospheric Sciences, 2022, 39(6): 819-860.
|
[8] |
彭保发, 石忆邵, 王贺封, 等. 城市热岛效应的影响机理及其作用规律——以上海市为例[J]. 理学报, 2013, 68(11): 1461-1471.
Peng Baofa, Shi Yishao, Wang Hefeng et al. The impacting mechanism and laws of function of urban heat islands effect: A case study of Shanghai Acta Geographica Sinica, 2013, 68(11): 1461-1471.
|
[9] |
Yu X J, Gu X H, Kong D D et al. Asymmetrical shift toward less light and more heavy precipitation in an urban agglomeration of east China: Intensification by urbanization[J]. Geophysical Research Letters, 2022, 49(4): e2021GL097046.
|
[10] |
Schaldach R, Alcamo J. Simulating the effects of urbanization, afforestation and cropland abandonment on a regional carbon balance: A case study for Central Germany[J]. Regional Environmental Change, 2007, 7(3): 137-148.
|
[11] |
李硕硕, 李汝资, 刘耀彬, 等. 环鄱阳湖区县域城镇化对碳收支平衡的影响[J]. 理研究, 2023, 42(8): 2245-2263.
Li Shuoshuo, Li Ruzi, Liu Yaobin et al. Impact of urbanization on carbon balance in the Poyang Lake Region Geographical Research, 2023, 42(8): 2245-2263.
|
[12] |
Yang Y N, Li J, Wang L et al. The impact of urbanization on the relationship between carbon storage supply and demand in mega-urban agglomerations and response measures: A case of Yangtze River Delta Region, China[J]. International Journal of Environmental Research and Public Health, 2022, 19(21): 13768.
|
[13] |
韩沅刚, 李振涛, 油建盛, 等. 新型城镇化建设对城市碳平衡的政策效应与机制研究[J]. 市问题, 2024(1): 16-26.
Han Yuangang, Li Zhentao, You Jiansheng et al. Research on policy effects and mechanisms of new urbanization construction on urban carbon balance Urban Problems, 2024(1): 16-26.
|
[14] |
Peng R, Tian X X, Wu D. Spatiotemporal characteristics and zonal analysis of carbon balance in county-level regions: Case study of Jiangsu Province[J]. Frontiers in Environmental Science, 2023, 11 1330587
|
[15] |
Zhang C, Tian H Q, Chen G S et al. Impacts of urbanization on carbon balance in terrestrial ecosystems of the Southern United States[J]. Environmental Pollution, 2012, 164: 89-101.
|
[16] |
李咏华, 高欣芸, 姚松, 等. 长三角城市群核心地区碳平衡压力与新型城镇化脱钩关系[J]. 济地理, 2022, 42(12): 72-81.
Li Yonghua, Gao Xinyun, Yao Song et al. Decoupling relationship between carbon balance pressure and new urbanization in the core area of the Yangtze River Delta Urban Agglomeration, China Economic Geography, 2022, 42(12): 72-81.
|
[17] |
王如松, 欧阳志云. 社会−经济−自然复合生态系统与可持续发展[J]. 中国科学院院刊, 2012, 27(3): 337-345, 403-404, 254
Wang Rusong, Ouyang Zhiyun. Social-economic-natural complex ecosystem and sustainability. Bulletin of Chinese Academy of Sciences, 2012, 27(3): 337-345, 403-404, 254.
|
[18] |
雷雨, 刘慧, 高尚尉. 深刻把握新型城镇化的科学内涵和历史走向[J]. 型城镇化, 2023(10): 22-28.
Lei Yu, Liu Hui, Gao Shangwei. Deeply grasp the scientific connotation and historical trend of new urbanization New Urbanization, 2023(10): 22-28.
|
[19] |
吴江, 王斌, 申丽娟. 中国新型城镇化进程中的地方政府行为研究[J]. 国行政管理, 2009(3): 88-91.
Wu Jiang, Wang Bin, Shen Lijuan. Behavior of local governments in the process of new urbanization in China Chinese Public Administration, 2009(3): 88-91.
|
[20] |
Yim J, Kwon B O, Nam J et al. Analysis of forty years long changes in coastal land use and land cover of the Yellow Sea: The gains or losses in ecosystem services[J]. Environmental Pollution, 2018, 241: 74-84.
|
[21] |
马丽敏. 我国农民失业问题成因探析[J]. 识经济, 2013(21): 56-57.
Ma Limin. An analysis of the causes of farmers’ unemployment in China Knowledge Economy, 2013(21): 56-57.
|
[22] |
刘培德, 李西娜, 李佳路. 碳配额交易机制下竞争企业低碳技术扩散——基于复杂网络的演化博弈分析[J]. 统工程理论与实践, 2024, 44(2): 684-703.
Liu Peide, Li Xina, Li Jialu. Diffusion of low-carbon technology of competitive enterprises under carbon quota trading mechanism—Evolutionary game analysis based on complex network Systems Engineering-Theory & Practice, 2024, 44(2): 684-703.
|
[23] |
国家统计局. 中国城市统计年鉴2023[M]. 北京: 中国统计出版社, 2023
National Bureau of Statistics. China city statistical yearbook 2023. Beijing: China Statistics Press, 2023.
|
[24] |
李竹, 王兆峰, 吴卫, 等. 碳中和目标下中国省域碳平衡能力与城镇化的关系[J]. 然资源学报, 2022, 37(12): 3136-3152.
Li Zhu, Wang Zhaofeng, Wu Wei et al. The relationship between China’s provincial carbon balance capacity and urbanization under carbon neutrality target Journal of Natural Resources, 2022, 37(12): 3136-3152.
|
[25] |
李璐, 董捷, 徐磊, 等. 功能区土地利用碳收支空间分异及碳补偿分区——以武汉城市圈为例[J]. 然资源学报, 2019, 34(5): 1003-1015.
Li Lu, Dong Jie, Xu Lei et al. Spatial variation of land use carbon budget and carbon compensation zoning in functional areas: A case study of Wuhan Urban Agglomeration Journal of Natural Resources, 2019, 34(5): 1003-1015.
|
[26] |
Piao S L, Fang J Y, Zhou L M et al. Changes in vegetation net primary productivity from 1982 to 1999 in China[J]. Global Biogeochemical Cycles, 2005, 19(2): 2004GB002274.
|
[27] |
张苗,吴萌. 土地利用对碳排放影响的作用机制和传导路径分析——基于结构方程模型的实证检验[J]. 国土地科学, 2022, 36(3): 96-103.
Zhang Miao, Wu Meng. Analysis on the mechanism and transmission path of the impact of land use on carbon emissions: Empirical test basedon structural equation model China Land Science, 2022, 36(3): 96-103.
|
[28] |
郭健斌, 张英, 张志伟, 等. 西藏林芝市土地利用程度变化及其空间异质性分析[J]. 南农业大学学报(自然科学), 2023, 38(3): 511-519.
Guo Jianbin, Zhang Ying, Zhang Zhiwei et al. Study of land use intensity change and its spatial heterogeneity of Nyingchi City in Tibet Journal of Yunnan Agricultural University (Natural Science), 2023, 38(3): 511-519.
|
[29] |
吴健生, 牛妍, 彭建, 等. 基于DMSP/OLS夜间灯光数据的1995—2009年中国地级市能源消费动态[J]. 理研究, 2014, 33(4): 625-634.
Wu Jiansheng, Niu Yan, Peng Jian et al. Research on energy consumption dynamic among prefecture-level cities in China based on DMSP/OLS Nighttime Light Geographical Research, 2014, 33(4): 625-634.
|
[30] |
Huang B, Wu B, Barry M. Geographically and temporally weighted regression for modeling spatio-temporal variation in house prices[J]. International Journal of Geographical Information Science, 2010, 24(3): 383-401.
|
/
〈 |
|
〉 |
