城市化水平增长曲线的类型、分段和研究方法

doi:10.13249/j.cnki.sgs.2012.01.12

摘要/Abstract

摘要：

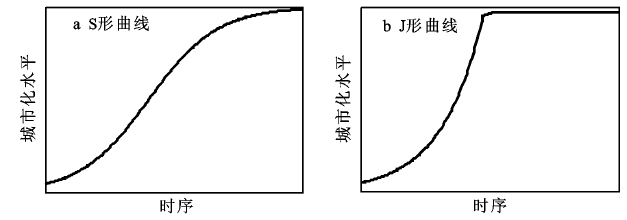

城市化水平增长曲线可以分为S形和J形2大类别,其变化特征、动力学背景及研究方法也不尽相同。城市化曲线研究可以分为唯象分析和唯理分析2大途径,唯理研究包括城—乡人口异速生长、城—乡人口替代以及城乡人口迁移和转换3种路径,目前这些方法主要用于S形曲线研究,对J形曲线的探索不够深入。S形曲线是一种奇对称曲线,其模型导数却是一条偶对称曲线,根据这些特征可以将城市化的S曲线分为3或4个阶段。发展中城市化过程通常不能有效拟合S形曲线,却表现出J形曲线的特征。但是,J形曲线及其函数的导数曲线均不对称,其动力学根源和阶段划分方法暂时尚不明朗。中国未来的城市化曲线研究似乎应该将重点放在J形曲线方面,揭示J形曲线更有助于人们从理论上理解中国的城市化动力学。

关键词: 城市化水平, 城市化曲线, S形曲线, J形曲线, 异速生长, 城乡人口替代, 城乡人口相互作用

Abstract:

The curves on the change of level of urbanization over time are called urbanization curves, which are in fact models of the progress of urbanization based on empirical evidences from developed countries and developing countries. There are two types of urbanization curves. One is S-shaped curve, and the other, J-shaped curve. The S-curve can be modeled with the logistic function, while the J-curve cannot be described by the logistic function. The former is applicable to the developed countries, whereas the latter is applicable to the developing countries. So far, there have been more studies on the S-shaped curve. However, fewer studies have been devoted to the J-shaped curve of urbanization. Consequently, we know little about the general principle on the J-shaped curve and its underlying rationale, which remain to be further explored in the future. In this paper, various studies on urbanization curves are systemized to form a framework of models on the level of urbanization. The logistic curve was once divided into three stages by Northam (1979): initial stage, acceleration stage, and terminal stage. However, the Northam's proposal is just a phenomenological theory with several defects: first, the definition of 'acceleration stage' is not correct; second, there are no theoretical basis and critical scale for the divisions. It can be proved that the logistic process falls into four phases. Taking half of urbanization level capacity as a tipping point, the logistic curve is divided into two stages: acceleration stage (urban majority) and deceleration stage (urban minority). The tipping point can be determined by two methods of elementary mathematics. Then the two stages are respectively divided into two sub-stages by means of the exponential law of urban-rural ratio with a parameter as characteristic length. Now, urbanization process can be divided into four stages: initial stage, acceleration stage, deceleration stage, and terminal stage. Also it can be divided into three stages: initial stage, celerity stage (including acceleration stage and deceleration stage), and terminal stage. Two methods are always applied to the research of urbanization curves and the related urbanization dynamics. One is phenomenological analysis, and the other, theoreticalogical analysis, which consists of three approaches: urban-rural allometric growth, urban-rural population replacement, and urban-rural population interaction dynamics. Urban-rural allometric growth analysis is a kind of scaling analysis. Urban-rural population replacement suggests a new dynamical analysis. Urban-rural interaction comprises linear dynamics and nonlinear dynamics. The linear dynamics is based on the well-known Keyfitz-Rogers model, whereas the nonlinear dynamical analysis can be employed to interpret the similarities and differences between the S-shaped and J-shaped curves. China’s urbanization process can be described with the J-shaped curve rather than the S-shaped curve. The studies on the urbanization curves will be significant for understanding the dynamical mechanism and essence of Chinese urbanization.

Key words: level of urbanization, urbanization curve, S-shaped curve, J-shaped curve, allometric growth, urban-rural replacement, urban-rural population interaction

中图分类号:

K901.8

陈彦光. 城市化水平增长曲线的类型、分段和研究方法[J]. 地理科学, 2012, 32(1): 12-17.

Yan-guang CHEN. On the Urbanization Curves: Types, Stages, and Research Methods[J]. SCIENTIA GEOGRAPHICA SINICA, 2012, 32(1): 12-17.

图/表 2

参考文献 29

[1]	United Nations.Patterns of urban and rural population growth [R]. New York: U.N. Department of International Economic and Social Affairs, Population Division, 1980
[2]	United Nations.World urbanization prospects: the 2003 revision[R]. New York: U.N. Department of Economic and Social Affairs, Population Division, 2004
[3]	焦秀琦. 世界城市化发展的S型曲线[J].城市规划,1987,11(2):34~38
[4]	Haggett P.Geography: a modern synthesis (revised third edition)[M]. New York: Harper & Row.
[5]	Haggett P.Geography: a global synthesis[M]. New York: Pearson Hall, 2001.
[6]	Cadwallader MT.Urban geography: an analytical approach[M]. Upper Saddle River, NJ: Prentice Hall, 1996.
[7]	Pearson K.The grammar of science (phoenix edition)[M]. New York: Dover Publications, 2004.
[8]	周一星. 城市地理学[M].北京:商务印书馆,1995
[9]	Mitchell T M.Machine learning[M]. Boston, MA: WCB/McGraw-Hill, 1997
[10]	陈彦光,罗静.城市化水平与城市化速度的关系探讨——中国城市化速度和城市化水平饱和值的初步推断[J].地理研究,2006,25(6):1063~1072.
[11]	陈彦光. 分形城市系统:标度、对称和空间复杂性[M].北京:科学出版社,2008.
[12]	Dendrinos D S, Mullally H.Urban evolution: studies in the mathematical ecology of cities[M]. New York: Oxford University Press, 1985.
[13]	陈彦光,周一星.城市化Logistic过程的阶段划分及其空间解释——对Northam曲线的修正与发展[J].经济地理,2005,25(6):817~822.
[14]	Northam R M.Urban Geography[M]. New York: John Wiley & Sons, 1979.
[15]	周一星. 城市化水平与国民生产总值关系的规律性探讨[J].人口与经济,1982,(1):28~33.
[16]	周一星,陈彦光.城市与城市地理[M].北京:人民教育出版社,2003.
[17]	Davis K.World urbanization: 1950-1970[M]. Berkeley: Institute of International Studies, University of California, 1972.
[18]	Pacione M.Urban geography: a global perspective (2nd edition)[M]. New York: Routledge, 2005.
[19]	Karmeshu. Demographic models of urbanization[J]. Environment and Planning B: Planning and Design, 1988,15(1): 47-54.
[20]	Naroll RS, Bertalanffy L von. The principle of allometry in biology and social sciences[J]. General Systems Yearbook, 1956,1(Part II): 76-89.
[21]	Fisher J C, Pry R H. A simple substitution model for technological change [J]. Technological Forecasting and Social Change, 1971-1972, 3: 75-88.
[22]	Hermann R, Montroll E W.A manner of characterizing the development of countries[J]. Proceeding of the National Academy of Sciences of the United States of America, 1972, 69(10): 3019-3024.
[23]	Montroll E W.Social dynamics and the quantifying of social forces[J]. Proceeding of the National Academy of Sciences of the United States of America, 1978, 75(10): 4633-4637.
[24]	陈彦光,刘继生.效用最大化、Logit变换和城市地理学的数量分析模型[J].地理科学,2002,22(5):581~586.
[25]	陈彦光. 城市化与经济发展水平关系的三种模型及其动力学分析[J].地理科学,2011,31(1):1~6.
[26]	Keyfitz N.Introduction to the mathematics of population[M]. Reading, Massachusetts: Addison-Wesley, 1968.
[27]	Rogers A.Matrix analysis of interregional population growth and distribution [M]. Berkeley, CA: University of California Press, 1968.
[28]	陈彦光,周一星.中国城市化过程的非线性动力学模型探讨[J].北京大学学报(自然科学版),2007,43(4):542~548.
[29]	陈彦光. 地理学理论研究和科学分析的一般方法探讨[J].地理科学,2009,29(3):316~322.
