地理科学

地理科学 ›› 2012, Vol. 32 ›› Issue (10): 1247-1253.doi: 10.13249/j.cnki.sgs.2012.010.1247

• • 上一篇    下一篇

基于SWAT模型的大伙房水库汇水区农业非点源污染空间特性研究

汤洁(), 刘畅, 杨巍, 李昭阳, 吴佳曦

  1. 吉林大学 环境与资源学院,吉林 长春 130012
  • 收稿日期:2011-12-25 修回日期:2012-04-09 出版日期:2012-10-20 发布日期:2012-10-20
  • 作者简介:

    作者简介：汤 洁（1957-）,女,吉林长春人,博士,教授,主要从事生态环境系统理论与技术研究。E-mail:tangjie@jlu.edu.cn

  • 基金资助:
    “水体污染控制与治理”科技重大专项（2009ZX07528-006-01-03）资助

Spatial Distribution of Non-point Source Pollution in Dahuofang Reservoir Catchment Based on SWAT Model

Jie TANG(), Chang LIU, Wei YANG, Zhao-yang LI, Jia-xi WU

  1. College of Environment and Resource, Jilin University, Changchun,Jilin 130012, China
  • Received:2011-12-25 Revised:2012-04-09 Online:2012-10-20 Published:2012-10-20

RichHTML

PDF (PC)

赞

被引次数

25

摘要：

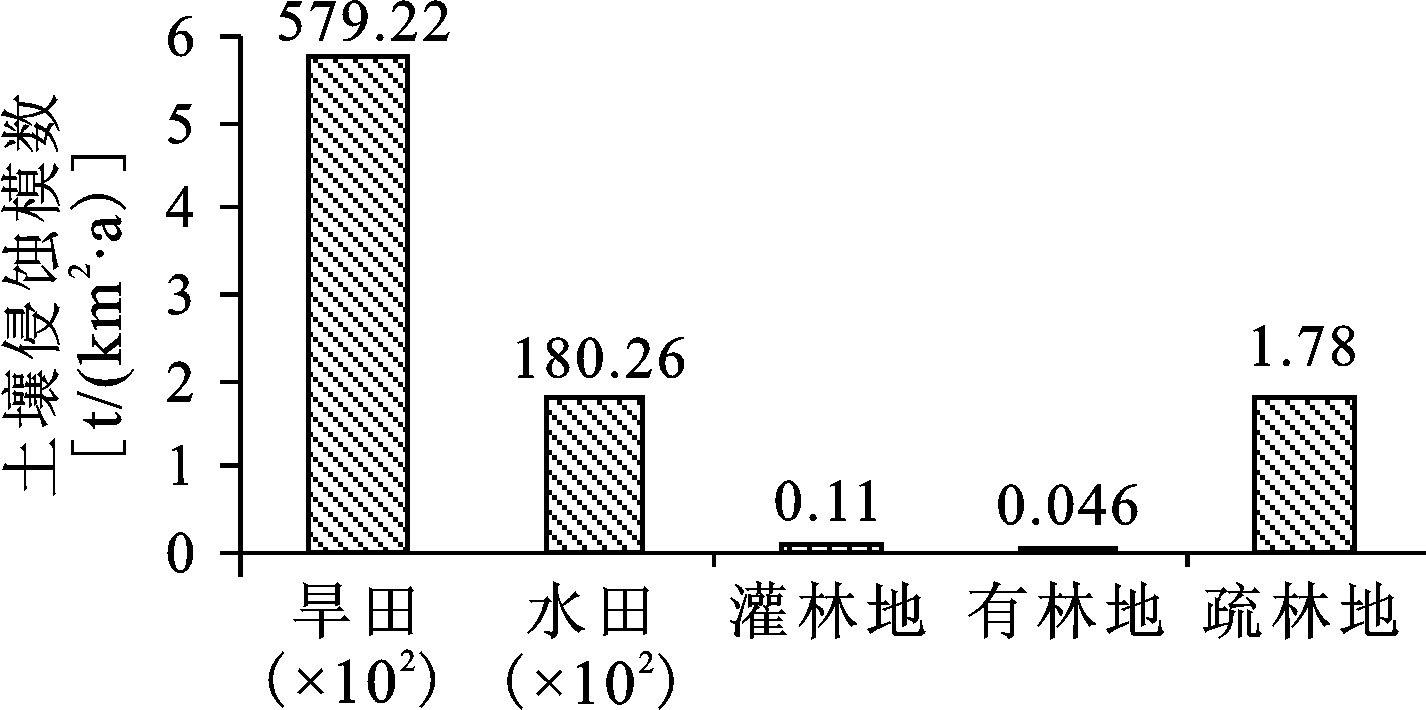

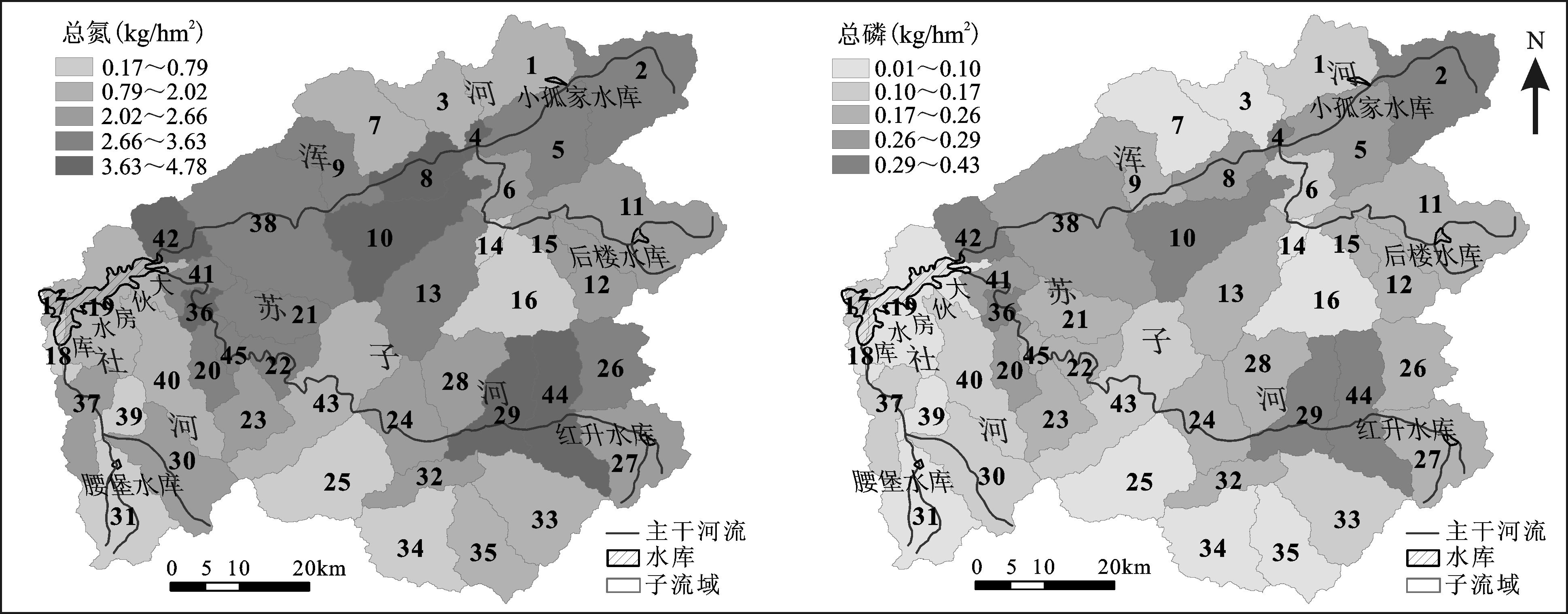

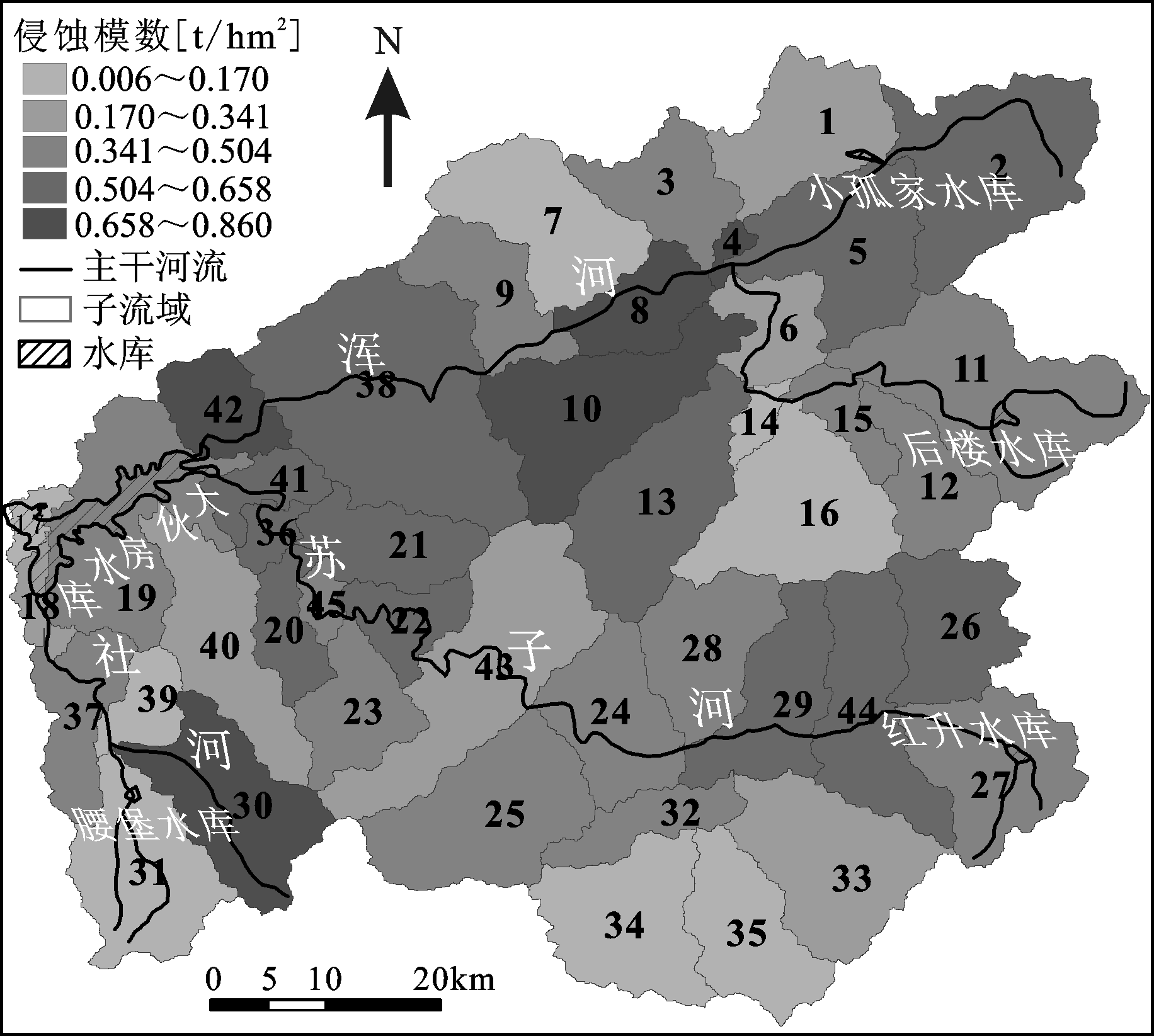

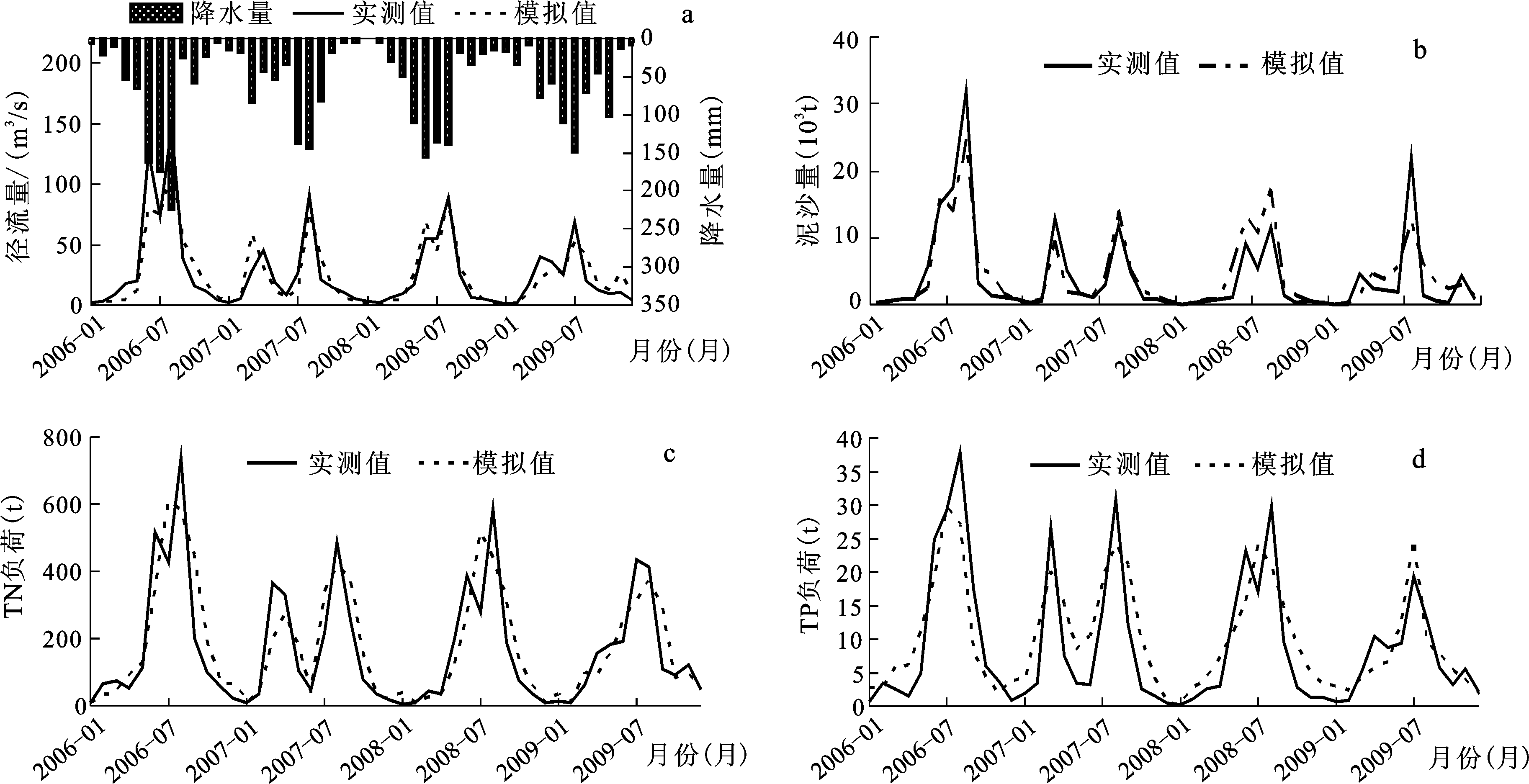

应用SWAT模型对辽宁省大伙房水库汇水区农业非点源污染进行了模拟,利用2006~2009年的水文和水质监测数据对模型进行率定与验证。研究结果表明：研究区泥沙坡面产量为15.40×104 t,属于微度侵蚀,其中耕地的土壤侵蚀模数最高,为475.84 t/(km2·a),疏林地次之,灌林地、有林地的土壤侵蚀模数较小;汇水区农业非点源氮、磷产生量分别为1 248.83 t和102.88 t;不同土地利用类型氮、磷的产生量差异较大,耕地远远高于林地等其他类型。总体上,流域农业非点源污染的产生量浑河流域高于苏子河流域,社河流域最小,且河流上游地区高于下游。研究结果揭示了研究区农业非点源污染空间分布特性,可以为水土保持和非点源污染防治提供基础支持。

关键词: 大伙房水库汇水区, SWAT模型, 农业非点源污染, 空间分布

Abstract:

SWAT model was used to calculate the agricultural non-point source pollution in Dahuofang reservoir catchment, Liaoning Province. The monitoring data of hydrology and water quality series from 2006 to 2009 was used to calibrate the parameters and validate the model, and the results indicated that SWAT model was appropriate for Dahuofang reservoir catchment. The calibrated model was used to reveal the spatial distribution of agricultural non-point source pollution characteristic. The results show that the annual amount of soil erosion in the reservoir catchment was 1.54×105 t. In other words, there was very light soil erosion in the investigated area. The result was consistent with the actual situation of the forest coverage in this area. The various usage of lands have various degree of soil erosion. The arable lands indicated the highest soil erosion modulus, which were 475.84 t/(km2·a); the open woodlands were the second highest contributor, followed by shrub woodlands, and the soil erosion of the forests were the smallest. The slope output of both nitrogen and phosphorus in catchment were 1 248.83 t and 102.88 t, respectively. The Hun River basin ranked first in the contribution to the load of TN and TP pollution, accounted for 52.01% and 52.43%, respectively, followed by the Suzi River basin and the She River basin. The minimum contributors were the basins around the reservoir. The pollutions of nitrogen and phosphorus were various with different types of land use. The loads of TN and TP were mainly from the arable lands, which were 1 024.33 t and 93.35 t, respectively, which were much higher than the other land use types. Overall, the non-point source pollution around the Hun River basin was higher than the Suzi River′s, while the She River basin was minimum. The output intensity of non-point source pollution of the upstream region was higher than the downstream. This study indicated the spatial spread features of non-point source pollution at target areas, and the results provide a significant support to prevent both soil erosion and non-point source pollution.

Key words: Dahuofang Reservoir catchment, SWAT model, agricultural non-point source pollution, spatial distribution

中图分类号:

  • X52
