不同耕作方式对路旁土壤重金属分布的影响——以黄淮平原国道310开封段为例

doi:10.13249/j.cnki.sgs.2014.03.377

摘要/Abstract

摘要：

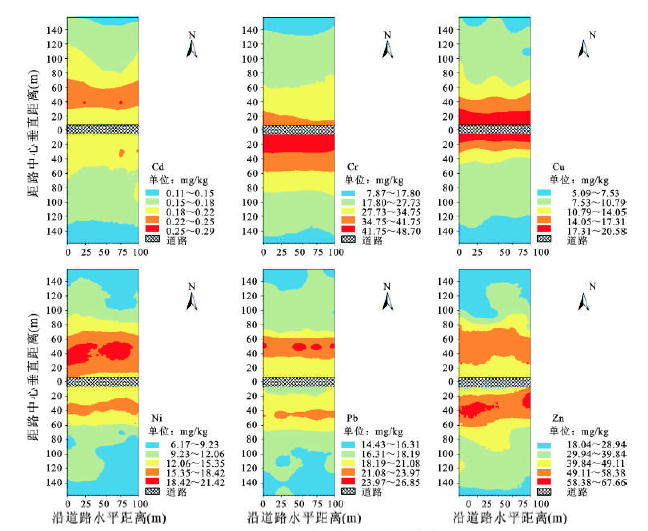

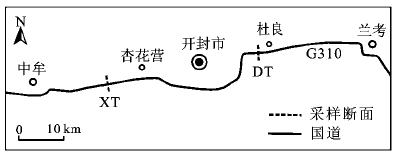

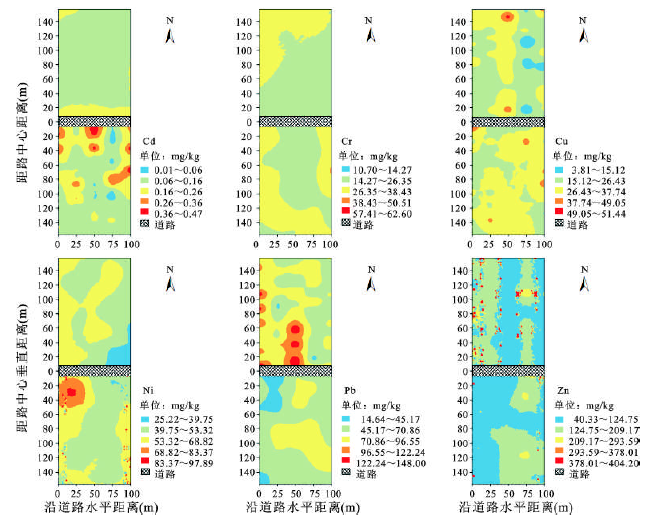

在G310开封段的杜良和杏花营分别布设采样断面,共采集320个样品。用ICP-MS测定土壤Pb、Cu、Zn、Cd、Cr和Ni含量,用泛克里格插值法分析路旁土壤重金属含量空间分布特征。结果表明,不同耕作方式对路旁土壤重金属含量空间分布影响很大。水旱轮作农田在淹水期间,由于水分的流动性以及土壤Eh下降等原因,加速了重金属的迁移,其分布无明显规律性。旱旱轮作农田的土壤重金属含量呈现出与道路平行的带状分布,其中土壤Cr和Cu含量随着距路基距离增加而递减;土壤Pb、Ni、Zn和Cd含量随着距路基距离增加而先增大然后减小,峰值含量出现在距路基30~50 m间。

关键词: 路旁土壤, 重金属, 空间分布, 耕作方式, 黄淮平原

Abstract:

Two soil sampling transects in Xinghuaying and Duliang on Kaifeng section along the National Highway 310 were chosen to investigate effects of upland-upland rotation and paddy-upland rotation on spatial distribution of heavy metals in roadside soils. Five sampling sub-transects of 150 m were designed to be perpendicular to the road within 100 m on both sides of the highway. On each sub-transect, mixed topsoil samples (0-15 cm) were collected at 10 m intervals from the roadbed to the outside end. The total samples of 324 were collected, then, the concentrations of Pb, Cu, Ni, Cr, Cd and Zn in soils were detected by the inductively coupled plasma mass spectrometry (ICP-MS) respectively according to the recommended standard method. The spatial distribution of heavy metals concentrations in roadside soils was discussed by Universal Kriging Interpolation model. The results show that the different tillage methods have great effects on spatial distribution of heavy metals in roadside soils. The distribution patterns of metal concentrations are not strips parallel to the road in paddy-upland rotation field on Duliang Transect (DT), because the water in rice field changes pH, Eh of soils, and then accelerates the migration of soil heavy metals when the rice is grown. In contrast, the distribution patterns of metal concentrations in upland-upland rotation field on Xinghuaying Transect (XT) are strips parallel to the highway. The concentrations of Cr and Cu decrease exponentially with the distance from the roadbed, however, the concentrations of Cd, Pb, Ni and Zn reveal a skew distribution with the distance, which increase firstly, reach their highest values at 30 m or 50 m away from the roadbed, and then decrease gradually to the control values.

Key words: roadside soils, heavy metals, spatial distribution, tillage methods, Huanghuai Plain

中图分类号:

仝致琦, 陈太政, 段海静, 谷蕾, 马建华. 不同耕作方式对路旁土壤重金属分布的影响——以黄淮平原国道310开封段为例[J]. 地理科学, 2014, 34(3): 377-384.

Zhi-qi TONG, Tai-zheng CHEN, Hai-jing DUAN, Lei GU, Jian-hua MA. Effects of Different Tillage Methods on Spatial Distribution of Heavy Metals in Roadside Soils: A Case Study of Kaifeng Section Along the National Highway 310 in Huanghuai Plain[J]. SCIENTIA GEOGRAPHICA SINICA, 2014, 34(3): 377-384.

图/表 6

图1

表1

表2

表3

图2

图3

参考文献 45

[1]	Münch D.Concentration profiles of arsenic,cadmium,chromium,copper,lead,mercury,nickel,zinc,vanadium and polynuclear aromatic hydrocarbons (PAH) in forest soil beside an urban road[J].Science of the Total Environment,1993,138(1-3):47-55.
[2]	Qasem M J.Momani K A.Contamination of roadside soiI,plants,and air with heavy metals in Jordan: A comparative study[J]. Turkish Journal of Chemistry,1999,23(2):209-220.
[3]	Zupancic N.Lead contamination in the roadside soils of Slovenia[J].Environment Geochemistry and Health,1999,21(1): 37-50.
[4]	Al-Chalabi A,Hawker D.Distribution of vehicular lead in roadside soils of major roads of Brisbane, Australia[J].Water,Air,and Soil Pollution,2000,118(3-4):299-310.
[5]	Sutherland R A,Tolosa C A.Variation in total and extractable elements with distance from roads in an urban watershed,Honolulu,Hawaii[J].Water,Air, and Soil Pollution,2001,127(1-4): 315-338.
[6]	Oztas T,Ata S.Distribution patterns of lead accumulation in roadside soils:a case study from Erzurum,Turkey[J].International Journal of Environment and Pollution,2002,18(2):190-196.
[7]	Fakayode S O,Olu-Owolabi B I.Heavy metal contamination of roadside topsoil in Osogbo,Nigeria:its relationship to traffic density and proximity to highways[J].Environmental Geology,2003,44(2):150-157.
[8]	Aleš Plesničar.Heavy Metal Contamination of roadside Soil along Ljubljana-Obrezje Highway[J].RMZ-Materials and Geoenvironment,2005,52(2):403-218.
[9]	Zehetner F,Rosenfellner U,Mentler A,et al.Distribution of road salt residues, heavy metals and polycyclic aromatic hydrocarbons across a highway-forest interface[J].Water,Air, and Soil Pollution,2008,198(1-4): 125-132.
[10]	Saeedi M,Hosseinzadeh M,Jamshidi A,et al.Assessment of heavy metals contamination and leaching characteristics in highway side soils,Iran[J].Environmental Monitoring and Assessment,2009,151(1-4): 231-241.
[11]	Jaradat Q M,Massadeh A M,Momani K A,et al.The spatial distribution of Pb,Cd,Zn,and Cu in agricultural roadside soils[J].Soil and Sediment Contamination,2010,19(1): 58-71.
[12]	索有瑞,黄雅丽.西宁地区公路两侧土壤和植物中铅含量及其评价[J].环境科学,1996,17(2):74~76.
[13]	刘玉萃,李保华,吴明作.大气-土壤-小麦生态系统中铅的分布和迁移规律研究[J].生态学报,1997,17(4):418~425.
[14]	郭广慧,陈同斌,宋波,等.中国公路交通的重金属排放及其对土地污染的初步估算[J].地理研究,2007,26(5):922~930.
[15]	Lagerwerff J V,Specht A W.Contamination of roadside soil and vegetation with cadmium,nickel,lead,and zinc[J].Environmental Science and Technology,1970,4(7):583-586.
[16]	Swaileh K M,Hussein R M,Abu-Elhaj S.Assessment of heavy metal contamination in roadside surface soil and vegetation from the West Bank[J].Archives of Environment and Contamination Toxicology, 2004,47(1):23-30.
[17]	Juknevičius S,Matyžiūtė~Jodkonienė D,Sabienė1 N. Contamination of soil and grass by heavy metals along the main roads in Lithuania[J].Ekologija,2007,53(3):70-74.
[18]	李鱼,董德明,吕晓君,等.汽车尾气中铅对公路两侧土壤的污染特征[J].生态环境,2004,13(4):549~552.
[19]	李波,林玉锁,张孝飞,等.宁连高速公路两侧土壤和农产品中重金属污染的研究[J].农业环境科学学报,2005,24(2):266~269.
[20]	王初,陈振楼,王京,等.崇明岛公路两侧蔬菜地土壤和蔬菜重金属污染研究[J].生态与农村环境学报,2007,23(2):89~93.
[21]	王慧,郭晋平,张芸香,等.公路绿化带对路旁土壤重金属污染格局的影响及防护效应——以山西省主要公路为例[J].生态学报,2010,30(22):6218~6226.
[22]	谷蕾,宋博,仝致琦,等.连霍高速不同运营路段路旁土壤重金属分布及潜在生态风险[J].地理科学进展,2012,31(5): 632~638.
[23]	Motto H L,Daines R H,Chiko S L,et al.Lead in soils and plants: its relation to traffic volume and proximity to highway[J].Environmental science and technology,1970,4(3): 231-237
[24]	Dilek G T,Barry J M.Heavy metal contamination in highway soils,Comparison of Corpus Christi,Texas and Cincinnati,Ohio shows organic matter is key to mobility[J].Clean Technologies and Environmental Policy,2003,(4):235-245.
[25]	Chen X,Xia X H,Ye Zhao Y,et al.Heavy metal concentrations in roadside soils and correlation with urban traffic in Beijing,China[J].Journal of Hazardous Materials,2010,181(1-3):640-646.
[26]	马建华,李剑,宋博.郑汴路不同运营路段路旁土壤重金属分布及污染分析[J].环境科学学报,2007,27(10):1734~1743.
	马建华,李剑.郑汴公路路尘、路沟和路旁土壤重金属分布与污染[J].西南交通大学学报,2008,43(2):1734~1743
[27]	刘世梁,崔保山,温敏霞,等.路域土壤重金属含量空间变异的影响因子[J].环境科学学报,2008,28(2):253~260.
[28]	李仰征,马建华.高速公路旁土壤重金属污染及不同林带防护效应比较[J].水土保持学报,2011,25(2):105~109.
[29]	徐永荣,冯宗炜,王春夏,等.绿带对公路两侧土壤重金属含量的影响研究[J].湖北农业科学,2002,(5):75~77.
[30]	王成,郄光发,杨颖,等.高速路林带对车辆尾气重金属污染的屏障作用[J].林业科学,2007,43(3):1~7.
[31]	杨宝玲,郑阿宝,阮宏华.沪宁高速公路绿色通道道路建设对土壤重金属污染的影响[J].南京林业大学(自然科学版),2012,36(1):149~151.
[32]	汤国安,杨昕. ArcGIS地理信息系统空间分析实验教程[M].北京:科学出版社,2006:372~387.
[33]	李海滨,林忠辉,刘苏峡.Kriging方法在区域土壤水分估值中的应用[J].地理研究,2001,20(4):446~452.
[34]	王政权. 地统计及其在生态学中的应用[M].北京:科学出版社,1999:32~35.
[35]	赵明松,张甘霖,李德成,等.苏中平原南部地区土壤有机质空间变异特征研究[J].地理科学,2013,33(1):1001~1006.
[36]	李建辉,李晓秀,张汪寿,等.基于地统计学的北运河下游土壤养分空间分布[J].地理科学,2011,31(8):83~89.
[37]	杨劲松,姚荣江.黄河三角洲地区土壤水盐空间变异特征研究[J].地理科学,2007,27(3):348~353.
[38]	史文娇,岳天祥,石晓丽,等.土壤连续属性空间插值方法及其精度的研究进展[J].自然资源学报,2012,27(1):165~177.
[39]	Van den Berg G A,Loch J P G,Winkels H J.Effect of fluctuating hydrological conditions on the mobility of heavy metals in soils of a freshwater estuary in the Netherlands[J].Water,Air,and Soil Pollution,1998,102(3):377-388.
[40]	Charlatchka R,Cambier P.Influence of reducing conditions on solubility of trace metals in contaminated soils[J].Water,Air,and Soil Pollution,2000,118(l):143-168.
[41]	钟晓兰,周生路,李江涛,等.土壤有效态Cd、Cu、Pb的分布特征及影响因素[J].地理科学,2010,30(2):255~260.
[42]	Chuan M C,Shu G Y,Liu J C.Solubility of heavy metals in contaminated soil: effeets of redox Potential and pH[J].Water,Air,and Soil Pollution,1996,90(3):543-556.
[43]	Davranche M,Leckie J O.Heavy metals desorption from synthesized and natural iron and manganese oxyhydroxides:effect of reductive conditions[J].Journal of colloid and interface science,2000,227(2):531-539.
[44]	Davranche M,Bollinger J C,Brill H.Effect of reductive conditions on metal mobility from wasteland solids: an example from the Mortagne-du-Nord site (France)[J].Applied Geochemistry,2003,18(3):383-394.
[45]	宋吉明,侯春芳.汽车尾气中的铅在公路旁水稻叶片中的积累[J].环境保护科学,1985,11(1):40~42.

采样断面及项目		重金属(mg/kg)
采样断面及项目		Cd	Cr	Cu	Pb	Zn	Ni
DT	范围	0.01~0.47	10.79~62.59	3.81~51.44	14.64~147.94	40.33~404.20	25.22~97.89
	均值	0.16	26.35	26.43	70.86	124.75	53.52
	标准差	0.08	8.00	7.70	22.23	56.33	11.97
	变异系数（%）	50.00	30.36	29.13	31.37	45.15	22.37
	对照样平均浓度^*	0.13	14.23	23.87	14.85	44.83	25.35
XT	范围	0.11~0.29	7.87~48.80	5.09~20.58	14.43~26.85	18.04~67.66	6.17~21.48
	均值	0.18	27.73	10.79	18.19	39.84	12.06
	标准差	0.03	10.02	4.13	2.71	12.10	3.66
	变异系数（%）	16.67	36.13	38.28	14.90	30.37	30.35
	对照样平均浓度^*	0.14	13.43	6.63	15.77	22.40	7.74

半变异模型及参数			Cd	Cr	Cu	Pb	Zn	Ni
DT	南侧	趋势类型	一阶	常量	一阶	一阶	二阶	二阶
		模型	指数	高斯	二次方程式	二次方程式	四球	孔洞效应
		块金值(C₀)	0	52.07	0.048	105.69	1993.06	72.86
		基台值(C₀+C)	0.013	100.55	48.542	295.28	3268.80	103.23
		C₀/(C₀+C) （%）	0	51.78	0.10	35.79	60.98	70.58
	北侧	趋势类型	一阶	常量	一阶	一阶	二阶	二阶
		模型	指数	高斯	二次方程式	二次方程式	四球	孔洞效应
		块金值(C₀)	0.001 2	28.56	0.29	0.53	617.40	55.56
		基台值(C₀+C)	0.002 5	42.26	69.24	534.33	2716.61	85.80
		C₀/(C₀+C)（%）	48.00	67.58	0.42	0.10	22.73	64.76
XT	南侧	趋势类型	一阶	常量	一阶	一阶	二阶	二阶
		模型	指数	高斯	二次方程式	二次方程式	四球	孔洞效应
		块金值(C₀)	9.91	25.44	0.80	3.73	27.51	0.54
		基台值(C₀+C)	9.91	237.58	4.68	6.30	60.17	2.84
		C₀/(C₀+C) （%）	100	10.71	17.09	59.20	45.72	19.01
	北侧	趋势类型	一阶	常量	一阶	一阶	二阶	二阶
		模型	指数	高斯	二次方程式	二次方程式	四球	孔洞效应
		块金值(C₀)	0.000 22	18.17	0.56	0.42	11.30	1.39
		基台值(C₀+C)	0.000 91	114.72	3.92	4.59	68.65	4.38
		C₀/(C₀+C) (%)	24.18	15.84	14.28	9.15	16.46	31.17

采样断面及交叉检验参数			Cd	Cr	Cu	Pb	Zn	Ni
DT	南侧	平均值（n=80）(mg/kg)	0.004 1	-0.055	-0.43	-0.75	5.51	-0.77
		标准平均值	0.041	-0.008 2	-0.035	-0.051	0.043	-0.057
		均方根预测误差(mg/kg)	0.097	8.30	7.18	14.75	64.03	13.35
		平均预测标准差(mg/kg)	0.093	8.41	7.47	14.10	69.81	11.50
		标准均方根预测误差	1.06	0.99	0.96	1.05	1.00	1.11
	北侧	平均值（n=80）(mg/kg)	0.004 0	0.049	0.20	0.36	-0.93	0.138
		标准平均值	0.10	0.007 3	0.030	0.036	-0.019	0.0043
		均方根预测误差(mg/kg)	0.048	5.77	7.33	21.14	49.63	8.82
		平均预测标准差(mg/kg)	0.041	5.62	6.24	16.73	50.34	9.20
		标准均方根预测误差	1.12	1.03	1.15	1.26	1.00	0.97
XT	南侧	平均值（n=80）(mg/kg)	0.000 62	-0.009 0	0.056	-0.15	-0.32	-0.018
		标准平均值	0.004 6	-0.002 5	0.041	-0.057	-0.067	0.014
		均方根预测误差(mg/kg)	0.018	5.05	0.98	2.32	7.47	1.20
		平均预测标准差(mg/kg)	0.018	5.47	1.13	2.38	7.68	1.39
		标准均方根预测误差	0.97	0.93	0.87	0.98	1.14	0.92
	北侧	平均值（n=80）(mg/kg)	-0.001 9	0.13	0.046	-0.043	2.86	0.10
		标准平均值	-0.073	0.029	0.031	-0.020	0.009 3	0.050
		均方根预测误差(mg/kg)	0.022	4.56	1.24	1.22	5.63	1.38
		平均预测标准差(mg/kg)	0.023	4.57	1.09	1.39	6.03	1.49
		标准均方根预测误差	0.94	0.99	1.17	0.90	0.97	0.96
