陆面过程模型CoLM与BATS1e的模拟精度比较——以东北玉米农田为例

doi:10.13249/j.cnki.sgs.2014.06.740

地理科学 ›› 2014, Vol. 34 ›› Issue (6): 740-747.doi: 10.13249/j.cnki.sgs.2014.06.740

陆面过程模型CoLM与BATS1e的模拟精度比较——以东北玉米农田为例

蔡福¹(), 明惠青², 米娜¹, 李荣平¹, 张玉书¹()

1.中国气象局沈阳大气环境研究所,辽宁沈阳 110166
2.辽宁省气象服务中心,辽宁沈阳 110166

收稿日期:2013-05-02 修回日期:2013-09-17 出版日期:2014-06-20 发布日期:2014-06-10
作者简介:
作者简介: 蔡福(1980-),男,辽宁海城人,博士,副研究员,从事应用气象、陆面过程及模型模拟研究。E-mail: caifu_80@163.com
基金资助:
中央级公益性科研院所基本科研业务费专项资金（2012IAE-CMA01）、青年科学基金项目（41305058,31000230）和辽宁省科技农业攻关项目(2011210002)资助

Comparison of Land Surface Process Models Performance Between CoLM and BATS1e: A Case Study on Maize Field in Northeast China

Fu CAI¹(), Hui-qing MING², Na MI¹, Rong-ping LI¹, Yu-shu ZHANG¹()

1.Institute of Atmospheric Environment, China Meteorological Administration, Shenyang ,Liaoning 110166,China
2.Liaoning Province Meteorological Service Center, Shenyang ,Liaoning 110166,China

Received:2013-05-02 Revised:2013-09-17 Online:2014-06-20 Published:2014-06-10

摘要/Abstract

摘要：

利用2008年锦州玉米农田生态系统野外观测站资料对CoLM与BATS1e模型模拟能力进行定量评价。比较发现：两模型对净辐射和表层土壤温度的模拟精度都较高且差异不大,CoLM模型对感热、潜热、土壤热通量、次表层土壤温度模拟能力都不同程度高于BATS1e模型,模拟值对实测值解释能力分别偏高3%、22%、1%、10%,NS (Nash-sutcliffe效率系数)分别偏高1.042、0.266、0.023、0.138。从各月情况看,两模型在7月对感热、潜热模拟能力都较高,而在其它月份CoLM模型模拟精度明显高于BATS1e模型,土壤热通量和次表层土壤温度在5~8月前者模拟精度高于后者。由于CoLM模型对潜热更高精度的模拟可证明其对表层土壤湿度模拟精度高于BATS1e模型。

关键词: CoLM模型, BATS1e模型, 东北玉米农田, 模拟精度比较

Abstract:

Using observations data in 2008 from Jinzhou Agricultural Ecosystem Research Station, land surface process models performance between CoLM and BATS1e were evaluated and compared. The results show that net radiation and surface soil temperature are both able to be accurately simulated with a very small difference between the two models. Model performance of CoLM is higher in different degrees than BATS1e for simulations of sensible, latent, soil heat fluxes and subsurface soil temperature with interpreting ability of simulations to observations and Nash-sutcliffe coefficient of efficiency factor of the former being 3%,22%,1%,10% and 1.042,0.266,0.023,0.138 higher than those of the later, respectively. As far as every month is concerned, simulation precisions of sensible and latent heat fluxes in most months except July when two models work very well as well as soil heat fluxes and subsurface soil temperature from May to August are higher for CoLM than BATS1e. Besides, it will be proved that Model performance of CoLM for simulation of surface soil water content is also higher than that of BATS1e because of its more accurate simulation for latent heat flux.

Key words: CoLM model, BATS1e model, maize field in Northeast China, model performance comparison

中图分类号:

P404

蔡福, 明惠青, 米娜, 李荣平, 张玉书. 陆面过程模型CoLM与BATS1e的模拟精度比较——以东北玉米农田为例[J]. 地理科学, 2014, 34(6): 740-747.

Fu CAI, Hui-qing MING, Na MI, Rong-ping LI, Yu-shu ZHANG. Comparison of Land Surface Process Models Performance Between CoLM and BATS1e: A Case Study on Maize Field in Northeast China[J]. SCIENTIA GEOGRAPHICA SINICA, 2014, 34(6): 740-747.

图/表 8

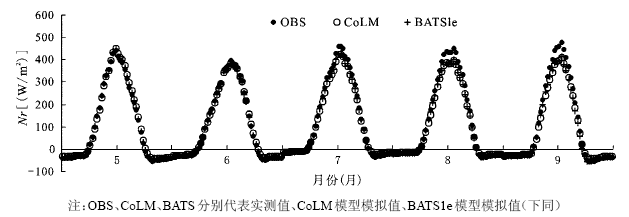

图1

图2

图3

图4

图5

图6

图7

表1

参考文献 24

[1]	孙菽芬. 陆面过程的物理、生化机制和参数化模型[M].北京: 气象出版社, 2005:307.
[2]	涂钢, 刘波, 王淑瑜. 基于陆面模式NCAR/CLM3.5 的东北区域生长季地表干湿状况时空分布特征模拟研究[J].地理科学,2012,32(6):746~751.
[3]	孙鸿烈. 中国生态系统研究网络为生态系统评估提供科技支撑[J].资源科学,2006,28(4):2~3.
[4]	胡国杰,赵林,李韧,等. 基于COUPMODEL模型的冻融土壤水热耦合模拟研究[J].地理科学, 2013,33(3):356~362.
[5]	于贵瑞,方华军,伏玉玲,等. 区域尺度陆地生态系统碳收支及其循环过程研究进展[J].生态学报,2011,31(19):5449~5459.
[6]	Dickinson R E, Henderson-Sellers A, Kennedy P J. Biosphere Atmosphere Transfer Scheme (BATS) Version le as Coupled to the NCAR Community Climate Model[R/OL]. NCAR Technical Note, NCARPTN-387 + STR,1993.
[7]	Sellers P J, Mintz Y, Sud Y C, et al.A simple biosphere model (SiB) for use within general circulation models[J]. J. Atmos. Sci.,1986,43:505-531.
[8]	Xue Y, Sellers P J, Kinder III J L, et al. A simplified bio-sphere model for global climate studies[J]. J Climate,1991,4:345-364.
[9]	Sellers P J, RandallD A, Collatz C J, et al. A revised land surface parameterization (SiB2) for atmospheric GCMs. Part 1:Model formulation[J].J. Climate,1996,9:676-705.
[10]	Baker I,Denning S,Hanan N,et al.Simulated and observed fluxes of sensible and latent heat and CO2 at the WLEF-TV tower using SiB 2.5[J].Global Change Biology,2003,(9):1262-1277.
[11]	蒋玲梅,卢立新,邢伟坡,等.SiB3 对不同下垫面的模拟试验与验证[J].气象科学,2011,31(4):493~500.
[12]	Oleson K W, Dai Y J, Bonan G, et al. Technical description of the Community Land Model(CLM) [R/OL]. NCAR Tech.Note NCAR/TN461+STR ,23.2004. .
[13]	Dai Y J, Zeng X B, Dickinson R E, et al.The common land model[J].Bull. Amer. Meteor. Soc., 2003,84(8): 1013-1023.
[14]	Steiner A L, Pal J S,Giorgi F, et al.The coupling of the Common Land Model (CLM0) to a regional climate model(RegCM)[J]. Theoretical and Appl. Clim.,2005,82(34):225-243.
[15]	辛羽飞,卞林根,张雪红. CoLM模式在西北干旱区和青藏高原区的适用性研究[J].高原气象,2006,25(4):567~574.
[16]	王澄海, 师锐. 青藏高原西部陆面过程特征的模拟分析[J].冰川冻土,2007,29(1):73~81.
[17]	罗斯琼,吕世华,张宇,等. CoLM模式对青藏高原中部BJ 站陆面过程的数值模拟[J].高原气象,2007,27(2):259~272.
[18]	肖瑶,赵林,李韧,等. CoLM模型在高原多年冻土区的单点模拟适用性[J].山地气象,2011,29(5):633~630.
[19]	宋耀明,郭维栋,张耀存. CoLM 模式在中国温带混交林和亚热带人工针叶林的水热通量模拟性能评估[J]. 高原气象,2008,27(5):967~977.
[20]	蔡福,周广胜,明惠青,等.地表反照率动态参数化对陆-气通量模拟的影响:以东北玉米农田为例[J].气象学报,2012,70(5):1149~1164.
[21]	蔡福,周广胜,李荣平,等.陆面过程模型对下垫面参数动态变化的敏感性分析[J].地球科学进展,2011,26(3):300~310.
[22]	米娜,陈鹏狮,张玉书,等.几种蒸散模型在玉米农田蒸散量计算中的应用比较[J].资源科学, 2009,31(9):1599~1606.
[23]	Gordon W S.Climate change,hydrology and ecological models: intercomparison and validation. Dissertation, Doctor of Philosophy[D].Texas,USA:The University of Texas at Austin,2003.
[24]	郭建侠,卞林根,戴永久.在华北玉米生育期观测的16m高度CO2浓度及通量特征[J].大气科学,2007,31(4):695~708.

	Nr_C	Nr_B	Tg1_C	Tg1_B	Tg2_C	Tg2_B	H_C	H_B	λE_C	λE_B	G_C	G_B
NS	0.984	0.986	0.548	0.580	0.756	0.618	0.564	-0.478	0.673	0.407	-0.179	-0.202
RRMSE	0.215	0.208	0.009	0.009	0.007	0.008	1.480	2.724	0.816	1.098	5.299	5.352
NSEE	0.108	0.104	0.010	0.009	0.007	0.008	0.604	1.113	0.473	0.636	1.064	1.074
