1933~2012年无定河径流突变与周期特征诊断

doi:10.13249/j.cnki.sgs.2016.03.020

地理科学 ›› 2016, Vol. 36 ›› Issue (3): 475-480.doi: 10.13249/j.cnki.sgs.2016.03.020

• • 上一篇

1933~2012年无定河径流突变与周期特征诊断

张健^1,²(), 李同昇¹, 张俊辉³, 徐象平⁴

1.西北大学城市与环境学院, 陕西西安 710127
2.西北大学西北历史研究所, 陕西西安 710069
3.宝鸡文理学院灾害监测与机理模拟陕西省重点实验室, 陕西宝鸡 721016
4.西北大学学报编辑部, 陕西西安 710069

收稿日期:2014-11-20 修回日期:2015-04-22 出版日期:2016-03-20 发布日期:2016-03-20
作者简介:
张健（1980-）,男,陕西大荔人,博士,讲师,博士后,研究方向为历史地理及其信息技术、气候变化与社会响应、环境史。E-mail：zhangjian@nwu.edu.cn
基金资助:
教育部人文社会科学研究青年基金项目（13YJC770064）、教育部人文社会科学重点研究基地重大项目（13JJD770019）、中国博士后科学基金项目（2015M572587）、陕西省教育厅科学研究计划项目（13JK0042）资助

The Runoff Abrupt Change and Periodic Characteristics of the Wudinghe River During 1933-2012

Jian Zhang^1,²(), Tongsheng Li¹, Junhui Zhang³, Xiangping Xu⁴

1.College of Urban and Environmental Sciences, Northwest University, Xi'an 710127, Shaanxi,China
2.Research Institute for History of Northwest China, Northwest University, Xi'an 710069, Shaanxi, China
3.Key Laboratory of Disaster Monitoring & Mechanism Stimulating Baoji University of Arts and Sciences, Baoji 721016, Shaanxi, China
4.Journal Editorial Department of Northwest University, Xi'an 710069, Shaanxi, China

Received:2014-11-20 Revised:2015-04-22 Online:2016-03-20 Published:2016-03-20
Supported by:
Humanity and Social Research Project of Education Ministry to Young Scholars (13YJC770064), Key Project of Chinese Ministry of Education(13JJD770019), Postdoctoral Foundation of China (2015M572587), Scientific Research Project of Education Department of Shaanxi Province (13JK0042)

摘要/Abstract

摘要：

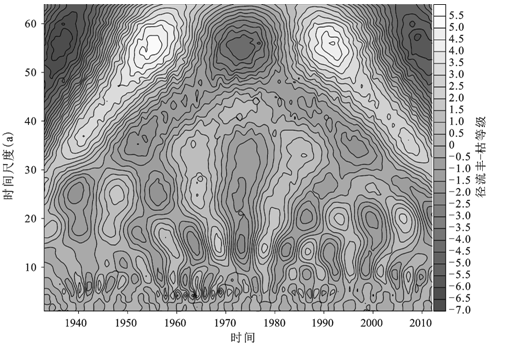

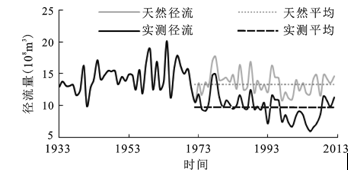

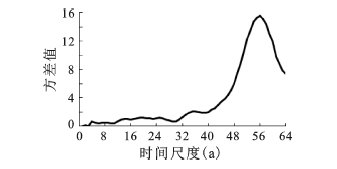

选取黄河中游区实施水土保持最早的一级支流无定河流域,利用滑动-T、曼-肯德尔和山本等3种突变检测方法相互验证,确定了在受人类活动显著影响下,径流的突变年份为1972年,自此径流平均减少3.55×10⁸m³;基于径流突变前降水与径流的显著相关性,并借助地统计克里格空间插值法,重建1933~2012年无定河流域出口控制水位站天然径流变化序列。采用小波分析法诊断天然径流序列的周期变化,结果显示：天然年径流存在6个不同时间尺度的“丰-枯”演变特征,其平均周期分别对应着35.5、22.2、16.8、12.2、9.3和3.3 a。

关键词: 年径流, 径流突变, 周期特征, 无定河, 黄河中游

Abstract:

River is the path of water current on the land surface that collection and transmission, and the hydrological response of a catchment and hydrological processes which represents the global changes of the response of the earth′s surface. It is of great importance to study the runoff evolvement process. Changing rules and the influence factors in the Yellow River and would enhance sustainable development of social economy and effectively protect our environment under the reasonable utilization of river basin water resources. If we want to identify the ways of response of runoff to climate change in semi-arid region in northwest of China, the study should be first based on the grasp of the long period evolvement rules of runoff. Based on the observed annual runoff data of the Wudinghe River during 1945-2012, the characteristic of the abrupt change had been diagnosed by employing the methods of Moving t-test technique and Mann-Kendall and Yamamoto. The analysis showed that the annual runoff of the Wudinghe River changed abruptly in 1972, in the year since, the decrease of the runoff is about 3.55×10⁸m³on average. Precipitation decrease about 6.28% but runoff decrease about 26.62% on average after the abrupt change of the Wudinghe River runoff during 1933-2012. Although precipitation was the primary factor to affect surface water resource, precipitation was not the main reason for runoff decrease compared with human activities. Then reconstruct the sequence of natural runoff of the Wudinghe River during 1933-2012 according to the significant correlation between precipitation and runoff before 1972. Morlet complex wavelet function was used to transform the sequence of runoff of Baijiachuan hydrologic stationin of the Wudinghe River during 1933-2012. According to wavelet to analyze the periodic characteristics of the natural annual runoff, the results showed that the average period of annual runoff change have multi-scale periods such as 35.5 a, 22.2 a, 16.8 a, 12.2 a, 9.3 a and 3.3 a. It will be able to calculate the influence degree of the natural runoff change because of human activities such as building a reservoir, building a dam that silting land for developing farmland, etc.

Key words: annual runoff, abrupt change point, periodic characteristics, the Wudinghe River, the Middle Yellow River

中图分类号:

P333

张健, 李同昇, 张俊辉, 徐象平. 1933~2012年无定河径流突变与周期特征诊断[J]. 地理科学, 2016, 36(3): 475-480.

Jian Zhang, Tongsheng Li, Junhui Zhang, Xiangping Xu. The Runoff Abrupt Change and Periodic Characteristics of the Wudinghe River During 1933-2012[J]. SCIENTIA GEOGRAPHICA SINICA, 2016, 36(3): 475-480.

图/表 4

参考文献 23

[1]	夏军,孙雪涛,谈戈.中国西部流域水循环研究进展与展望[J].地球科学进展,2003,18(1):58-67.
	[Xia Jun, Sun Xuetao, Tan Ge.The progress and prospect of water cycle study in western china. Advances in Earth Science,2003,18(1):58-67.]
[2]	Guo Shenglian,Wang Jinxing,Xiong Lihua et al.A macro-scale and semi-distributed monthly water balance model to predict climate change impacts in China[J].Journal of Hydrology,2002,268:1-15. doi: 10.1016/S0022-1694(02)00075-6
[3]	王国庆,贾西安,陈江南,等.人类活动对水文序列的显著影响干扰点分析——以黄河中游无定河流域为例[J].西北水资源与水工程,2001,12(3):13-15.
	[Wang Guoqing, Jia Xi'an, Chen Jiangnan et al. Analysis on the transition point of hydrological series impacted by human activities—A case study of Wudinghe basin in the middle reaches of the Yellow River. Northwest Water Resources & Water Engineering, 2001,12(3):13-15.]
[4]	杨新,延军平,刘宝元.无定河年径流量变化特征及人为驱动力分析[J].地球科学进展,2005,20(6):637-642.
	[Yang Xin, Yan Junping, Liu Baoyuan.The analysis on the change characteristics and driving forces of wudinghe river runoff. Advances in Earth Science, 2005,20(6):637-642.]
[5]	王随继, 冉立山.无定河流域产沙量变化的淤地坝效应分析[J].地理研究,2008,27(4):856-865. doi: 10.11821/yj2008040009
	[Wang Suiji, Ran Lishan.Analysis of dam effect on sediment yield in the Wudinghe River Basin. Geographical Research, 2008,27(4):856-865.] doi: 10.11821/yj2008040009
[6]	周园园,师长兴,杜俊,等.无定河流域1956~2009年径流量变化及其影响因素[J].自然资源学报,2012,27(5):856-865.
	[Zhou Yuanyuan,Shi Changxing,Du Jun et al. Annual runoff change and influencing factors in the wuding river basin in 1956-2009. Journal of Natural Resources, 2012,27(5):856-865.]
[7]	余汉章. 陕西水文[M].西安:陕西科学技术出版社,1987:263-265.
	[Yu Hanzhang.The hydrology in Shaanxi Province. Xi′an: Shaanxi Science & Technology Press, 1987:263-265.]
[8]	黄委中游水文水资源局.黄河中游水文:河口镇至龙门区间[M].郑州:黄河水利出版社,2005:39-44.
	[The hydrology & water resources bureau in the middle of the Yellow River of YRCC. The hydrology in the middle of the Yellow River: the reaches of the Yellow River from Hekouzhen to Longmen. Zhengzhou: The Yellow River Water Conservancy Press, 2005:39-44.]
[9]	李新,程国栋,卢玲.空间内插方法比较[J].地球科学进展,2000,(3):260-265. doi: 10.3321/j.issn:1001-8166.2000.03.004
	[li Xin, Cheng Guodong, Lu Ling. Comparison of spatial interpolation methods. Advances in Earth Science, 2000,(3):260-265.] doi: 10.3321/j.issn:1001-8166.2000.03.004
[10]	孙然好,刘清丽,陈利顶.基于地统计学方法的降水空间插值研究[J].水文,2010,30(1):14-17. doi: 10.3969/j.issn.1000-0852.2010.01.003
	[Sun Ranhao, Liu Qingli, Chen Liding.Study on Precipitation Interpolation Based on the Geostatistical Analyst Method. Journal of China Hydrology, 2010,30(1):14-17.] doi: 10.3969/j.issn.1000-0852.2010.01.003
[11]	卢秀娟,张耀存,王国刚.黄河流域代表水文站径流和降水量变化的初步分析.气象科学,2003,23(2):192-199. doi: 10.3969/j.issn.1009-0827.2003.02.009
	[Lu Xiujuan, Zhang Yaocun, Wang Guogang.Analysis of runoff and precipitation at representative hydrographic stations along the Yellow River. Scientia Meteorologica Sinica, 2003,23(2):192-199.] doi: 10.3969/j.issn.1009-0827.2003.02.009
[12]	魏风英. 现代气候统计诊断预测技术[M].北京:气象出版社,2007:63-64,58-59.
	[Wei Fengying.Modern climate statistics diagnosis and prediction technology. 2nd ed. Beijing: China Meteorological Press, 2007:49-50, 57-70.]
[13]	姜逢清,朱诚,胡汝骥.1960~1997年新疆北部降水序列的趋势探测[J].地理科学,2002,22(6):669-672.
	[Jiang Fengqing, Zhu Cheng, Hu Ruji.Trend Analysis of Precipitation over Northern Xinjiang for the Period 1961-1997. Scientia Geographica Sinica, 2002, 22(6):669-672.]
[14]	李志,刘文兆,郑粉莉.1965~2005年泾河流域极端温度事件变化特征[J].地理科学,2010,30(3):469-474.
	[Li Zhi, Liu Wenzhao, Zheng Fenli.Trends of Extreme Temperature Events in Jinghe Watershed During 1965-2005. Scientia Geographica Sinica, 2010, 30(3):469-474.]
[15]	王文圣,丁晶,向红莲.小波分析在水文学中的应用研究及展望[J].水科学进展,2002,13(4):515-520.
	[Wang Wensheng, Ding Jing, Xiang Honglian.Application and prospect of wavelet analysis in hydrology. Advances in Water Science, 2002,13(4):515-520.]
[16]	邵晓梅,许月卿,严昌荣.黄河流域降水序列变化的小波分析[J].北京大学学报:自然科学版,2006,42(4):503-509. doi: 10.3321/j.issn:0479-8023.2006.04.014
	[Shao Xiaomei, Xu Yueqing, Yan Changrong.Wavelet analysis of rainfall variation in the Yellow River basin. Acta Scientiarum Naturalium Universitatis Pekinensis, 2006,42(4):503-509.] doi: 10.3321/j.issn:0479-8023.2006.04.014
[17]	王钧,蒙吉军.黑河流域近60 年来径流量变化及影响因素[J].地理科学,2008,28(1):83-88.
	[Wang Jun, Meng Jijun.Characteristics and Tendencies of Annual Runoff Variations in the Heihe River Basin During the Past 60 years. Scientia Geographica Sinica, 2008,28(1):83-88.]
[18]	邴龙飞,邵全琴,刘纪远,等.基于小波分析的长江和黄河源区汛期、枯水期径流特征[J].地理科学,2011,31(2):232-238.
	[Bing Longfei,Shao Quanqin,Liu Jiyuan et al. Runoff Characteristic in Flood and Dry Seasons in Source Regions of Changjiang River and Huanghe River Based on Wavelet Analysis. Scientia Geographica Sinica,2011,31(2):232-238.]
[19]	张淑兰,王彦辉,于澎涛,等.泾河流域近50年来的径流时空变化与驱动力分析[J].地理科学,2011,31(6):721-727.
	[Zhang Shulan,Wang Yanhui,Yu Pengtao et al. Spatio-temporal Variance of Annaul Runoff in Jinghe River Basin of Northwest China in Past 50 Years and Its Main Causes. Scientia Geographica Sinica, 2011,31(6):721-727.]
[20]	曹太身,王家典.红柳河芦河流域坝库群建设运用情况调查[J].人民黄河,1982,(4):41-49.
	[Cao Taishen, Wang Jiadian.Dam construction of long-term use case investigation in HongLiu & Luhe river-basin. Yellow River, 1982,(4):41-49.]
[21]	陈同善,刘尔铭.无定河流域淤地坝调查[J].中国水土保持,1984,(3):26-29.
	[Chen Tongshan, Liu Er’ming.Investigations on silt-arresters in Wuding River Valley. Soil and Water Conservation in China, 1984,(3):26-29.]
[22]	许炯心,孙季.水土保持措施对流域泥沙输移比的影响[J].水科学进展,2004,15(1):30. doi: 10.3321/j.issn:1001-6791.2004.01.006
	[Xu Jiongxin,Sun Ji.Effect of erosion control measures on sediment delivery ratio. Advances in Water Science, 2004,15(1):30.] doi: 10.3321/j.issn:1001-6791.2004.01.006
[23]	李靖,张金柱,王晓.20世纪70年代淤地坝水毁灾害原因分析[J].中国水利,2003,(17):55-56.
	[Li Jing, Zhang Jinzhu, Wang Xiao.The analysis of the causes of disasters on silt-arresters in 1970s. China Water Resources, 2003,(17):55-56.]
