中国东南部植被NPP的时空格局变化及其与气候的关系研究

doi:10.13249/j.cnki.sgs.2016.05.018

地理科学 ›› 2016, Vol. 36 ›› Issue (5): 787-793.doi: 10.13249/j.cnki.sgs.2016.05.018

中国东南部植被NPP的时空格局变化及其与气候的关系研究

崔林丽^1,²(), 杜华强¹, 史军³, 陈昭⁴, 郭巍²

1.浙江农林大学亚热带森林培育国家重点实验室培育基地, 浙江临安 311300
2.上海市卫星气象遥感应用中心,上海 201199
3.上海市气候中心, 上海 200030
4.复旦大学信息科学与工程学院电子工程系, 上海 200433

收稿日期:2015-06-18 修回日期:2015-11-04 出版日期:2016-07-20 发布日期:2016-07-20
作者简介:
作者简介：崔林丽(1975-),女,山西壶关人,副研究员,博士,主要从事卫星气象遥感研究。E-mail：cllcontact@163.com
基金资助:
基金项目：浙江省重中之重林学一级学科开放基金(KF201331)、国家自然科学基金项目(41571044,41001283)资助

Spatial and Temporal Pattern of Vegetation NPP and Its Relationship with Climate in the Southeastern China

Linli Cui^1,²(), Huaqiang Du¹, Jun Shi³, Zhao Chen⁴, Wei Guo²

1. State Key Laboratory of Subtropical Forest Cultivation Base in Zhejiang Province, Zhejiang A & F University, Lin’an 311300, Zhejiang, China
2. Shanghai Center for Satellite Remote Sensing and Application, Shanghai 201199, China
3. Shanghai Climate Center, Shanghai 200030, China
4. Electronic Engineering Department, School of Information Science and Technology, Fudan University, Shanghai 200433, China

Received:2015-06-18 Revised:2015-11-04 Online:2016-07-20 Published:2016-07-20
Supported by:
Zhejiang Open Foundation of the Most Important Subjects for First-grade Discipline of Forestry (KF201331), National Natural Science Foundation of China (41571044, 41001283)

摘要/Abstract

摘要：

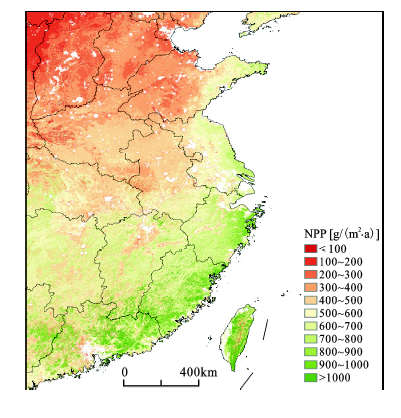

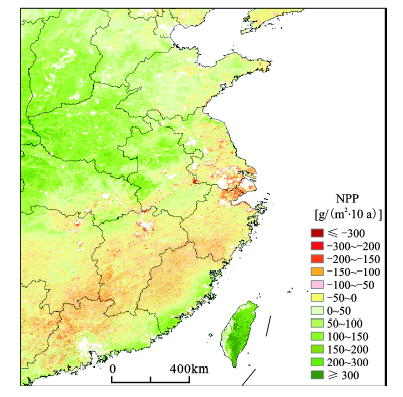

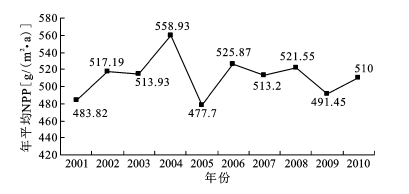

基于2001~2010年MOD17A3年均NPP数据和气象站点气温、降水资料,利用GIS空间分析技术和数理统计方法研究中国东南部植被NPP的时空格局、动态变化及与气候要素的关系。结果表明,中国东南部植被年均NPP总体上呈现从南到北、由东至西逐渐减少的分布,不同植被类型的NPP存在明显差异,以常绿阔叶林最高,落叶针叶林最低。2001~2010年间,植被NPP整体上略有减少。空间上植被NPP在南部地区明显减少,而在北部地区明显增加。植被NPP与降水和气温的相关性均表现出明显的地域差异。

关键词: 植被, 净初级生产力, 气候, 中国东南部

Abstract:

The interaction between vegetation and atmosphere is a research focus and hotspot in the field of earth science under the background of global change. Net primary productivity (NPP) has become a key link of biogeochemical cycle process of terrestrial ecosystems in the global and regional scale, which embodies the complex interaction between vegetation, soil and climate, and is strongly influenced by human activities and global environmental change. Therefore, it has important significance to know the spatial and temporal pattern, variation characteristic and the relationship between terrestrial NPP and climate factors, especially temperature and precipitation, in the evaluation of environment quality, estimation of the terrestrial carbon source/sink potentials, and the management and use of natural resources. Based on the average annual NPP data of MOD17A3 data and temperature and rainfall data from meteorological stations during 2001-2010, the temporal and spatial pattern and dynamic change of vegetation NPP in southeastern China and their relationship with climate elements were analyzed using GIS spatial analysis technology and mathematical statistics method. The results indicate that average annual vegetation NPP in southeastern China gradually decreased from the southern to the northern parts and from the eastern to the western parts as a whole. Different vegetation types had different average annual NPP, with evergreen broad-leaved forest had the highest average annual NPP and deciduous coniferous forest had the lowest NPP. In addition to deciduous coniferous forest, the NPP of high forest was significantly higher than that of low vegetation such as field crops and herbaceous plants. The average annual vegetation NPP reduced slightly as a whole in southeastern China during 2001-2010, and it increased rapidly during 2001-2004, after then it reduced gradually. Spatially, vegetation NPP decreased significantly in the southern regions, but increased significantly in the northern regions. In Jiangsu, southern Anhui, Zhejiang, Jiangxi, western Fujian, central and southern Hunan and northern Guangdong, vegetation NPP decreased at a rate of over 150 g/m² per year in carbon value, but in southwestern Shanxi, western and central Henan, northwestern Hubei and northwestern Anhui, vegetation NPP annual carbon value increased at a rate of over 150 g/m² per year in carbon value. The correlation between vegetation NPP and rainfall and temperature showed significant regional differences, with closer relationship between vegetation NPP and rainfall in northern regions, where precipitation increased in most areas in the past 10 years, and in the southern regions, where plum rains were removed northerly, and temperature increased in most of areas.

Key words: vegetation, net primary productivity, climate, the southeastern China

中图分类号:

Q948.112

崔林丽, 杜华强, 史军, 陈昭, 郭巍. 中国东南部植被NPP的时空格局变化及其与气候的关系研究[J]. 地理科学, 2016, 36(5): 787-793.

Linli Cui, Huaqiang Du, Jun Shi, Zhao Chen, Wei Guo. Spatial and Temporal Pattern of Vegetation NPP and Its Relationship with Climate in the Southeastern China[J]. SCIENTIA GEOGRAPHICA SINICA, 2016, 36(5): 787-793.

图/表 4

参考文献 19

[1]	Pettorelli N,Vik J O,Mysterud A et al. Using the satellite-derived NDVI to assess ecological responses to environmental change[J]. Trends in Ecology and Evolution, 2005, 20(9): 503-510.
[2]	陈利军,刘高焕,冯险峰.遥感在植被净第一生产力研究中的应用[J].生态学杂志,2002,21(2):53-57.
	[Chen Lijun, Liu Gaohuan, Feng Xianfeng.Advances in study on net primary productivity of vegetation using remote sensing. Chinese Journal of Ecology,2002,21(2): 53-57.]
[3]	刘琳,李月臣,朱翠霞, 等.2001~2010年重庆地区植被NPP时空变化特征及其与气候因子的关系[J].遥感信息, 2013,28(5):99-108.
	[Liu lin, Li Yuechen, Zhu Cuixiaet al.The spatio-temporal variation characteristics of vegetation NPP in Chongqing and its relation with climatic factors from 2001 to 2010. Romete Sensing Information, 2013, 28(5):99-108.]
[4]	李登科,范建忠,王娟.基于MOD17A3的陕西省植被NPP变化特征[J].生态学杂志,2011,30(12): 2776-2782.
	[Li Dengke, Fan Jianzhong, Wang Juan.Variation characteristics of vegetation net primary productivity in Shaanxi Province based on MO17A3.Chinese Journal of Ecology, 2011, 30(12): 2776-2782.]
[5]	崔林丽,史军,唐娉,等.中国陆地净初级生产力的季节变化研究[J].地理科学进展,2005,24(3):8-16.
	[Cui Linli,Shi Jun,Tang Ping et al.Searonal change of terrestrial net primary productivity in China. Progress in Geography, 2005, 24(3): 8-16.]
[6]	Zhang Yili, Qi Wei, Zhou Caiping et al. Spatial and temporal variability in the net primary production of alpine grassland on the Tibetan Plateau since 1982[J]. J.Geogr.Sci., 2014, 24(2): 269-287.
[7]	张福平,冯起,李旭谱,等.黑河流域NPP遥感估算及其时空变化特征[J].中国沙漠,2014,34(6):1-8.
	[Zhang Fuping, Feng Qi, Li Xupu et al. Estimation of NPP in the Heihe River Basin using remote sensing and analysis of the spatial-temporal characteristics. Journal of Desert Research, 2014, 34(6):1-8.]
[8]	潘学平,冯朝阳,刘乙淼.呼伦贝尔森林草原交错区近30年NPP动态与气象因子的相关性研究[J].干旱区资源与环境,2015,29(3):103-107.
	Pan Xueping, Feng Chaoyang, Liu Yimiao.Correlations between NPP dynamic and climatic factors of nearly 30 years in Hulunbeier grass staggered district. Journal of Arid Land Resources and Environment, 2015, 29(3):103-107.]
[9]	朱明明,侯西勇,毋亭.基于MODIS NDVI的中国东部植被覆盖时空变化特征[J].遥感技术与应用,2013, 28(6):1027-1032.
	[Zhu Mingming, Hou Xiyong, Wu Ting.Spatio-temporal characters of vegetation cover in the Eastern China based on MODIS NDVI.Remote Sensing Technology and Application, 2013, 28(6):1027-1032.]
[10]	Cui Linli, Shi Jun.Temporal and spatial response of vegetation NDVI to temperature and precipitation in eastern China[J]. J. Geogr. Sci., 2010, 20(2):163-176.
[11]	崔林丽,史军.中国华东及其周边地区NDVI对气温和降水的月际响应特征[J].自然资源学报,2011,26(12): 2121-2130.
	[Cui Linli, Shi Jun.Inter-monthly response characteristics of NDVI to the variation of temperature and precipitation in East China and its surrounding areas.Journal of Natural Resources,2011,26(12): 2121-2130.]
[12]	神祥金,周道玮,李飞,等.中国草原区植被变化及其对气候变化的响应[J].地理科学,2015,35(5): 622-629.
	[Shen Xiangjin, Zhou Daowei, Li Fei et al. Vegetation change and its response to climate change in grassland region of China[J]. Scientia Geographica Sinica, 2015, 35(5): 622-629.]
[13]	白建军,白江涛,王磊.2000~2010年陕北地区植被NDVI时空变化及其与区域气候的关系[J].地理科学,2014,34(7): 882-888.
	[Bai Jianjun, Bai Jiangtao, Wang Lei et al. Spatio-temporal change of vegetation NDVI and its relations with regional climate in Northern Shaanxi Province in 2000-2010. Scientia Geographica Sinica, 2014, 34(7): 882-888.]
[14]	李学梅,任志远,张翀.气候因子和人类活动对重庆市植被覆盖变化的影响分析[J].地理科学,2013,33(11): 1390-1394.
	[Li Xuemei, Ren Zhiyuan, Zhang Chong.Spatio-temporal change of vegetation cover in Chongqing city impacts of climate factors and human activities. Scientia Geographica Sinica,2013,33(11): 1390-1394.]
[15]	张清雨,赵东升,吴绍洪,等.基于生态分区的内蒙古地区植被覆盖变化及其影响因素研究[J].地理科学,2013,33(5): 594-601.
	[Zhang Qingyu, Zhao Dongsheng, Wu Shaohong et al. Research on vegetaion changes and influence factors based on eco-geographical regions of Inner Mongolia. Scientia Geographica Sinica, 2013, 33(5): 594-601.]
[16]	中国科学院中国植被图编辑委员会.1∶1 000 000中国植被图集[M].北京:科学出版社,2001.
	[Editorial Committee of China vegetation map, Chinese Academy of Sciences. 1∶1 000 000 Chinese Vegetation Atlas. Beijing: Science Press, 2001.]
[17]	Yang Ning, Ji Degang, Li Shuangjin.The application of Pearson correlational analysis method in air quality analysis of Beijing-Tianjin-Hebei region[J].Agricultural Science & Technology, 2015, 16(3): 590-592.
[18]	毛德华,王宗明,韩佶兴,等.1982~2010年中国东北地区植被NPP时空格局及驱动因子分析[J].地理科学,2012,32(9): 1106-1111.
	[Mao Dehua, Wang Zongming, Han Jixing et al. Spatio-temporal pattern of net primary productivity and its driven factors in northeast China in 1982-2010. Scientia Geographica Sinica,2012,32(9): 1106-1111.]
[19]	司东,丁一汇,柳艳菊.中国梅雨雨带年代际尺度上的北移及其原因[J].科学通报,2010,55(1):68-73.
	[Si Dong, Ding Yihui, Liu Yanju.Decadal northward shift of the Meiyu belt and the possible cause. Chinese Science Bull, 2010, 55(1): 68-73.]
