黄土高原区不同降水相态的时空变化

doi:10.13249/j.cnki.sgs.2016.08.014

地理科学 ›› 2016, Vol. 36 ›› Issue (8): 1227-1233.doi: 10.13249/j.cnki.sgs.2016.08.014

黄土高原区不同降水相态的时空变化

刘原峰¹(), 朱国锋^1,²(), 赵军¹, 李倩¹, 胡鹏飞¹, 王凯¹, 潘汉雄¹

1.西北师范大学地理与环境科学学院,甘肃兰州 730070
2.中国科学院寒区旱区环境与工程研究所冰冻圈科学国家重点实验室,甘肃兰州 730000

收稿日期:2015-06-23 修回日期:2015-11-11 出版日期:2016-08-20 发布日期:2016-08-20
作者简介:
作者简介：刘原峰(1988-),男,甘肃镇原人,硕士,主要从事遥感与地理信息研究。E-mail:liuyf715@126.com
基金资助:
国家自然科学基金（41661005, 41271133, 41273010）、中国博士后科学基金(2016T90961, 2015M570864)、中国科学院冰冻圈科学国家重点实验室开放基金(SKLCS-OP-2014-11)、西北师范大学青年教师科研能力提升计划项目(NWNU-LKQN-13-10)、国家重大科学研究计划项目(2013CBA01808)资助

Spatial and Temporal Variation of Different Precipitation Type in the Loess Plateau Area

Yuanfeng Liu¹(), Guofeng Zhu^1,²(), Jun Zhao¹, Qian Li¹, Pengfei Hu¹, Kai Wang¹, Hanxiong Pan¹

1.College of Resources and Environmental Sciences, Lanzhou Uniwersity, Lanzhou 730070, Gansu, China
2.State Key Laboratory of CryosphereScience,Cold and Arid Regions Environmental and Engineering Research Institute, Chinese Academy of Sciences, Lanzhou 730000, Gansu, China

Received:2015-06-23 Revised:2015-11-11 Online:2016-08-20 Published:2016-08-20
Supported by:
National Natural Science Foundation of China (41661005, 41271133, 41273010) , Chinese Postdoctoral Science Foundation (2016T90961, 2015M570864), Open-ended Fund of State Key Laboratory of Cryosphere Sciences, Chinese Academy of Sciences (SKLCS-OP-2014-11),Project of the Northwest Normal University Young Teachers Scientific Research Ability Promotion Plan (NWNU-LKQN-13-10), Project of Major National Research Projects of China (2013CBA01808)

摘要/Abstract

摘要：

以1960~2013年黄土高原区及周边58个气象站的地面逐日降水数据为基础,对黄土高原区不同降水相态的时空分布特征进行了分析,研究表明：黄土高原区雨、雪分界线在35°N附近,以北区域以降雪为主,以南且110°E以西的区域以降雨形态为主。该分界线附近是雨夹雪的多发区。黄土高原区降雨有明显的年际波动,而降雪的波动不是很明显,雨夹雪和雾（露、霜）这几种降水相态年际波动较小且趋势一致。液态降水、降雪呈减少趋势,雪、雨夹雪、雾（露、霜）呈增加趋势。雪、雨夹雪、雾（露、霜）均存在显著的准30 a的振荡周期,此外,这4种降水相态还存在15 a、10~12 a、5 a中小尺度的周期。

关键词: 黄土高原, 降水相态, 时空分布, 震荡周期

Abstract:

Base on the data of daily precipitation of 58 meteorological stations in Loess Plateau Region, the temporal and spatial variations of different precipitation phases were analyzed in Loess Plateau Region. The results show that line of 35°N is the delimitation boundary of main snow region and rain region; the region to the north of 35°N is the snow region, the region to the south of 35°N and to the east of 110°E is main rain region. Besides, along the 35°N and 110°E, the sleet occurs frequently. The rains in Loess Plateau Area have obvious and different inter-annual fluctuations, but the snow is not very obvious. Except rain and snow, the fluctuation frequencies of sleet, fog (dew, frost) were weak and tend to the same. The station-days of all these recipitation phases (rain sleet fog dew frost) have remarkable 30 a periods. Besides, there were also 5 a, 10 a and quasi 15 a periods to different precipitation phases.

Key words: Loess Plateau Area, precipitation phases, spatial and temporal variation, station-days

中图分类号:

P467

刘原峰, 朱国锋, 赵军, 李倩, 胡鹏飞, 王凯, 潘汉雄. 黄土高原区不同降水相态的时空变化[J]. 地理科学, 2016, 36(8): 1227-1233.

Yuanfeng Liu, Guofeng Zhu, Jun Zhao, Qian Li, Pengfei Hu, Kai Wang, Hanxiong Pan. Spatial and Temporal Variation of Different Precipitation Type in the Loess Plateau Area[J]. SCIENTIA GEOGRAPHICA SINICA, 2016, 36(8): 1227-1233.

图/表 5

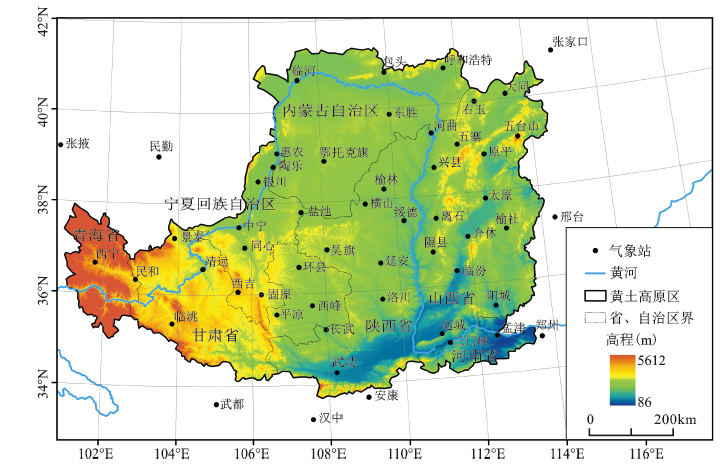

图1

图2

图3

图4

表1

参考文献 28

[1]	Loth B, Graf H F, Oberhuber J M. Snow cover model for global climate simulations[J].Journal of Geophysical Research-atmospheres.1993, (1984-2012)98, 10451-10464. doi: 10.1029/93JD00324
[2]	Zhang T J.Influence of the seasonal snow cover on the ground thermal regime: An overview[J].Reviews of Geophysics, 2005, 43, doi: 10.1029/2004RG000157. doi: 10.1029/2004RG000157
[3]	Vavrus S.The role of terrestrial snow cover in the climate system[J]. Climate Dyn, 2007, 29:73-88. doi: 10.1007/s00382-007-0226-0
[4]	Wu B Y, Yang K, Zhang R H.Eurasian snow cover variability and its association with summer rainfall in China[J]. Advances in Atmospheric Sciences, 2009, 26:31-44. doi: 10.1007/s00376-009-0031-2
[5]	WMO. Reducing and managing risks of disasters in a changing climate[J]. WMO Bulletin, 2013, 62(Special Issue): 23-31.
[6]	王春乙, 王石立, 霍治国,等. 近10年来中国主要农业气象灾害监测预警与评估技术研究进展[J].气象学报, 2005, 5:659-671. doi: 10.11676/qxxb2005.064
	[Wang Chunyi, Wang Shili, Huo Zhiguo et al. Progress in research of agro-meteorological disasters in China in recent decade. Acta Meteorologica Sinica, 2005, 5:659-671.] doi: 10.11676/qxxb2005.064
[7]	刘彤, 闫天池. 我国的主要气象灾害及其经济损失[J].自然灾害学报, 2011, 2:90-95.
	[Liu Tong, Yan Tianchi.Main meteorological disasters in China and their economic loss. Journal of Natural Disasters, 2011, 2:90-95.]
[8]	张朝, 王品, 陈一,等. 1990年以来中国小麦农业气象灾害时空变化特征[J]. 地理学报,2013,11:1453-1460. doi: 10.11821/dlxb201311001
	[Zhang Zhao, Wang Pin, Chen Yi et al.Spatio-temporal changes of agrometrorological disasters forwheat production across China since 1990. Acta Geographica Sinica, 2013, 11:1453-1460.] doi: 10.11821/dlxb201311001
[9]	孙燕, 尹东屏, 顾沛澍,等.华东地区冬季不同降水相态的时空变化特征[J].地理科学, 2014, 34(3):370-376.
	[Sun Yan, Yin Dongping, Gu Peishu et al.The spatial and temporal variations of different precipitation phases in eastern China during winter. Scientia Geographica Sinica, 2014,34(3):370-376.]
[10]	董文杰, 韦志刚, 范丽军,等.青藏高原东部牧区雪灾的气候特征分析[J].高原气象,2001, 4:402-406.
	[Dong Wenjie, Wei Zhigang,Fan Lijun et al. Climatic character analyses of snow disasters in east Qinghai-Xizang plateau livestock farm. Plateau Meteorology, 2001, 4:402-406.]
[11]	郝璐, 王静爱, 满苏尔, 等. 中国雪灾时空变化及畜牧业脆弱性分析[J].自然灾害学报,2002,4:42-48.
	[Hao Lu, Wang Jingai,Man Suer et al. Spatio-temporal change of snow disaster and analysis ofvulnerability of animal husbandry in China. Journal of Natural Disasters, 2002, 4: 42-48.]
[12]	LiuFenggui, Mao Xufeng, Zhang Yili. Risk analysis of snow disaster in the pastoral areasof the Qinghai-Tibet Plateau[J]. Journal of Geographical Sciences, 2014, 3: 411-426. doi: 10.1007/s11442-014-1097-z
[13]	Brooks C F.The nature of sleet and how it is Formed[J]. Mon Wedrew. 1920, 48:69-73. doi: 10.1175/1520-0493(1920)482.0.CO;2
[14]	Wagner J A.Mean temperature from 1000mb to 500mb as a predictor of precipitation type[J].Bulletin of American Meteorological Society. 1957, 38: 584-590.
[15]	Vali G.Freezing rate due to heterogeneous nucleation.[J]. Journal of the Atmospheric Sciences, 1994, 51(13):1843-1856. doi: 10.1175/1520-0469(1994)0512.0.CO;2
[16]	Czys R R, Scott R W, Tang K C et al.A physically based, no dimensional parameter for discriminating between locations of freezing rain and ice pellets[J]. Wea Forecasting,1996, 11(4):591-598. doi: 10.1175/1520-0434(1996)011<0591:APBNPF>2.0.CO;2
[17]	苗爱梅,董文晓,贾利冬,等.近30a山西不同相态降水的统计特征及概念模型[J].干旱气象, 2014, 32(1):23-31.
	[Miao Aimei, Dong Wenxiao,JaLidong et al. The statistical characteristics and conceptual model of different phase precipitation in recent 30 years in Shanxi province. Journal of Arid Meteorology, 2014, 32(1): 23-31.]
[18]	孙继松, 梁丰, 陈敏,等. 北京地区一次小雪天气过程造成路面交通严重受阻的成因分析[J].大气科学, 2003, 27(6):1057-1066. doi: 10.3878/j.issn.1006-9895.2003.06.09
	[Sun Jisong, Liang Feng,Chen Min et al. An analysis on serious city traffic trouble caused by light snow. Chinese Journal of Atmospheric Sciences, 2003,27(6):1057-1066.] doi: 10.3878/j.issn.1006-9895.2003.06.09
[19]	钟爱华,周泓,黄慧君,等. 低纬高原2013年一次寒潮天气过程不同相态降水诊断分析[J].安徽农业科学,2015,10:210-215.
	[ZhongAihua, Zhou Hong, Huang Huijunet al. Different phase precipitation diagnostic analysis in a cold synoptic process of latitude plateau in 2013. Journal of Anhui Agriculture Science, 2015, 10:210-215.]
[20]	孙晶, 王鹏云, 李想, 等.北方两次不同类型降雪过程的微物理模拟研究[J].气象学报,2007, 65(1):30-44. doi: 10.11676/qxxb2007.003
	[Sun Jing, Wang Pengyun,Li Xiang et al. Numerical study on microphysical processes of two different snowfall cases in north china. Acta Meteorological Sinica,2007, 65(1):30-44.] doi: 10.11676/qxxb2007.003
[21]	李江波, 李根娥, 裴雨杰, 等. 一次春季强寒潮的降水相态变化分析[J].气象, 2009, 35(7):87-94.
	[Li Jiangbo, Li Gene,Pei Yujie et al. Analysis on the phase transformation of precipitation during a strong cold wave happened in spring, Meteorological Monthly, 2009, 35(7):87-94.]
[22]	王清川, 寿绍文, 许敏, 等. 河北省廊坊市初冬雨雪相变特征及预报指标初探[J].干旱气象,2012,30(2):276-282. doi: 10.3969/j.issn.1006-7639.2012.02.021
	[WangQingchuan, ShouShaowen, Xu Minet al. Analysis on phase transformation characteristic of rainfall and its prediction index in Langfang of Hebei province in early winter. Journal of Arid Meteorology, 2012, 30(2): 276-282.] doi: 10.3969/j.issn.1006-7639.2012.02.021
[23]	孙欣, 蔡芗宁, 陈传雷, 等. “070304”东北特大暴雪的分析[J].气象,2013,37(7):863-870.
	[Sun Xin, CaiXiangning, Chen Chuanlei. Analysis of the 4 march 2007 heavy snowstorm in northeast China. Meteorological Monthly, 2013,37(7):863-870.]
[24]	漆梁波, 张瑛. 中国东部地区冬季降水相态的识别判据研究[J].气象,2012,38(1):96-102. doi: 10.7519/j.issn.1000-0526.2012.1.011
	[Qi Liangbo, ZhangYing. Research on winter precipitation types discrimination criterion in eastern China. Meteorological Monthly, 2012,38(1): 96-102.] doi: 10.7519/j.issn.1000-0526.2012.1.011
[25]	杨成芳, 姜鹏, 张少林, 等.山东冬半年降水相态的温度特征统计分析[J].气象,2013,39(3):355-361. doi: 10.7519/j.issn.1000-0526.2013.03.010
	[Yang Chengfang, Jiang Peng, Zhang Shaolin.Analysis on temperature of precipitation types in cold seasons in Shandong. Meteorological Monthly, 2013, 39(3):355-361.] doi: 10.7519/j.issn.1000-0526.2013.03.010
[26]	王会军, 姜大膀.一个新的东亚冬季风强度指数及其强弱变化之大气环流场差异[J]. 第四纪研究, 2004, 24(1): 19-27.
	[Wang Huijun, Jiang Dabang.A new east Asian winter monsoon intensity index and atmospheric circulation comparison between strong and weak composite. Quaternary Sciences. 2004,24(1):19-27.]
[27]	王绍武. 中国冷冬的气候特征[J].气候变化研究进展, 2008, 4(2):68-72. doi: 10.3969/j.issn.1673-1719.2008.02.002
	[Wang Shaowu.Climatological aspects of severe winters in China. Advances in Climate Change Research, 2008, 4(2):68-72.] doi: 10.3969/j.issn.1673-1719.2008.02.002
[28]	施能, 鲁建军, 朱乾根. 东亚冬、夏季风百年强度指数及其气候变化[J]. 南京气象学院学报, 1996, 2:168-177. doi: 10.1007/s00376-997-0061-6
	[Shi Neng, Lu Jianjun, Zhu Qiangen.East Asian winter/summer monsoon intensity indices with their climatic change in 1873-1989. Journal of Najing Institute of Meteorology,1996,2:168-177.] doi: 10.1007/s00376-997-0061-6

	降雨	降雪	雨夹雪	雾露霜
东亚冬季风指数	-0.247	0.401^*	0.504^*	0.411
东亚季风指数	0.363	0.132	0.144	0.181
亚洲极涡面积指数	-0.133	0.635^**	0.372^*	0.574^**
亚洲区极涡强度指数	0.508^**	0.433	0.351	0.107
亚洲纬向环流指数	0.389	0.294	0.204	0.399
亚洲经向环流指数	0.476^*	0.573^**	0.349^*	0.274
