中国区域信息空间和人口空间的耦合关联分析

doi:10.13249/j.cnki.sgs.2016.10.004

摘要/Abstract

摘要：

从流动空间角度出发,建立基于关系测度的空间耦合模型,采用复杂网络分析方法和灰色关联分析方法深入探讨区域信息空间和人口空间的耦合格局。研究发现信息空间和人口空间的耦合网络呈现“核心-边缘”模式,北京、上海、广东、天津、新疆和甘肃等耦合核心省市在整个省市内占据主导地位,是其他省市耦合发展所依附的核心。全国省市信息空间和人口空间耦合分布的总体布局呈现“川”型特征,分为高耦合协调型、中耦合磨合型以及低耦合发展型。信息空间和人口空间的耦合主要分为高耦合协调型、中耦合磨合型以及低耦合发展型3种,其中空间的高耦合程度一方面响应了国家加快推进互联互通建设的发展战略,另一方面也是京津冀一体化以及建设丝绸之路经济带的必然结果。

关键词: 信息空间, 人口空间, 耦合, 复杂网络, 灰色关联分析

Abstract:

In the context of informatization, the information system and the population system interact with each other, and the information elements and the demographic factors affect the regional development more and more deeply. Therefor the study on the coupling of information space and population space could provide the government departments with scientific decision for regional development layout. From the perspective of the flow space, a spatial coupling model based on relations measurement is established in this paper. What’s more, complex network analysis and gray correlation analysis are used to discuss the characteristics of the coupling and coupling pattern. The results show that the coupling network of the population space and information space presents "core - periphery" model. As central provinces, Beijing, Shanghai, Guangdong, Tianjin, Xinjiang and Gansu provinces dominate in all provinces, which are attached cores of the other provinces. On the one hand, a coupling degree responses to the national strategy of interoperability, on the other hand it is the inevitable result of the integration of Beijing, Tianjin, and construction of the Silk Road economic belt. All the provinces are divided high coupling coordination group, running coupling group and low coupling development group.

Key words: information space, population space, coupling, complex networks, grey relational analysis

中图分类号:

F119.9

王宁宁, 陈锐, 赵宇, 钟少颖. 中国区域信息空间和人口空间的耦合关联分析[J]. 地理科学, 2016, 36(10): 1474-1484.

Wang Ningning, Chen Rui, Zhao Yu, Zhong Shaoying. Grey Associative Analysis of Regional Population Space and Information Space Coupling in China[J]. SCIENTIA GEOGRAPHICA SINICA, 2016, 36(10): 1474-1484.

图/表 13

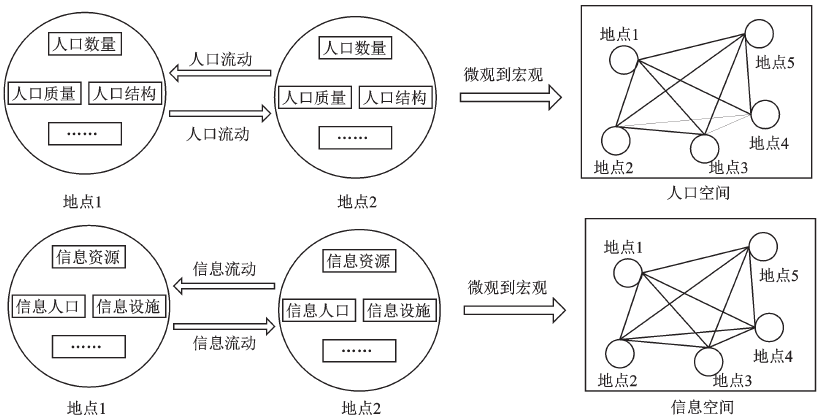

图1

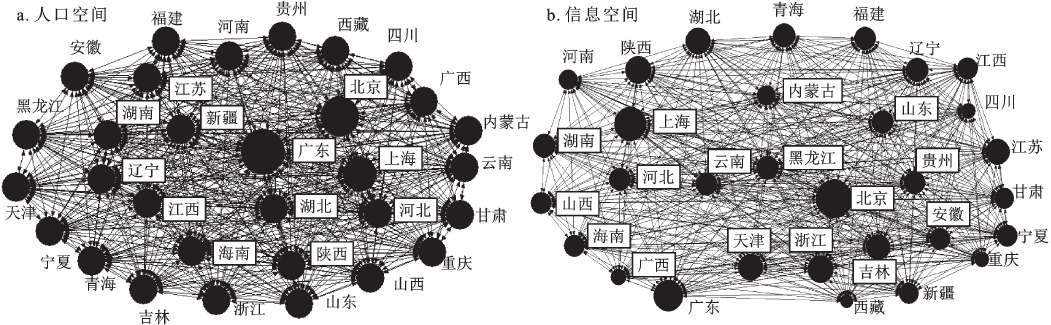

图2

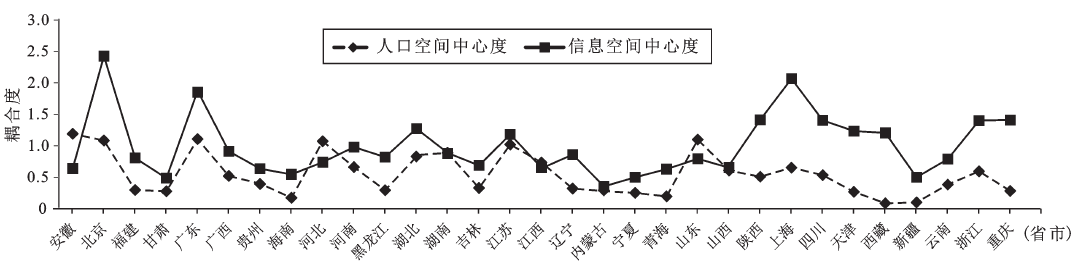

图3

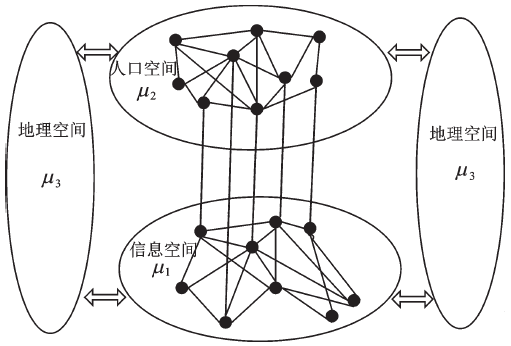

图4

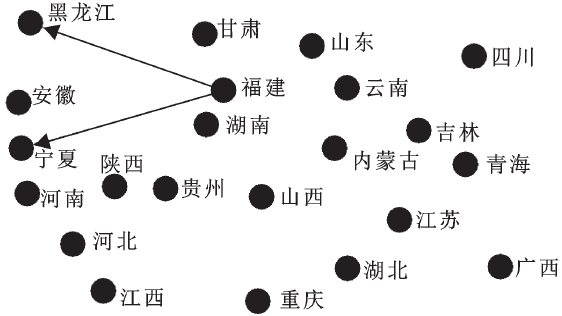

图5

表1

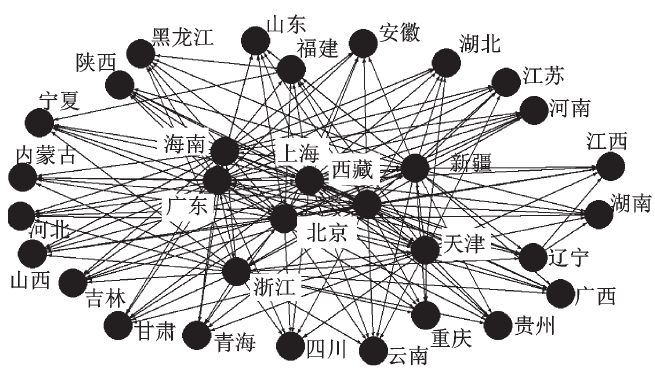

图6

表2

表3

表4

表5

图7

图8

参考文献 38

[1]	邓羽,刘盛和,蔡建明,等. 中国省际人口空间格局演化的分析方法与实证[J]. 地理学报,2014,5(10):34-35. doi: 10.11821/dlxb201410007
	[Deng Yu, Liu Shenghe, Cai Jianming et al. Analysis and demonstration of Chinese provincial population spatial pattern evolution[J]. Acta Geographica Sinica,2014,5(10):34-35.]
[2]	Fan C C.China on the move: migration, the state, and thehousehold[M]. New York: Routledge,2008.
[3]	Gao Y,Huang J,Wang Y,Feng Z et al. Study on the urban eco-economic system of Shenzhen City using energy and wavelet analysis[J].Resources Science,2015,33( 4) : 781-788.
[4]	沈丽珍,甄峰,席广亮. 解析信息社会流动空间的概念、属性与特征[J]. 人文地理,2012,25(4):14-18.
	[Shen Lizhen, Zhen Feng, Xi Guangliang.Analyzing the concert, attributes and characteristics of the attributes of space of flow in the information society. Human Geography,2012,25(4):14-18. ]
[5]	Mohammed Diykh, Yan Li.Complex networks approach for EEG signal sleep stages classification[J]. Expert Systems with Applications, 2016,63(30): 241-248. doi: 10.1016/j.eswa.2016.07.004
[6]	沈丽珍,江昼,于涛.新时期城市空间的流动特征[J].城市问题,2009,167(6):9-14.
	[Shen Lizhen, Jiang Zhou, Yu Tao.Flow characteristics of urban space. Urban Problems,2009,167(6):9-14.]
[7]	孟庆松,韩文秀. 复合系统协调度模型研究[J]. 天津大学学报,2000,33(4):444-446. doi: 10.3969/j.issn.0493-2137.2000.04.008
	[Meng Qingsong, Han Wenxiu.Study of the coordinating measurement model with respect to composite system. Joural of Tian Jin University ,2000,33(4):444-446.]
[8]	何大韧,刘宗华,汪炳红. 复杂系统与复杂网络[M]. 北京:高等教育出版社,2009.
	[He Daren, Liu Zonghua, Wang Binghong.Complex system and complex network. Beijing: Higher Education Press,2009.]
[9]	成为杰. 区域合作的系统耦合模型及现实分析[J]. 华北电力大学学报(社会科学版),2011,15(6):35-41. doi: 10.3969/j.issn.1008-2603.2011.06.007
	[Chen Weijie.Coupling model of regional cooperation and its practical analysis. Journal of North China Electric Power University,2011,15(6):35-41.]
[10]	王国红,贾楠,邢蕊. 创新孵化网络与集群协同创新网络的耦合研究[J]. 科学学与科学技术管理,2013,34(8):74-83.
	[Wang Guohong, Jia Nan, Xing Rui.Study on the coupling of innovation incubation network and collaborative innovation network of clusters. Science of Science and Management of S. &.T. (Monthly) ,2013,34(8):74-83.]
[11]	刘耀彬,李仁东,宋学锋. 中国区域城市化与生态环境耦合的关联分析. 地理学报,2005,60(2): 237-247. doi: 10.3321/j.issn:0375-5444.2005.02.007
	[Liu Yaobin, Li Rendong, Song Xuefeng.Grey associative analysis of regional urbanization and eco-environment coupling in China. acta geographica sinica,2005,60(2): 237-247.]
[12]	Eder P,Narodoslawsky M.What environmental pressures are region's industries responsible for[J]. A method of analysis with descriptive indices and input-output models. Ecological Economics,2015,29( 3) : 359-374.
[13]	刘耀彬,李仁东,宋学锋.中国城市化与生态环境耦合度分析[J].自然资源学报,2005,20(1):105-112. doi: 10.3321/j.issn:1000-3037.2005.01.015
	[ Liu Yaobin, Li Rendong, Song Xuefeng.Analysis of coupling degrees of urbanization and ecological environment in China. Journal of Natural Resources,2005,20(1):105-112. ]
[14]	陈锐,王宁宁,赵宇,等. 基于改进重力模型的省际流动人口的复杂网络分析[J]. 中国人口.资源与环境,2014,24(10):104-111. doi: 10.3969/j.issn.1002-2104.2014.10.015
	[Chen Rui, Wang Ningning, Zhao Yu et al. Complex network analysis of inter-provincial mobile population based on improved gravity model. China population resources and environment,2014,24(10):104-111.]
[15]	王国红,贾楠,邢蕊. 创新孵化网络与集群协同创新网络的耦合研究[J]. 科学学与科学技术管理,2013,34(8):74-83.
	[Wang Guohong, Jia Nan, Xing Rui.Study on the coupling of innovation incubation network and collaborative innovation network of clusters. Science of Science and Management of S. &.T. (Monthly) ,2013,34(8):74-83.]
[16]	Yusuke Idea, Hirofumi Izuharab, Takuya Machidac.Turing instability in reaction-diffusion models on complex networks[J]. Physica A: Statistical Mechanics and its Applications, 2016, 457(1): 331-347.
[17]	丁刚,金少芸. 人口与节约型社会建设间耦合协调发展度及其空间集聚效应研究[J]. 西北工业大学学报(社会科学版),2010,30(3):43-52.
	[Ding Gang, Jin Shaoyun.Population and the economical society construction coupling between the coordinate development and spatial agglomeration effects based on GCPA model and ESDA method. Journal of Northwestern Polytechnical University,2010,30(3):43-52.]
[18]	顾丽娟,曾菊新. 中国区域城乡文化系统耦合关联分析[J]. 经济地理,2013,33(1):86-91.
	[Gu Lijuan, Zeng Juxin.Grey associative analysis of regional urban-rural coupling in China. Economic Geography ,2013,33(1):86-91]
[19]	吴文恒,牛叔文. 甘肃省人口与资源环境耦合的演进分析[J]. 中国人口科学,2006,2(1):81-86. doi: 10.3969/j.issn.1000-7881.2006.02.008
	[Wu Wenheng, Niu Shuwen.Evolutional analysis of coupling between population, Resources and Environment in Gansu Province. Chinese Journal of Population Science,2006,2(1):81-86.]
[20]	Aschauer D A.Is public expenditure productive[J]. Journal of Monetary Economics, 1989,23:177-200.
[21]	许振宇,贺建林. 湖南省生态经济系统耦合状态分析[J]. 资源科学,2008,30( 2) : 185-191 doi: 10.3321/j.issn:1007-7588.2008.02.004
	[Xu Zhenyu, He Jianlin.Analysis of coupling status between ecological system and economic system in hunan province. Resources Science,2008,30( 2) : 185-191.]
[22]	王维国,杨晓华. 我国人口素质与经济协调发展关系的实证研究[J]. 西北人口,2006,1(2 ): 26-28 . doi: 10.3969/j.issn.1007-0672.2006.02.013
	[Wang Guowei, Yang Xiaohua.An empirical analysis of the coordinated development relationship between population quality and economy in China. Northwest Population Journal,2006,1(2 ): 26-28 .]
[23]	李镇清,任继周. 能网自组织与生态系统耦合[ J ] .草业学报,1995 ,2( 6 ) :6-7.
	[Li Zhenqing, Ren Jizhou.Self-organization of energy web and ecosystems coupling. Acta Pratacultural Science,1995 ,2( 6 ) :6-7. ]
[24]	Gao Y,Huang J,Wang Y et al. Study on the urban eco-economic system of Shenzhen City using energy and wavelet analysis[J].Resources Science,2011,33( 4) : 781-788.
[25]	Eder P,Narodoslawsky M.What environmental pressures are region's industries responsible for[J]. A method of analysis with descriptive indices and input-output models. Ecological Economics,1999,29( 3) : 359-374.
[26]	Xu Z Y,He J L.Analysis of coupling status between ecological system and economic system in Hunan Province. Resources Science,2008,30( 2) : 185-191. doi: 10.3724/SP.J.1011.2008.00482
[27]	毕其格,宝音,李百岁. 内蒙古人口结构与区域经济耦合的关联分析[J]. 地理研究,2007,26(5):996-1005. doi: 10.3321/j.issn:1000-0585.2007.05.016
	[Bi Qige, Bao Yin, Li Baisui.Relevancy analysis of the coupling between population structure and regional economy in Inner Mongolia. Geographical Research,2007,26(5):996-1005.]
[28]	王介勇,吴建寨. 黄河三角洲区域生态经济系统动态耦合过程及趋势[J]. 生态学报,2012,32(15):4862-4869.
	[Wang Jieyong, Wu Jianzhai.Analysis of the dynamic coupling processes and trend of regional eco-economic system development in the Yellow River Delta. Acta Ecologica Sinica,2012,32(15):4862-4869.]
[29]	陈锐,王宁宁,赵宇,等. 基于改进重力模型的省际流动人口的复杂网络分析[J]. 中国人口.资源与环境,2014,24(10):104-111. doi: 10.3969/j.issn.1002-2104.2014.10.015
	[Chen Rui, Wang Ningning, Zhao Yu et al. Complex network analysis of inter-provincial mobile population based on improved gravity model. China population resources and environment,2014,24(10):104-111.]
[30]	巴凯斯, 路紫. 从地理空间到地理网络空间的变化趋势:论西方学者关于电信对地区影响的研究[J]. 地理学报, 2000, 55(1): 104-110. doi: 10.3321/j.issn:0375-5444.2000.01.012
	[Ba Sikai, Lu Zi.The change from the geographical space to geocyberspace review on the western scholars on regional effects bye telecommunication. Acta Geographica Sinica, 2000, 55(1): 104-110.]
[31]	路紫, 匙芳, 王然, 等. 中国现实地理空间与虚拟网络空间的比较[J]. 地理科学, 2008, 28(5): 602-609. doi: 10.3969/j.issn.1000-0690.2008.05.003
	[Lu Zi, Chi Fang, Wang Ran et al. Comparison of realistic geo-space and virtual cyberspace in China. Scientia Geographica Sinica, 2008, 28(5): 602-609.]
[32]	黄璜. 全球化视角下的世界城市网络理论[J]. 人文地理,2010,25(4):18-24.
	[Huang Huang.World city network theorises from the global perspective. Human Geography,2010,25(4):18-24.]
[33]	彭文蓄. 灰色趋势关联分析及其应用[D]. 武汉:武汉理工大学,2008.
	[Peng Wenxu.Grey Trend analysis and its applications. Wuhan: Wuhan University of Technology,2008.]
[34]	国家统计局. 中国统计年鉴2014[M]. 北京:中国统计出版社,2014.
	[National Bureau of Statistics. China Statistical Yearbook 2014. Beijing: China Statistics Press,2014.]
[35]	李晨光, 王春新. 基于群决策方法的城市信息化发展水平评估模型[J]. 情报杂志, 2009, 28(3): 204-206. doi: 10.3969/j.issn.1002-1965.2009.z2.070
	[Li Chenguang, Wang Chunxin.City information development level evaluation model based on group decision making. Journal of Intelligence, 2009, 28(3): 204-206.]
[36]	国家统计局城市社会经济调查司. 中国城市统计年鉴(2014)[M]. 北京:中国统计出版社,2014.

[37]	信息年鉴编委会. 中国信息年鉴2014[M]. 北京:《中国信息年鉴》期刊社,2014.
	[Information Yearbook editorial board. China Information Yearbook 2014. Beijing:China Information Yearbook Periodical Press, 2014.]
[38]	中国互联网络信息中心. 中国互联网络发展状况统计报告[[N/OL]]. 2015.1/2015.3.

省市	度值	省市	度值
上海	56.168	甘肃	41.126
北京	54.242	山东	40.922
西藏	51.357	河北	40.686
广东	49.737	内蒙古	39.521
天津	49.694	云南	38.951
新疆	49.193	宁夏	38.662
浙江	48.902	贵州	38.011
海南	46.827	陕西	37.851
江苏	46.640	安徽	37.769
黑龙江	46.443	江西	37.368
吉林	45.666	湖北	37.044
辽宁	44.804	广西	36.678
福建	44.667	河南	36.347
青海	44.595	四川	35.056
山西	42.982	湖南	34.590
重庆	42.255

耦合场	省市
场1	河北内蒙古甘肃山西吉林青海
场2	广东浙江
场3	陕西河南安徽山东海南
场4	宁夏黑龙江福建
场5	西藏辽宁新疆江西湖南
场6	江苏重庆湖北
场7	云南贵州广西上海天津四川北京

耦合场	方差
场1	487935.4
场2	268951.7
场3	654872.6
场4	536987.4
场5	793687.5
场6	236894.3
场7	836972.7

	交通网络矩阵	耦合网络矩阵
交通网络矩阵	1.0000	0.3965
耦合网络矩阵	0.3965	1.0000

省市	区域耦合度	省市	区域耦合度
江苏	0.40623467	重庆	0.31668221
黑龙江	0.40145984	贵州	0.31323327
广东	0.39560877	浙江	0.30891431
新疆	0.38013814	河南	0.30636863
上海	0.37715687	江西	0.30013281
天津	0.36111921	海南	0.29777421
河北	0.3584816	安徽	0.29669868
北京	0.35448066	宁夏	0.29483956
甘肃	0.34934853	广西	0.29452777
山东	0.34925507	福建	0.28934689
山西	0.33474954	内蒙古	0.28196922
辽宁	0.33299472	陕西	0.27392059
吉林	0.3284043	四川	0.26077007
西藏	0.32410597	湖北	0.2589193
云南	0.3195586	湖南	0.21457016
青海	0.31823582
