黑土坡耕地土壤有机质空间变异及其与土壤侵蚀的关系——以黑龙江省鹤山农场为例

doi:10.13249/j.cnki.sgs.2016.11.019

地理科学 ›› 2016, Vol. 36 ›› Issue (11): 1751-1758.doi: 10.13249/j.cnki.sgs.2016.11.019

黑土坡耕地土壤有机质空间变异及其与土壤侵蚀的关系——以黑龙江省鹤山农场为例

刘刚¹(), 闫静雯¹, 谢云¹(), 张珊珊¹, 王翔鹰¹, 王晓岚¹, 高晓飞¹

1.北京师范大学地理学与遥感科学学院地表过程与资源生态国家重点实验室,北京 100875

收稿日期:2015-11-05 修回日期:2016-02-23 出版日期:2016-11-10 发布日期:2016-11-10
作者简介:
作者简介：刘刚（1978-）,男,山东潍坊人,博士,实验师,主要从事土壤侵蚀与土地生产力、作物模型研究。E-mail: liugang@bnu.edu.cn
基金资助:
国家自然科学基金项目（41371271）、水利部公益性行业科研专项经费项目(201501012)资助

Spatial Variation of Soil Organic Matter on Black Soil Sloping Cropland and Its Relationship with Soil Erosion:A Case Study of Heshan Farm in Heilongjiang Province

Gang Liu¹(), Jingwen Yan¹, Yun Xie¹(), Shanshan Zhang¹, Xiangying Wang¹, Xiaolan Wang¹, Xiaofei Gao¹

State Key Laboratory of Earth Surface Processes and Resource Ecology,School of Geography,Beijing Normal University, Beijing 100875, China

Received:2015-11-05 Revised:2016-02-23 Online:2016-11-10 Published:2016-11-10
Supported by:
National Natural Science Foundation of China (41371271),The Public Welfare Industry Special Funds for Scientific Research from Ministry of Water Resources (201501012).

摘要/Abstract

摘要：

选取黑龙江省鹤山农场面积为0.91 km²的典型黑土区的坡耕地作为研究样地。按横纵100 m间隔共采集101个样点,运用地理信息系统和地统计学相结合的方法研究分析0~15 cm土层有机质空间变异及其与土壤侵蚀的关系。结果表明：位于典型黑土区样地的有机质含量集中在3%~5%范围内,均值为4.13%,高于黑龙江省的有机质平均水平。有机质含量空间变异明显,且主要受土壤侵蚀的影响：高侵蚀区对应低有机质区,中度侵蚀区对应中等有机质区,沉积区对应高有机质区。顺坡种植平均坡度2.2°时,每侵蚀1 000 t/km²土壤,有机质含量降低0.8%。土壤有机质空间变异可采用球状模型表达,自相关明显,进一步表明土壤侵蚀导致的再分布。对比分析确定200 m采样间距能够能准确表达该区表层有机质含量的空间特征,为精准施肥提供了采样依据。

关键词: 土壤有机质, 空间变异, 土壤侵蚀强度, 地理信息系统, 地统计学

Abstract:

In order to promote the management of soil fertility and precision agriculture effectively, provide some guidance for the soil and water conservation. A sloping cropland (0.91 km²) located in Heshan farm in Heilongjiang Province was selected as the research area,101 samples were collected by vertical and horizontal 100 m interval, for the study of spatial distribution of soil organic matter of the 0-15 cm top layer soil and the relation with soil erosion by the GIS and geostatistics math methods. The results showed that the average content of soil organic matter in typical black soil area was 4.13%, higher than the average level of Heilongjiang Province, and the proportion of organic matter content concentrated in the 3%-5%. Spatial variability of organic matter significantly which was mainly affected by soil erosion. High erosion area corresponds to low organic matter, erosion area in the corresponding medium organic matter content areas and sedimentary areas correspond to areas with high organic matter content. When the slope planted with an average gradient of 2.2°, per 1 000 t/km² soil erosion increased, accompanied with the content of organic matter will be reduced by 0.8%. The spatial variability of organic matter could be described by the spherical model, showed significantly spatial autocorrelation, further suggested that soil erosion causes the redistribution of soil organic matter. When the sampling interval is 200 m which based on the range, the interpolation of spatial distribution can accurately reflect spatial variability of organic matter content, to provide precision fertilizer sampling basis.

Key words: soil organic matter, spatial variation, soil erosion, GIS, Geostatistics

中图分类号:

S156.6⁺21

刘刚, 闫静雯, 谢云, 张珊珊, 王翔鹰, 王晓岚, 高晓飞. 黑土坡耕地土壤有机质空间变异及其与土壤侵蚀的关系——以黑龙江省鹤山农场为例[J]. 地理科学, 2016, 36(11): 1751-1758.

Gang Liu, Jingwen Yan, Yun Xie, Shanshan Zhang, Xiangying Wang, Xiaolan Wang, Xiaofei Gao. Spatial Variation of Soil Organic Matter on Black Soil Sloping Cropland and Its Relationship with Soil Erosion:A Case Study of Heshan Farm in Heilongjiang Province[J]. SCIENTIA GEOGRAPHICA SINICA, 2016, 36(11): 1751-1758.

图/表 10

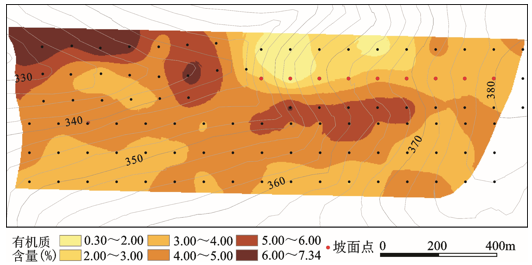

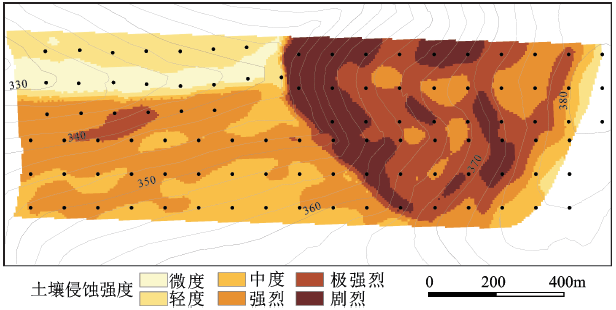

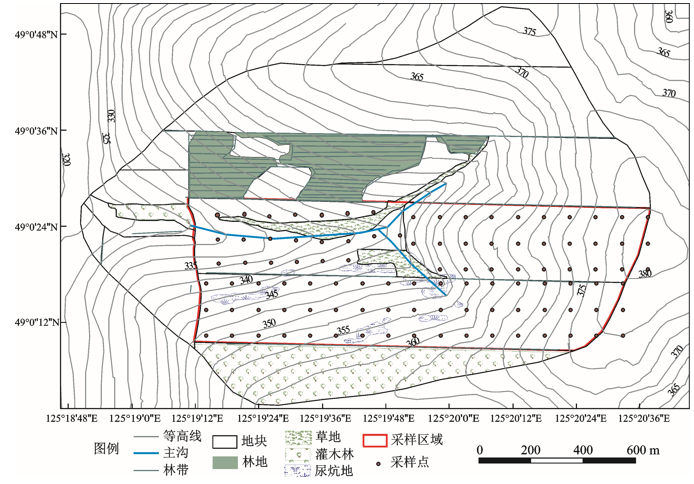

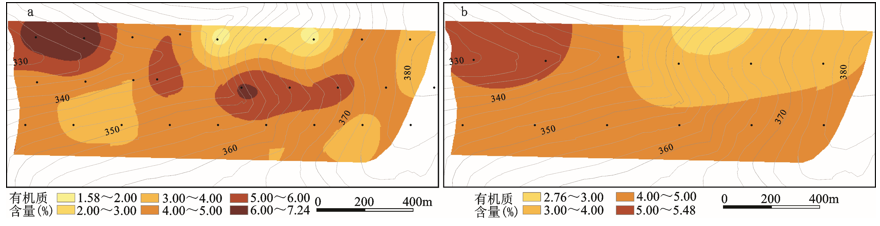

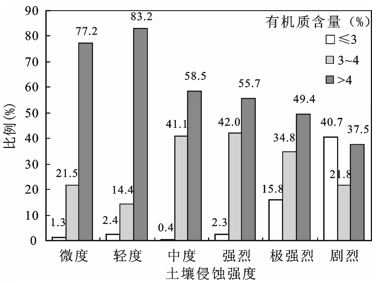

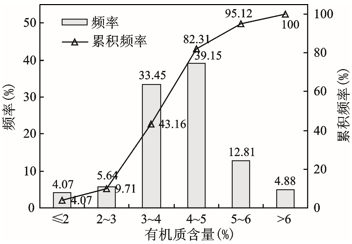

图1

表1

图2

图3

图4

图5

图6

表2

表3

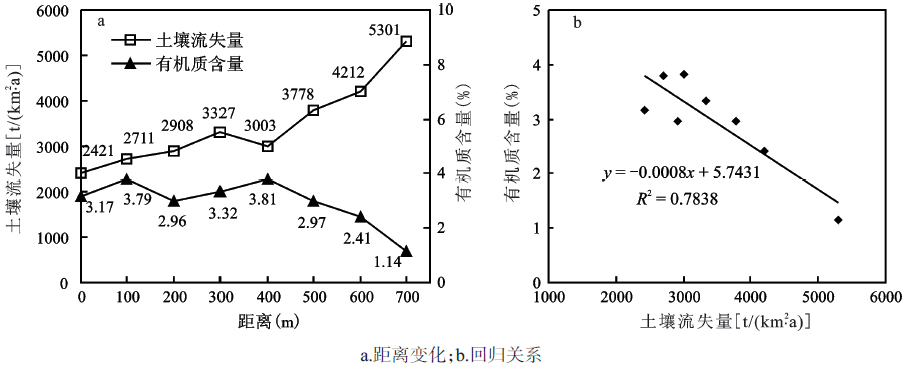

图7

参考文献 25

[1]	Cambardella C A, Moorman T B, Parkin T B et al. Field-scale variability of soil properties in central Iowa soils[J].Soil Science Society of America Journal, 1994,58(5):1501-1511. doi: 10.2136/sssaj1994.03615995005800050033x
[2]	黄平, 李廷轩, 张佳宝, 等. 坡度和坡向对低山茶园土壤有机质空间变异的影响[J]. 土壤, 2009, 41(2): 264-268. doi: 10.3321/j.issn:0253-9829.2009.02.020
	[Huang Ping, Li Tingxuan, Zhang Jiabao et al. Effects of slope’s gradient and aspect on spatial heterogeneity of soil organic matter in low mountainous region. Soils, 2009, 41(2): 264-268.] doi: 10.3321/j.issn:0253-9829.2009.02.020
[3]	程先富, 史学正, 于东升, 等. 江西省兴国县土壤全氮和有机质的空间变异及其分布格局[J].应用与环境生物学报, 2004, 10(1):64-67. doi: 10.3321/j.issn:1006-687X.2004.01.015
	[Cheng Xianfu, Shi Xuezheng, Yu Dongsheng et al. Spatial vatiance and distribution of total nitrogen and organic matter of soil in Xingguo county of Jiangxi,China. Chinese Journal of Applied & Environmental Biology,2004,10(1):64-67.] doi: 10.3321/j.issn:1006-687X.2004.01.015
[4]	Yanai J, Mishima A, Funakawa S et al. Spatial variability of organic matter dynamics in the Semi-Arid croplands of northern Kazakhstan[J]. Soil Science and Plant Nutrition, 2005, 51(2): 261-269. doi: 10.1111/j.1747-0765.2005.tb00030.x
[5]	Cahn M D, Hummel J W, Brouer B H.Spatial analysis of soil fertility for site-specific crop management[J]. Soil Science Society of America Journal, 1994, 58(4): 1240-1248. doi: 10.2136/sssaj1994.03615995005800040035x
[6]	刘国彬. 黄土高原草地植被恢复与土壤抗冲性形成过程Ⅲ土植被恢复对土壤腐殖质物质及水稳性团聚体的影响[J]. 水土保持研究, 1997, 4(5): 122-128.
	[Liu Guobin.Vegetation restoration and improvement process of soil anti-scourability in loess plateau III. Effect of vegetation restoration on soil humus and aggregations. Research of Soil and Water Conservation, 1997, 4(5): 122-128.]
[7]	张兴昌, 邵明安. 水蚀条件下不同土壤氮素和有机质流失规律[J]. 应用生态学报, 2000, 11(2): 231-234.
	[Zhang Xingchang, Shao Mingan.Soil nitrogen and organic matter losses under water erosion. Chinese Journal of Applied Ecology, 2000, 11(2): 231-234.]
[8]	邢培茹, 郑粉莉, 王彬. 典型黑土区坡耕地土壤碱性磷酸酶和有机质空间分布研究[J]. 水土保持研究, 2014, 21(1): 39-42.
	[Xing Peiru, Zheng Fenli, Wang Bin.Spatial distribution of soil alkaline phosphatase activity and soil organic matter on sloping farmlands in typical black soil region. Research of Soil and Water Conservation, 2014, 21(1): 39-42.]
[9]	张孝存, 郑粉莉, 安娟, 等. 典型黑土区坡耕地土壤侵蚀对土壤有机质和氮的影响[J]. 干旱地区农业研究, 2013, 31(4): 182-186. doi: 10.3969/j.issn.1000-7601.2013.04.034
	[Zhang Xiaocun, Zheng Fenli, An Juan et al. Effects of soil erosion on soil organic matter and Nitrogen in sloping farmland in typical black soil region. Agricultural Research in the Arid Areas, 2013, 31(4): 182-186.] doi: 10.3969/j.issn.1000-7601.2013.04.034
[10]	刘宝元, 阎百兴, 沈波, 等. 东北黑土区农地水土流失现状与综合治理对策[J]. 中国水土保持科学, 2008, 6(1): 1-8. doi: 10.3969/j.issn.1672-3007.2008.01.001
	[Liu Baoyuan, Yan Baixing, Shen Bo et al. Current status and comprehensive control strategies of soil erosion for cultivated land in the Northeastern black soil area of China. Science of Soil and Water Conservation, 2008, 6(1): 1-8.] doi: 10.3969/j.issn.1672-3007.2008.01.001
[11]	范昊明, 蔡强国, 王红闪. 中国东北黑土区土壤侵蚀环境[J]. 水土保持学报, 2004, 18(2): 66-70. doi: 10.3321/j.issn:1009-2242.2004.02.017
	[Fan Haoming, Cai Qiangguo, Wang Hongshan.Condition of soil erosion in phaeozem region of Northeast China. Journal of Soil and Water Conservation, 2004, 18(2): 66-70.] doi: 10.3321/j.issn:1009-2242.2004.02.017
[12]	李发鹏, 李景玉, 徐宗学. 东北黑土区土壤退化及水土流失研究现状[J]. 水土保持研究, 2006, 13(3): 50-54. doi: 10.3969/j.issn.1005-3409.2006.03.016
	[Li Fapeng, Li Jingyu, Xu Zongxue.The status quo of black soil degradation and water and soil loss in Northeast China. Research of Soil and Water Conservation, 2006, 13(3): 50-54.] doi: 10.3969/j.issn.1005-3409.2006.03.016
[13]	王玉玺, 解运杰, 王萍.东北黑土区水土流失成因分析[J].水土保持科技情报,2002,(3):27-29. doi: 10.3969/j.issn.1673-5366.2002.03.010
	[Wang Yuxi, XieYunjie, Wang Ping. Soil erosion causes analysis in the Northeastern black soil area of China. Scientific and Technical Information of Soil and Water Conservation, 2002, (3):27-29.] doi: 10.3969/j.issn.1673-5366.2002.03.010
[14]	汪景宽, 王铁宇, 张旭东, 等. 黑土土壤质量演变初探——不同开垦年限黑土主要质量指标演变规律[J]. 沈阳农业大学学报, 2002, 33(1):43-47. doi: 10.3969/j.issn.1000-1700.2002.01.012
	[Wang Jingkuan,Wang Tieyu,Zhang Xudong et al. An approach to the changes of black soil quality—Changes of the indices of black soil with the year(s) of reclamation. Journal of Shenyang Agricultural University, 2002, 33(1): 43-47.] doi: 10.3969/j.issn.1000-1700.2002.01.012
[15]	中华人民共和国国家标准. 水土保持综合治理技术规范坡耕地治理技术[M]. 北京: 中国标准出版社,2009.
	[PRC National Standard.Comprehensive control of soil and water conservation—Technical specification—Technique for erosion control of slope land.Beijing:China Standards Press,2009.]
[16]	Contour Farming [EB/OL].NRCS,NHCP.2013-12..
[17]	中国科学院南京土壤研究所.土壤理化分析[M].上海:上海科学技术出版社,1978.
	[Institute of Soil Science, Chinese Academy of Sciences. Soil physical and chemical analysis. Shanghai:Shanghai Science and Technology Press, 1978.]
[18]	王政权. 地统计学及在生态学中的应用[M]. 北京: 科学出版社, 1999.
	[Wang Zhengquan.Statistics and its application in ecology . Beijing: Science Press, 1999.]
[19]	中华人民共和国水利部. 黑土区水土流失综合防治技术标准[M].北京:中国水利水电出版社, 2009.
	[Ministry of Water Resources of the People’s Republic of China.Techniques standard for comprehensive control of soil erosion in the black soil region.Beijing:China Waterpower Press,2009.]
[20]	Wischmeier W H,Smith D D.Predicting rainfall erosion losses from cropland east of the Rocky Mountains[M]. Washington, D.C: United States Department of Agriculture. Agriculture Handbook, No. 282, 1965.
[21]	全国土壤普查办公室.中国土壤普查数据[M].北京:中国农业出版社, 1996.
	[National soil survey office. China’s soil census data. Beijing: China Agriculture Press,1996.]
[22]	王卫, 李秀彬. 中国耕地有机质含量变化对土地生产力影响的定量研究[J]. 地理科学, 2002, 22(1): 24-28. doi: 10.3969/j.issn.1000-0690.2002.01.005
	[Wang Wei, Li Xiubin.Study on the marginal productivity of cultivated land with change of soil organic matter in China. Scientia Geographica Sinica, 2002, 22(1): 24-28.] doi: 10.3969/j.issn.1000-0690.2002.01.005
[23]	刘秉正, 李光录, 吴发启, 等. 黄土高原南部土壤养分流失规律[J]. 水土保持学报, 1995, 9(2): 77-86.
	[Liu Bingzheng, Li Guanglu, Wu Faqi et al. The regular patterns of the loss of soil nutrients on southern loess plateau. Journal of Soil and Water Conservation, 1995, 9(2): 77-86.]
[24]	Chien Y, Lee D, Guo H et al. Geostatistical analysis of soil properties of mid-west Taiwan soils[J]. Soil Science, 1997, 162(4): 291-298. doi: 10.1097/00010694-199704000-00007
[25]	孙波, 赵其国, 闾国年. 低丘红壤肥力的时空变异[J]. 土壤学报, 2002, 39(2): 190-198. doi: 10.3321/j.issn:0564-3929.2002.02.007
	[Sun Bo, Zhao Jiguo, Lyu Guonian.Spatio-temporal variability of red soil fertility in low hill region. Acta Pedologica Sinica, 2002, 39(2): 190-198.] doi: 10.3321/j.issn:0564-3929.2002.02.007

采样间距 (m)	平均误差	均方差	平均相对误差绝对值（%）
100	0.0077	0.0001	0.26
200	0.5342	0.6505	23.61
300	0.7915	0.9755	30.33
