1982~2013年青藏高原高寒草地覆盖变化及与气候之间的关系

doi:10.13249/j.cnki.sgs.2017.02.016

地理科学 ›› 2017, Vol. 37 ›› Issue (2): 292-300.doi: 10.13249/j.cnki.sgs.2017.02.016

1982~2013年青藏高原高寒草地覆盖变化及与气候之间的关系

陆晴^1,^2,³(), 吴绍洪^1,², 赵东升^1,²

1.中国科学院陆地表层格局与模拟重点实验室,北京 100101
2.中国科学院地理科学与资源研究所,北京 100101
3.中国科学院大学,北京 100049

收稿日期:2016-03-25 修回日期:2016-07-05 出版日期:2017-02-25 发布日期:2017-02-25
作者简介:
作者简介：陆晴 (1986-),女,江西高安人,博士研究生,研究方向为综合自然地理及气候变化等。E-mail：luqing_0920@126.com
基金资助:
国家自然科学基金 (41571193,41530749),“十二五”国家科技支撑计划 (2013BAC04B02) 资助

Variations in Alpine Grassland Cover and Its Correlation with Climate Variables on the Qinghai-Tibet Plateau in 1982-2013

Qing Lu^1,^2,³(), Shaohong Wu^1,², Dongsheng Zhao^1,²

1. Key Laboratory of Land Surface Pattern and Simulation, Chinese Academy of Sciences, Beijing 100101, China
2.Institute of Geographic Sciences and Natural Resources Research, Chinese Academy of Sciences, Beijing 100101, China
3. University of Chinese Academy of Sciences, Beijing 100049, China

Received:2016-03-25 Revised:2016-07-05 Online:2017-02-25 Published:2017-02-25
Supported by:
National Natural Science Foundation of China (41571193,41530749), National Science and Technology Support Program of China during the 12th Five-year Plan Period (2013BAC04B02)

摘要/Abstract

摘要：

利用GIMMS NDVI数据和地面气象站台观测数据,对青藏高原1982~2013年高寒草地覆盖时空变化及其对气象因素的响应进行研究,结果表明：青藏高原高寒草地生长季NDVI表现为从东南到西北逐渐减少的趋势,近32 a来,整个高原草地生长季NDVI呈上升趋势,增加速率为0.000 3/a (p<0.05);高寒草地生长季NDVI年际变化具有空间异质性,整体为增加趋势,呈增加趋势的面积约占研究区域面积的75.3%,其中显著增加的占26.0% （p<0.05）,类型主要为分布在青藏高原东北部地区的高寒草甸;比例为4.7%,草地类型主要为高寒草原,主要分布在高原西部地区;基于生态地理分区的分析显示,青藏高原草地与降水、温度的相关关系具有明显的空间差异,高寒草地生长季NDVI均值与降水呈显著正相关,对降水的滞后效应显著;高原东北部温度较高,热量条件较好,降水为高寒草地生长季NDVI变化的主导因子;东中部地区降水充沛,温度则为高寒草地生长的制约因子;南部地区降水和温度都较适宜,均与高寒草地生长季NDVI相关性显著(p< 0.05),共同作用于草地的生长;中部和西部地区,气候因子与高寒草地生长季NDVI关系均不显著。

关键词: 青藏高原, 高寒草地, NDVI, 气候因子, 生态地理区域

Abstract:

The response of structure and function of terrestrial ecosystem to global climate change has become a major point. Vegetation is an essential component of the terrestrial ecosystem which has proved to be sensitive to climate change. Normalized Difference Vegetation Index (NDVI) is widely recognized as a good indicator of vegetation coverage and productivity, has been widely used to indicate vegetation activity and dynamics, also vegetation growth, ecosystem structure and functions respond to climate change. Climate warming has important influence on the vegetation coverage, and alpine grassland is one of the most significant vegetation type on the Qinghai-Tibet Plateau. This study used GIMMS NDVI data sets and climate data from 40 meteorological stations to investigate spatial and temporal variations of alpine grassland cover and the response of NDVI to climatic variables on the Qinghai-Tibet Plateau in 1982-2013. The results showed that the average growing season NDVI is high in the southeast and low in the northwest. As a whole, the alpine grassland cover tended to increase on the Qinghai-Tibet Plateau, with the rate of 0.000 3/a (p<0.05) in the past 32 years. Spatially, the tendency of alpine grassland NDVI showed great heterogeneity, with the significantly NDVI increased mainly distributed in the northeastern part of Qinghai-Tibet Plateau dominated by alpine meadow which approximates to 26.0% (p<0.05) of the total study area. The area with significantly decreased area accounted for 4.7%, mainly emerged in the western part where the grassland was dominated by alpine steppe. In the regional scale, the variation in alpine grassland cover was more closely related to precipitation than other climate factors. The spatial characteristics of the relationship between growing season NDVI and climatic variables were analyzed based on the eco-geographical regions. Significant lagged correlations between precipitation and seasonal NDVI were found for the alpine steppe. The results suggested that precipitation was the key limit variable in the northeastern part of Qinghai-Tibet Plateau with higher annual mean temperature. But in the eastern and central eco-regions with the more rainfall, temperature could limit the growth of grassland vegetation. In the southern plateau with more precipitation and higher temperature compared with other regions, the correlations between alpine grassland cover and climatic factors were significant positive. The change of alpine grassland cover was not significantly relevant to climatic variables in the middle and western part of Qinghai-Tibet Plateau.

Key words: Qinghai-Tibet Plateau, alpine grassland, NDVI, climatic variables, eco-geographical regions

中图分类号:

K903

陆晴, 吴绍洪, 赵东升. 1982~2013年青藏高原高寒草地覆盖变化及与气候之间的关系[J]. 地理科学, 2017, 37(2): 292-300.

Qing Lu, Shaohong Wu, Dongsheng Zhao. Variations in Alpine Grassland Cover and Its Correlation with Climate Variables on the Qinghai-Tibet Plateau in 1982-2013[J]. SCIENTIA GEOGRAPHICA SINICA, 2017, 37(2): 292-300.

图/表 7

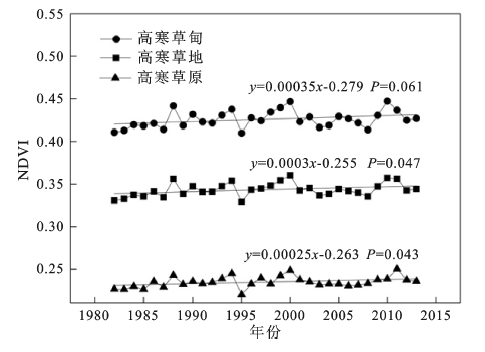

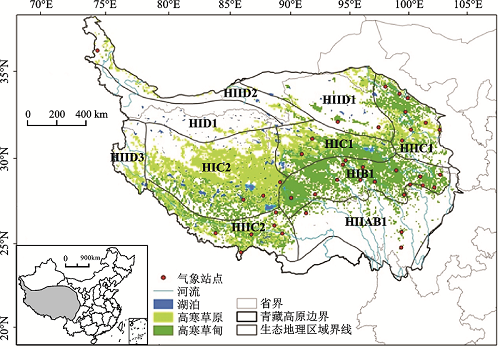

图1

表1

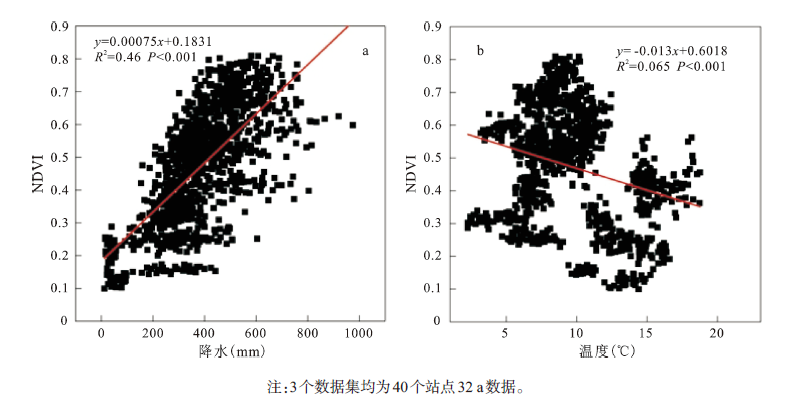

图2

图3

图4

图5

表3

参考文献 36

[1]	Naomi O.The scientific consensus on climate change[J]. Science, 2004, 306(5702): 1686. doi: 10.1126/science.1103618 pmid: 15576594
[2]	秦大河, 丁一汇, 苏纪兰, 等. 中国气候与环境演变评估(I):中国气候与环境变化及未来趋势[J]. 气候变化研究进展, 2005, 1(1): 4-9. doi: 10.3969/j.issn.1673-1719.2005.01.002
	[Qin Dahe, Ding Yihui, Su Jilan et al. Assessment of climate and environment changes in China(II):climate and environment changes in China and their projection. Advances in Climate Change Research, 2005, 1(1): 4-9.] doi: 10.3969/j.issn.1673-1719.2005.01.002
[3]	IPCC. Climate change 2013:the physical science basis:Working Group I contribution to the Fifth assessment report of the Intergovernmental Panel on Climate Change[M]. Cambridge: Cambridge University Press, 2013.
[4]	潘保田, 李吉均. 青藏高原:全球气候变化的驱动机与放大器:Ⅲ.青藏高原隆起对气候变化的影响[J]. 兰州大学学报:自然科学版, 1996, 32(1): 108-115.
	[Pan Baotian, Li Jijun.Qinghai-Tibetan plateau:a driver and amplifier of the global climate change:Ⅲ.the effects of the uplift of Qinghai-Tibetan plateau on climatic changes. Journal of Lanzhou University(Natural Sciences), 1996, 32(1): 108-115.]
[5]	周伟, 刚成诚, 李建龙, 等. 1982-2010年中国草地覆盖度的时空动态及其对气候变化的响应[J]. 地理学报, 2014, 69(1): 15-30. doi: 10.11821/dlxb201401002
	[Zhou Wei, Gang Chengcheng, Li Jianlong et al. Spatial-temporal dynamics of grassland coverage and its response to climate change in China during 1982-2010. Acta Geographica Sinica, 2014, 69(1): 15-30.] doi: 10.11821/dlxb201401002
[6]	孙鸿烈, 郑度. 青藏高原形成,演化与发展[M] . 广州: 广东科技出版社, 1998.
	[Sun Honglie, Zheng Du.Eevolution and development of Qinghai-Tibetan plateau. Guangzhou: Guangdong Science & Technology Press , 1998.]
[7]	Myneni R B, Maggion S, Iaquinta J e et al. Optical remote sensing of vegetation:modeling,caveats,and algorithms[J]. Remote Sensing of Environment, 1995, 51(1): 169-188. doi: 10.1016/0034-4257(94)00073-V
[8]	Myneni R B, Keeling C D, Tucker C J et al. Increased plant growth in the northern high latitudes from 1981 to 1991[J]. Nature, 1997, 386(6626): 698-702.
[9]	Myneni R B, Dong J, Tucker C J et al. A large Carbon sink in the woody biomass of northern forests[J]. Proceedings of the National Academy of Sciences, 2001, 98(26): 14784-14789.
[10]	Nemani R R, Keeling C D, Hashimoto H et al. Climate-driven increases in global terrestrial net primary production from 1982 to 1999[J]. Science, 2003, 300(5625): 1560-1563. doi: 10.1126/science.1082750 pmid: 12791990
[11]	Eastman J R, Sangermano F, Machado E A et al. Global trends in seasonality of normalized difference vegetation index (NDVI), 1982-2011[J]. Remote Sensing, 2013, 5(10): 4799-4818. doi: 10.3390/rs5104799
[12]	PiaoShilong, Wang Xuhui, Ciais Pet al. Changes in satellite-derived vegetation growth trend in temperate and boreal Eurasia from 1982 to 2006[J]. Global Change Biology, 2011, 17(10): 3228-3239. doi: 10.1111/j.1365-2486.2011.02419.x
[13]	Peng Shushi, Chen Anping, Xu Liang et al. Recent change of vegetation growth trend in China[J]. Environmental Research Letters, 2011, 6(4): 44027-44039. doi: 10.1088/1748-9326/6/4/044027
[14]	PiaoShilong, Cui Mengdi, Chen Anpinget al. Altitude and temperature dependence of change in the spring vegetation green-up date from 1982 to 2006 in the Qinghai-Xizang Plateau[J]. Agricultural and Forest Meteorology, 2011, 151(12): 1599-1608. doi: 10.1016/j.agrformet.2011.06.016
[15]	Shao Yang, Lunetta R S, Wheeler B et al. An evaluation of time-series smoothing algorithms for land-cover classifications using MODIS-NDVI multi-temporal data[J]. Remote Sensing of Environment, 2016, 174: 258-265. doi: 10.1016/j.rse.2015.12.023
[16]	Zhao Xia, Hu Huifeng, Shen Haihua et al. Satellite-indicated long-term vegetation changes and their drivers on the Mongolian Plateau[J]. Landscape Ecology, 2015, 30(9): 1599-1611. doi: 10.1007/s10980-014-0095-y
[17]	Shen Miaogen, PiaoShilong, Jeong S J et al. . Evaporative cooling over the Tibetan Plateau induced by vegetation growth[J]. Proceedings of the National Academy of Sciences of the United States of America, 2015, 112(30): 9299-9304. doi: 10.1073/pnas.1504418112 pmid: 26170316
[18]	丁明军, 张镱锂, 刘林山, 等. 1982-2009 年青藏高原草地覆盖度时空变化特征[J]. 自然资源学报, 2010, 25(12): 2114-2122. doi: 10.11849/zrzyxb.2010.12.012
	[Ding Mingjun, Zhang Yili, Liu Linshan et al. Temporal and spatial distribution of grassland coverage change in Tibetan Plateau since 1982. Journal of Natural Resources, 2010, 25(12): 2114-2122.] doi: 10.11849/zrzyxb.2010.12.012
[19]	杨元合, 朴世龙. 青藏高原草地植被覆盖变化及其与气候因子的关系[J]. 植物生态学报, 2006, 30(1): 1-8.
	[Yang Yuange, PiaoShilong. Variations in grassland vegetation cover in relation to climatic factors on the Tibetan Plateau. Journal of Plant Ecology, 2006, 30(1): 1-8.]
[20]	张文江, 高志强. 青藏高原中东部水热条件与NDVI的空间分布格局[J]. 地理研究, 2006, 25(5): 877-886.
	[Zhang Wenjiang, Gao Zhiqiang.Spatial variation of water/thermal elements and NDVI with altitudes in central and eastern Tibetan Plateau. Geographical Research, 2006, 25(5): 877-886.]
[21]	张戈丽, 欧阳华, 张宪洲, 等. 基于生态地理分区的青藏高原植被覆被变化及其对气候变化的响应[J]. 地理研究, 2010, 29(11): 2004-2016. doi: 10.11821/yj2010110009
	[Zhang Geli, Ou yang Hua, Zhang Xianzhou et al. Vegetation change and its responses to climatic variation based on eco-geographical regions of Tibetan Plateau. Geographical Research, 2010, 29(11): 2004-2016.] doi: 10.11821/yj2010110009
[22]	张镱锂, 李炳元, 郑度. 论青藏高原范围与面积[J]. 地理研究, 2002, 21(1): 1-8. doi: 10.3321/j.issn:1000-0585.2002.01.001
	[Zhang Yili, Li Bingyuan, Zheng Du.A discussion on the boundary and area of the Tibetan Plateau in China. Geographical Research, 2002, 21(1): 1-8.] doi: 10.3321/j.issn:1000-0585.2002.01.001
[23]	郑度. 中国生态地理区域系统研究[M]. 北京: 商务印书馆, 2008 .
	[Zheng Du.Study on the eco-geographical region system of China. Beijing: The Commercial Press , 2008.]
[24]	Tucker C J, Pinzon J E, Brown M et al. An extended AVHRR 8-km NDVI dataset compatible with MODIS and SPOT vegetation NDVI data[J]. International Journal of Remote Sensing, 2005, 26(20): 4485-4498. doi: 10.1080/01431160500168686
[25]	Dong Manyu, Jiang Yuan, Zheng Chutao et al. Trends in the thermal growing season throughout the Tibetan Plateau during 1960-2009[J]. Agricultural and Forest Meteorology, 2012, 166: 201-206. doi: 10.1016/j.agrformet.2012.07.013
[26]	Shen Miaogen, PiaoShilong, Su-Jong J et al. Evaporative cooling over the Tibetan Plateau induced by vegetation growth[J]. Proceedings of the National Academy of Sciences, 2015, 112(30): 9299-9304. doi: 10.1073/pnas.1504418112 pmid: 26170316
[27]	侯学煜, 中国科学院中国植被图编辑委员会. 1: 1000000 中国植被图集[M]. 北京: 科学出版社, 2001.
	[HouXueyu, Editorial board of vegetation map of China vegetation atlas of China.Vegetation Atlas of China. Beijing: Science Press, 2001.]
[28]	陈江, 王安建, 黄妙芬. 多种类植被覆盖地区ASTER影像岩石、土壤信息提取方法研究[J]. 地球学报, 2007, 28(1): 86-91. doi: 10.3321/j.issn:1006-3021.2007.01.013
	[Chen Jiang, Wang Anjian, Huang Miaofen.The ASTER imaging rock and Soil information extraction method in multiple vegetations covered areas. Acta Geoscientica Sinica, 2007, 28(1): 86-91.] doi: 10.3321/j.issn:1006-3021.2007.01.013
[29]	第三次气候变化国家评估报告编写委员会. 第三次气候变化国家评估报告[M]. 北京: 科学出版社, 2015.
	[Editorial Board of the Third National Assessment on Climate Change. The third national assessment on climate change. Beijing: Science Press, 2015.]
[30]	Shi Yafeng, Shen Yongping, Kang Ersi et al. Recent and future climate change in northwest China[J]. Climatic Change, 2007, 80(3/4): 379-393. doi: 10.1007/s10584-006-9121-7
[31]	Zhang Li, GuoHuadong, Ji Lei et al. Vegetation greenness trend(2000 to 2009)and the climate controls in the Qinghai-Tibetan Plateau[J]. Journal of Applied Remote Sensing, 2013, 7(1): 073572-073572. doi: 10.1117/1.JRS.7.073572
[32]	Chen Baoxiong, Zhang Xianzhou, Tao Jian et al. The impact of climate change and anthropogenic activities on alpine grassland over the Qinghai-Tibet Plateau[J]. Agricultural and Forest Meteorology, 2014, 189: 11-18.
[33]	Cheng Weiming, Zhao Shangmin, Zhou Chenghu et al. Simulation of the decadal permafrost distribution on the Qinghai-Tibet Plateau (China) over the past 50 years[J]. Permafrost and Periglacial Processes, 2012, 23: 292-300. doi: 10.1002/ppp.1758
[34]	Yi Shuhua, Wang Xiaoyun, Qin Yu et al. Responses of alpine grassland on Qinghai-Tibetan plateau to climate warming and permafrost degradation: a modeling perspective[J]. Environmental Research Letters, 2014, 9(7): 1-12. doi: 10.1088/1748-9326/9/7/074014
[35]	Sun Jian, Qin Xiaojing, Yang Jun.The response of vegetation dynamics of the different alpine grassland types to temperature and precipitation on the Tibetan Plateau[J]. Environmental Monitoring and Assessment, 2016, 188(1): 1-11.
[36]	Zhao Dongsheng, Wu Shaohong, Yin Yunhe et al. Vegetation distribution on Tibetan Plateau under climate change scenario[J]. Regional Environmental Change, 2011, 11(4): 905-915. doi: 10.1007/s10113-011-0228-7

温度带	干旱地区	生态分区
HI 高原亚寒带	B 半湿润地区	H?B1果洛那曲高原山地高寒灌丛草甸区
	C 半干旱地区	H?C1青南高原宽谷高寒草甸草原区
	C 半干旱地区	H?C2羌塘高原湖盆高寒草原区
	D 干旱地区	H?D1昆仑山高原高寒荒漠区
HII高原温带	A/B 湿润/半湿润地区	HIIA/B1川西藏东高山深谷针叶林区
	C 半干旱地区	HIIC1祁连青东高山盆地针叶林、草原区
	C 半干旱地区	HIIC2藏南高山谷地灌丛草原区
	D 干旱地区	HIID1柴达木盆地荒漠区
		HIID2昆仑北翼山地荒漠区
		HIID3阿里山地荒漠区

	相关系数									偏相关系数
不同区域	P (5~9月)	P (4~8月)	T (5~9月)	T (4~8月)	P_max	T_max	AT₅	D₅	HC	P (5~9月)	T (5~9月)	P (4~8月)	T (4~8月)
高寒草甸	0.076	0.03	0.242	0.43^*	-0.073	0.280	0.254	0.221	-0.25	-0.004	0.231	-0.109	0.462^**
高寒草原	0.439^*	0.845^**	0.559^**	0.591^**	0.425^*	0.633^**	0.634^**	0.469^**	-0.167	0.392^*	0.529^**	0.372^*	0.424^*
HIB1	-0.012	-0.238	0.376^*	0.446^*	0.055	0.357^*	0.386^*	0.386^*	-0.386^*	-0.078	0.383^*	-0.063	0.443^*
HIC1	0.113	0.773^**	-0.011	0.027	-0.148	0.171	0.094	-0.097	-0.026	0.125	-0.055	0.141	-0.014
HIC2	0.126	0.673^**	0.015	0.072	-0.198	0.360	0.062	-0.050	-0.051	0.128	0.028	0.138	0.063
HIIC1	0.602^**	0.574^**	0.361^*	0.41^*	0.591^**	0.195	0.382^*	0.466^**	0.122	0.595^**	0.343	0.57^**	0.404^*
HIIC2	0.362^*	0.726^**	0.398^*	0.384^*	0.320	-0.598^**	0.410^*	0.422^*	-0.046	0.447^*	0.475^**	0.443^*	0.379^*
