基于空间组合特征的农村居民点重构方向识别

doi:10.13249/j.cnki.sgs.2017.05.012

摘要/Abstract

摘要：

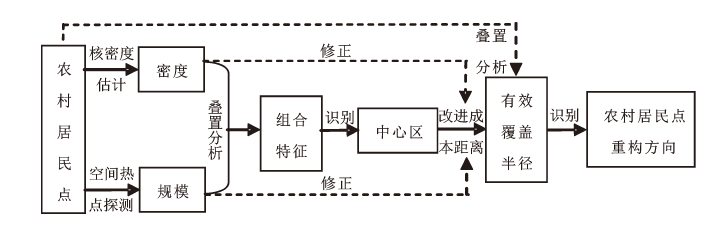

基于湖北省大冶市陈贵镇2012年土地利用变更调查数据,运用核密度估计和空间热点探测法,分析镇域农村居民点空间分布特征,提出一种顾及居民点密度与规模组合特征的农村居民点重构方向识别方法。根据密度与规模的空间组合特征,将全镇农村居民点划分为7种类型,结合改进成本距离测算大规模居民点区有效覆盖范围,提出了城镇化集中型、中心村建设型、协同整治型和内部改造型4种重构模式,明确了规模与密度特征导向下的农村居民点的整治重心和重构方向。

关键词: 农村居民点, 核密度, 热点分析, 覆盖半径, 空间重构

Abstract:

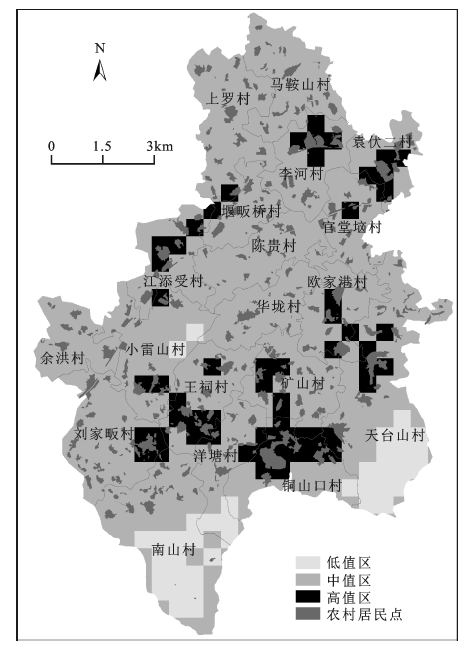

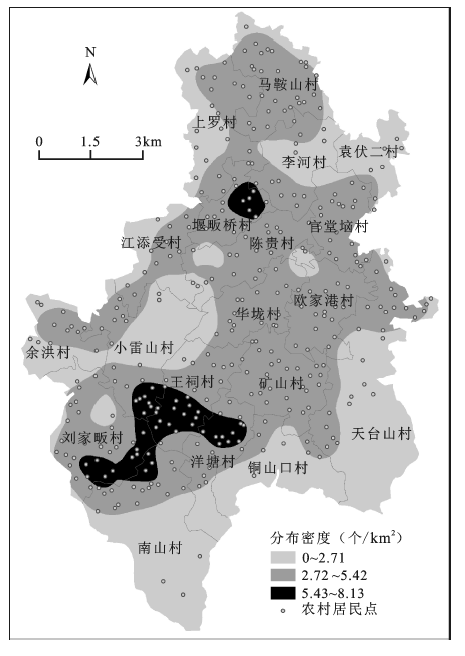

This article analyzed spatial distribution features of rural settlements from both destiny and size based onland-use data for 2012 in Chengui Town, Hubei Province. The destiny and size of rural settlements were measured using kernel density estimation and hotspots analysis method, respectively. The valid covering radius of each large scale area of rural settlements were calculated using improved cost distance method. A new method considering spatial combination features was proposed to identify the reconstruction directions of rural settlements. The results showed that both the density and scale values of rural settlements presented an obvious spatial correlation. The destiny values decreased gradually from the central area to the surrounding area. The low density area mainly distributed in the southeast area, which included Nanshan, Tongshankou and Tiantaishan Village. The distribution of large scale of rural settlements was like a circle, whereas the small ones mainly distributed in Nanshan and Tiantaishan. Seven types were identified according to the combination features of density and scale. The density and scale with medium values were widespread in Chengui. However, it should be noted that small scale with low density coexisted with the large scale with high density. Eight central covering areas from A to H were identified. According to the scale features, these eight areas were further classified into three types, which included strong centers, common centers and weak centers. The strong centers included the covering areas of downtown and Tongshankou. The downtown area had the largest covering area, whereas Tongshankou was regarded as the key village, which covered the largest scale of rural settlements. Four common centers and two weak centers showed different functions in rural reconstruction. In general, the village-town system was consisted of a central town, a key village, several secondary centers and other common areas. Four reconstruction modes, including urbanization concentration, key village construction, cooperating consolidation and inner-village consolidation, were proposed according to the features of covering areas. The reconstruction directions and key points were emphasized based on the combination features of destiny and size. The findings provide important planning information for rural reconstruction.

Key words: rural settlements, kernel density, hotspots analysis, covering radius, spatial reconstruction

中图分类号:

K901.8

孙建伟, 孔雪松, 田雅丝, 罗静. 基于空间组合特征的农村居民点重构方向识别[J]. 地理科学, 2017, 37(5): 748-755.

Jianwei Sun, Xuesong Kong, Yasi Tian, Jing Luo. Identifying Reconstruction Directions of Rural Settlements Based on Analysis of Spatial Combination Features[J]. SCIENTIA GEOGRAPHICA SINICA, 2017, 37(5): 748-755.

图/表 7

图1

图2

图3

表1

图4

图5

表2

参考文献 26

[1]	Long Hualou, Liu Yansui.A brief background to rural restructuring in China: A forthcoming special issue of Journal of Rural Studies[J]. Journal of Geographical Sciences, 2015,25(10):1279-1280. doi: 10.1007/s11442-015-1233-4
[2]	Woods Michael.Engaging the global countryside: globalization, hybridity and the reconstitution of rural place[J]. Progress in Human Geography, 2007,31(4):485-507.
[3]	单勇兵, 马晓冬, 仇方道. 苏中地区乡村聚落的格局特征及类型划分[J]. 地理科学, 2012, 32(11): 1340-1347.
	[Shan Yongbing, Ma Xiaodong, Qiu Fangdao.Distribution patterns characteristics and type classification of the rural settlements in central Jiangsu Province. Scientia Geographica Sinica, 2012, 32(11): 1340-1347.]
[4]	梁鹤年. 城市人[J]. 城市规划, 2012, 36(7): 87-96.[Hok-lin Leung. Homo urbanicus. City Planning Review, 2012,36(7):87-96.]
[5]	梁鹤年. 再谈“城市人”——以人为本的城镇化[J]. 城市规划, 2014, 38(9): 64-75.
	[Hok-lin Leung. Further discussion on homo-urbanicus: Human-based urbanization. City Planning Review, 2014, 38(9): 64-75.]
[6]	孔雪松, 金璐璐, 郄昱, 等. 基于点轴理论的农村居民点布局优化[J]. 农业工程学报, 2014, 30(8): 192-200. doi: 10.3969/j.issn.1002-6819.2014.08.023
	[Kong Xuesong, Jin Lulu, Qie Yu et al. Layout optimization of rural settlements based on point-axis theory. Transactions of the Chinese Society of Agricultural Engineering, 2014, 30(8): 192-200.] doi: 10.3969/j.issn.1002-6819.2014.08.023
[7]	朱彬, 尹旭, 张小林. 县域农村居民点空间格局与可达性——以江苏省射阳县为例[J]. 地理科学, 2015, 35(12): 1560-1567. doi: 10.11820/dlkxjz.1999.02.003
	[Zhu Bin, Yin Xu, Zhang Xiaolin.Spatial pattern and accessibility of rural settlements: A case study on Sheyang County in Jiangsu Province. Scientia Geographica Sinica, 2015, 35(12): 1560-1567.] doi: 10.11820/dlkxjz.1999.02.003
[8]	马晓冬, 李全林, 沈一. 江苏省乡村聚落的形态分异及地域类型[J]. 地理学报, 2012, 67(4): 516-525. doi: 10.11821/xb201204008
	[Ma Xiaodong, Li Quanlin, Shen Yi.Morphological difference and regional types of rural settlements in Jiangsu Province. Acta Geographica Sinica, 2012, 67(4): 516-525.] doi: 10.11821/xb201204008
[9]	闵婕, 杨庆媛, 唐璇. 三峡库区农村居民点空间格局演变——以库区重要区万州为例[J]. 经济地理, 2016, 36(2): 149-158.
	[Min Jie, Yang Qingyuan, Tang Xuan.Spatial pattern evolution of rural settlement in the three gorges reservoir area: A case in Wanzhou County. Economic Geography, 2016, 36(2): 149-158.]
[10]	师满江, 颉耀文, 曹琦. 干旱区绿洲农村居民点景观格局演变及机制分析[J]. 地理研究, 2016, 35(4): 692-702. doi: 10.11821/dlyj201604008
	[Shi Manjiang, Jie Yaowen, Cao Qi.The landscape evolution and mechanism analysis of rural settlements in the oasis of arid region. Geographical Research, 2016, 35(4): 692-702.] doi: 10.11821/dlyj201604008
[11]	谭雪兰, 周国华, 朱苏晖, 等. 长沙市农村居民点景观格局变化及地域分异特征研究[J]. 地理科学, 2015, 35(2): 204-210.
	[Tan Xuelan, Zhou Guohua,Zhu Suhui et al. Landscape pattern changes and the characteristic of spatio-temporal differentiation of rural residential area in Changsha in recent 20 Years. Scientia Geographica Sinica, 2015,35(2):204-210.]
[12]	余兆武, 肖黎姗, 郭青海, 等. 城镇化过程中福建省山区县农村聚落景观格局变化特征[J]. 生态学报, 2016, 36(10): 1-11. doi: 10.5846/stxb201408261688
	[Yu Zhaowu, Xiao Lishan,Guo Qinghaiet al. Mountain county rural settlement landscape pattern change and spatial characteristics in rapid mountain urbanization process in Fujian Province. Acta Ecologica Sinca, 2016, 36(10): 1-11.] doi: 10.5846/stxb201408261688
[13]	Tan Minghong, Li Xiubin.The changing settlements in rural areas under urban pressure in China: Patterns, driving forces and policy implications[J]. Landscape and Urban Planning, 2013,120:170-177. doi: 10.1016/j.landurbplan.2013.08.016
[14]	杨忍, 刘彦随, 龙花楼, 等. 基于格网的农村居民点用地时空特征及空间指向性的地理要素识别——以环渤海地区为例[J]. 地理研究, 2015, 34(6): 1077-1087. doi: 10.11821/dlyj201506007
	[Yang Ren, Liu Yansui, Long Hualou et al. Spatial-temporal characteristics of rural residential land use change and spatial directivity identification based on grid in the Bohai Rim in China. Geographical Research, 2015, 34(6): 1077-1087.] doi: 10.11821/dlyj201506007
[15]	周成虎, 欧阳, 马廷. 地理格网模型研究进展[J]. 地理科学进展, 2009, 28(5): 657-662. doi: 10.11820/dlkxjz.2009.05.002
	[Zhou Chenghu, Ou Yang, Ma Ting.Progresses of geographical grid systems researches. Progress in Geography, 2009, 28(5): 657-662.] doi: 10.11820/dlkxjz.2009.05.002
[16]	李雪铭, 田深圳. 中国人居环境的地理尺度研究[J]. 地理科学, 2015,35(12):1495-1501.
	[Li Xueming, Tian Shenzhen.The geographic scale of human settlements in China. Scientia Geographica Sinica,2015,35(12):1495-1501.]
[17]	禹文豪, 艾廷华. 核密度估计法支持下的网络空间POI点可视化与分析[J]. 测绘学报, 2015, 44(1): 82-90. doi: 10.11947/j.AGCS.2015.20130538
	[Yu Wenhao, Ai Tinghua.The visualization and analysis of POI features under network space supported by kernel density estimation. Acta Geodaeticaet Cartographica Sinica, 2015, 44(1): 82-90.] doi: 10.11947/j.AGCS.2015.20130538
[18]	靳诚, 陆玉麒. 基于县域单元的江苏省经济空间格局演化[J]. 地理学报, 2009, 64(6): 713-724. doi: 10.3321/j.issn:0375-5444.2009.06.008
	[Jin Cheng, Lu Yuqi.Evolvement of spatial pattern of economy in Jiangsu Province at county level. Acta Geograohica Sinica, 2009, 64(6): 713-724.] doi: 10.3321/j.issn:0375-5444.2009.06.008
[19]	王钊, 杨山, 王玉娟, 等. 基于最小阻力模型的城市空间扩展冷热点格局分析——以苏锡常地区为例[J]. 经济地理, 2016, 36(3): 57-64.
	[Wang Zhao, Yang Shan, Wang Yujuan et al. Analysis of cold-hot pattern of urban spatial expansion based on minimum cumulative resistance model: A case study of Suzhou-Wuxi-
	Changzhou area. Economic Geography, 2016, 36(3): 57-64.]
[20]	Salze Paul, Banos Arnaud, Oppert Jean-Michel et al. Estimating spatial accessibility to facilities on the regional scale: An extended commuting-based interaction potential model[J]. International Journal of Health Geographics, 2011,10(2):1-16. doi: 10.1186/1476-072X-10-2 pmid: 21219597
[21]	侯贺平, 刘艳芳, 李纪伟, 等. 不同模型在镇域空间相互作用中的应用与比较分析——以湖北省大冶市为例[J]. 人文地理, 2014, 29(5): 63-68.
	[Hou Heping, Liu Yanfang,Li Jiwei et al. A study on application and comparison of different models in spatial interaction of townships: A case of Daye. Human Geography, 2014, 29(5): 63-68.]
[22]	Hou Heping, Liu Yaolin, Liu Yanfang et al.Using inter-town network analysis in city system planning: A case study of Hubei Province in China[J]. Habitat International, 2015,49:454-465. doi: 10.1016/j.habitatint.2015.06.016
[23]	Simini Filippo, Gonzalez Marta C, Maritan Amos et al. A universal model for mobility and migration patterns[J]. Nature, 2012,484(7392):96-100. doi: 10.1038/nature10856 pmid: 22367540
[24]	Pan Jia’en, Du Jie.Alternative responses to the modern dream: the sources and contradictions of rural reconstruction in China[J]. Inter-Asia Cultural Studies, 2011,12(3):454-464. doi: 10.1080/14649373.2011.578809
[25]	赵元, 胡月明, 张新长, 等. 农村居民点耕作距离空间分布特征估测分析[J]. 地理科学, 2016,36(5):760-765. doi: 10.13249/j.cnki.sgs.2016.05.014
	[Zhao Yuan, Hu Yueming,Zhang Xinchang et al. Spatial pattern of farming distance in rural area using ESDA. Scientia Geographica Sinica, 2016,36(5):760-765.] doi: 10.13249/j.cnki.sgs.2016.05.014
[26]	杨忍, 刘彦随, 龙花楼, 等. 中国村庄空间分布特征及空间优化重组解析[J]. 地理科学, 2016,36(2):170-179. doi: 10.13249/j.cnki.sgs.2016.02.002
	[Yang Ren, Liu Yansui,Long Hualou et al. Spatial distribution characteristics and optimized reconstructing analysis of rural settlement in China. Scientia Geographica Sinica, 2016,36(2): 170-179.] doi: 10.13249/j.cnki.sgs.2016.02.002

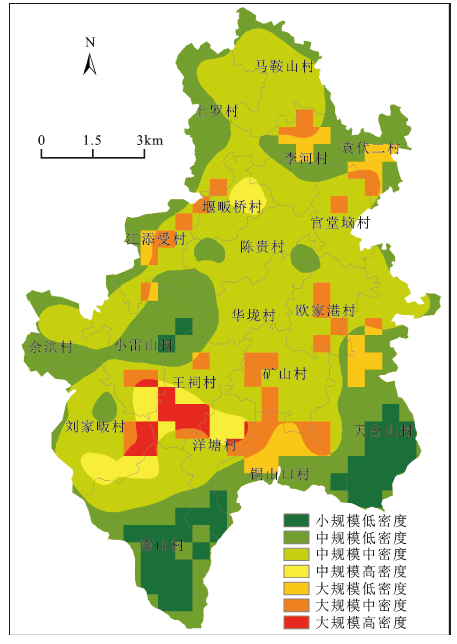

类型	I	II	III	IV	V	VI	VII
密度（个/km²）	0~2.71	5.43~8.33	2.27~5.42	0~2.71	5.43~8.33	2.27~5.42	0~2.71
规模（hm²）	3.55	121.23	541.74	49.01	96.75	205.07	43.35
数量（个）	4	40	227	29	7	33	19

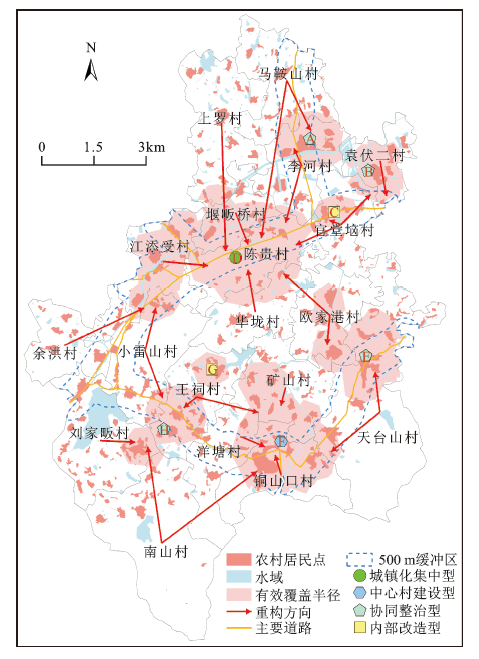

分区	覆盖面积（hm²）	居民点规模（hm²）	居民点数量（个）	空间重构方向
A	261.40	42.09	6	大规模低密度发展：以李河村建设为主,引导马鞍山村周边零散居民点有序向该区集中,推进协同整治,建设连片共享居民区
B	212.41	39.63	6	中规模低密度发展：以袁伏二村建设为主,推进袁伏二村与官堂垴村居民点协同整治与共建共享
C	86.66	14.69	6	控制现状规模、低密度发展：官堂垴村内部改造
D	1267.78	130.65	46	大规模低密度发展：上罗村、马鞍山村、李河村、官堂垴村、袁伏二村、欧家港村、华垅村、堰畈桥村和江添受村迁村并点区向镇区集中,以城镇安置房建设为主
E	534.64	90.82	18	大规模中、低密度发展：推进欧家港村和天台山村协同整治与共建共享
F	791.07	149.84	29	大规模低密度发展：天台山村、矿山村、王祠村、洋塘村和南山村迁村并点区向该区集中,以村庄内部闲置区安置和独立区建新为主
G	79.44	16.92	4	控制现状规模、低密度发展：王祠村内部改造
H	343.71	77.05	25	大规模中密度发展：小雷山村、王祠村、刘家畈村和南山村协同整治,建设四村共享中心居民区
