植被发育斜坡非饱和带土体优先域及其对水分入渗的贡献——以云南省呈贡和昭通玄武岩质斜坡为例

doi:10.13249/j.cnki.sgs.2017.05.016

地理科学 ›› 2017, Vol. 37 ›› Issue (5): 783-791.doi: 10.13249/j.cnki.sgs.2017.05.016

植被发育斜坡非饱和带土体优先域及其对水分入渗的贡献——以云南省呈贡和昭通玄武岩质斜坡为例

徐宗恒¹(), 徐则民²(), 李凌旭³

1. 云南师范大学旅游与地理科学学院,云南昆明 650500
2. 昆明理工大学建筑工程学院,云南昆明 650500
3.云南大学滇池学院,云南昆明 650228

收稿日期:2016-06-03 修回日期:2016-08-14 出版日期:2017-05-25 发布日期:2017-05-25
作者简介:
作者简介：徐宗恒(1987-),男,云南永胜人,讲师,博士,主要从事地质灾害方面研究。E-mail：xuzongheng208@163.com
基金资助:
国家自然科学基金(41502340)、国家自然科学基金-云南省联合基金(U1502232)、云南省应用基础研究计划项目(2015FD016)资助

Preferential Domain Types of Basalt Slope Unsaturated Zone Soil and the Contribution to Water Infiltration: A Case Study of Basalt Slope in Chenggong and Zhaotong of Yunnan Province

Zongheng Xu¹(), Zemin Xu²(), Lingxu Li³

1.Department of Tourism and geographic science, Yunnan Normal University, Kunming 650500,Yunnan, China
2. Faculty of Civil Engineering and Mechanics, Kunming University of Science and Technology, Kunming 650500,Yunnan,China
3. Dianchi College of Yunnan University , Kunming 650228, Yunnan,China

Received:2016-06-03 Revised:2016-08-14 Online:2017-05-25 Published:2017-05-25
Supported by:
National Natural Sciences Foundation of China（41502340）,NSFC-Yunnan Joint Fund(U1502232),Applied Basic Research Projects of Yunnan Province(2015FD016)

摘要/Abstract

摘要：

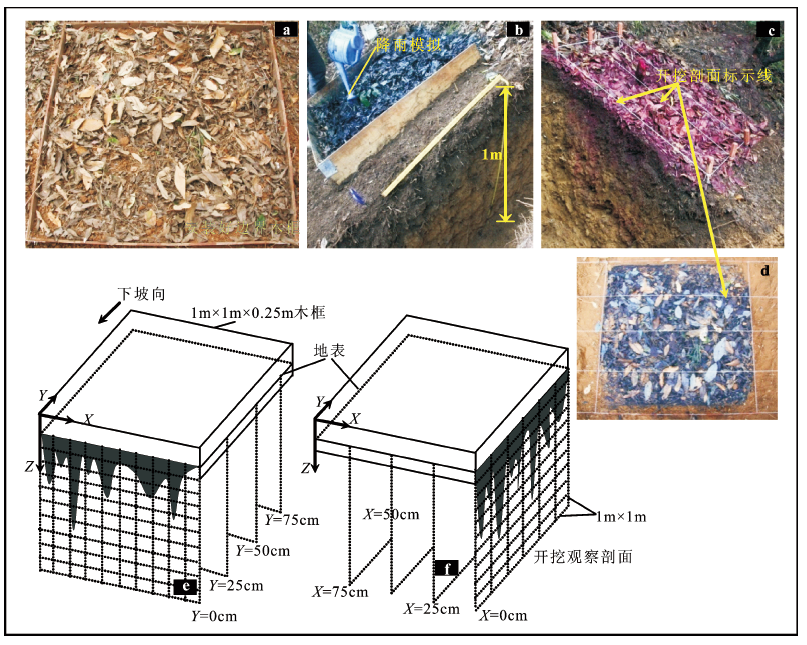

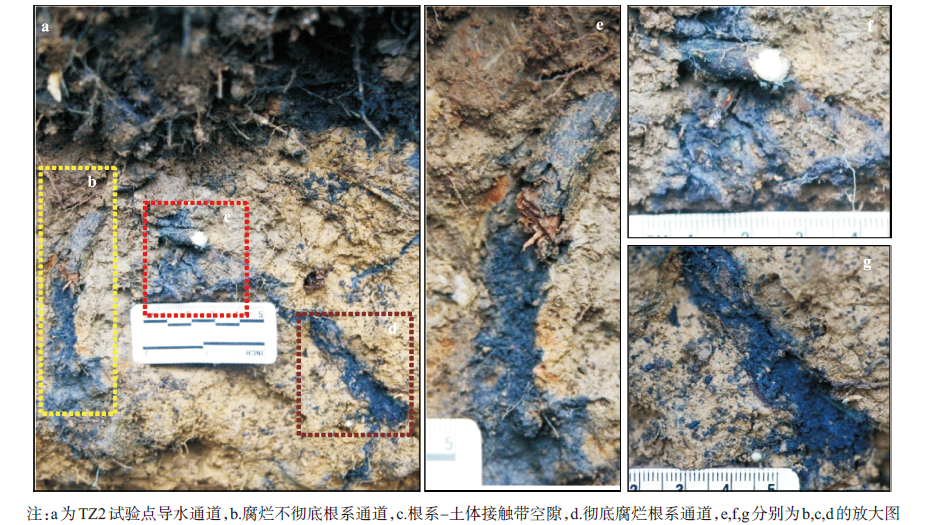

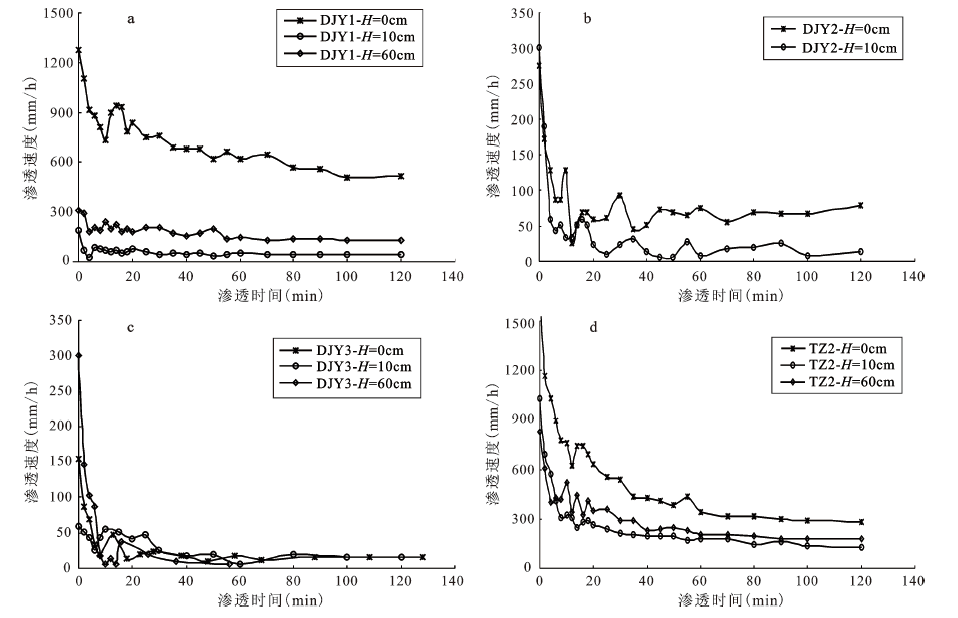

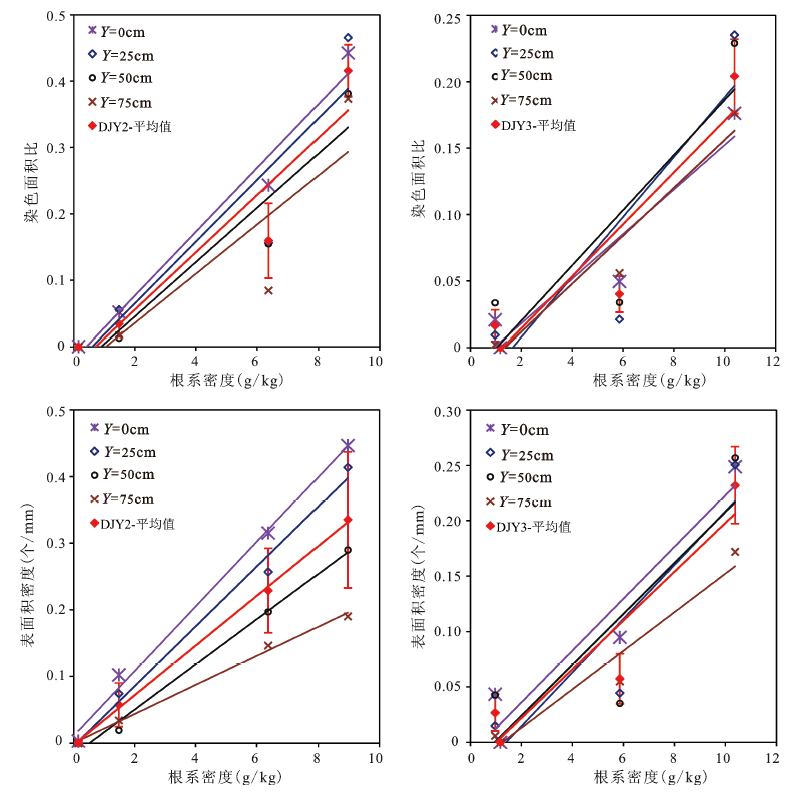

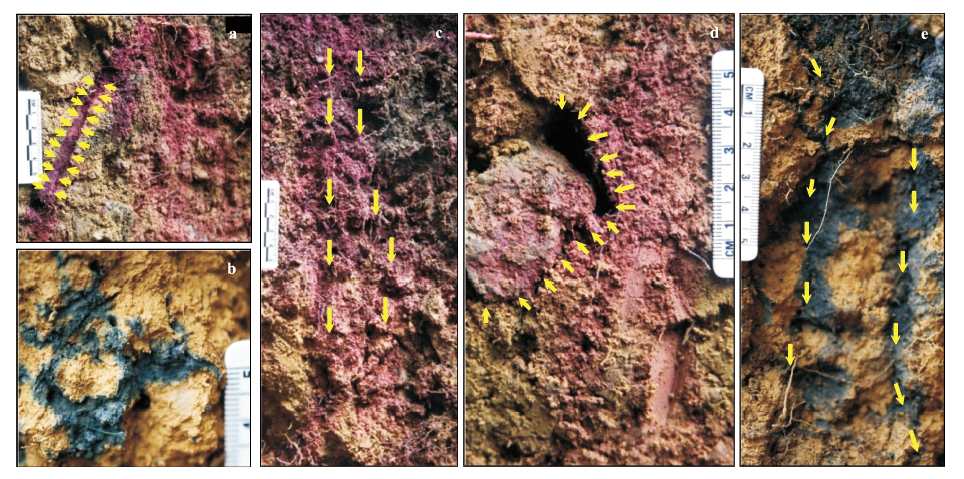

为了全面得到植被发育斜坡非饱和带土体中优先域结构类型,以2个试验区5个玄武岩斜坡为研究对象,采用染色示踪试验揭示优先域的存在形式及其影响因素,并采用双环入渗试验对不同深度非饱和带土体渗透特征进行测定,揭示优先域对水分入渗的贡献。研究表明：植被发育斜坡非饱和带土体中优先域结构类型除了传统的植物根系腐烂后残留的通道、动物通道、土体干缩裂隙以外,还存在有根系-土体以及砾石-土体接触带空隙以及气候冻融交替产生的裂隙,其中植被根系对大孔隙的影响占主导地位;试验区斜坡非饱和带土体的饱和渗透速度随深度增加有降低的趋势,土体饱和渗透速度最大值高达513.6 mm/h（表层）;最小值13.33 mm/h,受广泛分布的优先域影响下形成的斜坡饱和带高渗透盖层对降水入渗的贡献是巨大的。

关键词: 非饱和带, 优先域, 染色示踪, 双环入渗, 高渗透特征

Abstract:

All kinds of soil macropores (preferential domain) is widespread in vadose zone of well vegetated slope, that have an effect on rapid moisture infiltration and supply a useful condition for aquifer feed water. For comprehensive collection the soil macropores types. Taking five basalt slope of two experimental areas as the research object, this article adopts dye tracer experiments to reveal the forms of the preferred domain and its influencing factors. Furthermore, the unsaturated zone soil infiltration characteristics with different depth were determined by the double-ring infiltrometer method in order to explain the contribution of macropores to water infiltration. The results show that preferential domain types also includes the fractures resulted from freezing-thawing events and the contact gap of root system-soil and gravels-soil apart from the traditional discovered macropores such as the rotten plant roots channels and faunal tunnels. Of all factors, the plant roots are the first and most important role on macropores. The soil saturated infiltration coefficient, the minimum and maximum of which is 513.6 mm/h (soil surface layer) and 13.33 mm/h, has a reduced tendency with the increase of depth. In conclusion, the contribution of huge permeability vadose zone to water infiltration is enormous.

Key words: vadose zone, soil preferential domain, dye tracer experiments, double-ring infiltrometer method, huge permeability

中图分类号:

P642.21

徐宗恒, 徐则民, 李凌旭. 植被发育斜坡非饱和带土体优先域及其对水分入渗的贡献——以云南省呈贡和昭通玄武岩质斜坡为例[J]. 地理科学, 2017, 37(5): 783-791.

Zongheng Xu, Zemin Xu, Lingxu Li. Preferential Domain Types of Basalt Slope Unsaturated Zone Soil and the Contribution to Water Infiltration: A Case Study of Basalt Slope in Chenggong and Zhaotong of Yunnan Province[J]. SCIENTIA GEOGRAPHICA SINICA, 2017, 37(5): 783-791.

图/表 5

参考文献 21

[1]	徐则民. 植被与斜坡非饱和带大空隙[J]. 地学前缘, 2007, 14(6): 134-142.
	[Xu Zemin.Vegetation and macropores in vadose zones of hill slopes. Earth Science Frontiers, 2007, 14(6): 134-142.]
[2]	牛健植, 余新晓. 优先流问题研究及其科学意义[J]. 中国水土保持科学, 2005, 3(3): 110-116, 126. doi: 10.3969/j.issn.1672-3007.2005.03.022
	[Niu Jianzhi, Yu Xinxiao.Preferential flow and its scientific significance. Science of Soil and Water Conservation, 2005, 3(3): 110-116, 126.] doi: 10.3969/j.issn.1672-3007.2005.03.022
[3]	刘伟. 土壤大孔隙特征的研究[D]. 沈阳: 中国科学院沈阳应用生态研究所, 2001.
	[Liu Wei.Characterizing macropores in soil. Shenyang: Institute of Applied Ecology, Chinese Academy of Sciences, 2001.]
[4]	秦耀东, 任理, 王济. 土壤中大孔隙流研究进展与现状[J]. 水科学进展, 2000, 11(2): 203-207. doi: 10.3321/j.issn:1001-6791.2000.02.016
	[Qin Yaodong, Ren Li, Wang Ji.Review on the study of macropore flow in soil. Advances in Water Science, 2000, 11(2): 203-207.] doi: 10.3321/j.issn:1001-6791.2000.02.016
[5]	Chen C, Wagenet R J.Simulation of water and chemicals in macropore soils Part 1.representation of the equivalent macropores influence and its effect on soil-water flow[J]. Journal of Hydrology, 1992, 130(1/4): 105-126. doi: 10.1016/0022-1694(92)90106-6
[6]	李伟莉, 金昌杰, 王安志, 等. 土壤大孔隙流研究进展[J]. 应用生态学报, 2007, 18(4): 888-894.
	[Li Weili, Jin Changjie, Wang Anzhi et al. Research progress in soil macropore flow. Chinese Journal of Applied Ecology, 2007, 18(4): 888-894.]
[7]	杨帆, 王志春, 王云贺,等. 松嫩平原苏打盐渍土土壤水分特征研究[J]. 地理科学, 2015, 35(3):340-345.
	[Yang Fan, Wang Zhichun, Wang Yunhe et al. Soil water characteristic of saline-sodic soil in Songnen Plain. Scientia Geographica Sinica, 2015, 35(3):340-345. ]
[8]	罗利芳, 张科利, 李双才. 撂荒后黄土高原坡耕地土壤透水性和抗冲性的变化[J]. 地理科学, 2003, 23(6):728-733. doi: 10.3969/j.issn.1000-0690.2003.06.014
	[Luo Lifang, Zhang Keli, Li Shuangcai.Chang in soil permeability and anti-scourability of farmland after abandonment. Scientia Geographica Sinica, 2003, 23(6):728-733.] doi: 10.3969/j.issn.1000-0690.2003.06.014
[9]	Luxmoore R J, Jardine P M, Wilson G V et al. Physical and chemical controls of preferred path flow through a forested hillslope[J]. Geoderma, 1990, 46(1): 139-154. doi: 10.1016/0016-7061(90)90012-X
[10]	Carey S K, Quinton W L, Goellcr N T.Field and laboratory estimates of pore size properties and hydraulic characteristics for subarctic organic soils[J]. Hydrological Processes, 2007, 21(19): 2560-2571. doi: 10.1002/hyp.6795
[11]	Lamande M, Labouriau R, Holmstrup M et al. Density of macropores as related to soil and earthworm community parameters in cultivated grasslands[J]. Geoderma, 2011, 162(3/4): 319-326. doi: 10.1016/j.geoderma.2011.03.004
[12]	Luxmoore R J.Micro-,meso-,and macroporosity of soil[J]. Soil Science Society of America Journal, 1981, 45(3): 671-672. doi: 10.2136/sssaj1981.03615995004500030051x
[13]	徐宗恒, 徐则民, 官琦, 等. 不同植被发育斜坡土体优先流特征[J]. 山地学报, 2012, (5): 522-528.
	[Xu Zongheng, Xu Zemin, Guan Qi et al. The characteristics of preferential flow in different vegetated slope soils. Journal of Mountain Science, 2012(5): 522-528.]
[14]	王伟. 三峡库区紫色砂岩林地土壤优先流特征及其形成机理[D]. 北京: 北京林业大学, 2011 .
	[Wang Wei.Characteristics and formation mechanism of preferential flow in forest soils of purple sandstone regions,Three Gorges Reservoir Area. Beijing: Beijing Forestry University, 2011.]
[15]	牛健植. 长江上游暗针叶林生态系统优先流机理研究[D]. 北京: 北京林业大学, 2003.
	[Niu Jianzhi.Study on preferential flow of dark coniferous forest ecosystem in the upper reach area of Yangtze River. Beijing: Beijing Forestry University, 2003.]
[16]	时忠杰, 王彦辉, 熊伟, 等. 六盘山典型植被类型土壤中石砾对大孔隙形成的影响[J]. 山地学报, 2007, 25(5): 541-547.
	[Shi Zhongjie, Wang Yanhui, Xiong Wei et al. Effect of rock fragments on the formation of soil macroporosity of typical vegetation in liupan mountains of westnorth, China. Journal of Mountain Science, 2007, 25(5): 541-547.]
[17]	时忠杰, 王彦辉, 徐丽宏, 等. 六盘山森林土壤的石砾对土壤大孔隙特征及出流速率的影响[J]. 生态学报, 2008, 28(10): 4929-4939.
	[Shi Zhongjie, Wang Yanhui, Xu Lihong et al. The influence of rock fragments on the characteristics of macropore and water effluent of forest soils in the Liupan Mountains, Northwest China. Acta Ecologica Sinica, 2008, 28(10): 4929-4939.]
[18]	余海龙, 黄菊莹. 砂田砾石覆盖对土壤大孔隙特征及其土壤水文过程的影响研究进展[J]. 水土保持研究, 2012, 19(4): 284-288.
	[Yu Hailong, Huang Juying.Research progress on influence of mulching gravel and sand on Soil macropore characteristics and Soil hydrological process of Gravel-Sand mulch field. Research of Soil and Water Conservation, 2012, 19(4): 284-288.]
[19]	高人, 周广柱. 辽宁东部山区几种主要森林植被类型土壤渗透性能研究[J]. 农村生态环境, 2002, 18(4): 1-4, 14. doi: 10.3969/j.issn.1673-4831.2002.04.001
	[Gao Ren, Zhou Guangzhu.Permeability of soils under different forest vegetation in eastern Liaoning mountain region. Rural Eco-environment, 2002, 18(4): 1-4, 14.] doi: 10.3969/j.issn.1673-4831.2002.04.001
[20]	王治国, 张云龙, 刘徐师, 等. 林业生态工程学[M]. 北京: 中国林业出版社, 2000.
	[Wang Zhiguo, Zhang Yunlong, Liu Xushi et al. Forestry ecological engineering. Beijing: China Forestry Publishing House , 2000.]
[21]	Reynolds E R C, Thompson F B. Forests, Climate and hydrology-regional impacts[M].Tokyo: United Nations University Press, 1998.
