西北干旱区阿克苏河径流对气候波动的多尺度响应

doi:10.13249/j.cnki.sgs.2017.05.018

地理科学 ›› 2017, Vol. 37 ›› Issue (5): 799-806.doi: 10.13249/j.cnki.sgs.2017.05.018

西北干旱区阿克苏河径流对气候波动的多尺度响应

柏玲¹(), 陈忠升^2,³(), 王充⁴, 徐建华⁴

1.南昌大学经济管理学院,江西南昌 330031
2. 西华师范大学国土资源学院,四川南充 637002
3.中国科学院新疆生态与地理研究所荒漠与绿洲生态国家重点实验室,新疆乌鲁木齐 830011
4.华东师范大学地理信息科学教育部重点实验室,上海 200241

收稿日期:2016-07-25 修回日期:2016-10-24 出版日期:2017-05-25 发布日期:2017-05-25
作者简介:
作者简介：柏玲（1987-）,女,河南新蔡人,讲师,主要从事环境变化与区域可持续发展研究。 E-mail: bling1987yy@163.com
基金资助:
荒漠与绿洲生态国家重点实验室自主项目(Y371163)资助

Multi-scale Response of Runoff to Climate Change in the Aksu River Basin in Arid Area of the Northwestern China

Ling Bai¹(), Zhongsheng Chen^2,³(), Chong Wang⁴, Jianhua Xu⁴

1. School of Economics and Management, Nanchang University, Nanchang 330031, Jiangxi, China
2. School of Land and Resources, China West Normal University, Nanchong 637002, Sichuan, China
3. State Key Laboratory of Desert and Oasis Ecology, Xinjiang Institute of Ecology and Geography, Chinese Academy of Sciences, Urumqi 830011, Xinjiang, China
4. The Key Lab of Geographic Information Science, Chinese Ministry of Education, East China Normal University, Shanghai 200241, China

Received:2016-07-25 Revised:2016-10-24 Online:2017-05-25 Published:2017-05-25
Supported by:
State Key Laboratory of Desert and Oasis Ecology, Xinjiang Institute of Ecology and Geography, Chinese Academy of Sciences (Y371163)

摘要/Abstract

摘要：

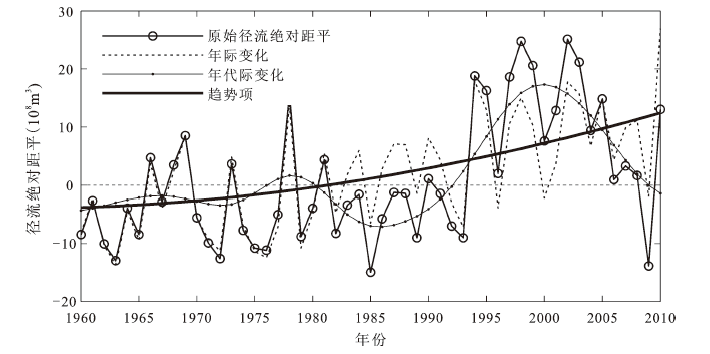

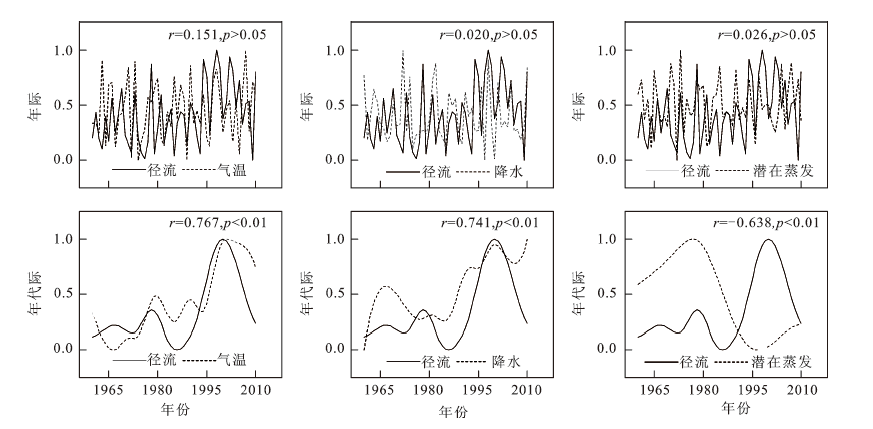

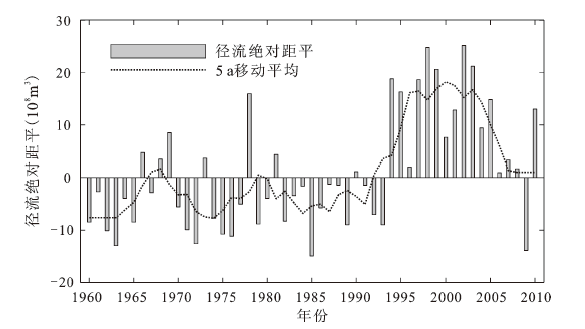

基于阿克苏河流域1960~2010年的气象、水文观测数据,利用集合经验模态分解（EEMD）方法,对研究期内阿克苏河径流时间序列进行多尺度的分析,并探讨其在不同时间尺度上的振荡模态结构特征及其对气候因子的多尺度响应。结果表明：① 近50年来,阿克苏河年径流整体上呈现出显著的非线性增加趋势,且其变化在年际尺度上表现出准3 a和准6~7 a的周期性波动,在年代际尺度上表现出准13 a和准25 a的周期性变化;② 各周期分量的方差贡献率表明,年际振荡在径流长期变化中占据主导地位,年代际尺度在径流变化过程中也起着重要作用。重构的径流年际变化能够较为详细地描述原始径流序列在研究时期内的波动趋势,重构的径流年代际变化则有效揭示了阿克苏河径流在不同年代丰、枯水期交替出现的状态。③ 在年际尺度上径流与气温、降水和潜在蒸发都表现为不显著的正相关关系,而在年代际尺度上,径流量与气温和降水均表现为显著的正相关关系,与潜在蒸发表现为显著的负相关关系,且在年代际尺度上相关性和显著性明显强于年际尺度,表明年代际尺度更适于评价径流对气候波动的响应。结果表明EEMD是一种甄别非线性趋势和尺度循环的有效方法。

关键词: 阿克苏河, 径流距平, 集合经验模态分解, 本征模函数, 多尺度响应

Abstract:

On the basis of the hydrological and meteorological data in the Aksu River Basin during 1960-2010, the multi-scale characteristics of runoff variability were analyzed using the ensemble empirical mode decomposition method (EEMD), and the aim is to investigate the oscillation mode structure characteristics of runoff change and its response to climate fluctuation at different time scales. Results indicated that in the past 50 years, the overall runoff of Aksu River in northwestern China has exhibited a significant non-linear upward trend, and its changes obviously manifested quasi-3 and quasi-6-7 years at inter-annual scale and showed quasi-13 and quasi-25 years at inter-decadal scale. Variance contribution rates of each component showed that the inter-annual change held a dominant position in the overall runoff change, and the inter-decadal change also played an important role in the overall runoff change for the Aksu River. The reconstructed inter-annual variation could describe the fluctuation state of original runoff during the study period; the reconstructed inter-decadal variability effectively revealed that the runoff for the Aksu River changed over the years, namely the state of abundance and low water period appear alternately. In addition, we found that runoff has a positive correlation to precipitation, temperature and potential evaporation (PET) at the inter-annual scale, but not significant in statistics. The runoff has a significant positive correlation to precipitation and temperature whereas a negative correlation to PET at the inter-decadal scale, furthermore, they are more significant and relevant at inter-decadal scale, indicating that the inter-decadal scale is more suitable for investigating the responses of runoff dynamics to climate fluctuation. Meanwhile, the results also suggested that EEMD is an effective method to distinguish the non-linear trend from multi-scale variability of non-linear and non-stationary signal and can be helpful to deepen the understanding of the multi-scale characteristics for runoff in arid area of the northwestern China.

Key words: the Aksu River, runoff anomaly, ensemble empirical mode decomposition, intrinsic mode function (IMF), multi-scale response

中图分类号:

F339

柏玲, 陈忠升, 王充, 徐建华. 西北干旱区阿克苏河径流对气候波动的多尺度响应[J]. 地理科学, 2017, 37(5): 799-806.

Ling Bai, Zhongsheng Chen, Chong Wang, Jianhua Xu. Multi-scale Response of Runoff to Climate Change in the Aksu River Basin in Arid Area of the Northwestern China[J]. SCIENTIA GEOGRAPHICA SINICA, 2017, 37(5): 799-806.

图/表 7

图1

图2

图3

表1

图4

图5

图6

参考文献 23

[24]	柏玲, 陈忠升, 赵本福. 集合经验模态分解在长江中下游梅雨变化多尺度分析中的应用[J].长江流域资源与环境, 2015, 24(3):82-88.
	[Bai Ling, Chen Zhongsheng, Zhao Benfu.Application of ensemble empirical mode decomposition method in multiscale analysis of Meiyu in Middle-Lower Reaches of Yangze River. Resources and Environment in the Yangtze Basin, 2015, 24(3):82-88.]
[25]	Li Baofu, Chen Y, Xiong Heigang.Quantitatively evaluating the effects of climate factors on runoff change for Aksu River in northwestern China[J]. Theoretical and Applied Climatology, 2016, 123(1/2): 97-105. doi: 10.1007/s00704-014-1341-6
[26]	杨鹏, 陈亚宁, 李卫红, 等. 2003-2012年新疆塔里木河径流量变化与断流分析[J]. 资源科学, 2015, 37(3): 485-493.
[1]	IPCC. Climate change 2013: the physical science basis[M]. Cambridge: Cambridge University Press, 2013.
[2]	Ji F, Wu Z H,Huang J P et al. Evolution of land surface air temperature trend[J]. Nature Climate Change, 2014, 4: 462-466. doi: 10.1038/nclimate2223
[3]	陈亚宁, 李稚, 范煜婷, 等. 西北干旱区气候变化对水文水资源影响研究进展[J]. 地理学报, 2014, 69(9): 1295-1304. doi: 10.11821/dlxb201409005
	[Chen Yaning, Li Zhi,Fan Yuting et al. Research progress on the impact of climate change on water resources in the arid region of Northwest China. Acta Geographica Sinica, 2014, 69(9): 1295-1304.] doi: 10.11821/dlxb201409005
[4]	Shi Yafeng, Shen Yongping,Kang Ersi et al. Recent and future climate change in northwest China[J]. Climatic Change, 2007, 80(3/4): 379-393. doi: 10.1007/s10584-006-9121-7
[5]	王国亚, 沈永平, 苏宏超, 等. 1956-2006年阿克苏河径流变化及其对区域水资源安全的可能影响[J]. 冰川冻土, 2008, 30(4): 562-568.
	[Wang Guoya, Shen Yongping,Su Hongchaoet al. Runoff changes in Aksu River Basin during 1956-2006 and their impacts on water availability for Tarim River. Journal of Glaciology and Geocryology, 2008, 30(4): 562-568.]
[6]	Li Hongjun, Jiang Zhihong, Yang Qing.Association of North Atlantic oscillations with Aksu river runoff in China. Journal of Geographical Sciences, 2009, 19(1): 12-24. doi: 10.1007/s11442-009-0012-5
[7]	Sun Xian, Lin Zhenshan, Cheng Xiaoxia et al. Regional features of the temperature trend in China based on Empirical Mode Decomposition. Journal of Geographical Sciences, 2008, 18(2): 166-176. doi: 10.1007/s11442-008-0166-6
[8]	Xu Changchun, Chen Yaning,Yang Yuhui et al. Hydrology and water resources variation and its response to regional climate change in Xinjiang. Journal of Geographical Sciences, 2010, 20(4): 599-612. doi: 10.1007/s11442-010-0599-6
[9]	柏玲, 陈忠升, 王祖静, 等. 1980-2013年新疆高空大气温度变化特征[J]. 地理科学, 2016, 36(3): 458-465. doi: 10.13249/j.cnki.sgs.2016.03.018
	[Bai Ling, Chen Zhongsheng, Wang Zujing et al. Upper-air temperature change of Xinjiang during 1980-2013. Scientia Geographica Sinica, 2016, 36(3): 458-465.] doi: 10.13249/j.cnki.sgs.2016.03.018
[10]	张延伟, 葛全胜, 姜逢清, 等. 北疆地区1961-2010年极端气温事件变化特征[J]. 地理科学, 2016, 36(2): 296-302. doi: 10.13249/j.cnki.sgs.2016.02.017
	[Zhang Yanwei, Ge Quansheng, Jiang Fengqing et al. Evolution characteristics of the extreme high and low temperature event in North Xinjiang. Scientia Geographica Sinica, 2016, 36(2): 296-302.] doi: 10.13249/j.cnki.sgs.2016.02.017
[11]	魏凤英. 现代气候统计诊断与预测技术(第2版)[M].北京: 气象出版社, 2007.
	[Wei Fengying.Modern climatic statistical diagnosis and forecasting technology(2nd). Beijing: China Meteorological , 2007.]
[12]	张健, 李同昇, 张俊辉, 等. 1933-2012年无定河径流突变与周期特征诊断[J]. 地理科学, 2016, 36(3): 475-480. doi: 10.13249/j.cnki.sgs.2016.03.020
	[Zhang Jian, Li Tongsheng, Zhang Junhui et al. The runoff abrupt change and periodic characteristics of the Wudinghe River during 1933-2012. Scientia Geographica Sinica, 2016, 36(3): 475-480.] doi: 10.13249/j.cnki.sgs.2016.03.020
[13]	Xu Jianhua, Chen Y,Lu Feng et al. The nonlinear trend of runoff and its response to climate change in the Aksu river, western China[J]. International Journal of Climatology, 2011, 31(5): 687-695. doi: 10.1002/joc.2110
[14]	孙鹏, 张强, 白云岗, 等. 塔里木河流域径流量周期特征及其影响因素[J]. 地理科学, 2013, 33(2): 216-222.
	[Sun Peng, Zhang Qiang,Bai Yungang et al. Periodic properties of runoff changes of the Tarim River Basin: possible causes and implications. Scientia Geographica Sinica, 2013, 33(2): 216-222.]
[15]	Wu Z H, Huang N E.Ensemble empirical mode decomposition:a noise-assisted data analysis method[J]. Advances in Adaptive Data Analysis, 2009, 1(1): 1-41.
[16]	Huang N E, Shen Z, Long S R et al. The empirical mode decomposition and the Hilbert spectrum for nonlinear and non-stationary time series analysis[J]. Proceedings of the Royal Society A-Mathematical Physical and Engineering Sciences, 1998, 454(1971): 903-995. doi: 10.1098/rspa.1998.0193
[17]	Wu Zhaohua, Huang N E, Wallace J M et al. On the time-varying trend in global-mean surface temperature[J]. Climate Dynamics, 2011, 37(3/4): 759-773. doi: 10.1007/s00382-011-1128-8
[18]	邵骏, 吕孙云, 钱晓燕, 等. 基于总体经验模态分解的水文序列多尺度分析[J].华中科技大学学报:自然科学版, 2011, 39(11):105-108.
	[Shao Jun, Lv Sunyun, Qian Xiaoyan et al. Multi-scale analysis of hydrological series using ensemble empirical mode decomposition. Journal of Huazhong University of Science and Technology (Nature Science). 2011, 39(11):105-108.]
[19]	刘天虎, 刘天龙. 集合经验模态分解下中国新疆降水变化趋势的区域特征[J]. 沙漠与绿洲气象, 2015, 9(4): 17-24. doi: 10.3969/j.issn.1002-0799.2015.04.003
	[Liu Tianhu, Liu Tianlong.Regional features of precipitation variation trends over Xinjiang in China by the ensemble empirical mode decomposition method. Desert and Oasis Meteorology, 2015, 9(4): 17-24.] doi: 10.3969/j.issn.1002-0799.2015.04.003
[20]	蒋艳, 周成虎, 程维明. 新疆阿克苏河流域年径流时间序列特征分析[J]. 地理科学进展, 2005, 24(1): 87-96. doi: 10.11820/dlkxjz.2005.01.010
	[Jiang Yan, Zhou Chenghu, Cheng Weiming.Analysis on the characteristics of runoff time series in Akesu basin. Progress in Geography, 2005, 24(1): 87-96.] doi: 10.11820/dlkxjz.2005.01.010
[21]	Allen R G, Pereira L S, Raes D et al. Crop evapotranspiration-Guidelines for computing crop water requirements[M]. Italy: FAO, 1998 .
[22]	Wu Z H, Huang Ne.A study of the characteristics of white noise using the empirical mode decomposition method[J]. Proceedings of the Royal Society A-Mathematical Physical and Engineering Sciences, 2004, 460(246): 1597-1611.
[23]	薛春芳, 侯威, 赵俊虎, 等. 集合经验模态分解在区域降水变化多尺度分析及气候变化响应研究中的应用[J]. 物理学报, 2013, 62(10): 496-503. doi: 10.7498/aps.62.109203
[26]	[Yang Peng, Chen Yaning, Li Weihong et al. Analysis of changes in runoff and drying in the Tarim River from 2003 to 2012. Resources Science, 2015, 37(3): 485-493.]
[23]	[Xue Chunfang, Hou Wei,Zhao Junhu et al. The application of ensemble empirical mode decomposition method in multiscale analysis of region precipitation and its response to the climate change. Acta Physica Sinica, 2013, 62(10): 496-503.] doi: 10.7498/aps.62.109203

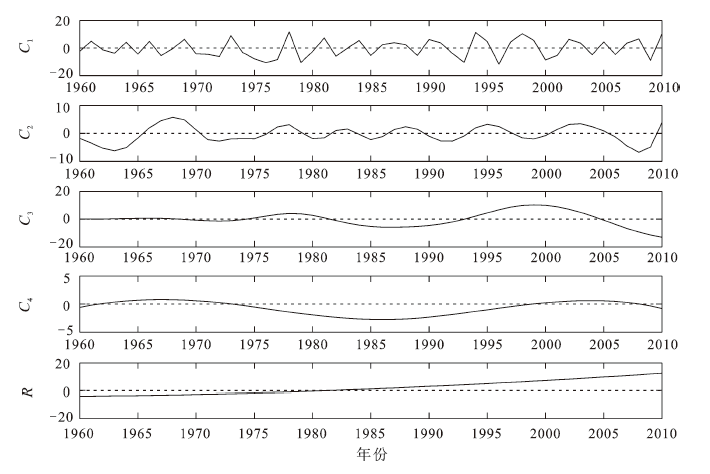

IMF分量	C₁	C₂	C₃	C₄	R
周期(a) 显著性检验	3 90%~95%	6~7 <50%	13 >95%	25 <50%
贡献率(%)	40.90	8.41	25.68	1.40	23.60
