基于遥感数据的建三江垦区城镇用地扩张时空特征及驱动力分析

doi:10.13249/j.cnki.sgs.2017.08.007

摘要/Abstract

摘要：

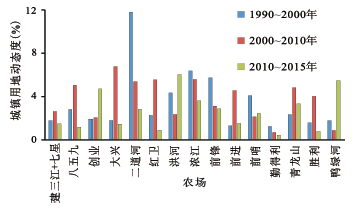

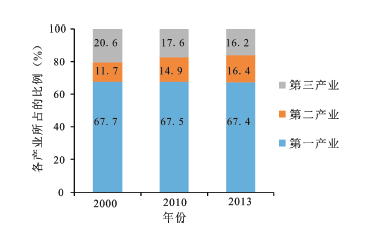

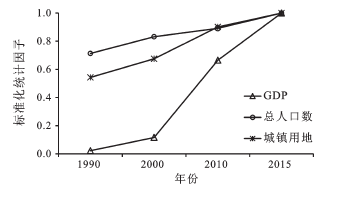

在RS和GIS的支持下集成多源数据,重建了建三江垦区下辖农场1990年、2000年、2010年和2015年4个时期的城镇用地格局。应用动态度模型等探讨了建三江垦区城镇用地扩张的时空特征及区域差异,分析了其驱动因素。结果表明：① 1990~2015年,建三江垦区城镇用地面积增加了3 237.5 hm²,平均扩张速率为130 hm²/a,扩张速率最显著的阶段是2000~2010年。② 垦区下辖农场城镇用地扩张时空差异明显,建三江管局所在城镇扩张面积最大;浓江农场扩张相对比例最大;动态度模型分析发现二道河农场扩张速度最快,勤得利农场的城镇用地扩张速率最慢,扩张面积最小。③ 建三江垦区以农场为城镇单元的建设用地扩张模式主要为线性轴状扩张。④ 城镇人口数量、经济水平的不断提升、产业结构的优化与区域政策极大地促进了垦区城镇用地的扩张,交通条件是城镇扩张速率和模式的重要影响因素。

关键词: 城镇用地扩张, 时空特征, 遥感, 建三江垦区

Abstract:

Under the background of rapid increase in urban population and economic development, study on the urban expansion and its driving forces is critical to urban planning and achievement of the Chinese new urbanization. The urban system taking farm as basic unit and modern agriculture as mainstay industry suggests the unique urbanization characteristics in reclamation area. By means of RS and GIS and integrating multiple datasets, this study reconstructed the urban patterns of Jiansanjiang reclamation area in 1990, 2000, 2010, and 2015. Spatio-temporal characteristics of urban expansion were investigated by employing the dynamic index, and its driving forces were analyzed in this article. Results showed that: 1) Urban area in Jiansanjiang expanded 3 237.5 hm²during 1990-2015, with a mean expansion rate of 130 hm²/a, when the significant expansion was observed in the period of 2000-2010. 2) Urban expansion differed spatially and temporally among these farms managed by Jiansanjiang. The town located by Jiansanjiang authority have the largest urban expansion area, when the Nongjiang farm have the largest expansion percentage. Analyzes of dynamic index reveal that the most rapid urban expansion was observed in Erdaohe farm, while the smallest in Qindeli farm. 3) The dominate urban expansion mode is linear-axis expansion for the farms of Jiansanjiang. 4) Increases of urban population number and social economic level, improvement of industrial structure, and regional policy notably promote the expansion of urban area. Traffic condition is the dominate factor affecting the rate and mode of urban expansion. Study on the spatio-temporal characteristics of urban expansion and its driving forces taking Jiansanjiang as an example could contribute to understand the trend of urban expansion and driving mechanism of reclamation districts in Heilongjiang, and also play an important role in guiding the construction of new urbanization in China.

Key words: urban expansion, spatio-temporal features, remote sensing, Jiansanjiang reclamation area

中图分类号:

K901.8

冯浩城, 杨青山. 基于遥感数据的建三江垦区城镇用地扩张时空特征及驱动力分析[J]. 地理科学, 2017, 37(8): 1178-1185.

Haocheng Feng, Qingshan Yang. Spatio-temporal Characteristics of Urban Expansion and Its Driving Forces Based Remote Sensing Data in Jiansanjiang Reclamation Area[J]. SCIENTIA GEOGRAPHICA SINICA, 2017, 37(8): 1178-1185.

图/表 7

图1

图2

表1

图3

图4

图5

图6

参考文献 26

[9]	[Tan Minghong, Li Xiubin, Lv Changhe.The expansion of urban built-up land in China's large-middle cities and its occupation on cropland in 1990s. Science in China: Series D, 2004, 34(12): 1157-1165.]
[10]	王建康, 谷国锋, 姚丽, 等. 中国新型城镇化的空间格局演变及影响因素分析-基于285个地级市的面板数据[J]. 地理科学, 2016, 36(1): 63-71. doi: 10.1329/j.cnki.sgs.2016.01.008
	[Wang Jiankang, Gu Guofeng, Yao Li et al. Analysis of new urbanization's spatial pattern evolution and influence factors in China. Scientia Geographica Sinica, 2016, 36(1): 63-71.] doi: 10.1329/j.cnki.sgs.2016.01.008
[11]	李加林, 许继琴, 李伟芳, 等. 长江三角洲地区城市用地增长的时空特征分析[J]. 地理学报, 2007, 62(4): 437-447. doi: 10.3321/j.issn:0375-5444.2007.04.010
	[Li Jialin, Xu Jiqin, Li Weifang et al. Spatio-temporal characteristics of urbanization area growth in the Yangtze River delta. Acta Geographica Sinica, 2007, 62(4): 437-447.] doi: 10.3321/j.issn:0375-5444.2007.04.010
[12]	Kuang Wenhui, Liu Jiyuan, Zhang Zengxiang et al. Spatiotemporal dynamics of impervious surface areas across China during the early 21st century[J]. Chinese Science Bulletin, 2013, 58(14): 1691-1701. doi: 10.1007/s11434-012-5568-2
[13]	关兴良, 方创琳, 周敏, 等. 武汉城市群城镇用地空间扩展时空特征分析[J]. 自然资源学报, 2012, 27(9): 1447-1459. doi: 10.11849/zrzyxb.2012.09.002
	[Guan Xingliang, Fang Chuanglin, Zhou Min et al. Spatial and temporal characteristics of spatial expansion of urban land in Wuhan urban agglomeration. Journal of Natural Resources, 2012, 27(9): 1447-1459.] doi: 10.11849/zrzyxb.2012.09.002
[14]	陈江龙, 高金龙, 徐梦月, 等. 南京大都市区建设用地扩张特征与机理[J]. 地理研究, 2014, 33(3): 427-438. doi: 10.11821/dlyj201403003
	[Chen Jianglong, Gao Jinlong, Xu Mengyue et al. Characteristics and mechanism of construction land expansion in Nanjing metropolitan area. Geographical Research, 2014, 33(3): 427-438.] doi: 10.11821/dlyj201403003
[15]	李静, 张平宇, 郭蒙, 等. 哈尔滨市城市用地扩展时空特征及驱动机制分析[J]. 城市环境与城市生态, 2010, 23(6): 1-4.
	[Li Jing, Zhang Pingyu, Guo Menget al. Spatial-temporal characteristic of urban land expansion in Harbin and driving mechanism analysis. Urban Environment & Urban Ecology, 2010, 23(6): 1-4.]
[16]	舒帮荣, 李永乐, 曲艺, 等. 不同经济发展阶段城镇用地扩张特征及其动力——以太仓市为例[J]. 经济地理, 2013, 33(7): 155-162.
	[Shu Bangrong, Li Yongle,Qu Yi et al. Urban land expansion characteristics and its forces under different stages of economic development:a case study of Taicang city. Economic Geography, 2013, 33(7): 155-162.]
[17]	李静. 三江平原垦区城镇化过程与空间组织研究[D]. 长春: 中科院东北地理与农业生态研究所, 2012.
	[Li Jing.Urbanization and spatial organization of state farms in Sanjiang Plain . Changchun: Northeast Institute of Geography and Agroecology,CAS, 2012.]
[18]	苏晓丹, 栾兆擎, 张雪萍. 三江平原气温降水变化分析——以建三江垦区为例[J]. 地理研究, 2012, 31(7): 1248-1256. doi: 10.11821/yj2012070008
	[Su Xiaodan, Luan Zhaoqing, Zhang Xueping.Variations of temperature and precipitation in Sanjiang Plain: A case study of Jiansanjiang reclamation areas. Geographical Research, 2012, 31(7): 1248-1256.] doi: 10.11821/yj2012070008
[19]	梁发超, 刘诗苑, 刘黎明. 近30年厦门城市建设用地景观格局演变过程及驱动机制分析[J]. 经济地理, 2015, 35(11): 159-165. doi: 10.15957/j.cnki.jjdl.2015.11.022
	[Liang Fachao, Liu Shiyuan, Liu Liming.The evolution process and driving mechanism of construction land landscape patter in xiamen city for recent 30 years. Economic Geography, 2015, 35(11): 159-165.] doi: 10.15957/j.cnki.jjdl.2015.11.022
[1]	Kuang Wenhui, Liu Jiyuan,Dong Jinwei et al. The rapid and massive urban and industrial land expansions in China between 1990 and 2010: A CLUD-based analysis of their trajectories, patterns, and drivers[J]. Landscape and Urban Planning, 2016, 145: 21-33. doi: 10.1016/j.landurbplan.2015.10.001
[2]	黄季焜, 朱莉芬, 邓祥征. 中国建设用地扩张的区域差异及其影响因素[J]. 中国科学D辑:地球科学, 2007, 37(9): 1235-1241.
[20]	张帆, 张元福, 李建明, 等. 黑龙江垦区统计年鉴[M]. 北京: 中国统计出版社, 2015 .
	[Zhang Fan, Zhang Yuanfu, Li Jianming et al. Statistical yearbook of Heilongjiang land reclamation system. Beijing: China Statistics Press, 2015.]
[2]	[Huang Jikun, Zhu Lifen, Deng Xiangzheng.Regional differences of China’s urban expansion and the influencing factors. Science in China Series D: Earth Science, 2007, 37(9): 1235-1241.]
[3]	Liu Jiyuan, Zhang Qian, Hu Yunfeng.Regional differences of China’s urban expansion from late 20th to early 21st century based on remote sensing information[J]. Chinese Geographical Science, 2012, 22(1): 1-14. doi: 10.1007/s11769-012-0510-8
[21]	刘世薇, 张平宇, 李静. 黑龙江垦区城镇化动力机制分析[J]. 地理研究, 2013, 32(11): 2066-2078.
	[Liu Shiwei, Zhang Pingyu, Li Jing.Analyzing the urbanization driving force in Heilongjiang reclamation areas. Geographical Research, 2013, 32(11): 2066-2078.]
[4]	He Chunyang, Liu Zhifeng, Tian Jie et al. Urban expansion dynamics and natural habitat loss in China: a multiscale landscape perspective[J]. Global Change Biology, 2014, 20(9): 2886-2902. doi: 10.1111/gcb.12553 pmid: 24643992
[5]	陆大道. 地理学关于城镇化领域的研究内容框架[J]. 地理科学, 2013, 33(8): 897-901.
[22]	陈波翀, 郝寿义, 杨兴宪. 中国城市化快速发展的动力机制[J]. 地理学报, 2004, 59(6): 1068-1075. doi: 10.3321/j.issn:0375-5444.2004.06.031
	[Chen Bochong, Hao Shouyi, Yang Xingxian.The dynamic mechanism of the rapid development of urbanization in China. Acta Geographica Sinica, 2004, 59(6): 1068-1075.] doi: 10.3321/j.issn:0375-5444.2004.06.031
[5]	[Lu Dadao.Research framework in urbanization-related geographical sciences. Scientia Geographica Sinica, 2013, 33(8): 897-901.]
[6]	Bai Xuemei, Shi Peijun, Liu Yansui.Realizing China's urban dream[J]. Nature, 2014, 509(7499): 158-160. doi: 10.1038/509158a pmid: 24812683
[23]	李欣, 张平宇, 李静. 黑龙江省三江平原中心城市选择[J]. 地理科学, 2014, 34(6): 681-686.
	[Li Xin, Zhang Pingyu, Li Jing.Selection of central cities of the Sanjiang plain reclamation area in Heilongjiang province. Scientia Geographica Sinica, 2014, 34(6): 681-686.]
[7]	刘纪远, 张增祥, 庄大方, 等. 20世纪90年的中国土地利用变化时空特征及其成因分析[J]. 地理研究, 2003, 22(1): 1-12. doi: 10.3321/j.issn:1000-0585.2003.01.001
	[Liu Jiyuan, Zhang Zengxiang,Zhuang Dafang et al. A study on the spatial-temporal dynamic changes of land-use and driving forces analyses of China in the 1990s. Geographical Research, 2003, 22(1): 1-12.] doi: 10.3321/j.issn:1000-0585.2003.01.001
[24]	李静, 张平宇. 三江平原垦区城镇化特征和发展对策[J]. 农业现代化研究, 2013, 34(1): 50-53.
	[Li Jing, Zhang Pingyu.Study on urbanization characteristics and development strategies in state farms,Sanjiang Plain. Research of Agricultural Modernization, 2013, 34(1): 50-53.]
[25]	谭俊涛, 张平宇, 李静. 三江平原垦区基础建设对区域城镇化的影响[J]. 地理研究, 2014, 33(3): 501-508.
	[Tan Juntao, Zhang Pingyu, Li Jing.Infrastructure construction effect on regional urbanization of the reclamation area in Sanjiang Plain. Geographical Research, 2014, 33(3): 501-508.]
[8]	Seto K C, Fragkias M, Güneralp B et al. A meta-analysis of global urban land expansion[J]. PLOS One, 2011, 6(8): e23777.] doi: 10.1371/journal.pone.0023777 pmid: 21876770
[9]	谈明洪, 李秀彬, 吕昌河. 20世纪90年代中国大中城市建设用地扩张及其对耕地的占用[J]. 中国科学D辑, 2004, 34(12): 1157-1165.
[26]	Liu Shiwei, Zhang Pingyu, Lo K.Urbanization in remote areas: A case study of the Heilongjiang Reclamation Area, Northeast China[J]. Habitat International, 2014, 42: 103-110. doi: 10.1016/j.habitatint.2013.11.003

农场名称	城镇用地面积（hm²）					相对变化率(%)
农场名称	1990年		2000年	2010年	2015年	1990~2000年	2000~2010年	2010~2015年	1990~2015年
建三江管局与七星	945.6	1113.6	1406.8	1511.7		17.8	26.3	7.5	35.7
八五九	240.1	307.5	462.5	489.7		28.1	50.4	5.9	59.3
创业	371.1	442.5	533.9	659.6		19.2	20.7	23.5	49.1
大兴	181.5	214.1	359.1	385.6		18.0	67.7	7.4	80.1
二道河	56.9	124.0	190.8	217.7		117.9	53.9	14.1	75.6
红卫	151.8	186.3	289.7	302.6		22.7	55.5	4.5	62.4
洪河	145.9	209.2	258.4	336.3		43.4	23.5	30.1	60.8
浓江	58.0	94.9	148.0	174.8		63.6	56.0	18.1	84.2
前锋	163.7	257.7	338.1	386.6		57.4	31.2	14.3	50.0
前进	557.4	630.1	917.4	987.5		13.0	45.6	7.6	56.7
前哨	313.0	441.1	535.7	601.4		40.9	21.4	12.3	36.3
勤得利	268.0	301.4	322.1	329.4		12.5	6.9	2.3	9.3
青龙山	108.2	133.5	197.8	230.8		23.4	48.2	16.7	72.9
胜利	173.6	201.2	282.2	293.2		15.9	40.3	3.9	45.7
鸭绿河	103.4	121.9	132.5	168.8		17.9	8.7	27.4	38.5
总计	3838.2	4779.0	6375.0	7075.7		24.5	33.4	11.0	48.1
