南方红壤区林下水土流失的遥感判别——以福建省长汀县为例

doi:10.13249/j.cnki.sgs.2017.08.018

地理科学 ›› 2017, Vol. 37 ›› Issue (8): 1270-1276.doi: 10.13249/j.cnki.sgs.2017.08.018

南方红壤区林下水土流失的遥感判别——以福建省长汀县为例

徐涵秋^1,²(), 张博博^1,², 关华德³, 胡秀娟^1,², 陈明华⁴, 付伟^1,²

1.福州大学环境与资源学院/遥感信息工程研究所,福建福州 350116
2.空间数据挖掘与信息共享教育部重点实验室/福建省水土流失遥感监测评估重点实验室,福建福州 350116
3.澳大利亚弗林德斯大学环境学院,阿德莱德 5001 澳大利亚
4.福建省水土保持监测站,福建福州 350001

收稿日期:2016-08-09 修回日期:2017-01-10 出版日期:2017-08-15 发布日期:2017-08-15
作者简介:
作者简介：徐涵秋(1955-), 男, 博士,教授, 博士生导师,主要从事环境与资源遥感应用研究。E-mail: hxu@fzu.edu.cn
基金资助:
国家科技支撑项目 (2013BAC08B01-05)、福建省教育厅重点项目(JA13030)资助

Detection of Soil Erosion Area Under Forest Canopy in the Red Soil Region of Southern China Using Remote Sensing Techniques: Changting County, Fujian Province

Hanqiu Xu^1,²(), Bobo Zhang^1,², Huade Guan³, Xiujuan Hu^1,², Minghua Chen⁴, Wei Fu^1,²

1. College of Environment and Resources, Institute of Remote Sensing Information Engineering, Fuzhou University, Fuzhou 350116, Fujian, China
2. Key Laboratory of Spatial Data Mining & Information Sharing of Ministry of Education, Fujian Provincial Key Laboratory of Remote Sensing of Soil Erosion, Fuzhou 350116, Fujian, China;
3. School of the Environment, Flinders University, Adelaide, SA 5001, Australia
4. Fujian Monitoring Station of Water and Soil Reservation, Fuzhou 350001, Fujian, China

Received:2016-08-09 Revised:2017-01-10 Online:2017-08-15 Published:2017-08-15
Supported by:
Key Technology Research and Development Program (2013BAC08B01-05), Key Research Project of Department of Education of Fujian Province (JA13030).

摘要/Abstract

摘要：

针对林下水土流失缺乏有效判别方法的问题,提出了一种遥感判别方法。该方法以植被覆盖度、植被健康度、土壤裸露度和坡度为判别因子,采用规则法来建立林下水土流失遥感判别模型,并将其应用于福建省长汀县。结果发现,长汀县有311.66 km²的林地发生不同程度的林下水土流失,其中有13.35%的土壤侵蚀强度达到中度。通过遥感方法识别出的林下水土流失区的空间分布位置可为该县今后深入治理水土流失提供目标靶区。

关键词: 林下水土流失, 规则判别, 遥感, 植被覆盖度, 植被健康状况

Abstract:

This study proposes a new rule-based method to locate soil erosion under moderate-to high-density forest canopy using remote sensing techniques. Five factors that are closely related to the soil erosion in forest are specially selected and used as discriminators to develop the discrimination rules. The selected five factors include fractional vegetation coverage, nitrogen reflectance index, yellow leaf index, bare soil index, and slope degree. The selection of these five factors aims to detect vegetation density, vegetation health status, soil exposure degree, and terrain steepness. These five factors can all be derived from remote sensing imagery based on related thematic indices or algorithms. The proposed method was applied to the forest areas in Changting County of Fujian Province, southern China. The Hetian town of the county is one of the most typical soil loss areas in the red soil regions in southern China. A Landsat 8 OLI image acquired on October 15, 2014, in-situ measured spectral data, and nutrient data from soil samples have been used as data sources for the study. The result reveals a total area of 311.66 km² of soil erosion in forest of the county. Of them, 13.35% is in moderate erosion intensity and the rest is in light erosion intensity. The accuracy assessment against ground truth indicates that the method can achieve an overall accuracy of 88.45%, with a Kappa coefficient of 0.731. The revealed locations of soil erosion in forest provide very useful information for Changting County to develop land management plans to further reduce soil loss in forest.

Key words: soil erosion in forest, discrimination rule, remote sensing, fractional vegetation coverage, vegetation health status

中图分类号:

TP751

徐涵秋, 张博博, 关华德, 胡秀娟, 陈明华, 付伟. 南方红壤区林下水土流失的遥感判别——以福建省长汀县为例[J]. 地理科学, 2017, 37(8): 1270-1276.

Hanqiu Xu, Bobo Zhang, Huade Guan, Xiujuan Hu, Minghua Chen, Wei Fu. Detection of Soil Erosion Area Under Forest Canopy in the Red Soil Region of Southern China Using Remote Sensing Techniques: Changting County, Fujian Province[J]. SCIENTIA GEOGRAPHICA SINICA, 2017, 37(8): 1270-1276.

图/表 8

图1

图2

图3

表 1

图4

表2

图5

图6

参考文献 21

[1]	廖承彬, 魏天儒. 红壤坡地不同树种林下水土流失特征研究[J]. 水土保持通报, 2013, 33(2):198-202.
	[Liao Chengbin, Wei Tianru.Characteristics of soil and water loss on red soil slope land under forest with different tree species. Bulletin of Soil and Water Conservation. 2013, 33(2):198-202.]
[2]	徐义保. 南方红壤丘陵区马尾松林下水土流失过程研究[D]. 福州:福建师范大学, 2012.
	[Xu Yibao.Research on process of undergrowth loss the soil and water in red soil hilly region of Southern China. Fuzhou: Fujian Normal University, 2012.]
[3]	朱颂茜, 龚洁, 林恩标, 等. 南方丘陵区林下水土流失特点及防治措施探讨[J]. 亚热带水土保持, 2013, 25(3): 24-30. doi: 10.3969/j.issn.1002-2651.2013.03.007
	[Zhu Songqian, Gong Jie,Lin Enbiao et al. Characteristics and control measures of soil and water loss in underground forest in southern hilly region. Subtropical Soil and Waer Conservation, 2013, 25(3): 24-30.] doi: 10.3969/j.issn.1002-2651.2013.03.007
[4]	何圣嘉, 谢锦升, 杨智杰, 等. 南方红壤丘陵区马尾松林下水土流失现状、成因及防治[J]. 中国水土保持科学, 2011, 9(6): 65-70.
	[He Shengjia, Xie Jinsheng,Yang Zhijie et al. Status, causes and prevention of soil and water loss in Pinus massoniana woodland in hilly red soil region of Southern China. Science of Soil and Water Conservation, 2011, 9(6): 65-70.]
[5]	雷环清. 兴国县花岗岩区林下水土流失及其防治[J]. 中国水土保持, 2007, (3): 58-59. doi: 10.3969/j.issn.1000-0941.2007.03.025
	[Lei Huanqing.Soil and water loss of granite region under the trees in Xingguo County and its prevention and control. Soil and Water Conservation in China, 2007, (3): 58-59.] doi: 10.3969/j.issn.1000-0941.2007.03.025
[6]	杨冉冉, 徐涵秋, 林娜, 等. 基于RUSLE的福建省长汀县河田盆地区土壤侵蚀定量研究[J]. 生态学报, 2013, 33(10): 2974-2982. doi: 10.5846/stxb201205130701
	[Yang Ranran, Xu Hanqiu,Lin Na et al. RUSLE-based quantitative study on the soil erosion of the Hetian basin area in County Changting, Fujian Province, China. Acta Ecologica Sinica, 2013, 33(10): 2974-2982.] doi: 10.5846/stxb201205130701
[7]	徐涵秋. 南方典型红壤水土流失区地表裸土动态变化分析——以福建省长汀县为例[J]. 地理科学, 2013, 33(4):489-496.
	[Xu Hanqiu.Dynamics of bare soil in a typical reddish soil loss region of Southern China: Changting County, Fujian Province. Scientia Geographica Sinica, 2013, 33(4):489-496.]
[8]	Ramsey R D,Wright D L Jr,McGinty C. Evaluating the use of Landsat 30m Enhanced Thematic Mapper to monitor vegetation cover in shrub-steppe environments[J]. Geocarto International, 2004, 19(2): 39-47. doi: 10.1080/10106040408542305
[9]	Chander G, Markham B L, Helder D L.Summary of current radiometric calibration coefficients for Landsat MSS, TM, ETM+, and EO-1 ALI sensors. Remote Sensing of Environment, 2009, 113: 893-903. doi: 10.1016/j.rse.2009.01.007
[10]	USGS. Landsat 8 Data [OL].
	29)
[11]	Chavez P S Jr. Image-based atmospheric corrections-revisited and improved[J]. Photogrammetric Engineering and Remote Sensing, 1996, 62(9): 1025-1036. doi: 10.1016/0031-0182(96)00019-3
[12]	Jensen J R.Remote Sensing of the Environment: An Earth Resource Perspective (2nd Edition)[M]. Upper Saddle River, NJ: Pearson Prentice-Hall Inc, 2006,608.
[13]	Gutman G, Ignatov A.The derivation of the green vegetation fraction from NOAA/ AVHRR data for use in numerical weather prediction models[J]. International Journal of Remote sensing, 1998, 19(8): 1533-1543. doi: 10.1080/014311698215333
[14]	Carlson T N, Ripley D.On the relation between NDVI, fractional vegetation cover, and leaf area index[J]. Remote Sensing of Environment, 1997, 62: 241-252. doi: 10.1016/S0034-4257(97)00104-1
[15]	Wu C, Murray A T.Estimating impervious surface distribution by spectral mixture analysis[J]. Remote Sensing of Environment, 2003, 84: 493-505. doi: 10.1016/S0034-4257(02)00136-0
[16]	徐涵秋, 何慧, 黄绍霖. 福建省长汀县河田水土流失区植被覆盖度变化及其热环境效应. 生态学报, 2013, 33(10): 2954-2963. doi: 10.5846/stxb201205150720
	[Xu Hanqiu, He Hui, Huang Shaolin.Analysis of fractional vegetation cover change and its impact on thermal environment in the Hetian basinal area of County Changting, Fujian province, China. Acta Ecologica Sinica, 2013, 33(10): 2954-2963.] doi: 10.5846/stxb201205150720
[17]	Bausch W C, Duke H R.Remote sensing of plant nitrogen status in corn[J]. Transactions of the ASAE, 1996, 39(5): 1869-1875. doi: 10.13031/2013.27665
[18]	谭昌伟, 王纪华, 赵春江, 等. 利用Landsat TM 遥感数据监测冬小麦开花期主要长势参数[J]. 农业工程学报, 2011, 27(5): 224-230. doi: 10.3969/j.issn.1002-6819.2011.05.040
	[Tan Changwei, Wang Jihua,Zhao Chunjiang et al. Monitoring wheat main growth parameters at anthesis stage by Landsat TM. Transactions of the CSAE, 2011, 27(5): 224-230.] doi: 10.3969/j.issn.1002-6819.2011.05.040
[19]	Jensen J R.Introductory digital image processing: A remote sensing perspective (4th Edition)[M]. Upper Saddle River, NJ: Pearson Prentice-Hall Inc,2015,544.
[20]	Kearney M S, Rogers A S, Townshend J R G. Developing a model for determining coastal marsh “health”. In: Third Thematic Conference on Remote Sensing for Marine and Coastal Environments, Seattle, Washington, 1995: 527-537.
[21]	Mwaniki, Agutu N O, Mbaka J Get al. Landslide scar/soil erodibility mapping using Landsat TM/ETM+ bands 7 and 3 Normalised Difference Index: A scase study of central region of Kenya. Applied Geography, 2015, 64: 108-120. doi: 10.1016/j.apgeog.2015.09.009

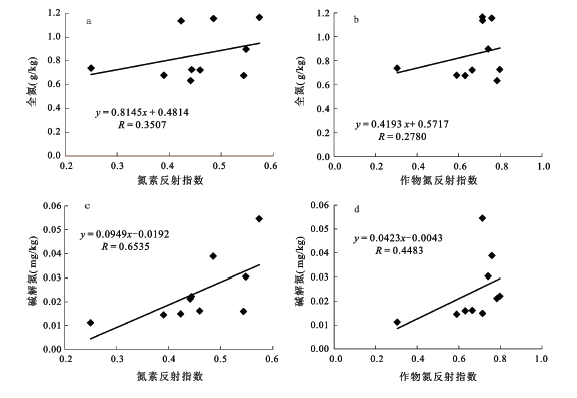

样地编号	样地名称	全氮含量(g/kg)	碱解氮含量(mg/kg)
1	石壁下标准地	0.633	21.194
2	三洲牌楼下	1.136	14.952
3	路虎科技协作区	0.678	14.571
4	梨岭	1.165	54.625
5	马坑垄	0.676	16.011
6	乌石岽挖穴	0.726	22.182
7	伯湖北坑	0.738	11.271
8	石官凹	0.722	16.219
9	罗地	0.898	30.432
10	梁角	1.155	38.945

	最小值	最大值	均值	标准差	R²
黄色波段	0.001	0.721	0.055	0.034	0.992
模拟黄色波段	0.003	0.766	0.054	0.032	0.992
