1979年以来南黄海辐射沙洲潮滩脊线时空变化研究

doi:10.13249/j.cnki.sgs.2017.10.017

地理科学 ›› 2017, Vol. 37 ›› Issue (10): 1593-1599.doi: 10.13249/j.cnki.sgs.2017.10.017

1979年以来南黄海辐射沙洲潮滩脊线时空变化研究

曹可^1,²(), 李飞^1,²(), 高宁^1,², 张子鹏^1,², 温欣^1,²

1.国家海洋环境监测中心,辽宁大连 116000
2.国家海洋局海域管理技术重点实验室,辽宁大连 116000

收稿日期:2016-11-01 修回日期:2017-02-28 出版日期:2017-10-20 发布日期:2017-10-20
作者简介:
作者简介：曹可（1978-）,男,博士,副研究员,主要从事海域使用动态监测与评价方面的研究。 E-mail:caokecn@163.com
基金资助:
海洋公益性行业科研专项（201405028）资助

Spatial-temporal Analysis of the Tidal Flat Ridge Lines Change of Radial Sandbanks in the South Yellow Sea Since 1979

Ke Cao^1,²(), Fei Li^1,²(), Ning Gao^1,², Zipeng Zhang^1,², Xin Wen^1,²

1.National Marine Environmental Monitoring Center, Dalian 116000, Liaoning, China
2. Key Laboratory of Sea-field Management Techniques, State Oceanic Administration, People's Republic of China, Dalian 116023, Liaoning, China

Received:2016-11-01 Revised:2017-02-28 Online:2017-10-20 Published:2017-10-20
Supported by:
Marine Nonprofit Industry Research Project(201405028)

摘要/Abstract

摘要：

基于遥感和GIS技术,提取了南黄海辐射沙洲1979年、1990年、2002年和2014年4个时期的潮滩脊线,并对时空变化特征进行系统分析。研究显示：① 辐射沙洲潮滩脊线可分为主线和支线2级,滩脊主线为条子泥-高泥-东沙潮滩脊线,支线为滩脊主线两侧分支;② 辐射沙洲潮滩脊线空间组合形态总体稳定,条子泥段滩脊主线总体呈东西向,东沙段滩脊主线总体呈南北向,高泥段滩脊主线连接条子泥和东沙;③ 滩脊线演变呈显著空间分异,条子泥段滩脊主线南向迁移显著,东沙段和高泥段滩脊主线总体向东迁移,迁移距离条子泥段滩脊主线>高泥段、东沙段,条子泥段滩脊主线中部>两侧、东沙段滩脊主线北段>南段,条子泥滩脊支线形态和位置变化均较东沙滩脊支线显著。

关键词: 遥感, 辐射沙洲, 潮滩脊线, 时空变化

Abstract:

The tidal flat ridge line is the typical geomorphic feature line of the tidal flat area in radiation sandbank, and it is important for understanding the temporal and spatial changes of the tidal flat with the analysis of the beach ridge lines changes. Based on remote sensing and GIS technology, the tidal flat ridges of radiation sandbank in 1979, 1990, 2002 and 2014 were extracted, and the spatial-temporal changes were systematically analyzed. The study shows that, the ridge lines of radiation tidal flat can be divided into main line and branch line, the main line of tidal flat ridge is the Tiaozini-Gaoni-Dongsha tidal flat ridge, the branch lines are located on both sides of the main line. The spatial pattern of the tidal flat ridge line is generally stable. The main line of Tiaozini section is generally east-west, Dongsha section is north-south, Gaoni section connects the Tiaozini and Dongsha. The ridge line evolution has significant spatial differentiation, the main line of Tiaozini section migrated southward obviously, Dongsha and Gaoni section mainly migrated eastward. The migration distance of the main tidal flat ridge line showed as Tiaozini section > Gaoni section and Dongsha section, the middle part >both ends in the main line of Tiaozini section, northern > southern in the main line of Dongsha section. The morphological and positional changes of branch lines in Tiaozini were more obvious than that in Dongsha.

Key words: remote sensing, radiation sandbar, tidal flat ridge, spatial-temporal changes

中图分类号:

P748

曹可, 李飞, 高宁, 张子鹏, 温欣. 1979年以来南黄海辐射沙洲潮滩脊线时空变化研究[J]. 地理科学, 2017, 37(10): 1593-1599.

Ke Cao, Fei Li, Ning Gao, Zipeng Zhang, Xin Wen. Spatial-temporal Analysis of the Tidal Flat Ridge Lines Change of Radial Sandbanks in the South Yellow Sea Since 1979[J]. SCIENTIA GEOGRAPHICA SINICA, 2017, 37(10): 1593-1599.

图/表 6

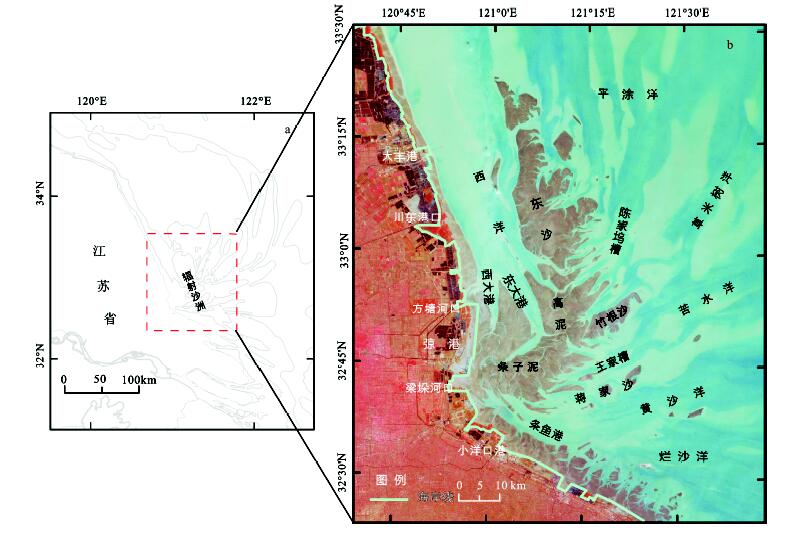

图1

表1

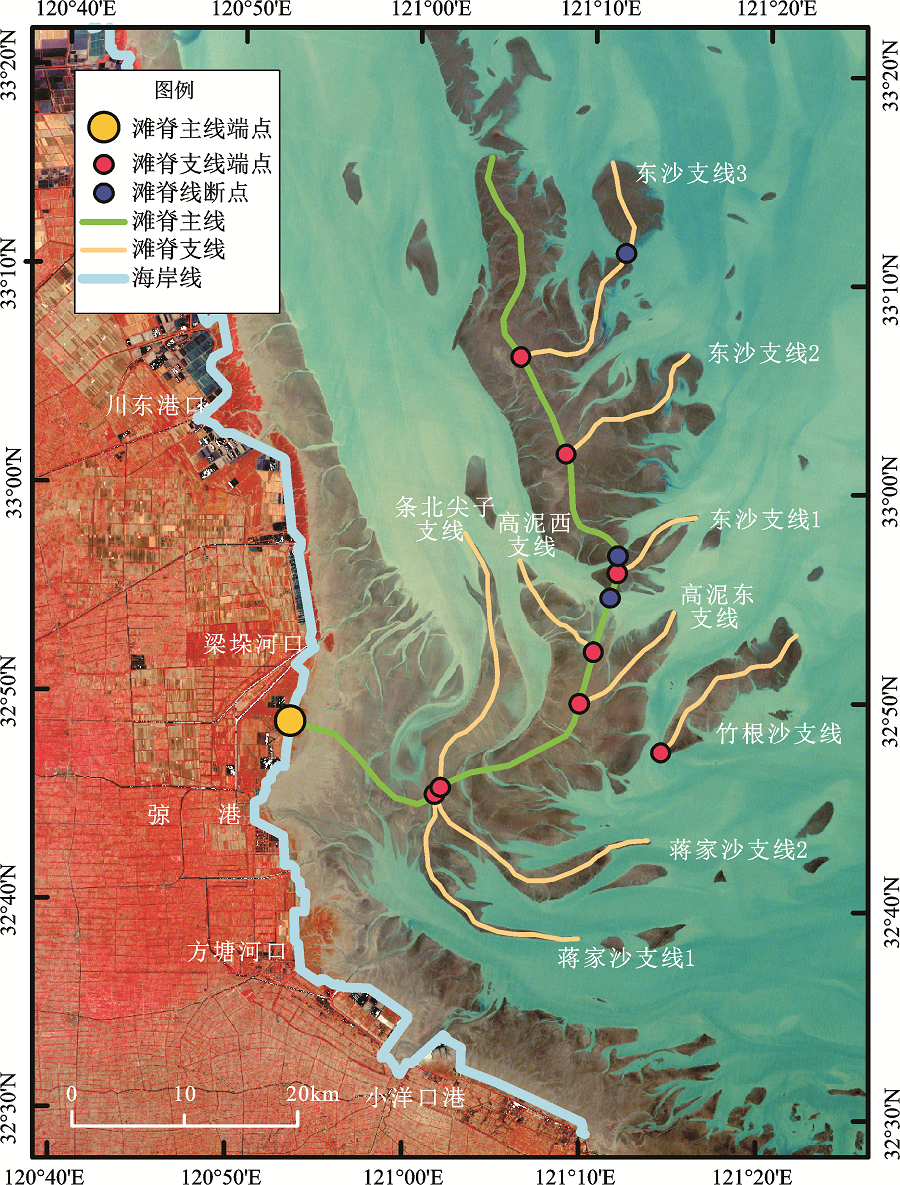

图2

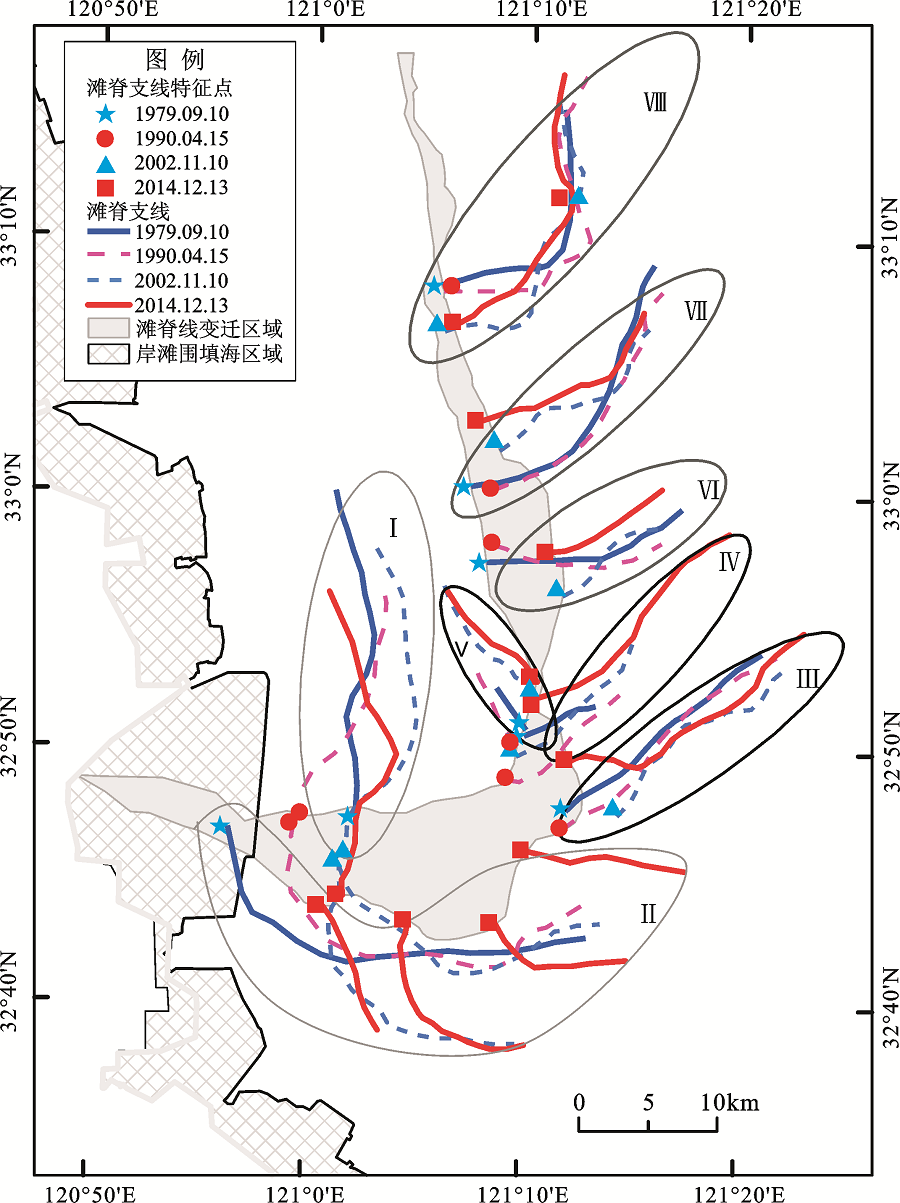

图3

表2

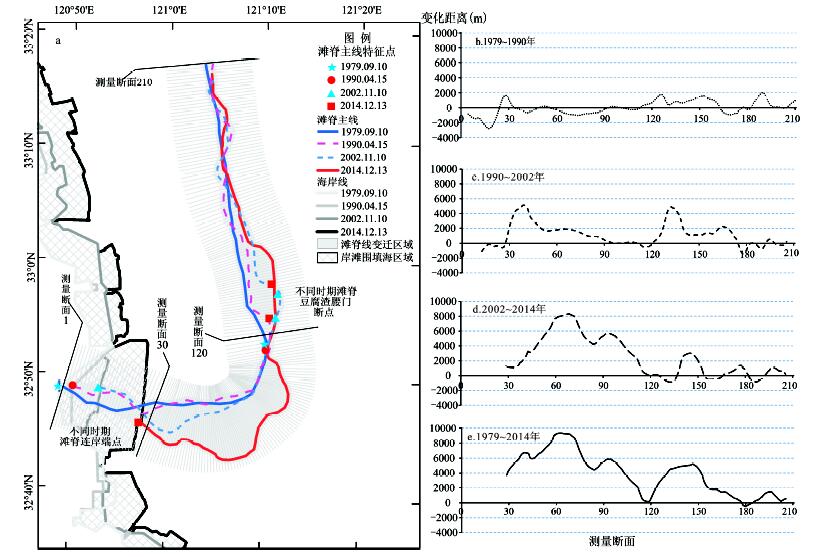

图4

参考文献 15

[1]	王颖. 黄海陆架辐射沙脊群[M]. 北京: 中国环境科学出版社, 2002.
	[Wang Ying.Radiative sandy ridge field on continental shelf of the Yellow Sea. Beijing: China Enviromental Science Press, 2002.]
[2]	Wang Yaping, Gao Shu, Jia Jianjun et al. Sediment transport over an accretional intertidal flat with influences of reclamation, Jiangsu coast, China[J]. Marine Geology, 2012, 291(4): 147-161. doi: 10.1016/j.margeo.2011.01.004
[3]	Liu Yongxue, Li Manchun, Mao Liang et al. Seasonal pattern of Tidal-Flat topography along the Jiangsu middle coast, China, using HJ-1 optical images[J]. Wetlands, 2013, 33(5): 871-886. doi: 10.1007/s13157-013-0445-6
[4]	Xia Fei, Zhang Yongzhan, Wang Qiang et al. Evolution of sedimentary environments of the middle Jiangsu coast, South Yellow Sea since late MIS 3[J]. Journal of Geographical Sciences, 2013, 23(5): 883-914. doi: 10.1007/s11442-013-1051-5
[5]	丁贤荣, 周虹宏, 康彦彦. 辐射沙脊群地貌结构遥感解析[J]. 地理与地理信息科学, 2014, 30(4): 32-35, 41, 封2. doi: 10.3969/j.issn.1672-0504.2014.04.007
	[Ding Xianrong, Zhou Honghong, Kang Yanyan. Geomorphologic structure analysis of radial sand ridges. Geography and Geo-Information Science, 2014, 30(4): 32-35, 41, 封2.] doi: 10.3969/j.issn.1672-0504.2014.04.007
[6]	夏娟, 丁贤荣, 康彦彦, 等. 辐射沙脊群地貌遥感制图[J]. 国土资源遥感, 2014, 26(1): 122-126. doi: 10.6046/gtzyyg.2014.01.21
	[Xia Juan, Ding Xianrong, Kang Yanyan et al. Geomorphologic mapping by remote sensing in radial submarine sand ridges. Remote Sensing for Land & Resources, 2014, 26(1): 122-126.] doi: 10.6046/gtzyyg.2014.01.21
[7]	李飞. 南黄海辐射沙洲内缘区演变驱动机制及围垦布局研究[D]. 南京: 南京师范大学, 2014.
	[Li Fei.The driving mechanism and reclamation spatial layout of the inner part of radial sandbanks in the South Yellow Sea. Nanjing: Nanjing Normal University, 2014.]
[8]	张忍顺. 江苏岸外沙洲演变与条子泥并陆前景研究[M]. 北京: 海洋出版社, 1992.
	[Zhang Renshun.Study on the foreground of the sandbank evolvement and Tiaozini sandbank combine land offshore of Jiangsu. Beijing: China Ocean Press, 1992.]
[9]	丁贤荣, 康彦彦, 葛小平, 等. 辐射沙脊群条子泥动力地貌演变遥感分析[J]. 河海大学学报:自然科学版, 2011, 39(2): 231-236. doi: 10.3876/j.issn.1000-1980.2011.02.021
	[Ding Xianrong, Kang Yanyan, Ge Xiaoping et al. Tidal flat evolution analysis using remote sensing on Tiaozini flat of the radial sand ridges. Journal of Hohai University(Natural Sciences), 2011, 39(2): 231-236.] doi: 10.3876/j.issn.1000-1980.2011.02.021
[10]	陈君, 张忍顺. 江苏岸外条子泥二分水滩脊的沉积特征[J]. 海洋通报, 2003, 22(3): 23-30.
	[Chen Jun, Zhang Renshun.Sedimentarry characteristics of the erfenshui tidal ridge of the tiaozini sandbank of Jiangsu province. Marine Science Bulletin, 2003, 22(3): 23-30.]
[11]	陈君, 王义刚, 卫晓庆, 等. 条子泥二分水滩脊地貌动力与演变特征研究[J]. 水利水运工程学报, 2011, (4): 108-114.
	[Chen Jun, Wang Yigang, Wei Xiaoqing et al. Hydrodynamic-morphodynamic characteristics and evolution tendency of the Erfenshui water-dividing beach ridge of the Tiaozini tidal sandbank, Jiangsu coast, China. Hydro-Science and Engineering, 2011, (4): 108-114.]
[12]	陈可锋, 陆培东, 王艳红, 等. 南黄海辐射沙洲趋势性演变的动力机制分析[J]. 水科学进展, 2010, 21(2): 267-273.
	[Chen Kefeng, Lu Peidong, Wang Yanhong et al. Hydrodynamic mechanism of evolvement trends in radial sandbank of South Yellow Sea, China. Advances in Water Science, 2010, 21(2): 267-273.]
[13]	金宇豪, 丁贤荣, 葛小平. 基于MSS/ETM影像辐射沙脊群沙脊地貌遥感演变分析[J]. 地理空间信息, 2015, 13(6):79-81.
	[Jin Yuhao, Ding Xianrong, Ge Xiaoping.Sand ridge geomorphic remote sensing evolution analysis of radial sand ridges based on MSS/ETM[J]. Geospatial Information, 2015, 13(6):79-81.]
[14]	李岚, 丁贤荣, 葛小平, 等. 辐射沙脊群蒋家沙西段地貌演变特征[J]. 河海大学学报:自然科学版, 2015, 43(4): 366-370.
	[Li Lan, Ding Xianrong, Ge Xiaoping et al. Geomorphic evolution characteristics of western segment of Jiangjiasha in radial sand ridge group area. Journal of Hohai University(Natural Sciences), 2015, 43(4): 366-370.]
[15]	Thieler E R, Himmelstoss E A, Zichichi J L et al. The Digital Shoreline Analysis System(DSAS) Version 4. 0- An ArcGIS Extension for Calculating Shoreline Change[R]. U. S. Geological Survey, 2009.

成像日期	空间分辨率	卫星	传感器
1979.09.10	78 m	Landsat-3	MSS
1990.04.15	30 m	Landsat-5	TM
2002.11.10	30 m	Landsat-5	TM
2014.12.13	30 m	Landsat-8	OLI

滩脊支线名称	端点迁移距离（m）、方向
滩脊支线名称	1979~1990年	1990~2002年	2002~2014年	1979~2014年
条北尖子支线	4 169 ←	4 500 →↓	2 601 ↓	5 772 ↓
蒋家沙支线	4 767 →	4 642 →↓	3 080 ←↓	9 039 →↓
			6 312 →↓	14 724 →↓
			12 051 →↓	20 636 →↓
			13 641 →	21 730 →
竹根沙支线	1 430 ←↓	4 164 →↑	5 240 ←↑	3 608 ↑
高泥东支线	3 431 ↓←	1 849 ↑→	4 459 ↑→	2 878 ↑→
高泥西支线	1 304 ↓←	3 969 ↑→	866 ↑→	3 569 ↑→
东沙支线1	1 338 ↑→	6 283 →↓	3 306 ↑←	4 769 →
东沙支线2	1 560 →↓	2 943 ↑→	2 531 ↑←	4 781 ↑→
东沙支线3	528 ↓→	2 907 ↓	765 →↑	3 119 ↓→
