基于力学平衡模型的长三角港口物流发展协调性研究

doi:10.13249/j.cnki.sgs.2017.11.003

摘要/Abstract

摘要：

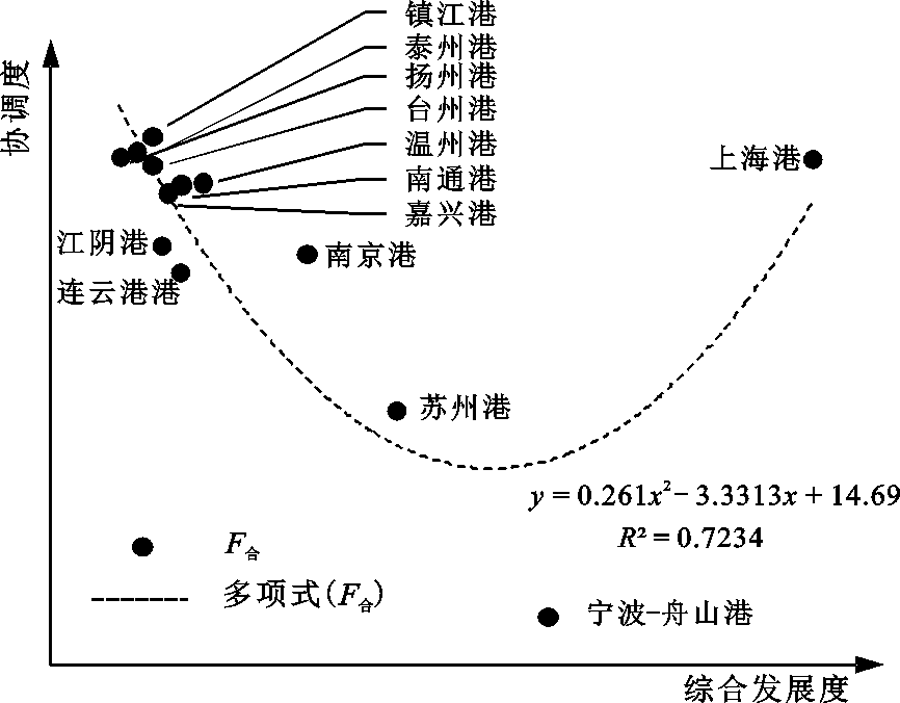

基于港口物流协调发展理论分析框架,构建相应的综合评价指标体系和协调性判别模型,对长三角13个港口物流发展协调性进行综合评判。结果表明：长三角已形成较为明显的以上海港为核心,宁波-舟山港、苏州港和南京港为副中心,其余港口为重要补充的多层次港口物流规模等级结构;港口物流协调发展层次总体偏低,以低水平协调型为主,且港口物流发展协调度与综合发展度间存在紧密联系,呈现明显的“U”型曲线特征;港口物流协调发展偏离方向集中化特征不明显,制约不同港口物流协调发展的主要因素存在较大区别,同时就物流运营发展滞后型、城市支撑发展滞后型和基础设施发展滞后型港口分别提出改进方向。

关键词: 港口物流, 指标体系, 协调性, 港口地理学, 长三角

Abstract:

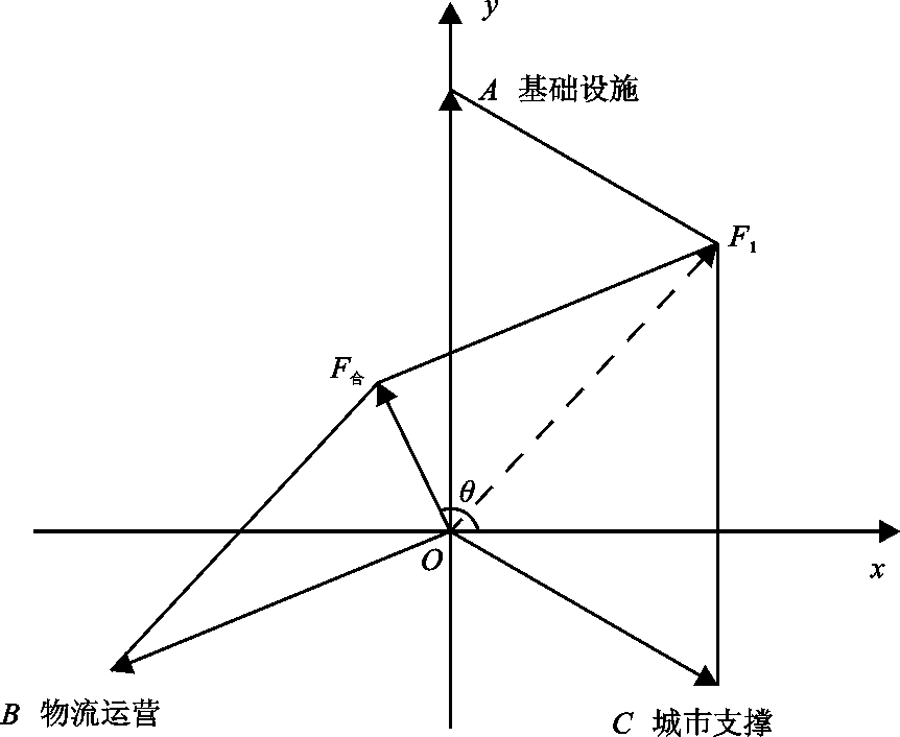

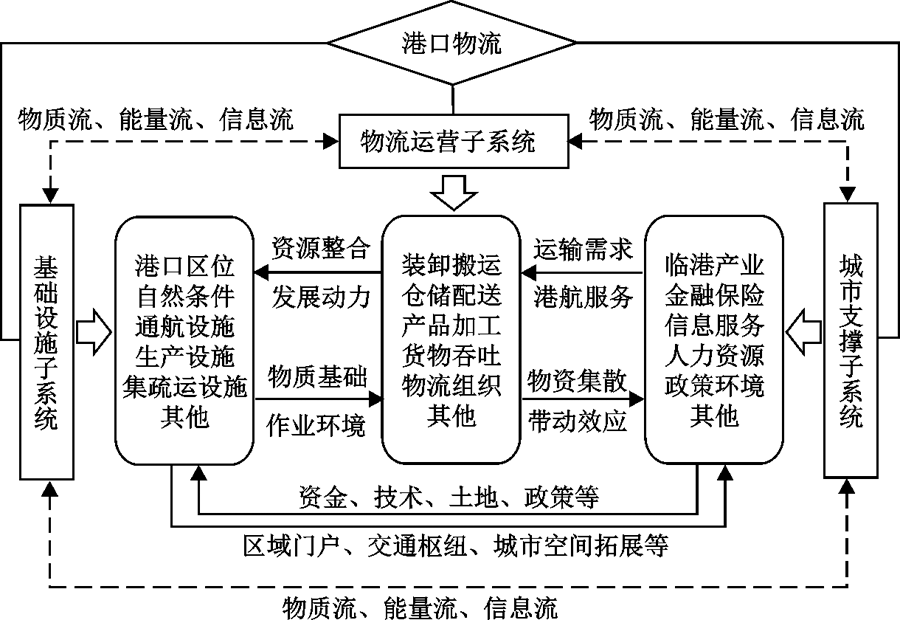

Based on the idea of systems theory, one new theoretical analytical framework for port logistics coordinated development is proposed by the authors. The framework consists of three subsystems, including port infrastructure, logistics operation, and city support. On the basis of it, one comprehensive index system of port logistics coordinated development is established in this research. It contains 3 second grade indexes and 14 third grade indexes. This article abstracts the coupling relationship, between the three subsystems, into vector relation of three forces with different direction in Cartesian coordinate system. Then, the authors construct the coupling coordination discriminate model of port logistics development, by combing the comprehensive evaluation index system with the mechanical model. Furthermore, by using the natural and social economic statistic data from 13 container ports in the Yangtze River Delta in 2013, the comprehensive development level, the coordinated development state and the main restrictive factors of port logistics development are estimated and quantified. The results show that: 1) There are some significant differences in the comprehensive development degree of port logistics among the Yangtze River Delta port system, and it has formed a multi-level port logistics hierarchical structure. Shanghai is the center, Ningbo-Zhoushan, Suzhou and Nanjing are the sub-centers, and the rest of the ports is the supplement. 2) There are some obvious differences in the coordination degree of port logistics in the Yangtze River Delta post system. The overall level of coordination is obviously low. The Yangtze River Delta post system includes five kinds of coordination development types, of which the low-level coordination type is the main types, and it covers 7 ports, accounting for 53.85% of the total ports. In particular, the comprehensive development degree is closely linked with the coordination degree of port logistics, and the relation is in line with the ‘U-shaped’ curve. 3) The concentration characteristic of the deviated direction of the coordination degree is not obvious. The quantity of ports in the lag type of the port infrastructure, logistics operation and city support subsystems is approximately the same. Finally, how to promote the coordinated development of the Yangtze River Delta port logistics has carried on the preliminary discussion.

Key words: port logistics, index system, coordination, Port Geography, the Yangtze River Delta

中图分类号:

F552.7

叶士琳, 曹有挥, 蒋自然, 王佳韡. 基于力学平衡模型的长三角港口物流发展协调性研究[J]. 地理科学, 2017, 37(11): 1624-1631.

Shilin Ye, Youhui Cao, Ziran Jiang, Jiawei Wang. Coordination of Port Logistics Development Based on Mechanical Model: A Case of the Yangtze River Delta Port System[J]. SCIENTIA GEOGRAPHICA SINICA, 2017, 37(11): 1624-1631.

图/表 7

图1

表1

图2

图3

表2

图4

图5

参考文献 32

[1]	Hesse M, Rodrigue J P.Guest editorial: Transportation and global production networks[J]. Growth and Change, 2006, 37: 599-609.
[2]	Drewe P, Janssen B.What port for the future? From ‘Mainports’ to ports as nodes of logistic networks[M]//Reggiani A. Accessibility, Trade and Behaviour. Aldershot: Ashgate, 1998: 241-264.
[3]	王成金. 试论现代物流的地理学研究及发展趋势[J]. 人文地理, 2006, 21(6): 22-26. doi: 10.3969/j.issn.1003-2398.2006.06.005
	[Wang Chengjin.Geographical study on modern logistics and its development trend. Human Geography, 2006, 21(6): 22-26.] doi: 10.3969/j.issn.1003-2398.2006.06.005
[4]	Wang J J, Cheng M C.From a hub port city to a global supply chain management center: a case study of Hong Kong[J]. Journal of Transport Geography, 2010, 18(1): 104-115. doi: 10.1016/j.jtrangeo.2009.02.009
[5]	Grossmann H, Otto A, Stiller S et al. Growth potential for maritime trade and ports in Europe[J]. Inter Economics, 2007, 42(4): 226-232. doi: 10.1007/s10272-007-0223-x
[6]	王成金. 集装箱港口网络形成演化与发展机制[M] . 北京: 科学出版社, 2012 .
	[Wang Chengjin.The evolution and development mechanisms of container ports network. Beijing: Science Press, 2012.]
[7]	Rodrigue J P, Ashar A.Transshipment hubs in the new Panamax Era: the role of the Caribbean[J]. Journal of Transport Geography, 2016, 51: 270-279. doi: 10.1016/j.jtrangeo.2015.10.002
[8]	韩增林, 王成金. 港口物流特点与影响因素分析[J]. 中国港口, 2001(8): 38-40.
	[Han Zenglin, Wang Chengjin.Analysis on characteristics and influencing factors of port logistics. China Ports, 2001(8): 38-40.]
[9]	韩增林, 王成金. 再论环渤海港口运输体系的建设与布局[J]. 人文地理, 2002, 17(3): 86-89.
	[Han Zenglin, Wang Chengjin.The discussion of the port transportation system in the region aronud Bo Sea. Human Geography, 2002, 17(3): 86-89.]
[10]	Slack B.Satellite terminals:a local solution to hub congestion?[J]. Journal of Transport Geography, 1999, 7(4): 241-246. doi: 10.1016/S0966-6923(99)00016-2
[11]	Lee S W, Kim C H, Chung H W.A study on Port Performance Related to Port Backup Area in the ESCAP Region[M]. Seoul: Korea Maritime Institute, 2005 .
[12]	曹卫东, 曹有挥, 梁双波. 安徽长江沿岸港口物流发展评价与空间博弈研究[J]. 华中师范大学学报:自然科学版, 2007, 41(3): 464-468.
	[Cao Weidong, Cao Youhui, Liang Shuangbo.Study on the tynthetic evaluation and spatial competition of port-logistics along the Yangtze River in Anhui Province. Journal of Huazhong Normal University(Natural Sciences), 2007, 41(3): 464-468.]
[13]	Rodrigue J P, Debrie J, Fremont A et al. Functions and actors of inland ports: European and North American dynamics[J]. Journal of Transport Geography, 2010, 18(4): 519-529. doi: 10.1016/j.jtrangeo.2010.03.008
[14]	Cheung R K, Tong J H, Slack B.The transition from freight consolidation to logistics: the case of Hong Kong[J]. Journal of Transport Geography, 2003, 11(4): 245-253. doi: 10.1016/S0966-6923(03)00020-6
[15]	Sujeta L, Navickas V.The impact of port logistics systems on a country's competitiveness (case of small countries)[J]. Economics and Management, 2014, 19(1): 44-53. doi: 10.5755/j01.em.19.1.5612
[16]	沈秦伟, 韩增林, 郭建科. 港口物流与城市经济增长的关系研究——以大连为例[J]. 地理与地理信息科学, 2013, 29(1): 69-73. doi: 10.7702/dlydlxxkx20130115
	[Shen Qinwei, Han Zenglin, Guo Jianke.Research on the relationship between port logistics and urban economic growth: a case study of Dalian. Geography and Geo-Information Science, 2013, 29(1): 69-73.] doi: 10.7702/dlydlxxkx20130115
[17]	Coto-Millan P, Banos-Pino J, Rodriguez-Alvarez A.Economic efficiency in Spanish ports: Some empirical evidence[J]. Maritime Policy&Management, 2000, 27(2): 169-174. doi: 10.1080/030888300286581
[18]	Clark X M, Dollar D, Micco A.Port efficiency, maritime transport costs, and bilateral trade[J]. Journal of Development Economics, 2004, 75(2): 417-450. doi: 10.1016/j.jdeveco.2004.06.005
[19]	Bichou K, Gray R.A logistics and supply chain management approach to port performance measurement[J]. Maritime Policy&Management, 2004, 31(1): 47-67.
[20]	焦新龙. 港口物流绩效评价体系研究[D]. 西安: 长安大学, 2010.
	[Jiao Xinlong.Study on evaluation system of port logistics performance. Xi' an: Chang' an University, 2010.]
[21]	陈晓红, 万鲁河. 城市化与生态环境耦合的脆弱性与协调性作用机制研究[J]. 地理科学, 2013, 33(12): 1450-1457.
	[Chen Xiaohong, Wan Luhe.The interactive mechanisms for the coordination and vulnerability between regional urban and eco-environment. Scientia Geographica Sinica, 2013, 33(12): 1450-1457.]
[22]	周红梅. 2015年长三角地区港口经济运行情况及形势分析[J]. 中国港口, 2016, 38(5): 1-3. doi: 10.3969/j.issn.1000-8799.2016.04.001
	[Zhou Hongmei.Analysis on the situation of port economy in Yangtze River Delta in 2015. China Ports, 2016, 38(5): 1-3.] doi: 10.3969/j.issn.1000-8799.2016.04.001
[23]	中国港口年鉴编辑部. 中国港口年鉴2014[M]. 上海: 中国港口杂志社, 2014.
	[China Ports Yearbook Editorial Board. China Ports Yearbook 2014. Shanghai: China Port Magazine, 2014.]
[24]	江苏省统计局. 江苏统计年鉴2014[M]. 北京: 中国统计出版社, 2014.
	[Jiangsu Bureau of Statistics. Jiangsu Statistical Yearbook 2014. Beijing: China Statistics Press, 2014.]
[25]	浙江省统计局.浙江统计年鉴2014[M]. 北京: 中国统计出版社, 2014.
	[Zhejiang Bureau of Statistics. Zhejiang Statistical Yearbook 2014. Beijing: China Statistics Press, 2014.]
[26]	上海市统计局. 上海统计年鉴2014[M]. 北京: 中国统计出版社, 2014.
	[Shanghai Bureau of Statistics. Shanghai Statistical Yearbook 2014. Beijing: China Statistics Press, 2014.]
[27]	贾艳红, 赵军, 南忠仁, 等. 基于熵权法的草原生态安全评价——以甘肃牧区为例[J]. 生态学杂志, 2006, 25(8):1003-1008.
	[Jia Yanhong, Zhao Jun, Nan Zhongren et al. Ecological safety assessment of grassland based on entropy-right method: A case study of Gansu pastoral area. Chinese Journal of Ecology, 2006, 25(8): 1003-1008.]
[28]	梁双波, 曹有挥, 曹卫东,等. 长三角港口物流经济空间差异及演化分析[J]. 经济地理, 2009, 29(7): 1081-1086.
	[Liang Shuangbo, Cao Youhui, Cao Weidong et al. Analysis spatial disparities economy and evolvement in the Yangtze River Delta. Economic Geography, 2009, 29(7): 1081-1086.]
[29]	班茂盛, 方创琳, 刘晓丽, 等. 北京高新技术产业区土地利用绩效综合评价[J]. 地理学报, 2008, 63(2): 175-184.
	[Ban Maocheng, Fang Chuanglin, Liu Xiaoli et al. Comprehensive evaluation of land use performance of Beijing high-tech industrial Zone. Acta Geographica Sinica, 2008, 63(2): 175-184.]
[30]	周华, 马春宁, 周生路, 等. 基于力学平衡模型的乡村转型均衡发展判别方法研究[J]. 长江流域资源与环境, 2014, 23(3): 303-310. doi: 10.1870/cjlyzyyhj201403001
	[Zhou Hua, Ma Chunning, Zhou Shenglu et al. The study of discrimination method of rural coordinated transformation development based on mechanical model. Resources and Environment in the Yangtze Basin, 2014, 23(3): 303-310.] doi: 10.1870/cjlyzyyhj201403001
[31]	项晓敏, 金晓斌, 杜心栋, 等. 基于“强度-潜力-难度”综合测度的中国农用地整治实施协调性分析[J]. 地理研究, 2016, 35(2):285-298. doi: 10.11821/dlyj201602007
	[Xiang Xiaomin, Jin Xiaobin, Du Xindong et al. The coordination of farmland consolidation implementation in China by comprehensive measure of "intensity, potential and difficulty". Geographical Research, 2016, 35(2): 285-298.] doi: 10.11821/dlyj201602007
[32]	张晓东, 池天河. 90年代中国省级区域经济与环境协调度分析[J]. 地理研究, 2001, 20(4): 506-515.
	[Zhang Xiaodong, Chi Tianhe.Differentiating and analysis of the coordination degree between economic development and environment of provinces (regions) in China. Geographical Research, 2001, 20(4): 506-515.]

目标层	准则层	指标层	单位	权重
港口物流综合发展度	基础设施发展度（OA）	生产用泊位数	个	0.21
		生产用码头长度	m	0.23
		航道水深	m	0.22
		集装箱航线数	条	0.34
	物流运营发展度（OB）	货物吞吐量	t	0.18
		集装箱吞吐量	TEU	0.32
		集装箱吞吐量增长率^①	%	0.13
		物流企业发展指数^②	—	0.20
		集装箱运输组织能力^③	—	0.17
	城市支撑发展度（OC）	地区生产总值	亿元	0.16
		第三产业比重	%	0.21
		进出口贸易总额	亿美元	0.29
		金融机构贷款余额	亿元	0.21
		人力-信息指数^④	—	0.13

港口物流协调发展类型	发展阶段	协调状态	港口	比重（%）
高水平协调型	高水平	协调	上海港（0.57）	7.69
中等水平基本协调型	中等水平	基本协调	南京港（1.58）	7.69
中等水平失调型	中等水平	失调	宁波-舟山港（5.43）、苏州港（3.23）	15.38
低水平协调型	低水平	协调	温州港（0.84）、南通港（0.87）、嘉兴港（0.95）、台州港（0.63）、镇江港（0.33）、泰州港（0.51）、扬州港（0.54）	53.85
低水平基本协调型	低水平	基本协调	江阴港（0.49）、连云港港（1.77）	15.38
