全新世中期西辽河流域聚落空间分布及成因

doi:10.13249/j.cnki.sgs.2018.05.015

摘要/Abstract

摘要：

全新世大暖期结束后的干冷气候事件和环境恶化使西辽河流域及比邻地区的聚落向南移动集中并推动了原始农业的发展和之后畜牧业对原始农业的取代。各文化的聚落均对河流依赖性较强,主要分布在距河6 km以内地区,6 km以外的聚落多分布在与河流地势上相连的沟谷缓坡且主要集中在老哈河、教来河至大凌河流域,水文分析表明这些沟谷很可能在暖湿期形成过支流或季节河。聚落主要分布在海拔400~700 m的平原丘陵交互区,分布海拔和地形因气候波动和经济生活方式不同而有所变化。

关键词: 聚落, 空间分布, 环境变化, 西辽河流域, 全新世中期

Abstract:

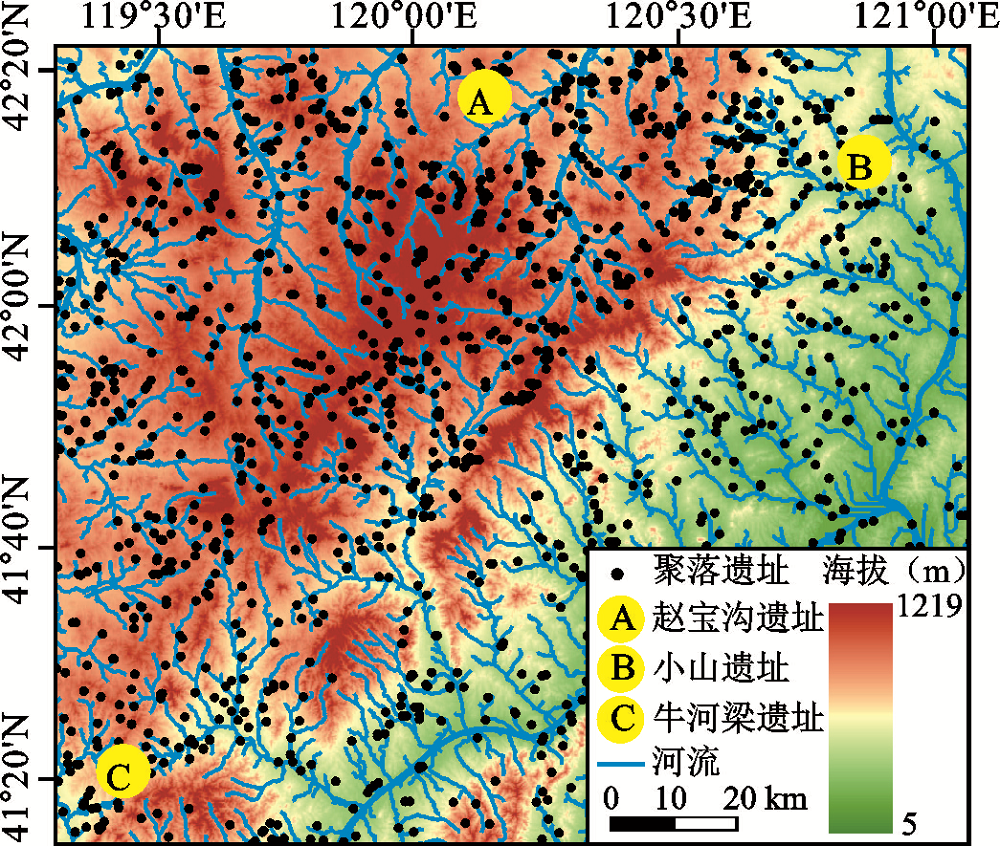

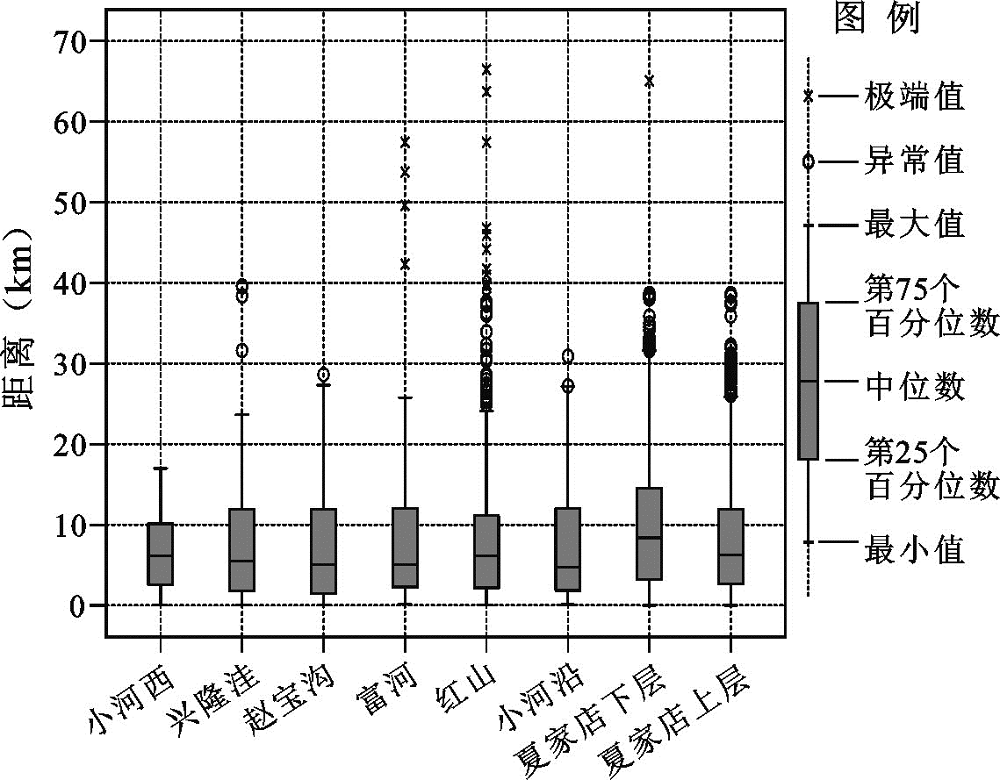

This study analyses the spatial distribution characteristics of settlement sites, distributing in the West Liaohe River Basin and the neighboring Dalinghe River Basin, as well as the Luanhe River Basin between 9.5-2.3 ka B.P.. The settlement sites belong to a sequence of prehistoric culture, including Xiaohexi, Xinglongwa, Zhaobaogou, Fuhe, Hongshan, Xiaoheyan, Lower Xiajiadian and Upper Xiajiadian cultures. Based on the basic information of settlement sites, collected from the results of the national systematic archaeological field surveys, spatial distribution map of sites was drawn with GIS. Minimum distances from sites to rivers and altitudes were extracted with corresponding Box-whisker charts to present their statistical characteristics visually. Three main conclusions are concluded and deduced. Firstly, temperature, precipitation and vegetation changes caused by climate change influenced prehistoric culture development and subsistence strategies extensively. The drier and colder environmental condition since 6.0 ka B.P. promoted the development of primitive agriculture. The number of sites reached peak in Lower Xiajiadian culture which developed in a relatively warm and humid period. Temperature and precipitation dropped violently around 3.0 ka B.P., resulting that primitive agriculture was replaced by pasture. Secondly, prehistoric settlements depended largely on rivers, especially during dry and cold period. About 50% sites have the minimum site-river distances that are less than 6 km. Sites with the minimum distances of more than 6 km mainly distributed along gullies spreading to or from main rivers, especially in the area enclosed by the Laohahe River, the Jiaolaihe River and the Dalinghe River. Hydrological analysis and fieldwork prove: it is likely that these gullies were branches of rivers or seasonal rivers when it was warm and humid. Thirdly, settlements mainly distributed on the transition area (400-700 m) of plains and hills, which abounded in animal and plant resources. Settlements moved to lower altitude when it was colder and drier. Pasture, which was more resilient to hostile environment, made it possible for more Upper Xiajiadian settlements to distribute along rivers in higher mountainous areas.

Key words: settlement, spatial distribution, environmental change, West Liaohe River Basin, Mid-Holocene

中图分类号:

K901.6

袁钰莹. 全新世中期西辽河流域聚落空间分布及成因[J]. 地理科学, 2018, 38(5): 773-779.

Yuying Yuan. Characteristics and Genesis of Spatial Distribution of Settlements in the West Liaohe River Basin During the Mid-Holocene[J]. SCIENTIA GEOGRAPHICA SINICA, 2018, 38(5): 773-779.

图/表 7

图1

图2

表1

图3

图4

图5

图6

参考文献 28

[1]	毕硕本, 闾国年, 陈济民. 基于空间分析的史前郑洛地区连续文化聚落研究[J]. 地理科学, 2008, 28(5): 649-655.
	[Bi Shuoben, Lu Guonian, Chen Jimin.Prehistoric continuous culture settlements about Zhengzhou-Luoyang region based on spatial analysis. Scientia Geographica Sinica, 2008, 28(5): 649-655.]
[2]	李拓宇, 莫多闻, 胡珂, 等. 山西襄汾陶寺都邑形成的环境与文化背景[J]. 地理科学, 2013, 33(4): 443-449.
	[Li Tuoyu, Mo Duowen, Hu Ke et al. The environmental and cultural background of the Taosi Site, Xiangfen County, Shanxi Province. Scientia Geographica Sinica, 2013, 33(4): 443-449. ]
[3]	郭媛媛, 莫多闻, 毛龙江, 等. 澧阳平原晚更新世晚期至全新世早中期环境演变及其对人类活动的影响[J]. 地理科学, 2016, 36(7): 1091-1098. doi: 10.13249/j.cnki.sgs.2016.07.016
	[Guo Yuanyuan, Mo Duowen, Mao Longjiang et al. The environmental change of Late Pleistocene to Early and Middle Holocene and its impact on human activities in Liyang Plain, Hunan Province, China. Scientia Geographica Sinica, 2016, 36(7): 1091-1098. ] doi: 10.13249/j.cnki.sgs.2016.07.016
[4]	Gustas R, Supernant K.Least cost path analysis of early maritime movement on the Pacific Northwest Coast[J]. Journal of Archaeological Science, 2017, (78): 40-56. doi: 10.1016/j.jas.2016.11.006
[5]	韩茂莉, 刘霄泉, 方晨, 等. 全新世中期西辽河流域聚落选址与环境解读[J]. 地理学报, 2007, 62(12): 1287-1298.
	[Han Maoli, Liu Xiaoquan, Fang Chen et al. The explanation of the selection of settlement and environment in the Western Liaohe River Valley during the Middle Holocene Epoch. Acta Geographica Sinica, 2007, 62(12): 1287-1298.]
[6]	王琳, 武虹, 贾鑫. 西辽河地区史前聚落的时空演变与生业模式和气候历史的相关性研究[J].地球科学进展,2016,31(11):1159-1171.
	[Wang Lin, Wu Hong, Jia Xin.Study on the temporal-spatial evolution of prehistoric settlements with subsistence strategy and its correlation with subsistence strategy and climate history in the Western Liao River area. Advances in Earth Science, 2016, 31(11): 1159-1171.]
[7]	Avni Y, Zhang J F, Shelach G et al. Upper Pleistocene-Holocene geomorphic changes dictating sedimentation rates and historical land use in the valley system of the Chifeng region, Inner Mongolia, northern China[J]. Earth Surface Processes and Landforms, 2010, 35(11): 1251-1268. doi: 10.1002/esp.1944
[8]	Goldsmith Y, Broecker W S, Xu H et al. Northward extent of East Asian monsoon covaries with intensity on orbital and millennial timescales[J]. PNAS, 2017, 114(8): 1817-1821. doi: 10.1073/pnas.1616708114 pmid: 28167754
[9]	国家文物局. 中国文物地图集:内蒙古分册[M]. 西安: 西安地图出版社, 2003.
	[State Administration of Cultural Heritage. Atlas of Chinese Cultural Relics: Inner Mongolia Autonomous Region Volume. Xi’an: Xi’an Cartographic Publishing House, 2003.]
[10]	国家文物局. 中国文物地图集:辽宁分册[M]. 西安: 西安地图出版社, 2009.
	[State Administration of Cultural Heritage. Atlas of Chinese Cultural Relics: Liaoning Volume. Xi’an: Xi’an Cartographic Publishing House, 2009. ]
[11]	国家文物局. 中国文物地图集:河北分册[M]. 北京: 文物出版社, 2013.
	[State Administration of Cultural Heritage. Atlas of Chinese Cultural Relics: Hebei Volume. Beijing: Cultural Relics Press, 2013.]
[12]	国家文物局. 中国文物地图集:北京分册[M]. 北京: 科学出版社, 2008.
	[State Administration of Cultural Heritage. Atlas of Chinese Cultural Relics: Beijing City Volume. Beijing: Science Press, 2008.]
[13]	夏正楷, 邓辉, 武弘麟. 内蒙古西拉木伦河流域考古文化演变的地貌背景分析[J]. 地理学报, 2000, 55(3): 329-336. doi: 10.3321/j.issn:0375-5444.2000.03.009
	[Xia Zhengkai, Deng Hui, Wu Honglin.Geomorphologic background of the prehistoric cultural evolution in the Xar Moron River Basin, Inner Mongolia. Acta Geographica Sinica, 2000, 55(3): 329-336.] doi: 10.3321/j.issn:0375-5444.2000.03.009
[14]	中国社会科学院考古研究所. 敖汉赵宝沟:新石器时代聚落[M]. 北京:中国大百科全书出版社, 1997.
	[Institute of Archaeology of Chinese Academy of Social Sciences. Zhaobaogou Site, the Neolithic Settlement Site in Aohan Banner. Beijing: Encyclopedia of China Publishing House, 1997.]
[15]	Vita-Fiinzi C, Higgs E S, Sturdy D et al. Prehistoric economy in the Mount Carmenl area of Palestine: Site catchment analysis[J]. Proceeding of the Prehistoric Society, 1970(36):1-37. doi: 10.1017/S0079497X00013074
[16]	吴江滢, 汪永进, 董进国. 全新世东亚夏季风演化的辽宁暖和洞石笋δ18O记录[J]. 第四纪研究, 2011, 31(6): 990-998. doi: 10.3969/j.issn.1001-7410.2011.06.06
	[Wu Jiangying, Wang Yongjin, Dong Jinguo.Changes in East Asia Summer Monsoon during the Holocene recorded by Stalagmite δ18O records from Liaoning Province. Quaternary Sciences, 2011, 31(6): 990-998.] doi: 10.3969/j.issn.1001-7410.2011.06.06
[17]	Yang L H, Wang T, Zhou J et al. OSL chronology and possible forcing mechanisms of dune evolution in the Horqin dunefield in northern China since the last Glacial Maximum[J]. Quaternary Research, 2012, 78(2):185-196. doi: 10.1016/j.yqres.2012.05.002
[18]	Yang X P, Scuderi L A, Wang X L et al. Groundwater sapping as the cause of irreversible desertification of Hunshandake Sandy Lands, Inner Mongolia, northern China[J]. PNAS, 2015, 112(3): 702-706. doi: 10.1073/pnas.1418090112 pmid: 25561539
[19]	Fan J W, Xiao J L, Wen R L et al. Carbon and nitrogen signatures of sedimentary organic matter from Dali Lake in Inner Mongolia: Implications for Holocene hydrological and ecological variations in the East Asian summer monsoon margin[J]. Quaternary International, 2017, 452: 65-78. doi: 10.1016/j.quaint.2016.09.050
[20]	Wang H Y, Liu H Y, Cui H T et al. Terminal Pleistocene/Holocene palaeoenvironmental changes revealed by mineral-magnetism measurements of lake sediments for Dali Nor area, southeastern Inner Mongolia Plateau, China[J]. Palaeogeography Palaeoclimatology Palaeoecology, 2001, 170(1-2): 115-132. doi: 10.1016/S0031-0182(01)00231-0
[21]	关友义, 王永, 姚培毅, 等. 内蒙古克什克腾旗浩来呼热古湖泊全新世以来的环境演变[J]. 地质通报, 2010, 29(6): 891-900. doi: 10.3969/j.issn.1671-2552.2010.06.011
	[Guan Youyi, Wang Yong, Yao Peiyi et al. Environmental evolution since the Holocene in the Haolaihure ancient lake, Keshiketengqi, Inner Mongolia, China. Geological Bulletin of China, 2010, 29(6): 891-900.] doi: 10.3969/j.issn.1671-2552.2010.06.011
[22]	Jiang W Y, Guo Z T, Sun X J et al. Reconstruction of climate and vegetation changes of Lake Bayanchagan (Inner Mongolia): Holocene variability of the East Asian monsoon[J]. Quaternary Research 2006, 65(3): 411-420. doi: 10.1016/j.yqres.2005.10.007
[23]	Wang H Y, Liu H Y, Zhu J L et al. Holocene environmental changes as recorded by mineral magnetism of sediments from Anguli-nuur Lake, southeastern Inner Mongolia Plateau, China[J]. Palaeogeography Palaeoclimatology Palaeoecology, 2010, 285(1-2): 30-49. doi: 10.1016/j.palaeo.2009.10.020
[24]	姜修洋, 杨邦, 王晓艳, 等. 黔北洞穴石笋记录的末次冰消期至早全新世百年~十年际气候变化[J]. 地理科学, 2015, 35(6): 773-781.
	[Jiang Xiuyang, Yang Bang, Wang Xiaoyan et al. The centennial to decadal scale variation of summer monsoon precipitation in Northern Guizhou Province during the last Deglacial. Scientia Geographica Sinica, 2015, 35(6): 773-781. ]
[25]	舒培仙, 李保生, 牛东风, 等. 毛乌素沙漠东南缘滴哨沟湾剖面DGS1层段粒度特征及其指示的全新世气候变化[J]. 地理科学, 2016, 36(3): 448-457. doi: 10.13249/j.cnki.sgs.2016.03.017
	[Shu Peixian, Li Baosheng, Niu Dongfeng et al. Climate variations recorded by the grain-size from the DGS1 segment in the Southeast of China’s Mu Us desert during the Holocene. Scientia Geographica Sinica, 2016, 36(3): 448-457.] doi: 10.13249/j.cnki.sgs.2016.03.017
[26]	杨虎, 刘国祥. 内蒙古敖汉旗兴隆洼聚落遗址1992年发掘简报[J]. 考古, 1997(1): 1-26.
	[Yang Hu, Liu Guoxiang. Brief excavation report of Xinglonggou Site in Aohan Banner in the Inner Mongolia in 1992. Archaeology, 1997(1): 1-26.]
[27]	索秀芬, 李少兵. 红山文化研究[J]. 考古学报, 2011, (3): 301-326.
	[Suo Xiufen, Li Shaobing.Study on the Hongshan culture. Acta Archaeologica Sinica, 2011, (3): 301-326.]
[28]	Chen F H, Xu Q H, Chen J H et al. East Asian summer monsoon precipitation variability since the last deglaciation[J]. Scientific Reports, 2015, 5: 11186. doi: 10.1038/srep11186 pmid: 26084560

	文化	遗址数（个）	主要存在时间（ka B.P.）	经济生活方式
新石器时代	小河西文化	37	9.5~8.4	渔猎采集
	兴隆洼文化	127	8.4~7.0	渔猎采集为主,出现原始农业
	赵宝沟文化	99	7.2~6.2	渔猎采集为主,原始农业比重略有增加
	富河文化	44	7.5~5.0	渔猎采集为主
	红山文化	994	6.5~5.0	早期渔猎采集为主,后期原始农业为主
	小河沿文化	80	5.0~4.0	原始农业和渔猎采集并存的混合经济
青铜时代	夏家店下层文化	5323	4.0~3.0	原始农业为主,渔猎采集为辅
青铜时代	夏家店上层文化	1880	3.0~2.3	畜牧业、原始农业和渔猎采集兼有的半农半牧混合经济
