典型海岸线指标识别与特征研究——以江苏中部海岸为例

doi:10.13249/j.cnki.sgs.2018.06.016

摘要/Abstract

摘要：

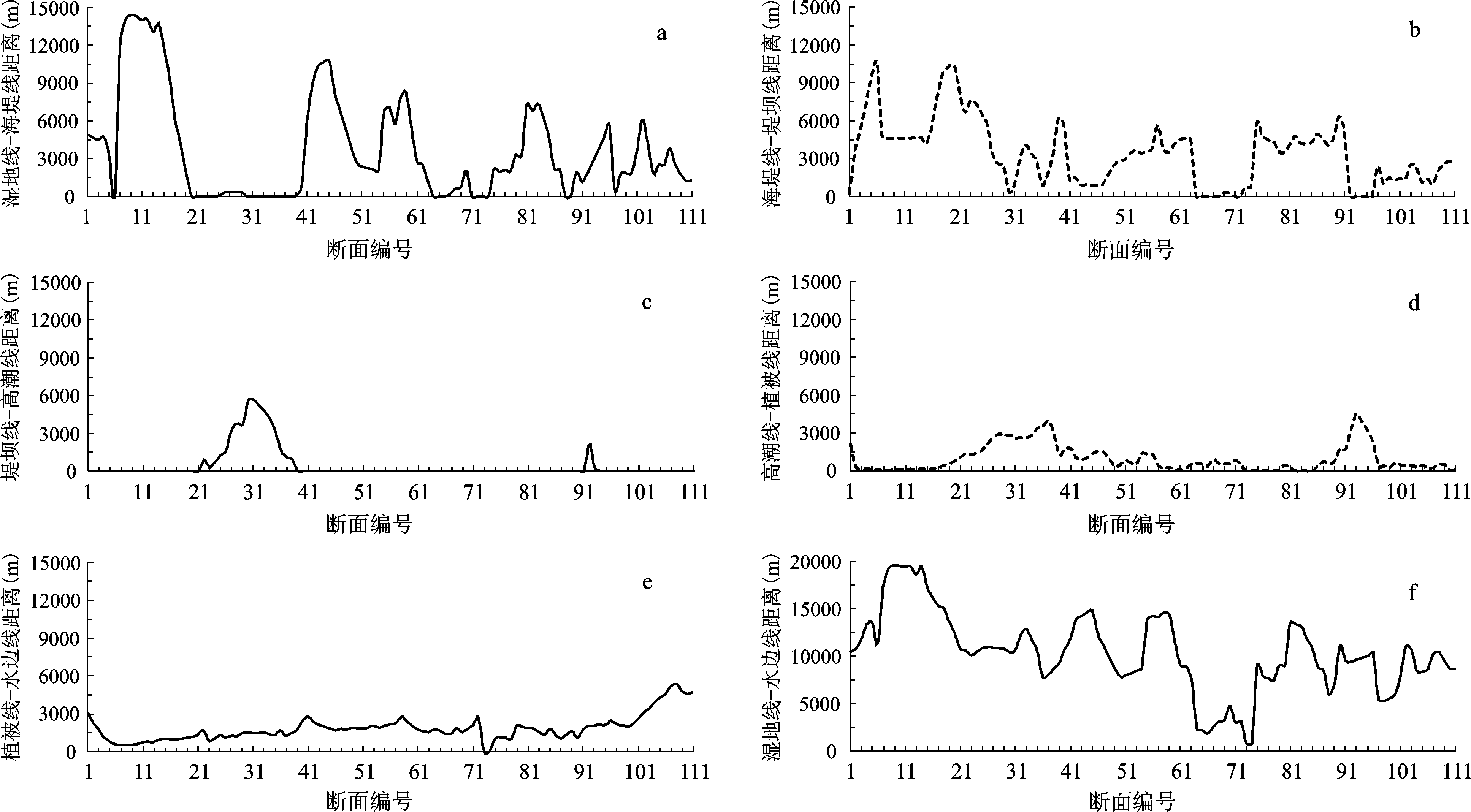

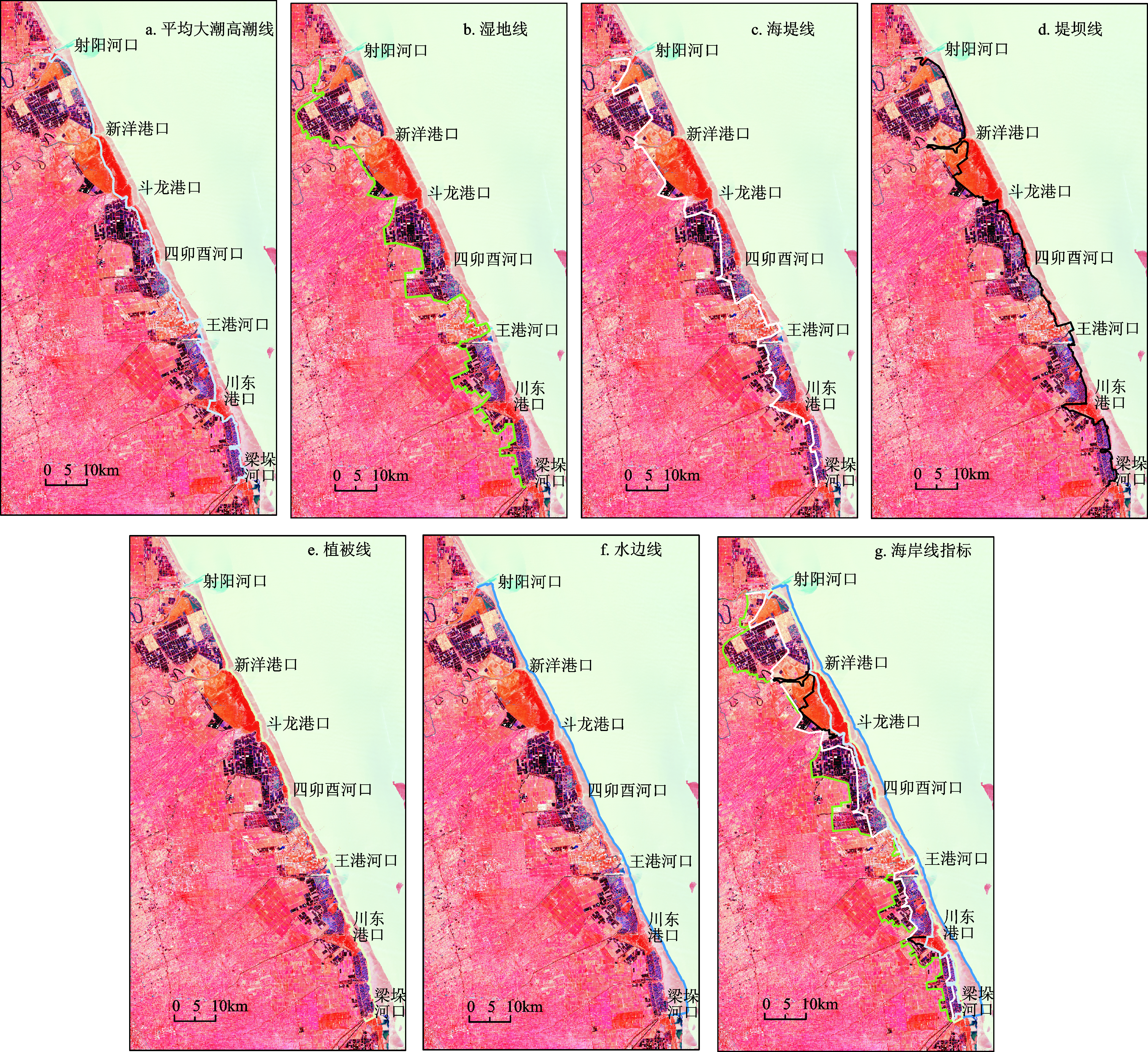

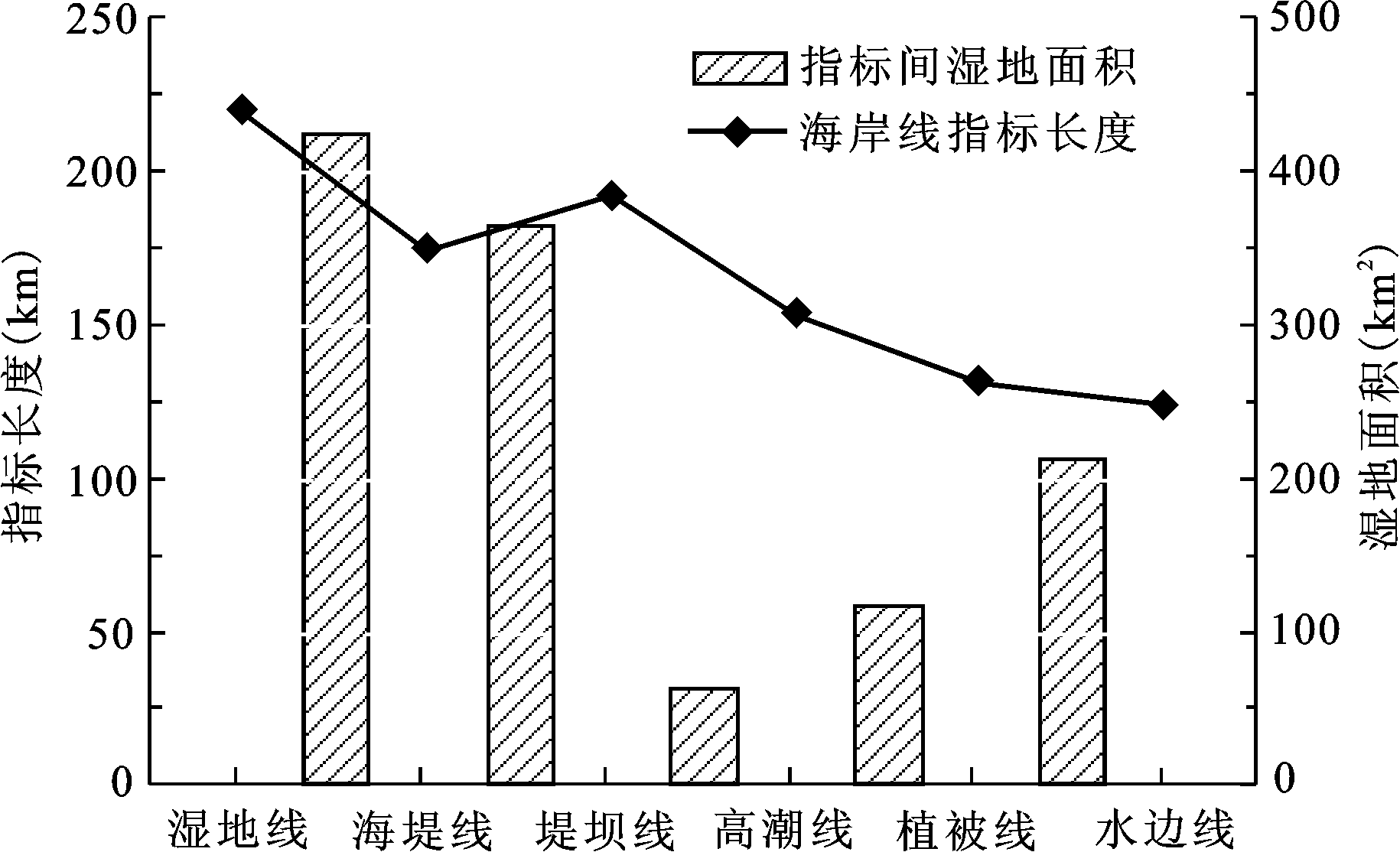

从海岸线空间资源监测和综合管理出发,对高潮线、湿地线、海堤线、堤坝线、植被线、水边线等典型海岸线指标类型和特征进行了探讨,并以江苏中部海岸为例,利用遥感技术提取2014年海岸线指标,并采用基线法和统计方法对海岸线指标空间分布及海岸演变特征进行了分析。结果显示：① 江苏中部射阳河口与梁垛河口之间岸段海岸线指标总体呈西北东南走向,自陆向海依次为湿地线、海堤线、堤坝线、高潮线、植被线和水边线,湿地线与水边线之间的湿地总面积达1 178.94 km²;② 海滨湿地总体呈宽通道分布态势,总体纵深北高南低,其中湿地线-海堤线间平均纵深3 704 m,海堤线-堤坝线间平均纵深3 418 m,堤坝线-平均大潮高潮线间平均纵深447 m,高潮线-植被线间平均纵深984 m,植被线-水边线间平均纵深1 836 m;③ 海岸潮滩围垦长期活跃,尚未开发的潮上带区域仅分布在2个保护区岸段,潮间带盐沼在各个岸段均有分布,潮间带光滩保持了海岸总体冲淤态势,自北向南纵深逐步增大。

关键词: 海岸线指标, 遥感, 江苏海岸

Abstract:

As the relying carrier of sea development activities, the scientific management of the sea coastline is of great importance for the rational allocation of marine resources, guidance of sea industrial layout, and promotion of the coastal ecological civilization construction. From the view of monitoring and integrated management of the shoreline space resource, this article discussed the shoreline types and characteristics of typical shoreline indicators such as the high tide line, wet land line, seawall line, embankment line, vegetation lines, waterlines, etc. Taking the central coast in Jiangsu Province as research area, this study used remote sensing technology to extract the typical shoreline indicators based on two images- ETM/Landsat-7 and OLI/Landsat-8 in 2014, and analyzed the spatial distribution of the coastline indicators and coastal evolution characteristics using the baseline and statistical methods. The spatial characteristics of the coastline index are closely related to the coastal topography, land-sea interaction, coastal development and protection activities. The statistical analysis of the spatial attributes of the coastline indicators in the study area indicated that the unused tidal zone was only distributed in the two protected areas, and other coastal tidal zone had been fully developed, among which the red-crowned crane protected areas larger. The intertidal salt marshes were distributed in every shore, and the two protection areas were more prominent, and the salt marsh of other shore section is not more than 600 m. The intertidal zone kept the overall scouring and silting situation of ??the study area, and it increased from north to south in depth, with the deepest distance in the north side of Liangduo estuary. The natural types of coasts in our country are complex and diversified, and human development activities are also constantly changing the coast shape. The characteristics of coastlines at different times are different due to the combined effects of man and nature factors, so it is difficult to fully reflect the characteristics of the coastline based only on the average tide high tide line. As an important space for the coastal development activities, the scientific management of the coastline is important for the rational allocation of marine resources, the layout guidance of marine industries, and the promotion of coastal ecological civilization. Different types of shoreline indicators have their own particularity. It is important to comprehensively analyze the types and characteristics of typical coastline indicators based on the monitoring and comprehensive management of coastline resources. This is important to comprehensively understand the development and evolution of coastline and grasp the characteristics and development status of coastline spatial resources, and thus conducive to promoting the scientific management of the coastline protection and utilization. The research results can provide a reference for the integrated management research and practice of the shoreline space resources.

Key words: coastline indicators, remote sensing, Jiangsu coast

中图分类号:

P748

李飞, 曹可, 赵建华, 宋德瑞. 典型海岸线指标识别与特征研究——以江苏中部海岸为例[J]. 地理科学, 2018, 38(6): 963-971.

Fei Li, Ke Cao, Jianhua Zhao, Derui Song. Identification and Characteristics of the Typical Coastline Indicators: A Case Study of the Central Jiangsu Coast[J]. SCIENTIA GEOGRAPHICA SINICA, 2018, 38(6): 963-971.

图/表 5

图1

图2

图3

图4

表1

参考文献 32

[1]	Boak E H, Turner I L.Shoreline definition and detection: A review[J]. Journal of Coastal Research, 2005, 21(21):688-703. doi: 10.2112/03-0071.1
[2]	毋亭, 侯西勇. 海岸线变化研究综述[J]. 生态学报, 2016, 36(4):1170-1182. doi: 10.5846/stxb201406181270
	[Wu Ting, Hou Xiyong.Review of research on coastline changes around the world. Acta Ecological Sinica, 2016, 36(4):1170-1182.] doi: 10.5846/stxb201406181270
[3]	许宁. 中国大陆海岸线及海岸工程时空变化研究[D]. 烟台:中国科学院烟台海岸带研究所, 2016.
	[Xu Ning.Research on spatial and temporal variation of China mainland coastline and coastal engineering. Yantai: Yantai Insititute of Coastal Zone Research, Chinese Academy of Sciences, 2016.]
[4]	侯西勇, 毋亭, 侯婉, 等. 20世纪40年代初以来中国大陆海岸线变化特征[J]. 中国科学: 地球科学, 2016, 46(8): 1065-1075.
	[Hou Xiyong, Wu Ting, Hou Wan et al. Characteristics of coastline changes in mainland China since the early 1940s. Science China Earth Sciences, 2016, 46(8): 1065-1075.]
[5]	夏东兴, 段焱, 吴桑云. 现代海岸线划定方法研究[J]. 海洋学研究, 2009, 27(B07):28-33.
	[Xia Dongxing, Duan Yan, Wu Sangyun.Study on the methodology of recent coastline delimitation. Journal of Marine Sciences, 2009, 27(B07):28-33.]
[6]	Thieler E R, Himmelstoss E A, Zichichi J L et al. The Digital Shoreline Analysis System(DSAS) Version 4. 0- An ArcGIS extension for calculating shoreline change[R]. U. S. Geological Survey, 2009.
[7]	陆健健. 中国滨海湿地的分类[J]. 环境导报, 1996(1):1-2.
	[Lu Jianjian.Classification of coastal wetlands of China. Environment Herald, 1996(1):1-2.]
[8]	牟晓杰, 刘兴土, 阎百兴,等. 中国滨海湿地分类系统[J]. 湿地科学, 2015, 13(1):19-26.
	[Mou Xiaojie, Liu Xingtu, Yan Baixing et al. Classification system of coastal wetlands in China. Wetland Science, 2015, 13(1):19-26.]
[9]	关道明. 中国滨海湿地[M]. 海洋出版社, 2012.
	[Guan Daoming.Coastal wetland in China. Beijing: China Ocean Press, 2012.]
[10]	刘琦波, 陈伟国, 胡明华,等. 我国海堤建设与景观生态问题[J]. 人民长江, 2006, 37(11):93-94.
	[Li Qibo, Chen Weiguo, Hu Minghua et al. The problems in sea dike construction and landscape and ecology of China. Yangtze River, 2006, 37(11):93-94.]
[11]	傅新, 刘高焕, 黄翀, 等. 人工堤坝影响下的黄河三角洲海岸带生态特征分析[J]. 地球信息科学学报, 2011, 13(6):797-803. doi: 10.3724/SP.J.1047.2011.00797
	[Fu Xin, Liu Gaohuan,Huang Chong et al. Analysis of ecological characteristics of coastal zone in Yellow River Delta under dam disturbance. Journal of Geo-Information Science, 2011, 13(6):797-803.] doi: 10.3724/SP.J.1047.2011.00797
[12]	刘昉勋, 蔡守坤, 黄致远. 江苏海岸带植被的特征、分布及利用[J]. 植物生态学与地植物学丛刊, 1983, 7(2):100-112.
	[Liu Fangxun, Cai Shoukun, Huang Zhiyuan.The features and distribution of coastal vegetation in Jiangsu Province and its utilization. Acta Phytoecologiaca Et Geobotanica Sinica, 1983, 7(2):100-112.]
[13]	赵大昌. 中国海岸带植被[M].北京:海洋出版社, 1996.
	[Zhao Dachang.Coastal vegetation in China. Beijing: China Ocean Press,1996.]
[14]	张明, 蒋雪中, 郝媛媛,等. 遥感水边线技术在潮间带冲淤分析研究中的应用[J]. 海洋通报, 2010, 29(2):176-181.
	[Zhang Ming, Jiang Xuezhong, Hao Yuanyuan et al. Application of remote sensing waterline technique to analyze the changes of erosion and deposition in intertidal flat. Marine Science Bulletin, 2010, 29(2):176-181.]
[15]	王长海, 邱桔斐, 丁红. 海域使用中有关海岸线的问题探讨[J]. 海洋开发与管理, 2009, 26(4):51-56.
	[Wang Changhai, Qiu Jiefei, Ding Hong.Discussion on the coastline issues in sea area utilization. Ocean Development and Management, 2009, 26(4):51-56.]
[16]	陈才俊. 江苏淤长型淤泥质潮滩的剖面发育[J]. 海洋与湖沼, 1991, 22(4):360-368.
	[Chen Caijun.Development of depositional tidal flat in Jiangsu Province. Oceanologia Et Limnologia Sinica, 1991, 22(4):360-368.]
[17]	王珍岩. 淤泥质潮滩地貌的遥感研究——以苏北辐射沙洲海岸为例[D]. 青岛:中国科学院海洋研究所, 2006.
	[Wang Zhenyan.Monitoring mutflat landforms using remotely rensed imagery: A case study from radial sandbank coast, Northern Jiangsu, China. Qingdao: The Institute of Oceanology, Chinese Academy of Sciences, 2006.]
[18]	谭清梅, 刘红玉, 张华兵,等. 基于遥感的江苏省滨海湿地景观植被覆盖度分级研究[J]. 遥感技术与应用, 2013, 28(5):934-940.
	[Tan Qingmei, Liu Hongyu, Zhang Huabing et al. Classification of vegetation coverage of wetland landscape based on remote sensing in the coastal area of Jiangsu Province. Remote Sensing Technology & Application, 2013, 28(5):934-940.]
[19]	赵小雷, 凌云, 张光富, 等. 大丰麋鹿保护区不同生境梯度下滩涂湿地植被的群落特征[J]. 生态学杂志, 2010, 29(2):244-249.
	[Zhao Xiaolei, Ling Yun, Zhang Guangfu et al. Community characteristics of beach wetland vegetations along a habitat gradient in Dafeng Milu reserve of Jiangsu Province. Chinese Journal of Ecology, 2010, 29(2):244-249.]
[20]	侯明行, 刘红玉, 张华兵,等. 地形因子对盐城滨海湿地景观分布与演变的影响[J]. 生态学报, 2013, 33(12):3765-3773. doi: 10.5846/stxb201211121591
	[Hou Minghang, Liu Hongyu, Zhang Huabing et al. Influences of topographic features on the distribution and evolution of landscape in the coastal wetland of Yancheng. Acta Ecologica Sinica, 2013, 33(12):3765-3773.] doi: 10.5846/stxb201211121591
[21]	刘奕琳. 盐城海滨湿地生态系统的研究[D]. 南京:南京林业大学, 2006.
	[Liu Yilin.Study on the ecological system in Yancheng coastal wetlands. Nanjing: Nanjing Agricultural University, 2006.]
[22]	李玉凤, 刘红玉, 孙贤斌,等. 基于水文地貌分类的滨海湿地生态功能评价——以盐城滨海湿地为例[J]. 生态学报, 2010, 30(7):1718-1724.
	[Li Yufeng, Liu Hongyu, Sun Xianbin et al. Assessment of ecological functions for coastal wetlands based on hydrogeomorphic units: A case study on coastal wetland of Yancheng, Jiangsu Province, China. Journal of Ecology, 2010, 30(7):1718-1724.]
[23]	左平, 李云, 赵书河, 等. 1976年以来江苏盐城滨海湿地景观变化及驱动力分析[J]. 海洋学报, 2012, 34(1):101-108.
	[Zuo Ping, Li Yun, Zhao Shuhe et al. Landscape changes of Jiangsu Yancheng coastal wetlands and their driving forces since 1976[J]. Acta Oceanologica Sinica, 2012, 34(1):101-108.]
[24]	陈才俊. 江苏中部海堤大规模外迁后的潮水沟发育[J]. 海洋通报, 2001, 20(6):71-79. doi: 10.3969/j.issn.1001-6392.2001.06.009
	[Chen Caijun.Change in tide creek after mudflat being enclosed in the middle coast in Jiangsu Province[J]. Marine Science Bulleten, 2001, 20(6):71-79.] doi: 10.3969/j.issn.1001-6392.2001.06.009
[25]	刘永学, 李满春, 张忍顺. 江苏沿海互花米草盐沼动态变化及影响因素研究[J]. 海洋地质动态, 2004, 2(2):18-21.
	[Liu Yongxue, Li Manchun, Zhang Renshun.Approach on the dynamic change and influence factors of spartina alterniflora loisel saltmarsh along the coast of the Jiangsu Province. Marine Geology Letters, 2004, 2(2):18-21.]
[26]	沈永明. 江苏省沿海互花米草人工盐沼的分布及效益[J]. 国土与自然资源研究, 2002(2):45-47. doi: 10.3969/j.issn.1003-7853.2002.02.021
	[Shen Yongming.The distribution of the manpower salt mash of spartina alternflora and it’s effect on Jiangsu coast in ecology and economy. Territory & Natural Resources Stuty, 2002(2):45-47.] doi: 10.3969/j.issn.1003-7853.2002.02.021
[27]	孙伟富, 马毅, 张杰, 等. 不同类型海岸线遥感解译标志建立和提取方法研究[J]. 测绘通报, 2011(3):41-44.
	[Sun Weifu, Ma Yi, Zhang Jie et al. Study of remote sensing interpretation keys and extraction technique of different types of shoreline. Bulletin of Surveying & Mapping, 2011, 30(3):41-44.]
[28]	李建国, 濮励杰, 徐彩瑶, 等. 1977-2014年江苏中部滨海湿地演化与围垦空间演变趋势[J]. 地理学报, 2015, 70(1):17-28.
	[Li Jianguo, Pu Lijie, Xu Caiyao et al. The changes and dynamics of coastal wetlands and reclamation areas in central Jiangsu from 1977 to 2014. Acta Geographica Sinica, 2015, 70(1):17-28.]
[29]	刘艳霞, 黄海军, 丘仲锋,等. 基于影像间潮滩地形修正的海岸线监测研究——以黄河三角洲为例[J]. 地理学报, 2012, 67(3):377-387.
	[Liu Yanxia, Huang Haijun, Qiu Zhongfeng et al. Monitoring change and position of coastlines from satellite images using slope correction in a tidal flat: A case study in the Yellow River Delta. Acta Geographica Sinica, 2012, 67(3):377-387.]
[30]	徐进勇, 张增祥, 赵晓丽,等. 2000-2012年中国北方海岸线时空变化分析[J]. 地理学报, 2013, 68(5):651-660. doi: 10.11821/xb201305007
	[Xu Jinyong, Zhang Zengxiang, Zhao Xiaoli et al. Spatial-temporal analysis of coastline changes in northern China from 2000 to 2012. Acta Geographica Sinica, 2013, 68(5):651-660.] doi: 10.11821/xb201305007
[31]	高义, 王辉, 苏奋振,等. 中国大陆海岸线近30a的时空变化分析[J]. 海洋学报, 2013(6):31-42.
	[Gao Yi, Wang Hui, Su Fenzhen et al. Spatial and temporal of continental coastline of China in recent decades. Acta Oceanologica Sinica, 2013(6):31-42.]
[32]	张晓祥, 严长清, 徐盼, 等. 近代以来江苏沿海滩涂围垦历史演变研究[J]. 地理学报, 2013, 68(11):1549-1558.
	[Zhang Xiaoxiang, Yan Changqing, Xu Pan et al. Historical evolution of tidal flat reclamation in the Jiangsu coastal areas. Acta Geographica Sinica, 2013, 68(11):1549-1558.]

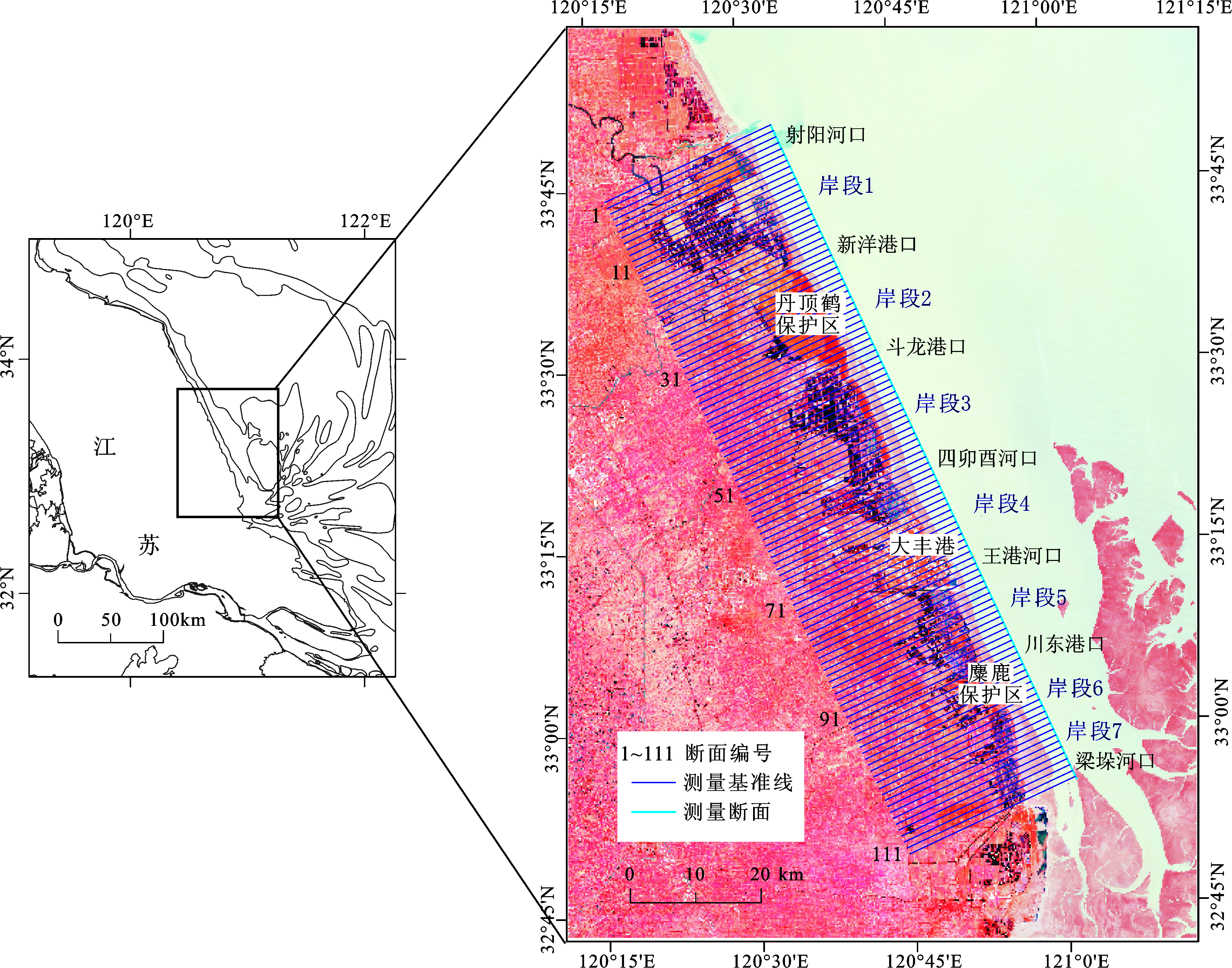

岸段序号	岸段位置	测算断面编号	海岸线指标间距离（m）
岸段序号	岸段位置	测算断面编号	湿地线- 海堤线	海堤线- 堤坝线	堤坝线- 高潮线	高潮线- 植被线	植被线- 水边线	湿地线- 水边线
岸段1	射阳河口与新洋港口之间	11	13993.17	4616.28	0	128.76	713.44	19451.65
岸段2	丹顶鹤保护区	31	0	916.99	5667.41	2615.2	1477.6	10677.2
岸段3	斗龙港口与四卯酉河口之间	49	4053.79	2456.99	0	432.51	1876.61	8819.9
岸段4	大丰港	70	2026.41	323.72	0	593.83	1807.04	4751
岸段5	王港河口与川东港口之间	81	7317.37	4123.19	0	276.62	1916.81	13633.99
岸段6	麋鹿保护区	93	2801.7	0	215.35	4549.57	2047.22	9613.84
岸段7	梁垛河口北侧	109	1690.51	2512.99	0	517.04	4833.83	9554.37
