1960~2017年华北地区气候生长季变化特征及成因分析

doi:10.13249/j.cnki.sgs.2019.12.018

地理科学 ›› 2019, Vol. 39 ›› Issue (12): 1990-2000.doi: 10.13249/j.cnki.sgs.2019.12.018

• • 上一篇

1960~2017年华北地区气候生长季变化特征及成因分析

董满宇^1,², 李洁敏², 王磊鑫², 刘佩佩³, 江源^1,², 吴正方⁴

1. 北京师范大学地表过程与资源生态国家重点实验室, 北京100875
2. 北京师范大学地理科学学部, 北京100875
3. 陕西省安康气象局, 陕西安康 725000
4. 东北师范大学地理科学学院, 吉林长春 130024

收稿日期:2018-12-03 修回日期:2019-03-30 出版日期:2019-12-10 发布日期:2020-03-01
作者简介:董满宇（1983-）,男,辽宁兴城人,副教授,博士,主要从事区域气候变化、资源生态研究。E-mail: dongmy@bnu.edu.cn
基金资助:
国家自然科学基金项目资助(41630750);国家自然科学基金项目资助(41771051)

Climatic Characteristics of Climatic Growing Season and Impact Factors in North China During 1960-2017

Dong Manyu^1,², Li Jiemin², Wang Leixin², Liu Peipei³, Jiang Yuan^1,², Wu Zhengfang⁴

1. State Key Laboratory of Earth Surface Processes and Resource Ecology, Beijing Normal University, Beijing 100875, China
2. Faculty of Geographical Science, Beijing Normal University, Beijing 100875, China
3. Ankang Meteorology Bureau of Shaanxi Province, Ankang 725000, Shaanxi, China
4. School of Geographical Science, Northeast Normal University, Changchun 130024, Jilin, China

Received:2018-12-03 Revised:2019-03-30 Online:2019-12-10 Published:2020-03-01
Supported by:
National Natural Science Foundation of China(41630750);National Natural Science Foundation of China(41771051)

摘要/Abstract

摘要：

基于华北地区1960~2017年逐日气温数据,运用Mann-Kendall非参数检验、Morlet小波分析和R/S分析等方法,分析了华北地区气候生长季指标生长季开始（GSS）、生长季结束（GSE）、生长季长度（GSL）、生长季内≥10℃活动积温（AT10）及其对应的天数（DT10）的时空变化特征及其影响因素。结果表明:① 华北地区GSS呈显著的提前趋势,变化速率为-2.43 d/10a,GSL呈现出明显延长,AT10和DT10表现为显著增加趋势,变化速率分别为2.95 d/10 a、67.14℃/10a和2.31 d/10a,GSE变化趋势不明显。近60 a来华北地区GSL的延长主要归因于GSS的明显提前。② 生长季指标变化趋势在空间上存在明显差异,其中GSS与GSL,AT10与DT10变化趋势的空间分布格局较为相似。③ 生长季指标普遍在20世纪90年代中后期发生了明显的突变,GSS、GSE和GSL的突变年份为1994~1995年,AT10和DT10的突变年份为1997~1998年。④ 近60 a来华北地区生长季指标变化存在着2~3 a、5~6 a的主周期。生长季指标Hurst指数都大于0.7,表现为较强的持续性,其过去变化趋势将在未来继续延续。⑤ 北大西洋年代际振荡指数（AMO）是影响近60 a来华北地区生长季指标（GSS、GSE与AT10）变化的主要大气环流因子。

关键词: 气候生长季, 趋势分析, 时空变化, 大气环流指数, 华北地区

Abstract:

Variation in climatic growing season indices in North China from 1960-2017 were analyzed based on daily temperature data. The methods of Mann-Kendall test, wavelet transforms and rescaled range (R/S) analysis were employed to delineate the rate of change, abrupt change points, statistical significance of the trends, periodicity, and future trends of growing season indices, including growing season start (GSS), growing season end (GSE), growing season length (GSL), active accumulated temperature ≥10℃ (AT10) and the days of active accumulated temperature ≥10℃(DT10). Important results were obtained as follows: 1) GSS, GSL, AT10 and DT10 showed significant change trend (P<0.05) at the rate of -2.43 d/10a, 2.95 d/10a, 67.14℃/10a and 2.31 d/10a, respectively. GSE presented a non-significant trend with the change rate at 0.53 d/10a. The GSL has extended 17.2 days during the last 60 years, mainly due to the advanced GSS evident in the spring (14.1 d). 2) Spatially, as for GSS, GSL, AT10 and DT10, there were 67.1%, 62.9%, 95.7%, and 92.9% stations showed significant trends (P<0.05). The spatial distribution patterns of the trends in GSS and GSL, AT10 and DT10 were similar. 3) The growth season indices showed obvious mutation in the mid-to-late 1990s. Abrupt change points of GSS, GSE, GSL, AT10 and DT10 were at 1995, 1995 and 2014, 1994, 1998, and 1997. 4 ) The wavelet analysis showed that there were two primary short periods of 2-3 years and 5-6 years for the oscillation of growing season indices in North China. Hurst indexes (H) of growing season indices were all greater than 0.7. It indicated that there will be obvious Hurst phenomenon in the future, and the past trends of GSS, GSE, GSL, AT10 and DT10 will continue in the future period. 5) GSS was negatively related to the atmospheric circulation index of North Atlantic Oscillation (NAO), West Pacific Pattern (WP), Atlantic Multidecadal Oscillation (AMO), and Eastern Atlantic Pattern (EA), and positively related to Polar/ Eurasia Pattern (POL). GSE was positively correlated with AMO. As for AT10, it positively related to AMO and EA, and negatively related to NAO and WP. AMO is the main atmospheric circulation factor affected the growth season indicators (GSS, GSE and AT10) in North China during 1960-2017.

Key words: climatic growing season, trend analysis, spatio-temporal variations, atmospheric circulation index, North China

中图分类号:

P423.3

董满宇, 李洁敏, 王磊鑫, 刘佩佩, 江源, 吴正方. 1960~2017年华北地区气候生长季变化特征及成因分析[J]. 地理科学, 2019, 39(12): 1990-2000.

Dong Manyu, Li Jiemin, Wang Leixin, Liu Peipei, Jiang Yuan, Wu Zhengfang. Climatic Characteristics of Climatic Growing Season and Impact Factors in North China During 1960-2017[J]. SCIENTIA GEOGRAPHICA SINICA, 2019, 39(12): 1990-2000.

图/表 11

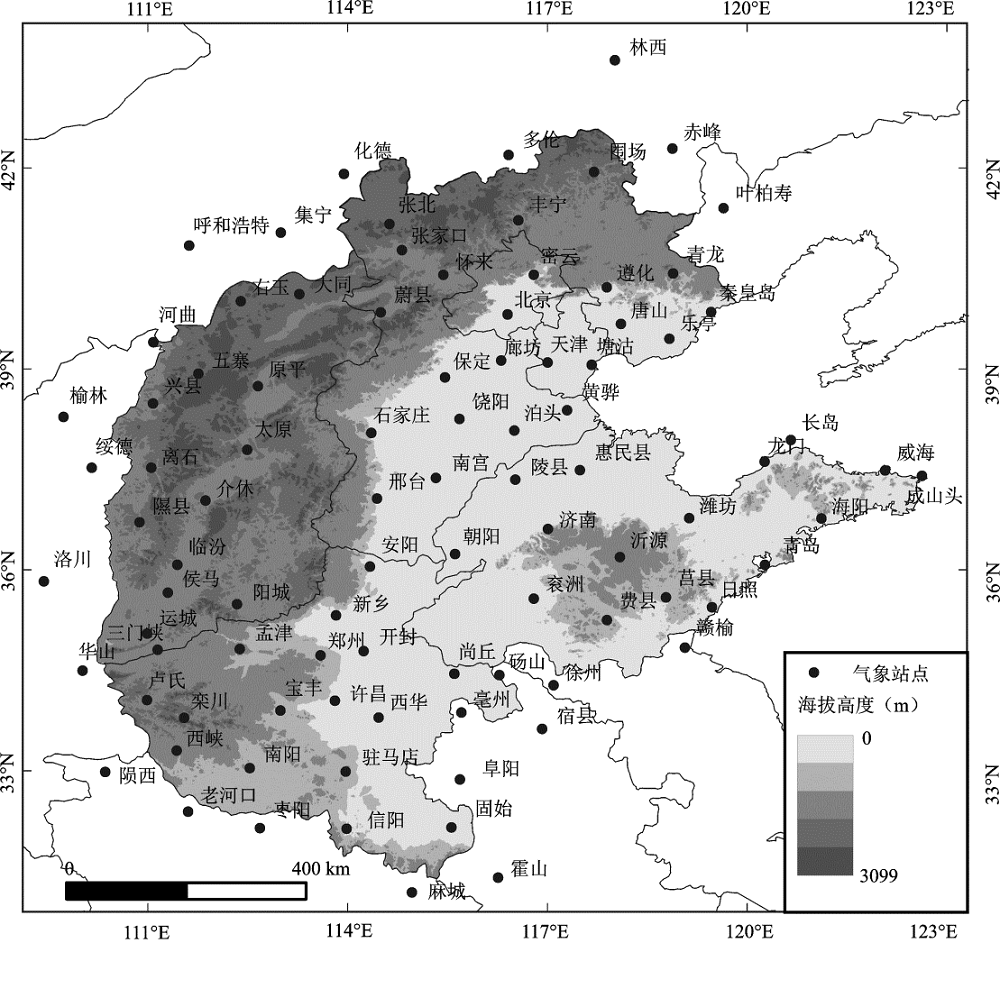

图1

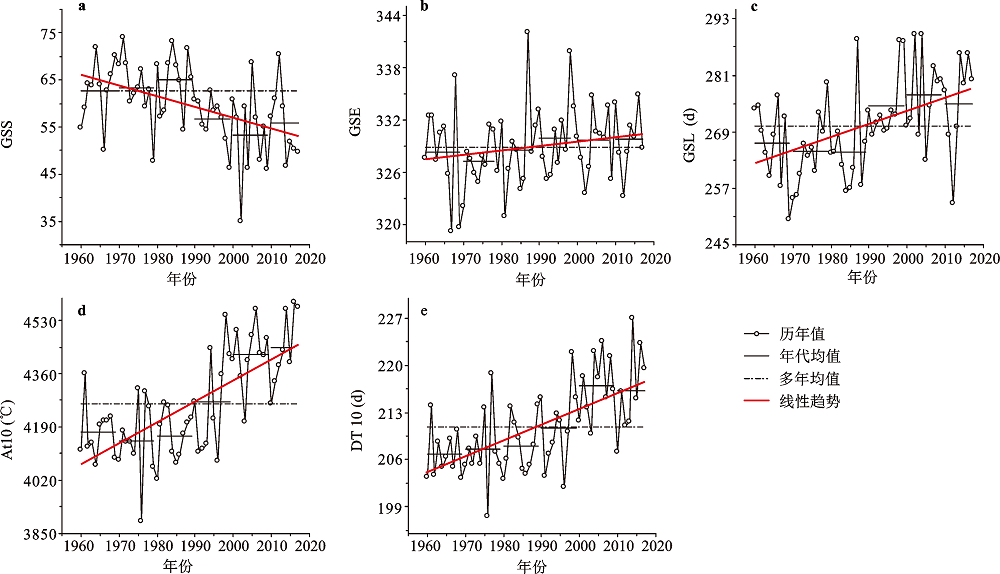

图2

表1

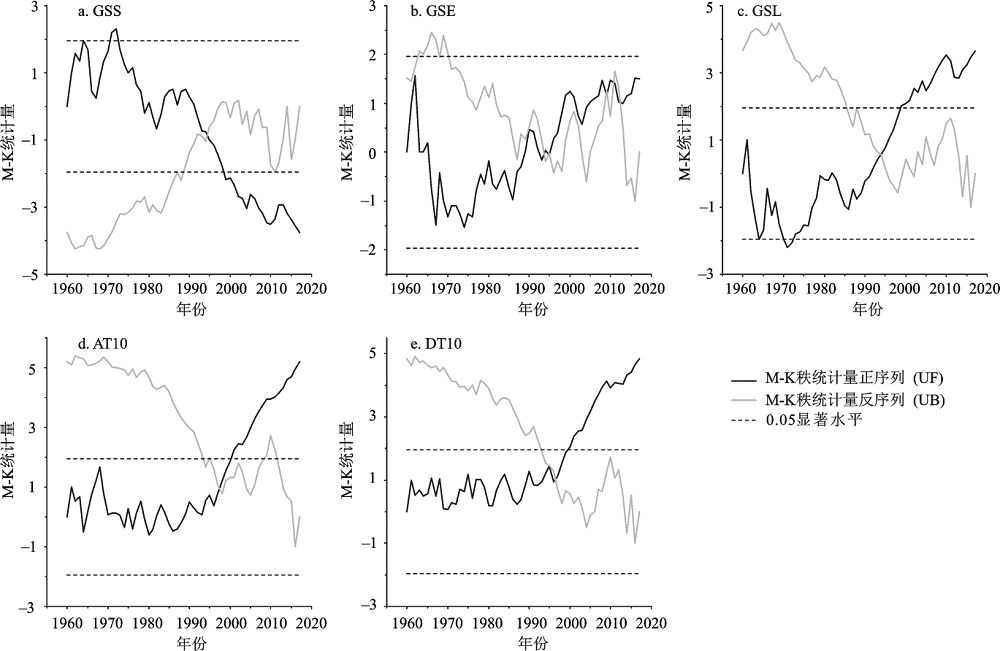

图3

表2

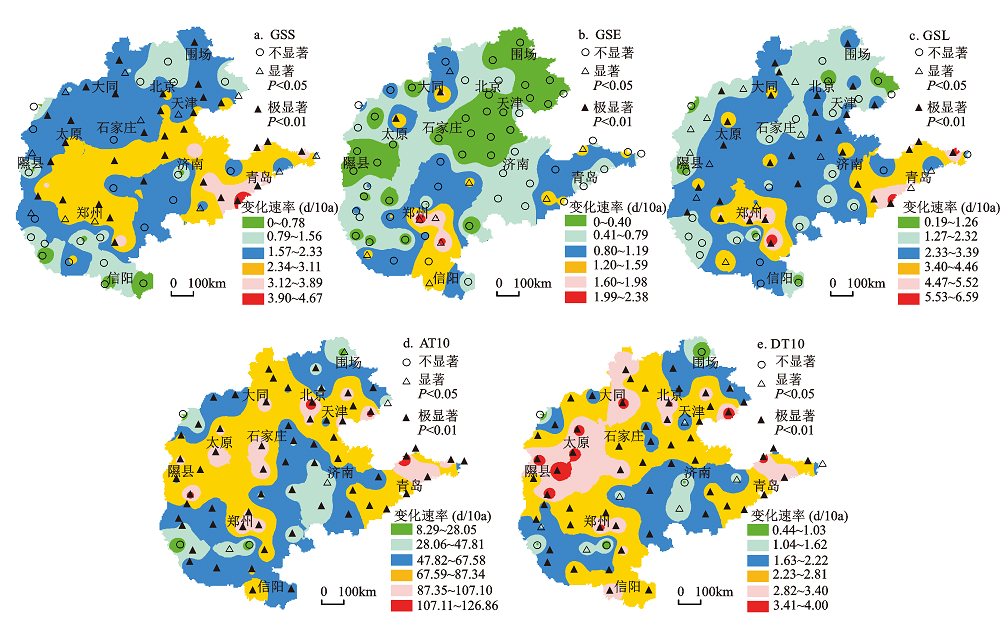

图4

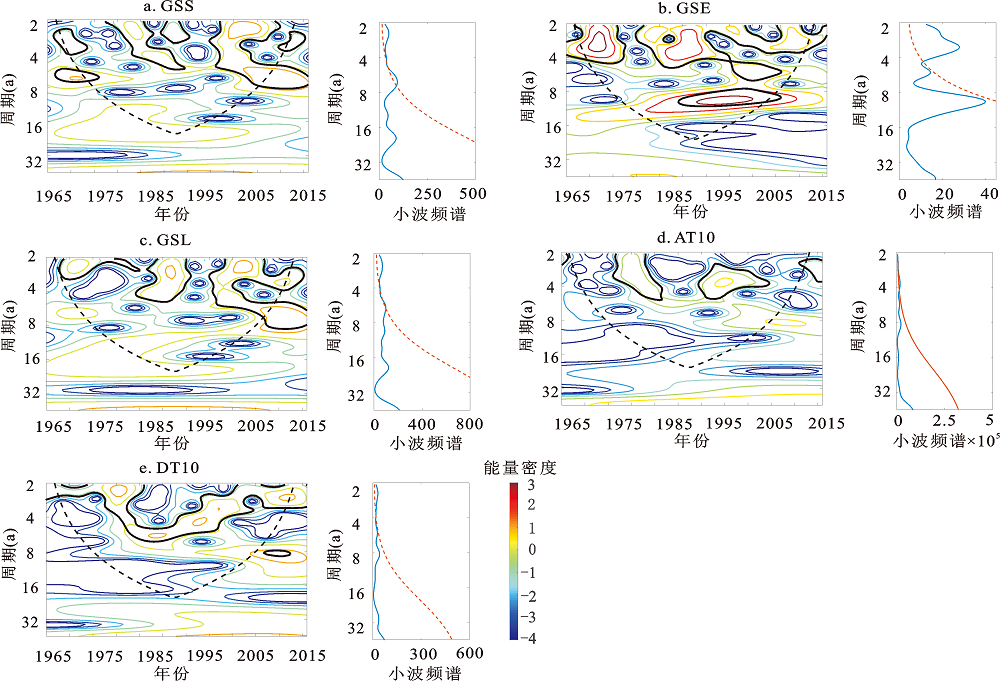

图5

表3

表4

表 5

表6

参考文献 33

[1]	Linderholm H W . Growing season changes in the last century[J]. Agricultural and Forest Meteorology, 2006,137:1-14.
[2]	Piao S L, Friedlingstein P, Ciais P et al.Growing season extension and its impact on terrestrial carbon cycle in the Northern Hemisphere over the past 2 decades[J]. Global Biogeochemical Cycles, 2007,21(3):1-11.
[3]	Cui L L, Shi J, Ma Y et al.Distribution and trend in the thermal growing season in China during 1961-2015[J]. Physical Geography, 2017,38(6):1-18.
[4]	韩超, 郑景云, 葛全胜 . 中国华北地区近40年物候春季变化[J]. 中国农业气象, 2007,28(2):113-117.
	[ Han Chao, Zheng Jingyun, Ge Quansheng . Phenological changes in spring in last 40 years in North China. Chinese Journal of Agrometeorology, 2007,28(2):113-117.]
[5]	王苗苗, 周蕾, 王绍强 , 等. 东北地区生长季长度变化及其对总初级生产力的影响分析[J]. 地理科学, 2018,38(2):284-292.
	[ Wang Miaomiao, Zhou Lei,Wang Shaoqiang et al.Change of growing season length and its effects on gross primary productivity in Northeast China. Scientia Geographica Sinica, 2018,38(2):284-292.]
[6]	郭灵辉, 吴绍洪, 赵东升 , 等. 近50年内蒙古地区生长季变化趋势[J]. 地理科学, 2013,33(4):505-512.
	[ Guo Linghui, Wu Shaohong,Zhao Dongsheng et al.Change trends of growing season over inner mongolia in the past 50 years. Scientia Geographica Sinica, 2013,33(4):505-512.]
[7]	Jiang F Q, Hu R J, Zhang Y W et al.Variations and trends of onset, cessation and length of climatic growing season over Xinjiang, NW China[J]. Theoretical and Applied Climatology, 2011,106:449-458.
[8]	Dong M Y, Jiang Y, Zhang D Y . Spatiotemporal change in the climatic growing season in northeast China during 1960-2009[J]. Theoretical and Applied Climatology, 2013,111:693-701.
[9]	Dong M Y, Jiang Y, Zheng C T et al.Trends in the thermal growing season throughout the Tibetan Plateau during 1960-2009[J]. Agricultural and Forest Meteorology,2012,166- 167:201-206.
[10]	Yang X C, Tian Z, Chen B D . Thermal growing season trends in east China, with emphasis on urbanization effects[J]. International Journal of Climatology, 2013,33(10):2402-2412.
[11]	洪舒蔓, 郝晋珉, 周宁 , 等. 黄淮海平原耕地变化及对粮食生产格局变化的影响[J]. 农业工程学报, 2014,30(21):268-277.
	[ Hong Shuman, Hao Jinmin, Zhou Ning et al.Change of cultivated land and its impact on grain production pattern in Huang-Huai-Hai Plain. Transactions of the Chinese Society of Agricultural Engineering, 2014,30(21):268-277.]
[12]	张一驰, 吴凯, 于静 , 等. 华北地区1951~2009年气温、降水变化特征[J]. 自然资源学报, 2011,26(11):1930-1941.
	[ Zhang Yichi, Wu Kai, Yu Jing et al.Characteristics of precipitation and air temperature variation during 1951-2009 in north China. Journal of Natural Resources, 2011,26(11):1930-1941.]
[13]	Wang S S, Mo X G, Liu Z J et al.Understanding long-term (1982-2013) patterns and trends in winter wheat spring green-up date over the North China Plain[J]. International Journal of Applied Earth Observation and Geoinformation, 2017,57:235-244.
[14]	Liu Y J, Qin Ya, Ge Q S et al.Reponses and sensitivities of maize phenology to climate change from 1981 to 2009 in Henan Province, China[J]. Journal of Geographical Sciences, 2017,27(9):1072-1084.
[15]	Wang Z B, Chen J, Xing F F et al.Response of cotton phenology to climate change on the North China Plain from 1981 to 2012[J]. Scientific Reports, 2017,7(1):6628.
[16]	王怀军, 潘莹萍, 陈忠升 . 1960~2014年淮河流域极端气温和降水时空变化特征[J]. 地理科学, 2017,37(12):1900-1908.
	[ Wang Huaijun, Pan Yingping, Chen Zhongsheng . Spatial and temporal patterns of temperature and precipitation extremes in the Huaihe River Basin,China in 1960-2014. Scientia Geographica Sinica, 2017,37(12):1900-1908.]
[17]	张秋良, 边玉明, 代海燕 , 等. 内蒙古大兴安岭林区极端气温事件变化特征[J]. 地理科学, 2017,37(12):1909-1916.
	[ Zhang Qiuliang, Bian Yuming, Dai Haiyan et al.Variation of extreme temperature events in Greater Khingan Range forest region of Inner Mongolia. Scientia Geographica Sinica, 2017,37(12):1909-1916.]
[18]	冯新灵, 罗隆诚, 邱丽丽 , 等. 青藏高原至中国东部年雨日变化趋势的分形研究[J]. 地理研究, 2007,26(4):835-843.
	[ Feng Xinling, Luo Longcheng, Qiu Lili et al.Fractal research of rainy day changing trend from Tibetan Plateau to Eastern China. Geographical Research, 2007,6(4):835-843.]
[19]	丁之勇, 董义阳, 鲁瑞洁 . 1960~2015年中国天山南、北坡与山区极端气温时空变化特征[J]. 地理科学, 2018,38(8):1379-1390.
	[ Ding Zhiyong, Dong Yiyang, Lu Ruijie et al.Spatio-temporal variability of temperature extremes in Tianshan Mountains area, Northwest China, during 1960-2015. Scientia Geographica Sinica, 2018,38(8):1379-1390.]
[20]	戴声佩, 李海亮, 罗红霞 , 等. 1960~2011年华南地区界限温度10℃积温时空变化分析[J]. 地理学报, 2014,69(5):650-660.
	[ Dai Shengpei, Li Hailiang, Luo Hongxia et al.The spatio-temporal change of active accumulated temperature≥10℃in southern china from 1960 to 2011. Acta Geographica Sinica, 2014,69(5):650-660.]
[21]	唐宝琪, 延军平, 李英杰 . 华东地区≥10℃积温的时空演变特征[J]. 中国农业气象, 2015,36(6):674-682.
	[ Tang Baoqi, Yan Junping, Li Yingjie . Changes of the accumulated temperature above 10℃in east China. Chinese Journal of Agrometeorology, 2015,36(6):674-682.]
[22]	时光训, 丁明军 . 近40 a来长江流域≥10℃积温的时空变化特征[J]. 热带地理, 2016,36(4):682-691.
	[ Shi Guangxun, Ding Mingjun . Spatial and temporal variation of ≥10℃ accumulated temperature in the Yangtze River basin for the past 40 years. Tropical Geography, 2016,36(4):682-691.]
[23]	张存厚, 李云鹏, 李兴华 , 等. 内蒙古近30年10℃积温变化特征分析[J]. 干旱区资源与环境, 2009,23(5):100-105.
	[ Zhang Cunhou, Li Yunpeng, Li Xinghua et al.Changes of the accumulated temperature above 10℃in recent 30 years in Inner Mongolia. Journal of Arid Land and Resources and Environment, 2009,23(5):100-105.]
[24]	Yin Y H, Deng H Y, Wu S H . Spatial-temporal variations in the thermal growing degree-days and season under climate warming in China during 1960-2011[J]. International Journal of Biometeorology, 2017,1:1-10.
[25]	王澄海, 李健, 许晓光 . 中国近50年气温变化准3年周期的普遍性及气温未来的可能变化趋势[J]. 高原气象, 2012,31(1):126-136.
	[ Wang Chenghai, Li Jian, Xu Xiaoguang . Universality of quasi-3-year period of temperature in last 50 years and change in next 20 years in China. Plateau Meteorology, 2012,31(1):126-136.]
[26]	Song Y L, Linderholm H W, Chen D L et al. Trends of the thermal growing season in China, 1951-2007[J]. International Journal of Climatology, 2010,30(1):33-43.
[27]	任国玉, 徐铭志, 初子莹 , 等. 近54年中国地面气温变化[J]. 气候与环境研究, 2005,10(4):717-727.
	[ Ren Guoyu, Xu Mingzhi,Chu Ziying et al.Changes of surface air temperature in China during 1951-2004. Climatic and Environmental Research, 2005,10(4):717-727.]
[28]	韩方红, 陈海山, 马鹤翟 . 冬季北大西洋涛动与中国北方极端低温相关性的年代际变化[J]. 大气科学, 2018,42(2):239-250.
	[ Han Fanghong, Chen Haishan, Ma Hezhai . Interdecadal variation in the relationship between north atlantic oscillation and extreme low temperature over northern China in winter. Chinese Journal of Atmospheric Sciences, 2018,42(2):239-250.]
[29]	Wang Yanming, Li Shuanglin, Luo Dehai . Seasonal response of Asian monsoonal climate to the atlantic multidecadal oscillation[J]. Journal of Geophysical Research-Atmospheres, 2009,114(D2):1-15.
[30]	范可, 刘辉 . 近百年东亚冬季气温及其大气环流变化型态[J]. 大气科学, 2013,37(2):383-394.
	[ Fan Ke, Liu Hui . Winter temperature over east Asia and atmospheric circulation patterns in the last 100 years. Chinese Journal of Atmospheric Sciences, 2013,37(2):383-394.]
[31]	Fan S M, Yang X S . Arctic and east Asia winter climate variations associated with the eastern atlantic pattern[J]. Journal of Climate, 2017,30(2):573-583.
[32]	梁丰, 刘丹丹, 王婉昭 , 等. 基于SPEI的中国东北地区1961-2014年干旱时空演变[J]. 中国沙漠, 2017,37(1):148-157.
	[ Liang Feng, Liu Dandan,Wang Wanzhao et al.Temporal and spatial distributions of drought in Northeast China in 1961-2014 based on standardized precipitation evapotranspiration index. Journal of Desert Research, 2017,37(1):148-157.]
[33]	Sun J Q, Wang H J, Yuan W . Decadal variations of the relationship between the summer north atlantic oscillation and middle east Asian air temperature[J]. Journal of Geophysical Research-Atmospheres, 2008,113(D15):1-11.

	GSS	GSE	GSL （d）	AT10 （℃）	DT10 (d)
多年均值	60	329	270	4263.1	211
β值（/10a）	-2.43^*	0.53	2.95^*	67.14^*	2.31^*

R/S分析指标	GSS	GSE	GSL	AT10	DT10
H值	0.87	0.71	0.87	0.96	0.94
持续性强度	很强	较强	很强	很强	很强

	GSS	GSE	GSL	研究时段
东北地区^[8]	-1.58	1.10	2.66	1960~2009
内蒙古地区^[6]	-1.30	1.32	2.60	1961~2010
新疆地区^[7]	-0.97	1.47	2.50	1951~2008
青藏高原^[9]	-1.82	1.47	3.29	1960~2009
东部沿海^[10]	-2.49	0.55	3.05	1961~2007
南方地区^[26]	-0.60	0.70	1.30	1951~2007
北方地区^[26]	-1.70	0.70	2.40	1951~2007
全国^[24]	-0.90	1.20	2.10	1960~2011
华北地区 (本文)	-2.43	0.53	2.95	1960~2017

	NAO			AMO			WP			EA			POL
月份	2~3	11~12	4~10	2~3	11~12	4~10	2~3	11~12	4~10	2~3	11~12	4~10	2~3	11~12	4~10
GSS	-0.27^*			-0.34^**			-0.28^*			-0.39^**			0.30^*
GSE		-0.02			0.36^**			0.13			0.08			-0.17
AT10			-0.35^**			0.64^**			-0.30^*			0.73^**			-0.04

		2~3月			11~12月			4~10月
	最高	平均	最低	最高	平均	最低	最高	平均	最低
NAO	0.35^**	0.43^**	0.45^**	-0.07	0.10	0.22	-0.23	-0.29^*	-0.34^**
AMO	0.36^**	0.35^**	0.32^*	0.32^*	0.40^**	0.41^**	0.45^**	0.61^**	0.72^**
WP	0.12	0.23	0.33^*	0.05	0.10	0.12	-0.21	-0.33^*	-0.41^**
EA	0.33^*	0.38^**	0.40^**	-0.02	0.21	0.36^**	0.53^**	0.72^**	0.80^**
POL	-0.26	-0.33^*	-0.38^**	-0.18	-0.14	-0.09	-0.05	-0.05	-0.07

1960~2017年华北地区气候生长季变化特征及成因分析

Climatic Characteristics of Climatic Growing Season and Impact Factors in North China During 1960-2017

RichHTML

PDF (PC)

赞

可视化

摘要/Abstract

引用本文

使用本文

图/表 11

参考文献 33

相关文章 15

Metrics

本文评价

推荐阅读 0

生长季指标	趋势检验通过率（%）	↑趋势个数	显著↑ 个数	↓趋势个数	显著↓ 个数	无趋势个数
GSS	67.1	0	0	68	47	2
GSE	15.7	58	11	0	0	12
GSL	62.9	70	44	0	0	0
AT10	95.7	70	67	0	0	0
DT10	92.9	70	65	0	0	0
