吉林省限制开发区域绿色发展格局演变及障碍因素识别

doi:10.13249/j.cnki.sgs.2020.05.007

地理科学 ›› 2020, Vol. 40 ›› Issue (5): 730-739.doi: 10.13249/j.cnki.sgs.2020.05.007

吉林省限制开发区域绿色发展格局演变及障碍因素识别

李平¹^,²^,³, 佟连军¹(), 范围广¹^,², 郭艳花¹^,⁴

1.中国科学院东北地理与农业生态研究所,吉林长春130102
2.中国科学院大学,北京100049
3.吉林省社会科学院,吉林长春 130033
4.东北师范大学地理科学学院,吉林长春 130024

收稿日期:2019-03-15 修回日期:2019-11-03 出版日期:2020-05-10 发布日期:2020-08-18
通讯作者: 佟连军 E-mail:tonglj@iga.ac.cn
作者简介:李平（1985-）,女,内蒙古阿荣旗人,满族,博士研究生,助研,主要从事城市发展与产业经济研究。E-mail: liping1202@126.com
基金资助:
国家自然科学基金项目(41771138)

Evolution of Green Development Pattern and Identification of Obstacles in the Restricted Development Zones of Jilin Province

Li Ping¹^,²^,³, Tong Lianjun¹(), Fan Weiguang¹^,², Guo Yanhua¹^,⁴

1. Northeast Institute of Geography and Agroecology, Chinese Academy of Sciences, Changchun 130102, Jilin, China
2. University of Chinese Academy of Sciences, Beijing 100049, China
3. Jilin Province Academy of Social Sciences, Changchun 130033, Jilin, China
4. College of Geographical Science, Northeast Normal University, Changchun 130024, Jilin, China

Received:2019-03-15 Revised:2019-11-03 Online:2020-05-10 Published:2020-08-18
Contact: Tong Lianjun E-mail:tonglj@iga.ac.cn
Supported by:
National Natural Sciences Foundation of China(41771138)

摘要/Abstract

摘要：

以吉林省限制开发区域为实证研究区域,基于2005、2010、2015、2017年各市（州）的截面数据,从绿色增长、绿色福利、绿色财富3个维度构建绿色发展指标体系,运用熵权-TOPSIS模型、障碍度模型等方法,探究吉林省限制开发区绿色发展水平的时空演变特征及障碍因素。结果表明： ① 2005-2017年吉林省限制开发区绿色发展水平呈现“N”字型波动上升的时序演化特征,总体上绿色发展水平上升较慢。② 吉林省限制开发区绿色发展水平存在明显的空间分异特征,总体呈现东部高,中、西部低的特征,且两级分化特征更加明显。③ 人均工业增加值、第二产业产值比重、建成区绿化覆盖率、每万人拥有普通高等学校人数、人均水资源量、城市生活污水处理率是研究期内制约吉林省限制开发区绿色发展水平提升的主要指标层障碍因子。

关键词: 绿色发展, 熵权-TOPSIS模型, 限制开发区

Abstract:

Based on the cross-sectional data of 2005, 2010, 2015 and 2017, this article constructs a green development index system from 3 dimensions of green growth, green welfare and green wealth, using entropy weight TOPSIS evaluation method and obstacle model to explore the temporal and spatial evolution characteristics and obstacle factors of green development level in Jilin restricted development zone. The results show that: 1) From 2005 to 2017, the green development level of the restricted development zone in Jilin Province presented the time sequence evolution characteristic of "N" type fluctuation rising, and the overall green development level rises slowly, with an average annual growth rate of only 0.3%. 2) The green development level of the restricted development zone in Jilin Province had obvious spatial differentiation characteristics, which was high in the East, middle and low in the west, and the two-level differentiation characteristics were more obvious. 3) Per capita industrial added value, proportion of secondary industry output value, green coverage rate of built-up area, number of ordinary colleges and universities per 10 000 persons, per capita water resources and urban domestic sewage treatment rate were the main obstacle factors restricting the improvement of green development level of Development Zone in Jilin Province during the research period.

Key words: green development, entropy weight TOPSIS model, restricted development zone

中图分类号:

F127

李平, 佟连军, 范围广, 郭艳花. 吉林省限制开发区域绿色发展格局演变及障碍因素识别[J]. 地理科学, 2020, 40(5): 730-739.

Li Ping, Tong Lianjun, Fan Weiguang, Guo Yanhua. Evolution of Green Development Pattern and Identification of Obstacles in the Restricted Development Zones of Jilin Province[J]. SCIENTIA GEOGRAPHICA SINICA, 2020, 40(5): 730-739.

图/表 6

表1

吉林省限制开发区绿色发展水平指标体系"

目标层	系统层	准则层	指标层	指标属性	权重
目标层	系统层	准则层	指标层	指标属性	2005年	2010年	2015年	2017年
吉林省限制开发区域绿色发展	绿色增长(A)	经济发展规模(A1)	人均GDP（万元/人）(A11)	正向	0.0253	0.0563	0.0500	0.0538
		经济发展规模(A1)	人均工业增加值（万元/人）(A12)	正向	0.0375	0.0672	0.0442	0.0694
		经济发展结构(A2)	第二产业产值比重（%）(A21)	正向	0.0364	0.0422	0.0550	0.0758
		经济发展结构(A2)	第三产业产值比重（%）(A22)	正向	0.0220	0.0665	0.0322	0.0452
		经济发展质量(A3)	万元GDP能耗（t标准煤/万元）(A31)	负向	0.0276	0.0284	0.0273	0.0449
			万元GDP SO₂排放量（kg/万元）(A32)	负向	0.0342	0.0364	0.0288	0.0221
			万元GDP COD排放量（kg/万元）(A33)	负向	0.0308	0.0258	0.0409	0.0225
	绿色福利(B)	社会发展效益(B1)	人均财政收入（元/人）(B11)	正向	0.0395	0.0516	0.0663	0.0559
			城镇居民人均可支配收入（元）B12)	正向	0.0590	0.0319	0.0216	0.0388
			农村居民人均可支配收入（元）(B13)	正向	0.0285	0.0249	0.0301	0.0312
		绿色公共服务(B2)	建成区绿化覆盖率（%）(B21)	正向	0.0583	0.0791	0.0341	0.0241
			每万人拥有卫生人员数（人）(B22)	正向	0.0332	0.0301	0.0464	0.0422
			每万人拥有普通高等学校人数（人）(B23)	正向	0.0655	0.0436	0.1377	0.0541
	绿色财富(C)	资源环境压力(C1)	人均工业废气排放量（t/人）(C11)	负向	0.0237	0.0249	0.0210	0.0302
			人均社会用电量（kWh/人）(C12)	负向	0.0364	0.0469	0.0403	0.0353
			人均工业废水排放量（t/人）(C13)	负向	0.0251	0.0260	0.0209	0.0381
		资源环境状态(C2)	人均水资源量（m³/人）(C21)	正向	0.0850	0.0799	0.0879	0.1041
			人均耕地面积（hm²/人）(C22)	正向	0.0397	0.0459	0.0463	0.0482
			森林覆盖率（%）(C23)	正向	0.0606	0.0695	0.0485	0.0506
		资源环境响应(C3)	工业二氧化硫去除率（%）(C31)	正向	0.0416	0.0437	0.0205	0.0215
			工业固体废弃物综合利用率（%）(C32)	正向	0.0422	0.0232	0.0309	0.0374
			城市生活污水处理率（%）(C33)	正向	0.1480	0.0559	0.0691	0.0544

表1

表2

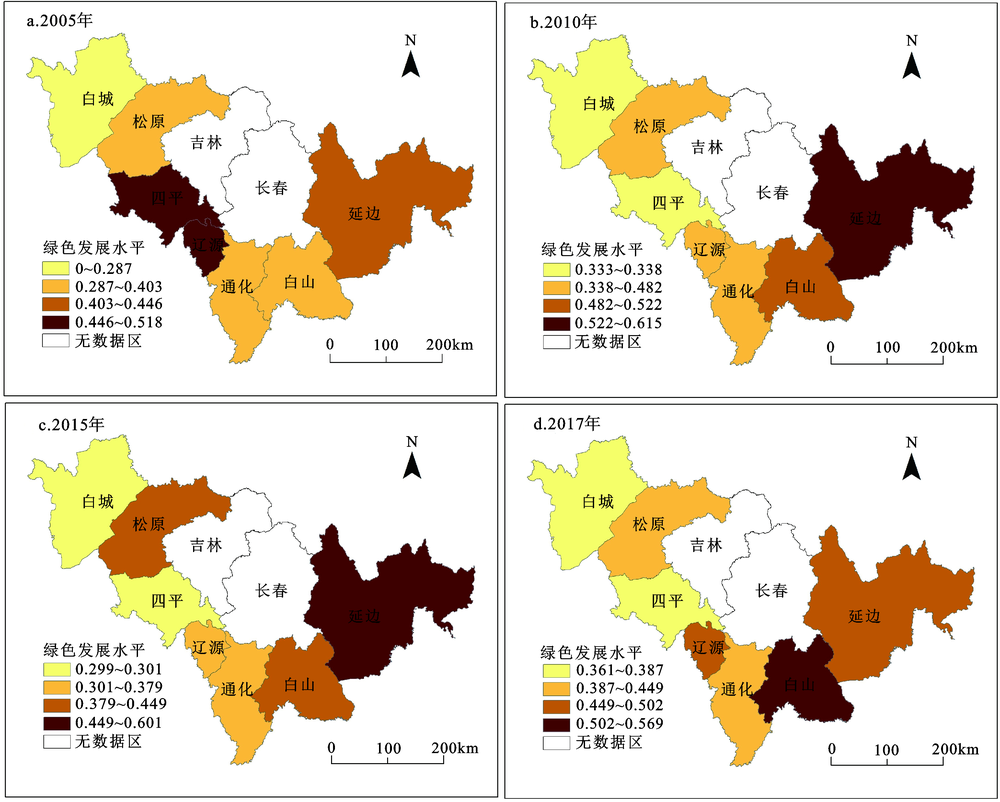

图1

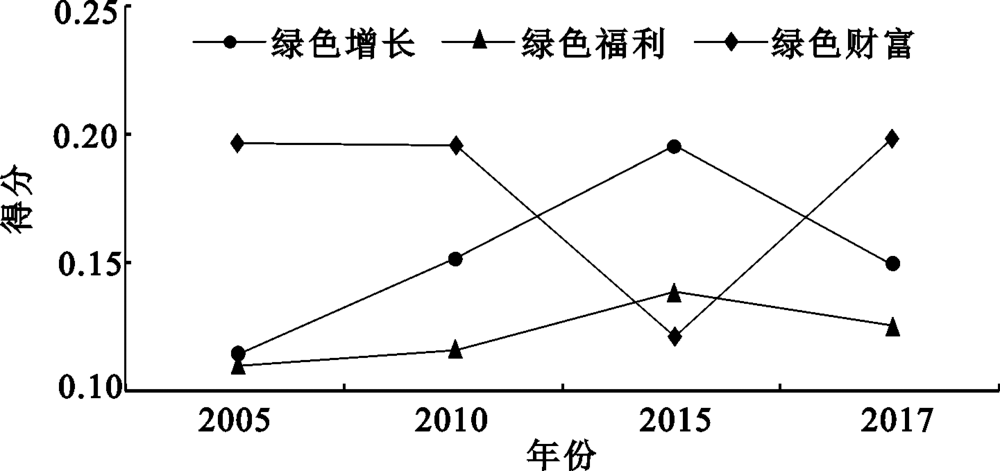

图2

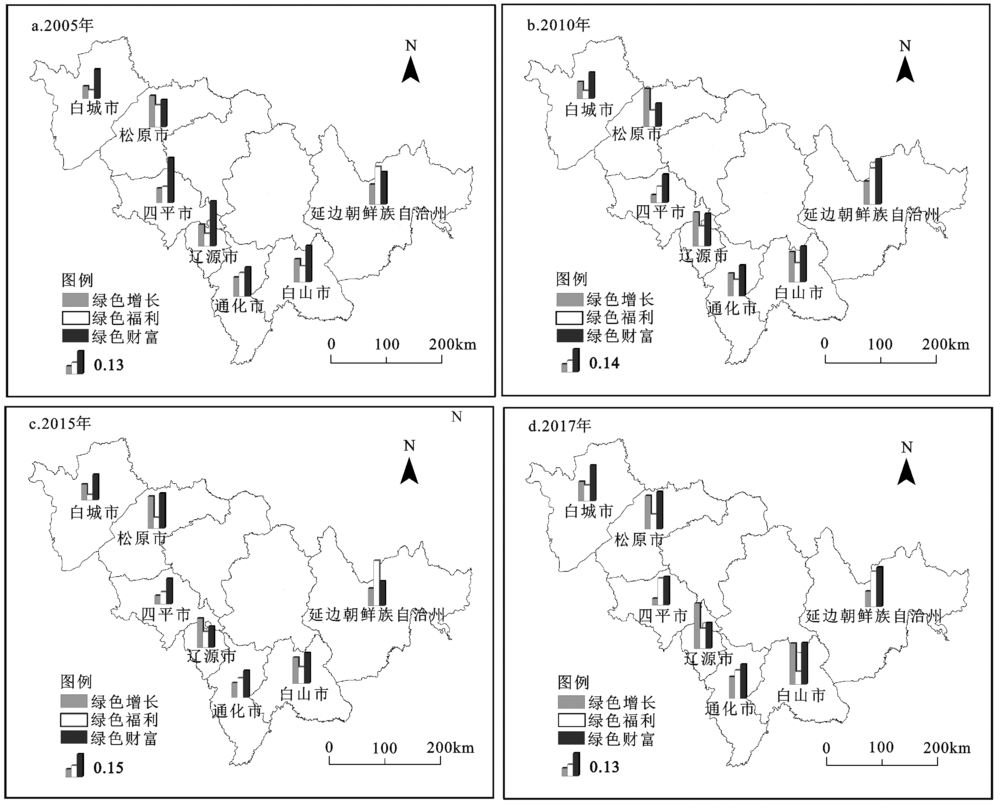

图3

表3

参考文献 41

[1]	李晓西, 潘建成. 中国绿色发展指数的编制——《2010中国绿色发展指数年度报告省际比较内容简述》[J]. 经济研究参考, 2011(2):36-64.
	[ Li Xiaoxi, Pan Jiancheng. The compilation of China Green Development Index 2010 China Green Development Index annual report, provincial comparison, content brief. Review of Economic Research, 2011(2):36-64.]
[2]	Eve Z Bratman. Contradictions of green development: Human rights and environmental norms in light of belo Monte Dam activism[J]. Journal of Latin American Studies, 2014,46(2):261-289.
[3]	Marc M F. Satellite images show China going green[J]. Nature, 2018,553(7689):411-413. doi: 10.1038/d41586-018-00996-5 pmid: 32094803
[4]	Dercon Stefan. Climate change, green growth, and aid allocation to poor countries[J]. Oxford Review of Economic Policy, 2014,30(3):531-549.
[5]	Janicke M. “Green growth”: From a growing eco-industry to economic sustainability[J]. Energy Policy, 2012,48:13-21.
[6]	Jakob Michael, Edenhofer Ottmar. Green growth, degrowth, and the commons[J]. Oxford Review of Economic Policy, 2014,30(3):447-468.
[7]	Elfriede Penz, Pia Polsa. How do companies reduce their carbon footprint and how do they communicate these measures to stakeholders?[J]. Journal of Cleaner Production, 2018,195(10):1125-1138.
[8]	Kortelainen M. Dynamic environmental performance analysis: A malmquist index approach[J]. Ecological Economics, 2008,64(4):701-715.
[9]	Carfi D, Schiliro D. A coopetitive model for the green economy[J]. Economic Modelling, 2012,29(4):1215-1219.
[10]	Brown Ed, Cloke Jonathan, Gent Danielle et al. Green growth or ecological commodification: debating the green economy in the global South[J]. Geografiska Annaler, 2014,96(3):245-259.
[11]	Koji S, Yoshitaka T, Kei G. Developing a long-term local society design methodology towards a low carbon economy: An application to Shiga Prefecture in Japan[J]. Energy Policy, 2007,35(9):4688-4703.
[12]	McKendry Corina, Janos Nik. Greening the industrial city: Equity, environment, and economic growth in Seattle and Chicago[J]. International Environment Agreements: Politics, Law and Economics, 2015,15(1):45-60.
[13]	卢丽文, 宋德勇, 李小帆. 长江经济带城市发展绿色效率研究[J]. 中国人口资源与环境, 2016,26(6):35-42.
	[ Lu Liwen, Song Deyong, Li Xiaofan. Green efficiency of urban development in the Yangtze River Economic Belt. China Population, Resources and Environment, 2016,26(6):35-42.]
[14]	车磊, 白永平, 周亮, 等. 中国绿色发展效率的空间特征及溢出分析[J]. 地理科学, 2018,38(11):1788-1798.
	[ Che Lei, Bai Yongping, Zhou Liang et al. Spatial pattern and spillover effects of green development efficiency in China. Scientia Geographica Sinica, 2018,38(11):1788-1798.]
[15]	赵领娣, 袁田, 赵志博. 城镇化对绿色发展绩效的门槛效应研究——以大西北、黄河中游两大经济区城市为例[J]. 干旱区资源与环境. 2019,33(9):10-16.
	[ Zhao Lingdi, Yuan Tian, Zhao Zhibo. Threshold effect between urbanization and green development performance. Journal of Arid Land Resources and Environment, 2019,33(9):10-16.]
[16]	刘杰, 於世为. 产业结构优化对绿色发展中生态效率的影响——以长江经济带为例[J]. 环境经济研究, 2019,4(3):73-91.
	[ Liu Jie, Yu Shiwei. Impacts of industrial structure optimization on ecoefficiency in green development: An Example of Yangtze River Economic Belt. Journal of Environmental Economics, 2019,4(3):73-91.]
[17]	张江雪, 蔡宁, 杨陈. 环境规制对中国工业绿色增长指数的影响[J]. 中国人口.资源与环境, 2015,25(1):24-31.
	[ Zhang Jiangxue, Cai Ning, Yang Chen. Impact of environmental regulation on green growth index of industry in China. China Population, Resources and Environment, 2015,25(1):24-31.]
[18]	徐成龙, 庄贵阳. 供给侧改革驱动中国工业绿色发展的动力结构及时空效应[J]. 地理科学, 2018,38(6):849-858.
	[ Xu Chenglong, Zhuang Guiyang. Dynamic structure and spatio-temporal effect of supply-side reform on industrial green development in China. Scientia Geographica Sinica, 2018,38(6):849-858.]
[19]	胡鞍钢, 周绍杰. 绿色发展:功能界定、机制分析与发展战略[J]. 中国人口·资源与环境, 2014,24(1):14-20.
	[ Hu Angang, Zhou Shaojie. Green development: Functional definition, mechanism analysis and development strategy. China Population, Resources and Environment, 2014,24(1):14-20.]
[20]	张世秋. 绿色发展的制度和政策改革分析[J]. 环境保护, 2016,44(11):34-37.
	[ Zhang Shiqiu. Analysis on the system and policy reform of green development. Environmental Protection, 2016,44(11):34-37.]
[21]	杨志江, 文超祥. 中国绿色发展效率的评价与区域差异[J]. 经济地理, 2017,37(3):10-18.
	[ Yang Zhijiang, Wen Chaoxiang. Evaluation on China’s green development efficiency and regional disparity. Economic Geography, 2017,37(3):10-18.]
[22]	沈晓艳, 王广洪, 黄贤金. 1997~2013年中国绿色GDP 核算及时空格局研究[J]. 自然资源学报, 2017,32(10):1639-1650.
	[ Shen Xiaoyan, Wang Guanghong, Huang Xianjin. Green GDP accounting and spatio-temporal pattern in China from 1997 to 2013. Journal of Natural Resources, 2017,32(10):1639-1650.]
[23]	任嘉敏, 马延吉. 东北老工业基地绿色发展评价及障碍因素分析[J]. 地理科学, 2018,38(7):1042-1050.
	[ Ren Jiamin, Ma Yanji. Green development level and the obstacle factors of Old Industrial Base in Northeast China. Scientia Geographica Sinica, 2018,38(7):1042-1050.]
[24]	樊杰. 主体功能区战略与优化国土空间开发格局[J]. 中国科学院院刊, 2013,28(2):193-205.
	[ Fan Jie. The strategy of major function oriented zoning and the optimization of territorial development patterns. Bulletin of Chinese Academy of Sciences, 2013,28(2):193-205.]
[25]	李娜, 陈克龙. 青海省限制开发区人口容量研究[J]. 中国人口·资源与环境, 2011,21(3):9-12.
	[ Li Na, Chen Kelong. Research on the population capacity of the restriced development area in Qinghai province. China Population,Resources and Environment, 2011,21(3):9-12.]
[26]	郭永杰, 米文宝, 赵莹, 等. 基于集对分析的宁夏限制开发生态区经济脆弱性评价[J]. 干旱区资源与环境, 2014,28(8):32-38.
	[ Guo Yongjie, Mi Wenbao, Zhao Ying et al. The evaluation on economic system vulnerability of limited developing ecological zones in Ningxia. Journal of Arid Land Resources and Environment, 2014,28(8):32-38.]
[27]	李富佳, 韩增林, 王利. 主体功能区划下过渡期辽宁省限制开发区发展模式[J]. 地理科学进展, 2008,27(5):105-113.
	[ Li Fujia, Han Zenglin, Wang Li. The pattern of development in the resticted Zone of Liaoning province during the transition period based on major function oriented zoning. Progress in Geography, 2008,27(5):105-113.]
[28]	杨美玲, 朱志玲, 任凯丽. 限制开发生态区农户生态补偿参与意愿及其影响因素——以宁夏盐池县为例[J] 干旱区地理, 2018,41(1):634-641.
	[ Yang Meiling, Zhu Zhiling, Ren Kaili. Farmers’ participation and influecing factors in payments for environment services in limited developing ecological zones: A case of Yanchi County in Ningxia Province. Arid Land Geography, 2018,41(1):634-641.]
[29]	郭付友, 侯爱玲, 佟连军, 等. 振兴以来东北限制开发区绿色发展水平时空分异与影响因素[J]. 经济地理, 2018,38(8):58-66.
	[ Guo Fuyou, Hou Ailing, Tong Lianjun et al. Spatio-temporal pattern and influencing factors of green development in the northeast restricted development zone since the revitalization of the Northeast China. Economic Geography, 2018,38(8):58-66.]
[30]	吉林省统计局, 国家统计局吉林调查总队. 吉林统计年鉴[M]. 北京: 中国统计出版社, 2018.
	[ Jilin Provincial Bureau of Statistics, Jilin Investigation Corps of National Bureau of Statistics. Jilin statistical year book. Beijing: China Statistics Press, 2018.]
[31]	胡鞍钢, 周绍杰. 绿色发展:功能界定、机制分析与发展战略[J]. 中国人口·资源与环境, 2014,24(1):4-20.
	[ Hu Angang, Zhou Shaojie. Green development: Functional definition, mech-anism analysis and development strategy. China Population, Resources and Environment, 2014,24(1):14-20.]
[32]	周亮, 车磊, 周成虎. 中国城市绿色发展效率时空演变特征及影响因素[J]. 地理学报, 2019,74(10):2027-2044.
	[ Zhou Liang, Che Lei, Zhou Chenghu. Spatio-temporal evolution and influencing factors of urban green development efficiency in China. Acta Geographica Sinica, 2019,74(10):2027-2044.]
[33]	程钰, 王晶晶, 王亚平, 等. 中国绿色发展时空演变轨迹与影响机理研究[J]. 地理研究, 2019,38(11):2745-2765.
	[ Cheng Yu, Wang Jingjing, Wang Yaping et al. A comparative research of the spatial-temporal evolution track and influence mechanism of green development in China. Geographical Research, 2019,38(11):2745-2765.]
[34]	郭付友, 佟连军, 刘志刚, 等. 山东省产业生态化时空分异特征与影响因素——基于17地市时空面板数据[J]. 地理研究, 2019,38(9):2226-2238.
	[ Guo Fuyou, Tong LianJun, Liu Zhigang et al. Spatial-temporal pattern and influencing factors of industrialecology in Shandong province: Based on panel data of 17 cities. Geographical Research, 2019,38(9):2226-2238.]
[35]	刘艳军, 刘德刚, 付占辉, 等. 哈大巨型城市带空间开发-经济发展-环境演变的耦合分异机制[J]. 地理科学, 2018,38(5):662-671.
	[ Liu Yanjun, Liu Degang, Fu Zhanhui et al. The differ-entiation mechanism of coupling degree among space exploitation, economy development and environment evolution in Harbin-Dalian Giant Urban Belt. Scientia Geographica Sinica, 2018,38(5):662-671.]
[36]	郭艳花, 佟连军, 梅林. 吉林省限制开发生态区绿色发展水平评价与障碍因素[J]. 生态学报, 2020,40(7):2463-2472.
	[ Guo Yanhua, Tong Lianjun, Mei Lin. The level of green development and obstacle factors in limited development ecological zone of Jilin Province. Acta Ecologica Sinica, 2020,40(7):2463-2472.]
[37]	李雪铭, 郭玉洁, 田深圳, 等. 辽宁省城市人居环境系统耦合协调度时空格局演变及驱动力研究[J]. 地理科学, 2019,39(8):1208-1218.
	[ Li Xueming, Guo Yujie, Tian Shenzhen et al. The spatio-temporal pattern evolution and driving force of the coupling coordination degree of urban human settlements system in Liaoning Province. Scientia Geographica Sinica, 2019,39(8):1208-1218.]
[38]	杜挺, 谢贤健, 梁海艳, 等. 基于熵权TOPSIS和GIS的重庆市县域经济综合评价及空间分析[J]. 经济地理. 2014,34(6):40-47.
	[ Du Ting, Xie Xianjian, Liang Haiyan et al. County economy comprehensive evaluation and spatial analysis in chongqing city based on entropy weight-TOPSIS and GIS. Economic Geography, 2014,34(6):40-47.]
[39]	傅聪颖, 赖昭豪, 郭熙. 基于熵权TOPSIS模型的区域资源环境承载力评价及障碍因素诊断[J]. 生态经济. 2020,36(1):198-204.
	[ Fu Congying, Lai Zhaohao, Guo Xi. Evaluation of regional resource and environment carrying capacity based on the entrop-weight TOPSIS Model and the obstacle factors diagnosis. Ecological Economy, 2020,36(1):198-204.]
[40]	吉林省统计局, 国家统计局吉林调查总队. 吉林统计年鉴[M]. 北京: 中国统计出版社, 2006-2017.
	[ Jilin Provincial Bureau of Statistics, Jilin Investigation Corps of National Bureau of Statistics. Jilin statistical yearbook. Beijing: China Statistics Press, 2006-2017.]
[41]	国家统计局城市社会经济调查司. 中国城市统计年鉴[M]. 北京: 中国统计出版社, 2006-2018.
	[ Bureau of Urban Social and Economic Research, National Bureau of Statistics. China city statistical yearbook. Beijing: China Statistics Press, 2006-2018.]

地级市	2005年		2010年		2015年		2017年
地级市	指数	排名	指数	排名	指数	排名	指数	排名
四平市	0.5176	1	0.3378	6	0.2998	7	0.3606	7
辽源市	0.4884	2	0.4824	3	0.3787	5	0.4957	3
通化市	0.3641	6	0.4483	5	0.3794	4	0.4491	4
白山市	0.4025	4	0.5221	2	0.4489	2	0.5688	1
松原市	0.3732	5	0.4535	4	0.4161	3	0.4263	5
白城市	0.2873	7	0.3329	7	0.3005	6	0.3867	6
延边朝鲜族自治州	0.4464	3	0.6151	1	0.6013	1	0.5018	2
平均值	0.4114	—	0.4560	—	0.4035	—	0.4556	—

年份	经济发展规模	经济发展结构	经济发展质量	社会发展效益	绿色公共服务	资源环境压力	资源环境状态	资源环境响应
2005	19.49	15.28	16.72	29.47	39.80	14.87	46.00	41.21
2010	45.64	42.53	16.40	21.39	40.16	20.49	50.73	25.37
2015	33.55	28.02	17.27	25.26	62.95	11.93	47.58	27.30
2017	45.64	49.49	16.46	27.20	27.34	21.32	53.67	23.91
