基于地形因素的秦巴山区人口-经济空间格局及其影响机制研究

doi:10.13249/j.cnki.sgs.2020.05.014

地理科学 ›› 2020, Vol. 40 ›› Issue (5): 793-803.doi: 10.13249/j.cnki.sgs.2020.05.014

基于地形因素的秦巴山区人口-经济空间格局及其影响机制研究

敬博¹^,²(), 李同昇¹(), 温伯清², 成文浩¹

1.西北大学城市与环境学院,陕西西安 710127
2.西安建筑科技大学城市规划设计研究院,陕西西安 710055

收稿日期:2019-05-13 修回日期:2019-11-13 出版日期:2020-05-10 发布日期:2020-08-18
通讯作者: 李同昇 E-mail:jingbo@xauat.edu.cn;leetang@nwu.edu.cn
作者简介:敬博（1984-）,男,陕西凤翔人,高级工程师,主要从事城市规划与经济地理学研究。E-mail: jingbo@xauat.edu.cn
基金资助:
国家自然科学基金项目(41771129)

Population-Economy Spatial Pattern and Impact Mechanism of the Qinba Mountain Area Based on Topographic Factors

Jing Bo¹^,²(), Li Tongsheng¹(), Wen Boqing², Cheng Wenhao¹

1. College of Urban and Environmental Science, Northwest University, Xi’an 710127, Shaanxi, China
2. Institute of Urban Planning and Design, Xi’an University of Architecture and Technology,Xi’an 710055, Shaanxi,China

Received:2019-05-13 Revised:2019-11-13 Online:2020-05-10 Published:2020-08-18
Contact: Li Tongsheng E-mail:jingbo@xauat.edu.cn;leetang@nwu.edu.cn
Supported by:
National Natural Science Foundation of China(41771129)

摘要/Abstract

摘要：

地形是影响区域人口分布和社会经济发展的重要因素,尤其在山地区域其影响和约束作用更加明显。以秦巴山区为例,基于SRTM数据提取高程和地形起伏度,借助多种空间分析和地统计学方法,分多个尺度对人口、经济空间的格局和分异特征进行分析,重点从地形要素定量揭示其与人口、经济空间的相互关系和影响程度。研究表明：① 秦巴山区人口经济空间分异特征明显,Lorenz曲线和基尼系数结果显示,人口分布具有不均衡性,但不均衡程度低于全国水平,Moran's I指数结果说明人口、经济空间具有一定集聚特征,且在像元尺度下集聚程度更明显;②人口、GDP密度呈现外围热、内部冷的空间格局,通过像元尺度的空间要素密度分析发现人口、经济要素在垂直方向上的分异十分明显;③ 样带研究中人口、GDP密度与海拔的变化曲线呈反向相关,人口、经济在小尺度范围对地形有一定的适应性;④ 经济发展对地形条件依赖性更强,人口和村庄对地形的适应性更加明显;地形的垂直分异特征导致自然环境和区域发展条件的空间差异,进而影响着人口、经济的空间分布格局。

关键词: 地形, 人口-经济, 秦巴山区

Abstract:

Topography is an important factor affecting regional population distribution and social and economic development, and its influence and restraint effect is more obvious especially in mountainous areas. This study takes Qinba Mountain area as an example to analyze the pattern and differentiation characteristics of population and economic space on multiple scales with the help of a variety of spatial analysis and geostatistics methods. Based on 90 m resolution SRTM data, it extracts elevation and relief amplitude, with an emphasis on quantitatively revealing the relationship and influence degree between terrain and environmental elements and the population and economic space. The results show that: 1) The population, village and economic density of Qinba Mountain area show a significant differentiation. The results of Lorenz curve and Gini coefficient show that the population distribution is unbalanced, but the unbalance degree is lower than the national level. Besides, the results of Moran's index show that population and economic space have certain agglomerating characteristics, and the degree of agglomeration is more obvious at the cell scale. 2) The density of population and GDP shows the spatial pattern of external heat and internal cooling, and it is found that the differentiation of population and economic factors in the vertical direction is obvious through the analysis of spatial element density in the cell scale. 3) The change curve of the density of population and GDP and elevation in sample belt research show a reverse correlated relationship, and the population and economy have a certain adaptability to terrain in small scale range. 4) Economic development is more dependent on terrain conditions, and the adaptability of population and villages to topography is more obvious; the vertical differentiation of topography leads to the spatial difference of natural environment and regional development conditions, and then affects the spatial distribution pattern of population and economy.

Key words: topography, population-economy, the Qinba mountain area

中图分类号:

F129.9

敬博, 李同昇, 温伯清, 成文浩. 基于地形因素的秦巴山区人口-经济空间格局及其影响机制研究[J]. 地理科学, 2020, 40(5): 793-803.

Jing Bo, Li Tongsheng, Wen Boqing, Cheng Wenhao. Population-Economy Spatial Pattern and Impact Mechanism of the Qinba Mountain Area Based on Topographic Factors[J]. SCIENTIA GEOGRAPHICA SINICA, 2020, 40(5): 793-803.

图/表 9

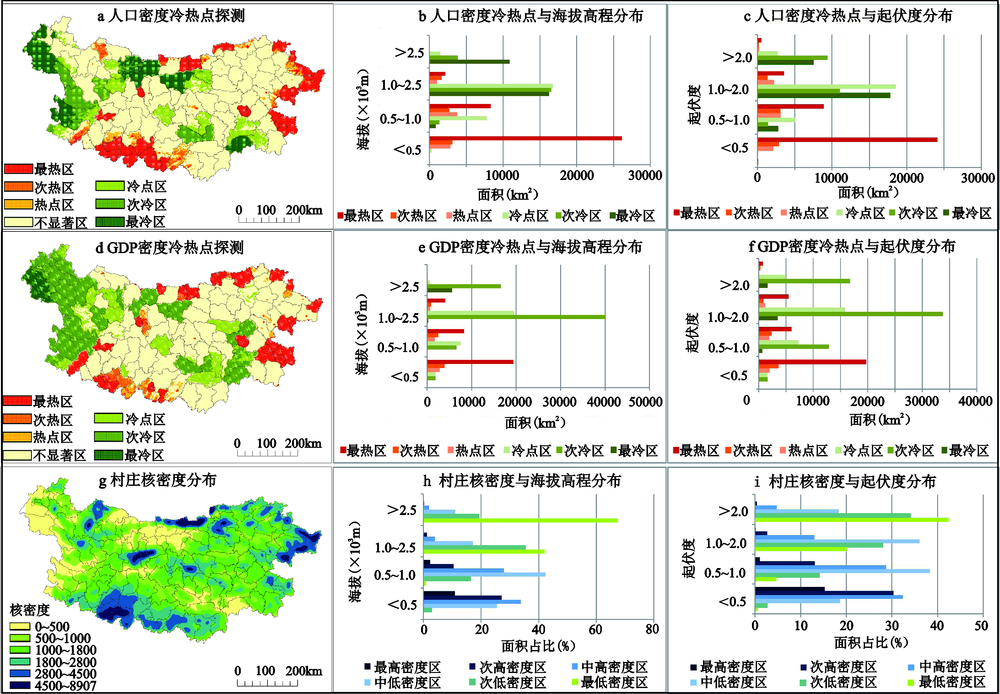

图1

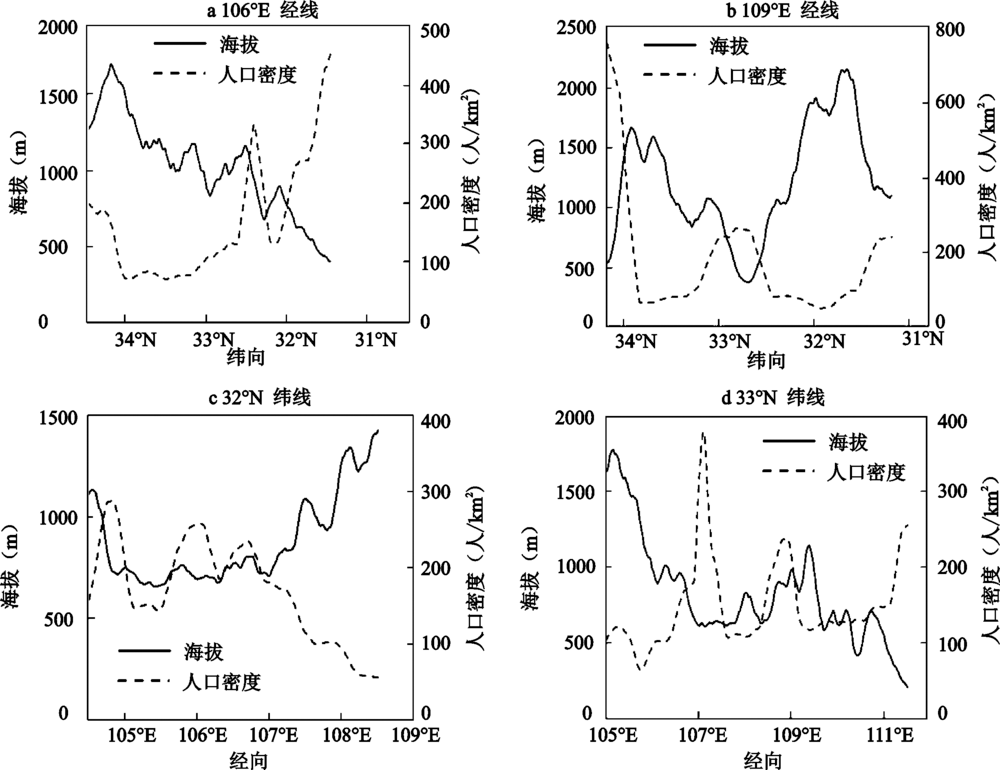

图2

图3

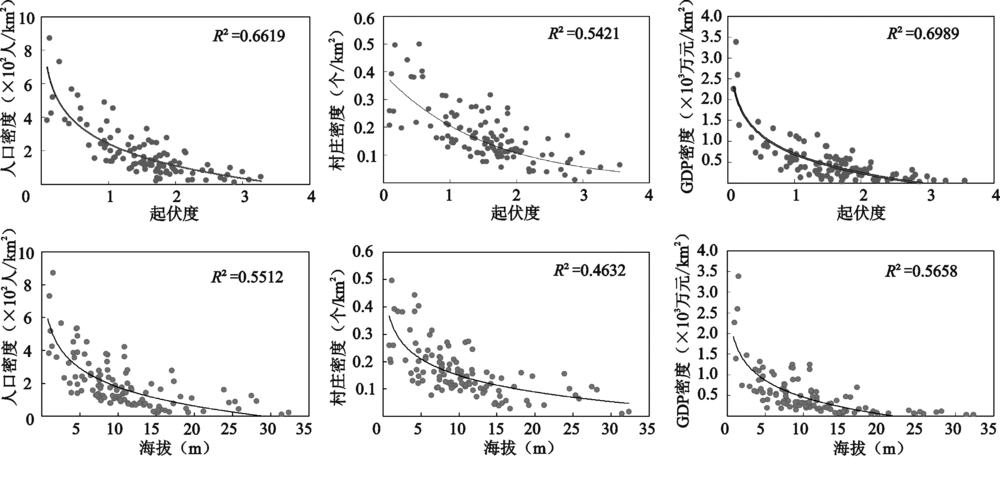

图4

表1

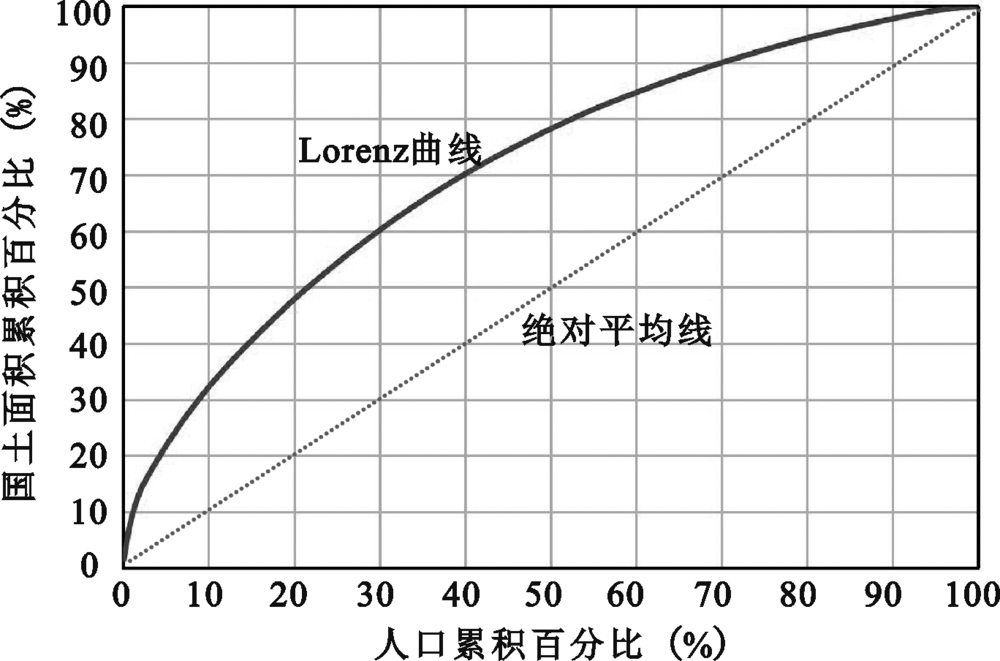

图5

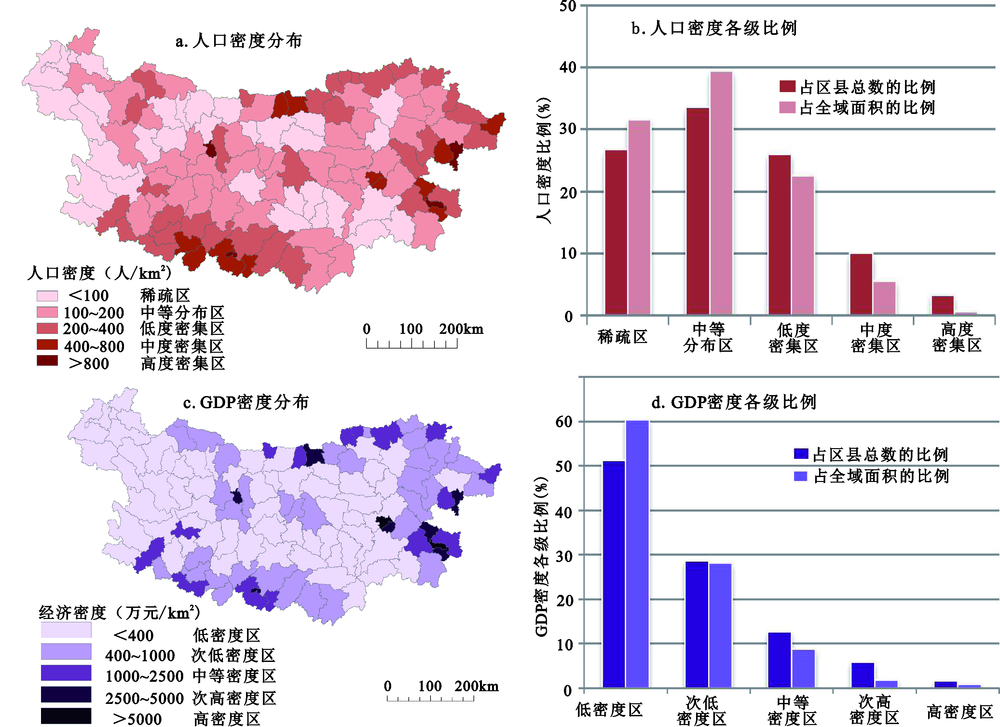

图6

图7

表2

参考文献 28

[1]	Phil A Graniero, Jonathan S Price. The importance of topographic factors on the distribution of bog and heath in a Newfoundland blanket bog complex[J]. Catena, 1999,36(3):233-254.
[2]	John Callow, Van Niel, Nikolaus, et al. How does modifying a DEM to reflect known hydrology affect subsequent terrain analysis?[J]. Journal of Hydrology, 2007,332(1):30-39.
[3]	周自翔, 李晶, 任志远. 基于GIS的关中-天水经济区地形起伏度与人口分布研究[J]. 地理科学, 2012,32(8):951-957.
	[ Zhou Zixiang, Li Jing, Ren Zhiyuan. The relief degree of land surface and population distribution in Guanzhong-Tianshui Economic Region using GIS. Scientia Geogrephica Sinica, 2012,32(8):951-957.]
[4]	Elumnoh A, Shrestha R P. Application of DEM [digital elevation model] data to landsat image classification: Evaluation in a tropical wet-dry landscape of Thailand[J]. Photogrammetric Engineering & Remote Sensing, 2000,66(3):297-304.
[5]	Neta Wechsler, Thomas K Rockwell, Yehuda Benzion. Application of high resolution DEM data to detect rock damage from geomorphic signals along the central San Jacinto Fault[J]. Geomorphology, 2009,113(1):82-96.
[6]	Stein J L, Stein J A, Nix H A. Spatial analysis of anthropogenic river disturbance at regional and continental scales: Identifying the wild rivers of Australia[J]. Landscape & Urban Planning, 2002,60(1):1-25.
[7]	张海霞, 牛叔文, 齐敬辉, 等. 基于乡镇尺度的河南省人口分布的地统计学分析[J]. 地理研究, 2016,35(2):325-336.
	[ Zhang Haixia, Niu Shuwen, Qi Jinghui, et al. Geological statistics analysis of population distribution at township level in Henan province. Geographical Research, 2016,35(2):325-336.]
[8]	邓楚雄, 李民, 宾津佑. 湖南省人口分布格局时空变化特征及主要影响因素分析[J]. 经济地理, 2017,37(12):41-48.
	[ Deng Chuxiong, Li Min, Bin Jinyou. Spatial-temporal variation characteristics and main influence factors analysis of population distribution pattern in Hunan Province. Economic Geography, 2017,37(12):41-48.]
[9]	杨卡. 大北京人口分布格局与多中心性测度[J]. 中国人口·资源与环境, 2015,25(2):83-89.
	[ Yang Ka. Population distribution and multicenter measurement of Great Beijing. China Population,Resources and Environment, 2015,25(2):83-89.]
[10]	刘浩, 马琳, 李国平. 京津冀地区经济发展冷热点格局演化及其影响因素[J]. 地理研究, 2017,36(1):97-108.
	[ Liu Hao, Ma Lin, Li Guoping. Pattern evolution and its contributory factor of cold spots and hot spots of economic development in Beijing-Tianjin-Hebei region. Geographical Research, 2017,36(1):97-108.]
[11]	马恩朴, 李同昇, 卫倩茹. 中国半城市化地区乡村聚落空间格局演化机制探索——以西安市南郊大学城康杜村为例[J]. 地理科学进展, 2016,35(7):816-828.
	[ Ma Enpu, Li Tongsheng, Wei Qianru. Mechanism of change in spatial pattern of rural settlements in peri-urban areas of China: A case study of Kangdu Village in the college town of south Xi’an. Progress in Geography, 2016,35(7):816-828.]
[12]	闫东升, 杨槿. 长江三角洲人口与经济空间格局演变及影响因素[J]. 地理科学进展, 2017,36(7):820-831.
	[ Yan Dongsheng, Yang Jin. Change in spatial distribution of population and economy and influencing factors in the Yangtze River Delta. Progress in Geography, 2017,36(7):820-831.]
[13]	赵璐, 赵作权. 基于特征椭圆的中国经济空间分异研究[J]. 地理科学, 2014,34(8):979-986.
	[ Zhao Lu, Zhao Zuoquan. Projecting the spatial variation of economic based on the specific ellipses in China. Scientia Geogrephica Sinica, 2014,34(8):979-986.]
[14]	李国平, 罗心然. 京津冀地区人口与经济协调发展关系研究[J]. 地理科学进展, 2017,36(1):25-33.
	[ Li Guoping, Luo Xinran. Coordinated development between population and economy in the Beijing-Tianjin-Hebei region. Progress in Geography, 2017,36(1):25-33.]
[15]	周亮, 徐建刚, 林蔚, 等. 秦巴山连片特困区地形起伏与人口及经济关系[J]. 山地学报, 2015,33(6):742-750.
	[ Zhou Liang, Xu Jiangang, Lin Wei et al. Relationship of terrain relief degree and population economic development and evaluation of development suitability in continuous poor areas: A case study on Qinba of National Contiguous Special Poverty-stricken Areas. Mountain Research, 2015,33(6):742-750.]
[16]	国家统计局农村社会经济调查司. 中国县域统计年鉴(县市卷)[M]. 北京: 中国统计出版社, 2015-2016.
	[ Department of Rural Surveys of National Bureau of Statistics. China statistical yearbook(County-Level). Beijing: China Statistics Press, 2015-2016.]
[17]	刘新华, 杨勤科, 汤国安. 中国地形起伏度的提取及在水土流失定量评价中的应用[J]. 水土保持通报, 2001, 21(1): 57-59+62.
	[ Liu Xinhua, Yang Qinke, Tang Guoan. Extraction and application of relief of China based on DEM and GIS method. Bulletin of Soil and Water Conservation, 2001,21(1): 57-59+62.]
[18]	封志明, 唐焰, 杨艳昭, 等. 中国地形起伏度及其与人口分布的相关性[J]. 地理学报, 2007,62(10):1073-1082.
	[ Feng Zhiming, Tang Yan, Yang Yanzhao et al. The relief degree of land surface in China and its correlation with population distribution. Acta Geographica Sinica, 2007,62(10):1073-1082.]
[19]	付星基, 尹晓媛, 余建新, 等. 乌蒙山区建设用地密度空间分异特征及其影响因素[J]. 水土保持研究, 2018,25(3):346-353.
	[ Fu Xingji, Yin Xiaoyuan, Yu Jianxin, et al. Spatial variation characteristics of construction land density and its influencing factors in Wumeng Mountain Area. Research of Soil and Water Conservation, 2018,25(3):346-353.]
[20]	李文龙, 石育中, 鲁大铭, 等. 北方农牧交错带干旱脆弱性时空格局演变[J]. 自然资源学报, 2018,33(9):1599-1612.
	[ Li Wenlong, Shi Yuzhong, Lu Daming, et al. The spatio-temporal evolution of drought vulnerability in the ecotone between agriculture andanimal husbandry in the north of China. Journal of Natural Resources, 2018,33(9):1599-1612.]
[21]	柏中强, 王卷乐, 杨雅萍, 等. 基于乡镇尺度的中国25省区人口分布特征及影响因素[J]. 地理学报, 2015,70(8):1229-1242.
	[ Bai Zhongqiang, Wang Juanle, Yang Yaping, et al. Characterizing spatial patterns of population distribution at township level across the 25 provinces in China. Acta Geographica Sinica, 2015,70(8):1229-1242.]
[22]	杨强, 李丽, 王运动, 等. 1935-2010年中国人口分布空间格局及其演变特征[J]. 地理研究, 2016,35(8):1547-1560.
	[ Yang Qiang, Li Li, Wang Yundong et al. Spatial distribution pattern of population and characteristics of its evolution in China during 1935-2010. Geographical Research, 2016,35(8):1547-1560.]
[23]	张慧. 河北省人口分布地域格局时空演变分析[J]. 地域研究与开发, 2014,33(1):170-175.
	[ Zhang Hui. Spatio-temporal variations of population distribution with data at county level in Hebei Province. Areal Research and Development, 2014,33(1):170-175.]
[24]	葛美玲, 封志明. 中国人口分布的密度分级与重心曲线特征分析[J]. 地理学报, 2009,64(2):202-210.
	[ Ge Meiling, Feng Zhiming. Population distribution of China based on GIS: Classification of population densities and curve of population gravity centers. Acta Geographica Sinica, 2009,64(2):202-210.]
[25]	韩嘉福, 张忠, 齐清文. 中国人口空间分布不均匀性分析及其可视化[J]. 地球信息科学, 2007(6):14-19.
	[ Han Jiafu, Zhang Zhong, Qi Qingwen. Analysis and visualization of the uneven distribution of population in China. Geo-information Science, 2007(6):14-19.]
[26]	李阳兵, 罗光杰, 邵景安, 等. 岩溶山地聚落人口空间分布与演化模式[J]. 地理学报, 2012,67(12):1666-1674.
	[ Li Yangbing, Luo Guangjie, Shao Jing'an, et al. The evolving models of rural settlements and population distribution in Karst Mountains. Acta Geographica Sinica, 2012,67(12):1666-1674.]
[27]	罗勇, 张百平. 基于山地垂直带谱的秦岭土地利用空间分异[J]. 地理科学, 2006,26(5):5574-5579.
	[ Luo Yong, Zhang Baiping. Land use patterns differentiation based on vertical belts in Qinling Mountains. Scientia Geogrephica Sinica, 2006,26(5):5574-5579.]
[28]	程佳佳, 王成金, 刘卫东. 西北地区交通优势度格局及空间分异[J]. 地球科学进展, 2016,31(2):192-205.
	[ Cheng Jiajia, Wang Chengjin, Liu Weidong. Distribution configuration and spatial differentiation of transport superiority degree in northwest China. Advances in Earth Science, 2016,31(2):192-205.]

密集区类型		海拔（m）
密集区类型		<500	500~1000	1000~2500	>2500
各级人口密度面积占比(%)	稀疏区	2.41	20.04	50.75	82.90
	中等分布区	27.68	49.67	37.68	16.75
	低度密集区	45.46	25.99	10.92	0.34
	中度密集区	20.59	3.72	0.62	0.01
	高度密集区	3.86	0.58	0.03	0
各级GDP密度面积占比(%)	低密度区	16.30	55.27	76.51	99.54
	次低密度区	51.60	36.28	20.47	0.19
	中等密度区	24.34	6.96	2.78	0.25
	次高密度区	5.51	1.19	0.23	0.02
	高密度区	2.26	0.31	0.01	0
村庄个数占比(%)		39.04	39.48	20.55	0.93
村庄密度（个/km²）		0.32	0.20	0.08	0.02
国土面积占比(%)		19.30	31.36	41.74	7.60

		交通优势度	建设适宜度
高程	Pearson 相关性	-0.537^**	-0.390^**
高程	显著性（双侧）	0.000	0.000
起伏度	Pearson 相关性	-0.475^**	-0.524^**
起伏度	显著性（双侧）	0.000	0.000
人口密度	Pearson 相关性	0.511^**	0.810^**
人口密度	显著性（双侧）	0.000	0.000
村庄密度	Pearson 相关性	0.398^**	0.610^**
村庄密度	显著性（双侧）	0.000	0.000
GDP密度	Pearson 相关性	0.440^**	0.740^**
GDP密度	显著性（双侧）	0.000	0.000
