全球变化下中国南海诸岛珊瑚礁热压力临时避难所研究

doi:10.13249/j.cnki.sgs.2020.05.016

地理科学 ›› 2020, Vol. 40 ›› Issue (5): 814-822.doi: 10.13249/j.cnki.sgs.2020.05.016

全球变化下中国南海诸岛珊瑚礁热压力临时避难所研究

左秀玲¹^,²^,³(), 苏奋振²(), 王琦², 王晨亮², 蒋会平², 石伟²

1.广西大学广西南海珊瑚礁研究重点实验室,广西南宁530004
2.中国科学院地理科学与资源研究所资源与环境信息系统国家重点实验室,北京100101
3.广西大学海洋学院,广西南宁530004

收稿日期:2019-04-10 修回日期:2019-10-18 出版日期:2020-05-10 发布日期:2020-08-18
通讯作者: 苏奋振 E-mail:zuoxl@gxu.edu.cn;sufz@lreis.ac.cn
作者简介:左秀玲(1986-),女,山东济南人,博士,讲师,主要研究方向为海洋海岸带资源环境遥感与GIS。E-mail: zuoxl@gxu.edu.cn
基金资助:
中国科学院战略性先导科技专项(类)(XDA13010400);国家自然科学基金项目(41801341);广西自然科学基金项目(2018JJB150030)

Thermal Stress Temporary Refugia Under Global Change for Coral Reefs in the South China Sea Islands

Zuo Xiuling¹^,²^,³(), Su Fenzhen²(), Wang Qi², Wang Chenliang², Jiang Huiping², Shi Wei²

1. Guangxi Laboratory on the Study of Coral Reefs in the South China Sea, Guangxi University, Nanning 530004, Guangxi, China
2. State Key Laboratory of Resources and Environmental Information System, Institute of Geographic Sciences and Natural Resources Research, Chinese Academy of Science, Beijing 100101, China
3. School of Marine Sciences, Guangxi University, Nanning 530004, Guangxi, China

Received:2019-04-10 Revised:2019-10-18 Online:2020-05-10 Published:2020-08-18
Contact: Su Fenzhen E-mail:zuoxl@gxu.edu.cn;sufz@lreis.ac.cn
Supported by:
Strategic Priority Research Program of the Chinese Academy of Sciences(XDA13010400);National Natural Science Foundation of China(41801341);Guangxi Natural Science Foundation of China(2018JJB150030)

摘要/Abstract

摘要：

选取第五次耦合模式比较计划（CMIP5）模式中较适宜于南海海表面温度（SST）模拟的加拿大地球系统模式(CanESM2),并获取其在IPCC RCP2.6、RCP4.5和RCP8.5温室气体排放情景下模拟的2006-2100年南海SST数据。基于南海诸岛珊瑚礁和线性回归方法分析了RCPs情景下的珊瑚礁区夏季SST上升趋势,并基于热周指数(DHW, Degree Heating Weeks)及年白化时间指数分析了RCPs情景下的南海诸岛珊瑚礁热压力临时避难所,主要得出以下结论：① RCPs情景下,明显变暖的珊瑚礁海域均为南沙群岛;② 年白化时间不晚于全球珊瑚礁平均年白化时间的珊瑚礁像元占南海诸岛总珊瑚礁像元的比例,在RCP2.6、RCP4.5和RCP8.5情景下分别为17%、29%和42%,均分布在南沙群岛;③ RCPs情景下,较高纬度的西沙群岛、中沙群岛和南沙群岛北部为未来南海诸岛珊瑚礁热压力临时避难所。

关键词: 全球变化, 珊瑚礁, 热压力, 避难所, 南海

Abstract:

The SST data for IPCC RCP2.6, RCP4.5 and RCP8.5 are selected from the Canadian Earth System Model of the CCCma (CanESM2) of CMIP5(Coupled Model Intercomparison Project Phase 5), which is more suitable for the area of South China Sea. Based on the coral reef pixels of Nansha archipelagoes and the linear regression method, the summer SST rising trend in each RCP scenario was analyzed for the South China Sea Islands. Moreover, the temporary refugia in the RCP scenarios were investigated based on two thermal stress indexes of Degree Heating Weeks (DHW) and the onset of annual bleaching conditions. The main results are as following: 1) In three RCP scenarios, the apparently warming reef areas are the Nansha Islands; 2) The proportion of coral reefs projected to experience annual bleaching conditions not later than the global median year is 17%, 29% and 42% in RCP2.6, RCP4.5 and RCP8.5 scenarios respectively. These reefs are located in the Nansha Islands; 3) Reefs of Xisha Islands, Zhongsha Islands, Dongsha Islands and the northern Nansha Islands in the higher latitudes are the future temporary refuges. This article supplements the global temporary refugia in a warming world and proves the important role of the South China Sea Islands in the future global coral reef sustainability, which is also of great significance for mitigating greenhouse gas emissions and coping with climate change.

Key words: global change, coral reef, thermal stress, temporary refugia, South China Sea Islands

中图分类号:

P208

左秀玲, 苏奋振, 王琦, 王晨亮, 蒋会平, 石伟. 全球变化下中国南海诸岛珊瑚礁热压力临时避难所研究[J]. 地理科学, 2020, 40(5): 814-822.

Zuo Xiuling, Su Fenzhen, Wang Qi, Wang Chenliang, Jiang Huiping, Shi Wei. Thermal Stress Temporary Refugia Under Global Change for Coral Reefs in the South China Sea Islands[J]. SCIENTIA GEOGRAPHICA SINICA, 2020, 40(5): 814-822.

图/表 7

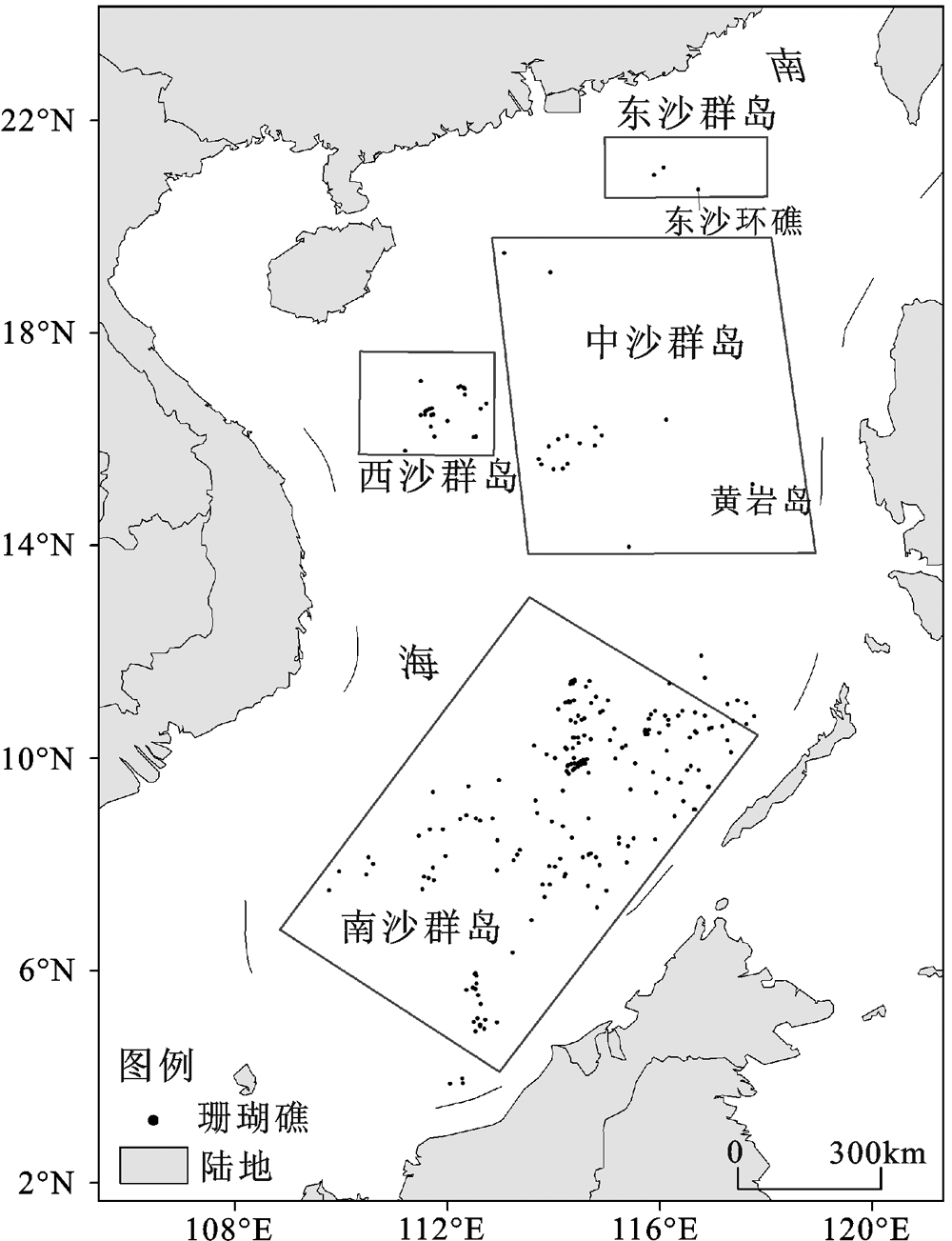

图1

图2

图3

图4

图5

表1

图6

参考文献 33

[1]	王国忠. 全球气候变化与珊瑚礁问题[J]. 海洋地质前沿, 2004,20(1):8-13.
	[ Wang Guozhong. Global climatic changes and coral reefs. Marine Geology Letters, 2004,20(1):8-13.]
[2]	张乔民. 我国热带生物海岸的现状及生态系统的修复与重建[J]. 海洋与湖沼, 2001,32(4):454-465.
	[ Zhang Qiaomin. Status of tropical biological coasts of China: Implications on ecosystem restoration and reconstruction. Oceanologia et Limnologia Sinica, 2001,32(4):454-465.]
[3]	Wilkinson C. Status of coral reefs of the world: 1998[M]. Australia: Australian Institute of Marine Science, 1998: 169-178.
[4]	Hoeghguldberg O. Climate change, coral bleaching and the future of the world's coral reefs[J]. Marine and Freshwater Research, 1999,50(8):839-866.
[5]	Lough J M. 1997-1998: Unprecedented thermal stress to coral reefs?[J]. Geophysical Research Letters, 2000,27(23):3901-3904. doi: 10.1029/2000GL011715
[6]	李淑, 余克服, 陈天然, 等. 珊瑚共生虫黄藻密度结合卫星遥感分析2007年南沙群岛珊瑚热白化[J]. 科学通报, 2011,56(10):756-764.
	[ Li Shu, Yu Kefu, Chen Tianran et al. Assessment of coral bleaching using symbiotic zooxanthellae density and satellite remote sensing data in the Nansha Islands, South China Sea. Chinese Science Bulletin, 2011,56(10):756-764.]
[7]	Mcwilliams J P, Côté I M, Gill J A et al. Accelerating impacts of temperature-induced coral bleaching in the Caribbean[J]. Ecology, 2005,86(8):2055-2060. doi: 10.1890/04-1657
[8]	Worum F P, Carricart-Ganivet J P, Benson L et al. Simulation and observations of annual density banding in skeletons of Montastraea (Cnidaria: Scleractinia) growing under thermal stress associated with ocean warming[J]. Limnology & Oceanography, 2007,52(5):2317-2323.
[9]	Randall C J, Szmant A M. Elevated temperature affects development, survivorship, and settlement of the elkhorn coral, Acropora palmata (Lamarck 1816)[J]. Biological Bulletin, 2009,217(3):269-282. doi: 10.1086/BBLv217n3p269 pmid: 20040751
[10]	Carricart-Ganivet J P, Nancy C T, Israel C O et al. Sensitivity of calcification to thermal stress varies among genera of massive reef-building corals[J]. Plos One, 2012,7(3):e32859. doi: 10.1371/journal.pone.0032859 pmid: 22396797
[11]	Chen T, Li S, Yu K et al. Increasing temperature anomalies reduce coral growth in the Weizhou Island, northern South China Sea[J]. Estuarine Coastal & Shelf Science, 2013,130(3):121-126.
[12]	沈永平, 王国亚. IPCC第一工作组第五次评估报告对全球气候变化认知的最新科学要点[J]. 冰川冻土, 2013,35(5):1068-1076.
	[ Shen Yongping, Wang Guoya. Key findings and assessment results of IPCC WGI Fifth Assessment report. Journal of Glaciology and Geocryology, 2013,35(5):1068-1076.]
[13]	Wallace C C, Rosen B R. Diverse staghorn corals (Acropora) in high-latitude Eocene assemblages: Implications for the evolution of modern diversity patterns of reef corals[J]. Proceedings of the Royal Society B Biological Sciences, 2006,273(1589):975. doi: 10.1098/rspb.2005.3307
[14]	Greenstein B J, Pandolfi J M. Escaping the heat: Range shifts of reef coral taxa in coastal Western Australia[J]. Global Change Biology, 2010,14(3):513-528. doi: 10.1111/gcb.2008.14.issue-3
[15]	Hooidonk R V, Maynard J A, Planes S. Temporary refugia for coral reefs in a warming world[J]. Nature Climate Change, 2013,3(5):508-511. doi: 10.1038/nclimate1829
[16]	Zuo X, Su F, Wenzhou W et al. Spatial and temporal variability of thermal stress to China's Coral Reefs in South China Sea[J]. Chinese Geographical Science, 2015,25(2):159-173. doi: 10.1007/s11769-015-0741-6
[17]	Soong K, Dai C, Lee C. Status of pratas atoll in South China Sea[C]// Proceedings of the 4th Conference on the Protected Areas of East Asia Taipei, 2002.
[18]	Li S, Yu K F, Chen T R et al. Assessment of coral bleaching using symbiotic zooxanthellae density and satellite remote sensing data in the Nansha Islands, South China Sea[J]. Chinese Science Bulletin, 2011,56(10):1031-1037. doi: 10.1007/s11434-011-4390-6
[19]	Dai C F, Fan T Y, Wu C S. Coral fauna of Tungsha Tao (Pratas Islands)[J]. Acta Oceanographica Taiwanica, 1995,34:1-16.
[20]	黄晖, 尤丰, 练健生, 等. 西沙群岛海域造礁石珊瑚物种多样性与分布特点[J]. 生物多样性, 2011,19(6):710-715.
	[ Huang Hui, You Feng, Lian Jiansheng, et al. Species diversity and distribution of scleractinian coral at Xisha Islands, China. Biodiversity Science, 2011,19(6):710-715.]
[21]	McManus J W. The Sprately Islands: a marine park?[J]. AMBIO, 1994,23:181-186.
[22]	黄传江, 乔方利, 宋亚娟, 等. CMIP5模式对南海SST的模拟和预估[J]. 海洋学报, 2014(1):38-47.
	[ Huang Chuanjiang, Qiao Fangli, Song Yajuan et al. The simulation and forecast of SST in the South China Sea by CMIP5 models. Acta Oceanologica Sinica(in Chinese), 2014(1):38-47.]
[23]	张芳, 董敏, 吴统文. CMIP5模式对ENSO现象的模拟能力评估[J]. 气象学报, 2014(1):30-48.
	[ Zhang Fang, Dong Min, Wu Tongwen. Evaluation of the ENSO features as done by the CMIP5 models. Acta Meterologica Sinica, 2014(1):30-48.]
[24]	Selig E R, Casey K S, Bruno J F. New insights into global patterns of ocean temperature anomalies: implications for coral reef health and management[J]. Global Ecology & Biogeography, 2010,19(3):397-411.
[25]	Hooidonk R V, Huber M. Quantifying the quality of coral bleaching predictions[J]. Coral Reefs, 2009,28(3):579-587.
[26]	Liu G, Strong A E, Skirving W. Remote sensing of sea surface temperatures during 2002 Barrier Reef coral bleaching[J]. Eos Transactions American Geophysical Union, 2003,84(15):137-141.
[27]	Gleeson M W, Strong A E. Applying MCSST to coral reef bleaching[J]. Advances in Space Research, 1995,16(10):151-154.
[28]	Wang C, Wang W, Wang D et al. Interannual variability of the South China Sea associated with El Nino[J]. Journal of Geophysical Research Oceans, 2006,111:C030203.
[29]	Chen T, Yu K, Shi Q et al. Twenty-five years of change in scleractinian coral communities of Daya Bay (northern South China Sea) and its response to the 2008 AD extreme cold climate event[J]. Chinese Science Bulletin, 2009,54(12):2107-2117.
[30]	Riegl B, Piller W E. Possible refugia for reefs in times of environmental stress[J]. International Journal of Earth Sciences, 2003,92(4):520-531.
[31]	Halfar J, Godinez-Orta L, Riegl B et al. Living on the edge: High-latitude porites carbonate production under temperate eutrophic conditions[J]. Coral Reefs, 2005,24(4):582-592. doi: 10.1007/s00338-005-0029-x
[32]	Tkachenko K S, Soong K. Dongsha Atoll: A potential thermal refuge for reef-building corals in the South China Sea[J]. Marine Environmental Research, 2017,127:112-125. doi: 10.1016/j.marenvres.2017.04.003 pmid: 28395870
[33]	潘子良. 黄岩岛造礁石珊瑚共生藻密度的种间、空间差异及其生态意义[D]. 南宁:广西大学, 2017.
	[ Pan Ziliang. Interspecies and spatial diversity of Symbiodinium density in coral species from the Huangyan Island, and its ecological significance. Nanning: Guangxi University, 2017.]

	多模式平均预测结果（单位：珊瑚礁个数）
CanESM2模式预测结果（个）	年白化时间	-16 a	~15~-5 a	平均年	+5~+15 a	+16 a	总计	一致数
	-16 a	0	0	0	0	0	0	0
	-15~-5 a	0	0	2	0	0	2	0
	平均年	0	0	96	13	0	109	96
	+5~+15 a	0	0	2	3	0	5	3
	+16 a	0	0	2	0	0	2	0
	总计	0	0	102	16	0	118	99
总体一致性精度83.9%
