1961-2016年渭河流域极端降水事件研究

doi:10.13249/j.cnki.sgs.2020.05.018

摘要/Abstract

摘要：

基于1961-2016 年渭河流域26 个气象站点的逐日降水数据,选取与极端降水事件密切相关的9 个指数,利用线性趋势法、Mann-Kendall突变点检验和方差分析等方法,揭示渭河流域极端降水事件的变化趋势、突变情况以及渭河流域上、中、下游降水情况的差异特征,对研究区未来极端降水事件提供科学预测和理论参考。结果表明：① 渭河流域上、中、下游地区及整个流域的年总降水量分别以16.588 mm/10a、8.319 mm/10a、6.703 mm/10a和9.544 mm/10a的速率下降,表明渭河流域56 a来降水总量存在逐年减少的趋势,整个渭河流域地区呈现变干的趋势。② 降水强度(SDII)、强降水总量(R95PTOT)和极端降水总量(R99PTOT)在整体上均呈现上升趋势,极端降水总量的上升趋势高于强降水总量,上游地区的上升趋势高于中下游地区,表明渭河流域极端降水强度有所增强,极端降水事件发生频率有所增大。③ 渭河流域出现极端降水事件的年份集中在20世纪90年代和21世纪初期,且降水情况的年际差异较大,中游地区的变化更为明显。④ 相关分析显示中下游地区对整个流域极端降水事件的发生情况起到较大的贡献。

关键词: 渭河流域, 极端降水, Mann-Kendall检验

Abstract:

Based on 26 of the Weihe River Basin from 1961 to 2016 in the daily precipitation data of weather stations, the selection is closely related to the extreme precipitation events 9 index, using the method of linear trend, Mann Kendall mutation point test and variance analysis, reveals the tendency of the extreme precipitation events, mutation of the Weihe River Basin and on, the precipitation of the middle and lower reaches of Weihe River Basin the differences of characteristics of extreme precipitation events for the study area in the future to provide scientific prediction and theory reference. The results showed that: 1) The annual total precipitation in the upper, middle and lower reaches of the Weihe River Basin and the whole basin decreased at the rates of 16.588 mm/10a, 8.319 mm/10a, 6.703 mm/10a and 9.544 mm/10a, respectively, indicating that the total precipitation in the Weihe River Basin has been decreasing year by year in the past 56 years, and the whole Weihe river Basin has been drying up. 2) Precipitation intensity (SDII), heavy rain amount (R95PTOT) and extreme precipitation amount (R99PTOT) tend to rise on the whole, extreme precipitation amount rise higher than the strong precipitation, rise higher than the middle and lower reaches area of the upstream region, shows that the strength of the Weihe River Basin in extreme precipitation increased, the extreme precipitation event frequency is increased. 3) The years of extreme precipitation events in the Weihe River Basin were concentrated in the 1990s and the early 21st century, and the inter-annual differences in precipitation were large, with more obvious changes in the middle reaches. 4) According to the results of relevant analysis, it is concluded that the middle and lower reaches of the basin to the occurrence of extreme precipitation events play a greater role.

Key words: the Weihe River Basin, extreme precipitation, Mann-Kendall Test

中图分类号:

K903

周旗, 张海宁, 任源鑫. 1961-2016年渭河流域极端降水事件研究[J]. 地理科学, 2020, 40(5): 833-841.

Zhou Qi, Zhang Haining, Ren Yuanxin. Extreme Precipitation Events in the Weihe River Basin from 1961 to 2016[J]. SCIENTIA GEOGRAPHICA SINICA, 2020, 40(5): 833-841.

图/表 5

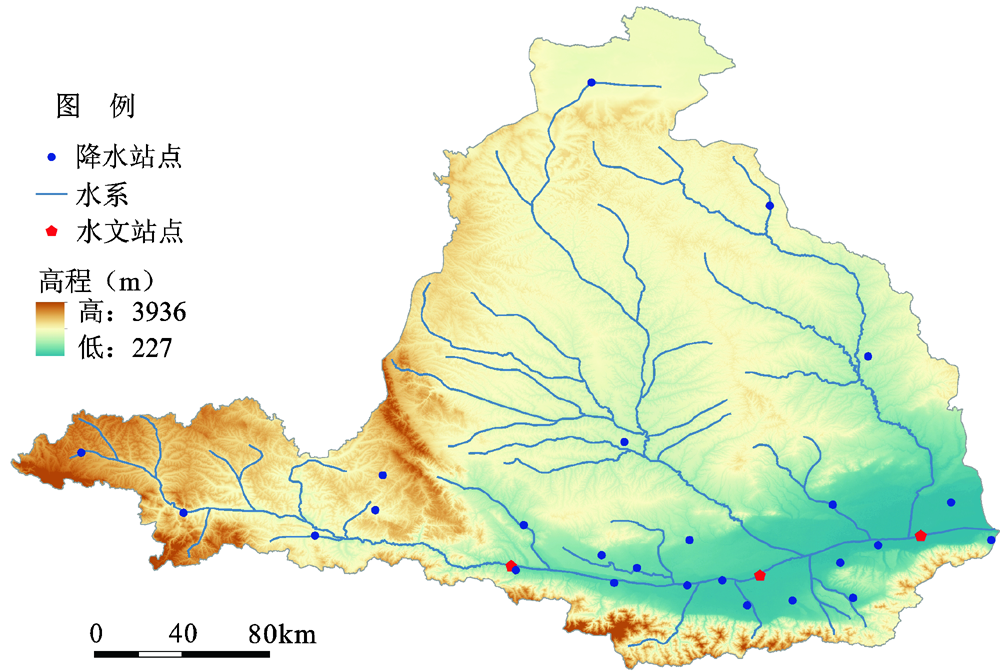

图1

表1

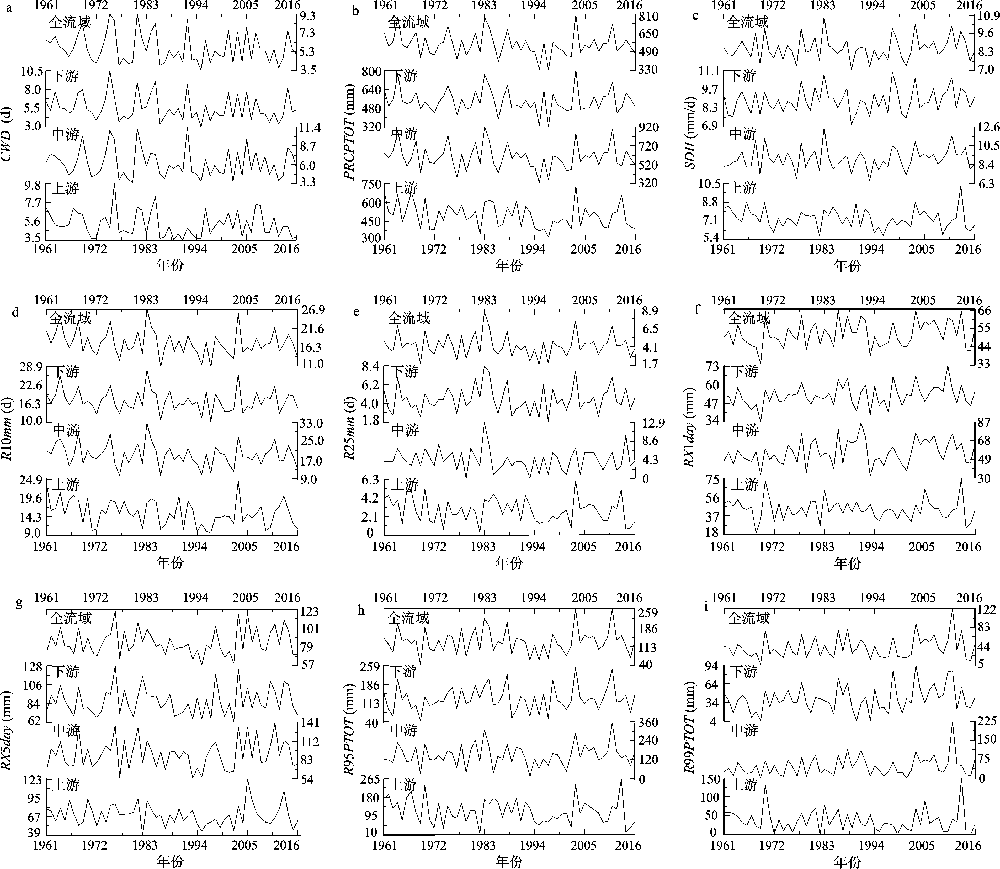

图2

表2

表3

参考文献 25

[1]	Pachauri R K, Allenmr, Barros V R et al. Climate change 2014: Synreport Report. Contribution of working croups I, II and III to the fifth assessment report of the intergovernmental panel on climate change [R]. IPCC, 2014.
[2]	柏会子, 肖登攀, 刘剑锋, 等. 1965-2014年华北地区极端气候事件与农业气象灾害时空格局研究[J]. 地理与地理信息科学, 2018,34(5):99-105.
	[ Bai Huizi, Xiao Dengpan, Liu Jianfeng et al. Temporal and spatial patterns of extreme climate events and agrometeorological disasters in North China from 1965 to 2014. Geography and Geo-Information Science, 2018,34(5):99-105.]
[3]	赵翠平, 陈岩, 王卫光, 等. 黄河流域近50 a极端降水指数的时空变化[J]. 人民黄河, 2015,37(1):18-22.
	[ Zhao Cuiping, Chen Yan, Wang Weiguang et al. Temporal and spatial variation of extreme precipitation indexes of the Yellow River Basin in recent 50 years. Yellow River, 2015,37(1):18-22.]
[4]	胡德秀, 李立, 张艳. 渭河干流陕西段综合治理前后的水质变化与趋势[J]. 水土保持通报, 2018,38(5):91-96.
	[ Hu Dexiu, Li Li, Zhang Yan. Water quality change before and after comprehensive treatment in Shaanxi Section of Weihe Main Stream. Bulletin of Soil and Water Conservation, 2018,38(5):91-96.]
[5]	冀钦, 杨建平, 陈虹举. 1961-2015年青藏高原降水量变化综合分析[J]. 冰川冻土, 2018,40(6):1-10.
	[ Ji Qin, Yang Jianping, Chen Hongju, Comprehensive analysis of the precipitation changes over the Tibetan Plateau during 1961-2015. Journal of Glaciology and Geocryology, 2018,40(6):1-10.]
[6]	杜海波, 吴正方, 张娜, 等. 近60 a丹东极端温度和降水事件变化特征[J]. 地理科学, 2013,33(4):473-479.
	[ Du Haibo, Wu Zhengfang, Zhang Na et al. Characteristics of extreme temperature and precipitation events over Dandong during the last six decades. Scientia Geographica Sinica, 2013,33(4):473-479.]
[7]	陆小明, 陆宝宏, 邓山. 近63年杭州市降水特征分析及趋势预测[J]. 水力发电, 2015,41(11):17-20.
	[ Lu Xiaoming, Lu Baohong, Deng Shan. Variation analysis and forecast of precipitation in Hangzhou over the past 63 years. Water Power, 2015,41(11):17-20.]
[8]	蔡新玲, 贺皓, 王繁强, 等. 陕西省近47a来降水变化分析[J]. 中国沙漠, 2010,30(2):446-451.
	[ Cai Xinling, He Hao, Wang Fanqiang et al. Analyses of precipitation change in Shaanxi Province during 1961-2007. Journal of Desert Research, 2010,30(2):446-451.]
[9]	崔凤琪, 唐海萍, 张钦. 1960-2017年呼伦贝尔草原极端气候事件时空变化[J]. 干旱区研究, 2018,35(6):1382-1391.
	[ Cui Fengqi, Tang Haiping, Zhang Qin, Spatiotemporal variation of extreme climatic events in the Hulunbuir grasslands during the period of 1960-2017. Arid Zone Research, 2018,35(6):1382-1391.]
[10]	Song X, Zhang Z, Chen Y et al. Spatiotemporal changes of global extreme temperature events (ETEs) since 1981 and the meteorological causes[J]. Natural Hazards, 2014,70(2):975-994. doi: 10.1007/s11069-013-0856-y
[11]	蔡新玲, 吴素良, 贺皓, 等. 变暖背景下陕西极端气候事件变化分析[J]. 中国沙漠, 2012,32(4):1096-1101.
	[ Cai Xinling, Wu Suliang, He Hao et al. Change of extreme climate events in Shaanxi Province under global warming background. Journal of Desert Research, 2012,32(4):1096-1101.]
[12]	王苗, 郭品文, 邬昀, 等. 我国极端降水事件研究进展[J]. 气象科技, 2012,40(1):79-86.
	[ Wang Miao, Guo Pinwen, Wu Yun et al. Progresses in researches on extreme precipitation over China. Meteorological Science and Technology, 2012,40(1):79-86.]
[13]	王怀军, 潘莹萍, 陈忠升. 1960-2014年淮河流域极端气温和降水时空变化特征[J]. 地理科学, 2017,37(12):1900-1908. doi: 10.13249/j.cnki.sgs.2017.12.014
	[ Wang Huaijun, Pan Yingping, Chen Zhongsheng. Spatial and temporal patterns of temperature and precipitation extremes in the Huaihe River Basin, China in 1960-2014. Scientia Geographica Sinica, 2017,37(12):1900-1908.]
[14]	贾文雄, 张禹舜, 李宗省. 近50 年来祁连山及河西走廊地区极端降水的时空变化研究[J]. 地理科学, 2014,34(8):1002-1009.
	[ Jia Wenxiong, Zhang Yushun, Li Zongxing. Spatial and temporal change of precipitation extremes in Qilian Mountains and Hexi Corridor in recent fifty years. Scientia Geographica Sinica, 2014,34(8):1002-1009.]
[15]	齐月, 陈海燕, 房世波, 等. 1961-2010年西北地区极端气候事件变化特征[J]. 干旱气象, 2015,33(6):963-969.
	[ Qi Yue, Chen Haiyan, Fang Shibo et al. Variation characteristics of extreme climate events in Northwest China during 1961-2010. Journal of Arid Meteorology, 2015,33(6):963-969.]
[16]	杨金虎, 张强, 王劲松, 等. 近60年来西南地区旱涝变化及极端和持续性特征认识[J]. 地理科学, 2015,35(10):1333-1340.
	[ Yang Jinhu, Zhang Qiang, Wang Jinsong et al. Extreme and persistent feature of drought and flood of Southwest China in past 60 years. Scientia Geographica Sinica, 2015,35(10):1333-1340.]
[17]	郑江禹, 张强, 史培军, 等. 珠江流域多尺度极端降水时空特征及影响因子研究[J]. 地理科学, 2017,37(2):283-291. doi: 10.13249/j.cnki.sgs.2017.02.015
	[ Zheng Jiangyu, Zhang Qiang, Shi Peijun et al. Spatiotemporal characteristics of extreme precipitation regimes and related driving factors in the Pearl River Basin. Scientia Geographica Sinica, 2017,37(2):283-291.]
[18]	冯星, 郭建青, 孙东永, 等. 近55 a渭河流域气候变化[J]. 干旱区地理, 2018,41(4):718-725.
	[ Feng Xing, Guo Jianqing, Sun Dongyong et al. Climate change characteristics in Weihe River Basin from 1960 to 2015. Arid Land Geography, 2018,41(4):718-725.]
[19]	赵安周, 朱秀芳, 刘宪锋, 等. 1965-2013年渭河流域降水时空变化分析[J]. 自然资源学报, 2015,30(11):1896-1909.
	[ Zhao Anzhou, Zhu Xiufang, Liu Xianfeng et al. Spatial and temporal variation of precipitation in Weihe River Basin from 1965 to 2013. Journal of Natural Resources, 2015,30(11):1896-1909.]
[20]	董晴晴, 王会肖. 60年来渭河关中地区气温与降水变化及其原因[J]. 南水北调与水利科技, 2016,14(6):33-49.
	[ Dong Qingqing, Wang Huixiao. Variation and reason analysis of temperature and precipitation of Weihe River in Guanzhong area in the last 60 year. South-to-North Water Transfers and Water Science & Technology, 2016,14(6):33-49.]
[21]	姚正学, 杨军, 刘迪. 1956-2005年渭河流域降水与径流的变化特征[J]. 人民黄河, 2016,38(1):12-18.
	[ Yao Zhengxue, Yang Jun, Liu Di. Regularity of precipitation and runoff in the Weihe River Basin from 1956 to 2005. Yellow River, 2016,38(1):12-18.]
[22]	李斌, 解建仓, 胡彦华, 等. 1961-2013年渭河流域降水与径流变化特征[J]. 南水北调与水利科技, 2017,15(2):29-36.
	[ Li Bin, Xie Jiancang, Hu Yanhua et al. Characteristics of precipitation and runoffs during 1961-2013 in Weihe River basin. South-to-North Water Transfers and Water Science & Technology, 2017,15(2):29-36.]
[23]	Zhang X B, Yang F. RClimDex (1.0), User manual [Z]. Canada: ClimDex Research Branch Environment, 2004.
[24]	卞稻, 任国玉, 岳艳霞, 等. 石家庄地区极端寒热和强降水的观测事实[J]. 干旱区研究, 2012,29(4):660-666.
	[ Bian Tao, Ren Guoyu, Yue Yanxia et al. Observed change of extreme climatic events in Shijiazhuang. Arid Zone Research, 2012,29(4):660-666.]
[25]	左德鹏, 徐宗学, 李景玉. 气候变化情景下渭河流域潜在蒸散量时空变化特征[J]. 水科学进展, 2011,22(4):455-461.
	[ Zou Depeng, Xu Zongxue, Li Jingyu et al. Spatiotemporal characteristics of potential evapotranspiration in the Weihe River basin under future climate change. Advances in Water Science, 2011,22(4):455-461.]

序号	名称	极端降水指数	物理意义	单位
1	CWD	持续湿润指数	日降水量≥1 mm的最大持续日数	d
2	SDII	降水强度	日降水量≥1 mm的总降水量与降水日数的比值	mm/d
3	PRCPTOT	年总降水量	年雨（雪）日降水量之和	mm
4	R10mm	强降水日数	年日降水量≥10 mm的日数	d
5	R25mm	大雨日数	年日降水量≥20 mm的日数	d
6	Rx1day	1 d最大降水量	年日降水量的最大值	mm
7	Rx5day	5 d最大降水量	年5 d连续日降水量的最大值	mm
8	R95PTOT	强降水总量	日降水量>95%分位值的总降水量	mm
9	R99PTOT	极端降水总量	日降水量>99%分位值的总降水量	mm

指数	上游		中游		下游		全流域
指数	斜率	突变年份	斜率	突变年份	斜率	突变年份	斜率	突变年份
CWD	-0.0162 ^*	1976	0.0341^*	1969	-0.0234 ^*	1974	-0.0171 ^*	1976
SDII	-0.0092	1968	0.0078	1969	0.0098	1989、2000	0.0047	1986
PRCPTOT	-1.6588	1969、1985	-0.8319	2010	-0.6703	1985	-0.9544	1985
R10mm	-0.0683 ^*	1985	-0.0534 ^*	1977	-0.0333^*	1972	-0.0483^*	1969
R25mm	-0.018	2015	-0.0138	2013	0.0013	2003	-0.0049	2008
RX1day	-0.0719 ^*	1982	0.1883 ^*	1993	0.1210 ^**	1993	0.0998^*	1993
RX5day	-0.076	1982	0.1088 ^*	1977	0.0622	1976	0.0464^*	1978
R95PTOT	-0.6509	2003	0.4345	2008	0.2684	2003	0.1137	2003
R99PTOT	-0.2172 ^**	1982、2005	0.5879 ^*	1998	0.3225 ^*	1999	0.2898 ^*	1998

流域划分	R99PTOT	CWD	R10mm	RX1day
上游	0.523	0.778	0.675	0.546
中游	0.912	0.959	0.947	0.894
下游	0.791	0.938	0.942	0.766
