黄土高原气象干旱和农业干旱特征及其相互关系研究

doi:10.13249/j.cnki.sgs.2020.12.017

摘要/Abstract

摘要：

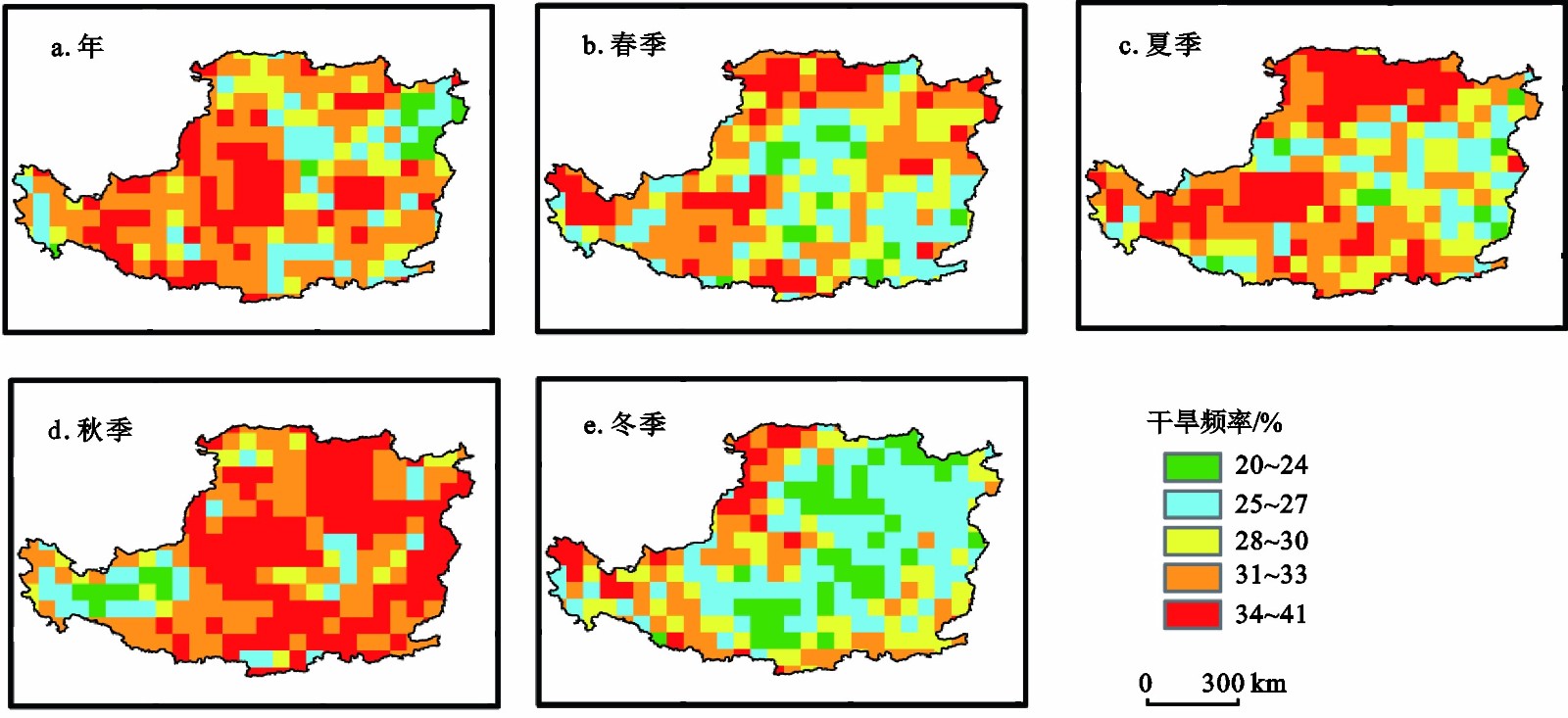

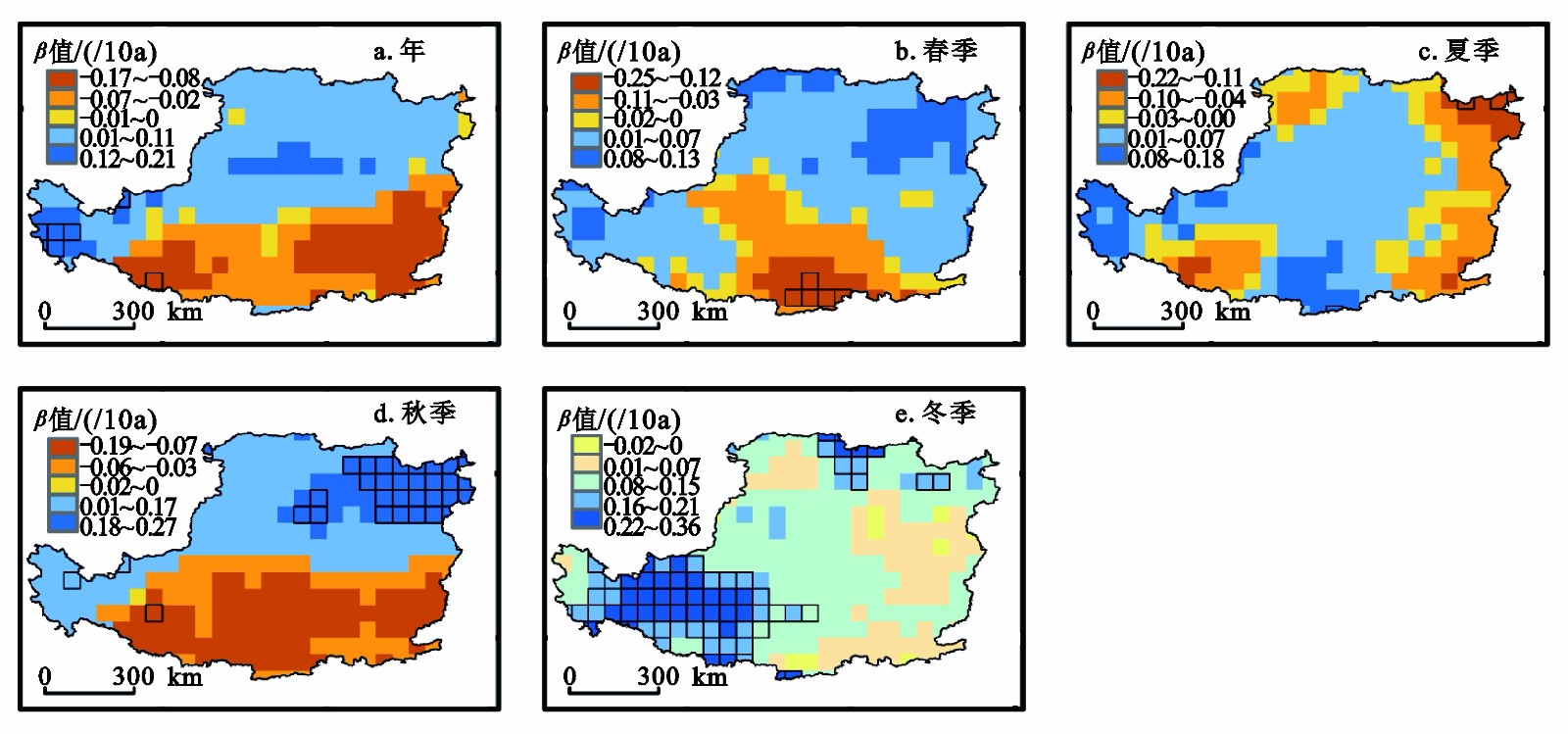

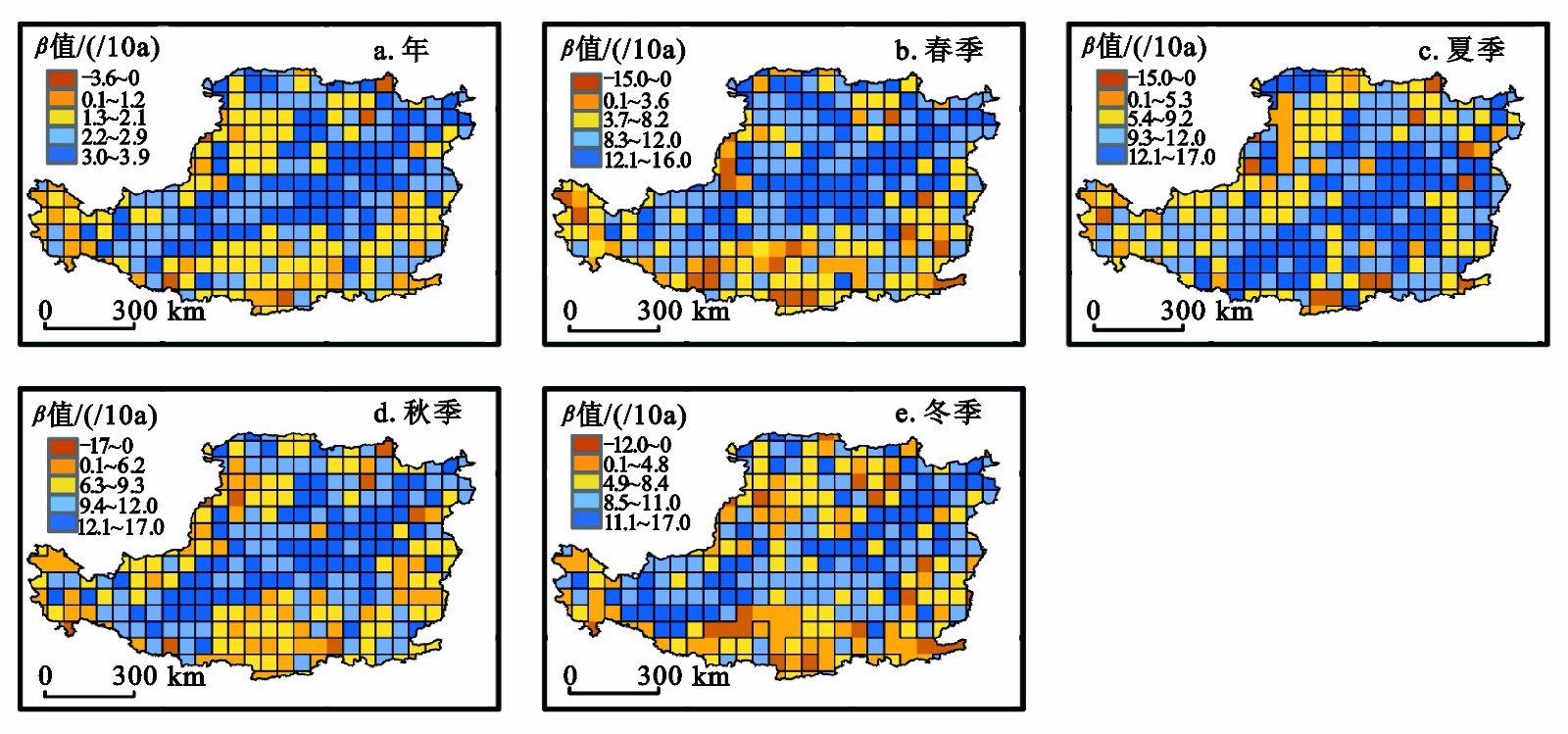

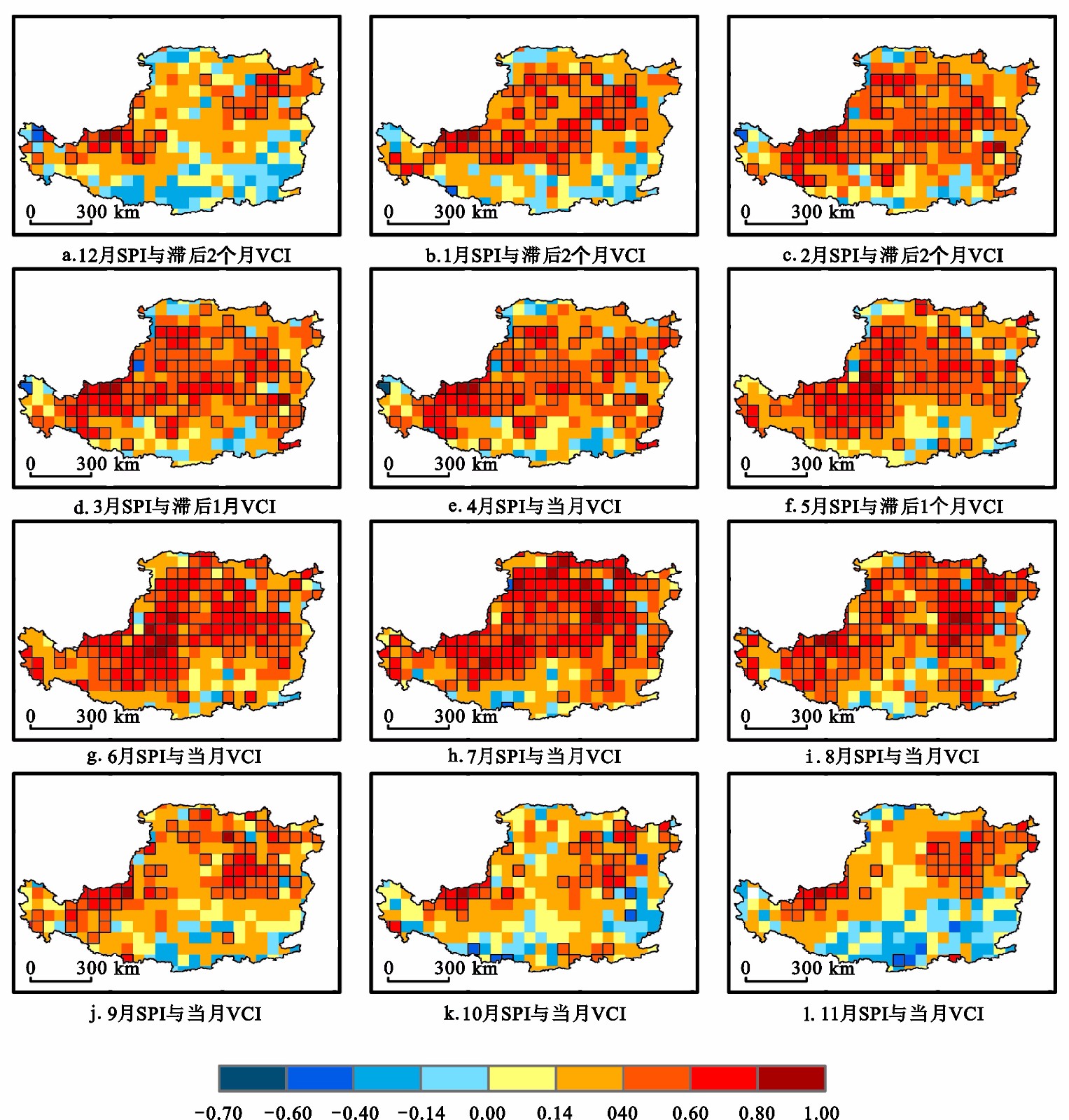

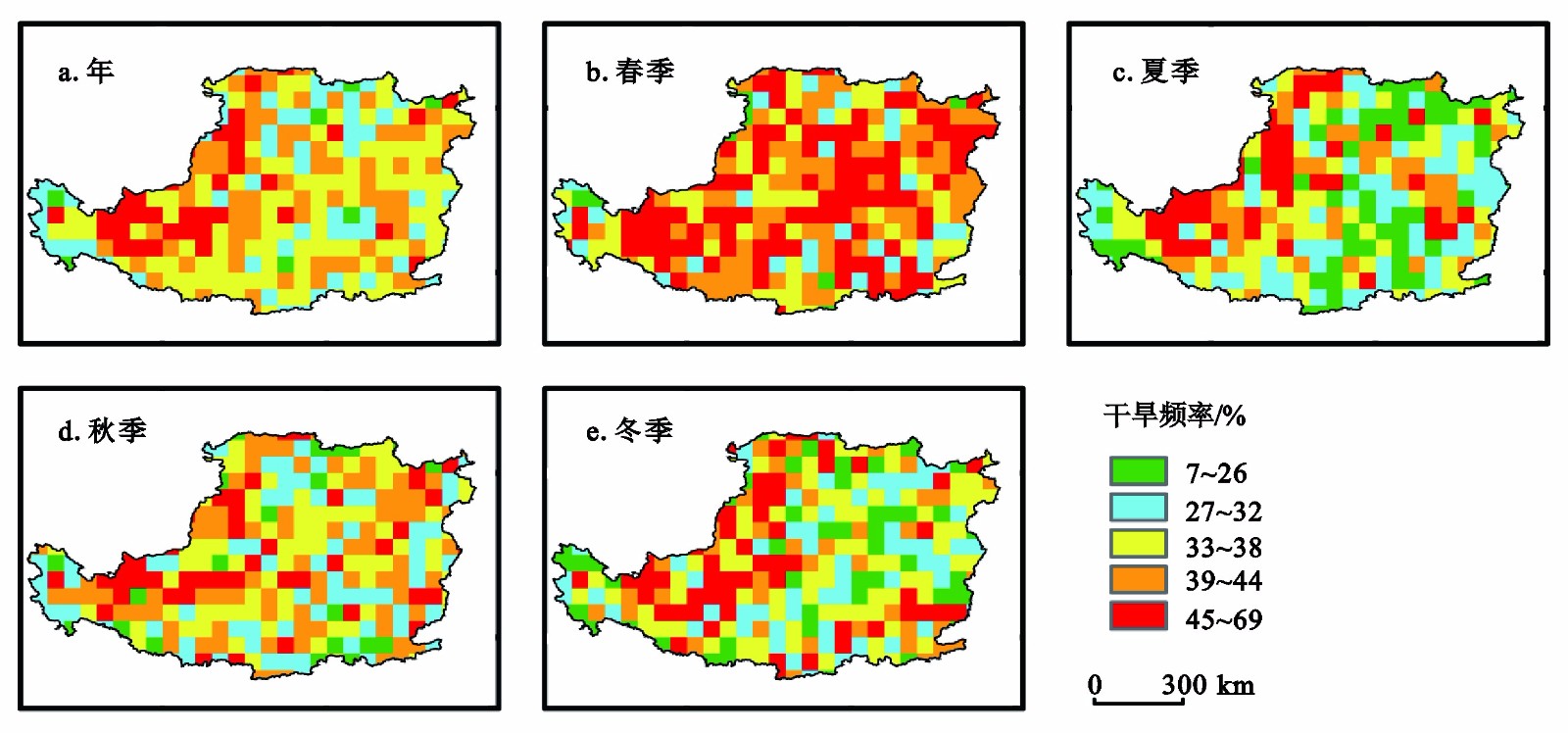

选择标准化降水指数（SPI）和植被状态指数（VCI）分别作为评价黄土高原气象干旱和农业干旱的指标，使用干旱频率和Sen斜率分析了黄土高原地区干旱的分布特征与变化趋势，并探讨了气象干旱与农业干旱的相关性。结果表明：① 黄土高原西部干旱频率总体上高于东部。气象干旱和农业干旱变化趋势在空间上表现有所不同，黄土高原西部、北部气象干旱呈不显著减缓趋势，东部和南部呈不显著加重趋势，但绝大部分地区的农业干旱呈减缓趋势，尤其是400 mm等降水量一线两侧区域。② 季节上，黄土高原夏季和秋季气象干旱频率较高，春季和冬季气象干旱频率相对较低。黄土高原农业干旱频率春季最高，夏季其次，VCI对农业干旱实时监测的适用性更强。③ 不同季节，农业干旱滞后气象干旱的时间长短不同，冬季滞后约2个月，春季滞后约1个月，夏季和秋季滞后少于1个月。黄土高原一熟制种植区的SPI-12值与VCI值具有较好的正相关性。研究结果可以为黄土高原的干旱监测和预警、干旱区划以及干旱灾害风险评估提供科学依据。

关键词: 气象干旱, 农业干旱, 标准化降水指数, 植被状态指数, Sen斜率

Abstract:

In recent years, the combined effects of climate change and soil and water conservation measures have led to more complex drought conditions in the Loess Plateau, which has caused huge agricultural and socioeconomic losses. In this paper, standardized precipitation index (SPI) and vegetation condition index (VCI) are selected as indicators to evaluate the meteorological and agricultural droughts on the Loess Plateau, respectively. The distribution characteristics and trends of droughts in the Loess Plateau are analyzed using drought frequency and Sen slope, and the correlation between meteorological drought and agricultural drought is also discussed. The results show that: 1) The drought frequency in the western Loess Plateau is generally higher than that in the east. The trends of meteorological droughts are different from that of agricultural droughts in space. The meteorological droughts in the western and northern Loess Plateau show no significant slowing down trends, and the meteorological droughts in the eastern and southern Loess Plateau show no significant increasing trends. However, the agricultural droughts in most areas are slowing down, especially in the areas on both sides of the line with a rainfall of 400 mm. 2) The frequency of meteorological drought in summer and autumn is higher than that in spring and winter. The frequency of agricultural drought is the highest in spring and the second in summer. VCI is more suitable for real-time monitoring of agricultural drought. 3) In different seasons, the lag time of agricultural drought to meteorological drought is different. The lag time is about 2 months in winter, 1 month in spring, and less than 1 month in summer and autumn. There is a good positive correlation between SPI-12 and VCI in one-harvest regions of the Loess Plateau. The results can provide scientific basis for drought monitoring and early warning, drought regionalization and drought disaster risk assessment in the Loess Plateau.

Key words: meteorological drought, agricultural drought, standardized precipitation index, vegetation condition index, Sen slope

中图分类号:

李明, 葛晨昊, 邓宇莹, 王贵文, 柴旭荣. 黄土高原气象干旱和农业干旱特征及其相互关系研究[J]. 地理科学, 2020, 40(12): 2105-2114.

Li Ming, Ge Chenhao, Deng Yuying, Wang Guiwen, Chai Xurong. Meteorological and Agricultural Drought Characteristics and Their Relationship Across the Loess Plateau[J]. SCIENTIA GEOGRAPHICA SINICA, 2020, 40(12): 2105-2114.

图/表 8

图1

Table 1

图2

图3

图4

图5

Table 2

图6

参考文献 28

[1]	张强, 姚玉璧, 李耀辉, 等. 中国西北地区干旱气象灾害监测预警与减灾技术研究进展及其展望[J]. 地球科学进展, 2015, 30 (2): 196-213. doi: 10.11867/j.issn.1001-8166.2015.02.0196
	Zhang Qiang, Yao Yubi, Li Yaohui, et al. Research progress and prospect on the monitoring and early warning and mitigation technology of meteorological drought disaster in Northwest China[J]. Advances in Earth Science, 2015, 30 (2): 196-213. doi: 10.11867/j.issn.1001-8166.2015.02.0196
[2]	Wu J, Miao C, Zheng H, et al. Meteorological and hydrological drought on the Loess Plateau, China: Evolutionary characteristics, impact, and propagation[J]. Journal of Geophysical Research: Atmospheres, 2018, 123 (20): 11569-11584. doi: 10.1029/2018JD029145
[3]	孙艺杰, 刘宪锋, 任志远, 等. 1960—2016年黄土高原多尺度干旱特征及影响因素[J]. 地理研究, 2019, 38 (7): 1820-1832.
	Sun Yijie, Liu Xianfeng, Ren Zhiyuan, et al. Spatialtemporal variations of muti-scale drought and its influencing factor across the Loess Plateau from 1960 to 2016[J]. Geographical Research, 2019, 38 (7): 1820-1832.
[4]	胡鹏飞, 李净, 王丹, 等. 基于MODIS和TRMM数据的黄土高原农业干旱监测[J]. 干旱区地理, 2019, 42 (1): 172-179.
	Hu Pengfei, Li Jing, Wang Dan, et al. Monitoring agricultural drought in the Loess Plateau using MODIS and TRMM data[J]. Arid Land Geography, 2019, 42 (1): 172-179.
[5]	周扬, 李宁, 吉中会, 等. 基于SPI指数的1981-2010年内蒙古地区干旱时空分布特征[J]. 自然资源学报, 2013, 28 (10): 1694-1706. doi: 10.11849/zrzyxb.2013.10.005
	Zhou Yang, Li Ning, Ji Zhonghui, et al. Temporal and spatial patterns of droughts based on standard precipitation index (SPI) in Inner Mongolia during 1981-2010[J]. Journal of Natural Resources, 2013, 28 (10): 1694-1706. doi: 10.11849/zrzyxb.2013.10.005
[6]	李明, 胡炜霞, 王贵文, 等. 基于Copula函数的中国东部季风区干旱风险研究[J]. 地理科学, 2019, 39 (3): 506-515.
	Li Ming, Hu Weixia, Wang Guiwen, et al. Drought risk in monsoon area of the eastern China based on Copula function[J]. Scientia Geographica Sinica, 2019, 39 (3): 506-515.
[7]	余方琳, 翟石艳, 王铮, 等. 基于SPI的1960—2012年西南地区水稻生长季干旱时空特征分析[J]. 地理科学, 2018, 38 (5): 808-817.
	Yu Fanglin, Zhai Shiyan, Wang Zheng, et al. Spatial and temporal variation characteristics of drought during rice growth based on SPI in Southwest China from 1960 to 2012[J]. Scientia Geographica Sinica, 2018, 38 (5): 808-817.
[8]	王丹云, 吕世华, 韩博, 等. 近30年黄土高原春季降水特征与春旱变化的关系[J]. 高原气象, 2017, 36 (2): 395-406. doi: 10.7522/j.issn.1000-0534.2016.00121
	Wang Danyun, Lü Shihua, Han Bo, et al. Characteristics of spring precipitation and their connections with the spring drought over the Loess Plateau during last three decades[J]. Plateau Meteorology, 2017, 36 (2): 395-406. doi: 10.7522/j.issn.1000-0534.2016.00121
[9]	董蕾, 张明军, 王圣杰, 等. 基于格点数据的西北干旱区极端降水事件分析[J]. 自然资源学报, 2014, 29 (12): 2048-2057. doi: 10.11849/zrzyxb.2014.12.006
	Dong Lei, Zhang Mingjun, Wang Shengjie, et al. Extreme precipitation events in arid areas in Northwest China based on gridded data[J]. Journal of Natural Resources, 2014, 29 (12): 2048-2057. doi: 10.11849/zrzyxb.2014.12.006
[10]	Kogan F N. Application of vegetation index and brightness temperature for drought detection[J]. Advances in Space Research, 1995, 15 (11): 91-100. doi: 10.1016/0273-1177(95)00079-T
[11]	沙莎, 郭铌, 李耀辉, 等. 植被状态指数VCI与几种气象干旱指数的对比——以河南省为例[J]. 冰川冻土, 2013, 35 (4): 990-998.
	Sha Sha, Guo Ni, Li Yaohui, et al. Comparison of the vegetation condition index with meteorological drought indices: A case study in Henan Province[J]. Journal of Glaciology and Geocryology, 2013, 35 (4): 990-998.
[12]	管晓丹, 郭铌, 黄建平, 等. 植被状态指数监测西北干旱的适用性分析[J]. 高原气象, 2008, 27 (5): 1046-1053.
	Guan Xiaodan, Guo Ni, Huang Jianping, et al. Applicability analysis of VCI to monitoring Northwest China drought[J]. Plateau Meteorology, 2008, 27 (5): 1046-1053.
[13]	李新尧, 杨联安, 聂红梅, 等. 基于植被状态指数的陕西省农业干旱时空动态[J]. 生态学杂志, 2018, 37 (4): 1172-1180.
	Li Xinyao, Yang Lian'an, Nie Hongmei, et al. Assessment of temporal and spatial dynamics of agricultural drought in Shaanxi province based on vegetation condition index[J]. Chinese Journal of Ecology, 2018, 37 (4): 1172-1180.
[14]	赵煜飞, 朱江, 许艳. 近50a中国降水格点数据集的建立及质量评估[J]. 气象科学, 2014, 34 (4): 414-420. doi: 10.3969/2013jms.0008
	Zhao Yufei, Zhu Jiang, Xu Yan. Establishment and assessment of the grid precipitation datasets in China for recent 50 years[J]. Journal of the Meteorological Sciences, 2014, 34 (4): 414-420. doi: 10.3969/2013jms.0008
[15]	张存杰, 刘海波, 宋艳玲, 等. 气象干旱等级(GB/T 20481-2017)[S]. 北京: 中国标准出版社, 2017.
	Zhang Cunjie, Liu Haibo, Song Yanling et al. Classification of meteorological drought (GB/T 20481–2017) . Beijing: China Standard Press, 2017.
[16]	白燕英, 高聚林, 张宝林. 基于NDVI与EVI的作物长势监测研究[J]. 农业机械学报, 2019, 50 (9): 153-161. doi: 10.6041/j.issn.1000-1298.2019.09.017
	Bai Yanying, Gao Julin, Zhang Baolin. Monitoring of crops growth based on NDVI and EVI[J]. Transactions of the Chinese Society for Agricultural Machinery, 2019, 50 (9): 153-161. doi: 10.6041/j.issn.1000-1298.2019.09.017
[17]	Sen P K. Estimates of the regression coefficient based on Kendall’s tau[J]. Journal of the American Statistical Association, 1968, 63 (324): 1379-1389. doi: 10.1080/01621459.1968.10480934
[18]	丁一汇, 司东, 柳艳菊, 等. 论东亚夏季风的特征、驱动力与年代际变化[J]. 大气科学, 2018, 42 (3): 533-558.
	Ding Yihui, Si Dong, Liu Yanju, et al. On the characteristics, driving forces and inter-decadal variability of the East Asian summer monsoon[J]. Chinese Journal of Atmospheric Sciences, 2018, 42 (3): 533-558.
[19]	Tang X, Miao C, Xi Y, et al. Analysis of precipitation characteristics on the loess plateau between 1965 and 2014, based on high-density gauge observations[J]. Atmospheric Research, 2018, 213: 264-274. doi: 10.1016/j.atmosres.2018.06.013
[20]	晏利斌. 1961-2014年黄土高原气温和降水变化趋势[J]. 地球环境学报, 2015, 6 (5): 276-282. doi: 10.7515/JEE201505003
	Yan Libin. Characteristics of temperature and precipitation on the Loess Plateau from 1961 to 2014[J]. Journal of Earth Environment, 2015, 6 (5): 276-282. doi: 10.7515/JEE201505003
[21]	李志, 赵西宁. 1961-2009年黄土高原气象要素的时空变化分析[J]. 自然资源学报, 2013, 28 (2): 287-299. doi: 10.11849/zrzyxb.2013.02.010
	Li Zhi, Zhao Xining. Spatiotemporal analysis of meteorological elements on the Loess Plateau during 1961-2009[J]. Journal of Natural Resources, 2013, 28 (2): 287-299. doi: 10.11849/zrzyxb.2013.02.010
[22]	段建军, 王小利, 高照良, 等. 黄土高原地区50年降水时空动态与趋势分析[J]. 水土保持学报, 2009, 23 (5): 143-146. doi: 10.3321/j.issn:1009-2242.2009.05.030
	Duan Jianjun, Wang Xiaoli, Gao Zhaoliang, et al. Dynamics and trends analysis of annual precipitation in the Loess Plateau region for 50 years[J]. Journal of Soil and Water Conservation, 2009, 23 (5): 143-146. doi: 10.3321/j.issn:1009-2242.2009.05.030
[23]	Winkler K, Gessner U, Hochschild V. Identifying droughts affecting agriculture in Africa based on remote sensing time series between 2000-2016: rainfall anomalies and vegetation condition in the context of ENSO[J]. Remote Sensing, 2017, 9 (8): 831 doi: 10.3390/rs9080831
[24]	Philippon N, Martiny N, Camberlin P, et al. Timing and patterns of the ENSO signal in Africa over the last 30 Years: Insights from normalized difference vegetation index data[J]. Journal of Climate, 2014, 27 (7): 2509-2532. doi: 10.1175/JCLI-D-13-00365.1
[25]	Baniya B, Tang Q, Xu X, et al. Spatial and temporal variation of drought based on satellite derived vegetation condition index in Nepal from 1982-2015[J]. Sensors, 2019, 19 (2): 430 doi: 10.3390/s19020430
[26]	Jain S K, Keshri R, Goswami A, et al. Application of meteorological and vegetation indices for evaluation of drought impact: A case study for Rajasthan, India[J]. Natural Hazards, 2010, 54 (3): 643-656. doi: 10.1007/s11069-009-9493-x
[27]	牟伶俐. 农业旱情遥感监测指标的适应性与不确定性分析[D]. 北京: 中国科学院遥感应用研究所, 2006.
	Mou Lingli. Suitability and uncertainty analysisi of agricultural drought indicator with remote sensing. Beijing: Institute of Remote Sensing Applications Chinese Academy of Sciences, 2006.
[28]	张强, 王劲松, 姚玉璧, 等. 干旱灾害风险及其管理(第二版)[M]. 北京: 气象出版社. 2018.
	Zhang Qiang, Wang Jinsong, Yao Yubi et al. Drought disaster risk and its management (second edition). Beijing: China Meteorological Press, 2018.

干旱等级	无旱	轻旱	中旱	重旱	特旱
SPI值	(?0.5，+∞)	(?1.0，?0.5]	(?1.5，?1.0]	(?2.0，?1.5]	(?∞，?2.0]

月份	1	2	3	4	5	6	7	8	9	10	11	12
注：平均相关系数为黄土高原所有像元相关系数的平均值。
SPI-12与当月VCI	0.17	0.18	0.28	0.34	0.37	0.43	0.45	0.41	0.28	0.23	0.18	0.16
SPI-12与滞后1个月VCI	0.17	0.28	0.36	0.33	0.37	0.35	0.40	0.33	0.23	0.21	0.16	0.17
SPI-12与滞后2个月VCI	0.28	0.35	0.34	0.31	0.25	0.25	0.27	0.23	0.24	0.20	0.18	0.18
