基于HBase的矢量空间数据存储与查询方法及其应用

doi:10.13249/j.cnki.sgs.2022.07.002

地理科学 ›› 2022, Vol. 42 ›› Issue (7): 1146-1154.doi: 10.13249/j.cnki.sgs.2022.07.002

基于HBase的矢量空间数据存储与查询方法及其应用

李朝奎¹^,²(), 王露瑶¹^,², 周新邵³^,^*(), 唐炉亮¹^,², 张新长¹^,², 李扬¹^,²

1.湖南科技大学地理空间信息技术国家地方联合工程实验室，湖南湘潭 411201
2.湖南科技大学测绘遥感信息工程湖南省重点实验室，湖南湘潭 411201
3.湖南城市学院信息与电子工程学院，湖南益阳 413000

收稿日期:2021-06-21 修回日期:2022-01-07 出版日期:2022-07-10 发布日期:2022-09-07
通讯作者: 周新邵 E-mail:chkl_hn@163.com;zhouxinshao@hncu.edu.cn
作者简介:李朝奎（1967−），男，湖南汉寿人，博士，教授，博导，研究方向为三维地理建模及其应用。E-mail: chkl_hn@163.com
基金资助:
国家自然科学基金(42171418);湖南省自然科学基金创新群体项目(2020JJ1003);湖南省高新技术产业科技创新引领计划项目(2021GK4001)

Design and Application of Storage and Query Algorithm for Vector Spatial Data Based on HBase

Li Chaokui¹^,²(), Wang Luyao¹^,², Zhou Xinshao³^,^*(), Tang Luliang¹^,², Zhang Xinchang¹^,², Li Yang¹^,²

1. Hunan Province Key Laboratory of Surveying & Mapping, Remote Sensing and Geoinformation, Hunan University of Science and Technology, Xiangtan 411201, Hunan, China
2. National-Local Joint Engineering Laboratory of Geo-Spatial Information Technology, Hunan University of Science and Technology, Xiangtan 411201, Hunan, China
3. School of Information and Electronic Engineering, Hunan City University, Yiyang 413000, Hunan, China

Received:2021-06-21 Revised:2022-01-07 Online:2022-07-10 Published:2022-09-07
Contact: Zhou Xinshao E-mail:chkl_hn@163.com;zhouxinshao@hncu.edu.cn
Supported by:
National Natural Science Foundation of China(42171418);Innovation Group Project of Hunan Natural Science Foundation(2020JJ1003);Scientific and Technological Innovation Leading Plan Project of Hunan High-tech Industry(2021GK4001)

摘要/Abstract

摘要：

研究了HBase存储机制，针对现有存储查询方法效率低等缺陷，设计了HBase矢量空间数据存储表模式，如行键、过滤列族、几何列族及非几何列族等，以MapReduce算法为基础改进了原有的区域查询方法，上述改进有效提高了HBase中矢量空间数据查询效率。以某地近100 a地质灾害数据进行实验，结果表明：设计的存储模型可行，查询算法与传统查询算法相比效率更高；由于MapReduce运行过程中的通信等原因，当数据量小于5万级时，算法优势并不明显；当数据量大于10万级时，算法查询时间低于原来的1/2，而数据量达到100万级时，算法查询时间仅为算法改进前查询时间的1/20。数据量越大，并行化处理优势越明显。

关键词: HBase, 矢量空间数据, 存储与查询, MapReduce, 算法设计

Abstract:

Based on the research of HBase storage mechanism, this article aims at the low efficiency of existing storage query methods, the HBase spatial data storage table patterns such as row key, filter column family, geometric column family and non-geometric column family are designed, and the original region query method is improved based on MapReduce algorithm, the above improvements effectively improve the query efficiency of vector spatial data in HBase. The experiment was carried out with the data of geological hazards in recent 100 years. The results show that the storage model designed in this article is feasible, and the query algorithm is more efficient than the traditional query algorithm. Due to the communication in the process of MapReduce, when the amount of data is less than 50 000 byte, the advantages of this algorithm are not obvious; When the amount of data is more than 100 000 byte, the query time of this algorithm is less than 1/2 of the original; The query time of the algorithm is only 1/20th of that before the improvement of the algorithm when the amount of data reaches 1 million byte. The greater the amount of data, the more obvious the advantages of parallel processing.

Key words: HBase, vector spatial data, storage and query, MapReduce, algorithm design

中图分类号:

P208

李朝奎, 王露瑶, 周新邵, 唐炉亮, 张新长, 李扬. 基于HBase的矢量空间数据存储与查询方法及其应用[J]. 地理科学, 2022, 42(7): 1146-1154.

Li Chaokui, Wang Luyao, Zhou Xinshao, Tang Luliang, Zhang Xinchang, Li Yang. Design and Application of Storage and Query Algorithm for Vector Spatial Data Based on HBase[J]. SCIENTIA GEOGRAPHICA SINICA, 2022, 42(7): 1146-1154.

图/表 9

表1

图1

表2

图2

图3

表3

图4

表4

图5

参考文献 22

[1]	魏世轩. 基于Cesium的空间数据展示与查询关键技术研究[J]. 城市勘测, 2021(3): 5-8. doi: 10.3969/j.issn.1672-8262.2021.03.001
	Wei Shixuan. Research on key technologies of spatial data display and query based on Cesium. Urban Geotechnical Investigation & Surveying, 2021(3): 5-8. doi: 10.3969/j.issn.1672-8262.2021.03.001
[2]	陈俊欣. 基于Hadoop的空间矢量数据的分布式存储与查询研究[D]. 成都: 电子科技大学, 2016.
	Chen Junxin. Research on distributed storage and query of spatial vector data based on Hadoop. Chengdu: University of Electronic Science and Technology of China, 2016.
[3]	丁琛. 基于HBase的空间数据分布式存储和研究[D]. 南京: 南京师范大学计算机科学与技术学院, 2014.
	Ding Chen. Distributed storage and research of spatial data based on HBase. Nanjing: Nanjing Normal University, 2014.
[4]	郑坤, 付艳丽. 基于HBase和GeoTools的矢量空间数据存储模型研究[J]. 计算机应用与软件, 2015, 32(3): 23-26. doi: 10.3969/j.issn.1000-386x.2015.03.007
	Zheng Kun, Fu Yanli. Research on vector spatial data storage model based on HBase and GeoTools. Computer Applications and Software, 2015, 32(3): 23-26. doi: 10.3969/j.issn.1000-386x.2015.03.007
[5]	张叶, 许国艳, 华青. 基于HBase的矢量空间数据存储与访问优化[J]. 计算机应用, 2015, 35(11): 3102-3105. doi: 10.11772/j.issn.1001-9081.2015.11.3102
	Zhang Ye, Xu Guoyan, Hua Qing. Storage and access optimization of vector spatial data based on HBase. Journal of Computer Applications, 2015, 35(11): 3102-3105. doi: 10.11772/j.issn.1001-9081.2015.11.3102
[6]	荀亚玲, 张继福, 秦啸. MapReduce集群环境下的数据放置策略[J]. 软件学报, 2015, 26(8): 2056-2073.
	Xun Yaling, Zhang Jifu, Qin Xiao. Data placement strategy in MapReduce cluster environment. Journal of Software, 2015, 26(8): 2056-2073.
[7]	范建永, 龙明, 熊伟. 基于HBase的矢量空间数据分布式存储研究[J]. 地理与地理信息科学, 2012, 28(5): 39-42.
	Fan Jianyong, Long Ming, Xiong Wei. Research on distributed storage of vector spatial data based on HBase. Geography and Geo-Information Science, 2012, 28(5): 39-42.
[8]	谢鹏, 杨春成, 熊顺, 等. 基于HBase的空间矢量数据存储模型设计与优化[J]. 测绘学报, 2020, 49(10): 1365-1373. doi: 10.11947/j.AGCS.2020.20190525
	Xie Peng, Yang Chuncheng, Xiong Shun et al. Design and optimization of spatial vector data storage model based on HBase. Acta Geodaetica et Cartographica Sinica, 2020, 49(10): 1365-1373. doi: 10.11947/j.AGCS.2020.20190525
[9]	梅华威, 米增强, 吴广磊. 基于MapReduce模型的间歇性能源海量数据处理技术[J]. 电力系统自动化, 2014, 38(15): 76-80. doi: 10.7500/AEPS20131215006
	Mei Huawei, Mi Zengqiang, Wu Guanglei. Intermittent energy massive data processing technology based on MapReduce model. Automation of Electric Power Systems, 2014, 38(15): 76-80. doi: 10.7500/AEPS20131215006
[10]	Chen J L, Lee H J. An efficient algorithm for form structure extraction using strip projection[J]. Pattern Recognition, 1998, 31(9): 1353-1368. doi: 10.1016/S0031-3203(97)00156-8
[11]	鲁伟明, 杜晨阳, 魏宝刚, 等. 基于MapReduce的分布式近邻传播聚类算法[J]. 计算机研究与发展, 2012, 49(8): 1762-1772.
	Lu Weiming, Du Chenyang, Wei Baogang et al. Distributed neighbor propagation clustering algorithm based on MapReduce. Journal of Computer Research and Development, 2012, 49(8): 1762-1772.
[12]	Fan K C, Lu J M, Wang L S et al. Extraction of characters from form documents by feature point clustering[J]. Pattern Recognition, 1995, 16(9): 963-970. doi: 10.1016/0167-8655(95)00040-N
[13]	董西成. Hadoop技术内幕[M]. 北京: 机械工业出版社, 2013.
	Dong Xicheng. Hadoop technology insider. Beijing: Machinery Industry Press, 2013.
[14]	李杨, 朱月琴, 李朝奎, 等. 面向海量地质文档表格信息快速抽取方法研究[J]. 中国矿业, 2017, 26(9): 98-103.
	Li Yang, Zhu Yueqin, Li Chaokui, et al. Research on fast extraction method for massive geological document table information. China Mining Magazine, 2017, 26(9): 98-103.
[15]	Verma A, Cho B, Zea N et al. Breaking the MapReduce stage barrier[J]. Cluster Computing, 2013, 16(1): 191-206. doi: 10.1007/s10586-011-0182-7
[16]	Yang H, Dasdan A, Hsiao R L et al. Map-reduce-merge: Simplified relational data processing on large clusters// Proceedings of the 2007 ACM SIGMOD international conference on management of data[J]. ACM, 2007: 1029-1040.
[17]	Zhao Y, Wu J. Dache: A data aware caching for big-data applications using the MapReduce framework// 2013 Proceedings IEEE INFOCOM[J]. IEEE, 2013: 35-39.
[18]	赵辉, 杨树强, 陈志坤, 等. 基于MapReduce模型的范围查询分析优化技术研究[J]. 计算机研究与发展, 2014, 51(3): 606-617. doi: 10.7544/issn1000-1239.2014.20130826
	Zhao Hui, Yang Shuqiang, Chen Zhikun et al. Research on range query analysis and optimization technology based on MapReduce Model. Journal of Computer Research and Development, 2014, 51(3): 606-617. doi: 10.7544/issn1000-1239.2014.20130826
[19]	戴健, 丁治明. 基于MapReduce快速kNNJoin方法[J]. 计算机学报, 2015, 38(1): 99-108.
	Dai Jian, Ding Zhiming. Fast kNNJoin method based on MapReduce. Chinese Journal of Computers, 2015, 38(1): 99-108.
[20]	Evans E. Domain-driven design: Tackling complexity in the heart of software [M]. Boston: Addison-Wesley Professional, 2004.
[21]	李杨, 李朝奎, 方军, 等. 基于数据级任务分解的大范围地质灾害预警并行计算架构设计与应用[J]. 地理信息世界, 2018, 25(2): 97-101. doi: 10.3969/j.issn.1672-1586.2018.02.018
	Li Yang, Li Chaokui, Fang Jun et al. Design and application of parallel computing architecture for large-scale geological disaster early warning based on data-level task decomposition. Geomatics World, 2018, 25(2): 97-101. doi: 10.3969/j.issn.1672-1586.2018.02.018
[22]	左群超, 叶亚琴, 文辉. 中国矿产资源潜力评价集成数据库模型[J].中国地质, 2013,40(6):1968-1981.
	Zuo Qunchao, Ye Yaqin, Wenhui. The integrated database model for mineral resources potential evaluation in China. Geology in China, 2013, 40(6): 1968-1981.

行键	时间戳	过滤列族	几何列族			非几何列族
行键	时间戳	y坐标	点	线	面	名称	对象−属性
r1	T4	y+Layer	Value1	Value2	Value3	Value4	……
	T3	y+Layer	Value1	Value2	Value3	Value4	……
	T2	y+Layer	Value1	Value2	Value3	Value4	……
	T1	Y+Layer	Value1	Value2	Value3	Value4	……

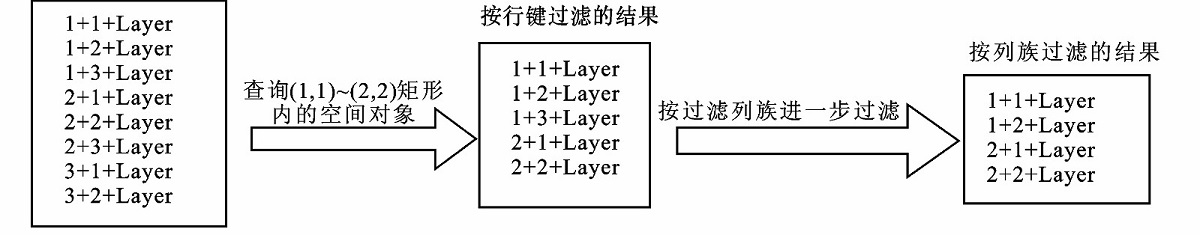

行键	时间戳	过滤列族	几何列族			非几何列族
行键	时间戳	y坐标+层	点	线	面	类型	名称	……
x+y+Layer	T1	Value1	Value2	Value3	Value4	Value5	Value6	……

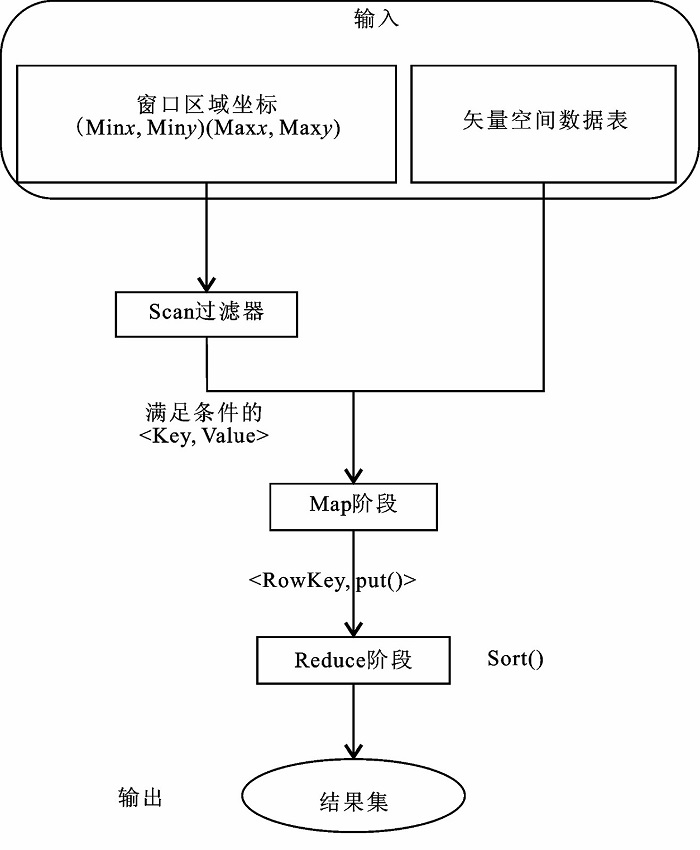

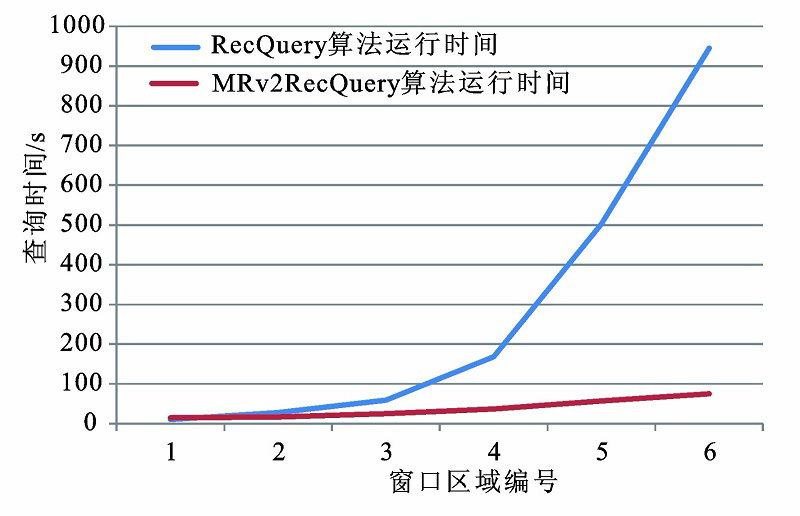

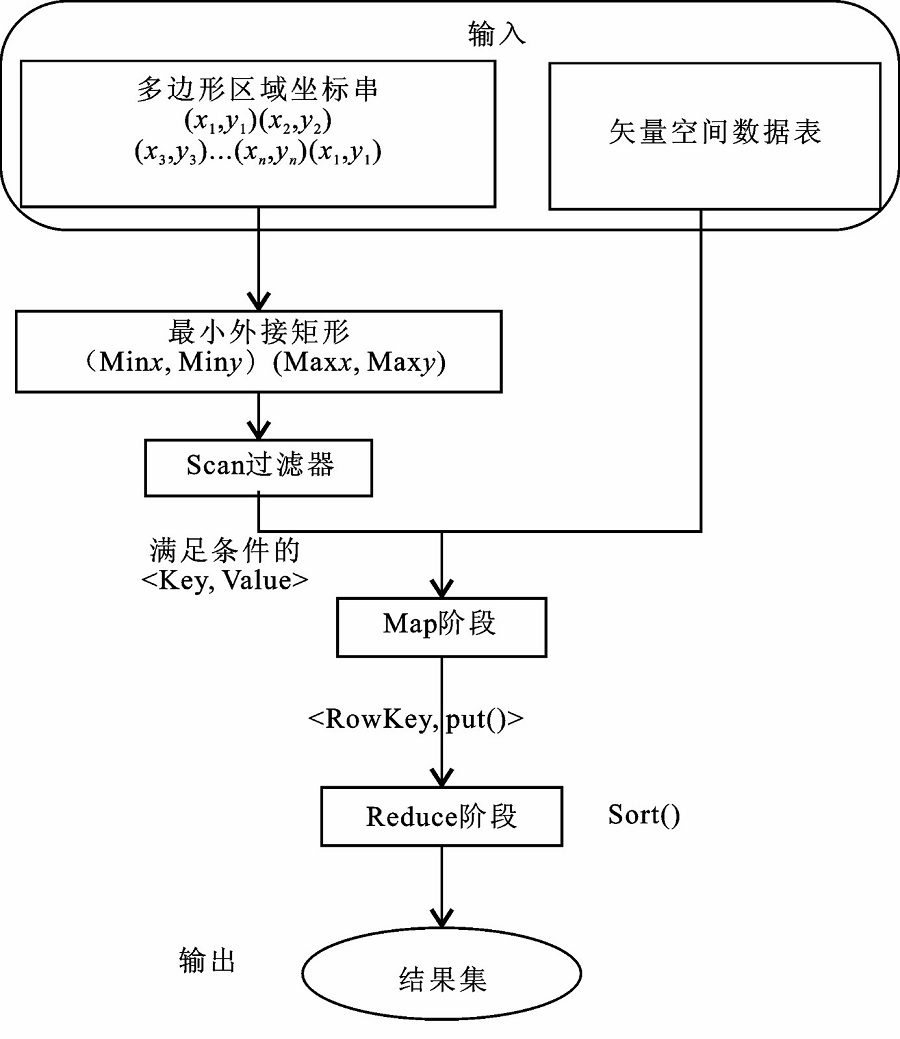

矩形窗口编号	(Minx, Miny)	(Maxx, Maxy)	矩形窗口面积/km²	查询区域内空间对象个数	RecQuery 运行时间/s	MRv2RecQuery 运行时间/s
1	(123.064,39.470)	(123.964,38.882)	6520.270	1587	10.264	14.957
2	(122.613,39.764)	(124.415,38.588)	25364.190	6952	27.853	17.032
3	(122.163,40.058)	(124.865,38.294)	58002.910	30975	59.079	24.928
4	(121.712,40.352)	(125.316,38.010)	80820.257	117539	168.316	36.712
5	(121.262,40.646)	(125.766,37.706)	126792.704	450984	502.264	56.848
6	(120.811,40.94)	(126.216,37.412)	185140.902	1240587	945.056	75.173

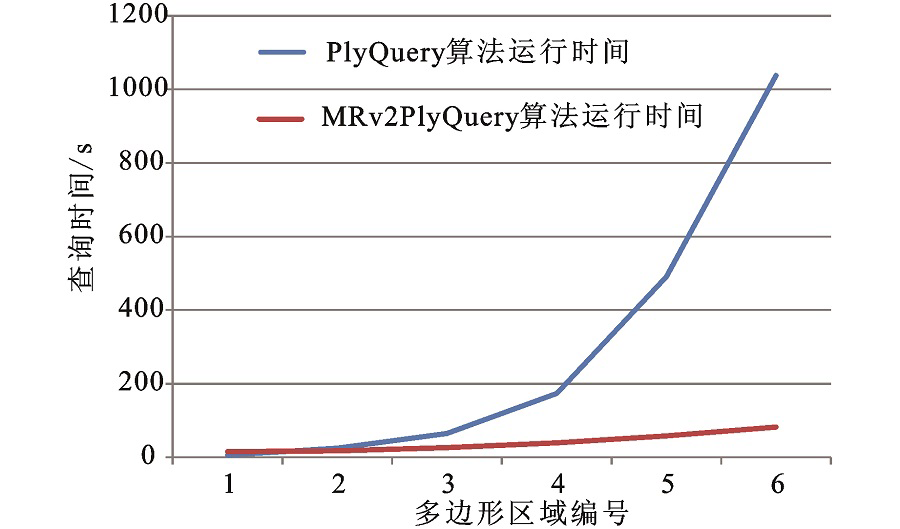

查询区域编号	正五边形查询区域坐标串	查询区域面积/km²	查询区域内空间对象个数	PlyQuery算法运行时间/s	MRv2PlyQuery 算法运行时间/s
1	(123.514,39.626)(123.124,39.401)(123.289,38.786) (123.739,38.786)(123.904,39.011)(123.514,39.626)	2706.329	748	6.083	15.175
2	(123.514,40.067)(122.734,39.623)(123.065,38.403) (123.946,38.403)(124.291,39.623) (123.514,40.067)	21650.635	7163	25.215	17.783
3	(123.514,40.512)(122.344,39.855)(122.842,38.012) (123.148,38.012)(124.682,39.855)(123.514,40.512)	48713.929	32941	64.921	26.042
4	(123.514,40.937)(121.954,40.079)(122.619,37.642) (123.373,37.642)(125.073,40.079)(123.514,40.937)	86602.540	127362	173.457	39.184
5	(123.514,41.462)(121.564,40.302)(122.396,37.285) (123.597,37.285)(125.469,40.302)(123.514,41.462)	135316.469	487365	491.302	58.538
6	(123.514,41.854)(121.174,40.524)(122.172,36.876) (123.824,36.876)(125.854,40.524)(123.514,41.854)	194855.716	1438176	1037.746	82.091
