地理科学 ›› 2014, Vol. 34 ›› Issue (2): 198-204.doi: 10.13249/j.cnki.sgs.2014.02.198

• • 上一篇    下一篇

PATMOS-x、ISCCP云量产品及地面观测在中国区域的对比分析

涂钢1(), 刘波2, 余清波1

  1. 1.吉林省气象科学研究所 中高纬度环流系统与东亚季风开放实验室,吉林长春130062
    2.国家气候中心,北京100081
  • 收稿日期:2013-01-05 修回日期:2013-03-25 出版日期:2014-02-10 发布日期:2014-02-10
  • 作者简介:

    作者简介:涂钢(1968-),女,湖北鄂州人,副研究员,主要从事陆面过程与气候变化研究。E-mail:shenxintu@yahoo.com.cn

  • 基金资助:
    国家自然科学基金项目(41175084, 41101045,41175083)和公益性行业(气象)科研专项(GYHY201106021、GYHY201106016)资助

Comparison of Cloud Amount from PATMOS-x and ISCCP with Ground Observation over China

Gang TU1(), Bo LIU2, Qing-bo YU1

  1. 1.Laboratory of Research for Middle-High Latitude Circulation System and East Asian Monsoon Reseach, Institute of Meteorological Science of Jilin Province, Changchun,Jilin 130062, China
    2.National Climate Center, Beijing 100081, China
  • Received:2013-01-05 Revised:2013-03-25 Online:2014-02-10 Published:2014-02-10

摘要:

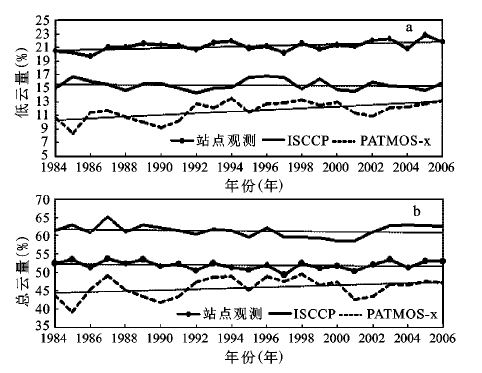

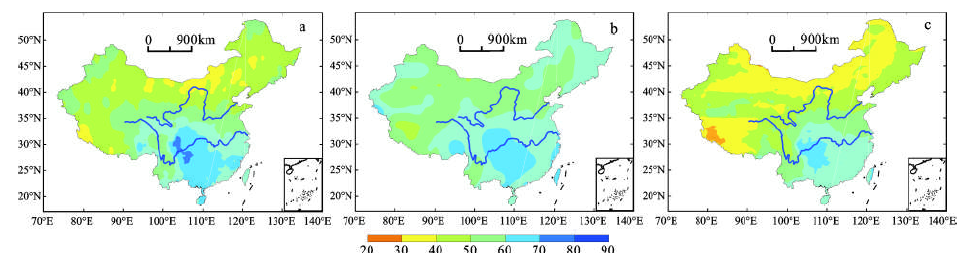

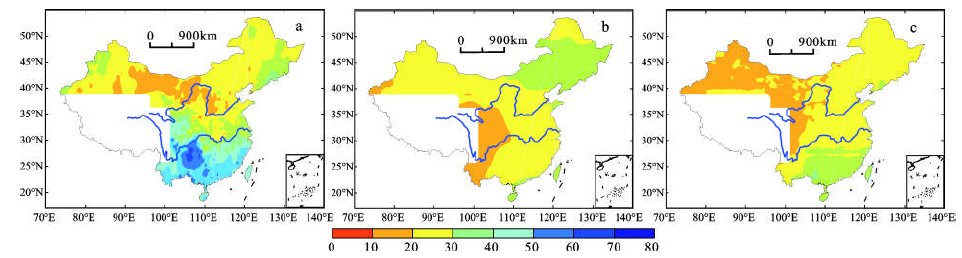

利用1986~2006年PATMOS-x 、ISCCP总云量和低云量产品与中国区域地面台站观测的总云量、低云量资料进行对比分析,对比不同来源、不同观测方法造成的云量数据在时间、空间上的差异,为资料使用者提供参考。结果表明,与台站观测资料相比,无论PATMOS-x还是ISCCP其总云量数据的空间分布、与站点观测数据的格点相关性均好于低云量数据;PATMOS-x总云量、低云量多年平均的空间分布较ISCCP更接近站点观测;中国区域平均低云量的线性趋势PATMOS-x与站点观测一致,表现为显著的上升趋势,而ISCCP低云量数据则呈现微弱的下降趋势。

关键词: ISCCP, PATMOS-x, 低云量, 总云量, 中国

Abstract:

PATMOS-x is a project to derive atmospheric and surface climate records from NOAA's Advanced Very High Resolution Radiometer (AVHRR).The longest global remotely sensed cloud imagery record is from AVHRR, located on the National Oceanic and Atmospheric Administration(NOAA) polar-orbiting satellites. The PATMOS-x provides multiple products (cloud, aerosol, surface and radiometric) on the same grid using a common processing path. The International Satellite Cloud Climatology Project (ISCCP) was established in 1982 as part of the World Climate Research Program (WCRP) to collect weather satellite radiance measurements and to analyze them to infer the global distribution of clouds, their properties, and their diurnal, seasonal and interannual variations. This study focused on the comparison of cloud amount from PATMOS-x and ISCCP with ground observation over China. The spatial and temporal differences of low cloud amount and total cloud amount are investigated using PATMOS-x data, ISCCP data and ground observation in 1984-2006. The quantitative analysis results show that the distribution of total cloud amount from PATMOS-x and ISCCP are better than that of low cloud amount according to that of ground observation. And it is the same as grid-based correlation with ground observation. The distribution of low cloud amount from PATMOS-x is more similar with ground observation than that of ISCCP. The low cloud amount from PATMOS-x and from ground observation over China both show obviously linear increasing trend.

Key words: ISCCP, PATMOS-x, low cloud amount, total cloud amount, China

中图分类号:

  • P407
