连环湖马圈泡沉积物重金属污染及潜在生态风险

doi:10.13249/j.cnki.sgs.2014.04.505

摘要/Abstract

摘要：

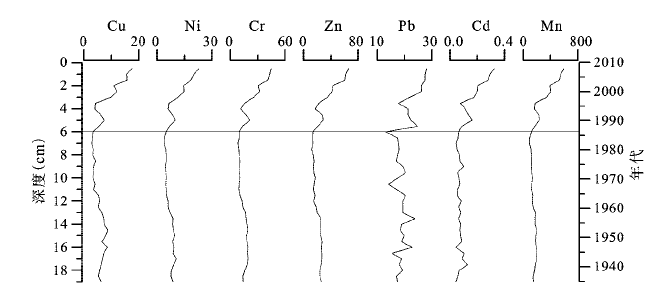

通过对连环湖马圈泡柱状沉积物重金属（Cr、Cu、Mn、Ni、Pb、Zn、Cd）等地球化学指标的分析, 对马圈泡沉积物污染历史进行了讨论。根据元素的变化趋势,结合颗粒组成指标,采用相关分析,富集状况及潜在生态风险评价,并辅以²¹⁰Pb、¹³⁷Cs测年数据,研究了自1937年以来该湖区沉积物重金属元素污染特征、来源、污染历史及污染程度。结果表明,1987年以前各元素含量变化趋势平稳,1987年至今,7种重金属元素含量均明显增加。重金属元素的来源包括自然来源和人为输入。从单向污染系数来看Cu、Ni、Cr、Pb、Zn属于中等污染强度,Mn、Cd达到了强污染程度;从综合污染系数来看,表层重金属元素主要为中等程度的污染。沉积物重金属污染历史与该区经济发展阶段相吻合可为其湖区生态环境的整治与改善提供基础性的数据资料。

关键词: 柱状沉积物, 重金属污染, 富集系数, 潜在生态风险评价

Abstract:

Sedimentation rates, element concentrations and grain size distributions of core sediments from Majuan Lake are investigated. According to ²¹⁰Pb and ¹³⁷Cs dating, the pollution history of Majuan Lake is investigated based on the geochemical characteristics in core sediments. Our findings indicated that Cr, Cu, Mn, Ni, Pb, Zn and Cd are the main pollution heavy metals, which have different pollution history and pollution degree. The concentrations of heavy metals in sediments varied smoothly before1987. However, the concentrations of all elements increased obviously since 1987, which are mainly attributed the industries development. In recent years, Cu, Ni, Cr, Pb, and Zn in most sediment from upper profile showed moderate ecological risk level, but Mn and Cd showed strong ecological risk in the sediments. Similar results obtained from Eir and RI methods, while the heavy metal content increased rapidly since 1987 with the peak values appeared in the surface, which indicated the strongly potential risk. The history of elements pollution has strong link with the economy development in the catchment of Majuan Lake.

Key words: sediment, heavy metal contamination, enrichment coefficient, potential ecological risks

中图分类号:

P951

关莹, 臧淑英, 肖海丰. 连环湖马圈泡沉积物重金属污染及潜在生态风险[J]. 地理科学, 2014, 34(4): 505-512.

Ying GUAN, Shu-ying ZANG, Hai-feng XIAO. Pollution and Potential Ecological Risk of Heavy Metals in Core Sediments from Majuan Lake in Lianhuan Lake, China[J]. SCIENTIA GEOGRAPHICA SINICA, 2014, 34(4): 505-512.

图/表 12

图1

表1

图2

表2

图3

表3

图4

图5

表4

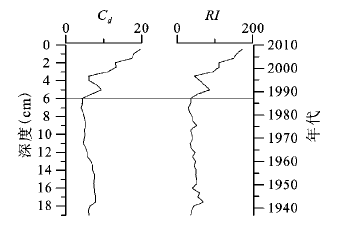

Cif、Cd、Eir和RI的分级"

$C f i$	C_d	污染程度	$E r i$	RI	风险程度
$C f i$ <1	C_d<7	轻微	$E r i$ <30	RI<60	轻微
1≤ $C f i$ <3	7≤C_d<14	中等	30≤ $E r i$ <60	60≤RI<120	中等
3≤ $C f i$ <6	14≤C_d<28	强	60≤ $E r i$ <120	120≤RI<240	强
$C f i$ ≥6	C_d≥28	很强	120≤ $E r i$ <240	RI≥240	很强
			E $r i$ ≥240		极强

表4

图6

图7

图8

参考文献 30

[1]	李晶, 臧淑英. 环湖阿木塔泡沉积物中重金属形态及其对环境影响分析[J]. 环境科学与管理, 2009, 34(1):37~41.
[2]	于万辉,王俊杰,臧淑英. 松嫩平原湖泊底泥重金属空间变异特征及其风险评价[J]. 地理科学, 2012, 32(8):1000~1005.
[3]	Wojciech Tylmann.Lithological and geochemical record of anthropogenic changes in recent sediments of a small and shallow lake (Lake Pusty Staw, northern Poland)[J]. Journal of Paleolimnology, 2005, 33: 313-325.
[4]	张华俊, 修康. 鹤地水库沉积物营养盐及重金属分布和污染特征分析[J]. 环境科学, 2012, 33(4):1167~1175.
[5]	Loska K, Wiechua D.Application of principal component analysis for the estimation of source of heavy metal contamination in surface sediments from the Rybnik Reservoir[J]. Chemosphere, 2003, 51(8):723-733.
[6]	Singh K P, Malik A, Sinha S, et al.Estimation of source of heavy metal contamination in sediments of Gomti River ( India)using principal component analysis[J] . Water, Air, and Soil Pollution, 2005, 166(1-4): 321-341.
[7]	Audry S, Schafer J, Blanc G, et al. Fifty-year sedimentary record of heavy metal pollution in (Cd, Zn, Cu, Pb) the Lot River reservoirs (France)[J]. Environmental Pollution, 2004, 132(3): 413-426.
[8]	Arnason JG, Fletcher BA.A 40+ year record of Cd, Hg, Pb, and U deposition in sediments of Patroon Reservoir, Albany County, NY, USA[J]. Environmental Pollution, 2003, 123(3): 383-391.
[9]	孙丽, 臧淑英, 肖海丰, 等. 连环湖他拉红泡重金属和营养元素的沉积记录[J]. 地理与地理信息科学, 2010,26(4): 99~103.
[10]	王苏民, 窦鸿身. 中国湖泊志[M]. 北京: 科学出版社, 1998,504~506.
[11]	沈吉, 薛滨. 湖泊沉积与环境演化[M]. 北京: 科学出版社, 2010.128~131.
[12]	刘恩峰, 沈吉, 朱育新. 西太湖沉积物污染的地球化学记录及对比研究[J]. 地理科学, 2005, 25(1):102~107.
[13]	Covelli S, Fontolan G.Application of a normalization procedure in determining regional geochemical baselines[J]. Environmental Geology, 1997, 30(1):34-45.
[14]	N'guessan YM, Probst JL, Bur T, et al. Trace elements in stream bed sediments from agricultural catchments (Gascogne region, S-W France): Where do they come from?[J]. Science of the Total Environment, 2009, 407(8): 2939-2952.
[15]	Hakanson L.An ecological risk index for aquatic pollution control: a sedimentological approach[J]. Water Research, 1980, 14(8): 975-1001.
[16]	侯千, 马建华, 王晓云, 等. 开封市幼儿园土壤重金属生物活性及潜在生态风险[J]. 环境科学, 2011, 32(6): 1764~1771.
[17]	苏丹, 臧淑英. 扎龙湿地南山湖沉积岩芯重金属污染特征及来源判别[J]. 环境科学. 2012, 33(6): 1816~1822.
[18]	周华, 廖富强, 徐明星. 连云港藤花落遗址土壤粒度及重金属累积特征[J]. 地理科学, 2013, 33(3): 349~355.
[19]	刘兴久, 赵雅玲. 松嫩平原区域土壤中8 种重金属元素的背景值及其相关因素[J]. 东北农学院学报, 1987, 18(2)113~118.
[20]	黄方, 张树文, Jan de Leeuw, 等. 20世纪70年代以来松嫩平原乌裕尔河中下游流域的湿地演变[J]. 自然资源学报, 2006, 21(6): 949~956.
[21]	Birch GF.A test of normalization methods for marine sediment, including a new post-extraction normalization ( PEN) technique[J]. Hydrobiologia, 2003, 492: 5-13.
[22]	Reimann C, de Caritat P. Distinguishing between natural and anthropogenic sources for elements in the environment: regional geochemical surveys versus enrichment factors[J].Science of the Total Environment, 2005, 337: 91-107.
[23]	赵一阳, 鄢明才. 中国浅海沉积物地球化学[M]. 北京: 科学出版社, 1994, 130~150.
[24]	Silva M A L, Rezende C E. Behavior of selected micro and trace elements and organic matter in sediments of a freshwater system in southeast Brazil[J]. The Science of the Total Environment, 2002, 292(1): 121-128.
[25]	Palanquesa A, Sanchez-Cabeza JA, Masqu P, et al.Historical record of heavy metals in a highly contaminated Mediterranean deposit: The Bessprodelta[J]. Marine Chemistry, 1998, 61(3): 209-217.
[26]	Roach AC.Assessment of metals in sediments from lake Macquarie, New South Wales, Australia, using normalization models and sediment quality guidelines[J]. Marine Environmental Research, 2005, 59(5): 453-472.
[27]	王永华, 李晓光, 金相灿. 沉积物重金属污染评价--以巢湖龟山区为例[J]. 中国环境监测, 2007, 23(6): 52~56.
[28]	马建华, 王晓云, 侯千. 某城市幼儿园地表灰尘重金属污染及潜在生态风险[J]. 地理研究, 2011, 30(3): 486~495.
[29]	徐争启, 倪师军. 潜在生态危害指数法评价中重金属毒性系数计算[J]. 环境科学与技术, 2008, 31(2): 112~115.
[30]	杨卓, 李贵宝. 白洋淀底泥重金属的污染及其潜在生态危害评价[J]. 农业环境科学学报, 2005, 24(5): 945~951.

	最小值(mg/kg)	最大值(mg/kg)	平均值(mg/kg)	标准偏差	变异系数	最大值/最小值
Cr	8.28	44.52	17.52	9.33	0.53	5.38
Cu	2.76	17.72	6.69	3.62	0.54	6.42
Mn	91.78	597.80	206.34	126.10	0.61	6.51
Ni	3.76	22.7	8.42	4.42	0.53	6.04
Pb	13.08	27.98	20.03	3.65	0.18	2.14
Zn	11.78	65.74	25.23	13.31	0.53	5.58
Cd	0.044	0.324	0.10	0.07	0.68	7.36

	Cu	Mn	Ni	Cr	Pb	Cd	Zn
Cu	1	0.960^**	0.980^**	0.981^**	0.798^**	0.882^**	0.970^**
Mn		1	0.974^**	0.983^**	0.816^**	0.962^**	0.977^**
Ni			1	0.989^**	0.789^**	0.915^**	0.990^**
Cr				1	0.796^**	0.930^**	0.987^**
Pb					1	0.768^**	0.781^**
Cd						1	0.921^**
Zn							1

	d(0.5)	< 4μm	4-16μm	16-64μm	> 64μm
Cu	-0.841^**	0.752^**	0.758^**	0.912^**	-0.800^**
Mn	-0.850^**	0.723^**	0.736^**	0.884^**	-0.773^**
Ni	-0.827^**	0.737^**	0.745^**	0.905^**	-0.787^**
Cr	-0.843^**	0.738^**	0.746^**	0.903^**	-0.787^**
Pb	-0.743^**	0.692^**	0.704^**	0.785^**	-0.727^**
Cd	-0.766^**	0.618^**	0.634^**	0.790^**	-0.671^**
Zn	-0.824^**	0.728^**	0.739^**	0.894^**	-0.779^**
