中国煤炭资源流源、汇地空间格局演变与内部空间差异研究

doi:10.13249/j.cnki.sgs.2014.010.1153

摘要/Abstract

摘要：

以各省煤炭资源输出、输入量为分析指标,将有资源输出的省份列为源地,有资源输入的省份列为汇地,分别利用重心模型和统计地图方法,从动态和静态2种视角探讨中国煤炭资源流源、汇地空间格局特征及其演化规律。同时,利用标准差和变异系数揭示源、汇地内部空间差异的变化特征,预测其未来空间格局的走向。结果表明：① 中国煤炭源地重心分布于山西省中东部境内,移动轨迹大体呈“U”字型,汇地重心分布于鲁、沪、皖三省交界处,移动轨迹呈东北-西南向“1”字型。源、汇地重心都呈现向西移动的趋势,但源地重心经历了一个由北向南再向北的转移过程,而汇地重心突出地表现出南移的趋势。② 中国煤炭资源流源、汇地空间分离趋势较为明显;源汇地整体位移方向以西北、西南、东南3个方向为主。③ 全国煤炭供应基地主要分布在北方,并形成多个较大的输出源地;煤炭汇地主要分布在内蒙古、山西、重庆、贵州四省（市、区）一线以东地区,空间结构呈现西南转移的趋势。④ 煤炭源地绝对差异的总体发展趋势为不断扩大,相对差异为不断减小;煤炭汇地绝对差异和相对差异的总体发展趋势变化不大,较为温和。⑤ 加强新疆煤炭外运通道建设以及西北与西南、华中煤炭运输通道的连接建设应成为国家煤炭运输规划的重点与当务之急。

关键词: 源地, 汇地, 空间格局, 空间差异, 煤炭资源流

Abstract:

This article took 31 provinces in China as the objects of study, and made analysis of the current situation of the flux of coal resources flow in every province. It ruled that all provinces which have output coal were classified as source regions, and all provinces which have input coal were classified as sink regions. In analyses, this article led into the concept of gravity centre, and next identified gravity centers of coal source regions and sink regions in 1991-2010, and finally exported space tracking maps of gravity centre points by GIS. The dynamic changes and evolution laws of gravity centers of coal source regions and sink regions were elaborated in the recent 20 years from four aspects, and the study results reflected the spatial development trends and directions of coal resources flow. The first aspect was the whole trends of coal resources flow of source regions and sink regions. The second aspect was the moving trends in longitude and latitude. The third aspect was the space length between gravity center of source regions and gravity center of sink regions in the same year and the fourth aspect was the average flow direction. In addition, statistical maps were used to investigate the characteristics of the spatial structure and dynamic evolution of coal resources flow of source regions and sink regions. And this article used a double of statistical indicators called standard deviation and variation coefficient which respectively reflected absolute and relative differences to investigate the different degrees and development trends of coal flux of source regions and sink regions from temporal series. It also revealed an imbalance of coal resources flow of source regions and sink regions from space perspective. Study results showed that gravity centers of coal source regions were mainly situated in the eastern part of Shanxi Province, and their mobile trajectory were generally rendered "u" type. However, gravity centers of coal sink regions diverted from Jiangsu to Anhui and then to Shandong, and their trajectory were generally rendered northeast-southwest "1" type. Both trajectories in longitude have emerged as a trend of slowly shifting to west. In latitude, gravity centers of coal source regions went through a transfer from north to south and then to north and gravity centers of coal sink regions notably showed a trend of moving to south in fluctuation. There was a clear separation in space between coal production space and demand space. The coal supply bases of China were mainly located in the north of the country, which formed some large output source regions and formed a certain hierarchy. The coal sink regions were mainly in the east of the line of Inner Mongolia, Shanxi, Chongqing and Guizhou, and the space structure showed a trend moving toward southwest. It was obvious that coal source regions were increasingly keeping away from sink regions. The overall of source regions and sink regions was moving toward three directions composed of northwest, southwest, and southeast. The absolute difference of coal source regions was growing and their relative difference was reducing. The absolute and relative differences of coal sink regions all had no big fluctuation.

Key words: source regions, sink regions, spatial pattern, spatial differences, coal resources flow

中图分类号:

F062.1

王宜强, 赵媛. 中国煤炭资源流源、汇地空间格局演变与内部空间差异研究[J]. 地理科学, 2014, 34(10): 1153-1160.

Yi-qiang WANG, Yuan ZHAO. Spatial Pattern Evolution and Inner Differences ofSource-sink Regions of China's Coal Resources Flow[J]. SCIENTIA GEOGRAPHICA SINICA, 2014, 34(10): 1153-1160.

图/表 6

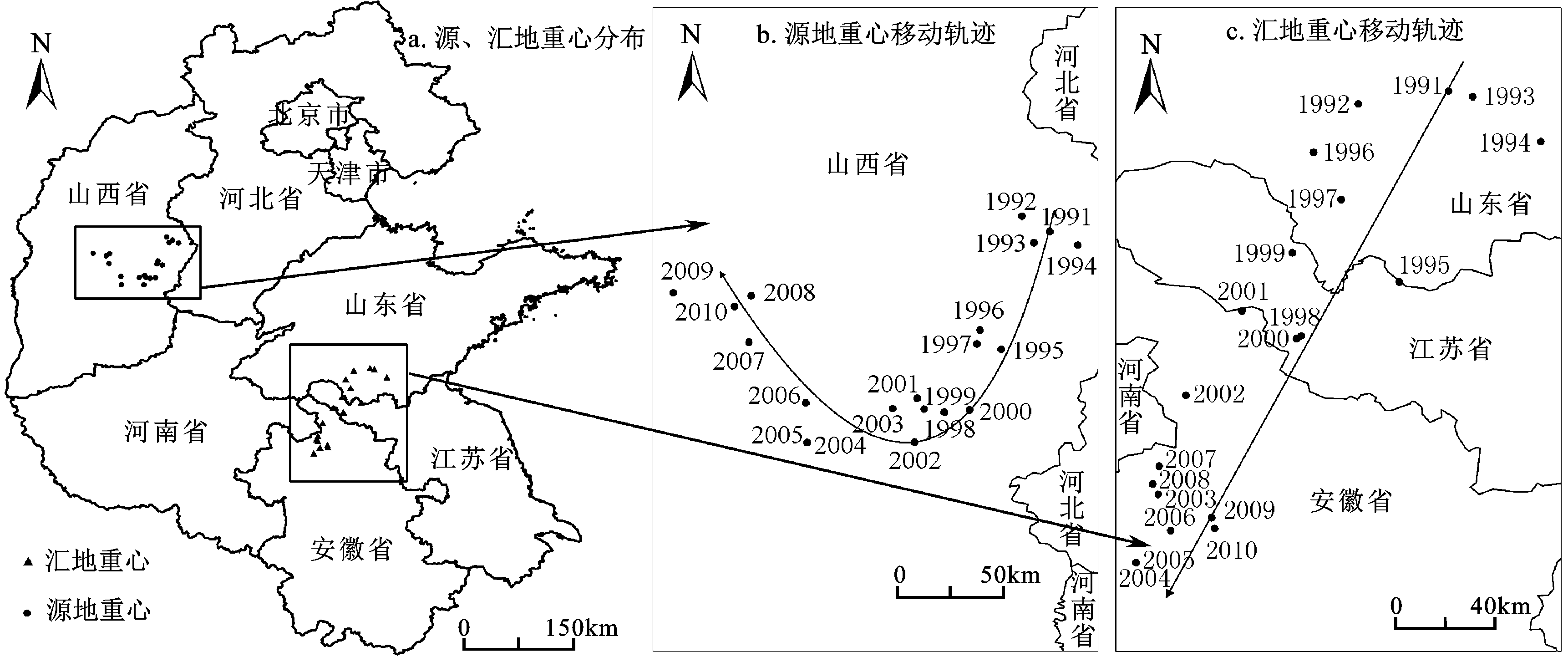

图1

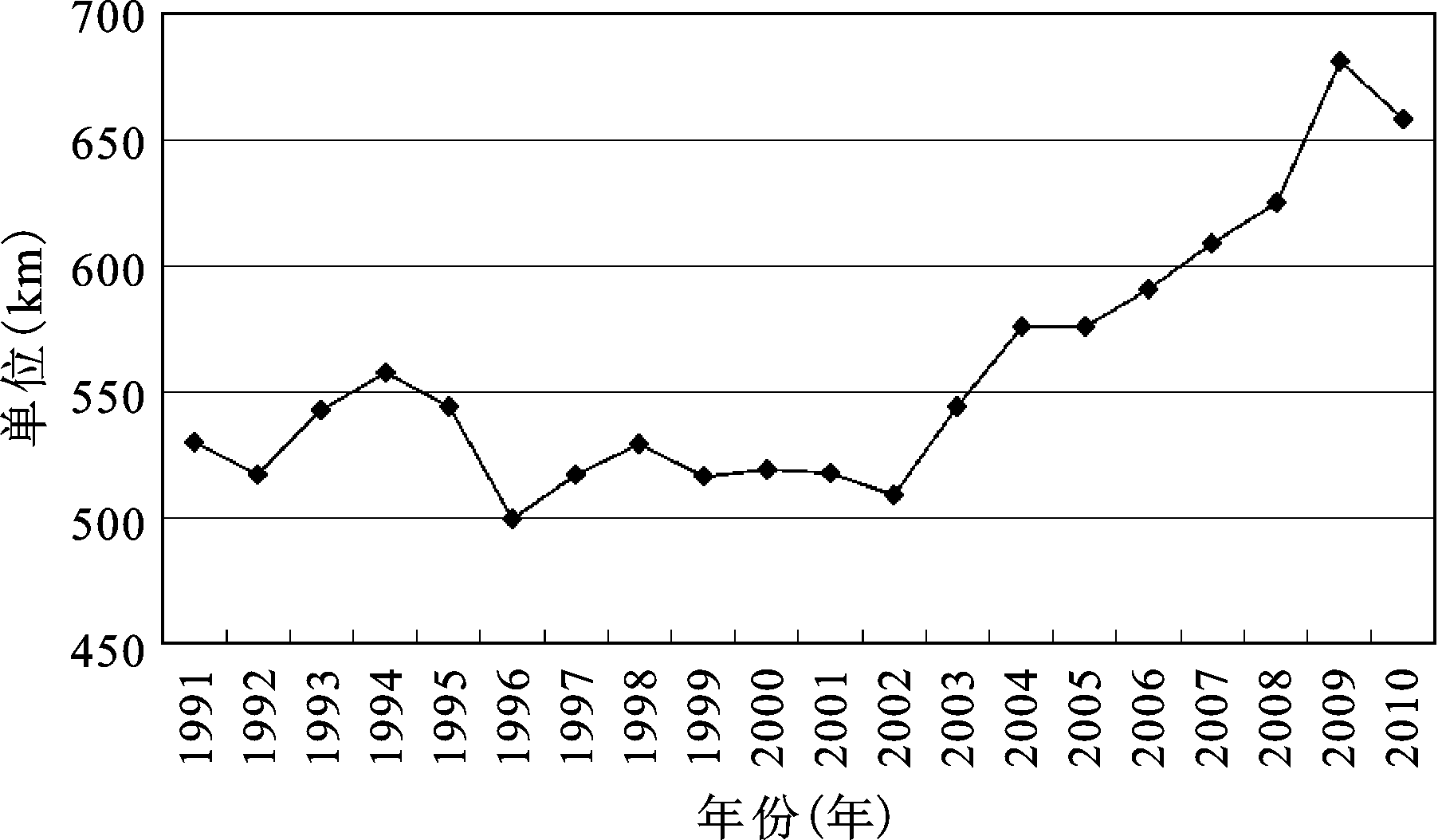

图2

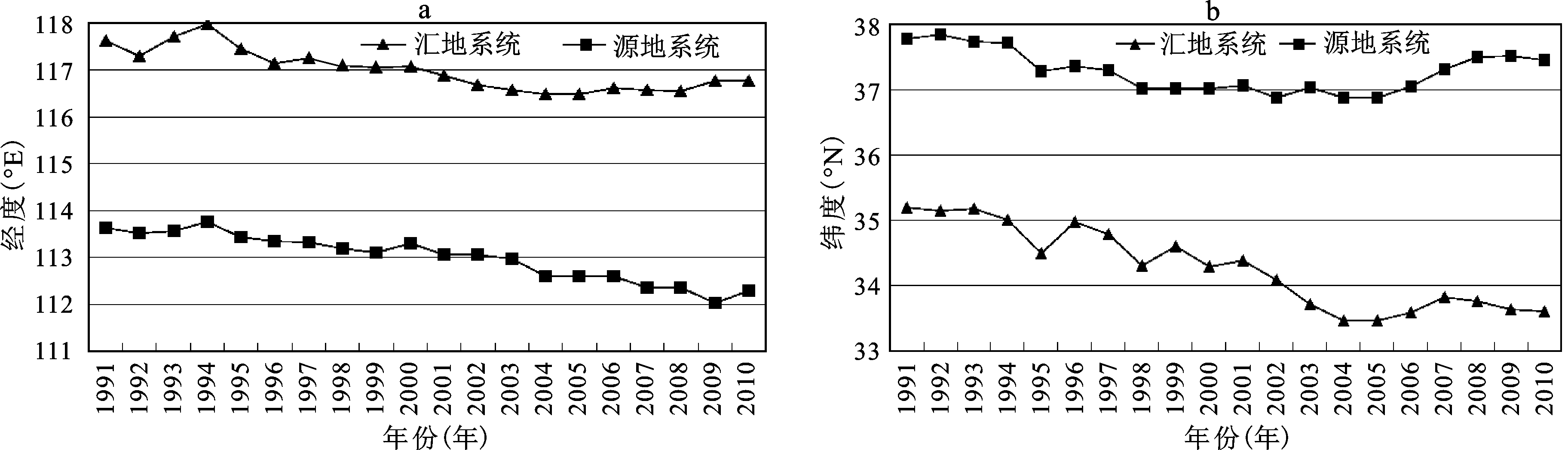

图3

表1

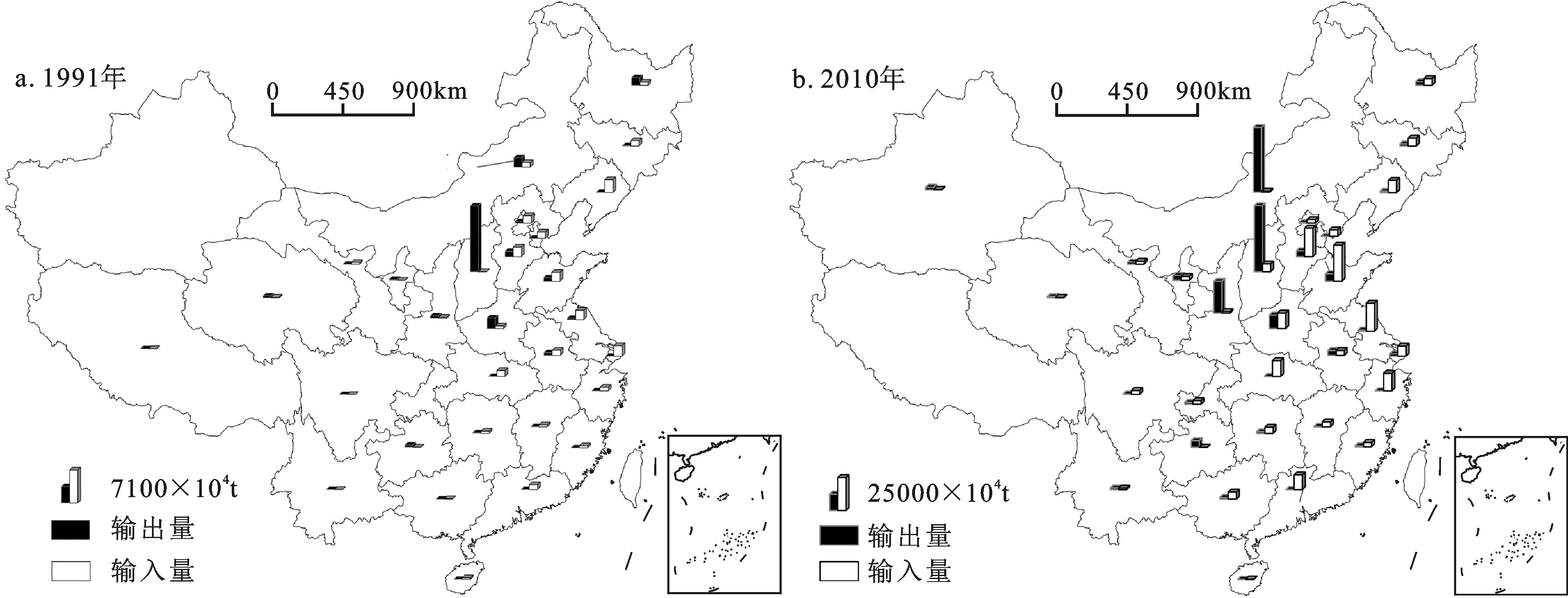

图4

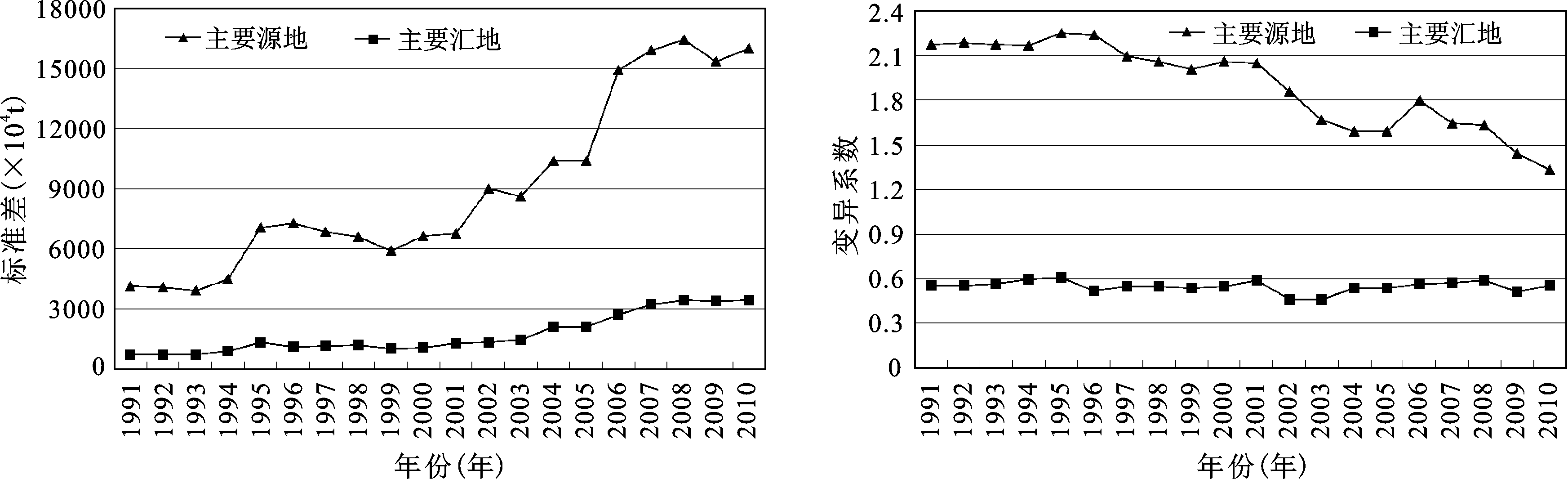

图5

参考文献 25

[1]	赵媛,于鹏.我国煤炭资源空间流动的基本格局与流输通道[J].经济地理,2007,27(2):196~200.
[2]	成升魁,徐增让,沈镭.我国省际煤炭资源流动的时空演变及驱动力[J].地理学报,2008,63(6):603~612.
[3]	徐增让. 我国煤炭资源流动的机理、过程及效应研究[D].北京:中国科学院地理科学与资源研究所,2007.
[4]	王成金,莫辉辉,王姣娥.我国煤炭资源的流动格局及流场规律研究[J].自然资源学报,2009,24(8):1402~1411.
[5]	王彬,王宜强.改革开放以来福建省经济重心格局演变及其空间差异[J].地理研究,2011,30(10):1882~1890.
[6]	徐建华,岳文泽.近20年来我国人口重心与经济重心的演变及其对比分析[J].地理科学,2001,21(5):385~389.
[7]	李在军,管卫华,柯文前.中国区域消费与经济、人口重心演变的时间多尺度研究[J].经济地理,2014,34(1):7~14.
[8]	冯宗宪,黄建山.1978~2003年我国经济重心与产业重心的动态轨迹及其对比研究[J].经济地理,2006,26(2):249~254.
[9]	刘刚,沈镭.1951~2004年西藏产业结构的演进特征与机理[J].地理学报,2007,62(4):371~376.
[10]	徐国良,黄贤金,李丽,等.1991~2011年南海周边国家及地区经济重心及经济发展重心演变分析[J].资源科学,2014,36(4):682~690.
[11]	谭俊涛,张平宇. 振兴东北前后区域经济重心格局演变分析[J].地理学与地理信息科学,2013,29(6):68~72.
[12]	邓宗兵,封永刚,张俊亮,等. 中国粮食生产空间布局变迁的特征分析[J].经济地理,2013,33(5):117~123.
[13]	彭远新,林振山.能源消费产生的SO2和工业烟尘排放量时空演变分析[J].自然资源学报,2010,25(1):52~59.
[14]	王兆峰. 入境旅游流与航空运输网络协同演化及差异分析-以西南地区为例[J].地理研究,2012,31(7):1328~1338.
[15]	王永明,马耀峰,王美霞. 上海入境旅游流对长江流域各省区空间场效应研究[J].经济地理,2010,30(5):854~858.
[16]	宁越敏. 中国都市区和大城市群的界定——兼论大城市群在区域经济发展中的作用[J].地理科学,2011,31(3):257~263.
[17]	孙贵艳,王传胜,肖磊,等.长江三角洲城市群城镇体系演化时空特征[J].长江流域资源与环境,2011,20(6):641~649.
[18]	管卫华,林振山,顾朝林.我国区域经济发展差异及其原因的多尺度分析[J].经济研究,2006,(7):117~125.
[19]	中国煤炭工业协会.中国煤炭工业统计资料汇编(1949~2009) [M].北京:煤炭工业出版社,2009.
[20]	国家统计局能源统计司.中国能源碳基年鉴(2011) [M].北京:中国统计出版社,2011.
[21]	董瑜,谢高地.资源场理论及其在资源流动中的应用[J].地理科学,2001,21(5):407~411.
[22]	赵媛,杨足膺,郝丽莎,等.我国石油资源流动源-汇系统空间格局特征[J].地理学报,2012,67(4):455~466.
[23]	徐建华,鲁凤,苏芳林,等.我国区域经济差异的时空尺度分析[J].地理研究,2005,24(1):57~68.
[24]	鲁凤,徐建华.基于二阶段嵌套锡尔系数分解方法的我国区域经济差异研究[J].地理科学,2005,25(4):401~407.
[25]	鲁凤,徐建华.基于不同区划系统的我国区域经济差异分解研究[J].人文地理,2006,21(2):77~81.

时间（年）	θ（度）	方向	时间段（年）	θ（度）	方向
1991~1992	177.6146	西北	2001~2002	-113.5396	西南
1992~1993	-10.4937	东南	2002~2003	-131.692	西南
1993~1994	-21.7153	东南	2003~2004	-138.4614	西南
1994~1995	-131.3538	西南	2004~2005	-	-
1995~1996	126.0414	西北	2005~2006	67.1306	东北
1996~1997	-69.1691	东南	2006~2007	119.8843	西北
1997~1998	-109.9137	西南	2007~2008	96.0357	西北
1998~1999	110.4291	西北	2008~2009	-136.4752	西南
1999~2000	-56.5187	东南	2009~2010	-20.1418	东南
2000~2001	160.4061	西北	-	-	-
