基于土地出让视角的中国装备制造业发展态势

doi:10.13249/j.cnki.sgs.2017.03.004

摘要/Abstract

摘要：

基于土地出让视角,构建产业发展驱动力评价体系综合测度2009~2013年全国装备制造业的发展态势,借助ESDA分析方法和空间计量模型分析装备制造业发展的空间特征及其影响因素。研究表明：① 全国装备制造业的总体发展格局与宏观经济发展格局基本一致,呈现由东部沿海向西北内陆逐步递减的态势;② 依赖用地规模扩张的产业驱动结构仍有待突破,东部应进一步强化产业结构分工和土地资源市场配置;③ 国家政策扶持是装备制造业驱动格局形成的重要推动因素,城市化发展、企业集聚水平和基础设施优势对其发展亦具有积极作用。

关键词: 装备制造业, 发展态势, 影响因素, 空间计量分析, 工业用地出让

Abstract:

The orderly spatial pattern of industrial development is an important driving force for the achievement of new-typed urbanization and industrialization in China. In view of industrial land transaction, the article derived a general evaluation system of industrial development driving capacity, and measured the developing status of China's equipment manufacturing industry during 2009-2013. The basic data for analysis were collected from the national dynamic monitoring system of urban land price. Then based on the ESDA analysis method and spatial econometrics modes, we further revealed the spatial characteristics of equipment manufacturing industry development and its influencing mechanism. Several results were acquired:1) The comprehensive evaluation system of industrial development driving capacity was composed of six transfer parameters and three driving indicators, respectively, including the degree of dominance, activity, agglomeration, association, marketability as well as premium of industrial land transaction, and the development level of industrial scale, industrial structure, market efficiency. On a macro scale, the above measuring method targeted land use mode and industrial development into an integrated analysis framework. It can reflect the industry developing trend through the mapping of industrialland supply pattern, and provide decision basis for industrial space organization and relevant resources regulation. 2) The general developing status of equipment manufacturing industry was consistent with the macroeconomic development pattern, presenting gradually decreasing trend from eastern coastal to northwest inland. The high-value area of industrial development driving capacity were distributed in the Bohai Rim region, the Yangtze River Delta and other comprehensive industrial base. The development drivingstructure of equipment manufacturing industrial should be further optimized that used to rely on the land use scale expansion. The eastern regions in China should strengthen industrial structure and regional division as well as the market allocation of land resources, meanwhile the central and western regions should speed up the industrial radiation. 3) The spatial-temporal differences of industry development was a synthesis result that affected by operating of land market and local conditions. The national policy support played an significant role in boosting the formation of the industrial pattern, and urbanization development, enterprise agglomeration, infrastructure advantage also had positive effect on China’s equipment manufacturing industrial development. More specifically, equipment manufacturing industry can be developed in an orderly pattern by propelling some effective national strategies, accelerating industrial transformation and upgrading in eastern area, and promoting infrastructure construction and expanding investment of major manufacturing enterprises in central and western areas.

Key words: equipment manufacturing industry, developing status, influencing mechanism, spatial econometrics models, industria land transaction

中图分类号:

K902

项晓敏, 金晓斌, 张志宏, 范业婷, 谢锦园, 周寅康. 基于土地出让视角的中国装备制造业发展态势[J]. 地理科学, 2017, 37(3): 347-355.

Xiaomin Xiang, Xiaobin Jin, Zhihong Zhang, Yeting Fan, Jinyuan Xie, Yinkang Zhou. Developing Status of China’s Equipment Manufacturing Industry in View of Industrial Land Transaction[J]. SCIENTIA GEOGRAPHICA SINICA, 2017, 37(3): 347-355.

图/表 4

表1

产业发展驱动力的测度指标及其含义"

测度指标	出让参数	计算公式	描述
规模发展指数（IS）	优势度（Q₁）	$E ki E i E kr E r$	测度研究单元k产业在全国制造业用地供给上的比较优势。E_ki表示i市k产业的用地出让面积,E_i表示i市制造业所有产业的用地出让总面积,E_kr表示全国k产业的用地出让面积,E_r表示全国制造业所有产业的用地出让总面积
规模发展指数（IS）	活跃度（Q₂）	$Z ki Z i Z kr Z r$	测度研究单元k产业在全国制造业用地供给上的相对活跃性。Z_ki表示i市k产业的用地出让宗数,Z_i表示i市制造业所有产业的用地出让总宗数,Z_kr表示全国k产业的用地出让宗数,Z_r表示全国制造业所有产业的用地出让总宗数
结构分工指数（IF）	匀质度（Q₃）	$Z ki Z i 1 + E ki E i log E ki E i$	衡量研究单元i市域范围内k产业用地供给的内部集聚度。参数含义同上
结构分工指数（IF）	关联度（Q₄）	$1 n ∑ j = 1 n E ki E i - E kj E j$	衡量城市之间k产业的分工水平,以i城市与j城市间的制造业用地出让结构差异来表示。其中E_kj表示j市k产业的用地出让面积,E_j表示j市制造业所有产业的用地出让总面积,区域j与区域i空间相邻或属于同一省（区）
市场效率指数（IM）	市场度（Q₅）	$W ka G ki E ki + W kb S ki Z ki$	测度研究单元k产业的土地利用效率及市场化配置程度,以存量用地出让面积比和招拍挂出让宗数比来表示。其中G_ki表示i市k产业来源于存量建设用地的出让面积,S_ki表示i市k产业以招拍挂方式出让的用地宗数,W_ka和W_kb分别表示k产业在两者上的权重值,本文均取0.5
市场效率指数（IM）	溢价度（Q₆）	$P ki - P imin P imin$	衡量研究单元k产业的发展高度^[8],以地价溢出率来表示。P_ki表示i市k产业的用地出让均价,P_i_min表示i市的最低工业用地出让价格^④

表1

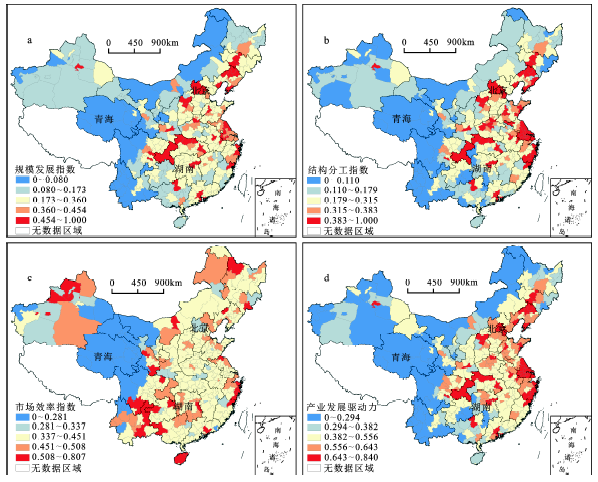

图1

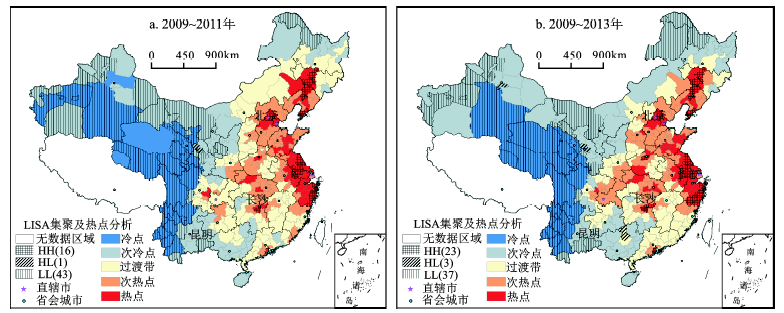

图2

表2

基于空间计量经济模型的影响因素结果"

	（1）OSL	（2）SEM	（3）SEM时间固定	（4）SEM空间固定
常数	0.212926（1.3294）	0.155159（0.9650）	0.762468^***（4.1643）	-0.087505^*（-1.8468）
X₁	-0.024114^***（-3.8226）	-0.018476^***（-2.6400）	-0.012244（-1.4624）
X₂	-0.000141^**（-4.5240）	-0.000128^***（-3.4014）	-0.000142^***（-2.6311）
X₃	0.005220^***（2.3612）	0.005838^**（2.2037）	0.008994^**（2.3590）
X₄	0.001749^***（3.7840）	0.001797^***（3.7739）		0.00132^***（2.70806）
X₅	-0.005946^***（-4.5460）	-0.004634^***（-3.3529）		-0.000361（-0.3189）
X₆	0.001344^**（1.2530）	0.0006759（0.6140）		0.000850（0.7358）
X₇	0.004137（1.4402）	0.004959^*（1.7790）		0.006713^**（2.3347）
X₈	-0.00151^**（-4.5460）	-0.001205^*（-1.9292）		-0.000741（-1.2005）
X₉	0.001331^**（2.3290）	0.001178^**（2.1167）		0.001710^***（3.0823）
X₁₀	2.6957e-006^***（2.7747）	2.8441e-006^***（2.8774）		2.5047e-006^***（2.5889）
X₁₁	0.051088^***（6.0709）	0.043260^***（5.0235）		0.049268^***（5.7492）
X₁₂	-0.002324（-0.7033）	-0.002879（-0.9371）	-0.000602（-0.1923）
X₁₃	-0.013943（-1.4213）	-0.010937（-1.1278）	-0.039764^**（-3.5782）
X₁₄	-0.002789（-1.3394）	-0.002121（-1.0612）	-0.004530^*（-1.9525）
X₁₅	0.029314^**（1.9914）	0.026078^*（1.6879）	0.047291（2.9272）
X₁₆	0.017850（1.5337）	0.028541^**（2.1910）	0.047291^***（2.8083）
X₁₇	-0.069940^***（-2.5440）	-0.058317^**（-2.3283）	0.007816^***（0.2986）
X₁₈	-0.038848^*（-1.6848）	-0.048798^**（-2.1962）		-0.036955^*（-1.7500）
X₁₉	0.078204^***（5.0081）	0.075396^***（4.9000）		0.065069^***（4.4454）
λ		0.352244^***（4.9569）	0.572956^***（10.1276）	0.463867^**（7.2067）
R²	0.7192	0.7413	0.6304	0.7166
LogL	319.115	328.424	260.880	309.751
LR		18.6162^***	72.4985^***	38.8466^***
AIC	-598.231	-616.847	-501.76	-597.501
SC	-522.188	-540.805	-463.738	-555.678

表2

参考文献 24

[1]	席艳玲. 产业集聚、区域转移与技术升级——理论探讨与基于中国制造业发展的经验证据[D]. 天津:南开大学,2014.
	[Xi Yanling.Industrial agglomeration, regional transfer and technology upgrade—Theoretical discussion and evidence based on China’s manufacturing development. Tianjin: Nankai University, 2014.]
[2]	Sigman H.Environment liability and redevelopment of old Industrial Land[J]. Journal of Law &Economics, 2010, 53(2): 289-306. doi: 10.1086/649803 pmid: 20734568
[3]	尚勇敏, 曾刚.老工业区产业结构转型与用地结构转型互动机制及优化路径——以上海市宝山区为例[J]. 地域研究与开发, 2014, 33(5): 44-49. doi: 10.3969/j.issn.1003-2363.2014.05.009
	[Shang Yongmin, Zeng Gang.Interaction mechanism and optimal routes of industrial structure and land use structure transformation in old industrial zone: A case of Baoshan District, Shanghai City. Areal Research and Development, 2014, 33(5): 44-49.] doi: 10.3969/j.issn.1003-2363.2014.05.009
[4]	Jin Qin, Deng Xiangzheng, Wang Zhan et al. Analysis and projection of the relationship between industrial structure and land use structure in China[J]. Sustainability, 2014, 6(5): 9343-9370. doi: 10.3390/su6129343
[5]	Meng Yuan, Zhang Fengrong, An Pingli et al. Industrial land-use efficiency and planning in Shunyi, Beijing[J]. Landscape and Urban Planning, 2008, 85(10): 40-48. doi: 10.1016/j.landurbplan.2007.09.004
[6]	Tang Bosin, Winky K O Ho. Land-use planning and market adjustment under de-industrialization: Restructuring of industrial space in Hong Kong[J]. Land Use Policy, 2015, 43(8): 28-36. doi: 10.1016/j.landusepol.2014.10.022
[7]	陈曦, 席强敏, 李国平. 城镇化水平与制造业空间分布——基于中国省级面板数据的实证研究[J]. 地理科学, 2015, 35(3): 259-267.
	[Chen Xi, Xi Qiangmin, Li Guoping.Urbanization level and spatial distribution of manufacturing industry: An empirical research based on provincial panel data. Scientia Geographica Sinica, 2015, 35(3): 259-267.]
[8]	周霞. 城市群工业地价与产业结构高级化的互动机理研究[D]. 北京:首都经济贸易大学, 2013.
	[Zhou Xia.The research on interaction mechanism between manufacturing industry land price and the promoting of industrial structure in urban agglomerations. Beijing: Capital University of Economics and Business, 2013.]
[9]	Ellison G, Glaeser E.Geographic concentration in U.S. manufacturing industries: A Dartboard approach[J]. Journal of Political Economy, 1997, 105: 889-927.
[10]	吕国庆, 曾刚, 郭金龙. 长三角装备制造业产学研创新网络体系的演化分析[J]. 地理科学, 2014, 34(9): 1051-1059.
	[Lyu Guoqing, Zeng Gang, Guo Jinlong.Innovation network system of industry-university research institute of equipment manufacturing industry in the Changjiang River Delta. Scientia Geographica Sinica, 2014, 34(9):1051-1059.]
[11]	曹玉红, 宋艳卿, 朱胜清, 等. 基于点状数据的上海都市型工业空间格局研究[J]. 地理研究, 2015, 34(9): 1708-1720. doi: 10.11821/dlyj201509000
	[Cao Yuhong, Song Yanqing, Zhu Shengqing et al. The spatial pattern of Shanghai urban industry based on point data. Geographical Research, 2015, 34(9): 1708-1720.] doi: 10.11821/dlyj201509000
[12]	Hong Junjie, Fu Shihe.Information and communication technologies and the geographical concentration of manufacturing industries: Evidence from China[J]. Urban Studies, 2011, 48(11): 2339-2354. doi: 10.2139/ssrn.1104652
[13]	Mao Yanhua, Yang Benjian, Lin Shanshan.Trend and policy implications of regional industrial agglomeration: An empirical analysis of the manufacturing industries in Guangdong Province[J]. Regional Science Policy and Practice, 2014, 6(4): 361-382. doi: 10.1111/rsp3.12053
[14]	吴丰林, 方创琳, 赵雅萍. 城市产业集聚动力机制与模式研究进展[J].地理科学进展, 2010, 29(10): 1201-1208. doi: 10.11820/dlkxjz.2010.10.007
	[Wu Fenglin, Fang Chuanglin, Zhao Yaping.The progresses of urban industrial agglomeration dynamic mechanism and patterns. Progress in Geography, 2010, 29(10): 1201-1208.] doi: 10.11820/dlkxjz.2010.10.007
[15]	毛广雄,钱肖颖,曹蕾,等.江苏省劳动密集型产业集群化转移的空间路径及机理研究[J].地理科学, 2016, 36(1): 72-80. doi: 10.1329/j.cnki.sgs.2016.01.009
	[Mao Guangxiong, Qian Xiaoying, Cao Lei et al. The space path and mechanism of labor-intensive industrial cluster transfer in Jiangsu. Scientia Geographica Sinica,2016,36(1):72-80.] doi: 10.1329/j.cnki.sgs.2016.01.009
[16]	Gao Boyang, Liu Weidong, Michael Dunford.State land policy, land markets and geographies of manufacturing: The case of Beijing, China[J]. Land Use Policy, 2014, 36(1): 1-12. doi: 10.1016/j.landusepol.2013.06.007
[17]	国家统计局. 国民经济行业分类GB/T4754-2002[S]. 北京:中国标准出版社, 2002.
	[National Bureau of Statistics. Industrial classification for national economic activities GB/T4754-2002. Beijing: China Standards Press, 2002.]
[18]	国家统计局. 中国城市统计年鉴(2009~2013)[M]. 北京:中国统计出版社, 2009-2013.
	[National Bureau of Statistics. China City Statistical Yearbook 2009-2013. Beijing: China Statistics Press, 2009-2013.]
[19]	国家统计局. 中国区域经济统计年鉴(2009~2013)[M]. 北京:中国统计出版社, 2009-2013.
	[National Bureau of Statistics. China Statistical Yearbook For Regional Economy 2009-2013. Beijing: China Statistics Press, 2009-2013.]
[20]	钱丽, 陈忠卫, 肖仁桥. 中国区域工业化、城镇化与农业现代化耦合协调度及其影响因素研究[J]. 经济问题探索, 2012, (11): 10-17. doi: 10.3969/j.issn.1006-2912.2012.11.003
	[Qian Li, Chen Zhongwei, Xiao Renqiao.Analysis of coordinated degree of China's regional industrialization, urbanization and agricultural modernization and is influencing factors. Inquiry into Economic Issues, 2012, (11): 10-17.] doi: 10.3969/j.issn.1006-2912.2012.11.003
[21]	项晓敏, 金晓斌, 杜心栋, 等. 基于“强度-潜力-难度”综合测度的中国农用地整治实施协调性分析[J]. 地理研究, 2016, 35(2): 285-282. doi: 10.11821/dlyj201602007
	[Xiang Xiaomin, Jin Xiaobin, Du Xindong et al. The coordination of farmland consolidation implementation in China by comprehensive measure of “intensity, potential and difficulty”. Geographical Research, 2016, 35(2): 285-282.] doi: 10.11821/dlyj201602007
[22]	张文彤. SPSS统计分析高级教程[M]. 北京: 高等教育出版社, 2011.
	[Zhang Wentong.Advanced tutorial of SPSS statistical analysis. Beijing: Higher Education Press,2011.]
[23]	Anselin L, Raymond J G M Florax, Sergio J Rey. Advances in spatial econometrics methodology, tools and applications[M]. Berlin: Springer-Verlag, 2004.
[24]	李广东, 方创琳. 中国县域国土空间集约利用计量测度与影响机理[J]. 地理学报, 2014, 69(12): 1739-1752. doi: 10.11821/dlxb201412001
	[Li Guangdong, Fang Chuanglin.Quantitative measure and influencing mechanism of land intensive use in China at the county level. Acta Geographica Sinica, 2014, 69(12): 1739-1752.] doi: 10.11821/dlxb201412001
