图们江下游圈河流域河岸沙丘动态变化

doi:10.13249/j.cnki.sgs.2017.03.010

摘要/Abstract

摘要：

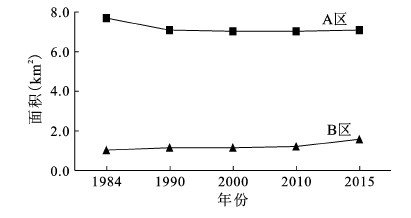

以图们江下游跨国界地区圈河流域河岸沙丘为研究对象,运用遥感与GIS技术,结合遥感影像、地形图等资料,分析该区1984~2015年河岸沙丘空间分布与格局演变,计算河岸沙丘分维值与稳定性指数。结果表明：该区河岸沙丘主要分布在弯曲型河道东岸,呈WNW-ESE向带状展布,面积15.71 km²。近31 a沙丘面积总体呈减少态势,净减少0.09 km²,其中,较少有人类活动的A区,沙丘面积呈减少趋势,减少幅度为8.21%;而受人类活动影响较大的B区,沙丘面积持续增加,尤其近5 a增幅达32%。河岸沙丘分维值虽总体高于内陆沙漠沙丘,但变化不显著,说明河岸沙丘处于相对稳定的发育演化过程中。该研究为图们江下游跨国界地区生态环境可续持发展提供科学依据。

关键词: 河岸沙丘, 动态变化, 图们江, 圈河

Abstract:

This article takes the riparian dune of the Quanhe River Basin as the research object which is in trans-boundary area of Tumen River downstream. Based on remote sensing and GIS technology combined with data of remote sensing images and relief map in this area during 1984 to 2015, the spatial distribution and pattern change of riparian dune were analyzed, fractal dimension value and stability index of riparian dune calculated and the formation mechanism and development mode of riparian dune discussed. The results show that the riparian dune of study area is distributed in right coast of the river mainly. The main aeolian landform type include parabolic dunes, barchan dunes and longitudinal dunes, covering an area of about 15.71 km² and extending as a strip in WNW-ESE direction. On the whole, the aeolian sand landform area of A region is 7.06 km², and the landform type is mainly composed of fixed parabolic dune. The area of aeolian sand landform in B is 8.65 km², which is dominated by barchan chain. In resent 31 years, the area of sand dunes in the study area slightly decreased on the whole with a net decrease of 0.09 km². Besides, the A region that is far away from human activities continued to decrease with a range of 8.21% by now. There appears a trend of continuous reduction during the period of 1984 to 2010 with a decrease of 0.67 km² with the main performance being the fixed dunes because the vegetation was fixed with an increasing trend during the period of 2010 to 2015. The riparian dune of study area moves toward ESE-SE on the whole which is consistent with the main regional wind direction. The longitudinal section line of parabolic dune in A region extends as a strip in WNW-ESE direction; riparian dune appears as a forward migration in a way that spreads as the tongue shape at the leading edge, with an annual average moving rate of 1.8 m. The B region which is affected by human activities has a significant continuous increasing trend, and the increasing extent reached up to 32% in resent 5 years. It increased by 31% compared with the same period in A region, which also shows that the intensity of human activities greatly influence the development of sand dunes under the background of the same climatic change. The fractal dimension value of riparian dune is higher than that of desert dunes of inland area on the whole. However, there are no significant changes, which shows that riparian dune was in a relatively steady development and evolution process. The research provides scientific basis for sustainable development of ecological environment in trans-boundary area of Tumen River downstream.

Key words: tiparian dune, dynamic change, the Tumen River, the Quanhe River

中图分类号:

P931

杜会石, 张爽, 陈智文. 图们江下游圈河流域河岸沙丘动态变化[J]. 地理科学, 2017, 37(3): 400-405.

Huishi Du, Shuang Zhang, Zhiwen Chen. Dynamic Change of Riparian Dune in the Quanhe River Basin of the Downstream Tumen River[J]. SCIENTIA GEOGRAPHICA SINICA, 2017, 37(3): 400-405.

图/表 4

参考文献 26

[1]	吴正. 风沙地貌与治沙工程学[M]. 北京: 科学出版社, 2010: 119-120.
	[Wu Zheng.Geomorphology of wind-drift sands and their controlled engineering. Beijing: Science Press, 2010: 119-120.]
[2]	Liu B L,Tom J C.Mapping the interactions between rivers and sand dunes:Implications for fluvial and aeolian geomorphology[J]. Geomorphology, 2015, 231:246-257. doi: 10.1016/j.geomorph.2014.12.011
[3]	Levin N, Kidron G J, Ben-Dor E.The spatial and temporal variability of sand erosion across a stabilizing coastal dune field[J]. Sedimentology, 2006, 53(4): 697-715. doi: 10.1111/j.1365-3091.2006.00787.x
[4]	李森, 王跃, 哈斯, 等. 雅鲁藏布江河谷风沙地貌分类与发育问题[J]. 中国沙漠, 1997, 17(4): 250-342.
	[Li Sen, Wang Yue, Ha Si et al. Classification and development of aeolian sand landform in the yurlung zangbo valley. Journal of Desert Research, 1997, 17(4): 250-342.]
[5]	Bullard J E, Nash D J.Linear dune pattern variability in the vicinity of dry valleys in the southwest Kalahari[J]. Geomorphology, 1998, 23(1): 35-54. doi: 10.1016/S0169-555X(97)00090-1
[6]	El-Baz F, Maingue M, Robinson C.Fluvio-aeolian dynamics in the north-eastern Sahara: the relationship between fluvial/aeolian systems and ground-water concentration[J]. Journal of Arid Environments, 2000, 44(2): 173-183. doi: 10.1006/jare.1999.0581
[7]	Page K J, Dare-Edwards A J, Owens J W et al. TL chronology and stratigraphy of riverine source bordering sand dunes near Wagga Wagga, New South Wales, Australia[J]. Quaternary International, 2001, 83(1): 187-193. doi: 10.1016/S1040-6182(01)00039-8
[8]	Simpson E L, Hilbert-Wolf H L, Simpson W S et al. The interaction of aeolian and fluvial processes during deposition of the Upper Cretaceous capping sandstone member, Wahweap Formation, Kaiparowits Basin, Utah, USA[J]. Palaeogeography Palaeoclimatology Palaeoecology, 2008, 270(1/2): 19-28. doi: 10.1016/j.palaeo.2008.08.009
[9]	王勇, 韩广, 杨林, 等. 河岸沙丘粒度分布特征[J]. 干旱区研究, 2016, 33(1): 210-214. doi: 10.13866/j.azr.2016.01.28
	[Wang Yong, Han Guang, Yang Lin et al. Grain size distribution of sand dunes at river banks. Arid Zone Research, 2016, 33(1): 210-214.] doi: 10.13866/j.azr.2016.01.28
[10]	Liu Baoli, Coulthard. Mapping the interactions between rivers and sand dunes:Implictions for fluvial and aeolian geomorphology[J]. Geomorphology, 2015, 23(3): 246-257. doi: 10.1016/j.geomorph.2014.12.011
[11]	韩广, 张桂芳. 河流演变在科尔沁沙地形成和演化中的作用初探 ——以科尔沁沙地南部教来河中游沙地为例[J]. 中国沙漠, 2001, 21(2): 129-134. doi: 10.3321/j.issn:1000-694X.2001.02.005
	[Han Guang, Zhang Guifang.Effects of river evolution on formation and development of horqin sandy land. Journal of Desert Research, 2001, 21(2): 129-134.] doi: 10.3321/j.issn:1000-694X.2001.02.005
[12]	马锋. 图们江口附近沙丘沙的结构与碎屑成分特征[D]. 长春: 吉林大学, 2004.
	[Ma Feng.The characteristics of the fragmental texture and clastic constituents of the sand dune by the vicinity of tumenjiang river. Changchun: Jilin University, 2004.]
[13]	曲希玉, 刘立, 高福红, 等. 图们江口附近沙丘的成因[J]. 海洋地质动态, 2002, 18(6): 6-10. doi: 10.3969/j.issn.1009-2722.2002.06.002
	[Qu Xiyu, Liu Li, Gao Fuhong et al. Origin of sand dune in the vicinity of the tumen river. Marine Geology Letters, 2002, 18(6): 6-10.] doi: 10.3969/j.issn.1009-2722.2002.06.002
[14]	李亚云, 杨秀春, 朱晓华, 等. 遥感技术在中国土地荒漠化监测中的应用进展[J]. 地理科学进展, 2009, 28(1): 55-62. doi: 10.11820/dlkxjz.2009.01.008
	[Li Yayun, Yang Xiuchun, Zhu Xiaohua et al. The application of remote sensing technology to land desertification monitoring. Progress in Geography, 2009, 28(1): 55-62.] doi: 10.11820/dlkxjz.2009.01.008
[15]	Du Heqiang, Xue X, Wang Tao.Estimation of the quantity of aeolian saltation sediments blown into the Yellow River from the Ulanbuh Desert, China[J]. Journal of Arid Land, 2014, 6(2): 205-218. doi: 10.1007/s40333-013-0198-3
[16]	苗承玉, 马晓男, 曹光兰, 等. 图们江下游敬信湿地生态安全评价研究[J]. 延边大学学报:自然科学版, 2011, 37(2): 184-188. doi: 10.3969/j.issn.1004-4353.2011.02.021
	[Miao Chengyu, Ma Xiaonan, Cao Guanglan et al. Analysis of ecological security of jingxin wetland in tumen river downstream. Journal of Yanbian University(Natural Science), 2011, 37(2): 184-188.] doi: 10.3969/j.issn.1004-4353.2011.02.021
[17]	徐建华. 现代地理学中的数学方法[M] . 北京: 高等教育出版社, 1996 .
	[Xu Jianhua.Mathematical methods in contemporary geography. Beijing: Higher Education Press, 1996.]
[18]	杜会石, 哈斯, 孙禹, 等. 基于3S技术的库布齐沙漠地表形态参数与分形特征研究[J]. 湖北农业科学, 2015, 54(16): 3900-3903. doi: 10.14088/j.cnki.issn0439-8114.2015.16.017
	[Du Huidan, Ha Si, Sun Yu et al. Analysis of morphological parameters and fractal feature of the Hobq desert based on 3S technology. Hubei Agricultural Sciences, 2015, 54(16): 3900-3903.] doi: 10.14088/j.cnki.issn0439-8114.2015.16.017
[19]	韩京龙, 李国芳, 郭财秀, 等. 图们江流域径流量年际变化特征分析[J]. 水电能源科学, 2014, 32(11): 14-18.
	[Han Jinglong, Li Guofang, Guo Caixiu et al. Trend analysis of annual streamflow in Tumenjiang River basin. Water Resources and Power, 2014, 32(11): 14-18.]
[20]	李善淑, 苏丽欣, 崔日权, 等. 延边州气候特征及主要极端气象事件变化规律浅析[J]. 气象灾害防御, 2015, 22(3): 39-43.
	[Li Shanshu, Su Lixin, Cui Riquan et al. The change law of climatic characteristics and main extreme meteorological events in Yanbian State. Meteorological Disaster Prevention, 2015, 22(3): 39-43.]
[21]	杜会石. 库布齐沙漠沙丘动态变化研究[D]. 北京: 北京师范大学, 2013.
	[Du Huidan.Analysis of dynamic change of the Hobq desert. Beijing:Beijing Normal University, 2013.]
[22]	Anderson J L, Walker I J.Airflow and sand transport variations within a backshore-parabolic dune plain complex: NE Graham Island, British Columbia, Canada[J]. Geomorphology, 2006, 77(1/2): 17-34. doi: 10.1016/j.geomorph.2005.12.008
[23]	Burchsted D, Daniels M, Wohl E E.Introduction to the special issue on discontinuity of fluvial systems[J]. Geomorphology, 2014, 205(SI): 1-4. doi: 10.1016/j.geomorph.2013.04.004
[24]	马玉凤, 严平, 李双权. 内蒙古孔兑区叭尔洞沟中游河谷段的风水交互侵蚀动力过程[J]. 中国沙漠, 2013, 33(4): 990-999.
	[Ma Yufeng, Yan Ping, Li Shuangquan.Dynamic process of aeolian-fluvial interaction erosion in the middle reaches of baerdong river in ten-watershed, Inner Mongolia of China. Journal of Desert Research, 2013, 33(4): 990-999.]
[25]	丁立. 图们江地区的气候环境[J]. 吉林气象, 1997, (4): 9-11.
	[Ding Li. The climatic environment of Tumen River. Jilin Meteorology, 1997(4): 9-11.]
[26]	徐新良, 赵美燕, 刘洛, 等. 近30年东北亚南北样带气候变化时空特征分析[J]. 地理科学, 2015, 35(11): 1468-1474. doi: 10.11820/dlkxjz.2006.02.001
	[Xu Xinliang, Zhao Meiyan, Liu Luo et al. The spatio-temporal charateristics of climate change in North-south transect of Northeast Asia. Scientia Geographica Sinica, 2015, 35(11): 1468-1474.] doi: 10.11820/dlkxjz.2006.02.001

年份	分维值D		稳定性指数SK
年份	A	B	A	B
1984	1.0975	1.0926	0.4025	0.4074
1990	1.1168	1.0901	0.3832	0.4099
2000	1.1026	1.0873	0.3974	0.4127
2010	1.1369	1.0707	0.3631	0.4293
2015	1.1268	1.0944	0.3732	0.4056
