基于Bootstrap-DEA模型环渤海地区海洋经济效率空间演化与影响因素分析

doi:10.13249/j.cnki.sgs.2017.06.007

摘要/Abstract

摘要：

借助Bootstrap-DEA模型综合测算了环渤海地区17个城市海洋经济效率,并结合标准差椭圆和重心坐标方法,定量刻画了2000~2012年环渤海地区海洋经济效率空间格局演化特征,考察了影响空间格局演化的重要因素及其影响机制。结果表明：① 基于Bootstrap-DEA模型纠偏后的海洋经济效率更低,但准确性更高;计算得到的环渤海地区海洋经济效率总体上且呈现先上升后下降的趋势,低海洋经济效率的城市主要分布于渤海西南沿岸。② 从标准差椭圆分布来看,海洋经济效率总体呈现南（偏西）-北（偏东）的空间格局;从重心的移动轨迹来看,效率重心先向渤海西南部海洋经济区移动,再转向辽东半岛海洋经济区与渤海西部海洋经济区移动,最后转向山东半岛蓝色经济区移动。③ 针对海洋经济效率空间格局演化驱动机制的分析表明,区位优势对海洋经济效率产生正向影响,海洋产业结构和外商直接投资对海洋经济效率产生负向影响,资源消耗型海洋产业比重过大是导致海洋经济效率下降的主要原因。

关键词: Bootstrap-DEA, 海洋经济效率, 空间演化, 环渤海地区

Abstract:

By using Bootstrap-DEA model, this article first comprehensively measures and calculates the marine economic efficiency of 17 coastal cities in Bohai Sea Ring Area. Then Standard Deviation Ellipses and Barycentric Coordinates Method are applied to projecting and visualizing the evolution of spatial pattern of marine economic efficiency in Bohai Sea Ring Area from 2000 to 2012. Finally, we analyze the important factors which affect the evolution of spatial pattern and its mechanisms. Results are shown as follows: 1) Compared with the traditional DEA model, marine economic efficiency modified by Bootstrap-DEA model is lower but higher accuracy. Overall, marine economic efficiency in all the cities show a trend which first upwards and then downwards, and the cities with low marine economic efficiency are mainly located in northwestern BSRA. 2) Viewed from rotation angle of the Standard Deviational Ellipses, marine economic efficiency generally present a North (by east)-South (by west) spatial distribution pattern. Viewed from the track of the center of gravity, the center of gravity of marine economic efficiency first moves to Bohai Sea Southwest Marine Economic Zone, and then turns to Liaodong Peninsula Marine Economic Zone and Bohai Sea Western Marine Economic Zone, finally moves to Shandong Peninsula Blue Economic Zone. 3) By analyzing the evolution driving mechanism of spatial pattern of marine economic efficiency, we can find out that location advantages have positive impacts on the marine economic efficiency, while the marine industrial structure and FDI have a negative effect on marine economic efficiency. A large proportion of resource consuming marine industry is the main reason to reduce marine economic efficiency.

Key words: Bootstrap-DEA, spatial evolution, marine economic efficiency, Bohai Sea Ring Area

中图分类号:

F129.9

邹玮, 孙才志, 覃雄合. 基于Bootstrap-DEA模型环渤海地区海洋经济效率空间演化与影响因素分析[J]. 地理科学, 2017, 37(6): 859-867.

Wei Zou, Caizhi Sun, Xionghe Qin. Spatial Evolution of Marine Economic Efficiency and Its Influential Factors in Bohai Sea Ring Area Based on Bootstrap-DEA Model[J]. SCIENTIA GEOGRAPHICA SINICA, 2017, 37(6): 859-867.

图/表 5

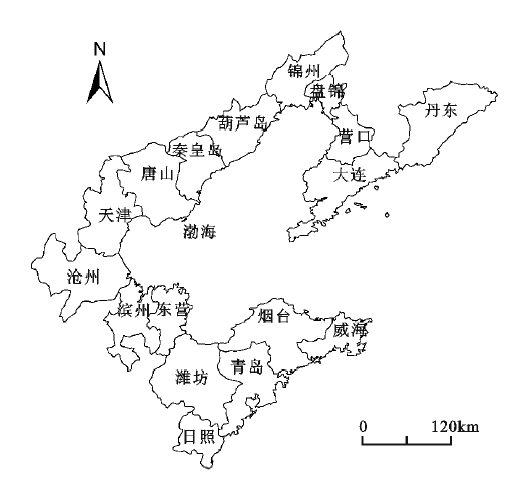

图1

表1

表2

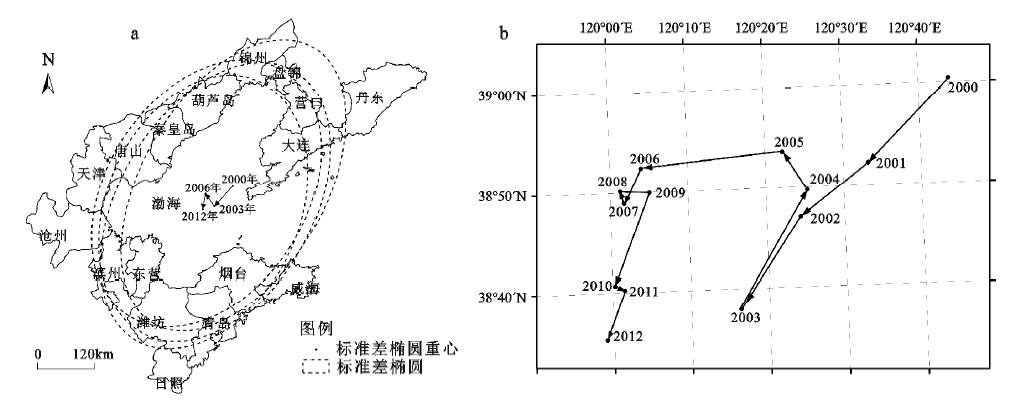

图2

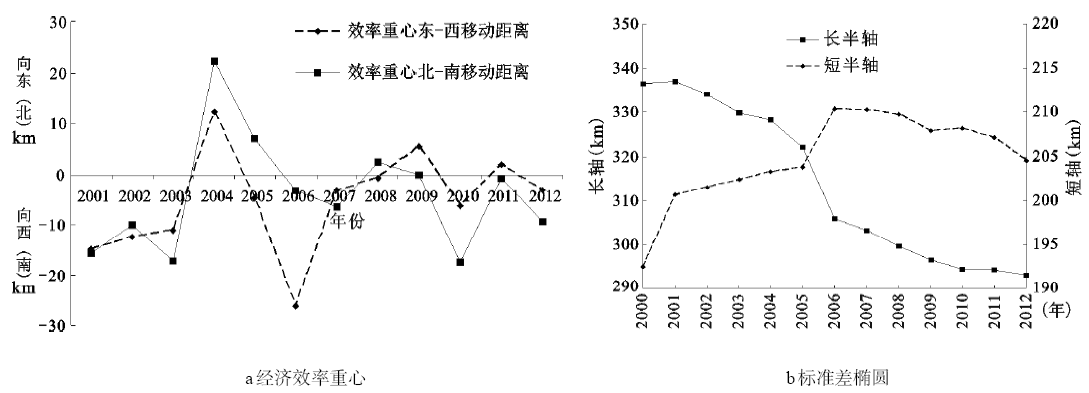

图3

参考文献 34

[1]	狄乾斌, 韩雨汐. 熵视角下的中国海洋生态系统可持续发展能力分析[J]. 地理科学, 2014, 34(6): 664-671.
	[Di Qianbin, Han Yuxi.Sustainable Development Ability of China′s Marine Ecosystem in the Perspective of Entropy. Sientia Geographica Sinica, 2014, 34(6): 664-671.]
[2]	孙才志,覃雄合,李博,等.基于WSBM模型的环渤海地区海洋经济脆弱性研究[J].地理科学,2016,36(5):705-714.
	[Sun Caizhi, Qin Xionghe, Li Bo et al. Assessment of Marine Economy Vulnerability of Coastal Cities in Bohai Sea Ring Area Based on WSBM Model. Scientia Geographica Sinica,2016,36(5):705-714.]
[3]	Bichou K.An empirical study of the impacts of operating and market conditions on container-port efficiency and benchmarking[J]. Research in Transportation Economics, 2013, 42(1): 28-37. doi: 10.1016/j.retrec.2012.11.009
[4]	Cullinane K, Wang T F, Song D Wet al. The technical efficiency of container ports: comparing data envelopment analysis and stochastic frontier analysis[J]. Transportation Research Part A: Policy and Practice, 2006, 40(4): 354-374. doi: 10.1016/j.tra.2005.07.003
[5]	Tingley D, Pascoe S, Coglan L.Factors affecting technical efficiency in fisheries: stochastic production frontier versus data envelopment analysis approaches[J]. Fisheries Research, 2005, 73(3): 363-376. doi: 10.1016/j.fishres.2005.01.008
[6]	Maravelias C D, Tsitsika E V.Economic efficiency analysis and fleet capacity assessment in Mediterranean fisheries[J]. Fisheries Research, 2008, 93(1): 85-91. doi: 10.1016/j.fishres.2008.02.013
[7]	赵林,张宇硕,焦新颖,等. 基于SBM和Malmquist生产率指数的中国海洋经济效率评价研究[J]. 资源科学,2016,38(3):461-475. doi: 10.18402/resci.2016.03.09
	[Zhao L, Zhang Y S, Jiao X Y et al. An evaluation of Chinese marine economy efficiency based on SBM and Malmquist productivity indexes. Resources Science,2016,38(3):461-475.] doi: 10.18402/resci.2016.03.09
[8]	赵林,张宇硕,吴迪,等.考虑非期望产出的中国省际海洋经济效率测度及时空特征[J].地理科学,2016,36(5):671-680.
	[Zhao Lin, Zhang Yushuo, Wu Di et al. Marine Economic Efficiency and Spatio-temporal Characteristics of Inter-province Based on Undesirable Outputs in China. Scientia Geographica Sinica,2016,36(5):671-680.]
[9]	吴淑娟, 肖健华. 我国海洋经济运作效率的测量——基于混合型网络 DEA 模型[J]. 科技管理研究, 2015, 35(10): 64-68.
	[Wu Shujuan, Xiao Jianhua. measure of operating efficiency of China's marine economy base on DEA of Hybrid Network Model. Science and Technology Management Research, 2015, 35(10): 64-68.]
[10]	詹长根, 王佳利, 蔡春美. 沿海地区海洋经济效率及驱动机理研究[J]. 工业技术经济, 35(7): 51-58.
	[Zhan Changgen, Wang Jiali, Cai Chunmei.Research on Marine Economic Efficiency and the Drive Mechanism in Coastal Provinces. Industrial Technology & Economy, 35(7): 51-58.]
[11]	范斐, 孙才志, 张耀光.环渤海经济圈沿海城市海洋经济效率的实证研究[J]. 统计与决策,2011,6:119-123.
	[Fan Fei,Sun Caizhi,Zhang Yaoguang.The analysis of marine economic efficiency of the coastal cities in BoHai economic circle. Statistics and Decision, 2011,6:119-123.]
[12]	苑清敏, 张文龙, 冯冬. 资源环境约束下我国海洋经济效率变化及生产效率变化分析[J]. 经济经纬, 2016, 3: 13-18.
	[Yuan Qingmin, Zhang Wenlong, Feng Dong.An Analysis of Chinese Marine Economic Efficiency Change and Productivity Change under Constraints of Resources and Environment. Economic Survey, 2016, 3: 13-18.]
[13]	Simar L, Wilson P W.Statistical inference in nonparametric frontier models: The state of the art[J]. Journal of Productivity Analysis, 2000, 13(1): 49-78. doi: 10.1023/A:1007864806704
[14]	孙才志,于广华,王泽宇,等.环渤海地区海域承载力测度与时空分异分析[J].地理科学,2014,34(5):513-521.
	[Sun Caizhi,Yu Guanghua,Wang Zeyu et al. Marine carrying capacity assessment and spatio-temporal analysis in the Bohai sea ring area, China. Scientia Geographica Sinica, 2014,34(5):513-521.]
[15]	Wei Quanling.Effective methods on evaluating relative efficiency (DEA). Chinese Science Bulletin, 2000, 45(17):1793-1807.
[16]	Song M L, Zhang L L, Liu W et al. Bootstrap-DEA analysis of BRICS’ energy efficiency based on small sample data[J]. Applied Energy, 2013, 112:1049-1055. doi: 10.1016/j.apenergy.2013.02.064
[17]	Simar L, Wilson P W.Of course we can bootstrap DEA scores! But does it mean anything? Logic trumps wishful thinking[J]. Journal of Productivity Analysis, 1999, 11(1): 93-97. doi: 10.1023/A:1007739507007
[18]	Simar L, Wilson P W.Sensitivity analysis of efficiency scores: How to bootstrap in nonparametric frontier models[J]. Management Science, 1998, 44(1): 49-61.
[19]	Hall P.On the number of bootstrap simulations required to construct a confidence interval[J]. The Annals of Statistics, 1986,14(4):1453-1462. doi: 10.1214/aos/1176350169
[20]	Wong D W S. Several fundamentals in implementing spatial statistics in GIS: Using centrographic measures as examples[J]. Geographic Information Sciences, 1999, 5(2): 163-174. doi: 10.1080/10824009909480525
[21]	赵璐, 赵作权. 基于特征椭圆的中国经济空间分异研究[J]. 地理科学, 2014, 34(8):979-987.
	[Zhao Lu, Zhao Zuoquan.Projecting the Spatial Variation of Economic Based on the Specific Ellipses in China. Scientia Geographica Sinica, 2014, 34(8):979-987.]
[22]	Wong D W S, Lee J. ArcView GIS与ArcGIS 地理信息统计分析[M]. 张学良,译. 北京: 中国财政经济出版社, 2008: 171-197.
	[Wong D W S, Lee J. Statistical Analysis of Geographical information with ArcView GIS and ArcGIS. Translator: Zhang Xueliang.Beijing: Chinese Financial &Economic Publishing House, 2008]
[23]	国家海洋局.中国海洋统计年鉴 2012[M].北京:海洋出版社, 2012.
	[SOA, 2012. China Marine Statistical Yearbook. Beijing: China Ocean Press, 2012.]
[24]	国家统计局城市社会经济调查司.中国城市统计年鉴 2012[M].北京:中国统计出版社,2012.
	[DUSNBSC. China City Statistical Yearbook. Beijing: China Statistics Press, 2012.]
[25]	河北省人民政府.河北经济年鉴 2012[M].北京:中国统计出版社,2012.
	[HPSB. Statistical Yearbook of Hebei. Beijing: China Statistics Press, 2012.]
[26]	辽宁省统计局.辽宁统计年鉴 2012[M].北京:中国统计出版社, 2012.
	[LPSB. Statistical Yearbook of Liaoning. Beijing: China Statistics Press, 2012.]
[27]	山东省统计局.山东统计年鉴 2012[M].北京:中国统计出版社,2012.
	[SPSB. Statistical Yearbook of Shandong. Beijing: China Statistics Press, 2012.]
[28]	Young A.Gold into base metals: productivity growth in the People's Republic of China during the reform period[R]. Beijing: National Bureau of Economic Research, 2000.
[29]	Hall R E, Jones C I.Why do some countries produce so much more output per worker than others?[R]. Beijing: National Bureau of Economic Research, 1999.
[30]	李郇, 徐现祥, 陈浩辉. 20 世纪 90 年代中国城市效率的时空变化[J]. 地理学报, 2006, 60(4): 615-625. doi: 10.3321/j.issn:0375-5444.2005.04.010
	[Li Xun, Xu Xianxiang, Chen Haohui.Temporal and spatial changes of Urban Efficiency in the 1990s. Acta Geographica Sinica, 2006, 60(4): 615-625.] doi: 10.3321/j.issn:0375-5444.2005.04.010
[31]	范建双, 虞晓芬, 张利花. 中国区域城镇化综合效率测度及其动力因子分析[J]. 地理科学, 2015, 35(9): 1077-1085.
	[Fan Jianshuang, Yu Xiaofen, Zhang Lihua.Comprehensive Efficiency Level and Driving Factors of China’ s Regional Urbanization. Scientia Geographica Sinica, 2015, 35(9): 1077-1085.]
[32]	高乐华, 高强. 海洋生态经济系统交互胁迫关系验证及其协调度测算[J]. 资源科学, 2012, 34(1):173-184.
	[Gao Lehua, Gao Qiang.Validation and Calculation of the Coordination Degree of Interactive Relationships in the Marine Eco-Economic System. Resources Science, 2012, 34(1):173-184.]
[33]	中华人民共和国国家统计局.中国统计年鉴 2012[M].北京:中国统计出版社,2012.
	[NBSC, 2012. China Statistical Yearbook. Beijing: China Statistics Press, 2012.]
[34]	李博,杨智,苏飞,等.基于集对分析的中国海洋经济系统脆弱性研究[J].地理科学,2016,36(1):47-54. doi: 10.1329/j.cnki.sgs.2016.01.006
	[Li Bo,Yang Zhi, Su Fei et al. Vulnerability Measurement of Chinese Marine Economic System Based on Set Pair Analysis. Scientia Geographica Sinica,2016,36(1):47-54.] doi: 10.1329/j.cnki.sgs.2016.01.006

城市	传统DEA平均效率值	纠偏的平均效率值	平均偏误	置信区间下界	置信区间上界
天津	0.7769	0.6375	0.1394	0.4623	0.7599
唐山	0.4580	0.4102	0.0478	0.3580	0.4481
秦皇岛	0.8421	0.6651	0.1771	0.3933	0.8248
沧州	0.3959	0.3662	0.0297	0.3381	0.3873
大连	0.6830	0.6310	0.0520	0.5601	0.6704
丹东	0.6146	0.5472	0.0674	0.4058	0.6029
锦州	0.5959	0.4982	0.0977	0.3966	0.5837
营口	0.4175	0.3457	0.0718	0.2681	0.4084
盘锦	0.8551	0.6829	0.1722	0.4669	0.8361
葫芦岛	0.7327	0.6381	0.0946	0.5369	0.7186
青岛	0.6320	0.5722	0.0598	0.4980	0.6191
东营	0.6157	0.5625	0.0532	0.4961	0.6025
烟台	0.5759	0.5308	0.0451	0.4742	0.5645
潍坊	0.4816	0.4447	0.0369	0.3928	0.4725
威海	0.8657	0.7328	0.1329	0.5776	0.8475
日照	0.7241	0.6302	0.0939	0.5222	0.7096
滨州	0.3483	0.3225	0.0257	0.2934	0.3413

城市	2000	2001	2002	2003	2004	2005	2006	2007	2008	2009	2010	2011	2012	平均值
天津	0.218	0.350	0.488	0.577	0.720	0.781	0.687	0.708	0.742	0.712	0.801	0.765	0.738	0.638
唐山	0.230	0.272	0.276	0.291	0.271	0.342	0.813	0.689	0.566	0.442	0.394	0.390	0.357	0.410
秦皇岛	0.729	0.704	0.629	0.659	0.548	0.480	0.765	0.731	0.767	0.712	0.672	0.636	0.613	0.665
沧州	0.082	0.122	0.156	0.194	0.237	0.229	0.663	0.679	0.674	0.499	0.427	0.419	0.380	0.366
大连	0.429	0.465	0.546	0.610	0.757	0.727	0.632	0.610	0.635	0.651	0.647	0.741	0.755	0.631
丹东	0.872	0.867	0.748	0.660	0.772	0.694	0.629	0.499	0.404	0.324	0.252	0.209	0.186	0.547
锦州	0.572	0.555	0.501	0.404	0.584	0.574	0.556	0.509	0.566	0.506	0.384	0.387	0.381	0.498
营口	0.590	0.323	0.397	0.355	0.414	0.408	0.367	0.327	0.297	0.296	0.245	0.241	0.234	0.346
盘锦	0.559	0.485	0.488	0.518	0.680	0.748	0.779	0.858	0.836	0.795	0.768	0.745	0.621	0.683
葫芦岛	0.572	0.298	0.471	0.372	0.639	0.692	0.886	0.757	0.840	0.783	0.680	0.648	0.657	0.638
青岛	0.324	0.323	0.340	0.498	0.679	0.628	0.633	0.672	0.669	0.670	0.681	0.668	0.653	0.572
东营	0.285	0.356	0.316	0.318	0.366	0.531	0.710	0.731	0.711	0.712	0.762	0.690	0.825	0.562
烟台	0.433	0.433	0.423	0.431	0.507	0.515	0.610	0.591	0.601	0.593	0.571	0.589	0.602	0.531
潍坊	0.267	0.355	0.473	0.637	0.453	0.383	0.460	0.527	0.489	0.365	0.478	0.450	0.445	0.445
威海	0.633	0.610	0.634	0.617	0.670	0.636	0.777	0.811	0.838	0.814	0.853	0.826	0.810	0.733
日照	0.737	0.664	0.787	0.823	0.756	0.654	0.627	0.537	0.492	0.431	0.523	0.541	0.618	0.630
滨州	0.353	0.384	0.442	0.416	0.351	0.294	0.310	0.292	0.286	0.268	0.258	0.265	0.273	0.323
环渤海均值	0.464	0.445	0.477	0.493	0.553	0.548	0.641	0.619	0.612	0.563	0.553	0.542	0.538	0.542
