中国湖泊柱样沉积物中239+240Pu的来源与分布特征

doi:10.13249/j.cnki.sgs.2018.03.014

摘要/Abstract

摘要：

针对当前中国湖泊柱样沉积物中^239+240Pu的研究现状,对中国湖泊^239+240Pu的来源、^239+240Pu最大蓄积峰的年代以及^239+240Pu在湖泊沉积物中的迁移行为进行了研究总结。结果表明：中国湖泊^239+240Pu的主要来源于全球大气核试验沉降,湖泊沉积柱样中表层沉积物²⁴⁰Pu/²³⁹Pu均值为0.177±0.019;柱样²⁴⁰Pu/²³⁹Pu均值为0.177±0.008;柱样^239+240Pu的沉积通量范围在7.45~240.6 MBq/km²之间,因湖泊所处沉积环境及纬度的差异而变化。湖泊柱样剖面中的^239+240Pu的分布多呈单峰分布,湖泊沉积物中^239+240Pu的最大蓄积峰位置改变可以忽略不计,^239+240Pu最大蓄积峰具有时标价值。

关键词: 湖泊, 柱样沉积物, ^239+240Pu, ²⁴⁰Pu/²³⁹Pu, 沉积通量

Abstract:

China is a nation with numerous lakes; tracer studies of ^239+240Pu have been carried out in 14 lakes. According to the research status of ^239+240Pu in Chinese lakes, this article summarizes the source, the migration behavior of ^239+240Pu and the age of the maximum accumulation peaks of ^239+240Pu. The results show that ^239+240Pu in lacustrine sediment cores of Chinese lakes are mainly derived from the global atmospheric nuclear tests, the mean value of ²⁴⁰Pu/²³⁹Pu was 0.177±0.019 in the surface sediments, the mean value ²⁴⁰Pu/²³⁹Pu was 0.177±0.008 in the all sediment cores. Because of the difference of lake sedimentary environment and latitude changes, the range of the ^239+240Pu inventories of was 7.45-240.6 MBq/km². The distribution characteristic of ^239+240Pu in lacustrine sediment cores of Chinese lakes are mostly unimodal, and the migration of ^239+240Pu in sediment cores can be neglected and the maximum accumulation peak of ^239+240Pu has time scale value.

Key words: lake, sediment cores, ^239+240Pu activity, ²⁴⁰Pu/²³⁹Pu, ^239+240Pu inventory

中图分类号:

P597.+1

黄亚楠, 潘少明, 刘志勇. 中国湖泊柱样沉积物中^239+240Pu的来源与分布特征[J]. 地理科学, 2018, 38(3): 437-447.

Yanan Huang, Shaoming Pan, Zhiyong Liu. The Source and Distribution Characteristic of ^239+240Pu in Sediment Cores of Chinese Lakes[J]. SCIENTIA GEOGRAPHICA SINICA, 2018, 38(3): 437-447.

图/表 7

表1

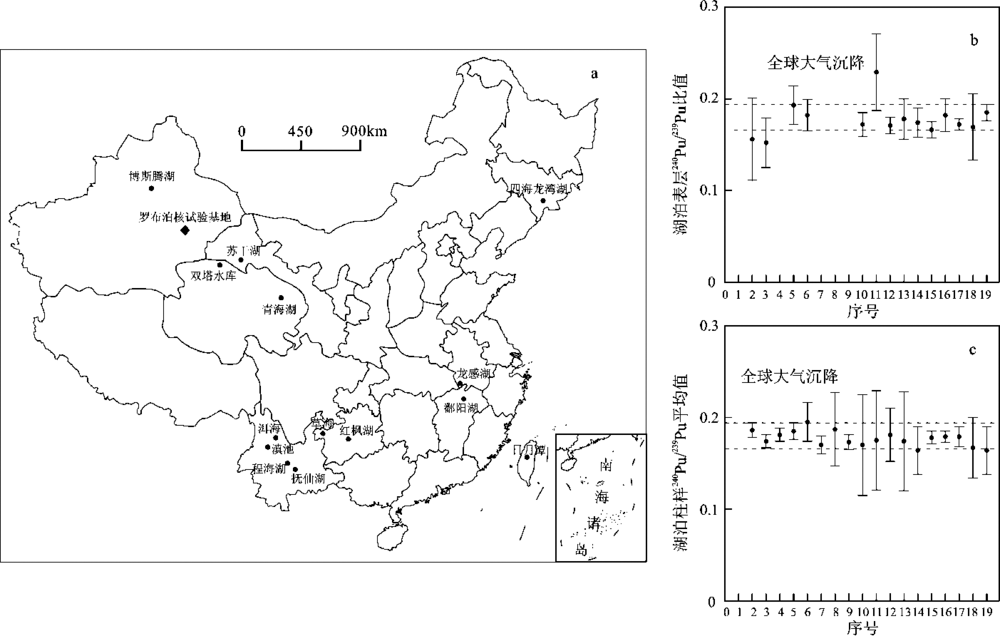

图1

表2

中国湖泊柱样沉积物中239+240Pu"

序号	湖名	面积 (km²)	纬度 (°N)	^239+240Pu沉积通量(MBq/km²)	²⁴⁰Pu/²³⁹Pu 范围	²⁴⁰Pu/²³⁹Pu 均值	仪器	测试方法	测试单位	参考文献
1	日月潭	8.8	23.87	35.9	n.a.	n.a.	n.a.	Silicon-SB-D	IOES（中国）	[22]
2	抚仙湖	216	24.30	n.a.	0.173~0.201	0.186±0.008	n.a	SF-ICP-MS	GZU（中国）	[16]
3	滇池	306	24.85	Error	0.164~0.187	0.174±0.007	n.a.	SF-ICP-MS	GZU（中国）	[16]
4	洱海	256.5	25.80	9.545±0.51	n.a.	0.181±0.007	Element 2,Finngan（德国）	SF-ICP-MS	NIRS（日本）	[23]
5	红枫湖	32	26.49	50.7	0.162~0.213	0.185±0.009	Element 2,Finngan（德国）	SF-ICP-MS	NIRS（日本）	[17]
6	程海湖	76	26.54	35.4	0.166~0.271	0.195±0.021	Element 2,Finngan（德国）	SF-ICP-MS	NIRS（日本）	[18]
7	草海	46.5	27.01	7.45±0.17	n.a.	0.170±0.010	Element 2,Finngan（德国）	SF-ICP-MS	NIRS（日本）	[4]
8	鄱阳湖	4125	29.13	n.a.	n.a.	0.187±0.04	Element 2,Finngan（德国）	SF-ICP-MS	NIRS（日本）	[21]
9	龙感湖	223	29.92	n.a.	n.a.	0.173±0.008	Element 2,Finngan（德国）	SF-ICP-MS	NIRS（日本）	[4]
10	青海湖1	4278	36.63	42.8±0.9	0.038~0.174	0.170±0.055	Element 2,Finngan（德国）	SF-ICP-MS	NIRS（日本）	[20]
11	青海湖2	4278	36.75	31.9±0.9	0.051~0.176	0.175±0.054	Element 2,Finngan（德国）	SF-ICP-MS	NIRS（日本）	[20]
12	青海湖3	4278	36.82	68.4±2.7	0.125~0.229	0.181±0.029	Element 2,Finngan（德国）	SF-ICP-MS	NIRS（日本）	[20]
13	苏干湖1	120	38.86	20.2±0.8	0.159~0.183	0.174±0.054	Element 2,Finngan（德国）	SF-ICP-MS	NIRS（日本）	[19]
14	苏干湖2	120	38.86	24.2±0.7	0.103~0.195	0.164±0.026	Element 2,Finngan（德国）	SF-ICP-MS	NIRS（日本）	[19]
15	双塔水库	40	40.55	240.6±5.3	0.160~0.192	0.178±0.007	Element 2,Finngan（德国）	SF-ICP-MS	NIRS（日本）	[19]
16	博斯腾湖1	1000	41.93	46.6±2.1	0.167~0.193	0.179±0.006	Element 2,Finngan（德国）	SF-ICP-MS	NIRS（日本）	[13]
17	博斯腾湖3	1000	41.93	56.4±2.0	0.166~0.216	0.179±0.011	Element 2,Finngan（德国）	SF-ICP-MS	NIRS（日本）	[13]
18	博斯腾湖2	1000	41.98	51.6±4.3	0.080~0.219	0.167±0.033	Element 2,Finngan（德国）	SF-ICP-MS	NIRS（日本）	[13]
19	四海龙湾湖	0.5	42.29	62.7±3.2	0.157~0.193	0.164±0.026	Element 2,Finngan（德国）	SF-ICP-MS	NIRS（日本）	[19]

表2

表3

图2

图3

图4

参考文献 46

[1]	万国江. 137Cs及210Pbex方法湖泊沉积计年研究新进展[J]. 地球科学进展,1995,10(2):188-192.
	[Wan Guojiang.Progresses on 137Cs and 210Pbex dating of lake sediments[J]. Advance in Earth Siences,1995,10(2):188-192.]
[2]	张信宝,龙翼,文安邦,等. 中国湖泊沉积物137Cs和210Pbex断代的一些问题[J]. 第四纪研究,2012,32(3): 430-440. doi: 10.3969/j.issn.1001-7410.2012.03.09
	[Zhang Xinbao,Long Yi,Wen Anbang et al. Discussion on applying 137Cs and 210Pbex for lake sediment dating in China. Quaternary Sciences,2012,32(3): 430-440.] doi: 10.3969/j.issn.1001-7410.2012.03.09
[3]	万国江,吴丰昌,万恩源,等. 239+240Pu作为湖泊沉积物计年时标: 以云南程海为例[J]. 环境科学学报,2011,31(5): 979-986.
	[Wan Guojiang,Wu Fengchang, Wan Enyuan et al.239+240Pu as a dating marker in lake sediments: An example from Lake Chenghai, China. Acta Scientiae Circumstantiae,2011,31(5): 979-986.]
[4]	曾理. 放射性核素钚在湖泊沉积物中的分布特性及沉积年代学和流域侵蚀应用[D].北京: 中国科学院地球化学研究所, 2011.
	[Zeng Li.Distribution characteristics of radionuclide plutonium in lake sediments and their application in sedimentary chronology and watershed erosion. Beijing: Institute of Geochemistry Chinese Academy of Sciences, 2011.]
[5]	Tims S,Pan Shaoming,Zhang R et al. Plutonium AMS measurements in Yangtze River estuary sediment[J]. Nuclear Instruments and Methods in Physics Research Section B: Beam Interactions with Materials and Atoms, 2010,268(7):1155-1158. doi: 10.1016/j.nimb.2009.10.122
[6]	Cheol-Su Kim,Kim C,Martin P et al. Determination of Pu isotope concentrations and isotope ratio by inductively coupled plasma mass spectrometry: A review of analytical methodology[J]. Journal of Analytical Atomic Spectrometry,2007,22(7) :827-841. doi: 10.1039/b617568f
[7]	Michael E Ketterer, Szechenyi S.Determination of plutonium and other transuranic elements by inductively coupled plasma mass spectrometry: A historical perspective and new frontiers in the environmental sciences[J]. Spectrochimica Acta Part B: Atomic Spectroscopy,2008,63(7):719-737. doi: 10.1016/j.sab.2008.04.018
[8]	刘志勇. 长江口及苏北潮滩沉积物中放射性核素钚(Pu) 的分布特征与环境意义[D]. 南京:南京大学,2011.
	[Liu Zhiyong.Distribution characteristics and environmental significance of the radionuclide Pu in the sediments of the Yangtze River estuary and the north Jiangsu tidal flat. Nanjing: Nanjing University, 2011.]
[9]	Lindahl P, Lee S,Worsfold P et al. Plutonium isotopes as tracers for ocean processes: a review[J]. Marine Environmental Research,2010,69(2):73-84. doi: 10.1016/j.marenvres.2009.08.002 pmid: 19773079
[10]	Zheng Jian, Tagami K,Watanabe Y et al. Isotopic evidence of plutonium release into the environment from the Fukushima DNPP accident[J]. Scientific Reports, 2012, 2(3):1-8. doi: 10.1038/srep00304 pmid: 3297203
[11]	Boulyga S,Becker J.Isotopic analysis of uranium and plutonium using ICP-MS and estimation of burn-up of spent uranium in contaminated environmental samples[J]. Journal of Analytical Atomic Spectrometry, 2002,17(9):1143-1147. doi: 10.1039/b202196j
[12]	Kelley J,Bond L,Beasley T.Global distribution of Pu isotopes and 237Np[J]. Science of the Total Environment,1999,237:483-500.
[13]	Liao Haiqin, Bu Wenting, Zheng Jian et al. Vertical distributions of radionuclides 239+ 240Pu, 240Pu/239Pu, and 137Cs in sediment cores of Lake Bosten in Northwestern China[J]. Environmental Science Technology,2014,48(7):3840-3846. doi: 10.1021/es405364m
[14]	Bu Wenting,Ni Youyi,Guo Qiuju et al. Pu isotopes in soils collected downwind from Lop Nor: Regional fallout vs. global fallout[J]. Scientific Reports,2015,5:1-10. doi: 10.9734/JSRR/2015/14076
[15]	曾理,吴丰昌,万国江,等.中国地区湖泊沉积物中137Cs 分布特征和环境意义[J]. 湖泊科学,2009,21(1):1-9. doi: 10.3321/j.issn:1003-5427.2009.01.001
	[Zeng Li,Wu Fengchang,Wan Guojiang et al. The distribution characteristic and environmental significance of Cesium-137 deposit profile in Chinese lacustrine sediment.J Lake Sci,2009,21(1):1-9.] doi: 10.3321/j.issn:1003-5427.2009.01.001
[16]	石艳洁. 典型地区湖泊中210Pb、137Cs 和 Pu 的剖面分布特征及其环境意义[D].贵州:贵州大学,2015.
	[Shi Yanjie.Spatial distribution of lead, radio-cesium and plutonium in typical lake sediments and their application for recent chronology.Guizhou:Guizhou University,2015.]
[17]	[Zheng Jian, Wu Fengchang, Yamada Masatoshiet al. Global fallout Pu recorded in lacustrine sediments in Lake Hong feng, SW China[J]. Environmental Pollution,2008,152(2):314-321. doi: 10.1016/j.envpol.2007.06.027 pmid: 17651874
[18]	Zheng Jian,Liao Haiqing,Wu Fengchang et al. Vertical distributions of 239+240Pu activity and 240Pu/239Pu atom ratio in sediment core of Lake Chenghai, SW China[J]. Journal of Radioanalytical and Nuclear Chemistry, 2008, 275(1):37-42. doi: 10.1007/s10967-006-7001-2
[19]	Wu Fengchang,Zheng Jian,Liao Haiqing et al.Vertical distributions of plutonium and 137Cs in lacustrine sediments in northwestern China: Quantifying sediment accumulation rates and source identifications[J]. Environmental Science & Technology,2010,44(8):2911-2917. doi: 10.1021/es9029649 pmid: 20302293
[20]	Wu Fengchang, Zheng Jian, Liao Haiqing et al. Anomalous plutonium isotopic ratios in sediments of Lake Qinghai from the Qinghai-Tibetan Plateau, China[J]. Environmental Science Technology, 2011, 45(21): 9188-9194. doi: 10.1021/es202315c pmid: 21950768
[21]	Haiqing Liao, Jian Zheng,Fengchang Wu et al. Determination of plutonium isotopes in freshwater lake sediments by sector-field ICP-MS after separation using ion-exchange chromatography[J]. Applied Radiation and Isotopes, 2008, 66(8):1138-1145. doi: 10.1016/j.apradiso.2008.01.001 pmid: 18276148
[22]	Chih-An Huh, Chu K, Weit C et al. Lead-210 and plutonium fallout in Taiwan as recorded at a subalpine lake[J]. Journal of Southeast Asian Earth Sciences,1996,14(5):373-376. doi: 10.1016/S0743-9547(96)00072-4
[23]	廖海清. 放射性钚和铯在湖泊中的时空分布特性及近期沉积年代学应用[D].北京:中国科学院地球化学研究所, 2008.
	[Liao Haiqing.Temporal and spatial distribution of radioactive plutonium and cesium in lakes and recent depositional chronology applications. Beijing:Institute of Geochemistry Chinese Academy of Sciences,2011.]
[24]	林瑞芬,卫克勤,程致远,等. 新疆博斯腾湖沉积岩心的210Pb、228Th、239,240Pu 和3H的分布及意义[J]. 地球化学,1992,21(1):63-69.
	[Lin Ruifen, Wei Keqin,Cheng Zhiyaun et al. Distributions of 210Pb,238Th,239,240Pu and 3H and their implications in sediment core from bosten lake, Xinjiang,China[J].Geochimica,1992,21(1):63-69.]
[25]	Ueda S,Ohtsuka Y,Kondo K et al. Inventories of 239+240Pu, 137Cs, and excess 210Pb in sediments from freshwater and brackish lakes in Rokkasho, Japan, adjacent to a spent nuclear fuel reprocessing plant[J]. Journal of Environmental Radioactivity,2009, 100(10): 835-840. doi: 10.1016/j.jenvrad.2009.06.008 pmid: 19586693
[26]	Gacutter,Bruland K,Risebrough R. Deposition and accumulation of plutonium isotopes in Antarctica[J]. Nature, 1979, 279(5714) :628-629. doi: 10.1038/279628a0
[27]	Charles M.Effects of Ionizing Radiation: United Nations Scientific Committee on the Effects of Atomic Radiation: UNSCEAR 2006 Report, Volume 1-Report to the General Assembly, with Scientific Annexes A and B[J]. Radiation Protection Dosimetry, 2010, 138(2) :187-189. doi: 10.1093/rpd/ncp262
[28]	卜文庭, 郭秋菊. 我国环境土壤和地表水沉积物中Pu的分布特征研究[J]. 辐射防护, 2013, 33(3):144-150, 157.
	[Bu Wenting,Guo Qiuju.Concentration and characterization of plutonium in soils and groundwater sediments in China. Radiation Protection, 2013, 33(3):144-150, 157.]
[29]	张信宝,曾奕,龙翼. 137Cs质量平衡法测算青海湖现代沉积速率的尝试[J].湖泊科学, 2009, 21(6):827-833. doi: 10.18307/2009.0612
	[Zhang Xinbao, Zeng Yi, Long Yi.An attempt to use the 137Cs mass balance model for assessment of recent deposition rates in Lake Qinghai, China. [J]. Lake Sci.2009,21(6):827-833.] doi: 10.18307/2009.0612
[30]	徐海,刘晓燕,安芷生,等. 青海湖现代沉积速率空间分布及沉积通量初步研究[J].科学通报, 2010,55(4-5):384-390.
	[Xu Hai, Liu Xiaoyan, An Zhisheng et al. Spatial pattern of modern sedimentation rate of Qinghai Lake and a preliminary estimate of the sediment flux.Chinese Science Bulletin, 2010, 55(7): 384-390.]
[31]	Xiang L, LU X X, Higgitt D l et al. Recent lake sedimentation in the middle and lower Yangtze basin inferred from 137Cs and 210Pb measurements[J]. Journal of Asian Earth Sciences, 2002, 21: 77-86. doi: 10.1016/S1367-9120(02)00015-9
[32]	Matisoff G.Activities and geochronology of 137Cs in lake sediments resulting from sediment resuspension[J]. Journal of Environmental Radioactivity, 2017, 167: 222-234. doi: 10.1016/j.jenvrad.2016.11.015
[33]	万国江. 现代沉积年分辨的137Cs计年——以云南洱海和贵州红枫湖为例[J].第四纪研究,1999, 19(1):73-80. doi: 10.1088/0256-307X/15/12/024
	[Wan Guojiang.137Cs dating by annual distinguishes for recent sedimentation: Samples from Ehai lake and Hngfeng lake[J].Quaternary Sciences, 1999, 19(1):73-80.] doi: 10.1088/0256-307X/15/12/024
[34]	张信宝. 有关湖泊沉积137Cs 深度分布资料解译的探讨. 山地学报,2005,23(3):294-299.
	[Zhang Xinbao.Discussion on interpretations of 137Cs depth distribution profiles of lake deposits. Journal of Mountain Science, 2005, 23(3): 294-299.]
[35]	万国江, 白占国, 刘东生, 等. 137Cs 在滇西与黔中地区散落的差异——青藏隆起对滇西地区全球性扩散大气污染物散落屏蔽效应的推断[J]. 第四纪研究, 2001, 21(5):407-415. doi: 10.3321/j.issn:1001-7410.2001.05.004
	[Wan Guojiang, Bai Zhanguo, Liu Dongsheng et al. The differentials of fallout 137Cs Between western Yunnan and central Guizhou: Implication for the barrier erect of Qinghai-xizang uplift on global atmospheric pollutants in Yunan-Guizhou plateau.Quaternary Sciences, 2001,21(5):407-415.] doi: 10.3321/j.issn:1001-7410.2001.05.004
[36]	杨桂山, 马荣华, 张路, 等. 中国湖泊现状及面临的重大问题与保护策略[J]. 湖泊科学,2010,22(6):799-810. doi: 10.18307/2010.0601
	[Yang Guishan, Ma Ronghua, Zhang Lu et al. Lake status, major problems and protection strategy in China . J Lake Sci,2010,22(6):799-810.] doi: 10.18307/2010.0601
[37]	John Crusius,Robert F.Anderson. Evaluating the mobility of 137Cs, 239+240Pu and 210Pb from their distributions in laminated lake sediments[J]. Journal of Paleolimnology, 1995,13(2) :119-141. doi: 10.1007/BF00678102
[38]	Crusius J R, F Anderson. Sediment focusing in six small lakes inferred from radionuclide profiles[J]. Journal of Paleolimnology, 1995, 13(2): 143-155. doi: 10.1007/BF00678103
[39]	Lusa M, Lehto J, Leskinen A et al. 137Cs, 239,240Pu and 241Am in bottom sediments and surface water of Lake Paeijaenne, Finland[J]. Journal of Environmental Radioactivity, 2009, 100(6): 468-476. doi: 10.1016/j.jenvrad.2009.03.006 pmid: 19362758
[40]	Wan G, Chen J, Wu Fengchang et al. Coupling between 210Pbex and organic matter in sediments of a nutrient-enriched lake: An example from Lake Chenghai, China[J]. Chemical Geology,2005,224(4) :223-236. doi: 10.1016/j.chemgeo.2005.07.025
[41]	K Hirose,Y Igarashi,M Aoyama.Analysis of the 50-year records of the atmospheric deposition of long-lived radionuclides in Japan[J]. Applied Radiation and Isotopes,2008,66(11):1675-1678. doi: 10.1016/j.apradiso.2007.09.019 pmid: 18502651
[42]	杨旭,潘少明,徐仪红,等. Pu同位素比值在沉积物测年中的应用[J]. 海洋通报,2013,32(2):227-234.
	[Yang Xu, Pan Shaoming,Xu Yihong et al. Pu isotope ratios as the geochronometer for sediments. Marine Science Bulletin, 2013,32(2): 227-234.]
[43]	张燕,潘少明,彭补拙. 用137Cs计年法确定湖泊沉积物沉积速率研究进展[J].地球科学进展,2005,20(6):671-678. doi: 10.3321/j.issn:1001-8166.2005.06.011
	[Zhang Yan,Pan Shaoming,Peng Buzhuo.An overview on the evaluation of sediment accumulation rate of lake by 137Cs dating. Advances in Earth Science,2005,20(6):671-678.] doi: 10.3321/j.issn:1001-8166.2005.06.011
[44]	Hancock G J, Leslie C, Everett S E et al. Plutonium as a chronomarker in Australian and New Zealand sediments: a comparison with 137Cs[J]. Journal of Environmental Radioactivity,2011,102(10): 919-929. doi: 10.1016/j.jenvrad.2009.09.008 pmid: 19857913
[45]	Yamamoto M, Hoshi M, Takada J et al. Plutonium, 137Cs and U in some pond and lake sediments from areas surrounding the Semipalatinsk Nuclear Test Site: With emphasis on anomalously high U accumulation[J]. Journal of Radioanalytical and Nuclear Chemistry,2004,262(3): 607-616. doi: 10.1007/s10967-004-0483-x
[46]	Zheng Jian, Aono Tatsuo, Uchida Shigeo et al. Distribution of Puisotopes in marine sediments in the Pacific 30 km off Fukushima after the Fukushima Daiichi nuclear power plant accident[J]. Geochemical Journal, 2012, 46, 361-369. doi: 10.1016/j.chemer.2011.08.001

主要来源	²⁴⁰Pu/²³⁹Pu原子比	参考文献
武器级	0.01~0.35	[8]
反应堆	0.24~0.80	[8]
全球大气核试验沉降	0.18±0.014	[12]
马绍尔群岛核试验场（美国,1946~1958）	0.306~0.360	[9]

湖名	柱样名称	^239+240Pu与¹³⁷Cs的线性关系	r²	^239+240Pu/¹³⁷Cs	¹³⁷Cs校正时间
红枫湖	HF20040709S	¹³⁷Cs =63.766×^239+240Pu+5.220	0.878	0.027~0.032	2004年7月
程海湖	CH970608-1	¹³⁷Cs =122.175×^239+240Pu-8.096	0.881	0.008~0.039	1997年12月
苏干湖	2007SG2-1/2	¹³⁷Cs =17.668×^239+240Pu+2.368	0.944	0.042±0.002	1998年7月
双塔水库	2007ST1-3	¹³⁷Cs =71.429×^239+240Pu-11.407	0.967	0.033~0.039	1998年7月
四海龙湾湖	2006SHLW-4	¹³⁷Cs =72.993×^239+240Pu+15.292	0.908	0.025±0.003	1998年7月
博斯腾湖博斯腾湖	06BS2-1	¹³⁷Cs =20.071×^239+240Pu+2.559	0.868	0.036	1998年7月
博斯腾湖博斯腾湖	07BS10-2	¹³⁷Cs =8.455×^239+240Pu+9.158	0.535	0.053	1998年7月
