黄河青藏高原网状河段不同流量下活动河道的分布规律

doi:10.13249/j.cnki.sgs.2018.04.016

摘要/Abstract

摘要：

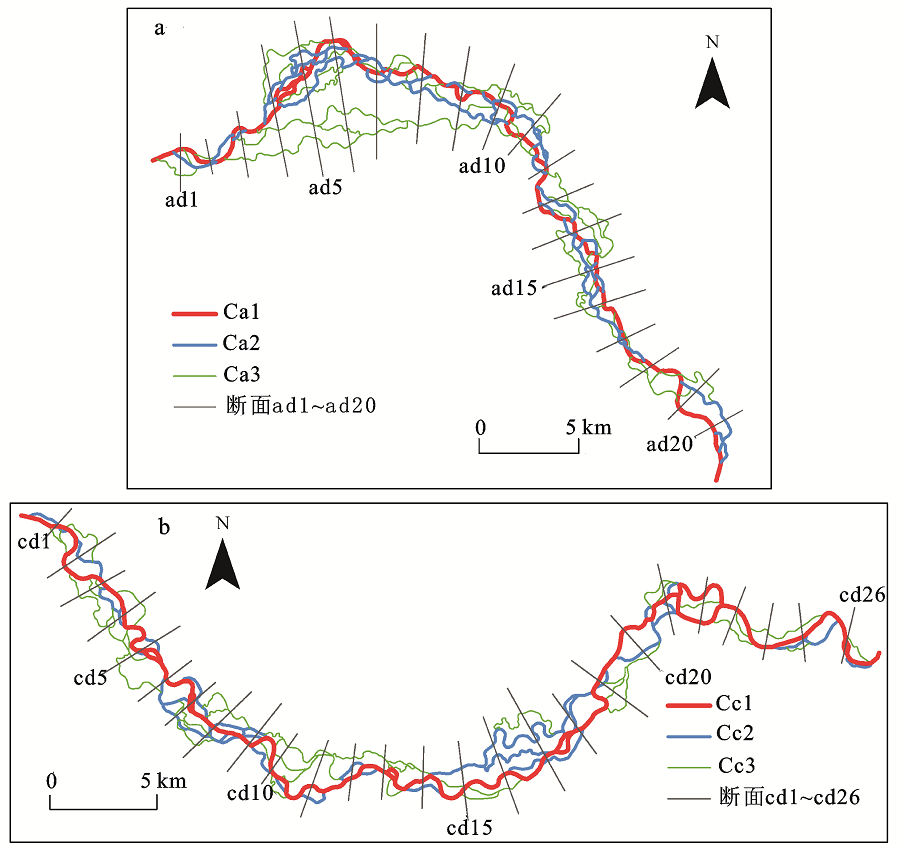

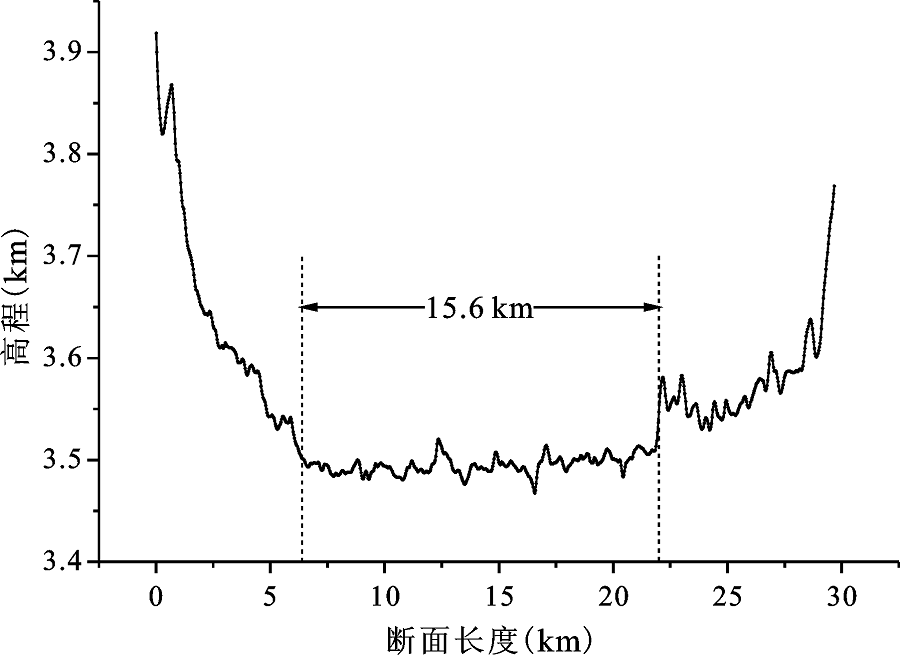

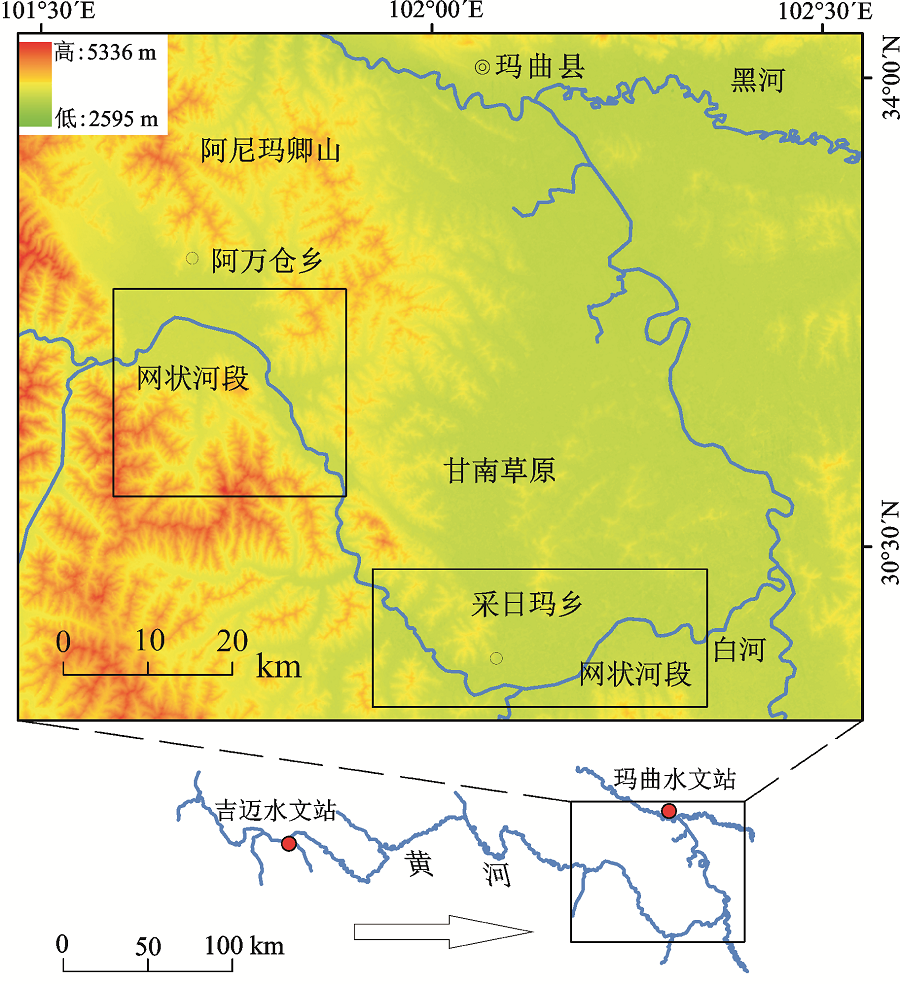

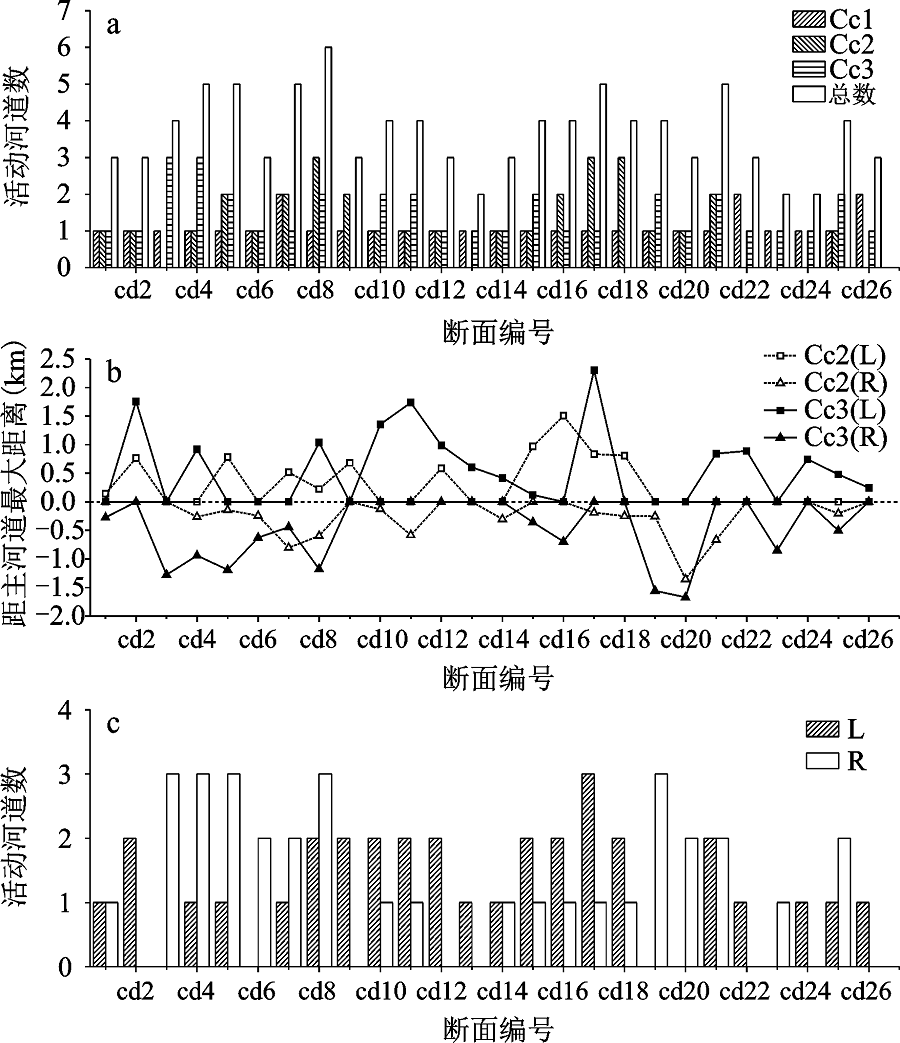

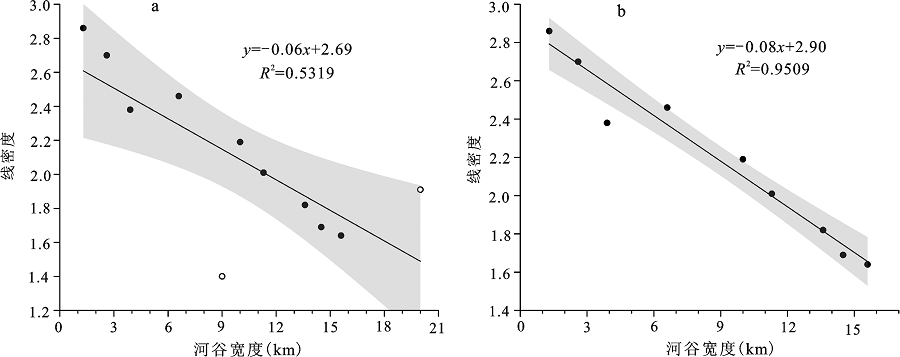

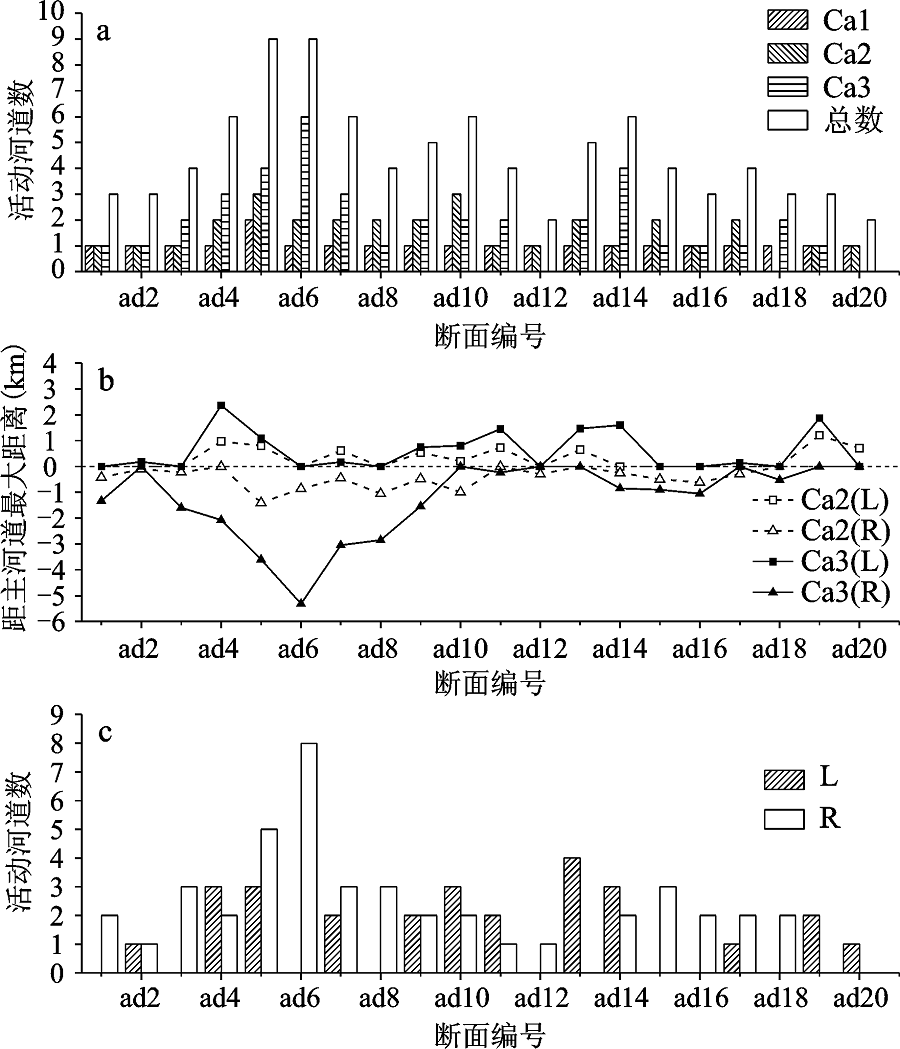

以黄河青藏高原阿万仓和采日玛两段主河道50 km与65 km长的网状河段为研究对象,利用2013年3期遥感影像绘制了不同流量下（176 m³/s,978 m³/s,1 610 m³/s）网状河段活动河道的分布变化图,结合DEM数据分析了现有河道在流量增加过程中的空间分布格局和潜在定量关系。研究结果表明：根据流量大小划分出的3类活动河道,其分布规律基本是后者位于前者的两侧,据此可以推断,网状河分支河道基本是从主河道向两侧逐渐发展的。对于阿万仓河段,在河谷和河间地相对宽阔处,每个河道断面上3类活动河道数的比值为1:1.67:2.25;而在河谷较窄的地方,该比值为1:1.22:1.33。在采日玛河段,该比值分别为1:1.3:1.4和1:0.95:1.16。在宽阔的草原湿地河段,当网状河的主河道发生弯曲时,弯道内侧的活动河道数要大于弯道外侧的活动河道数。在平坦开阔的河谷地带,断面上的活动河道线密度与河谷宽度之间呈现出极好的线性负相关关系;而峡谷地带由于两侧高地形的限制,河谷宽窄不一,活动河道的线密度相对较大、且差别也较大。

关键词: 网状河流, 活动河道, 线密度, 河谷宽度, 黄河

Abstract:

As an anastomosing river pattern located in the Qinghai-Tibetan Plateau, the Awancang and Cairima anastomosing channel reaches of the Yellow River were selected to be revealed the distribution features of the active channels in this study. The main channel length of the two anastomosing river reaches is 50 km and 65 km, respectively. Based on DEM data, three remote sensing images under different discharge conditions (176 m³/s,978 m³/s,1 610 m³/s) in 2013, and established series of cross-sections with a interval about 2 km which perpendicular to the anastomosing channel belt, the active channels are classified into three kinds and the number of them and distance from active channel to the main channel on every cross-section were obtained. Furthermore, the spatial distribution characteristics of the active channels under the different discharge conditions were revealed. The results show that distribution rule of the three kinds of the active channels is the latter is on both sides of the former basically. From this we can infer that the branching channels in the anastomosing river reaches develop from the main channel to its both sides. For the Awancang anastomosing river reach, the ratio of the three kinds of the active channels on average of all cross-sections is 1:1.67:2.25 in the broader floodplain and grassland, while is 1:1.22:1.33 in the narrower valley section. For the Cairima anastomosing river reach, the ratio is 1:1.3:1.4 and 1:0.95:1.16, respectively. This phenomenon is beneficial to maintain the spatial balanced distribution and stability of the anastomosing channel system. In the reach of grassland without restrictions of valley, when the main channel occurs bends, the number of the active channels in the inner side of the curves is larger than that in the outside of the curves. In the reach of well-developed anastomosing morphology, there is an excellent linear negative correlation between the line density and valley width. While the line density of the active channels in valley reach is relatively larger so do the difference among them.

Key words: anastomosing river, active channel, line density, valley width, the Yellow River

中图分类号:

P931.1

高超, 王随继. 黄河青藏高原网状河段不同流量下活动河道的分布规律[J]. 地理科学, 2018, 38(4): 618-627.

Chao Gao, Suiji Wang. Distribution Rule of Active Channels Under Different Discharge of Anastomosing Reaches in the Tibetan Plateau of the Yellow River[J]. SCIENTIA GEOGRAPHICA SINICA, 2018, 38(4): 618-627.

图/表 11

图1

图2

图3

表1

图4

图5

图6

表2

表3

图7

图8

参考文献 28

[1]	Leopold L B, Wolman M G. River Channel Patterns - Braided, Meandering and Straight[J]. Professional Geographer, 1957, 9: 39-85.
[2]	Rust B R. A classification of alluvial channel systems[J]. Dallas Geological Society, 1977: 187-198.
[3]	Selby M J. Earth´s Changing Surface. An introduction to Geomorphology[J]. Economic Journal, 1985, 112(476): 93-106. doi: 10.1111/1468-0297.0j674
[4]	Smith D G, Smith N D. Sedimentation in anastomosed river systems; examples from alluvial valleys near Banff, Alberta[J]. Journal of Sedimentary Research, 1980, 50(1): 157-164. doi: 10.1306/212F7991-2B24-11D7-8648000102C1865D
[5]	Schumm S A. Patterns of Alluvial Rivers[J]. Earth and Planetary Sciences, 1985, 13(13): 5-27.
[6]	Knighton A D, Nanson G C. Anastomosis and the continuum of channel pattern[J]. Earth Surface Processes and Landforms, 1993, 18(7): 613-625. doi: 10.1002/esp.3290180705
[7]	Makaske B. Anastomosing rivers: a review of their classification, origin and sedimentary products[J]. Earth-Science Reviews, 2001, 53(3-4): 149-196. doi: 10.1016/S0012-8252(00)00038-6
[8]	钱宁. 关于河流分类及成因问题的讨论[J]. 地理学报, 1985(1): 1-10.
	[Qian Ning. On the classification and causes of formation of different channel patterns. Acta Geographica Sinica, 1985(1): 1-10.]
[9]	王随继, 任明达. 根据河道形态和沉积物特征的河流新分类[J]. 沉积学报, 1999, 17(2): 240-246. doi: 10.3969/j.issn.1000-0550.1999.02.013
	[Wang Suiji, Ren Mingda. A new classification of fluvial rivers according to channel planform and sediment characteristics. Acta Sedimentologica sinica, 1999, 17(2): 240-246.] doi: 10.3969/j.issn.1000-0550.1999.02.013
[10]	王随继, 尹寿鹏. 网状河流和分汊河流的河型归属讨论[J]. 地学前缘, 2000(s2): 79-86.
	[Wang Suiji, Yin Shoupeng. Discussion on channel patterins of anastomosing and anabranched rivers. Earth Science Frotiers, 2000(s2): 79-86.]
[11]	Wang S, Chen Z, Smith D G. Anastomosing river system along the subsiding middle Yangtze River basin, southern China[J]. Catena, 2005, 60(2): 147-163. doi: 10.1016/j.catena.2004.11.007
[12]	Wang S, Ni J, Wang G, Cheng D et al. Hydrological processes of an anastomosing river system on the Zhujiang River Delta, China[J]. Journal of Coastal Research, 2004: 124-133.
[13]	袁宝印, 王振海. 青藏高原隆起与黄河地文期[J]. 第四纪研究, 1995(4): 353-359.
	[Yuan Baoyin, Wang Zhenhai. Uplift of the Qinghai-Xizang Plateau and the Yellow River physiographic period. Quaternary Sciences, 1995(4): 353-359.]
[14]	李吉均, 方小敏, 马海洲, 等. 晚新生代黄河上游地貌演化与青藏高原隆起[J]. 中国科学(D辑), 1996, 26(4): 316-322. doi: 10.1360/zd1996-26-4-316
	[Li Jijun, Fang Xiaomin, Ma Haizhou et al. Landform evolution of the upper reaches of Huanghe river in late Cenozoic era and the upwelling of Qinghai-Tibet plateau. Scinece in China (Series D), 1996, 26(4): 316-322.] doi: 10.1360/zd1996-26-4-316
[15]	杨达源, 王云飞. 黄河上游的阶地与水系变迁[J]. 地理科学, 1996, 16(2): 137-143.
	[Yang Dayuan, Wang Yunfei. On river terraces of the upper reachers of the Huanghe River and change of the river systerm. Scientia Geographica Sinica, 1996, 16(2): 137-143.]
[16]	张智勇, 于庆文, 张克信, 等. 黄河上游第四纪河流地貌演化——兼论青藏高原1:25万新生代地质填图地貌演化调查[J]. 地球科学, 2003, 28(6): 621-626.
	[Zhang Zhiyong, Yu Qingwen, Zhang Kexin et al. Geomorphological evolution of Quaternary river from upper Yellow River and geomorphological evolution investigation for 1:250000 scale geological mapping in Qinghai-Tibet Plateau. Earth Science, 2003, 28(6): 621-626.]
[17]	王随继. 黄河流域河型转化现象初探[J]. 地理科学进展, 2008, 27(2): 10-17. doi: 10.11820/dlkxjz.2008.02.002
	[Wang Suiji. Analysis of river pattern transformations in the Yellow River basin. Progress in Geography, 2008, 27(2): 10-17.] doi: 10.11820/dlkxjz.2008.02.002
[18]	李志威, 王兆印, 余国安, 等. 黄河源玛曲河段河型沿程变化及其原因[J]. 泥沙研究, 2013(3): 51-58.
	[Li Zhiwei, Wang Zhaoyin, Yu Guoan et al. River pattern transition and its causes along Maqu reach of Yellow River source region. Journal of Sediment Research, 2013(3): 51-58.]
[19]	王云飞, 王苏民, 薛滨, 等. 黄河袭夺若尔盖古湖时代的沉积学依据[J]. 科学通报, 1995, 40(8): 723-725. doi: 10.1007/BF02006258
	[Wang Yunfei, Wang Sumin, Xue Bin et al. Sedimentology evidence of the date of Ruoergai ancinent lake captured by Yellow River. Chinese Science Bulletin, 1995, 40(8): 723-725.] doi: 10.1007/BF02006258
[20]	黄河水利委员会. 黄河流域水文资料[M].2013.
	[Yellow River Conservancy Commission. The hydrological data in the Yellow River Basin, 2013.]
[21]	王随继, 黎劲松, 尹寿鹏. 网状河流体系的基本特征及其影响因素[J]. 地理科学, 1999, 19(5): 422-427.
	[Wang Suiji, Li Jinsong, Yin Shoupeng. Basic characteristics and controlling factors of anastomosing fluvial systerms. Scientia Geographica Sinica, 1999, 19(5): 422-427.]
[22]	王随继, 谢小平, 程东升. 网状河流研究进展述评[J]. 地理科学进展, 2002, 21(5): 440-449. doi: 10.11820/dlkxjz.2002.05.005
	[Wang Suiji, Xie Xiaoping, Cheng Dongsheng. The prograss in the research of anastomosing river. Progress in Geography, 2002, 21(5): 440-449.] doi: 10.11820/dlkxjz.2002.05.005
[23]	Tiegs S D, Pohl M. Planform channel dynamics of the lower Colorado River: 1976-2000[J]. Geomorphology, 2005, 69(1): 14-27. doi: 10.1016/j.geomorph.2004.12.002
[24]	Smith N D, Cross T A, Dufficy J P et al. Anatomy of an avulsion[J]. Sedimentology, 1989, 36(1): 1-23.
[25]	Mccarthy T S, Ellery W N, Stanistreet I G. Avulsion mechanisms on the Okavango fan, Botswana: the control of a fluvial system by vegetation[J]. Sedimentology, 1992, 39(5): 779-795. doi: 10.1111/j.1365-3091.1992.tb02153.x
[26]	王随继. 两类多河道河流的形成模式及河道稳定性比较[J]. 地球学报, 2002, 23(1): 89-93. doi: 10.3321/j.issn:1006-3021.2002.01.016
	[Wang Suiji. Comparision of formation model and channel stability between two different sorts of mutiple channel river patterns. Acta Geoscientia Sinica, 2002, 23(1): 89-93.] doi: 10.3321/j.issn:1006-3021.2002.01.016
[27]	Rozo M G, Nogueira A C R, Truckenbrodt W. The anastomosing pattern and the extensively distributed scroll bars in the middle Amazon River[J]. Earth Surface Processes and Landforms, 2012, 37(14): 1471-1488. doi: 10.1002/esp.3249
[28]	Soares E A A, Tatumi S H, Riccomini C. OSL age determinations of Pleistocene fluvial deposits in Central Amazonia[J]. Anais Da Academia Brasileira De Ciências, 2010, 82(82): 691-9. doi: 10.1590/S0001-37652010000300017

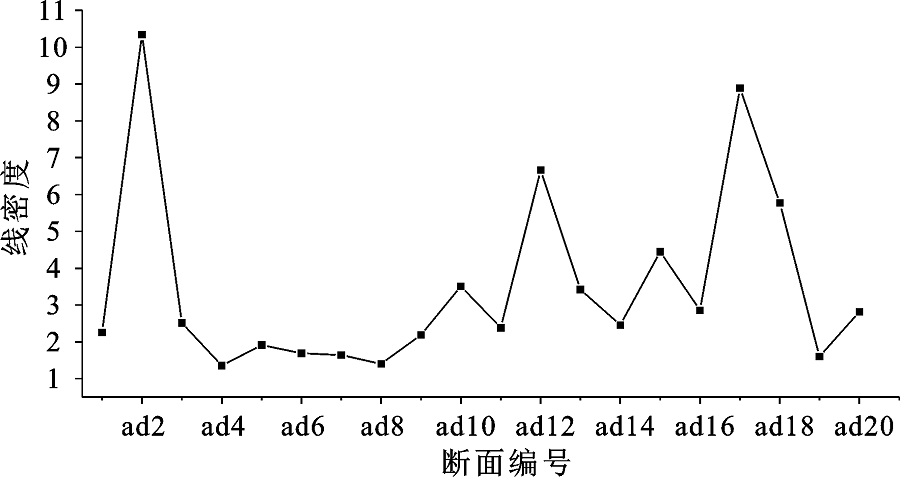

断面	活动河道总数	距离（km）	线密度	断面	活动河道总数	距离(km)	线密度
ad1	3	1.33	2.26	ad11	4	1.68	2.38
ad2	3	0.29	10.34	ad12	2	0.30	6.67
ad3	4	1.59	2.52	ad13	5	1.46	3.42
ad4	6	4.43	1.35	ad14	6	2.44	2.46
ad5	9	4.70	1.91	ad15	4	0.90	4.44
ad6	9	5.32	1.69	ad16	3	1.05	2.86
ad7	6	3.66	1.64	ad17	4	0.45	8.89
ad8	4	2.85	1.40	ad18	3	0.52	5.77
ad9	5	2.28	2.19	ad19	3	1.87	1.60
ad10	6	1.71	3.51	ad20	2	0.71	2.82

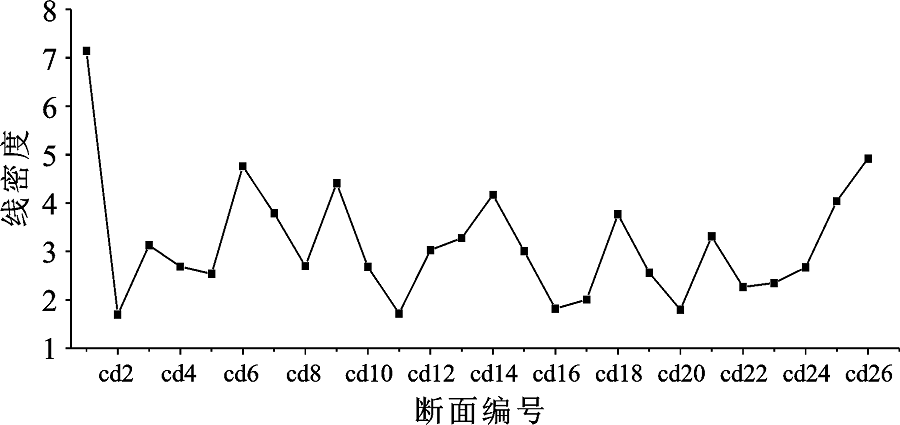

断面	活动河道总数	距离 (km)	线密度	断面	活动河道总数	距离 (km)	线密度
cd1	3	0.42	7.14	cd14	3	0.72	4.17
cd2	3	1.76	1.70	cd15	4	1.33	3.01
cd3	4	1.28	3.13	cd16	4	2.20	1.82
cd4	5	1.86	2.69	cd17	5	2.49	2.01
cd5	5	1.97	2.54	cd18	4	1.06	3.77
cd6	3	0.63	4.76	cd19	4	1.56	2.56
cd7	5	1.32	3.79	cd20	3	1.67	1.80
cd8	6	2.22	2.70	cd21	5	1.51	3.31
cd9	3	0.68	4.41	cd22	3	1.32	2.27
cd10	4	1.49	2.68	cd23	2	0.85	2.35
cd11	4	2.32	1.72	cd24	2	0.75	2.67
cd12	3	0.99	3.03	cd25	4	0.99	4.04
cd13	2	0.61	3.28	cd26	3	0.61	4.92

断面编号	河谷宽度（km）	线密度	断面编号	河谷宽度（km）	线密度
ad5	20.0	1.91	ad14	6.6	2.46
ad6	14.5	1.69	ad16	1.3	2.86
ad7	15.6	1.64	cd8	2.6	2.70
ad8	9.0	1.40	cd16	13.6	1.82
ad9	10.0	2.19	cd17	11.3	2.01
ad11	3.9	2.38
