基于绿色出行理念的合肥市区空气污染分区调控研究

doi:10.13249/j.cnki.sgs.2019.08.013

摘要/Abstract

摘要：

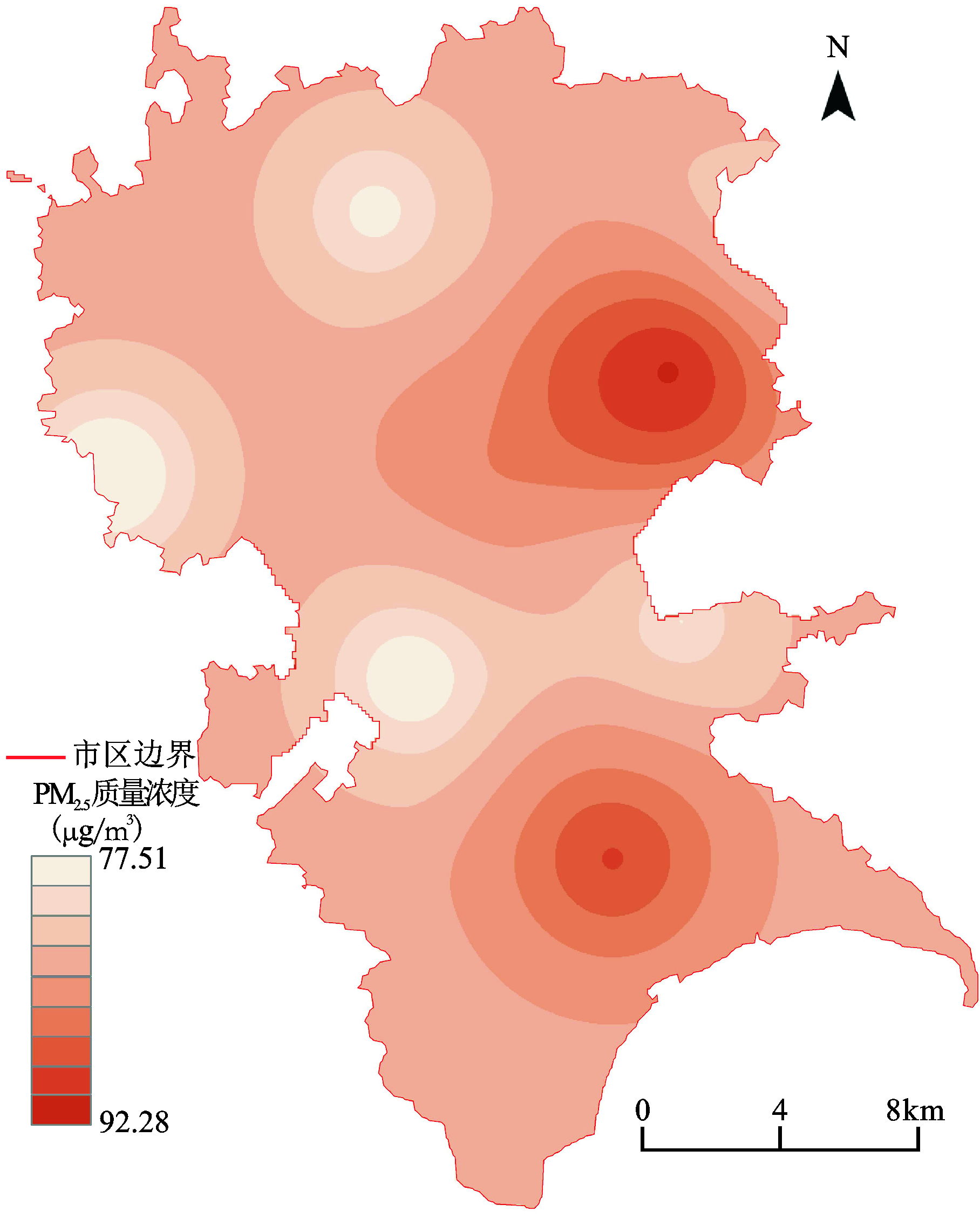

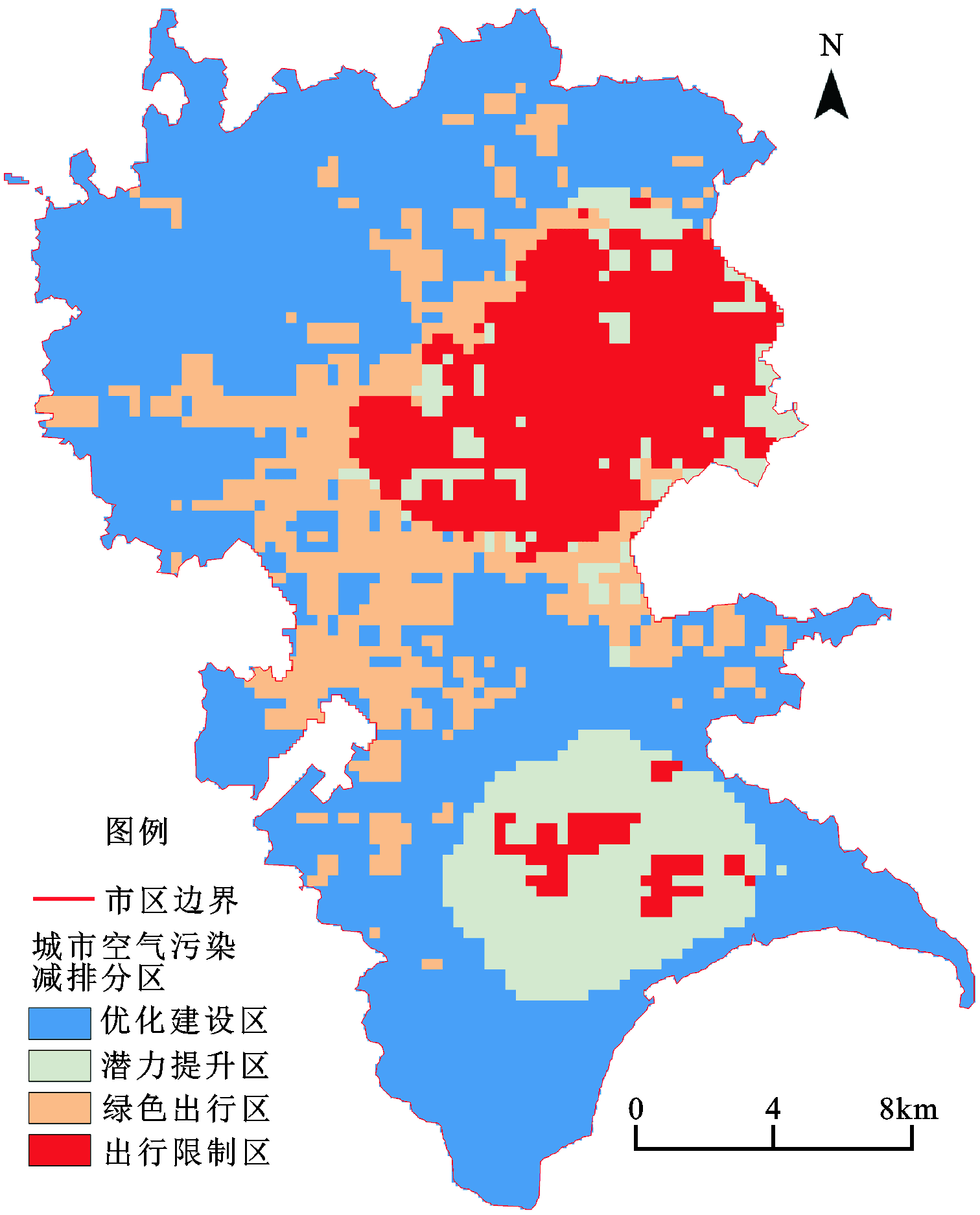

空气污染是城市主要的环境问题之一,严重影响到城市人类健康,而交通尾气排放是空气污染的重要原因。绿色出行是基于城市可持续发展的要求,通过发展低碳、绿色、环保的出行方式,缓解城市交通拥堵、城市污染等问题的一种交通理念。基于绿色出行理念的城市空气污染分区调控研究,对于改善城市环境质量、提升人居环境品质具有重大意义。以合肥市区为例,构建基于绿色出行理念的城市空气污染评估框架,提出公共交通、步行及自行车的3类绿色出行评价指标,运用大数据分析绿色出行方式降低空气污染物排放的潜力。结果表明:合肥市区公共交通出行呈现东西、南北2条带状分布,步行及自行车出行集中于路网密度较高的城市二环内,“一核两轴”地区的绿色出行条件较好,改善空气污染物排放的潜力较强;城市空气污染空间呈现城市一环、滨湖新区核心区2个凹地;探讨绿色出行与城市空气污染的空间关系,发现两者存在一定的空间权衡关系;最后,基于绿色出行与城市空气污染的空间分布关系,将合肥市区分为绿色出行区、优化建设区、潜力提升区、出行限制区4类区域,并对不同区域提出城市空气污染优化策略。

关键词: 绿色出行, 空气污染, 大分区调控, GIS, 合肥

Abstract:

Air pollution is one of the major environmental problems in cities, which seriously affects urban human health, and traffic exhaust emission is an important cause of air pollution. Green travel is a kind of traffic concept that aims to alleviate urban traffic congestion, urban pollution and other problems by developing low-carbon, green and environment-friendly travel modes based on the requirements of sustainable urban development. The assessment of zoning and regulation of air pollution based on the concept of green travel is significance for improving quality of urban environmental and human settlement environment. Taking the downtown of Hefei China as an example, an urban air pollution assessment framework was constructed based on green travel concept, evaluation indexes of three types were green travel for public transportation, walking and bicycle, the potentiality of green travel modes to improve air pollutant emissions were analyzed by using big data. The results showed that the public transportation had a banding distribution with East-west and North-south direction in the downtown area of Hefei, and the walking and bicycle trips were concentrated in the second ring of the city with high road network density. Green travel showed strong ability to improve air pollutant emissions in the 'one nuclear and two-axis' region; there are two high-vulnerability depressions of Hefei air pollution in first ring and the core area of Binhu; the relationship was explored among green transportation and urban air pollution , it was found that there was a certain spatial trade-off relationship among of them. Finally, the downtown of Hefei is divided into four areas: green travel zone, travel restriction zone, optimized construction zone and potential promotion zonebased on coordination of green transportation, urban air pollution. Optimization strategies were proposed for the air pollution in different regions.

Key words: green travel, air pollution, zonal regulation, GIS, Hefei

中图分类号:

X513

顾康康,朱鹏祥,宁杨,汪斐. 基于绿色出行理念的合肥市区空气污染分区调控研究[J]. 地理科学, 2019, 39(8): 1312-1320.

Gu Kangkang,Zhu Pengxiang,Ning Yang,Wang Fei. Zoning and Regulation of Air Pollution in Hefei City Based on the Concept of Green Travel[J]. SCIENTIA GEOGRAPHICA SINICA, 2019, 39(8): 1312-1320.

图/表 5

图1

表1

图2

图3

图4

参考文献 33

[1]	王兴杰, 谢高地, 岳书平 . 经济增长和人口集聚对城市环境空气质量的影响及区域分异——以第一阶段实施新空气质量标准的74个城市为例[J]. 经济地理, 2015, 35(2):71-76+91.
	[ Wang Xingjie, Xie Gaodi, Yue Shuping . Impact of economic growth and population aggregation on urban environmental quality and its regional differentiation: A case study of 74 cities implemented the new standard for air quality during the first stage. Economic Geography, 2015, 35(2): 71-76+91. ]
[2]	金春雨, 吴安兵 . 工业经济结构、经济增长对环境污染的非线性影响[J]. 中国人口·资源与环境, 2017,27(10):64-73.
	[ Jin Chunyu, Wu Anbing . Nonlinear influence of industrial economic structure and economic growth on environmental pollution. China Population Resources and Environment, 2017,27(10):64-73.]
[3]	张同斌, 李金凯, 程立燕 . 经济结构、增长方式与环境污染的内在关联研究——基于时变参数向量自回归模型的实证分析[J]. 中国环境科学, 2016,36(7):2230-2240.
	[ Zhang Tongbin, Li Jinkai, Cheng Liyan . Intrinsic correlation of economic structure, growth mode and environmental pollution—An empirical analysis based on time-varying parameter vector autoregressive model. China Environmental Science, 2016,36(7):2230-2240.]
[4]	梅大伟, 修春亮, 冯兴华 , 等. 中国城市脆弱性的时空变化及其内在机理——基于“五普”“六普”及《中国城市统计年鉴》数据的分析[J].城市问题, 2018(9):13-19.
	[ Mei Dawei, Xiu Chunliang, Feng Xinghua et al. Temporal and spatial changes of China's urban fragility and its internal mechanism—Based on the analysis of the data of “Five Pu”, “Six Pu” and “China Urban Statistical Yearbook”. Urban Problems, 2018(9):13-19.]
[5]	王琰 . 多维度城市化对空气质量的影响:基于中国城市数据的实证检验[J].东南大学学报( 哲学社会科学版), 2017, 19(4):100-110+148.
	[ Wang Yan . The impact of multi-dimensional urbanization on air quality: an empirical test based on Chinese urban data. Journal of Southeast University (Philosophy and Social Science), 2017, 19(4): 100-110+148. ]
[6]	王翠平, 丁黎 . 城市扩张背景下城市群环境问题的区域性特征分析[J]. 生态学报, 2017,37(23):8058-8066. doi: 10.5846/stxb201705250968
	[ Wang Cuiping, Ding Li . Analysis of regional characteristics of urban agglomeration environmental problems in the context of urban expansion. Acta Ecologica Sinica, 2017,37(23):8058-8066.] doi: 10.5846/stxb201705250968
[7]	王洪平 . 基于国外经验的生态环境损害赔偿制度建设分析[J]. 生态经济, 2018,34(9):192-196.
	[ Wang Hongping . Analysis on the institution construction of ecological damage compensation on the basis of foreign experience. Ecological Economy, 2018,34(9):192-196.]
[8]	王开泳, 颜秉秋, 王芳 , 等. 国外防治城市病的规划应对思路与措施借鉴[J]. 世界地理研究, 2014,23(1):65-72.
	[ Wang Kaiyong, Yan Bingqiu, Wang Fang et al. Countermeasures of urban planning to manage“Urban Disease”: The experiences from foreign countries. World Regional Studies, 2014,23(1):65-72.]
[9]	丁镭, 刘超, 黄亚林 , 等. 湖北省城市环境空气质量时空演化格局及影响因素[J]. 经济地理, 2016,36(3):170-178.
	[ Ding Lei, Liu Chao, Huang Yalin et al. Spatial and temporal evolution patterns of urban ambient air quality and its influencing factors in Hubei Province. Economic Geography, 2016,36(3):170-178.]
[10]	燕丽, 杜小申 . 典型城市空气污染特征对比分析[J]. 中国环境管理, 2018,10(6):92-98.
	[ Yan Li, Du Xiaoshen . Comparative analysis of typical urban air pollution characteristics. Chinese Journal of Environmental Management, 2018,10(6):92-98.]
[11]	马春燕, 李璐池, 薛文燕 . 空气污染特征与分布规律的可视化技术研究[J]. 西北工业大学学报, 2017,35(6):1073-1078.
	[ Ma Chunyan, Li Luchi, Xue Wenyan . Study on visualization technology of air pollution characteristics and distribution law. Journal of Northwestern Polytechnical University, 2017,35(6):1073-1078.]
[12]	刘铁军, 邱大庆, 孙娟 . 城市交通拥堵与空气污染相关度的初步研究[J]. 中国人口·资源与环境, 2017,27(S2):58-60.
	[ Liu Tiejun, Qiu Daqing, Sun Juan . A preliminary study on the correlation between urban traffic congestion and air pollution. China Population Resources and Environmen, 2017,27(S2):58-60.]
[13]	邹滨, 许珊, 张静 . 土地利用视角空气污染空间分异的地理分析[J]. 武汉大学学报(信息科学版), 2017,42(2):216-222. doi: 10.13203/j.whugis20150042
	[ Zou Bin, Xu Shan, Zhang Jing . Geographical analysis of spatial differentiation of air pollution from the perspective of land use. Geomatics and Information Science of Wuhan University, 2017,42(2):216-222.] doi: 10.13203/j.whugis20150042
[14]	智路平, 张华歆, 周溪召 , 等. 空气污染下居民出行风险感知影响因素实证研究[J]. 上海理工大学学报, 2018,40(1):56-64.
	[ Zhi Luping, Zhang Huaxin, Zhou Xizhao et al. An empirical study on the factors affecting the risk of residents' travel risks under air pollution. Journal of University of Shanghai for Science and Technology, 2018,40(1):56-64.]
[15]	Puett R C, Hart J E, Yanosky J D et al. Particulate matter air pollution exposure, distance to road, and incident lung cancer in the nurses’ health study cohort[J]. Environmental Health Perspectives, 2014,122(9):926-932.
[16]	韩立建 . 城市化与PM_2.5时空格局演变及其影响因素的研究进展[J]. 地理科学进展, 2018,37(8):1011-1021.
	[ Han Lijian . Relation-ship between urbanization and urban air quality: An insight on fine particulate dynamics in China. Progress in Geography, 2018,37(8):1011-1021.]
[17]	Schwarz J, Pokorná P, Rychlík Š et al. Assessment of air pollution origin based on year-long parallel measurement of PM_2.5 and PM₁₀ at two suburban sites in Prague, Czech Republic[J]. Science of the Total Environment, 2019,426:1107-1116.
[18]	宋英石, 李锋, 徐新雨 , 等. 城市空气颗粒物的来源、影响和控制研究进展[J]. 环境科学与技术, 2013,36(S2):214-221.
	[ Song Yingshi, Li Feng, Xu Xinyu et al. Research progress on source, impact and control measurements of particulate matter in the urban air. Environmental Science & Technology, 2013,36(S2):214-221.]
[19]	张晓瑞, 张琳雅, 方创琳 . 概念、框架和测度:城市脆弱性研究脉络评述及其拓展[J]. 地理与地理信息科学, 2015,31(4):94-99.
	[ Zhang Xiaorui, Zhang Linya, Fang Chuanglin . Concept, framework and measurement: Review on the research context of urban vulnerability and its development. Geography and Geo-information Science, 2015,31(4):94-99.]
[20]	李惠娟, 周德群, 魏永杰 . 中国主要城市空气污染的影响因素——基于污染源解析的研究[J]. 生态经济, 2018,34(4):197-203.
	[ Li Huijuan, Zhou Dequn, Wei Yongjie . Impact factors of air pollution in Chinese important cities: Based on source apportionment. Ecological Economy, 2018,34(4):197-203.]
[21]	王丽 . 汽车消费和空气污染相关性的面板数据分析[J]. 中国人口·资源与环境, 2014,24(2):462-466.
	[ Wang Li . Panel data analysis on consumption behavior of car buyer and air pollution in China. China Population Resources and Environment, 2014,24(S2):462-466.]
[22]	连荣源, 董洁霜 . 机动车辆尾气CO污染控制研究[J]. 交通与运输, 2013(1):142-144.
	[ Lian Rongyuan, Dong Jieshuang . Study on motor vehi-cle exhaust pollution CO control. Traffic & Trans-portation, 2013 ( 1):142-144.]
[23]	合肥市统计局,国家统计局合肥调查队. 合肥市 2018 年国民经济和社会发展统计公报[N/OL]. .
	[ Hefei Statistical Bureau, Hefei Investigation Team of National Statistical Bureau. Statistical bulletin of national economic and social development of Hefei in 2018. .]
[24]	陈刚, 刘佳媛, 皇甫延琦 , 等. 合肥城区PM₁₀及PM_2.5季节污染特征及来源解析[J]. 中国环境科学, 2016,36(7):1938-1946.
	[ Chen Gang, Liu Jiayuan, Huangpu Yanqi et al. Seasonal variations and source apportionment of ambient PM₁₀ and PM_2.5 at urban area of Hefei, China. China Environmental Science, 2016,36(7):1938-1946.]
[25]	窦攀烽, 左舒翟, 任引 , 等. 基于城市分类的绿色城市指标体系构建[J]. 生态学杂志, 2019,38(6):1937-1948.
	[ Dou Panfeng, Zuo Shuzhai, Ren Yin et al. Constraction of an index system for green cities based on urban classification. Chinese Journal of Ecology, 2019,38(6):1937-1948.]
[26]	Cariolet J M, Colombert M, Vuillet M et al. Assessing the resilience of urban areas to traffic-related air pollution: Application in greater Paris[J]. Science of the Total Environment, 2018,615:588-596.
[27]	Basagaña X, Triguero-Mas M, Agis D et al. Effect of public transport strikes on air pollution levels in Barcelona ( Spain)[J]. Science of the Total Environment, 2018, 610- 611:1076-1082.
[28]	闫敏慧, 姚秀萍, 王蕾 , 等. 用层次分析法确定气象服务评价指标权重[J]. 应用气象学报, 2014,25(4):470-475.
	[ Yan Minhui, Yao Xiuping, Wang Lei et al. Determining weight coefficients of meteorological service evaluation criteria with AHP. Journal of Applied Meteorological Science , 2014,25(4):470-475.]
[29]	韦亚平, 潘聪林 . 大城市街区土地利用特征与居民通勤方式研究——以杭州城西为例[J].城市规划, 2012, 36(3):76-84+89.
	[ Wei Yaping, Pan Conglin . Urban land-use characteristics and commuters’ travel pattern: A case study of west Hangzhou. Urban Planning Review, 2012, 36(3):76-84+89. ]
[30]	Saelens B E, Sallis J F, Frank L D . Environmental correlates of walking and cycling: Findings from the transportation, urban design, and planning literatures[J]. Annals of Behavioral Medicine, 2003,25(2):80-91.
[31]	Hajna S, Ross N A, Brazeau A S et al. Associations between neighbourhood walkability and daily steps in adults: A systematic review and meta-analysis[J]. BMC Public Health, 2015,15(1):768.
[32]	Taleai M, Taheri Amiri E . Spatial multi-criteria and multi-scale evaluation of walkability potential at street segment level: A case study of tehran[J]. Sustainable Cities and Society, 2017(31):37-50.
[33]	许学强, 周一星, 宁越敏 . 城市地理学[M]. 北京: 高等教育出版社, 2004: 219-221.
	[ Xu Xueqiang, Zhou Yixing, Ning Yuemin. Urban geography. Beijing: Higher Education Press, 2004: 219-221]

目标层	出行方式	评价指标	权重
	公共交通	公共交通通勤频数	0.43
降低交通相关的空气污染物潜力	步行	土地利用混合度	0.11
		建筑密度	0.05
		服务设施密度	0.10
		单元连接度	0.08
	自行车出行	共享单车分布密度	0.11
		坡度变化率	0.05
		单元连接度	0.07
