基于Biome-BGC模型的青藏高原五道梁地区NPP变化及情景模拟

doi:10.13249/j.cnki.sgs.2019.08.015

摘要/Abstract

摘要：

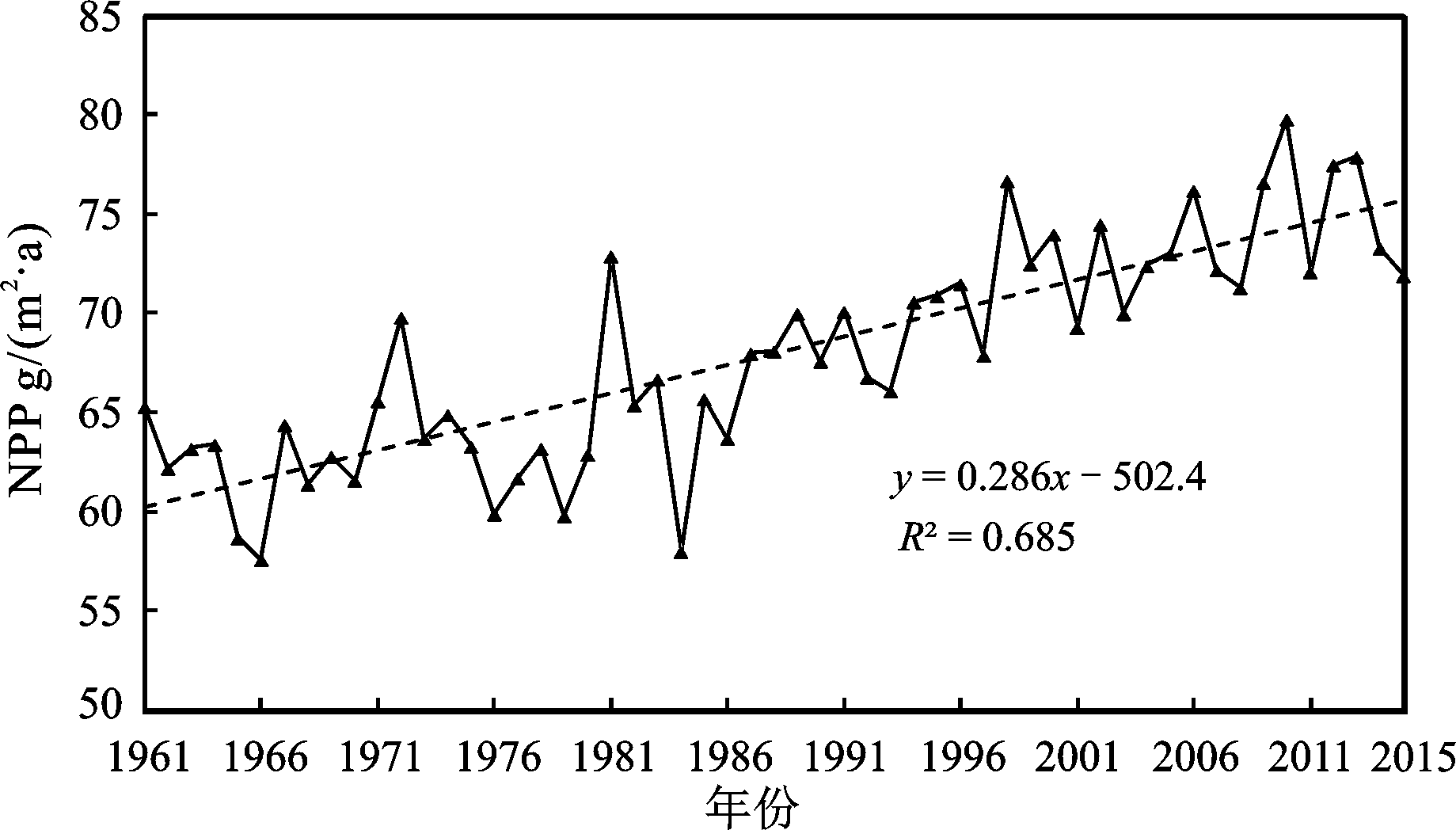

以“气候变暖”为标志的全球气候变化对青藏高原生态系统产生强烈影响,利用参数本地化的生物地球化学模型（Biome-BGC）对五道梁地区草地生态系统进行模拟,研究了该区域1961~2015年净初级生产力（net primary productivity,NPP）的变化,并进行了情景模拟。结果表明:五道梁地区近55 a草地年均NPP为67.94 g/(m ²·a),呈显著上升趋势,主要是由生长季延长以及9月份生物量快速增长造成。在该地区,温度是草地NPP的主导因子,降水变化在40%以内对生产力影响不显著;温度和降水交互影响NPP,对单一影响有放大作用,暖湿条件下NPP对气候变化响应更加明显。

关键词: 草地生态系统, 生物地球化学模型, 气候变暖, 参数本地化

Abstract:

The Tibetan Plateau is the largest plateau in China and the highest altitude in the world. Due to its unique natural conditions, this area not only directly affects the climate change in East Asia, but also has a great impact on the northern hemisphere. However, the Wudaoliang site on this Plateau has not been studied independently. The purpose of this study is to use Biome-BGC model to simulate NPP changes in Wudaoliang from 1961 to 2015. In addition, scenario simulation is also conducted to explore the response of NPP to climate change under different scenarios. Biome-BGC model has strong rationality and systematicness. It is a biogeochemical model in daily for studying the physiological processes and interactions of vegetation and soil energy, water, carbon and nitrogen in regional and global scale ecosystems. The input data of the model are meteorological data, initialized file data, atmospheric CO₂ concentration data for many years, vegetation parameter data. The model has been widely applied. In order to improve the accuracy, some parameters, such as leaf C/N ratio and soil particle size, were also measured. In August 2017, the measured samples of grassland vegetation in the flourishing season were validated by directly converting the measured samples into biomass, and compared with previous studies. The verification results showed that the simulated NPP is acceptable and applicable to this area. NPP of Wudaoliang alpine grassland ranged from 57.6 to 79.8 g/(m ²·a), with an average of 67.94 g/(m ²·a), showing an overall growth trend (P<0.01), with an average annual growth rate of 0.18%/a. According to the criterion of Odum ecosystem productivity, the study area is the lowest productivity ecosystem. NPP increased by 5.9%, 11.77%, 17.57% and 23.32% respectively along with the temperature increased by 0.5℃, 1℃, 1.5℃ and 2℃ than the normal scenario. The greater the temperature rise, the more obvious the increase of NPP. In the scenarios of precipitation increasing and decreasing by 20% and 40%, the average NPP changed by 1.13%, 2.14%, 1.19% and -2.45% than normal scenarios. Increasing precipitation could promote the growth of NPP, but decreasing precipitation showed inhibition effect. The combined scenarios of T₂W₂₀₊, T₂W₄₀₊, T₂W_20- and T₂W_40- increased by 24.54%, 25.68%, 21.79% and 19.94% respectively than normal scenarios. Under the combined scenarios, the NPP increase is higher than that of a single increase in moderate precipitation scenarios. Biome-BGC model with localized parameters can better simulate the net primary productivity of grassland in Wudaoliang area of Tibetan Plateau. In the past 55 years, the net primary productivity of Wudaoliang grassland showed a significant upward trend, which was mainly caused by the extension of growing season and the rapid growth of biomass in September. In this area, temperature increase is beneficial to productivity increase. Precipitation increase is beneficial to productivity acceleration. Precipitation decrease inhibits NPP accumulation. Precipitation change within 40% has no significant effect on productivity. Temperature and precipitation interact with NPP and have an amplifying effect on a single effect.

Key words: grassland ecosystem, Biogeochemical model, climate warming, localized parameters

中图分类号:

Q948

李传华,韩海燕,范也平,曹红娟,王玉涛,孙皓. 基于Biome-BGC模型的青藏高原五道梁地区NPP变化及情景模拟[J]. 地理科学, 2019, 39(8): 1330-1339.

Li Chuanhua,Han Haiyan,Fan Yeping,Cao Hongjuan,Wang Yutao,Sun Hao. NPP Change and Scenario Simulation in Wudaoliang Area of the Tibetan Plateau Based on Biome-BGC Model[J]. SCIENTIA GEOGRAPHICA SINICA, 2019, 39(8): 1330-1339.

图/表 12

图1

表1

表2

表3

图2

表4

图3

图4

表5

图5

图6

图7

参考文献 38

[1]	樊红芳 . 青藏高原现代气候特征及大地形气候效应[D]. 兰州: 兰州大学, 2008.
	[ Fan Hongfang . Modern climatic characteristics and large-scale climatic effects of the Tibetan Plateau. Lanzhou: Lanzhou University, 2008.]
[2]	Lieth H, Whittaker R H . Modeling the primary productivity of the world[J]. Nature & Resources, 1975,8(1):237-263.
[3]	蒋蕊竹, 李秀启, 朱永安 , 等. 基于MODIS黄河三角洲湿地NPP与NDVI相关性的时空变化特征[J]. 生态学报, 2011,31(22):6708-6716.
	[ Jiang Ruizhu, Li Xiuqi, Zhu Yong’an et al. Spatial-temporal variation of NPP and NDVI correlation in wetland of Yellow River Delta based on MODIS data. Acta Ecologica Sinica, 2011,31(22):6708-6716.]
[4]	刘夏 . 气候变化对三江平原沼泽湿地NPP的影响研究[D]. 长春: 中国科学院东北地理与农业生态研究所, 2016.
	[ Liu Xia . Impact of climate change on NPP in marsh wetlands in Sanjiang Plain. Changchun: Northeast Institute of Geography and Agricultural Ecology, Chinese Academy of Sciences, 2016.]
[5]	邹德富 . 基于CASA模型的青藏高原NPP时空分布动态研究[D]. 兰州: 兰州大学, 2012.
	[ Zou Defu . Study on the temporal and spatial distribution of NPP in Tibetan Plateau based on CASA. Lanzhou: Lanzhou University, 2012.]
[6]	陈卓奇, 邵全琴, 刘纪远 , 等. 基于MODIS的青藏高原植被净初级生产力研究[J]. 中国科学:地球科学, 2012,42(3):402-410.
	[ Chen Zhuoqi, Shao Quanqin, Liu Jiyuan et al. Analysis of net primary productivity of terrestrial vegetation on the Qinghai-Tibet Plateau, based on MODIS remote sensing data. Science China Earth Sciences, 2012,42(3):402-410.]
[7]	亓伟伟, 牛海山, 汪诗平 , 等. 增温对青藏高原高寒草甸生态系统固碳通量影响的模拟研究[J]. 生态学报, 2012,32(6):1713-1722. doi: 10.5846/stxb201102250215
	[ Qi Weiwei, Niu Haishan, Wang Shiping et al. Simulation of effects of warming on carbon budget in alpine meadow ecosystem on the Tibetan Plateau. Acta Ecologica Sinica, 2012,32(6):1713-1722.] doi: 10.5846/stxb201102250215
[8]	叶建圣 . 青藏高原植被净初级生产力对气候变化的响应[D]. 兰州:兰州大学, 2010.
	[ Ye Jiansheng . Response of net primary productivity of the Tibetan Plateau to climate change. Lanzhou: Lanzhou University, 2010.]
[9]	Wang Xufeng, Ma Mingguo, Song Yi et al. Coupling of a biogeochemical model with a simultaneous heat and water model and its evaluation at an alpine meadow site[J]. Environmental Earth Sciences, 2014,72(10):4085-4096.
[10]	段安民, 肖志祥, 吴国雄 . 1979-2014年全球变暖背景下青藏高原气候变化特征[J]. 气候变化研究进展, 2016,12(5):374-381. doi: 10.12006/j.issn.1673-1719.2016.039
	[ Duan Anmin Xiao Zhixiang, Wu Guoxiong . Characteristics of climate change over the Tibetan Plateau under the global warming during 1979-2014. Climate Change Research, 2016,12(5):374-381.] doi: 10.12006/j.issn.1673-1719.2016.039
[11]	程志刚, 刘晓东, 范广洲 , 等. 21世纪青藏高原气候时空变化评估[J]. 干旱区研究, 2011,28(4):669-676.
	[ Cheng Zhigang, Liu Xiaodong, Fan Guangzhou et al. Spatiotemporal distribution of climate change over the Qinghai-Tibetan Plateau in 21st Century. Arid Zone Research, 2011,28(4):669-676.]
[12]	李栋梁, 魏丽, 李维京 , 等. 青藏高原地面感热对北半球大气环流和中国气候异常的影响[J]. 气候与环境研究, 2003,8(1):60-70.
	[ Li Dongliang, Wei Li, Li Weijing et al. The effect of surface sensible heat flux of the Tibetan Plateau on general circulation over the Northern Hemisphereand climatic anomaly of China. Climatic & Environmental Research, 2003,8(1):60-70.]
[13]	周秀骥, 赵平, 陈军明 , 等. 青藏高原热力作用对北半球气候影响的研究[J]. 中国科学:地球科学, 2009,52(11):1473-1486.
	[ Zhou Xiuji, Zhao Ping, Chen Junming et al. Impacts of thermodynamic processes over the Tibetan Plateau on the Northern Hemispheric climate. Science China Earth Sciences, 2009,52(11):1473-1486.]
[14]	杨兆平, 欧阳华, 徐兴良 , 等. 五道梁高寒草原土壤水分和植被盖度空间异质性的地统计分析[J]. 自然资源学报, 2010,25(3):426-434. doi: 10.11849/zrzyxb.2010.03.008
	[ Yang Zhaoping, Ouyang Hua, Xu Xingliang et al. Spatial heterogeneity of soil moisture and vegetation coverage of alpine grassland in permafrost area of the Qinghai-Tibet Plateau. Journal of Natural Resources, 2010,25(3):426-434.] doi: 10.11849/zrzyxb.2010.03.008
[15]	胡波, 孙睿, 陈永俊 , 等. 遥感数据结合Biome-BGC模型估算黄淮海地区生态系统生产力[J]. 自然资源学报, 2011,26(12):2061-2071. doi: 10.11849/zrzyxb.2011.12.006
	[ Hu Bo, Sun Rui, Chen Yongjun et al. Estimation of the net ecosystem productivity in Huang-Huai Hai region combining with Biome-BGC model and remote sensing data. Journal of Natural Resources, 2011,26(12):2061-2071.] doi: 10.11849/zrzyxb.2011.12.006
[16]	李海涛, 沈文清, 桑卫国 , 等. MTCLIM模型(山地小气候模拟模型)的研究现状及其潜在应用[J]. 山地学报, 2001,19(6):533-540.
	[ Li Haitao, Shen Wenqin, Sang Weiguo . Research situation and application of MTCLIM model (Mountain Microclimate Simulation Model). Journal of Mountain Research, 2001,19(6):533-540.]
[17]	王超 . 应用BIOME-BGC模型研究典型生态系统的碳、水汽通量——半干旱地区吉林通榆的模拟[D]. 南京: 南京农业大学, 2006.
	[ Wang Chao . Application of BIOME-BGC model to study the carbon and water vapor flux of typical ecosystem-simulation of Tongyu in Jilin Province. Nanjing: Nanjing Agricultural University, 2006.]
[18]	Sun Qingling, Li Baolin, Zhang Tao et al. An improved Biome-BGC model for estimating net primary productivity of alpine meadow on the Qinghai-Tibet Plateau[J]. Ecological Modelling, 2017,350(11):55-68.
[19]	韩其飞, 罗格平, 李超凡 , 等. 基于Biome-BGC模型的天山北坡森林生态系统碳动态模拟[J]. 干旱区研究, 2014,31(3):375-382.
	[ Han Qifei, Luo Geping, Li Chaofan et al. Simulation of carbon trend in forest ecosystem in northern slope of the Tianshan Mountains based on Biome-BGC model. Arid Zone Research, 2014,31(3):375-382.]
[20]	周才平, 欧阳华, 王勤学 , 等. 青藏高原主要生态系统净初级生产力的估算[J]. 地理学报, 2004,59(1):74-79.
	[ Zhou Caiping, Ouyang Hua, Wang Qinxue et al. Estimation of net primary productivity of main ecosystems in the Qinghai-Tibet Plateau. Journal of Geographical Sciences, 2004,59(1):74-79.]
[21]	高清竹, 万运帆, 李玉娥 , 等. 基于CASA模型的藏北地区草地植被净第一性生产力及其时空格局[J]. 应用生态学报, 2007,18(11):2526-2532.
	[ Gao Qingzhu, Wan Yunfan, Li Yu’e et al. Grassland net primary productivity and its spatiotemporal distribution in Northern Tibet: A study with CASA model. Chinese Journal of Applied Ecology, 2007,18(11):2526-2532.]
[22]	黄玫, 季劲钧, 彭莉莉 . 青藏高原1981~2000年植被净初级生产力对气候变化的响应[J]. 气候与环境研究, 2008,13(5):608-616.
	[ Huang Mei, Ji Jinjun, Peng Lili . The response of vegetation net primary productivity to climate change during 1981-2000 in the Tibetan Plateau. Climatic and Environmental Research, 2008,13(5):608-616.]
[23]	朴世龙, 方精云, 郭庆华 . 1982~1999年我国植被净第一性生产力及其时空变化[J]. 北京大学学报(自然科学版), 2001,37(4):563-569.
	[ Piao Shilong, Fang Jingyun, Guo Qinghua . Changes in vegetation net primary productivity from 1982 to 1999 in China. Global Biogeochemical Cycles, 2001,37(4):563-569.]
[24]	Zhang Yili, Wei Qi, Zhou Caiping et al. Spatial and temporal variability in the net primary production of alpine grassland on the Tibetan Plateau since 1982[J]. Journal of Geographical Sciences, 2014,24(2):269-287.
[25]	刘双俞, 张丽, 王翠珍 , 等. 基于MODIS数据的青藏高原植被物候变化趋势研究(2000~2010年)[J]. 遥感信息, 2014,21(6):25-30.
	[ Liu Shuangyu, Zhang Li, Wang Cuizhen et al. Vegetation phenology in the Tibetan Plateau using modis data from 2000 to 2010. Remote Sensing Information, 2014,21(6):25-30.]
[26]	曾彪 . 青藏高原植被对气候变化的响应研究(1982~2003)[D]. 兰州: 兰州大学, 2008.
	[ Zeng Biao . Research on the response of vegetation in the Tibetan Plateau to climate change (1982-2003). Lanzhou: Lanzhou University, 2008.]
[27]	陈思宇 . 青藏高原地区草地植被与湖泊变化及其关系研究[D]. 兰州: 兰州大学, 2015.
	[ Chen Siyu . Study on the relationship between grassland vegetation and change of lakes in Tibetan Plateau. Lanzhou: Lanzhou University, 2015.]
[28]	孔冬冬, 张强, 黄文琳 , 等. 1982~2013年青藏高原植被物候变化及气象因素影响[J]. 地理学报, 2017,72(1):39-52.
	[ Kong Dongdong, Zhang Qiang, Huang Wenlin et al. Vegetation phenology change in Tibetan Plateau from 1982 to 2013 and its related meteorological factors. Journal of Geographical Sciences, 2017,72(1):39-52.]
[29]	丛楠, 沈妙根 . 1982~2009年基于卫星数据的北半球中高纬地区植被春季物候动态及其与气候的关系[J]. 应用生态学报, 2016,27(9):2737-2746.
	[ Cong Nan, Shen Miaogen . Variation of satellite-based spring vegetation phenology and the relationship with climate in the Northern Hemisphere over 1982 to 2009. Chinese Journal of Applied Ecology, 2016,27(9):2737-2746.]
[30]	郭素荣 . 1960~2010年青海省气候变化的时空特征分析[D]. 兰州: 西北师范大学, 2012.
	[ Guo Surong . Spatial-temporal analysis of climate change in Qinghai Province from 1960 to 2010. Lanzhou: Northwest Normal University, 2012.]
[31]	常清, 王思远, 孙云晓 , 等. 青藏高原典型植被生长季遥感模型提取分析[J]. 地球信息科学学报, 2014,16(5):815-823. doi: 10.3724/SP.J.1047.2014.00815
	[ Chang Qing, Wang Siyuan, Sun Yunxiao et al. The remote sensing monitoring model of the typical vegegtation phenology in the Qinghai-Tibetan Plateau. Journal of Geo-Information Science, 2014,16(5):815-823.] doi: 10.3724/SP.J.1047.2014.00815
[32]	陈福军, 沈彦俊, 李倩 , 等. 中国陆地生态系统近30年NPP时空变化研究[J]. 地理科学, 2011,31(11):1409-1414.
	[ Chen Fujun, Shen Yanjun, Li Qian et al. Spatio-temporal variation analysis of ecological system NPP in China in past 30 years. Scientia Geographica Sinica, 2011,31(11):1409-1414.]
[33]	刘刚, 孙睿, 肖志强 , 等. 2001~2014年中国植被净初级生产力时空变化及其与气象因素的关系[J]. 生态学报, 2017,37(15):4936-4945. doi: 10.5846/stxb201604290822
	[ Liu Gang, Sun Rui, Xiao Zhiqiang et al. Analysis of spatial and temporal variation of net primary productivity and climate controls in China from 2001 to 2014. Acta Ecologica Sinica, 2017,37(15):4936-4945.] doi: 10.5846/stxb201604290822
[34]	严文超, 孙庚, 张春波 , 等. 模拟增温和中度放牧对青藏高原东部高寒草甸生态系统净碳交换及组分的影响[J]. 应用与环境生物学报, 2018,24(1):132-139.
	[ Yan Wenchao, Sun Gen, Zhang Chunbo et al. Effects of simulated warming and moderate grazing on net carbon exchange and components of alpine meadow ecosystems in eastern Qinghai-Xizang Plateau. Chinese Journal of Applied & Environmental Biology, 2018,24(1):132-139.]
[35]	王常顺, 孟凡栋, 李新娥 , 等. 青藏高原草地生态系统对气候变化的响应[J]. 生态学杂志, 2013,32(6):1587-1595.
	[ Wang Changshun, Meng Fandong, Li Xin’e et al. Response of grassland ecosystem in Qinghai-Tibet Plateau to climate change. Chinese Journal of Microecology, 2013,32(6):1587-1595.]
[36]	白炜 . 长江源区高寒草地生态系统变化及其碳排放对气候变化的影响[D]. 兰州: 兰州大学, 2011.
	[ Bai Wei . The impact of alpine grassland ecosystem changes and carbon emissions on climate change in the source region of the Yangtze River. Lanzhou: Lanzhou University, 2011.]
[37]	沈振西, 张豪睿, 孙维 , 等. 藏北高原高寒草甸光能利用效率对增温增水的响应[J]. 生态环境学报, 2018,27(6):1000-1004.
	[ Shen Zhenxi, Zhang Haorui, Sun Wei et al. Response of light energy utilization efficiency of alpine meadow in northern Tibet Plateau to warming and increasing water. Ecology and Environmental Sciences, 2018,27(6):1000-1004.]
[38]	周紫鹃, 苏培玺, 侍瑞 , 等. 不同高寒生态系统植物光能利用效率及其环境影响[J]. 生态学杂志, 2017,36(6):1570-1577.
	[ Zhou Zijuan, Su Peixi, Shi Rui et al. Light use efficiency of plants and the environmental impact factors in different alpine ecosystems. Chinese Journal of Microecology, 2017,36(6):1570-1577.]

参数	值	单位	来源	参数	值	单位	来源
土壤深度	0.75	m	实测	站点高程	4605.3	m	实测
土壤沙土含量	62	%	实测	站点纬度	92.922	^°	实测
土壤粉土含量	36	%	实测	坡度	13.202	^°	实测
土壤黏土含量	2	%	实测	坡向	340.27	-	实测

参数	值	单位	参数	值	单位
开始新生长的天数	120^[18]	d	叶凋落物中易分解物质比例	0.39	无
落叶分解的天数	290^[9]	d	叶凋落物中纤维素比例	0.44	无
转移生长占生长季的比例	1	无	叶凋落物中木质素比例	0.17	无
凋落过程占生长季的比例	1	无	细根中易分解物质比例	0.3	无
年火灾死亡率	0.001^[17]	a^-¹	细根中纤维素比例	0.45	无
新细根与新叶碳分配比例	1.18^**	无	细根中木质素比例	0.25	无
新根与新茎碳分配比例	0	无	死立木中纤维素比例	0.76	无
生长与贮存碳分配比例	0.5	无	死立木木质素比例	0.24	无
叶片碳氮比	12.47^**	无	冠层截水系数	0.021^[18]	LAI/d
凋落后碳氮比	45^**	无	冠层消光系数	0.48	无
细根碳氮比	37.29^**	无	阴生叶与阴生叶比叶面积比例	2	无
活立木碳氮比	0	无	Rubisco酶活叶氮量	0.21	无
平均比叶面积	23.85^**	m²/kg	气孔开始缩小时饱和水汽压差	930	Pa
叶表面积与投影叶面积比例	2^[18]	无	气孔完全闭合时饱和水汽压差	4100	Pa

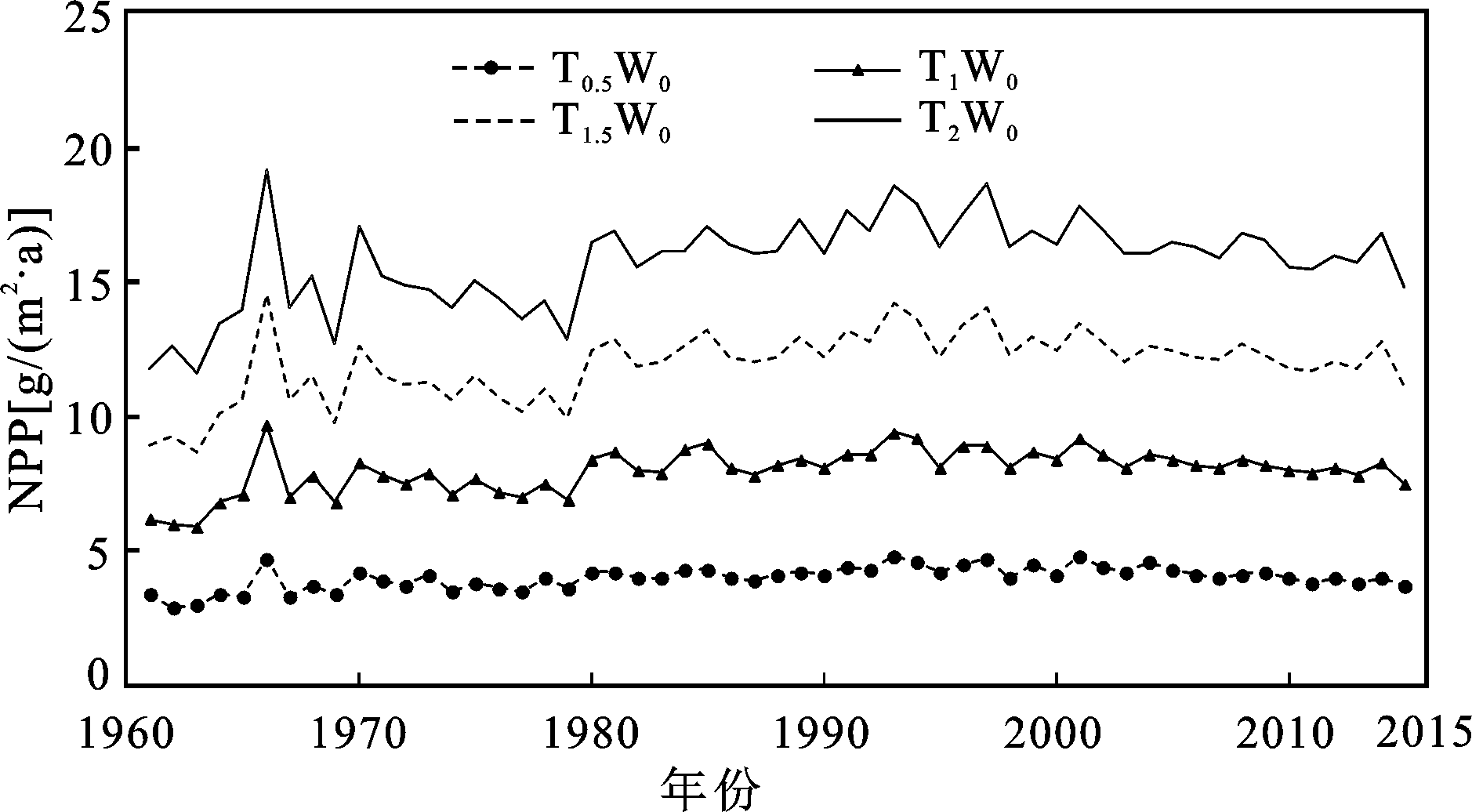

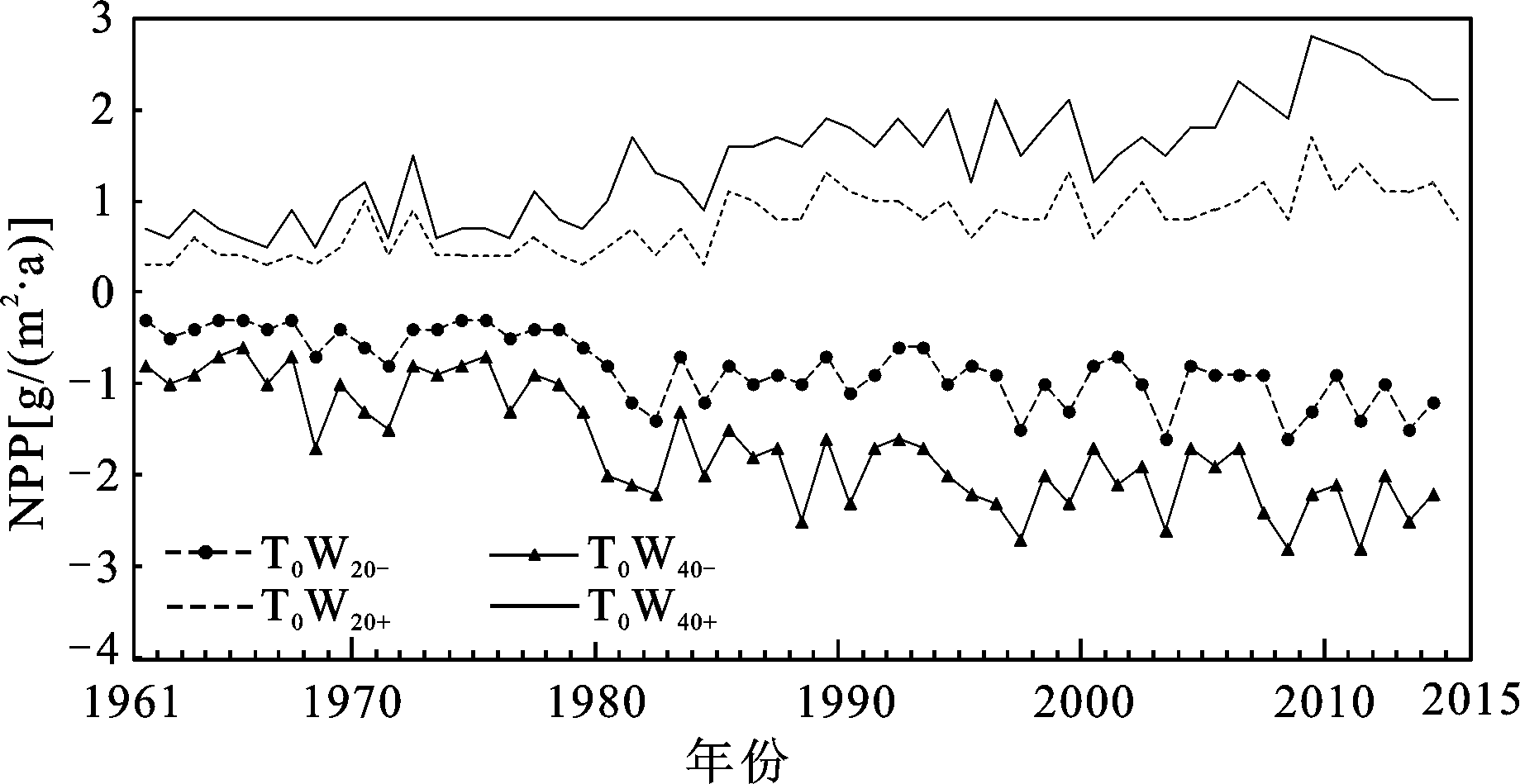

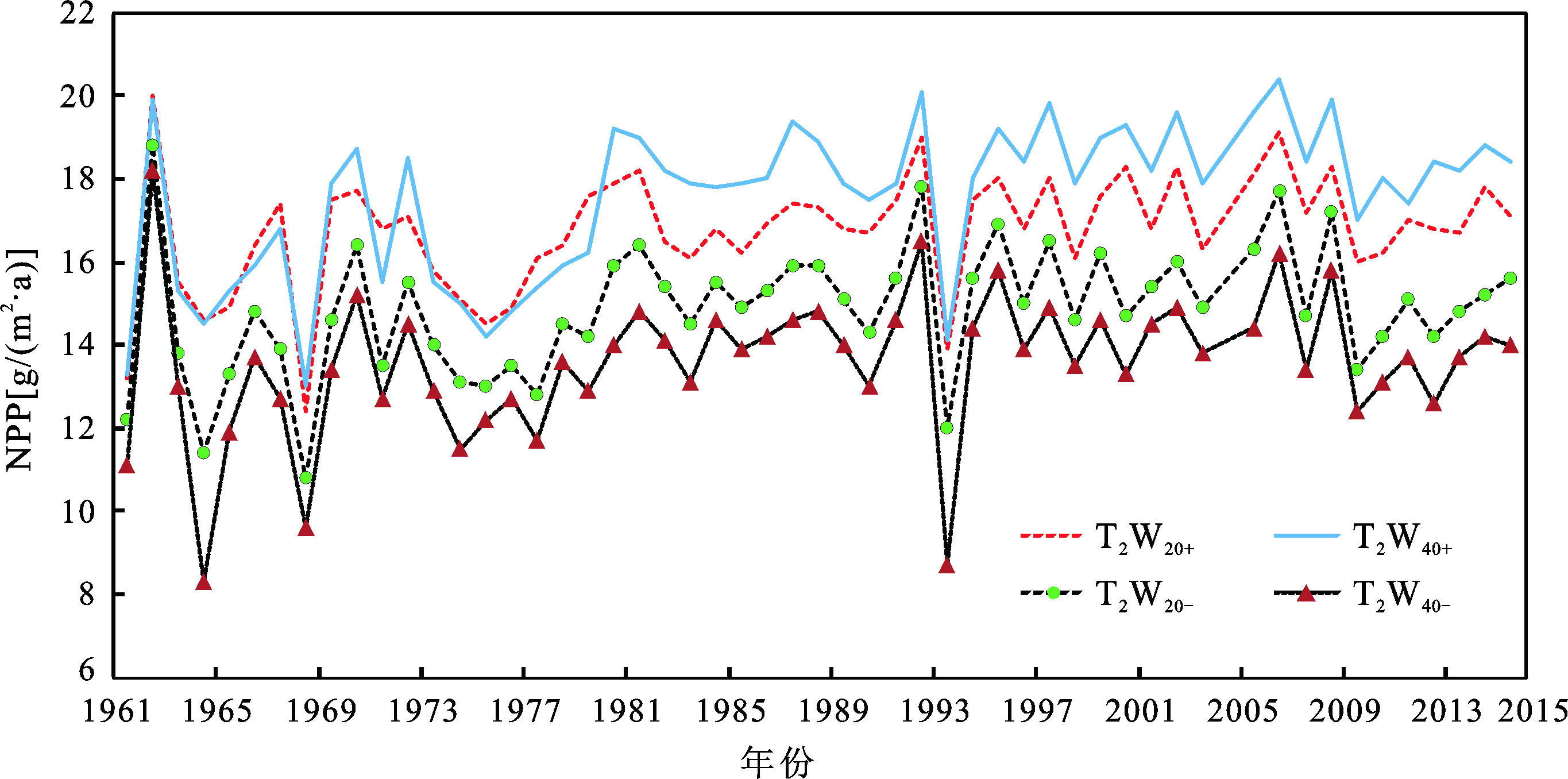

情景	情景变化情况	情景	情景变化情况	情景	情景变化情况
T₀W₀	正常条件	T_0.5W₀	增温0.5℃降水不变	T₂W₂₀₊	增温2.0℃降水增加20%
T₀W₂₀_-	温度不变降水减少20%	T₁W₀	增温4.0℃降水不变	T₂W_20-	增温2.0℃降水减少20%
T₀W₂₀₊	温度不变降水增加20%	T_1.5W₀	增温1.5℃降水不变	T₂W₄₀₊	增温2.0℃降水增加40%
T₀W₄₀_-	温度不变降水减少40%	T₂W₀	增温2.0℃降水不变	T₂W_40-	增温2.0℃降水减少40%
T₀W₄₀₊	温度不变降水增加40%	--	--	--	--

研究时段	方法及模型	模拟均值 g/(m²·a)	参考文献
1982~1999年	CASA	80	朴世龙等^[23]
2000~2002年	TEM	63.95	周才平等^[20]
1981~2004年	CASA	48.1	高清竹等^[21]
1981~2000年	AVIM	50	黄玫等^[22]
2005~2008年	GLO-PEM	70	陈卓奇等^[6]
1982~2009年	CASA	55.9	Zhang Y等^[24]
2013~2015年	BIOME-BGC	74.37	本研究

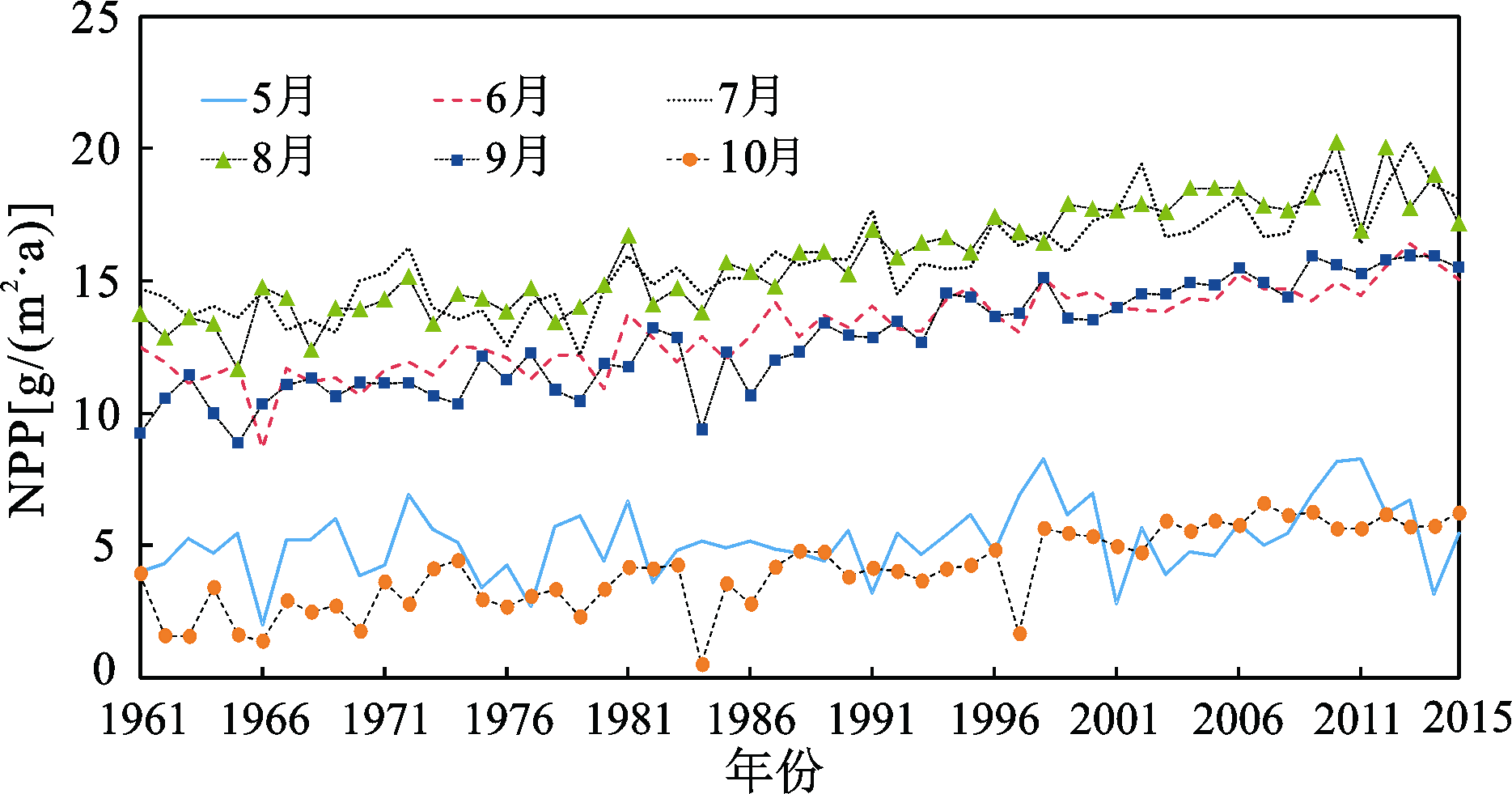

	5月	6月	7月	8月	9月	10月
NPP平均值[g/(m²·a)]	5.25	12.91	16.42	16.59	12.71	4.06
月均增长率（%/a）	0.22	0.07	0.03	0.06	0.64	0.52
