洛阳城区旅游流空间网络结构特征

doi:10.13249/j.cnki.sgs.2019.10.009

摘要/Abstract

摘要：

对网络大数据和社会调研数据的融合、挖掘,构建洛阳市区各景点间游客流动的关系矩阵,基于社会网络和空间统计分析方法,探究洛阳市区旅游流空间网络结构特征。结论如下：①洛阳市区旅游流网络呈现出东南龙门石窟和东北白马寺旅游区极为密集,中心老城区网络联系较为紧密,北部邙山旅游区相对稀疏,西部旅游区几乎孤立的空间分布格局,表现出明显的四大旅游集群的态势。②洛阳市区旅游流网络是典型的核心-边缘网络,且核心景区对边缘景区的“涓滴效用”有限。③洛阳市区旅游节点分为4个系统,分别为一级旅游核心、次级旅游核心、一般旅游节点和边缘旅游节点。④ 一级核心景点涉及面较广,对整体流动具有较强的支配作用,而边缘节点主要受到一级和次核心节点的约束。

关键词: 旅游流, 空间结构, 网络结构, 洛阳市

Abstract:

By integrating and exploring the large network data and social survey data, the relationship matrix of tourist flows among various scenic spots in urban area of Luoyang was constructed. By combining social network and spatial analysis, characteristics of Luoyang's tourist flows network were further analysed. Conclusions were shown as follows: 1) The network of tourism flow in Luoyang urban area showed that the networks of Longmen Grottoes in the southeast and Baima Temple in the northeast were very dense, the network of the old urban area in the center was relatively close, the tourism area in the north is relatively sparse, and the spatial distribution pattern of in the western area was almost isolated. On the whole, there were four obvious tourism clusters. 2) Tourist flows network is typical core-periphery, links between the core spots and the peripheries were very sparse, and the trickle-down effect was limited. 3) Tourism nodes in Luoyang urban area were divided into four systems: the first-class, the second-class, the general, and the marginal tourism node. 4) The first class core scenic spots were more extensive and had a strong dominating effect on the overall flow. The edge nodes were mainly constrained by the first-level and the second-class tourism core.

Key words: tourist flows, network structure, spatial structure, Luoyang

中图分类号:

F590

闫闪闪, 靳诚. 洛阳城区旅游流空间网络结构特征[J]. 地理科学, 2019, 39(10): 1602-1611.

Yan Shanshan, Jin Cheng. Characteristics of Spatial Network Structure of Tourist Flow in Urban Area of Luoyang[J]. SCIENTIA GEOGRAPHICA SINICA, 2019, 39(10): 1602-1611.

图/表 5

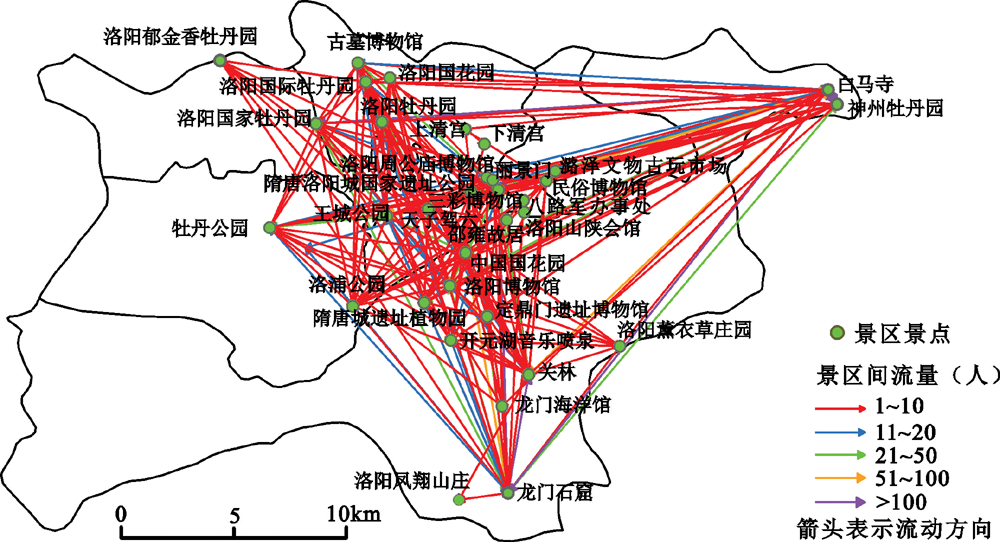

图1

表1

不同流量阈值控制下的洛阳市区旅游流网络拓扑特征"

流量阈值	节点数	路径数	网络密度	内向中心势	外向中心势	中介中心势	平均流量	流量占比
	（个）	（条）		（%）	（%）	（%）	（人）	（%）
$I ij$ ≥ 1	32	426	0.43	6.97	8.68	10.24	29.90	100
$I ij$ ≥ 5	26	384	0.59	8.29	10.41	5.19	32.95	99.33
$I ij$ ≥ 20	18	267	0.87	10.89	14.11	0.69	45.57	95.89
$I ij$ ≥ 50	14	174	0.96	12.61	16.91	0.17	66.43	90.74
$I ij$ ≥ 100	10	88	0.98	14.27	20.67	0.13	116.13	80.27
$I ij$ ≥ 200	5	20	1.00	17.48	30.21	0	277.90	43.04

表1

表2

洛阳市区旅游节点结构指标"

旅游节点	程度中心性		中介中心性	结构洞			网络结构特征
旅游节点	外向	内向	中介中心性	效能大小	效率性	约束性	网络结构特征
龙门石窟	18.00	20.00	99.64	13.26	0.632	0.19	一级旅游集散中心、旅游核心
丽景门	18.00	20.00	100.64	12.29	0.614	0.19	一级旅游集散中心、旅游核心
白马寺	17.00	19.00	70.31	10.97	0.577	0.21	一级旅游集散中心、旅游核心
关林	14.00	14.00	33.79	7.07	0.442	0.25	一级旅游集散中心、旅游核心
王城公园	14.00	14.00	38.32	7.52	0.470	0.25	一级旅游集散中心、旅游核心
中国国花园	12.00	8.00	4.63	3.65	0.283	0.31	次级旅游核心
洛阳博物馆	12.00	12.00	8.86	4.73	0.338	0.29	次级旅游核心、旅游中介
古墓博物馆	9.00	12.00	6.36	4.02	0.335	0.32	次级旅游核心、旅游重要通道
天子驾六博物馆	9.00	12.00	22.74	3.93	0.302	0.30	次级旅游核心、旅游中介
隋唐古城	9.00	12.00	1.59	2.79	0.232	0.32	次级旅游核心
国家牡丹园	8.00	6.00	0.62	1.71	0.171	0.38	一般旅游节点
牡丹公园	8.00	6.00	0.33	1.64	0.183	0.42	一般旅游节点
隋唐城植物园	8.00	9.00	0.69	1.68	0.168	1.04	一般旅游节点
神州牡丹园	8.00	5.00	0.10	1.31	0.145	0.42	一般旅游节点
民俗博物馆	5.00	4.00	22.00	2.17	0.361	0.59	边缘旅游节点、旅游重要通道
国际牡丹园	5.00	3.00	0	1.00	0.200	0.68	边缘旅游节点
开元湖音乐喷泉	4.00	5.00	0	1.00	0.167	0.59	边缘旅游节点
洛浦公园	4.00	5.00	0	1.00	0.200	0.66	边缘旅游节点
三彩艺术博物馆	3.00	1.00	0	1.00	0.333	1.02	边缘旅游节点
洛阳国花园	2.00	1.00	0	1.00	0.500	1.24	边缘旅游节点
周公庙博物馆	2.00	1.00	0.40	1.67	0.556	1.04	边缘旅游节点
邵雍故居	1.00	1.00	0	1.00	0.500	1.39	边缘旅游节点
定鼎门博物馆	1.00	0.00	0	1.00	1.000	1.00	边缘旅游节点
龙门海洋馆	1.00	1.00	0	1.00	0.500	1.39	边缘旅游节点
薰衣草庄园	0	1.00	0	1.00	1.000	1.00	边缘旅游节点
八路军办事处	0	0	0	1.00	0.131	0.12	边缘旅游节点
均值	7.39	7.39	15.81	1.67	0.337	0.42
方差	30.78	39.78	411.00	11.94	0.060	0.17

表2

图2

表3

参考文献 26

[1]	Guo Y R, Jie Z, Yang Y et al. Modeling the fluctuation patterns of monthly inbound tourist flows to China: A complex network approach[J]. Asia Pacific Journal of Tourism Research, 2015,20(8):1-12. doi: 10.1080/10941665.2014.881895
[2]	Santana-Gallego M, Ledesma-Rodríguez F J, Pérez-Rodríguez J V . International trade and tourism flows: An extension of the gravity model[J]. Economic Modelling, 2015,52(15):267-276.
[3]	Chen R, Liang C Y, Hong W C et al. Forecasting holiday daily tourist flow based on seasonal support vector regression with adaptive genetic algorithm[J]. Applied Soft Computing, 2015,26:435-443. doi: 10.1016/j.asoc.2014.10.022
[4]	闫闪闪, 梁留科, 索志辉 , 等. 基于大数据的洛阳市旅游流时空分布特征[J]. 经济地理, 2017,37(8):216-224.
	[ Yan Shanshan, Liang Liuke, Suo Zhihui et al. Big data based spatiotemporal distribution characters of tourism flow in Luoyang. Economic Geography, 2017,37(8):216-224.]
[5]	Chen Y H, Kang H H . Analysis of tourist flow from the US to Taiwan[J]. Acta Economical, 2015,65(s2):369-384.
[6]	Chua A, Servillo L, Marcheggiani E et al. Mapping cilento: Using geotagged social media data to characterize tourist flows in southern Italy[J]. Tourism Management, 2016,57:295-310. doi: 10.1016/j.tourman.2016.06.013
[7]	秦静, 李郎平, 唐鸣镝 , 等. 基于地理标记照片的北京市入境旅游流空间特征[J]. 地理学报, 2018,73(8):1556-1570. doi: 10.11821/dlxb201808012
	[ Qin Jing, Li Langping, Tang Mingdi et al. Exploring the spatial characteristics of Beijing inbound tourist flow based on geotagged photos. Acta Geographica Sinica, 2018,73(8):1556-1570.] doi: 10.11821/dlxb201808012
[8]	Yang Y, Wong K K F . Spatial distribution of tourist flows to China's cities[J]. Tourism Geographies, 2011(5):620-626.]
[9]	Vita G D . The long-run impact of exchange rate regimes on international tourism flows[J]. Tourism Management, 2014,45(1):226-233. doi: 10.1016/j.tourman.2014.05.001
[10]	关伟, 郝金连 . 东北地区旅游经济影响因素时空特征研究[J]. 地理科学, 2018,38(6):935-943. doi: 10.13249/j.cnki.sgs.2018.06.013
	[ Guan Wei, Hao Jinlian . Spatial-temporal characteristic study on impact factors of tourism economy in Northeastern China. Scientia Geographica Sinica, 2018,38(6):935-943.] doi: 10.13249/j.cnki.sgs.2018.06.013
[11]	林岚, 康志林, 甘萌雨 , 等. 基于航空口岸的台胞大陆旅游流空间场效应分析[J]. 地理研究, 2007,26(2):403-413.
	[ Lin Lan, Kang Zhilin, Gan Mengyu et al. An analysis of the spatial field effects of tourist flow of Taiwanese visiting mainland China based on airports. Geographical Research, 2007,26(2):403-413.]
[12]	Kim S S, Prideaux B, Timothy D . Factors affecting bilateral Chinese and Japanese travel[J]. Annals of Tourism Research, 2016,61:80-95. doi: 10.1016/j.annals.2016.08.001
[13]	Balli F, Balli H O, Louis R J . The impacts of immigrants and institutions on bilateral tourism flows. Tourism Management, 2016,52:221-229. doi: 10.1016/j.tourman.2015.06.021
[14]	Zhang Y, Wu T, Li X . The impacts of cultural values on bilateral international tourism flows. Teacher Education Forum, 2013,59(2):159-161.
[15]	潘丽丽, 王晓宇 . 基于主观心理视角的游客环境行为意愿影响因素研究——以西溪国家湿地公园为例[J]. 地理科学, 2018,38(8):1337-1345. doi: 10.13249/j.cnki.sgs.2018.08.016
	[ Pan Lili, Wang Xiaoyu . The factors affecting the intention to exhibit environmental behavior by tourists: A case study of Xixi national wetland park in Hangzhou. Scientia Geographica Sinica, 2018,38(8):1337-1345.] doi: 10.13249/j.cnki.sgs.2018.08.016
[16]	杨兴柱, 顾朝林, 王群 . 旅游流驱动力系统分析[J]. 地理研究, 2011,30(1):23-36.
	[ Yang Xingzhu, Gu Chaolin, Wang Qun . Study on the driving force of tourist flows. Geographical Research, 2011,30(1):23-36.]
[17]	郑鹏 . 基于社会宏观与个体微观视角的入境旅游流驱动模式[J]. 地理科学进展, 2013,32(10):1501-1510. doi: 10.11820/dlkxjz.2013.10.008
	[ Zheng Peng . Driving force model for inbound tourist flow from macroscopic and microcosmic perspectives. Progress Geography, 2013,32(10):1501-1510.] doi: 10.11820/dlkxjz.2013.10.008
[18]	Lazzeretti L, Petrillo C S . Tourism local systems and networking[M]. Amsterdam: Elsevier, 2013.
[19]	Baggio R . Network analysis of a tourism destination[M]. Australia: The University of Queensland, 2008.
[20]	陈超, 马海涛, 陈楠 , 等. 中国农民旅游流网络重心轨迹的演化[J]. 地理研究, 2014,33(7):1306-1314. doi: 10.11821/dlyj201407011
	[ Chen Chao, Ma Haitao, Chen Nan et al. The evolution of network gravity center for rural residents tourist flow in China. Geographical Research, 2014,33(7):1306-1314.] doi: 10.11821/dlyj201407011
[21]	吴晋峰, 潘旭莉 . 京沪入境旅游流网络结构特征分析[J]. 地理科学, 2010,15(3):370-376.
	[ Wu Jinfeng, Pan Xuli . Characteristic of Beijing and Shanghai inbound tourists flow network. Scientia Geographica Sinica, 2010,15(3):370-376.]
[22]	刘法建, 张捷, 章锦河 , 等. 旅游流空间数据获取的基本方法分析——国内外研究综述及比较[J]. 旅游学刊, 2012,27(6):101-109.
	[ Liu Fajian, Zhang Jie, Zhang Jinhe et al. Analysis of the basic method of collecting the spatial data of tourist flows: A study review and comparison both at home and abroad. Tourism Tribune, 2012,27(6):101-109.]
[23]	洛阳市统计局. 洛阳统计年鉴(2017)[M]. 北京: 中国统计出版社, 2017.
	[ Luoyang Statistical Bureau. Luoyang statistical yearbook (2017)[M]. Beijing: China Statistics Press, 2017.]
[24]	马丽君, 龙云 . 基于社会网络分析法的中国省际入境旅游经济增长空间关联性[J]. 地理科学, 2017,37(11):1705-1711. doi: 10.13249/j.cnki.sgs.2017.11.012
	[ Ma Lijun, Long Yun . The spatial correlation of economic growth of inbound tourism in China based on social network analysis. Scientia Geographica Sinica, 2017,37(11):1705-1711.] doi: 10.13249/j.cnki.sgs.2017.11.012
[25]	靳诚, 徐菁, 黄震方 , 等. 南京城市内部景点间游客流动特征分析[J]. 地理学报, 2014,69(12):1858-1870. doi: 10.11821/dlxb201412011
	[ Jin Cheng, Xu Jing, Huang Zhenfang et al. Analyzing the characteristics of tourist flows between the scenic spots in inner city based on tourism strategies: A case study in Nanjing. Acta Geographica Sinica, 2014,69(12):1858-1870.] doi: 10.11821/dlxb201412011
[26]	李巍, 赵敏, 严江平 , 等. 基于空间互动模型的兰州市乡村旅游网络中心性分析[J]. 地理科学, 2017,37(7):1059-1068. doi: 10.13249/j.cnki.sgs.2017.07.011
	[ Li Wei, Zhao Min, Yan Jiangping et al. Rural tourism network centrality of Lanzhou City based on spatial interaction model. Scientia Geographica Sinica, 2017,37(7):1059-1068.] doi: 10.13249/j.cnki.sgs.2017.07.011

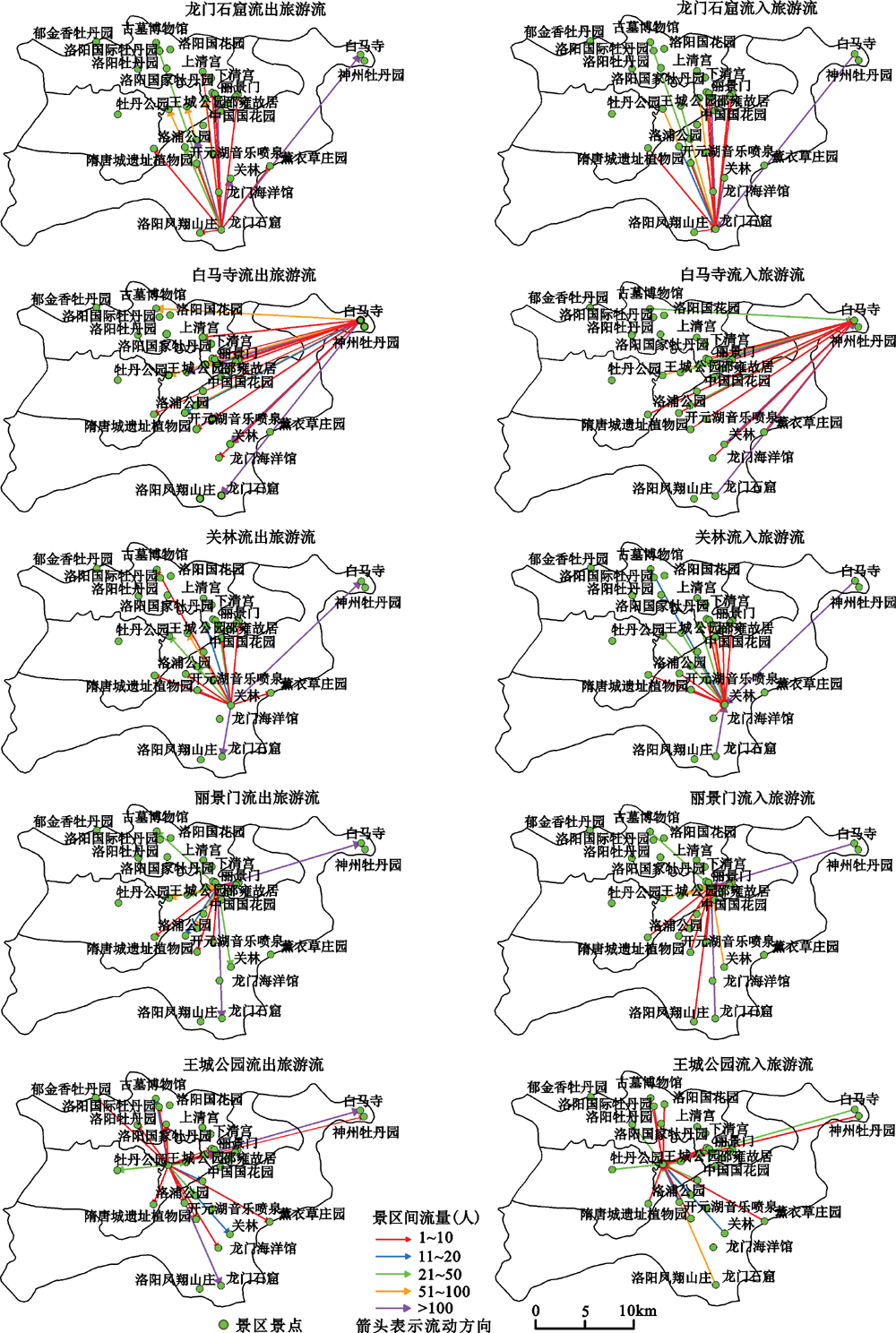

景点类型	龙门石窟		白马寺		关林		丽景门		王城公园
景点类型	流出	流入	流出	流入	流出	流入	流出	流入	流出	流入
连接节点（个）	27.00	27.00	27.00	25.00	24.00	21.00	25.00	25.00	25.00	21.00
流量占比（%）	23.08	19.14	17.58	16.90	10.48	11.71	11.86	12.81	6.10	6.12
平均流量（人）	108.89	90.30	82.23	86.08	55.63	71.00	60.40	65.28	31.08	37.14
加权平均距离（km）	16.02	14.66	18.74	21.48	10.71	11.45	9.84	9.96	8.46	11.96
