贵州不同规模等级坝子空间分布特征研究

doi:10.13249/j.cnki.sgs.2019.11.018

摘要/Abstract

摘要：

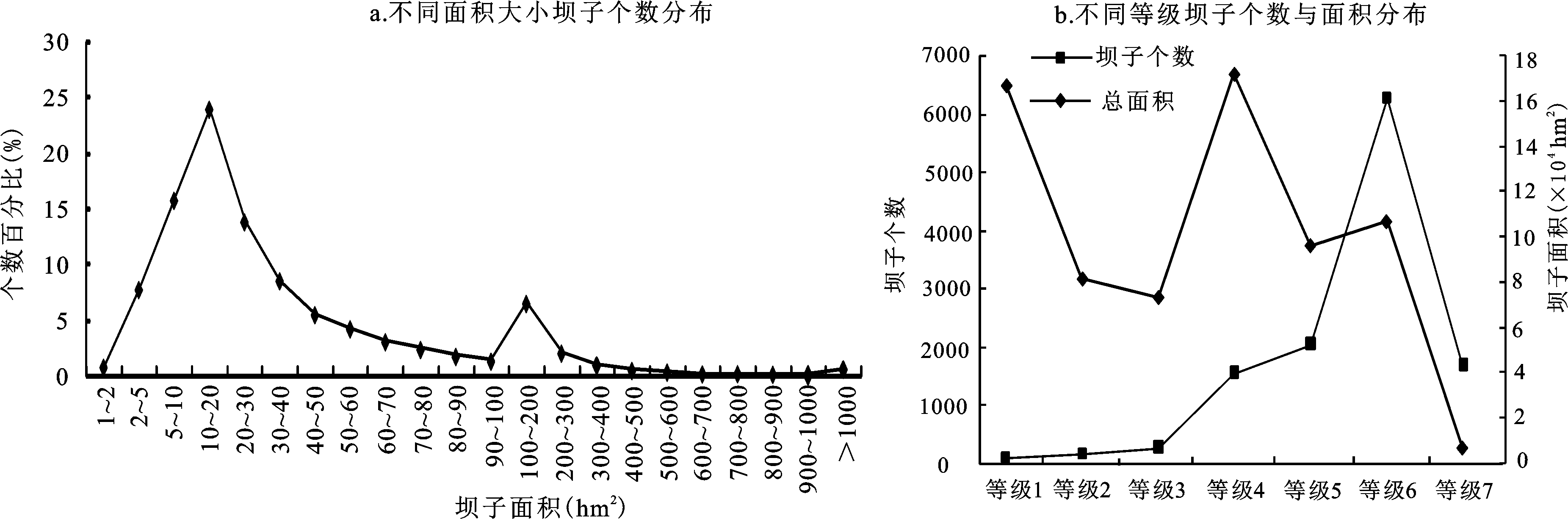

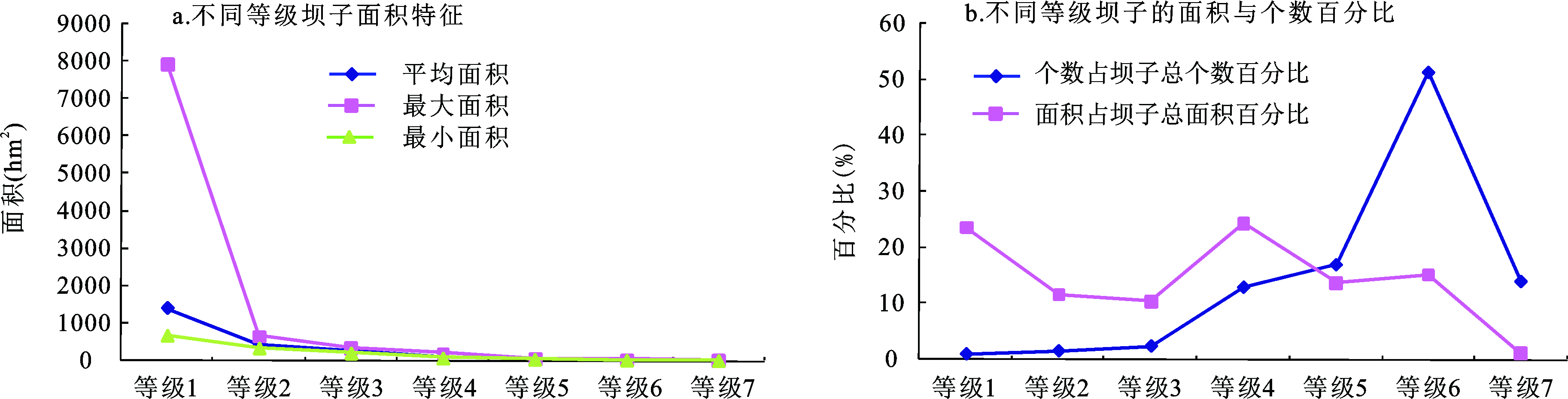

以1∶5万地形图和高清遥感影像为数据源,系统研究了贵州省面积在1 hm ²以上坝子的空间分布规律。研究发现：① 贵州省1 hm ²以上的坝子,仅占贵州省国土面积的3.99%,低于山间坝子占全省总面积7.51%的传统认识;② 以10~20 hm ²的坝子个数占比最高,随坝子面积增加,坝子个数占比也逐渐降低;③ 贵州坝子集中于贵州省中部,沿东北到西南一线;④ 贵州坝子体系等级结构较松散,相互之间等级规模差异存在差异。

关键词: 坝子, 规模等级, 贵州省

Abstract:

Due to the special topography, geomorphology and geological characteristics, there is a land resource characteristic with obvious more mountains and less flatlands in Guizhou Province. It is of important significance for the sustainable utilization of land resources and the land use transformation layout to reveal systematically the quantity characteristics and spatial distribution pattern of different size flatland in Guizhou Province. This paper aims to investigate the quantity structure and spatial distribution characteristics of different scale flatlands in Guizhou Province. The high-resolution ALOS remote sensing images (with a spatial resolution of 10 m and 2.5 m) in 2010 and the topographic map (1∶50 000) are chosen as main data sources to study systematically the spatial distribution of flatlands with area of ≥1 hm ² in Guizhou Province. The results show that the total area of flatland with an area of ≥1 hm ² accounts for only 3.99% of the total land area of Guizhou Province, lowering than the traditional understanding that the total area of flatlands distributed in mountains accounts for 7.51% of the total area of Guizhou Province. The number of faltland with area in 10-20 hm ²is the highest among all flatlands. With the increase of flatland area, the proportion of number of corresponding flatland gradually also reduces. The flatlands are concentrated in the central part of Guizhou Province, along the northeast to the southwest. The hierarchical structure of flatland systems in Guizhou Province is relatively loose, with a great difference among different grade and scale flatlands. Each grade of flatland system presents a cluster distribution patterns. The research results can provide reference for the optimal utilization of land resources in Guizhou Province.

Key words: flatlands, scale grade, Guizhou Province

中图分类号:

F301.2

李阳兵, 陈会, 罗光杰. 贵州不同规模等级坝子空间分布特征研究[J]. 地理科学, 2019, 39(11): 1830-1840.

Li Yangbing, Chen Hui, Luo Guangjie. Spatial Distribution of Different Scale Flatland in Guizhou Province, China[J]. SCIENTIA GEOGRAPHICA SINICA, 2019, 39(11): 1830-1840.

图/表 14

图1

图2

图3

图4

图5

图6

图7

图8

图9

表1

表2

图10

图11

图12

参考文献 24

[1]	王永明, 王美霞, 吴殿廷 , 等. 贵州省乡村贫困空间格局与形成机制分析[J]. 地理科学, 2017,37(2):217-227. doi: 10.13249/j.cnki.sgs.2017.02.007
	[ Wang Yongming, Wang Meixia, Wu Dianting et al. Spatial patterns and determinants of rural poverty: A case of Guizhou Province, China. Scientia Geographica Sinica, 2017,37(2):217-227.] doi: 10.13249/j.cnki.sgs.2017.02.007
[2]	李阳兵, 姚原温, 周志明 . 贵州万亩大坝土地利用结构类型研究[M] //刘彦随. 中国农村土地整治与城乡协调发展研究. 贵阳: 贵州科技出版社, 2013: 152-159.
	[ Li Yangbing, Yao yuanwen, Zhou zhiming . Study on the land use structure of Guizhou Province' s flatlands with ≥10000 mu. //In: Liu Yansui. Rural land consolidation and rural-urban harmonies development in China. Guiyang: Guizhou Science Press, 2013: 152-159. ]
[3]	杨子生, 赵乔贵 . 基于第二次全国土地调查的云南省坝区县、半山半坝县和山区县的划分[J]. 自然资源学报, 2014,29(4):564-574.
	[ Yang Zisheng, Zhao Qiaogui . Study on dividing flatland county, semi-mountainous & semi-flatland county and mountainous county in Yunnan Province based on the Second National Land Survey. Journal of Natural Resources, 2014,29(4):564-574.]
[4]	李倩, 刘毅, 许开鹏 , 等. 基于生态空间约束的云贵地区可利用坝区面积与空间分布[J]. 中国环境科学, 2013,33(12):2215-2219.
	[ Li Qian, Liu Yi, Xu Kaipeng et al. Research of area and distribution of flatland in Yunnan and Guizhou based on ecological spatial constraints. China Environmental Science, 2013,33(12):2215-2219.]
[5]	Zhao Yuluan, Li Xiubin . Spatial correlation between type of mountain area and land use degree in Guizhou Province, China[J]. Sustainability, 2016,8(9):849-857. doi: 10.3390/su8090849
[6]	李阳兵, 姚原温, 谢静 , 等. 贵州省山地-坝地系统土地利用与景观格局时空演变[J]. 生态学报, 2014,34(12):3257-3265. doi: <a href='http://dx.doi.org/10.5846/stxb201307021824'>10.5846/stxb201307021824</a>
	[ Li Yangbing, Yao Yuanwen, Xie Jing et al. Spatial-temporal evolution of land use and landscape pattern of the mountain-basin system in Guizhou Province. Acta Ecologica Sinica, 2014,34(12):3257-3265.] doi: <a href='http://dx.doi.org/10.5846/stxb201307021824'>10.5846/stxb201307021824</a>
[7]	刘亚香, 李阳兵, 易兴松 , 等. 贵州典型坝子土地利用强度空间演变及景观格局响应[J]. 应用生态学报, 2017,28(11):3691-3702.
	[ Liu Yaxiang, Li Yangbing, Yi Xingsong et al. Spatial evolution of land use intensity and landscape pattern response of the typical basins in Guizhou Province, China. Chinese Journal of Applied Ecology, 2017,28(11):3691-3702.]
[8]	《贵州省农业地貌区划》编写组. 贵州省农业地貌区划[M]. 贵阳: 贵州人民出版社, 1989: 49-64.
	[ The Compile Group of Agricultural Geomorphologic Regionalization in Guizhou Province. Agricultural geomorphologic regionalization in Guizhou Province. Guiyang: Guizhou People Press, 1989: 49-64.]
[9]	贵州师范大学地理研究所. 贵州省地表自然形态信息数据量测研究[M]. 贵阳: 贵州科技出版社, 2000.
	[ Geographical Institute of Guizhou Normal University. Study on data measurement of natural surface information in Guizhou Province. Guiyang: Guizhou Science Press, 2000. ]
[10]	张述清, 王爱华, 王宇新 , 等. 云贵高原地区坝子划定技术与方法研究——以云南省为例[J]. 地矿测绘, 2012,28(4):1-4.
	[ Zhang Shuqing, Wang Aihua, Wang Yuxin et al. Study on techniques and methods in demarcation of bazi in Yunnan-Guizhou Plateau. Surveying and Mapping of Geology and Mineral Resources, 2012,28(4):1-4. ]
[11]	童绍玉, 陈永森, 王学良 . 云南坝子的成因与特征研究[J]. 云南地理环境研究, 2007, 19(5) 129-133+122.
	[ Tong Shaoyu, Chen Yongsen, Wang Xueliang . A study on the cause of formation for flatland in Yunnan and research into their features. Yunnan Geographic Environment Research, 2007, 19(5) 129-133+122.]
[12]	中国科学院地理研究所. 中国1∶100万地貌图说明书[M]. 北京: 中国科学院地理研究所, 1987.
	[ Institute of Geographic Sciences Research, Chinese Academy of Sciences. Description of China's 1: 1000000 Geomorphological Map. Beijing: Institute of Geographic Sciences Research, Chinese Academy of Sciences, 1987. ]
[13]	王曼曼, 吴秀芹, 吴斌 , 等. 盐池北部风沙区乡村聚落空间格局演变分析[J]. 农业工程学报, 2016,32(8):260-271.
	[ Wang Manman, Wu Xiuqin, Wu Bin et al. Evolution analysis of spatial pattern of rural settlements in sandy area of northern Yanchi. Transactions of the Chinese Society of Agricultural Engineering, 2016,32(8):260-271.]
[14]	欧维新, 王宏宁, 陶宇 . 基于土地利用与土地覆被的长三角生态系统服务供需空间格局及热点区变化[J]. 生态学报, 2018,38(17):6337-6347. doi: 10.5846/stxb201707061225
	[ Ou Weixin, Wang Hongning , Taoyu. A land cover-based assessment of ecosystem services supply and demand dynamics in the Yangtze River Delta region. Acta Ecologica Sinica, 2018,38(17):6337-6347.] doi: 10.5846/stxb201707061225
[15]	程开明, 庄燕杰 . 城市体系位序-规模特征的空间计量分析-以中部地区地级以上城市为例[J]. 地理科学, 2012,32(8):905-912.
	[ Cheng Kaiming, Zhuang Yanjie . Spatial econometric analysis of the rank-size rule for urban system: A case of prefectural-level cities in China′s middle area. Scientia Geographica Sinica, 2012,32(8):905-912.]
[16]	王德怀, 李旭东 . 贵州乌江流域人口与经济发展协调性研究[J]. 地理科学, 2019,39(3):477-486. doi: 10.13249/j.cnki.sgs.2019.03.014
	[ Wang Dehuai, Li Xudong . Coordination of population and economic development in the Wujiang River Basin of Guizhou Province. Scientia Geographica Sinica, 2019,39(3):477-486.] doi: 10.13249/j.cnki.sgs.2019.03.014
[17]	梁会民, 赵军 . 基于GIS 的黄土塬区居民点空间分布研究[J]. 人文地理, 2001,16(6):81-83.
	[ Liang Huimin, Zhao Jun . Study on the spatial distribution characteristics of settlement in Loess plateau by GIS. Human Geography, 2001,16(6):81-83.]
[18]	杨广斌, 安裕伦, 张雅梅 , 等. 基于3S的贵州省万亩大坝信息提取技术[J]. 贵州师范大学学报(自然科学版), 2003,21(2):93-110.
	[ Yang Guangbin, An Yulun, Zhang Yamei et al. The technology of discovering over 10000 mu basins based on 3S in Guizhou Province. Journal of Guizhou Norrmal University (Natural Sciences), 2003,21(2):93-110.]
[19]	贵州省国土资源厅. 贵州省万亩耕地大坝图集[M]. 长沙: 湖南地图出版社, 2005.
	[ Department of Land and Resources of Guizhou Province. Atlas of 10000 mu cultivated flatland of Guizhou Province. Changsha: Hunan Map Press, 2005.]
[20]	中国自然资源丛书编撰委员会. 中国自然资源丛书(贵州卷) [M]. 北京: 中国环境科学出版社, 1995.
	[ China Natural Resources Series Compilation Committee. China natural resources series(Guizhou Volume). Beijing: China Environmental Science Press, 1995.]
[21]	贵州省区域地理信息项目领导小组. 贵州省地理信息数据集[M]. 贵阳: 贵州人民出版社, 1996.
	[ Guizhou Regional Geographic Information Project Leading Group. Geographic information data set of Guizhou Province. Guiyang: Guizhou People Press, 1996.]
[22]	闫利会, 周忠发, 谢雅婷 , 等. 贵州高原石漠化敏感性与宏观地貌的空间关联分析[J]. 中国岩溶, 2018,37(3):400-407.
	[ Yan Lihui, Zhou Zhongfa, Xie Yating et al. Analysis on spatial correlation between sensitivity of rocky desertification and macroscopic geomorphology in Guizhou Plateau. Carsologica Sinica, 2018,37(3):400-407.]
[23]	李阳兵, 饶萍, 罗光杰 , 等. 贵州坝子土地利用变迁与耕地保护[M]. 北京: 科学出版社, 2015.
	[ Li Yangbing, Rao Ping, Luo Guangjie et al. The land use evolution and arable land protection of the basin land system in Guizhou Province. Beijing: Science Press, 2015.]
[24]	魏海, 秦博, 彭建 , 等. 基于GRNN 模型与邻域计算的低丘缓坡综合开发适宜性评价——以乌蒙山集中连片特殊困难片区为例[J]. 地理研究, 2014,33(5):831-841. doi: 10.11821/dlyj201405003
	[ Wei Hai, Qin Bo, Peng Jian et al. Evaluation on comprehensive exploitation suitability of low-slope hilly land based on GRNN model and neighborhood calculation: A case study of Wumeng Mountain continuous poverty-stricken region. Geographical Research, 2014,33(5):831-841.] doi: 10.11821/dlyj201405003

坝子面积与密度特征耦合类型	坝子的空间密度（个/ km²）	坝子占1 km²网格面积比（%）	面积占比（%）
低面积占比-低密度型	0~0.035	0~3.122	30.441
低面积占比-中等密度型	0.035~0.097	0~3.122	2.099
低面积占比-高密度型	0.164~0.647	0~3.122	0.215
中面积占比-低密度型	0~0.035	3.122~13.074	26.415
中面积占比-中等密度型	0.035~0.097	3.122~13.074	20.410
中面积占比-高密度型	0.164~0.647	3.122~13.074	3.243
高面积占比-低密度型	0~0.048	13.074~49.956	2.199
高面积占比-中等密度型	0.048~0.164	3.122~13.074	12.961
高面积占比-高密度型	0.164~0.647	13.074~49.956	2.017

坝子等级	最近邻点平均观测距离（km）	最近邻点平均期望距离（km）	平均最邻指数	z	m	分布模式
1	15.965	17.896	0.892	-2.251	0.024	集聚-随机分布
2	13.697	16.599	0.825	-4.487	0.000	集聚-随机分布
3	10.426	13.259	0.786	-6.961	0.000	集聚-随机分布
4	4.745	6.157	0.771	-17.386	0.000	集聚-随机分布
5	3.982	5.332	0.747	-21.935	0.000	集聚-随机分布
6	2.072	3.156	0.657	-51.907	0.000	集聚-随机分布
7	3.295	6.046	0.545	-35.803	0.000	集聚-随机分布
