城市内涝灾害受灾人口评估方法与实证研究：以哈尔滨市道里区为例

doi:10.13249/j.cnki.sgs.2020.01.019

摘要/Abstract

摘要：

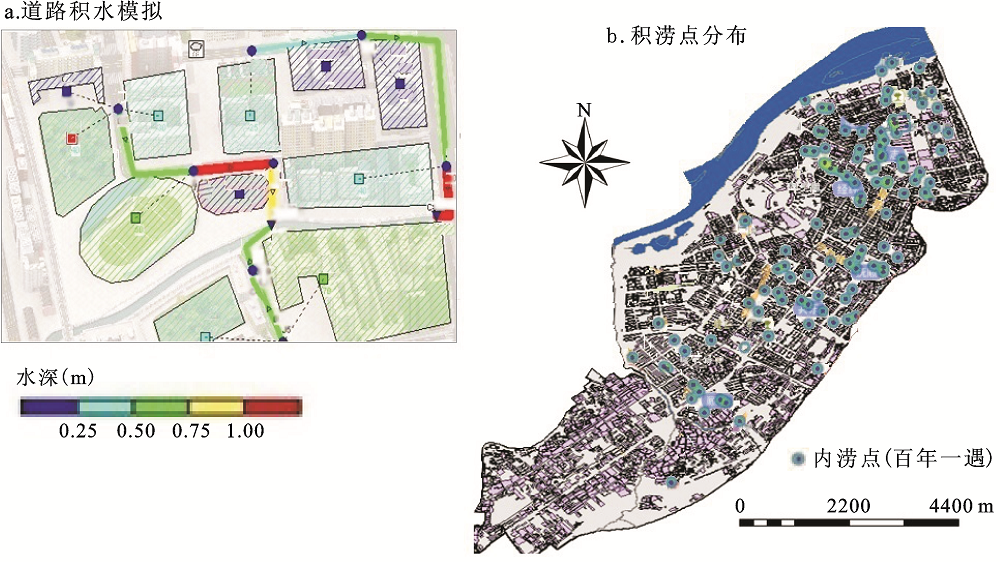

城市内涝灾害频发,对居民生命安全造成严重威胁,为提高城市内涝灾害受灾人口评估精度,提出一种更为精确的受灾人口评估方法。以哈尔滨市道里区为研究区,以城市内涝灾害受灾人口为研究对象,运用一、二维非恒定流为主控方程,构建城市内涝数值模拟模型,并结合受灾人口分布特点,综合构建基于土地利用的人口随时间变化的计算模型。实现在模拟内涝灾害影响范围基础上,利用受灾人口计算模型提取白天与夜晚受灾人口分布情况。结果表明：研究区在百年一遇降雨情景下,有25条街道会发生不同程度积水,积水深度范围值为0.10~1.42 m;此级别内涝灾害在白天11条街道受灾人口数量最大值达到3 500人,夜晚10条街道受灾人口数量最大值为720人。

关键词: 内涝灾害, 内涝数值模拟模型, 受灾人口评估, 哈尔滨

Abstract:

The frequent occurrence of urban waterlogging disaster has a grave threat to the life safety of residents. In order to improve the accuracy of urban waterlogging disaster assessment, a more accurate assessment method for the affected population has been proposed. Regarded Daoli District of Harbin City as the research area, and the population affected by urban waterlogging disaster as the research object, it built the numerical simulation model of urban waterlogging by took the first and the second dimensional unsteady flow as the main governing equations. It constructed the calculation model of the population change with time based on land use though combined with the distribution characteristics of the affected population. Based on the simulation of the influence scope of the waterlogging disaster, it extracted the distribution of the affected population in the day and night with the calculation model of the affected population. The result indicates that, in the case of 100 year rainfall in the study area, there are 25 streets, with the range of ponding depth of 0.10-1.42 m, had different degree of ponding. The maximum number of people affected by this level of waterlogging disaster reached 3 500 in 11 streets during the day and 720 in 10 streets at night.

Key words: waterlogging disaster, waterlogging numerical simulation model, affected population assessment, Harbin

中图分类号:

陈鹏, 赵洪阳, 张继权, 张硕, 鲍建华, 刘晓静. 城市内涝灾害受灾人口评估方法与实证研究：以哈尔滨市道里区为例[J]. 地理科学, 2020, 40(1): 158-164.

Chen Peng, Zhao Hongyang, Zhang Jiquan, Zhang Shuo, Bao Jianhua, Liu Xiaojing. Assessment Method and Empirical Study on the Population Affected by Urban Waterlogging Disaster: Daoli District of Harbin as an Example[J]. SCIENTIA GEOGRAPHICA SINICA, 2020, 40(1): 158-164.

图/表 7

表1

图1

图2

图3

图4

图5

图6

参考文献 29

[1]	IPCC. Intergovernmental panel on climate change climate change 2013 Fifth assessment report (AR5) [M]. Cambridge, UK: Cambridge University Press, 2013.
[2]	Peng Chen, Zhang Jiquan, Zhang Lifeng et al. Wargame simulation theory and evaluation method for emergency evacuation of residents from urban waterlogging disaster area[J]. Int. J. Environ. Res. Public Health, 2016,13(12):2-19.
[3]	陈鹏, 张继权 . 城市暴雨积涝灾害居民避难迁安研究[M]. 北京: 科学出版社, 2017.
	[ Chen Peng, Zhang Jiquan. Study on resident evacuation and retreating for urban waterlogging disaster caused by heavy rain. Beijing: Science Press, 2017.]
[4]	Graham W J . A procedure for estimating loss of life caused by dam failure[R]. Denver, CO: US Department of the Interior, Bureau of Reclamation, Dam Safety Office, 1999.
[5]	周克发, 李雷, 盛金保 . 我国溃坝生命损失评价模型初步研究[J]. 安全与环境学报, 2007,7(3):145-49.
	[ Zhou Kefa, Li Lei, Sheng Jinbao . Evaluation model of loss of life due to dam breach in China. Journal of Safety and Environment, 2007,7(3):145-149.]
[6]	Ramsbottom D, Floyd P, Penning-Rowsell E . Flood risks to people: Phase 1 [R]. London,SW: Defra, Flood Management Division, 2003.
[7]	Wheater H S, Chandler R E, Onof C J et al. Spatial-temporal rainfall modelling for flood risk estimation[J]. Stochastic Environmental Research and Risk Assessment, 2005,19(6):403-416.
[8]	黄崇福, 郭君, 艾福利 , 等. 洪涝灾害风险分析的基本范式及其应用[J]. 自然灾害学报, 2013,22(4):11-23.
	[ Huang Chongfu, Guo Jun, Ai Fuli et al. Basic paradigm of risk analysis in flood disaster and its application. Journal of Natural Disasters, 2013,22(4):11-23.]
[9]	杨帅, 苏筠 . 县域暴雨洪涝灾害损失快速评估方法探讨: 以湖南省为例[J]. 自然灾害学报, 2014,23(5):156-163.
	[ Yang Shuai, Su Yun . Exploration of rapid evaluation method for rainstorm flood losses at county level: A case study of Hunan Province. Journal of Natural Disasters, 2014,23(5):156-163.]
[10]	Li Kaizhong, Wu Shaohong, Dai Erfu et al. Flood loss analysis and quantitative risk assessment in China[J]. Natural Hazards, 2012,63(2):737-760.
[11]	王飞, 尹占娥, 温家洪 , 等. 基于多智能体的自然灾害动态风险评估模型[J]. 地理与地理信息科学, 2009,25(2):85-88.
	[ Wang Fei, Yin Zhan'e, Wen Jiahong et al. Assessing model for dynamic risk of natural disasters based on multi-agent system. Geography and Geo-Information Science, 2009,25(2):85-88.]
[12]	令狐彬 . 基于多agent 的洪涝灾害风险仿真研究[D]. 合肥:中国科学技术大学, 2014.
	[ Ling Hubin . Simulation of flood disaster risk based on multi-agent. Hefei: University of Science and Technology of China, 2014.]
[13]	Federal Emergency Management Agency . Hazus-MH flood manuals: Flood model technical manual[M]. Washington,DC: Federal Emergency Management Agency, 2015.
[14]	满苏尔·沙比提, 吴美华 . 南疆近60年来洪灾时空变化特征分析[J]. 地理科学, 2012,32(3):386-392.
	[ Man Suer·Sabiti, Wu Meihua . The spatio-temporal change characteristics of flood disaster in the Southern Xinjiang in recent 60 years. Scientia Geographica Sinica, 2012,32(3):386-392.]
[15]	颜亮东, 李林, 刘义花 . 青海牧区干旱、雪灾灾害损失综合评估技术研究[J]. 冰川冻土, 2013,35(3):662-680.
	[ Yan Liangdong, Li Lin, Liu Yihua . How to comprehensively evaluate the economic loss due to drought and snow disaster in Qinghai Pastoral Areas. Journal of Glaciology and Geocryology, 2013,35(03):662-680.]
[16]	高晓路, 季珏, 金凤君 , 等. 中国农村房屋震灾脆弱性评估及其成因分析[J]. 地理学报, 2012,67(2):211-220.
	[ Gao Xiaolu, Ji Jue, Jin Fengjun et al. Seismic vulnerability of rural housing and regional anti-disaster strategies in China. Acta Geographica Sinica, 2012,67(2):211-220.]
[17]	吴柳萍, 何东进, 洪伟 , 等. 基于改进突变级数法的中国森林火灾评价[J]. 西北农林科技大学学报(自然科学版), 2017,45(8):95-102.
	[ Wu Liuping, He Dongjin, Hong Wei et al. Assessment of forest fires in China based on improved catastrophe progression method. Journal of Northwest A&F University(Nat.Sci.Ed.), 2017,45(8):95-102.]
[18]	董南, 杨小唤, 蔡红艳 , 等. 人口密度格网尺度适宜性评价方法研究—以宣州区乡村区域为例[J]. 地理学报, 2017,72(12):2310-2324.
	[ Dong Nan, Yang Xiaohuan, Cai Hongyan et al. Suitability evaluation of gridded population distribution: A case study in rural area of Xuanzhou District, China. Acta Geographica Sinica, 2017,72(12):2310-2324.]
[19]	哈尔滨市统计局. 哈尔滨市统计年鉴[M]. 北京: 中国统计出版社, 2017.
	[ Harbin Municipal Bureau of Statistics. Harbin Statistical Yearbook. Beijing: China Statistics Press, 2017.]
[20]	尹占娥, 许世远, 殷杰 , 等. 基于小尺度的城市暴雨内涝灾害情景模拟与风险评估[J]. 地理学报, 2010,65(5):553-561.
	[ Yin Zhan'e, Xu Shiyuan, Yin Jie et al. Small-scale based scenario modeling and disaster risk assessment of urban rainstorm water-logging. Acta Geographica Sinica, 2010,65(5):553-561.]
[21]	孙阿丽, 石纯, 石勇 . 基于情景模拟的暴雨内涝危险性评价——以黄浦区为例[J]. 地理科学, 2010,30(3):465-468.
	[ Sun Ali, Shi Chun, Shi Yong . Hazard assessment on rainstorm waterlogging disasters in Huangpu District, Shanghai based on scenario simulation. Scientia Geographica Sinica, 2010,30(3):465-468.]
[22]	陈鹏, 张继权, 孙滢悦 , 等. 暴雨内涝灾害模拟研究[J]. 科技导报, 2017,35(21):89-94.
	[ Chen Peng, Zhang Jiquan, Sun Yingyue et al. Simulation study of rainstorm water logging disaster. Science & Technology Review, 2017,35(21):89-94.]
[23]	陈鹏, 孙滢悦, 刘晓静 , 等. 城市内涝灾害社会影响评价研究[J]. 吉林师范大学学报(自然科学版), 2018,39(1):135-140.
	[ Chen Peng, Sun Yingyue, Liu Xiaojing et al. Study on thesocial impact assessment of urban waterlogging disaster. Journal of Jilin Normal University (Natural Science Edition), 2018,39(1):135-140.]
[24]	胡蓓蓓, 周俊, 王军 , 等. 基于情景模拟的天津市滨海新区2020年暴雨内涝风险评估[J]. 地理科学, 2012,32(7):846-852.
	[ Hu Beibei, Zhou Jun, Wang Jun et al. Risk assessment on rainstorm waterlogging of Tianjin Binhai New Area based on scenario simulation. Scientia Geographica Sinica, 2012,32(7):846-852.]
[25]	李娜, 仇劲卫, 程晓陶 , 等. 天津市城区暴雨沥涝仿真模拟系统的研究[J]. 自然灾灾害学报, 2002,11(2):113-118.
	[ Li Na, Qiu Jinwei, Cheng Xiaotao et al. Study on simulation system of rainstorm waterlogging in Tianjin City. Journal of Natural Disasters, 2002,11(2):113-118.]
[26]	解以扬, 李大鸣, 李培彦 , 等. 城市暴雨内涝数学模型的研究与应用[J]. 水科学进展, 2005,16(3):385-388.
	[ Xie Yiyang, Li Daming, Li Peiyan et al. Research and application of the mathematical model for urban rainstorm water logging. Advances in Water Science, 2005,16(3):385-388.]
[27]	Wheater H S, Chandler R E, Onof C J et al. Spatial-temporal rainfall modelling for flood risk estimation[J]. Stochastic Environmental Research and Risk Assessment, 2005,19(6):403-416.
[28]	中华人民共和国住房和城乡建设部. GB50137-2011 城市用地分类与规划建设用地标准[S]. 北京: 中国建筑工业出版社, 2011.
	[ Ministry of Housing and Urban-Rural Development of the People’s Republic of China. GB50137-2011 Code for classification of urban land use planning standards of development land. Beijing: China Architecture & Building Press, 2011.]
[29]	Luís Alçada-Almeida, Lino Tralhão, Luís Santos et al. A multiobjective approach to locate emergency shelters and identify evacuation routes in urban areas[J]. Geographical Analysis, 2009,41(1):9-29.

积水位置	实测值（m）	计算值（m）	绝对误差（m）
石头道街桥下	1.100	1.070	-0.030
透笼街与买卖街交汇处	0.400	0.426	0.026
透笼街与兆麟街交汇处	0.380	0.312	-0.068
安顺街与经纬二道街交汇处	0.700	0.727	0.027
安发街与安顺街交汇处	0.560	0.509	-0.051
