高速铁路对东北城市网络结构的空间影响

doi:10.13249/j.cnki.sgs.2020.02.012

摘要/Abstract

摘要：

借鉴复杂网络理论,以铁路列车时刻表为基础数据,探讨高速铁路的开通对东北地区铁路网络结构和城市网络结构的空间影响。结果表明：① 高铁强化了东北地区铁路网络的小世界、无标度等网络特征,各网络节点在可达性和辐射能力方面受到4种不同形式的影响;② 高铁强化了沈阳和哈尔滨的主-副双核心铁路网络结构,使得拓扑网络的离散程度大幅降低,长春、大连等城市的网络联系中心性显著提升;③ 铁路交通重心向西北方向偏移,区域间不平衡性增强,吉林省成为东北铁路客运联系强度最高的地区;④ 大连市拥有特殊的门户城市特征,即对外联通能力强,但未形成足够吸引力。

关键词: 复杂网络, 铁路联系强度, 城市空间结构, 高速铁路, 东北地区

Abstract:

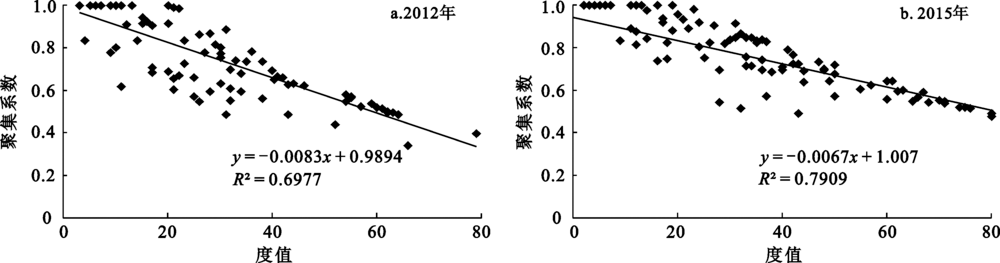

Transport infrastructure has always been regarded as one of the indispensable conditions for society development. Its quality improvement is often manifested in its speed and quantity enhancement.With reference to the complex network theory, based on the railway train timetable as the basic data, the spatial impact of the opening of the high-speed railway on the railway network structure and the urban network structure in the northeast region is discussed. The results show that: 1) The overall characteristics of the Northeast urban railway: individual cities have high degree values while most cities have low degree values. The clustering coefficient is basically inversely proportional to the degree. The average path length has been reduced after the opening of the high-speed railway. The complex network features such as scale-free and small world are more obvious, and the overall connectivity of the railway network hasbeenstrengthened. 2) After the opening of the high-speed railway, the sub-dual-core railway network structure greatly reduces the dispersion of the topological network, and significantly improves the centrality of network connections in cities such as Changchun and Dalian. 3) The center of gravity of railway traffic shifts to the northwest, and regional imbalances increase.After the opening of the high-speed rail, surpassing Liaoning's leading position, Jilin Province's spatial connection capacity has grown rapidly. At the same time, the overall spatial difference in Northeast China has further expanded, the balance has been reduced, and the core-periphery structure has been further polarized. 4) Compared with the other three central cities, Dalian cannot attract other cities at the first gravity, but it is at the same level as other central cities in the second gravity, which also reveals the unique gateway characteristic of Dalian as a central city: The scale of external contacts is strong, but due to the marginal location, Dalian does not have the function of radiating urban agglomerations in passenger and freight traffic flows.

Key words: complex network, contact strength, urban spatial structure, high-speedrailway, Northeast China

中图分类号:

F129.9

刘书舟, 韩增林, 郭建科. 高速铁路对东北城市网络结构的空间影响[J]. 地理科学, 2020, 40(2): 270-279.

Liu Shuzhou, Han Zenglin, Guo Jianke. The Impact of High Speed Railway on Urban Network Structure in Northeast China[J]. SCIENTIA GEOGRAPHICA SINICA, 2020, 40(2): 270-279.

图/表 9

表1

表2

图1

图2

图3

表3

图4

表4

图5

参考文献 26

[1]	周浩, 郑筱婷 . 交通基础设施质量与经济增长:来自中国铁路提速的证据[J]. 世界经济, 2012,35(1):78-97.
	[ Zhou Hao, Zheng Xiaoting . Quality of transportation infrastructure and economic growth: Evidence from China railway speed increase. The Journal of World Economy, 2012,35(1):78-97.]
[2]	王绍博, 郭建科 . 我国城市整体交通运输流发展的时空演化及其空间关联性分析[J]. 干旱区资源与环境, 2017,31(2):43-49.
	[ Wang Shaobo, Guo Jianke . Spatial and temporal evolution and spatial correlation analysis of the transportation development in China. Journal of Arid Land Resources and Environment, 2017,31(2):43-49.]
[3]	Guirao B, Campa J L . Cross effects between high speed rail lines and tourism: Looking for empirical evidence using the Spanish case study[J]. Transportation Research Procedia, 2016,14(14):392-401.
[4]	Francesca P, John P . An induced demand model for high speed 1 in UK[J]. Journal of Transportation Technologies, 2013,3(1):44-51.
[5]	Bolden T, Harman R . New development: High speed rail in Great Britain—Its rationale and purpose[J]. Public Money & Management, 2013,33(6):463-468.
[6]	钟业喜, 陆玉麒 . 基于铁路网络的中国城市等级体系与分布格局[J]. 地理研究, 2011,30(5):785-794.
	[ Zhong Yexi, Lu Yuqi . Hierarchical structure and distribution pattern of Chinese urban system based on railway network. Geographical Research, 2011,30(5):785-794.]
[7]	焦敬娟, 王姣娥, 金凤君 , 等. 高速铁路对城市网络结构的影响研究——基于铁路客运班列分析[J]. 地理学报, 2016,71(2):265-280.
	[ Jiao Jingjuan, Wang Jiao’e, Jin Fengjun et al. Impact of high-speed rail on inter-city network based on the passenger train network in China, 2003-2013. Acta GeographicaSinica, 2016,71(2):265-280.]
[8]	孟德友, 陆玉麒 . 基于铁路客运网络的省际可达性及经济联系格局[J]. 地理研究, 2012,31(1):107-122.
	[ Meng Deyou, Lu Yuqi . Analysis of inter-provincial accessibility and economic linkage spatial pattern based on the railway network. Geographical Research, 2012,31(1):107-122.]
[9]	朱桃杏, 吴殿廷, 马继刚 , 等. 京津冀区域铁路交通网络结构评价[J]. 经济地理, 2011,31(4):561-565, 572.
	[ Zhu Taoxing, Wu Dianting, Ma Jigang et al. Ebaluation of rail transport network within Beijing-Tianjin-Hebei region. Economic Geography, 2011,31(4):561-565, 572.]
[10]	刘恒宇, 汝宜红, 孙膑 . 全国省会城市铁路网络客运能力研究[J]. 经济地理, 2016,36(8):16-22.
	[ Liu Hengyu, Ru Yihong, Sun Bin . Study on passenger capacity of the railway network of the country's provincial capital cities. Economic Geography, 2016,36(8):16-22.]
[11]	陈建军, 郑广建, 刘月 . 高速铁路对长江三角洲空间联系格局演化的影响[J]. 经济地理, 2014,34(8):54-60.
	[ Chen Jianjun, Zheng Guangjian, Liu Yue . The spatial connection evaluation of Yangtze River Delta with the high-speed rail. Economic Geography, 2014,34(8):54-60.]
[12]	郭建科, 王绍博, 李博 , 等. 哈大高铁对东北城市旅游经济联系的空间影响[J]. 地理科学, 2016,36(4):521-529.
	[ Guo Jianke, Wang Shaobo, Li Bo et al. The spatial effect of Harbin-Dalian high-speed rail to the Northeast city tourism economic link. Scientia GeographicaSinica, 2016,36(4):521-529.]
[13]	张萌萌, 孟晓晨 . 高速铁路对中国城市市场潜力的影响——基于铁路客运可达性的分析[J]. 地理科学进展, 2014,33(12):1650-1658.
	[ Zhang Mengmeng, Meng Xiaochen . Impact of high-speed railway on market potential of Chinese cities: Analyses based on railway passenger transport accessibility. Progress in Geography, 2014,33(12):1650-1658.]
[14]	丁金学, 金凤君, 王姣娥 , 等. 高铁与民航的竞争博弈及其空间效应——以京沪高铁为例[J]. 经济地理, 2013,33(5):104-110.
	[ Ding Jinxue, Jin Fengjun, Wang Jiao'e et al. Competition game of high-speed rail and civil aviation and its spatial effect—A case study of Beijing-Shanghai high-speed rail. Economic Geography, 2013,33(5):104-110.]
[15]	邓涛涛, 王丹丹 . 中国高速铁路建设加剧了“城市蔓延”吗?——来自地级城市的经验证据[J]. 财经研究, 2018,44(10):125-137.
	[ Deng Taotao, Wang Dandan . Has China's high-speed railway construction aggravated “Urban Sprawl”? An empirical evidence from prefecture-level cities. Journal of Finance and Economics, 2018,44(10):125-137.]
[16]	宗会明, 黄言 . 高速铁路对成渝城市群区域可达性和城市相互作用格局的影响[J]. 人文地理, 2019, 34(3): 99-107+127.
	[ Zong Huiming, Huang Yan . The impact of high-speed rail on regional accessibility and regional spatial interactions: A case study of Chengdu-Chongqing urban agglomeration. Human Geography, 2019, 34(3): 99-107+127.]
[17]	姜博, 初楠臣 . 哈大高铁对区域可达性影响及空间格局演变[J]. 城市规划, 2015,39(11):92-98.
	[ Jiang Bo, Chu Nanchen . Impact of Harbin-Dalian high-speed rail on regional accessibility and evolution of spatial pattern. City Planning Review, 2015,39(11):92-98.]
[18]	金江磊, 闫浩文, 刘涛 , 等. 高速铁路通达度与城市驱动力的时空耦合关系研究[J]. 地理与地理信息科学, 2019,35(3):120-126.
	[ Jin Jianglei, Yan Haowen, Liu Tao et al. Spatio-temporal coupling relations between the accessibility of high-speed railway and the urban driving forces in China. Geography and Geo-Information Science, 2019,35(3):120-126.]
[19]	张兰霞, 秦勇, 王莉 . 高速铁路加权复杂网络特性分析[J]. 铁道科学与工程学报, 2016,13(2):201-209.
	[ Zhang Lanxia, Qin Yong, Wang Li . Statistical analysis of weighted complex network in Chinese high-speed railway. Journal of Railway Science and Engineering, 2016,13(2):201-209.]
[20]	Yu Z C, Fan Z P . Dynamics modeling and simulation of system catastrophe in knowledge collaboration complexity network[J]. Journal of Computers, 2010,5(4):622.
[21]	Hossain M M, Alam S . A complex network approach towards modeling and analysis of the Australian airport network[J]. Journal of Air Transport Management, 2016,60:1-9.
[22]	乔金锁, 王喜富, 沈喜生 , 等. 基于复杂网络理论的山西煤炭运输网络复杂性分析[J]. 北京交通大学学报, 2013,37(3):127-132.
	[ Qiao Jinsuo, Wang Xifu, Shen Xisheng et al. Complexity analysis of Shanxi coal transportation network based on complex network theory. Journal of Beijing Jiaotong University, 2013,37(3):127-132.]
[23]	王红勇, 赵嶷飞, 崔卫国 . 基于网络复杂性的终端区空域结构优化[J]. 中国民航大学学报, 2014 , 32(1):5-9.
	[ Wang Hongyong, Zhao Yifei, Cui Weiguo . Optimization of terminal airspace structure based on network complexity. Journal of Civil Aviation University of China, 2014,32(1):5-9.]
[24]	唐芙蓉, 杨先清, 唐刚 , 等. 中国铁路交通网络的拓扑研究及客流分析[J]. 中国矿业大学学报, 2010,39(6):935-940.
	[ Tang Furong, Yang Xianqing, Tang Gang et al. Study of the topology of Chinese rail network and its passenger flow. Journal of China University of Mining & Technology, 2010,39(6):935-940.]
[25]	莫辉辉, 王姣娥, 金凤君 . 交通运输网络的复杂性研究[J]. 地理科学进展, 2008,27(6):112-120.
	[ Mo Huihui , Wang Jiao'e, Jin Fengjun. Complexity perspectives on transportation network. Progress in Geography, 2008,27(6):112-120.]
[26]	顾朝林, 庞海峰 . 基于重力模型的中国城市体系空间联系与层域划分[J]. 地理研究, 2008,27(1):1-12.
	[ Gu Chaolin, Pang Haifeng . Study on spatial relations of Chinese urban system: Gravity model approach. Geographical Research, 2008,27(1):1-12.]

	K字头	T字头	Z字头	D字头	G字头	总计
2012年	239	54	8	102	0	403
2015年	370	64	34	152	168	788
增加数	154^a	10	26	50	168	408

城市	年份	频次（次）	一级联系	二级联系	三级联系	降级城市
沈阳	2012	106	锦州、四平、长春	哈尔滨等24个城市	本溪等52个城市	锦州、四平、兴城、梅河口、龙嘉
沈阳	2015	243	长春	哈尔滨、开原、德惠、抚顺等24个城市	本溪、洮南、北票、龙江、凌源、牙克石、扎兰屯、肇源、郭家店等63个城市	锦州、四平、兴城、梅河口、龙嘉
长春	2012	81	沈阳、吉林、四平	哈尔滨等9个城市	大庆等50个城市	吉林、四平
长春	2015	178	沈阳	哈尔滨、大连、昌图、开原、葫芦岛、鞍山、营口、盘锦、绥中、辽阳等18个城市	大庆、通辽、龙江、本溪、凤城、丹东、双辽、长岭、彰武、赤峰、牙克石、扎兰屯、肇源、郭家店、奈曼等61个城市	吉林、四平
哈尔滨	2012	63	沈阳、长春	大庆等19个城市	庆安等45个城市	五大连池
哈尔滨	2015	149	沈阳、长春	大庆、昌图、大连、安达、开原、葫芦岛、佳木斯、鞍山等20个城市	庆安、辽阳、通辽、松原、大安、本溪、凤城、丹东、白城、新民、双辽、长岭、兴安盟、赤峰、肇源、郭家店、奈曼、双鸭山等63个城市	五大连池
大连	2021	34	瓦房店、大石桥	营口等12个城市	北镇等51个城市	瓦房店、大石桥、台安、辽源
大连	2015	96	沈阳	营口、哈尔滨、铁岭、葫芦岛、昌图、开原、吉林等19个城市	北镇、德惠、扶余、长岭、洮南、牡丹江、肇东、白山、肇源、凌海等51个城市	瓦房店、大石桥、台安、辽源

分类依据	中心城市	地级城市	县级城市
中心性全面提升	哈尔滨沈阳大连	鞍山、白城、白山、赤峰、大庆、抚顺、呼伦贝尔、鸡西、牡丹江、齐齐哈尔、四平、绥化、铁岭、通化、通辽、兴安盟、营口	宝清、昌图、大石桥、东丰、抚远、富锦、柳河、海城、公主岭、郭家店、开原、林口、凌海、满洲里、穆棱、梅河口、磐石、普兰店、舒兰、双鸭山、泰康、泰来、瓦房店、新肇、牙克石、扎兰屯
提升可达性为主	长春	本溪、丹东、阜新、鹤岗、吉林、葫芦岛、佳木斯、锦州、辽阳、七台河、松原、延吉、伊春	安达、北票、北镇、大安、德惠、凤城、扶余、富裕、海林、黑山、加格达奇、凌源、龙江、龙井、绥芬河、密山、漠河、奈曼、讷河、嫩江、庆安、尚志、绥中、塔河、长岭、汤原、洮南、铁力、图们、新林、新民、兴城、彰武、肇东、双辽
提升辐射能力为主	无	朝阳、辽源、盘锦	安图、北安、敦化、盖州、海伦、绥棱、台安、义县、蛟河、清原满族自治县
边缘化加剧	无	黑河	灯塔、虎林、珲春、霍林郭勒、龙嘉、孙吴、五大连池

地区	对外铁路联系总量（次/h²）		均值（次/h²）		变异系数（%）
地区	2012年	2015年	2012年	2015年	2012年	2015年
东北地区	4436.67	18096.45	110.92	452.41	2.22	2.29
辽宁省	2615.52	6259.35	186.82	447.10	2.00	2.01
吉林省	957.42	8377.35	106.38	930.82	1.30	1.77
黑龙江省	713.57	3239.46	54.89	249.19	1.98	2.24
内蒙东四盟市	150.18	220.29	37.54	55.07	0.74	0.60
