村域尺度“三生”功能与生活质量感知空间格局及其关联——以江苏省扬中市为例

doi:10.13249/j.cnki.sgs.2020.04.012

摘要/Abstract

摘要：

以经济发达区江苏省扬中市为例,基于土地利用变更调查及农户抽样调查数据,利用因子分析、GIS空间分析、标准差椭圆等方法对居民生活质量与生产、生活和生态（三生）功能水平空间格局进行定量测度及关联研究。结果表明:① 研究区各单一功能水平不等,空间形态差异显著;“三生”功能水平整体较低,高值区分散,低值区长江沿岸、建成区周边集聚,与生产功能高低值集聚区空间重叠度高。② 扬中市居民生活质量主观感知总体为中等水平,相邻村域生活质量感知趋同,高值区集中于三茅街道及五一村、丰乐村等地,低值区呈零星散布状。③ 研究区“三生”功能与生活质量主观感知整体空间关联密切,局部因地域分异及公共基础设施与环境条件差异有所偏差,未来仍需因地制宜强化管理,协调区域生产-生活-生态功能关系。

关键词: 三生功能, 生活质量感知, 空间格局, 扬中市

Abstract:

In order to find out the inherent logical relationship between the functional level of "production-living-ecological" and the quality of life, taking Yangzhong City, Jiangsu Province, an economically developed area as an example, based on land use change survey and farmer sample survey data, using factor analysis, GIS spatial analysis, standarded viation ellipse and other methods to quantitatively measure and correlate the quality of life of residents and the spatial pattern of “production-living-ecological” function level. The results showed that: 1) The functional level of “production-living-ecological” in the study area was low overall, the high value area was scattered, and the low value area was clustered around the Yangtze River and around the built-up area. The functional levels of each single space was different, and the spatial patterns were significantly different. 2) The subjective perception of residents' quality of life in Yangzhong City was generally moderate, and the quality of life percep tion had “proximity effect”. The high value area was concentrated in Sanmao Street and Wuyi Village, Fengle Village, Neighbourhood Village, etc. 3) The overall spatial correlation between the “production-living-ecological” function and the subjective perception of quality of life was high. The local differences were due to region al differences and differences in public infrastructure and environmental conditions. In the future, it is still necessary to strengthen management according to local conditions and coordinate regional production-life-ecological function relations.The results of the study are expected to reflect the relationship between the functional level of “production-living-ecological” space and the perception of life quality, and provide a reference for the formulation of policies to coordinate regional development and improve people's quality of life.

Key words: “production-living-ecological” function, life quality perception, spatial pattern, Yangzhong City

中图分类号:

F299.2

李欣, 方斌, 殷如梦, 许昕, 陈添悦. 村域尺度“三生”功能与生活质量感知空间格局及其关联——以江苏省扬中市为例[J]. 地理科学, 2020, 40(4): 599-607.

Li Xin, Fang Bin, Yin Rumeng, Xu Xin, Chen Tianyue. Spatial Pattern and Association of Production-Living-Ecological Function and Life Quality on the Village Scale: A Case of Yangzhong City, Jiangsu Province[J]. SCIENTIA GEOGRAPHICA SINICA, 2020, 40(4): 599-607.

图/表 6

表1

表2

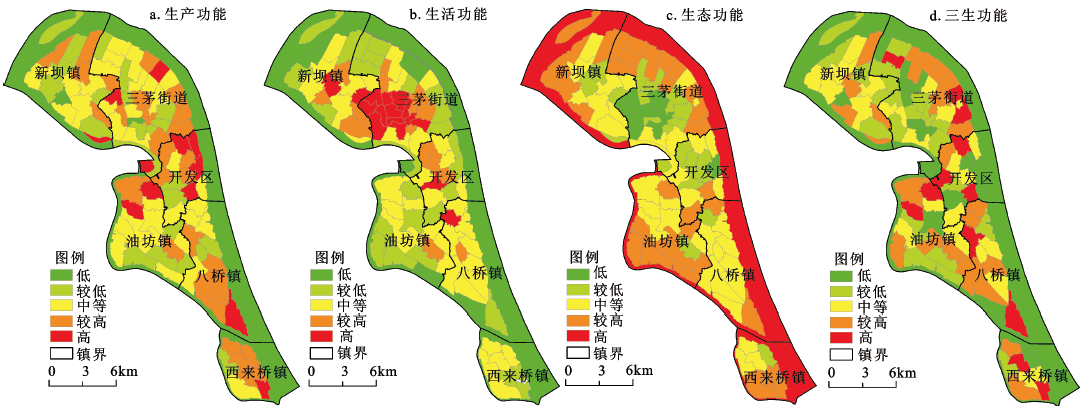

图1

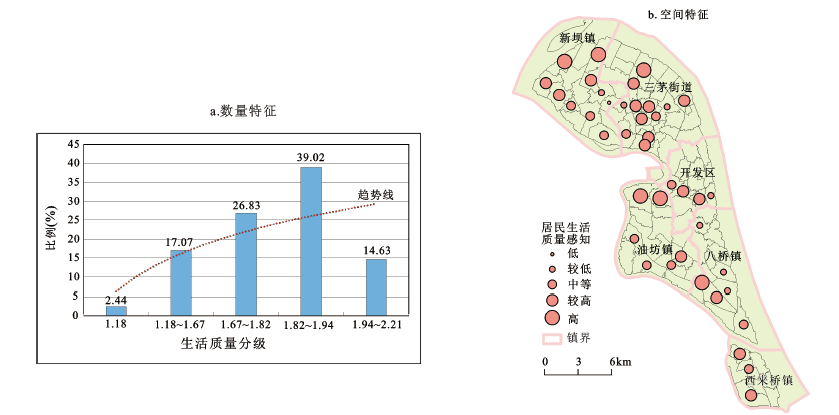

图2

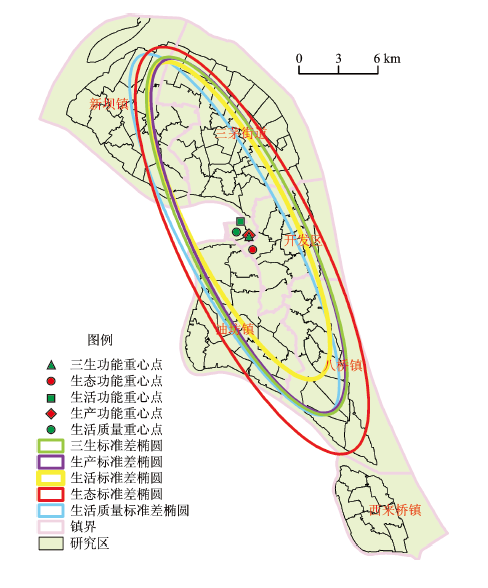

图3

表3

参考文献 31

[1]	龙花楼 . 论土地整治与乡村空间重构[J]. 地理学报, 2013,68(8):1019-1028.
	[ Long Hualou . Land consolidation and rural spatial restructuring. Acta Geographica Sinica, 2013,68(8):1019-1028.]
[2]	方创琳 . 改革开放40年来中国城镇化与城市群取得的重要进展与展望[J]. 经济地理, 2018,38(9):1-9.
	[ Fang Chuanglin . Important progress and prospects of China's urbanization and urban agglomeration in the past 40 years of reform and opening-up. Economic Geography, 2018,38(9):1-9.]
[3]	刘彦随 . 新时代乡村振兴地理学研究[J]. 地理研究, 2019,38(3):461-466. doi: 10.11821/dlyj020190133
	[ Liu Yansui . Research on the geography of rural revitalization in the new era. Geographical Research, 2019,38(3):461-466.] doi: 10.11821/dlyj020190133
[4]	王成, 唐宁 . 重庆市乡村三生空间功能耦合协调的时空特征与格局演化[J]. 地理研究, 2018,37(6):1100-1114. doi: 10.11821/dlyj201806004
	[ Wang Cheng, Tang Ning . Spatio-temporal characteristics and evolution of rural production-living-ecological space function coupling coordination in Chongqing municipality. Geographical Research, 2018,37(6):1100-1114.] doi: 10.11821/dlyj201806004
[5]	李伯华, 曾灿, 窦银娣 , 等. 基于“三生”空间的传统村落人居环境演变及驱动机制——以湖南江永县兰溪村为例[J]. 地理科学进展, 2018,37(5):677-687. doi: 10.18306/dlkxjz.2018.05.011
	[ Li Bohua, Zeng Can, Dou Yindi et al. Change of human settlement environment and driving mechanism in traditional villages based on living-production-ecological space:A case study of Lanxi Village, Jiangyong County, Hunan Province. Progress in Geography, 2018,37(5):677-687.] doi: 10.18306/dlkxjz.2018.05.011
[6]	黄金川, 林浩曦, 漆潇潇 . 面向国土空间优化的三生空间研究进展[J]. 地理科学进展, 2017,36(3):378-391. doi: 10.18306/dlkxjz.2017.03.014
	[ Huang Jinchuan, Lin Haoxi, Qi Xiaoxiao . Research progress of sansheng space for land and space optimization. Progress in Geography, 2017,36(3):378-391.] doi: 10.18306/dlkxjz.2017.03.014
[7]	刘燕 . 论“三生空间”的逻辑结构、制衡机制和发展原则[J]. 湖北社会科学, 2016(3):5-9.
	[ Liu Yan . On the logical structure, balance mechanism and development principle of "production-living-ecological spaces". Hubei Social Sciences, 2016(3):5-9.]
[8]	刘继来, 刘彦随, 李裕瑞 . 中国“三生空间”分类评价与时空格局分析[J]. 地理学报, 2017,72(7):1290-1304. doi: 10.11821/dlxb201707013
	[ Liu Jilai, Liu Yansui, Li Yurui . Classifivation evaluation and spatial-temproal analysis of"production-living-ecological”space in China. Acta Geographica Sinica, 2017,72(7):1290-1304.] doi: 10.11821/dlxb201707013
[9]	李广东, 方创琳 . 城市生态-生产-生活空间功能定量识别与分析[J]. 地理学报, 2016,71(1):49-65. doi: 10.11821/dlxb201601004
	[ Li Guangdong, Fang Chuanglin . Quantitative function identification and analysis of urban ecological-production-living spaces. Acta Geographica Sinica, 2016,71(1):49-65.] doi: 10.11821/dlxb201601004
[10]	金贵, 邓祥征, 张倩 , 等. 武汉城市圈国土空间综合功能分区[J]. 地理研究, 2017,36(3):541-552. doi: 10.11821/dlyj201703012
	[ Jin Gui, Deng Xiangzheng, Zhang Qian et al. Comprehensive function zoning of national land space for Wuhan metropolitan region. Geographical Research, 2017,36(3):541-552.] doi: 10.11821/dlyj201703012
[11]	任国平, 刘黎明, 孙锦 , 等. 基于“胞-链-形”分析的都市郊区村域空间发展模式识别与划分[J]. 地理学报, 2017,72(12):2147-2165. doi: 10.11821/dlxb201712003
	[ Ren Guoping, Liu Liming, Sun Jin et al. Using the "cell-chain-shape" method to identify and classify spatial development patterns of administrative villages in the metropolitan suburbs. Acta Geographica Sinica, 2017,72(12):2147-2165.] doi: 10.11821/dlxb201712003
[12]	王成, 周明茗, 李颢颖 , 等. 基于耗散结构系统熵模型的乡村生产空间系统有序性研究[J]. 地理研究, 2019,38(3):619-631. doi: 10.11821/dlyj020170933
	[ Wang Cheng, Zhou Mingming, Li Haoying et al. Research on the order of rural production space system based on a system entropy model in the dissipative structure. Geographical Research, 2019,38(3):619-631.] doi: 10.11821/dlyj020170933
[13]	杨清可, 段学军, 王磊 , 等. 基于“三生空间”的土地利用转型与生态环境效应——以长江三角洲核心区为例[J]. 地理科学, 2018,38(1):97-106. doi: 10.13249/j.cnki.sgs.2018.01.011
	[ Yang Qingke, Duan Xuejun, Wang Lei et al. Land use transformation and eco-environmental effect based on "production-living-ecological" space: A case study of the core area of the Yangtze River Delta. Scientia Geographica Sinica, 2018,38(1):97-106] doi: 10.13249/j.cnki.sgs.2018.01.011
[14]	熊鹰, 曾光明, 董力三 , 等. 城市人居环境与经济协调发展不确定性定量评价——以长沙市为例[J]. 地理学报, 2007,62(4):397-406. doi: 10.11821/xb200704006
	[ Xiong Ying, Zeng Guangming , Dong Lisan et al.Quantitative evaluation of the uncertainties in the coordinated development of urban human settlement environment and economy: Taking Changsha city as an example. Acta Geographica Sinica, 2007,62(4):397-406.] doi: 10.11821/xb200704006
[15]	潘秋玲, 王兴中 . 城市生活质量空间评价研究——以西安市为例[J]. 人文地理, 1997,12(2):33-41.
	[ Pan Qiuling, Wang Xingzhong . Spatial evaluation on Xian urban living quality. Human Geography, 1997,12(2):33-41.]
[16]	周国华, 刘畅, 唐承丽 , 等. 湖南乡村生活质量的空间格局及其影响因素[J]. 地理研究, 2018,37(12):2475-2489. doi: 10.11821/dlyj201812009
	[ Zhou Guohua, Liu Chang, Tang Chengli et al. Spatial pattern of rural living quality in Hunan and its influencing factors. Geographical Research, 2018,37(12):2475-2489.] doi: 10.11821/dlyj201812009
[17]	Jongudomkarn D, Camfield L . Exploring the quality of life of people in North Eastern and Southern Thailand[J]. Social Indicators Research, 2006,78(3):489-529. doi: 10.1007/s11205-005-1947-2
[18]	扬中市人民政府. 扬中年鉴[M]. 北京: 方志出版社, 2017.
	[ Yangzhong Municipal People's Government. Yangzhong yearbook. Beijing: Publishing House of Local Records, 2017.]
[19]	风笑天, 易松国 . 城市居民家庭生活质量:指标及其结构[J]. 社会学研究, 2000(4):107-118.
	[ Feng Xiaotian, Yi Songguo . Quality of life of urban residents: Indicators and their structure. Sociological Research, 2000(4):107-118.]
[20]	田永霞, 刘晓娜, 李红 , 等. 基于主客观生活质量评价的农村发展差异分析——以北京山区经济薄弱村为例[J]. 地理科学进展, 2015,34(2):185-196. doi: 10.11820/dlkxjz.2015.02.007
	[ Tian Yongxia, Liu Xiaona, Li Hong et al. Analysis of rural development differences based on subjective and objective quality of life evaluation: A case study of economically weak villages in Beijing mountainous areas. Progress in Geography, 2015,34(2):185-196.] doi: 10.11820/dlkxjz.2015.02.007
[21]	刘彦随, 刘玉, 陈玉福 . 中国地域多功能性评价及其决策机制[J]. 地理学报, 2011,66(10):1379-1389. doi: 10.11821/xb201110008
	[ Liu Yansui, Liu Yu, Chen Yufu . Territorial multi-functionality evaluation and decision-making mechanism at county scale in China. Acta Geographica Sinica, 2011,66(10):1379-1389.] doi: 10.11821/xb201110008
[22]	龙花楼, 刘永强, 李婷婷 , 等. 生态用地分类初步研究[J]. 生态环境学报, 2015,24(1):1-7.
	[ Long Hualou, Liu Yongqiang, Li Tingting, et al. A primary study on ecological land use classification. Ecology and Environmental Sciences, 2015,24(1):1-7.]
[23]	陈婧, 史培军 . 土地利用功能分类探讨[J]. 北京师范大学学报(自然科学版), 2005,41(5):536-540.
	[ Chen Jing, Shi Peijun . Discussion on functional land use classification system. Journal of Beijing Normal University(Natural Science), 2005,41(5):536-540.]
[24]	念沛豪, 蔡玉梅, 张文新 , 等. 面向综合区划的国土空间地理实体分类与功能识别[J]. 经济地理, 2014,34(12):7-14.
	[ Nian Peihao, Cai Yumei, Zhang Wenxin et al. Classification and functional identification of territorial spatial geographic entities for comprehensive zoning. Economic Geography, 2014,34(12):7-14.]
[25]	林南, 王玲, 潘允康 , 等. 生活质量的结构与指标——1985年天津千户户卷调查资料分析[J]. 社会学研究, 1987(6):73-89.
	[ Lin Nan, Wang Lin, Pan Yunkang et al. The structure and indicators of quality of life: Analysis of the survey data of Tianjin households in 1985. Sociological Research, 1987(6):73-89.]
[26]	Slater C H, Bick D . Quality of life research: An international journal of quality of life aspects of treatment, care and rehabilitation[J]. The Journal of the American Medical Association, 1994,271(17), 1377-1377.
[27]	Diaz R J, Solan M, Valente R M . A review of approaches for classifying benthic habitats and evaluating habitat quality[J]. Journal of Environmental Management, 2004,73(3):165-181. doi: 10.1016/j.jenvman.2004.06.004
[28]	何学欢, 胡东滨, 马北玲 , 等. 旅游地社会责任对居民生活质量的影响机制[J]. 经济地理, 2017,37(8):207-215.
	[ He Xuehuan, Hu Dongbin, Ma Beilin et al. The mechanism of the influence of social responsibility of tourism destinations on the quality of life. Economic Geography, 2017,37(8):207-215.]
[29]	曾文, 张小林, 向梨丽 , 等. 江苏省县域城市生活质量的空间格局及其经济学解析[J]. 经济地理, 2014,34(7):28-35.
	[ Zeng Wen, Zhang Xiaolin, Xiang Lili et al. The spatial pattern of county life quality in Jiangsu Province and its economic analysis. Economic Geography, 2014,34(7):28-35.]
[30]	李裕瑞, 刘彦随, 龙花楼 . 黄淮海典型地区村域转型发展的特征与机理[J]. 地理学报, 2012,67(6):771-782. doi: 10.11821/xb201206005
	[ Li Yurui, Liu Yansui, Long Hualou . Characteristics and mechanism of transformation of villages in typical areas of Huang-Huai-Hai Region. Acta Geographica Sinica, 2012,67(6):771-782.] doi: 10.11821/xb201206005
[31]	席建超, 王首琨, 张瑞英 . 旅游乡村聚落“生产-生活-生态”空间重构与优化——河北野三坡旅游区苟各庄村的案例实证[J]. 自然资源学报, 2016,31(3):425-435.
	[ Xi Jianchao, Wang Shoukun, Zhang Ruiying . Space reconstruction and optimization of "production-living-ecological" in tourist rural settlement: A case study of Gougezhuang Village in Yesanpo tourism district, Hebei province. Journal of Natural Resources, 2016,31(3):425-435.]

一级类		二级类		功能类型
一级编码	名称	二级编码	名称	生产功能	生活功能	生态功能
1	耕地	11	水田	3	0	2
		12	水浇地	2	0	2
		13	旱地	2	0	1
2	园地	21	果园	3	0	3
		22	茶园	3	0	2
		23	其他园地	3	0	2
3	林地	31	有林地	1	0	3
		32	灌木林地	2	0	2
		33	其他林地	1	0	2
4	草地	41	天然牧草地	3	0	3
		42	人工牧草地	2	0	2
		43	其他草地	1	0	2
20	城镇村及工矿用地	201	城市	3	3	-2
		202	建制镇	2	3	-1
		203	村庄	-1	3	0
		204	采矿用地	3	0	-3
		205	风景名胜及特殊用地	2	3	3
10	交通运输用地	101	铁路用地	3	3	-2
		102	公路用地	3	3	-2
		104	农村道路	2	3	-1
		105	机场用地	3	1	-3
		106	港口码头用地	3	1	-3
		107	管道运输用地	3	2	-1
11	水域及水利设施用地	111	河流水面	1	0	3
		112	湖泊水面	1	0	3
		113	水库水面	2	0	1
		114	坑塘水面	2	0	1
		115	沿海滩涂	1	-1	3
		116	内陆滩涂	-1	-1	3
		117	沟渠	2	0	0
		118	水工建筑用地	3	0	-1
		119	冰川及永久积雪	0	0	3
12	其他土地	122	设施农用地	3	1	2
		123	田坎	2	-3	1
		124	盐碱地	2	0	2
		125	沼泽地	0	-2	2
		126	沙地	-3	-2	2
		127	裸地	-2	-3	2

指标	因子载荷		因子得分系数		指标	因子载荷		因子得分系数
	成份		成份			成份		成份
	1	2	1	2		1	2	1	2
教育设施（x₁）	0.777	-0.27	0.188	-0.139	休闲娱乐（x₈）	0.765	0.169	0.041	0.163
医疗设施（x₂）	0.666	0.143	0.037	0.139	土壤质量（x₉）	0.234	0.519	-0.143	0.373
邻里关系（x₃）	0.822	-0.316	0.209	-0.168	河流水质（x₁₀）	0.196	0.494	-0.139	0.353
住房条件（x₄）	0.726	-0.432	0.235	-0.254	空气质量（x₁₁）	0.509	0.218	-0.008	0.181
通信状况（x₅）	0.826	-0.285	0.199	-0.146	植被覆盖（x₁₂）	0.613	0.339	-0.035	0.271
交通状况（x₆）	0.730	0.046	0.077	0.076	噪音（x₁₃）	0.359	0.309	-0.057	0.235
就业状况（x₇）	0.805	0.106	0.067	0.122

	转角（°）	沿x轴的标准差（km）	沿y轴的标准差（km）
生产功能	154.63	12.54	3.59
生活功能	153.29	11.35	2.28
生态功能	153.77	14.48	4.43
“三生”功能	154.07	12.71	3.70
生活质量	152.31	13.05	3.38
