城市群创新联系网络结构与创新效率研究

doi:10.13249/j.cnki.sgs.2020.11.008

摘要/Abstract

摘要：

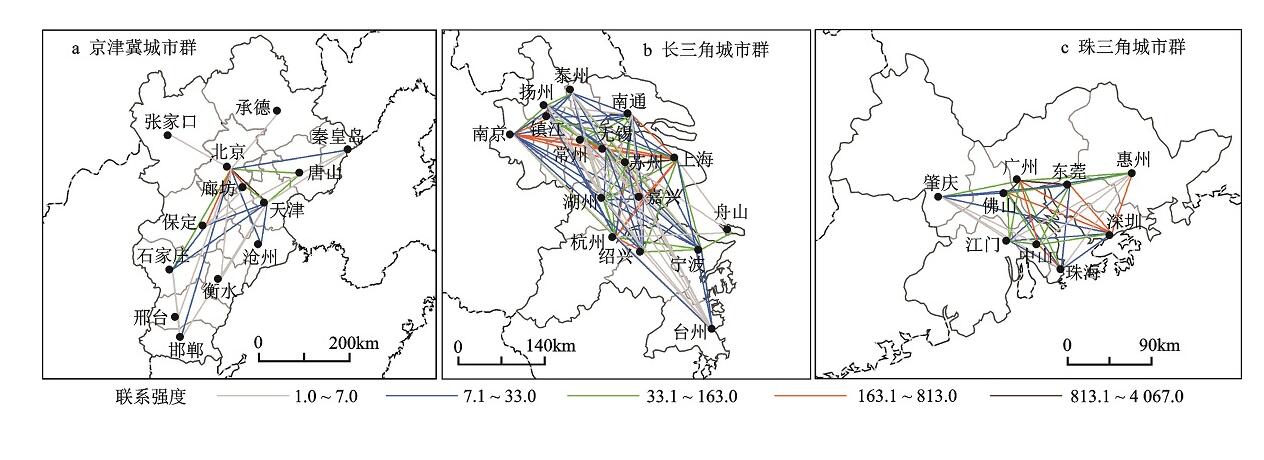

引入修正引力模型、社会网络分析方法、DEA模型以及Tobit模型，探讨2001—2015年京津冀、长三角、珠三角三大城市群的创新联系网络结构对创新效率的影响。研究表明：① 创新联系格局方面，京津冀城市群呈现以“京津”为核心的放射状发展特征，长三角城市群呈现以“Z”字形为主轴的类钻石型空间格局，珠三角城市群形成了以珠江口两侧城市为核心、其他城市为重要节点的空间格局；② 在创新联系网络结构特征方面，京津冀城市群呈极核式发展，群内创新联系高度依赖于核心城市，长三角和珠三角城市群由单中心驱动转变为多中心驱动，呈均衡发展特征，京津冀和珠三角城市群创新联系网络具有“小世界”网络特征；③ Tobit模型回归结果显示，三大城市群中，城市节点在城市群创新联系网络中的中心位置、中介地位、对结构洞的运用能力和集聚程度对其创新效率的影响存在差异。

关键词: 创新联系网络, 网络结构, 创新效率, 城市群

Abstract:

Based on the modified Gravity Model, SNA method, DEA (Data Envelopment Analysis) model and Tobit model, this article analyzes the effect of spatial structure of the innovation linkage network on the innovation efficiency in cities. The main findings of this study are drawn as follows: 1) The innovation linkage showed a radial expansion with the core of Beijing-Tianjin in the Beijing-Tianjin-Hebei (BTH), and a diamond-shaped structure in the Yangtze River Delta (YRD), and in the Pearl River Delta (PRD), the innovation linkage presented a spatial pattern with the cities on both sides of the Pearl River estuary as the core and other cities as important nodes. 2) The innovation linkage network had a polar core development and the innovation linkage highly depended on the core cities in the BTH, but in the YRD and the PRD, the innovation linkage network showed the balanced development from single-center driving to multi-center driving. In addition, the innovation linkage networks in the BTH and PRD were characterized by the ‘small world’. 3) Tobit regression results showed that the central position, betweenness position, occupying capacity of structural holes and agglomeration had different effects on the innovation efficiency in the three urban agglomerations.

Key words: innovation linkage network, network structure, innovation efficiency, urban agglomeration

中图分类号:

K902

盛彦文, 苟倩, 宋金平. 城市群创新联系网络结构与创新效率研究[J]. 地理科学, 2020, 40(11): 1831-1839.

Sheng Yanwen, Gou Qian, Song Jinping. Innovation Linkage Network Structure and Innovation Efficiency in Urban Agglomeration: A Case of the Beijing-Tianjin-Hebei, the Yangtze River Delta and the Pearl River Delta[J]. SCIENTIA GEOGRAPHICA SINICA, 2020, 40(11): 1831-1839.

图/表 7

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Table 1

参考文献 31

[1]	Castells M. The rise of the network society[M]. Oxford: Blackwell, 1996.
[2]	Freeman C. Networks of innovators—A synthesis of research issues[J]. Research Policy, 1991, 20 (5): 499-514. doi: 10.1016/0048-7333(91)90072-X
[3]	Huggins R, Prokop D. Network structure and regional innovation: A study of university industry ties[J]. Urban Studies, 2017, 54 (4): 931-952. doi: 10.1177/0042098016630521
[4]	Tsai W P. Knowledge transfer in intraorganizational networks: Effects of network position and absorptive capacity on business unit innovation and performance[J]. Academy of Management Journal, 2001, 44 (5): 996-1004
[5]	Li E, Li X, Liu Z. Relationships and evolving networks of rural manufacturing clusters: A case study in Yucheng County, Henan Province of China[J]. Chinese Geographical Science, 2011, 21 (3): 364-376. doi: 10.1007/s11769-011-0449-1
[6]	周灿, 曾刚, 王丰龙, 等. 中国电子信息产业创新网络与创新绩效研究[J]. 地理科学, 2017, 37 (5): 661-671
	Zhou Can, Zeng Gang, Wang Fenglong et al. Innovation network structure and innovative performance: A study of China’s electronic information industry[J]. Scientia Geographica Sinica, 2017, 37 (5): 661-671
[7]	焦美琪, 杜德斌, 桂钦昌, 等. 全球城市技术合作网络的拓扑结构特征与空间格局[J]. 地理科学, 2019, 39 (10): 1546-1552
	Jiao Meiqi, Du Debin, Gui Qinchang et al. The topology structure and spatial pattern of global city technical cooperation network[J]. Scientia Geographica Sinica, 2019, 39 (10): 1546-1552
[8]	吕拉昌, 梁政骥, 黄茹. 中国主要城市间的创新联系研究[J]. 地理科学, 2015, 35 (1): 30-37
	Lyu Lachang, Liang Zhengji, Huang Ru. The innovation linkage among Chinese major cities[J]. Scientia Geographica Sinica, 2015, 35 (1): 30-37
[9]	蒋天颖, 谢敏, 刘刚. 基于引力模型的区域创新产出空间联系研究——以浙江省为例[J]. 地理科学, 2014, 34 (11): 1320-1326
	Jiang Tianying, Xie Min, Liu Gang. Spatial linkage of regional innovation output based on gravity model: A case study in Zhejiang Province[J]. Scientia Geographica Sinica, 2014, 34 (11): 1320-1326
[10]	Ma H, Fang C, Pang B et al. Structure of Chinese city network as driven by technological knowledge flows[J]. Chinese Geographical Science, 2015, 25 (4): 498-510. doi: 10.1007/s11769-014-0731-0
[11]	Peng F, Zhang Q, Han Z et al. Evolution characteristics of government-industry-university cooperative innovation network of electronic information industry in Liaoning Province, China[J]. Chinese Geographical Science, 2019, 29 (3): 528-540. doi: 10.1007/s11769-019-1047-x
[12]	段德忠, 杜德斌, 谌颖, 等. 中国城市创新网络的时空复杂性及生长机制研究[J]. 地理科学, 2018, 38 (11): 1759-1768
	Duan Dezhong, Du Debin, Chen Ying et al. Spatial-temporal complexity and growth mechanism of city innovation network in China[J]. Scientia Geographica Sinica, 2018, 38 (11): 1759-1768
[13]	Kraatz M S. Learning by association? Interorganizational networks and adaptation to environmental change[J]. Academy of Management Journal, 1998, 41 (6): 621-643
[14]	Burt R S. Structural holes: The social structure of competition[M]. Cambridge: Harvard University Press, 2009.
[15]	Baptista R, Swann P. Do firms in clusters innovate more?[J]. Research Policy, 1998, 27 (5): 525-540. doi: 10.1016/S0048-7333(98)00065-1
[16]	方创琳, 鲍超, 马海涛. 2016中国城市群发展报告[M]. 北京: 科学出版社, 2016.
	Fang Chuanglin, Bao Chao, Ma Haitao. 2016 China’s urban agglomeration development report. Beijing: Science Press, 2016.
[17]	吕国庆, 曾刚, 郭金龙. 长三角装备制造业产学研创新网络体系的演化分析[J]. 地理科学, 2014, 34 (9): 1051-1059
	Lyu Guoqing, Zeng Gang, Guo Jinlong. Innovation network system of industry-university-research institute of equipment manufacturing industry in the Changjiang River Delta[J]. Scientia Geographica Sinica, 2014, 34 (9): 1051-1059
[18]	王丰龙, 曾刚, 叶琴, 等. 基于创新合作联系的城市网络格局分析——以长江经济带为例[J]. 长江流域资源与环境, 2017, 26 (6): 797-805
	Wang Fenglong, Zeng Gang, Ye Qin et al. Analysis of city network based on innovation cooperation: Case study of Yangtze River Economic Belt[J]. Resources and Environment in the Yangtze Basin, 2017, 26 (6): 797-805
[19]	马双, 曾刚. 网络视角下中国十大城市群区域创新模式研究[J]. 地理科学, 2019, 39 (6): 905-911
	Ma Shuang, Zeng Gang. Regional innovation models of China's ten major urban agglomerations from the perspective of network[J]. Scientia Geographica Sinica, 2019, 39 (6): 905-911
[20]	段德忠, 谌颖, 杜德斌. 技术转移视角下中国三大城市群区域一体化发展研究[J]. 地理科学, 2019, 39 (10): 1581-1591
	Duan Dezhong, Chen Ying, Du Debin. Regional integration process of China’s three major urban agglomerations from the perspective of technology transfer[J]. Scientia Geographica Sinica, 2019, 39 (10): 1581-1591
[21]	Guan J, Zuo K, Chen K et al. Does country-level R & D efficiency benefit from the collaboration network structure?[J]. Research Policy, 2016, 45 (4): 770-784. doi: 10.1016/j.respol.2016.01.003
[22]	毕秀晶. 长三角城市群空间演化研究[D]. 上海: 华东师范大学, 2014.
	Bi Xiujing. Pattern, dynamics and mechanism of spatial evolution in Yangtze River Delta. Shanghai: East China Normal University, 2014.
[23]	刘军. 社会网络分析导论[M]. 北京: 社会科学文献出版社, 2004.
	Liu Jun. An introduction to social network analysis. Beijing: Social Sciences Literature Publishing House, 2004.
[24]	Newman M. The structure and function of complex networks[J]. Siam Review, 2003, 45 (2): 167-256. doi: 10.1137/S003614450342480
[25]	Uzzi B, Spiro J. Collaboration and creativity: The small world problem[J]. American Journal of Sociology, 2005, 111 (2): 447-504. doi: 10.1086/432782
[26]	刘树峰, 杜德斌, 覃雄合, 等. 基于创新价值链视角下中国创新效率时空格局与影响因素分析[J]. 地理科学, 2019, 39 (2): 173-182
	Liu Shufeng, Du Debin, Qin Xionghe et al. Spatial-temporal pattern and influencing factors of China's innovation efficiency based on innovation value chain[J]. Scientia Geographica Sinica, 2019, 39 (2): 173-182
[27]	白俊红, 卞元超. 要素市场扭曲与中国创新生产的效率损失[J]. 中国工业经济, 2016 (11): 39-55
	Bai Junhong, Bian Yuanchao. Factor market distortion and the efficiency losses of Chinese innovative production[J]. China Industrial Economics, 2016 (11): 39-55
[28]	国家统计局, 科学技术部. 中国科技统计年鉴[M]. 北京: 中国统计出版社, 2001-2016.
	National Bureau of Statistics of China, The Ministry of Science and Technology. China statistical yearbook on science and technology. Beijing: China Statistics Press, 2001-2016.
[29]	北京天域北斗图书有限公司, 山东省地图出版社. 中国高速公路及城乡公路网地图集[M]. 济南: 山东省地图出版社, 2001-2015.
	Beijing Tianyu Dipper Book Ltd, Shandong Province Map Press. Chinese highway and road network atlas. Jinan: Shandong Province Map Press, 2001-2015.
[30]	国家统计局. 中国城市统计年鉴[M]. 北京: 中国统计出版社, 2001-2016.
	National Bureau of Statistics of China. China urban statistical yearbook. Beijing: China Statistics Press, 2001-2016.
[31]	Hausman J. Specification tests in econometrics[J]. Econometrica, 1978, 46 (6): 1251-1271. doi: 10.2307/1913827

	PC		WPC		BC		CD		CC		CC²
	Coef.	t	Coef.	t	Coef.	t	Coef.	t	Coef.	t	Coef.	t
注：括号内为t 值； ^*、^、^分别表示1%，5%，10%的显著性水平；Coef.为回归系数；空白为无内容；PC为选取点度中心性；WPC*为加权中心性；BC为中间中心性；CD为限制度；CC为聚类系数；CC²为聚类系数二次方。限于篇幅省略控制变量回归结果。
京津冀城市群	0.524	（2.830）^***	0.393	（0.930）	0.996	（3.020）^***	?0.085	（?2.410）^**	?0.002	（?0.060）
									0.742	（2.190）^*	?0.007	（?2.220）^**
长三角城市群	0.445	（4.35）^***	1.231	（4.02）^***	3.446	（5.390）^***	0.062	（1.210）	?0.067	（?0.870）
									1.342	（0.780）	?0.014	（?0.830）
珠三角城市群	0.383	（3.730）^***	?0.378	（?0.790）	0.808	（2.320）^**	0.301	（2.750）^***	0.073	（1.030）
									0.983	（3.320）^***	?0.009	（?3.16）^***
