1982~2011年北半球中纬度秋季植被绿度变化的主要模态

doi:10.13249/j.cnki.sgs.2014.010.1226

摘要/Abstract

摘要：

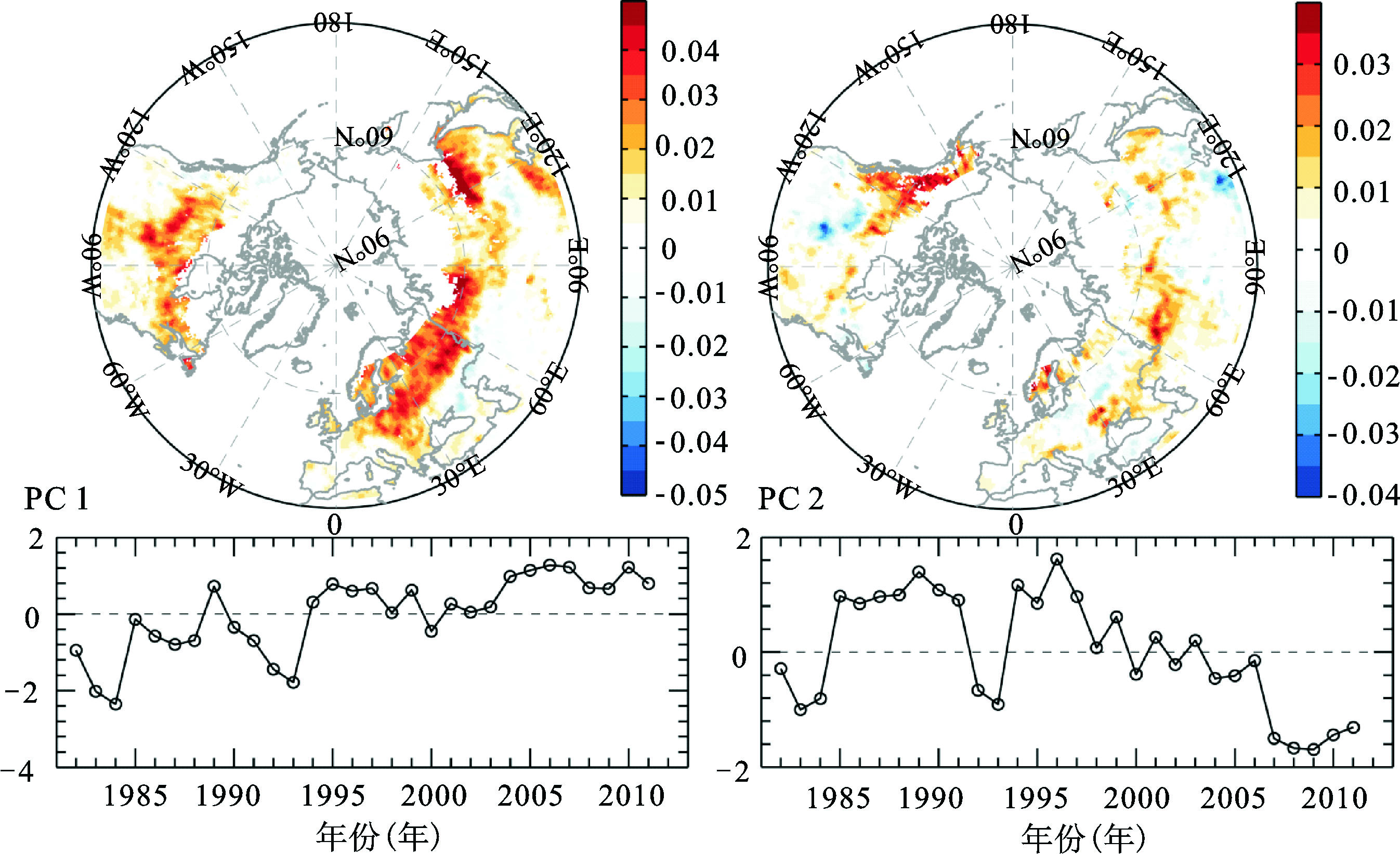

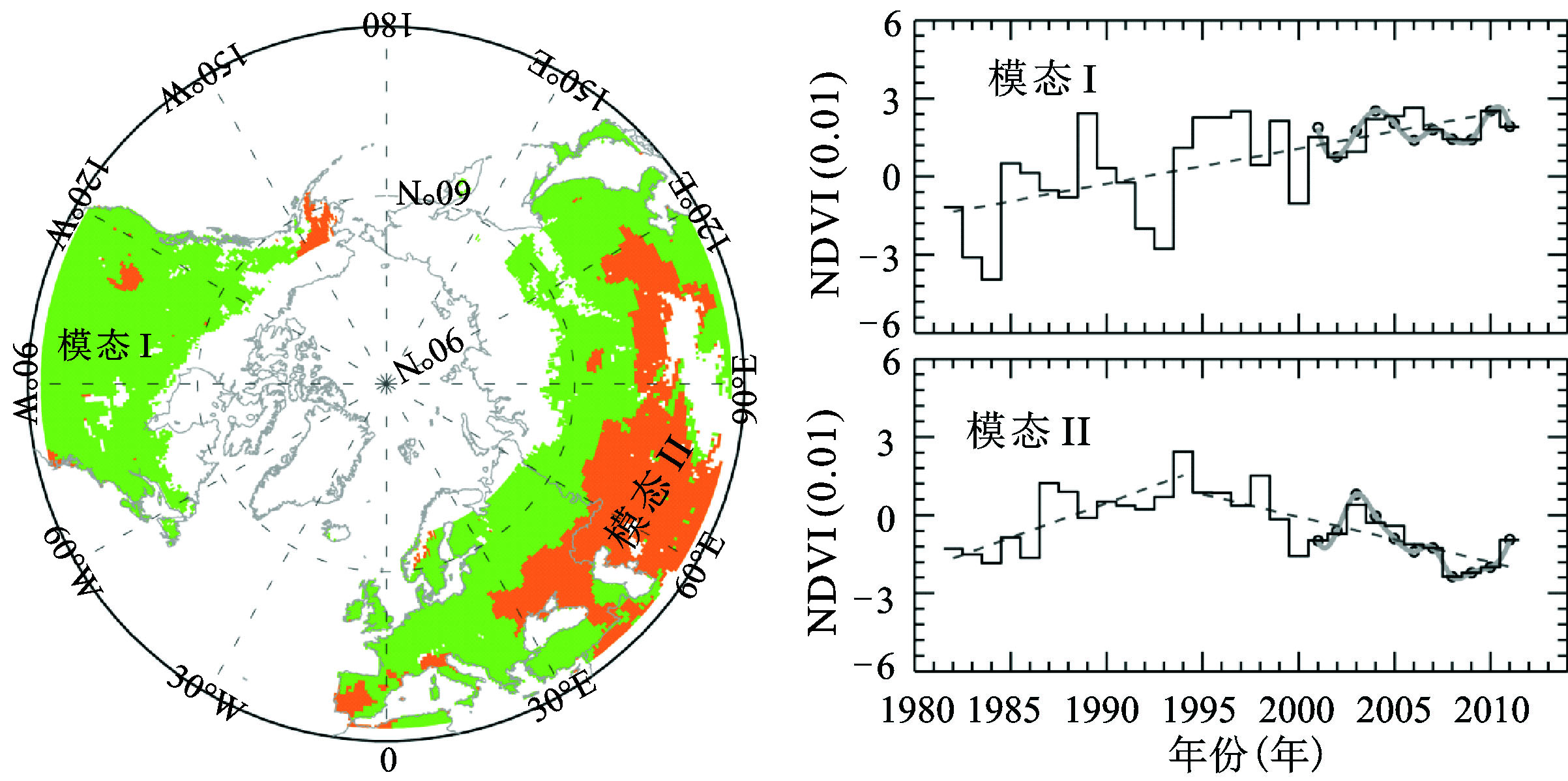

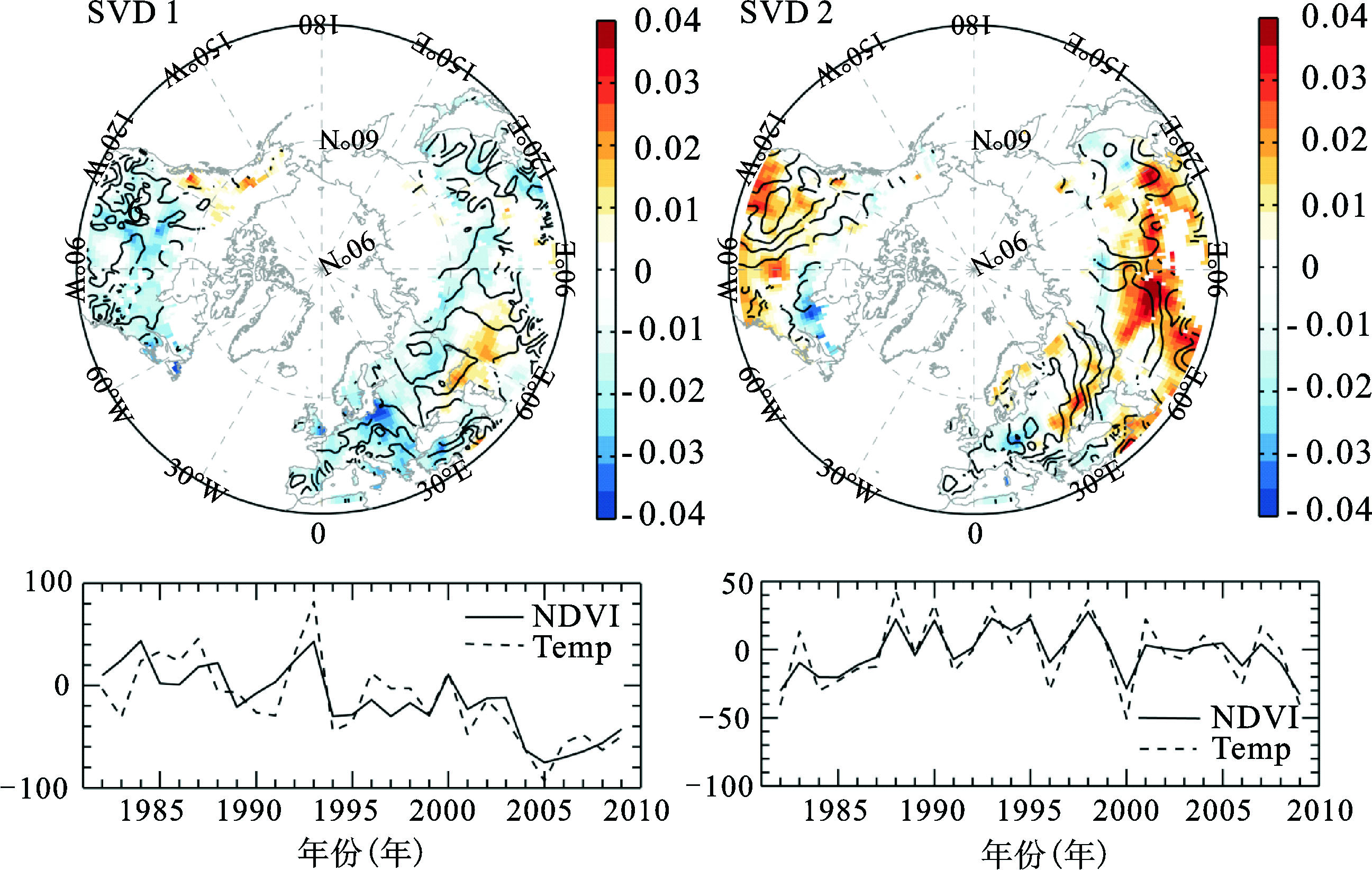

利用系统聚类方法和经验正交函数分解（EOF分析）2种方法,分别提取了北半球中纬度地区1982~2011年秋季（9~11月）归一化差值植被指数（NDVI）变化的主要模态,辨识了植被绿度变化的区域差异;并采用奇异值分解（SVD）的方法,综合时间和空间2个维度上的变异信息,揭示了植被绿度变化的气候背景。结果表明,北半球中纬度秋季植被绿度变化有2种基本模态,一种是持续增加模态（模态I）,该模态广泛分布于北美大陆、亚欧大陆的北半部（大约在55^oN以北）和东西两端,NDVI平均增速为0.014/10a;另一种是趋势转折模态（模态II）,NDVI先增加,后减少,转折点大致出现在1994年,该模态主要出现在亚欧大陆中部,NDVI变化的平均速率分别是0.027/10a和-0.017/10a,其中以40^oE~80^oE最为典型。植被绿度变化与温度变化的时空特征基本一致。模态I区域的温度变化以持续性升高为主要特征,模态II区域的温度变化则以先增加后降低为主要特征,转折年份与NDVI变化的转折年份基本一致。SVD分析的第一模态NDVI与温度的时间系数相关系数为0.82,第二模态为0.92。由此表明,植被绿度变化主导模态可能由温度变化模态所致,在区域-大洲尺度上,温度变化的区域差异导致了秋季植被绿度变化的区域差异。

关键词: 北半球, 植被绿度, 气候变化, 区域差异, 秋季

Abstract:

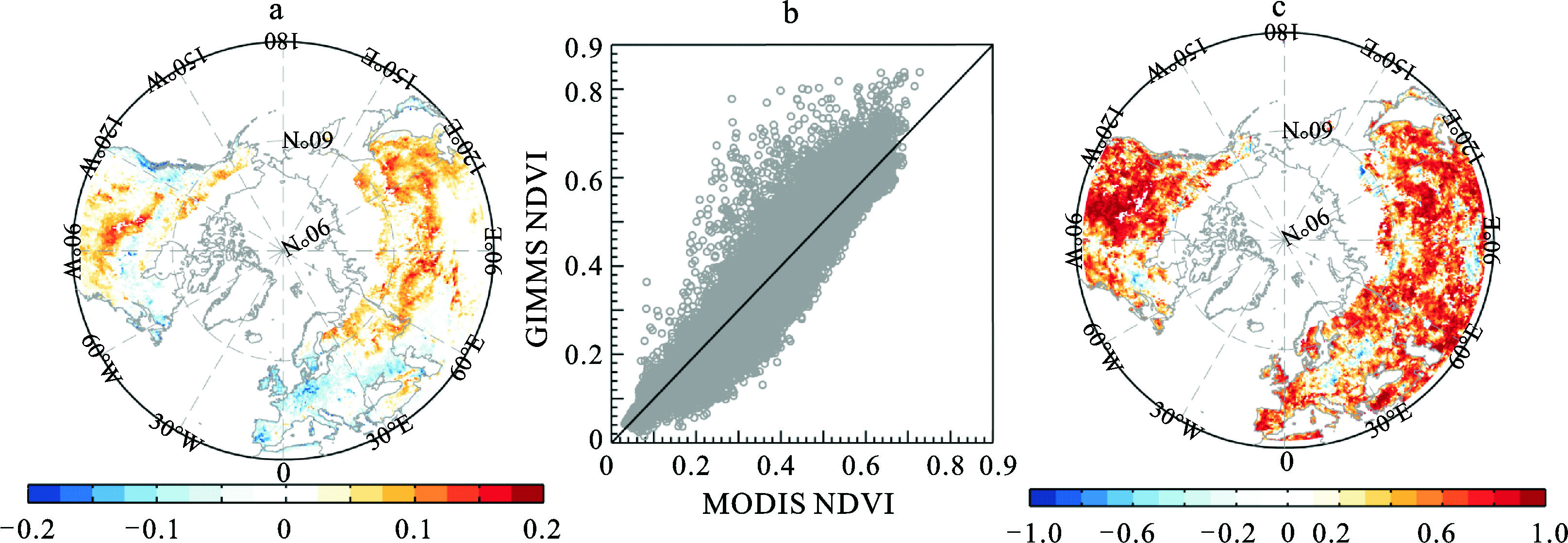

：To understand response of terrestrial ecosystem to climate changes, it is important to study variations in vegetation greenness (VG) under the changing climate. We firstly extend the Advanced Very High Resolution Radiameter (AVHRR)-based Normalized Difference Vegetation Index (NDVI) from 2006 to 2011 by calibrating the Moderate Resolution Imaging Spectroradiometer-based NDVI. Using hierarchical clustering and empirical orthogonal function (EOF) analysis, this study picked out main models of variations of autumn VG (September to November) which was indicate by NDVI from 1982 to 2011. Then, by using Singular Value Decomposition (SVD), we integrated temporal variations and spatial variations of NDVI and temperature to reveal climate background of variations in VG. We found that the MODIS-NDVI captures the main variations of VG as the AVHRR-NDVI; therefore, it is reliable to extend the AVHRR-NDVI with the MODIS-NDVI. Both of cluster analysis and EOF analysis show the variations in autumn VG had two main models. One (model I) was featured by an increasing trend of VG from 1982 to 2011. This model spreads across the North America land, northern part and (west, east) two ends of Eurasia. The mean rate of increase in NDVI was ~0.014 per decade. The other model (model II) was featured by turn of NDVI variations. This model mostly spread in the center area of Eurasia. The turn point of NDVI variations was about 1994. From 1982 to 1994, the NDVI increased at the rate of 0.027 per decade; while, from 1995 to 2011, the NDVI decreased at the rate of 0.017 per decade. EOF analysis as well as illustrates that above two models could explain 21.1% and 8.1% of total variations of NDVI, respectively. The SVD analysis illustrated that variations in NDVI matched well with variations in temperature. In the Model I area, the temperature changes were featured by an increasing trend. The time coefficients of NDVI and temperature had a strong correlation (R=0.82). In the model II area, the temperature changes were featured by a turn point. Before the turn point, temperature increased; after the turn point, temperature decreased. The time coefficients of NDVI and temperature also had a strong correlation (R=0.92). These results suggest that the persisting greening in the Model I area occurred in the climate warming background and conversion from greening to browning in the Model II area co-occurred with the climate changes from warming to cooling. These findings demonstrate that the main models of variations in VG might result from temperature variations. In the continental scale, the spatial heterogeneity of temperature variations resulted in spatial heterogeneity of VG variations.

Key words: North Hemisphere, vegetation greenness, climate changes, regional differences, autumn

中图分类号:

Q948

张学珍. 1982~2011年北半球中纬度秋季植被绿度变化的主要模态[J]. 地理科学, 2014, 34(10): 1226-1232.

Xue-zhen ZHANG. Main Models of Variations of Autumn Vegetation Greenness in the Mid-latitude of North Hemisphere in 1982-2011[J]. SCIENTIA GEOGRAPHICA SINICA, 2014, 34(10): 1226-1232.

图/表 4

参考文献 26

[1]	Fischlin A,Midgley G F,Price J T,et al.Ecosystems, their properties, goods, and services [C]//M L Parry,O F Canziani,J P Palutikof,P J et al.Climate Change 2007: Impacts, Adaptation and Vulnerability. Contribution of Working Group II to the Fourth Assessment Report of the Intergovernmental Panel on Climate Change.Cambridge,Cambridge University Press,2007:211-272.
[2]	Foley J A,Levis S,Costa M H.Incorporating dynamic vegetation cover within global climate models[J]. Ecological Applications,2000,10:1620-1632.
[3]	Mahmood R.Pielke R A,Hubbard K G,et al.Impacts of land use/land cover change on climate and future research priorities[J].Bulletin Of The American Meteorological Society,2010,91(1):37-46.
[4]	Baret F,Guyot G.Potentials and limits of vegetation indices for LAI and APAR assessment[J].Remote Sensing of Environment,1991,35(2-3):161-173.
[5]	Gutman G,Ignatov A.The derivation of the green vegetation fraction from NOAA/AVHRR data for use in numerical weather prediction models[J].International Journal of Remote Sensing,1998,19(8):1533-1543.
[6]	Myneni R B,Hall F B,Sellers P J,et al.The interpretation of spectral vegetation indices[J].IEEE Trans GeoSci Remote Sensing,1995,33:481-486.
[7]	Tucker C J,Slayback D A,Pinzon J E,et al.Higher northern latitude normalized difference vegetation index and growing season trends from 1982 to 1999[J].International Journal of Biometeorology,2001,45:184-190.
[8]	Zhou L,Kaufmann R K,Tian Y,et al.Relation between interannual variations in satellite measures of northern forest greenness and climate between 1982 and 1999[J]. Journal of Geophysical Research,2003,108(D1):4004.
[9]	Park H-S,Sohn B J.Recent trends in changes of vegetation over East Asia coupled with temperature and rainfall variations[J].Journal of Geophysical Research,2010,115,D14101,doi:10.1029/
	2009JD012752.
[10]	Piao S L,Wang X H,Ciais P,et al.Changes in satellite-derived vegetation growth trend in temperate and boreal Eurasia from 1982 to 2006[J].Global Change Biology,2011,17(10),3228-3239.
[11]	Mao J F,Shi X Y,Thornton P E,et al.Causes of spring vegetation growth trends in the northern mid-high latitudes from 1982 to 2004[J].Environmental Research Letters,2012,7,014010, doi:10.1088/1748-9326/7/1/014010
[12]	Wang X H,Piao S L,Ciais P,et al.Spring temperature change and its implication in the change of vegetation growth in North America from 1982 to 2006[J]. Proceedings of the National Academy of Sciences of the United States of America,2011,108(4):1240-1245.
[13]	Jeong S-J,Ho C-H,Gim H-J,et al.Phenology shifts at start vs. end of growing season in temperate vegetation over the Northern Hemisphere for the period 1982-2008[J].Global Change Biology,2011,17:2385-2399.
[14]	Peng S S,Chen A P,LU L,et al.Recent change of vegetation growth trend in China[J]. Environmental Research Letters,2011,6,044027, doi:10.1088/1748-9326/6/4/044027
[15]	Fang J,Piao S L,He J S,et al.Increasing terrestrial vegetation activity in China, 1982-1999[J].Sci China Ser C,2004,47(3): 229-240.
[16]	李洪权,范广洲,周定文,等.青藏高原春季植被变化特征及其对夏季气温的影响[J].地理科学,2008,28(2):259~265.
[17]	郭笑怡,张洪岩.生态地理分区框架下的大兴安岭植被动态研究[J].地理科学,2013,33(2):181~188.
[18]	Huete A, Didan K, Miura T,et al.Overview of the radiometric and biophysical performance of the MODIS vegetation indices[J].Remote Sensing of Environment,2002,83(1-2):195-213.
[19]	Fensholt R and Proud S R.Evaluation of Earth Observation based global long term vegetation trends—Comparing GIMMS and MODIS global NDVI time series[J].Remote Sensing of Environment,2012,119:131-147.
[20]	张清雨,赵东升,吴绍洪,等.基于生态分区的内蒙古地区植被覆盖变化及其影响因素研究[J].地理科学,2013,33(5):594~601.
[21]	包刚,包玉海,覃志豪,等.近10年蒙古高原植被覆盖变化及其对气候的季节响应[J].地理科学,2013,33(5):613~621.
[22]	南颖,刘志锋,董叶辉.2000~2008年长白山地区植被覆盖变化对气候的响应研究[J].地理科学,2010,30(6):921~928.
[23]	Mitchell and Jones.An improved method of constructing a database of monthly climate observations and associated high-resolution grids[J]. International Journal of Climatology,2005,25:693-712.
[24]	Johnson R A and Wichern D W. 陆璇(译).实用多元统计分析[M].北京:清华大学出版社,2001,553~563.
[25]	房之芳,朱克云,范广洲,等.气候物理过程研究[M].北京:气象出版社,2006:209~212.
[26]	徐希孺. 遥感物理[M].北京:北京大学出版社,2005.
